Driving Your Vehicle
Releasing the parking brake
NOTICE
• Do not apply the accelerator pedal
while the parking brake is engaged.
If you depress the accelerator pedal
with the parking brake engaged, a
warning will sound. Damage to the
parking brake may occur.
• Driving with the parking brake on
can overheat the braking system and
cause premature wear or damage to
brake parts. Make sure the parking
brake is released and the Brake
OCN7060010
Warning Light is off before driving.

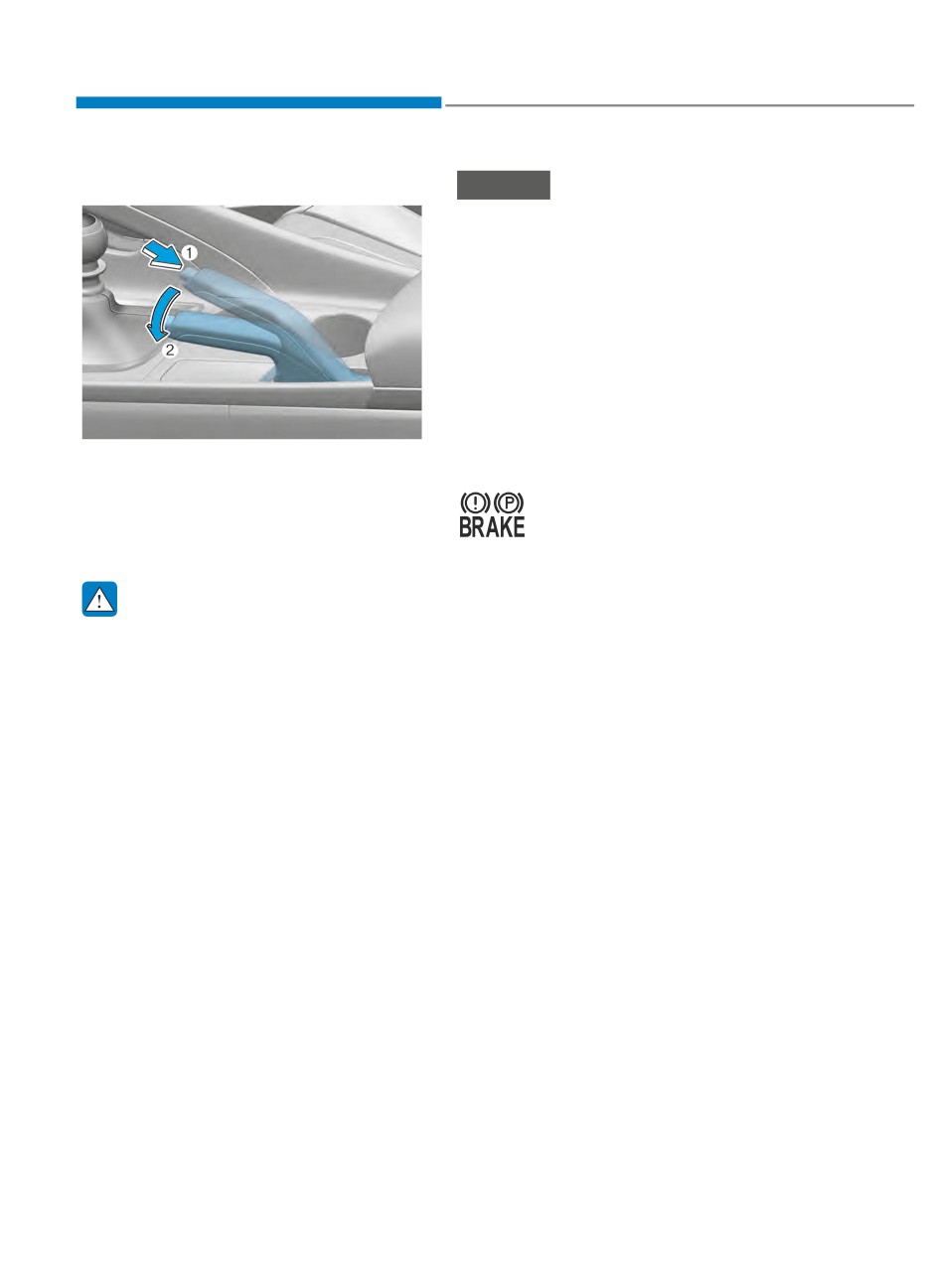

To release:
Firmly depress the brake pedal.
Check the Parking Brake
While pressing the release button (1),
Warning Light by placing the
slightly pull up on the parking brake lever
Engine Start/Stop button to the
then lower the parking brake lever (2).
ON position (do not start the
engine).
WARNING
This light will be illuminated when the
parking brake is applied with the Engine
•
Whenever leaving the vehicle or
Start/Stop button in the START or ON
parking, always come to a complete
position.
stop and continue to depress the
Before driving, be sure the parking brake
brake pedal. Move the shift lever into
is released and the Brake Warning Light
the 1st gear (for manual transmission
is OFF.
vehicle) or P (Park, for dual clutch
transmission vehicle) position, then
If the Parking Brake Warning Light
apply the parking brake, and Set the
remains on after the parking brake is
Engine Start/Stop button in the OFF
released while the engine is running,
position.
there may be a malfunction in the
brake system. Immediate attention is
•
Vehicles with the parking brake not
necessary.
fully engaged are at risk for moving
inadvertently and causing injury to
If at all possible, cease driving the vehicle
yourself or others.
immediately. If that is not possible,
use extreme caution while operating
•
NEVER allow anyone who is
the vehicle and only continue to drive
unfamiliar with the vehicle to touch
the vehicle until you can reach a safe
the parking brake. If the parking
location.
brake is released unintentionally,
serious injury may occur.
•
Only release the parking brake when
you are seated inside the vehicle
with your foot firmly on the brake
pedal.
6-30

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
Anti-lock Brake System (ABS)
Using ABS
To obtain the maximum benefit from
WARNING
your ABS in an emergency situation,
do not attempt to modulate your brake
An Anti-Lock Braking System (ABS) or
pressure and do not try to pump your
an Electronic Stability Control (ESC)
brakes. Depress your brake pedal as hard
system will not prevent accidents
as possible.
due to improper or dangerous driving
maneuvers. Even though vehicle
When you apply your brakes under
control is improved during emergency
conditions which may lock the wheels,
braking, always maintain a safe
you may hear sounds from the brakes,
distance between you and objects
or feel a corresponding sensation in the
ahead of you. Vehicle speeds should
brake pedal. This is normal and it means
always be reduced during extreme
your ABS is active.
road conditions. The braking distance
ABS does not reduce the time or distance
for cars equipped with ABS or ESC
it takes to stop the vehicle.
may be longer than for those without
Always maintain a safe distance from the
these systems in the following road
vehicle in front of you.
conditions.
ABS will not prevent a skid that results
Drive your vehicle at reduced speeds
from sudden changes in direction, such
during the following conditions:
as trying to take a corner too fast or
• Rough, gravel or snow-covered
making a sudden lane change. Always
roads.
drive at a safe speed for the road and
• On roads where the road surface is
weather conditions.
pitted or has different surface height.
ABS cannot prevent a loss of stability.
• Tire chains are installed on your
Always steer moderately when braking
vehicle.
hard. Severe or sharp steering wheel
movement can still cause your vehicle to
The safety features of an ABS or ESC
veer into oncoming traffic or off the road.
equipped vehicle should not be tested
by high speed driving or cornering. This
On loose or uneven road surfaces,
could endanger the safety of yourself or
operation of the anti-lock brake system
others.
may result in a longer stopping distance
than for vehicles equipped with a
ABS is an electronic braking system that
conventional brake system.
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
The ABS warning light (
) will stay on
time.
for several seconds after the Engine
Start/Stop button is in the ON position.
During that time, the ABS will go through
self-diagnosis and the light will go off if
everything is normal. If the light stays on,
you may have a problem with your ABS.
Contact an authorized HYUNDAI dealer
as soon as possible.
6-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
Electronic Stability Control (ESC)
WARNING
Electronic Stability Control (ESC) helps
If the ABS warning light (
) is on and
to stabilize the vehicle during cornering
stays on, you may have a problem with
maneuvers. ESC checks where you are
the ABS. Your power brakes will work
steering and where the vehicle is actually
normally. To reduce the risk of serious
going. ESC applies braking pressure
injury or death, contact your HYUNDAI
to any one of the vehicle's brakes and
dealer as soon as possible.
intervenes in the engine management
system to assist the driver with keeping
CAUTION
the vehicle on the intended path. It is not
a substitute for safe driving practices.
When you drive on a road having poor
Always adjust your speed and driving to
traction, such as an icy road, and apply
the road conditions.
your brakes continuously, the ABS will
be active continuously and the ABS
warning light (
) may illuminate. Pull
WARNING
your car over to a safe place and turn
Never drive too fast for the road
the engine off.
conditions or too quickly when
Restart the engine. If the ABS warning
cornering. The ESC system will not
light is off, then your ABS system is
prevent accidents.
normal.
Excessive speed in turns, abrupt
Otherwise, you may have a problem
maneuvers, and hydroplaning on wet
with your ABS system. Contact an
surfaces can result in severe accidents.
authorized HYUNDAI dealer as soon as
possible.
Information
When you jump start your vehicle because
of a drained battery, the ABS warning
light (
) may turn on at the same
time. This happens because of the low
battery voltage. It does not mean your
ABS is malfunctioning. Have the battery
recharged before driving the vehicle.
6-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

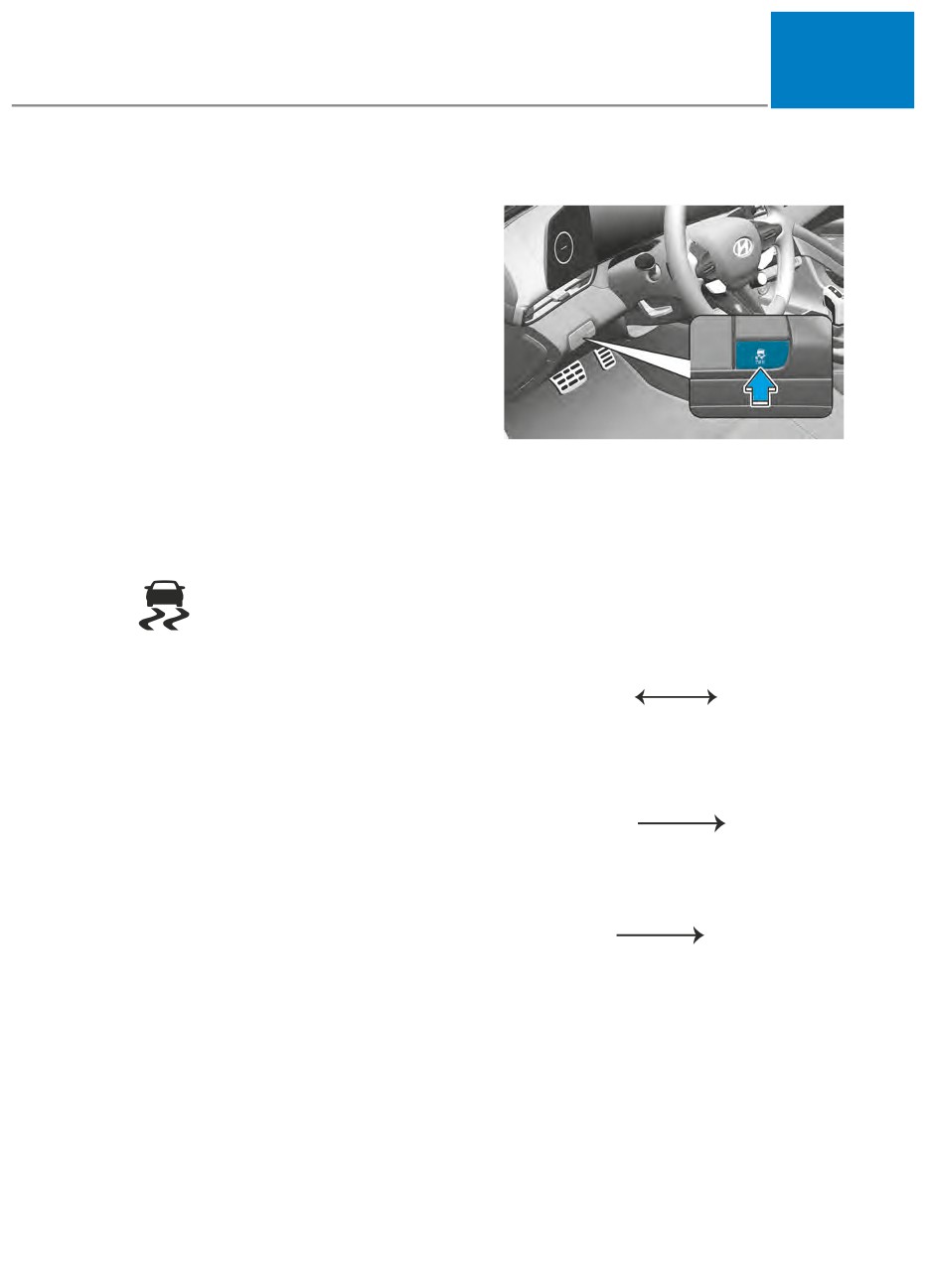

ESC operation
Deactivating / Activating ESC
ESC ON condition
When the engine is turned off and then
on again, ESC operation is enabled,
and it is activated in the ESC operating
mode (not in ESC Sport mode or ESC
OFF mode) regardless of the ESC mode
before turning off the engine.
You may select between the following
state of ESC:
• ESC NORMAL activated (ESC ON)
OCN7N061021N
• ESC SPORT activated (ESC SPORT
You may select between the following
indicator illuminates)
state of ESC:
• ESC deactivated (ESC OFF indicator
• ESC NORMAL activated
illuminates)
• ESC SPORT activated (ESC SPORT
indicator illuminates)
When operating
• ESC deactivated (ESC OFF indicator
When the ESC is in operation,
illuminates)
the ESC indicator light blinks:
Press the ESC OFF
•
When you apply your brakes under
button shortly
conditions which may lock the wheels,
you may hear sounds from the brakes,
ESC NORMAL
ESC SPORT
or feel a corresponding sensation in
the brake pedal. This is normal and it
Press and hold the
means your ESC is active.
ESC OFF button for
•
When the ESC activates, the engine
over 3 seconds
may not respond to the accelerator as
it does under routine conditions.
ESC NORMAL
ESC OFF
ESC SPORT
•
If Cruise Control was in use when
the ESC activates, Cruise Control
Press the ESC OFF
automatically disengages. Cruise
button shortly
Control can be reengaged when the
road conditions allow. See “Cruise
ESC OFF
ESC NORMAL
Control (CC)” in chapter 7.
•
When moving out of the mud or
driving on a slippery road, the engine
RPM (revolutions per minute) may
not increase even if you press the
accelerator pedal deeply. This is to
maintain the stability and traction of
the vehicle and does not indicate a
problem.
6-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
WARNING
• If you deactivate ESC, ESC no longer
stabilizes the vehicle. There is an
increased risk of skidding and an
accident.
• When ESC SPORT mode is activated,
the stability support from ESC will
be less than in "ESC ON mode", there
is a greater risk of skidding and an
accident.
OCN7N061247N
Only deactivate ESC or activate ESC
SPORT in the situations described in the
ESC SPORT
following.
To activate ESC SPORT mode
• Press the ESC OFF button briefly. The
In the following situations, it may
ESC SPORT indicator light illuminates
be better to activate ESC SPORT or
on the cluster LCD display. In this
deactivate ESC (ESC OFF):
state, ESC only stabilizes the vehicle
• When using snow chains
to a limited degree.
• Driving in deep snow
When ESC SPORT mode is activated:
• Driving in sand or gravel
• ESC only improves driving stability to
• Driving on specially designed roads
a limited degree.
where oversteering and understeering
characteristics are desired
• Traction control is still activated, but
with less wheel control (more slip).
We recommend only qualified and
• Engine torque can partially be limited
experienced drivers to drive the vehicle
for the vehicle's stability and the
with the ESC deactivated or ESC SPORT
driving wheel spin may be restricted
activated.
for better traction.
To deactivate ESC SPORT mode
CAUTION
• Press the ESC OFF button briefly. The
After the above situations are over,
ESC SPORT indicator light will go off
activate ESC immediately. If not, the
on the cluster LCD display.
vehicle can be unstable due to vehicle
slip or wheel spin.
6-34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
To deactivate ESC (ESC OFF)

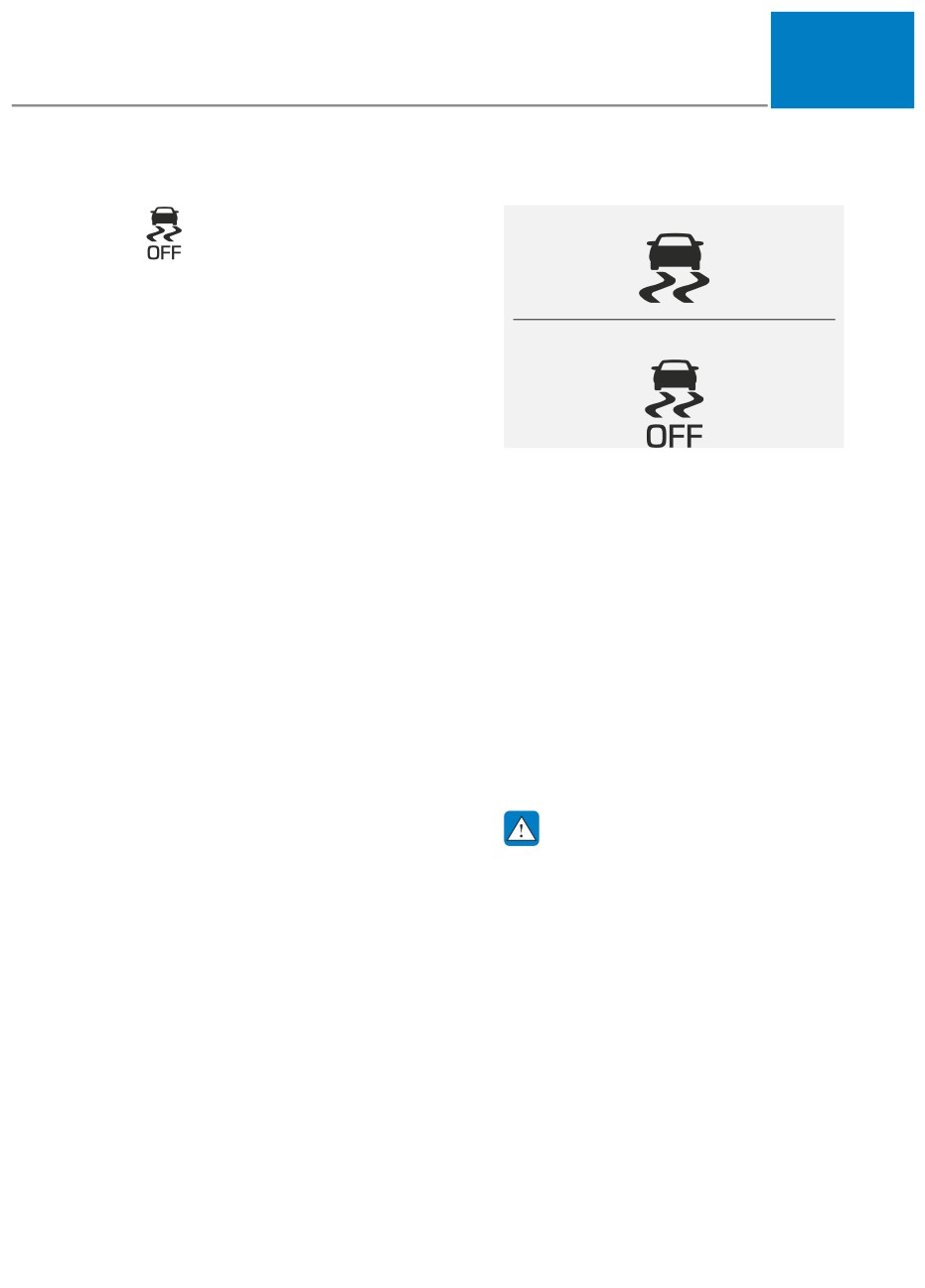

Indicator lights
Press and hold the ESC OFF
Ŷ ESC indicator light (blinks)
button continuously for more
than 3 seconds. The ESC OFF
indicator light and message
"Traction & Stability Control
disabled" illuminates and a
warning chime sounds. In
Ŷ ESC OFF indicator light (comes on)
this state, both the traction
control function of ESC (engine
management) and the brake
control function of ESC (braking
management) are disabled. To
activate the ESC again, briefly
press the ESC OFF button. The
When the Engine Start/Stop button is
ESC OFF indicator light will go
in the ON position, the ESC indicator
off.
light illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
the ESC is operating.
If the ESC indicator light stays on, your
vehicle may have a malfunction with
the ESC system. When this warning light
illuminates, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
The ESC OFF indicator light comes on
when the ESC is turned off with the
button.
WARNING
When the ESC is blinking, this indicates
the ESC is active:
Drive slowly and NEVER attempt to
accelerate. NEVER turn the ESC off
while the ESC indicator light is blinking
or you may lose control of the vehicle
resulting in an accident.
6-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
NOTICE
Information
Driving with wheels and tires with
Turning the ESC off does not affect ABS
different sizes may cause the ESC
or standard brake system operation.
system to malfunction. Before replacing
tires, make sure all four tires and wheels

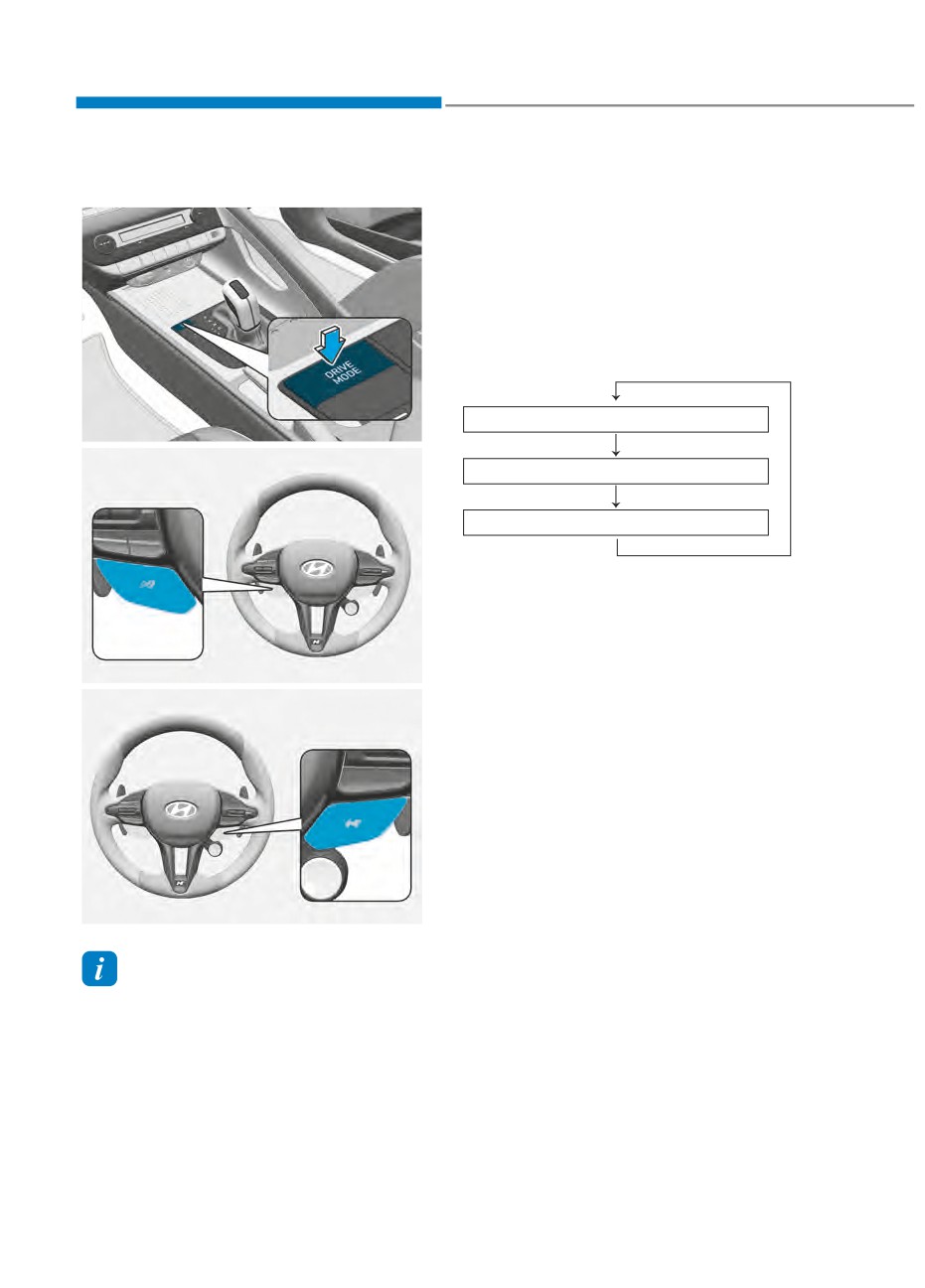

Drive mode selection
are the same size. Never drive the
vehicle with different sized wheels and
When the ESC is on, the characteristic
tires installed.
of ESC varies according to which drive
mode is selected by pressing the DRIVE
MODE or N1 or N2 button on the steering
WARNING
wheel.
Don't use ESC SPORT mode or ESC OFF
Mode
Selected
Characteristic
while using a minispare tire or a tire
button
mode
of ESC
repair kit is in use!
ECO mode
NORMAL
ESC OFF usage
DRIVE
NORMAL
NORMAL
When Driving
MODE
mode
button
SPORT
The ESC OFF mode should only be used
NORMAL
briefly to help free the vehicle if stuck in
mode
snow or mud, by temporarily stopping
operation of the ESC, to maintain wheel
N mode
SPORT
torque.
N button
To turn ESC off while driving, press the
N CUSTOM
NORMAL/
ESC OFF button while driving on a flat
mode
SPORT/OFF
road surface.
For more details, refer to "Drive Mode
Integrated Control System" in this
NOTICE
chapter.
To prevent damage to the transmission:
• Do not allow wheel(s) of one axle to
spin excessively while the ESC, ABS,
and parking brake warning lights
are displayed. The repairs would not
be covered by the vehicle warranty.
Reduce engine power and do not
spin the wheel(s) excessively while
these lights are displayed.
• When operating the vehicle on
a dynamometer, make sure the
ESC is turned off (ESC OFF light
illuminated).
6-36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
CUSTOM mode
Vehicle Stability Management
You may select the drive mode you
(VSM)
prefer from the infotainment system
The Vehicle Stability Management (VSM)
screen.
is a function of the Electronic Stability
• From the CUSTOM mode menu, select
Control (ESC) system. It helps ensure the
'ESC → NORMAL / SPORT / OFF'.
vehicle stays stable when accelerating
• You may directly go to the CUSTOM
or braking suddenly on wet, slippery
mode menu by touching the
and rough roads where traction over the
infotainment system screen. For
four tires can suddenly become uneven.
more details, refer to the separately
supplied infotainment system manual.
WARNING
Take the following precautions when
using the Vehicle Stability Management
(VSM):
• ALWAYS check the speed and the
distance to the vehicle ahead. The
VSM is not a substitute for safe
driving practices.
• Never drive too fast for the road
conditions. The VSM system will not
prevent accidents. Excessive speed
in bad weather, on slippery and
OOSN061033L
uneven roads can result in severe
When N1 or N2 button is set to CUSTOM
accidents.
mode, you cannot turn CUSTOM mode
on by pressing either N1 or N2 button if
ESC OFF setting is saved within CUSTOM
mode. If N1 or N2 button is pressed, a

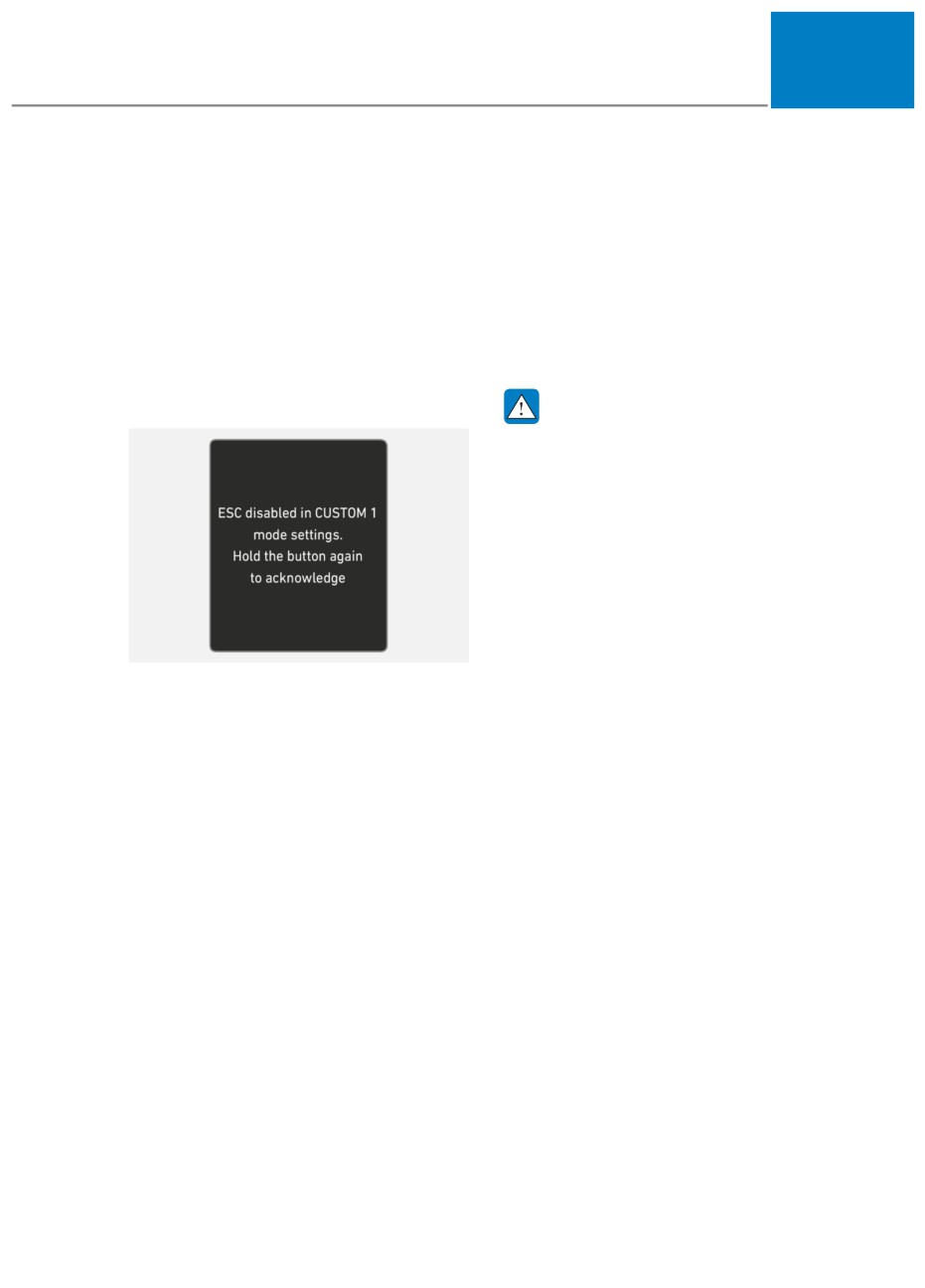

message "ESC disabled in CUSTOM 1 (or
2) mode settings. Hold the button again
to acknowledge" appears on the cluster
LCD display. To turn on CUSTOM mode
with ESC OFF setting, press and hold N1
or N2 button.
6-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
VSM operation
WARNING
When operating
If ESC indicator light (
) or EPS
When you apply your brakes under
warning light (
) stays on or blinks,
conditions which may activate the ESC,
your vehicle may have a malfunction
you may hear sounds from the brakes,
with the VSM system. When the
or feel a corresponding sensation in the
warning light illuminates, have your
brake pedal. This is normal and it means
vehicle checked by an authorized
your VSM is active.
HYUNDAI dealer as soon as possible.
Driving with wheels and tires with
Information
different sizes may cause the ESC system
The VSM does not operate when:
to malfunction. Before replacing tires,
• Driving through banked corners might
make sure all four tires and wheels are
result in a ESC system shut down,
the same size. Never drive the vehicle
due to system self-diagnostics and an
with different sized tires and wheels
assumption of a sensor failure.
installed.
In the next ignition cycle, the ESC
system is available again.
Hill-Start Assist Control (HAC)
• Driving in reverse.
The Hill-Start Assist Control (HAC)
helps prevent the vehicle from rolling
• The ESC OFF indicator light is on.
backwards when starting a vehicle from
• The EPS (Electric power steering)
a stop on a hill. The system operates the
warning light (
) is on or blinks.
brakes automatically for approximately
2 seconds and releases the brake after 2
seconds or when the accelerator pedal is
WARNING
depressed.
If the ESC indicator light (
) or EPS
warning light (
) stays illuminated
or blinks, your vehicle may have a
WARNING
malfunction with the VSM system.
Always be ready to depress the
When the warning light illuminates,
accelerator pedal when starting off on
have your vehicle checked by an
a incline. The HAC activates only for
authorized HYUNDAI dealer as soon as
approximately 2 seconds.
possible.
NOTICE
NOTICE
• The HAC does not operate when the
Driving with wheels and tires with
shift lever is in P (Park) or N (Neutral)
different sizes may cause the VSM
• The HAC activates even though the
system to malfunction. Before replacing
ESC (Electronic Stability Control) is
tires, make sure all four tires and wheels
off but does not activate when the
are the same size. Never drive the
ESC has malfunctioned.
vehicle with different sized tires and
wheels installed.
6-38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
Good Braking Practices
CAUTION
Brake override system
WARNING
The system assists safe deceleration by
Whenever leaving the vehicle or
reducing the engine power when the
parking, always come to a complete
accelerator pedal is jammed or stuck
stop and continue to depress the brake
and when you continue depressing the
pedal. Move the shift lever into P (Park)
brake pedal.
position, then apply the parking brake,
However, the system is deactivated
and set the Engine Start/Stop button in
when ESC is OFF in N mode. (Gear shift
the OFF position.
lever should stay in manual position.)
Vehicles parked with the parking brake
When the system is disabled, the brake
not applied or not fully engaged may
distance may be longer than when the
roll inadvertently and may cause injury
system is activated.
to the driver and others. ALWAYS apply
the parking brake before exiting the
vehicle.
Wet brakes can be dangerous! The
brakes may get wet if the vehicle is
driven through standing water or if it
is washed. Your vehicle will not stop as
quickly if the brakes are wet. Wet brakes
may cause the vehicle to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns to
normal, taking care to keep the vehicle
under control at all times. If the braking
action does not return to normal, stop
as soon as it is safe to do so and call
an authorized HYUNDAI dealer for
assistance.
DO NOT drive with your foot resting on
the brake pedal. Even light, but constant
pedal pressure can result in the brakes
overheating, brake wear, and possibly
even brake failure.
If a tire goes flat while you are driving,
apply the brakes gently and keep the
vehicle pointed straight ahead while you
slow down. When you are moving slowly
enough for it to be safe to do so, pull off
the road and stop in a safe location.
Keep your foot firmly on the brake pedal
when the vehicle is stopped to prevent
the vehicle from rolling forward.
6-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
ELECTRONIC CONTROL SUSPENSION (ECS)
The Electronic Control Suspension
(ECS) controls the vehicle suspension
automatically to maximize driving
comfort by taking into account the
driving conditions such as speed,
surface of the road, cornering, stopping
requirements and acceleration.
System malfunction
OOSN061011L

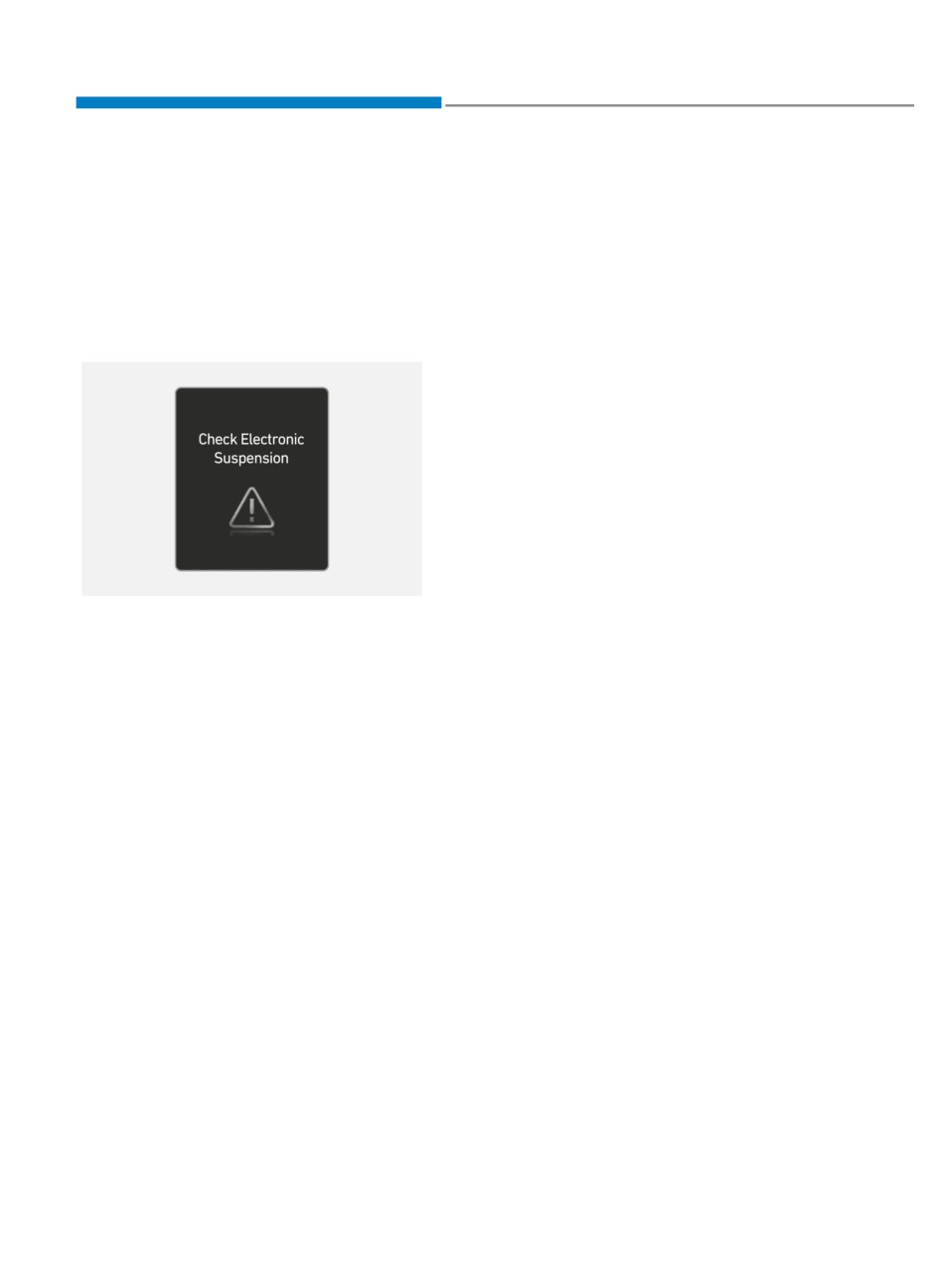

Check Electronic Suspension
When Electronic Control Suspension
is not working properly, this warning
message will appear on the cluster LCD
display. If this occurs, have the system
inspected by an authorized HYUNDAI
dealer.
6-40

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
ELECTRONIC LIMITED SLIP DIFFERENTIAL
Electronic Limited Slip Differential refers
CUSTOM mode
to a feature equipped with a mechanism
You may select the drive mode you
that controls the differential functions of
prefer from the infotainment system
the wheels.
screen.
•
From the CUSTOM mode menu, select
The Electronic Limited Slip Differential
'e- LSD → NORMAL/SPORT'.
helps:
•
You may directly go to the CUSTOM
• Improve handling performance when
mode menu by touching the
circling at high speed.
infotainment system screen. For
• Improve launching performance.
more details, refer to the separately
• Prevent slipping on rainy or snowy
supplied infotainment system manual.
roads due to dissimilar friction of the
left and right wheels.
WARNING
Never run wheels with one of them
lifted by the jack. It is extremely
dangerous for a vehicle equipped with
Electronic Limited Slip Differential.
Drive mode selection
The characteristic of e-LSD varies
according to which drive mode is
selected by pressing the DRIVE MODE or
N1 or N2 button on the steering wheel.
Mode
Selected
Characteristic
button
mode
of e-LSD
ECO mode
NORMAL
DRIVE
NORMAL
NORMAL
MODE
mode
button
SPORT
SPORT
mode
N mode
SPORT
N button
N CUSTOM
NORMAL/
mode
SPORT
For more details, refer to "Drive Mode
Integrated Control System" in this
chapter.
6-41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
Warning messages
System malfunction
OOSN061013L
OOSN061015L

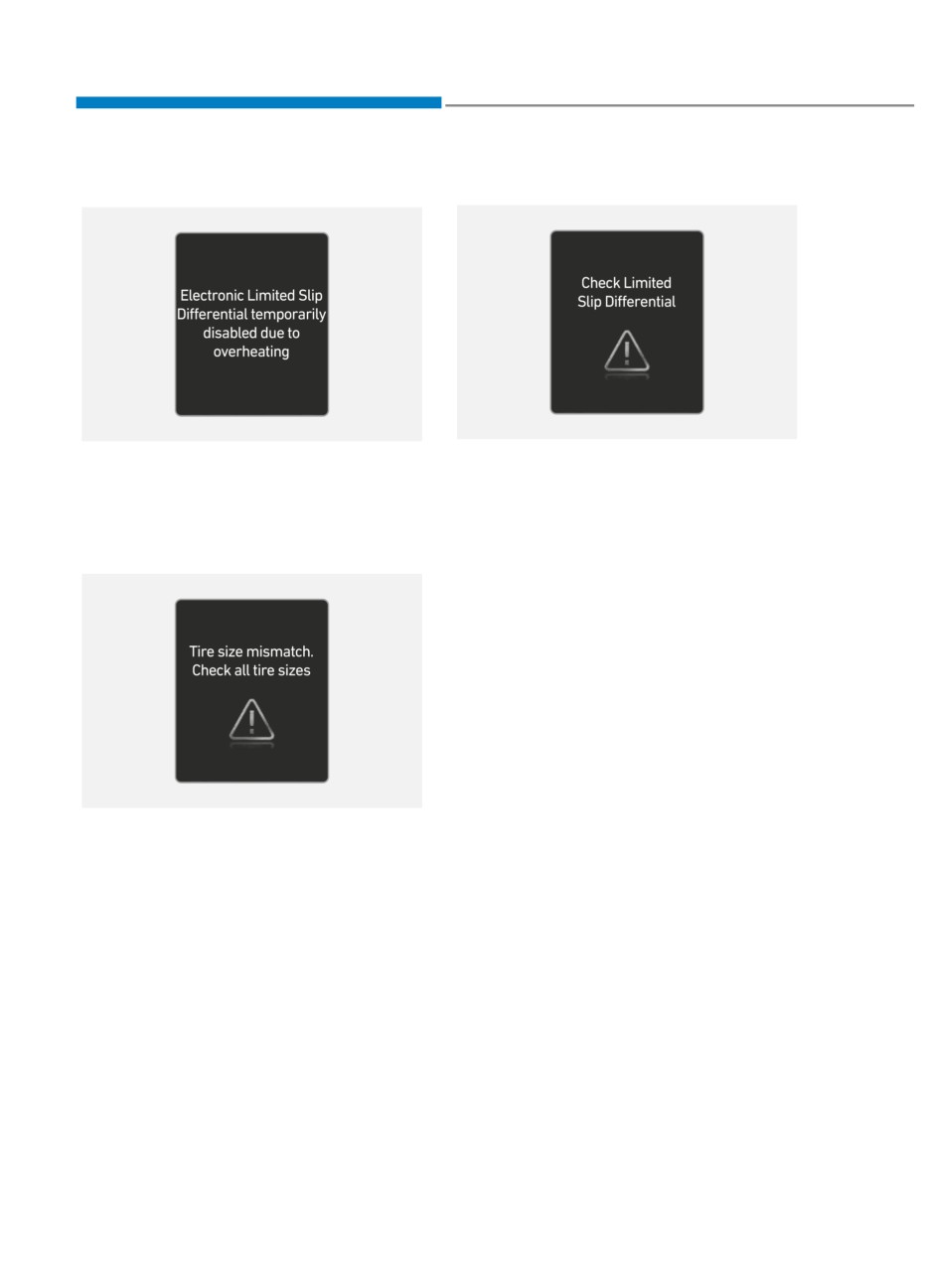

Electronic Limited Slip Differential
Check limited slip differential
disabled temporarily due to overheating
If the Electronic Limited Slip Differential
Overheating of related parts will
warning message comes on, you may
temporarily disable e-LSD. Wait until the
have a problem with the Electronic
vehicle cools down.
Limited Slip Differential system. We
recommend that you have the system
checked by an authorized HYUNDAI
dealer
OOSN061014L
Tire size mismatch. Check all tire sizes
If your vehicle is equipped with different
tires (size, type, etc.) on the front,
the message will appear. To use the
Electronic Limited Slip Differential, equip
the vehicle with the same tires on the
front.
6-42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
N BUTTON
N1/N2 Button Settings
N1 button
N1 button
OCN7N061230L
N2 button
OCN7N061208
N2 button
OCN7N061231L

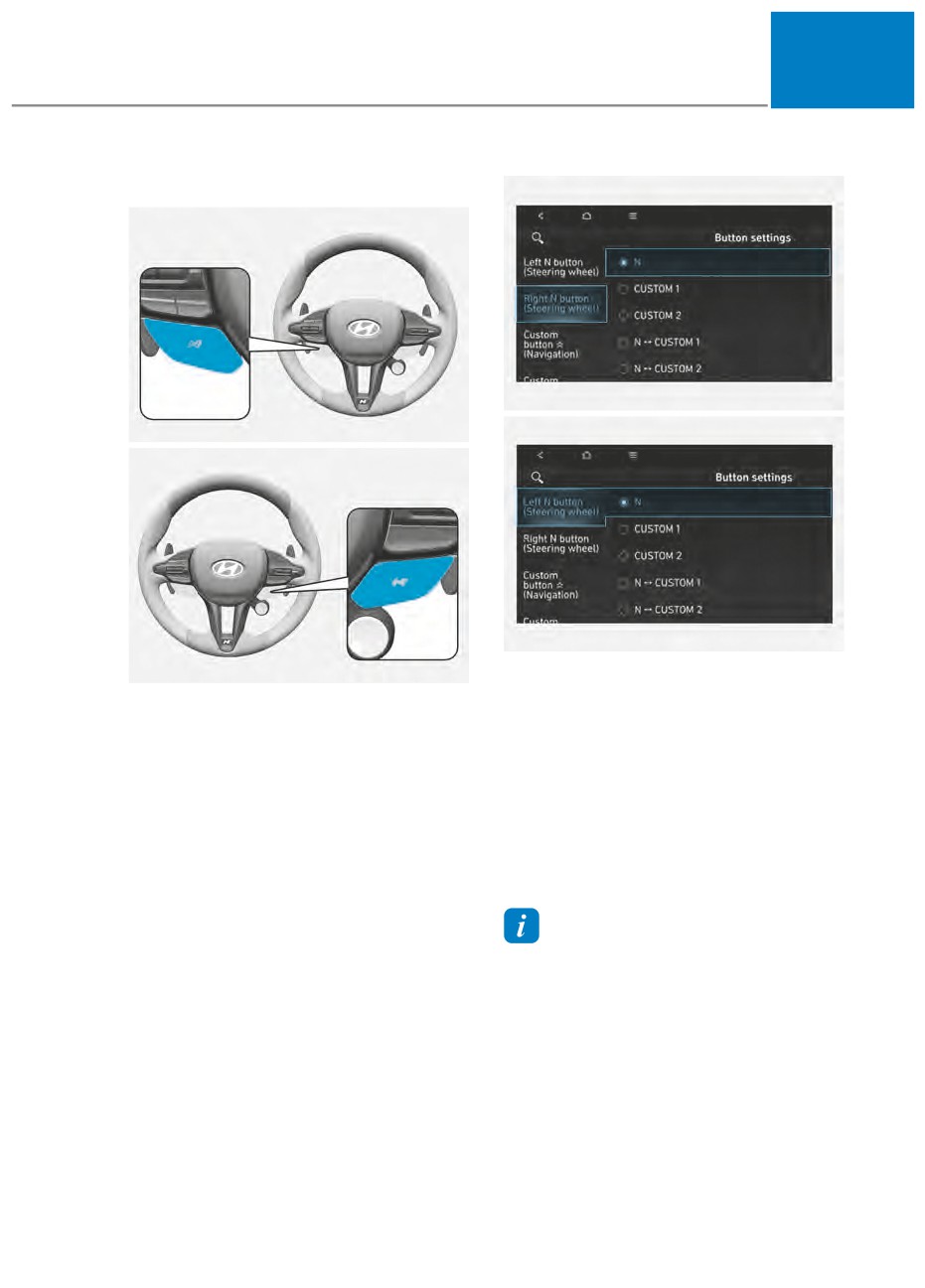

Each of the N1/N2 button can be set:
OCN7N071130L
N1 button: Left N button,
1. N
N2 button: Right N button
2. CUSTOM 1
The driver can set the N1/N2 button
3. CUSTOM 2
on the infotainment system screen by
4. N CUSTOM 1
pressing the button approximately 0.8
5. N CUSTOM 2
seconds.
6. DRIVE MODE
7. Start/Record Lap Timer
8. End/Reset Lap Timer
Information
The same setting can be selected
simultaneously on both N1 and N2 button.
However, if the N1(N2) button is set to
‘(7) Start/Record Lap Timer’, the N2(N1)
button is automatically set to ‘(8) End/
Reset Lap Timer’.
For more details, please refer to the
infotainment system manual separately
supplied.
6-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
DRIVE MODE INTEGRATED CONTROL SYSTEM
Drive Mode
The drive mode may be selected
according to the driver’s preference or
Drive mode button
road condition.
The system resets to be in the NORMAL
mode, when the engine is restarted.
The mode changes, whenever the N1 or
N2 button on the steering wheel or the
Drive mode button is pressed.
NORMAL
OCN7N061254L
N1 button
SPORT
ECO
When NORMAL mode is selected, it is
not displayed on the instrument cluster.
OCN7N061208
N2 button
OCN7N071130L
Information
If N1 or N2 button is set to ‘Drive mode’
from the infotainment system, the drive
mode can be selected by pressing N1 or N2
button.
For more details, please refer to the
infotainment system manual separately
supplied.
6-44

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
When the Drive Mode is set
Limitation of ECO mode operation:
to ECO mode, the engine and
If the following conditions occur while
transmission control logic are
ECO mode is operating, the system
changed to maximize fuel
operation is limited even though there is
efficiency.
no change in ECO indicator.
• When the ECO mode is selected, the
•
When the coolant temperature is low:
ECO indicator will illuminate.
The system will be limited until engine
• If the vehicle is set to ECO mode,
performance becomes normal.
when the engine is turned OFF and
•
When driving up a hill:
restarted, the Drive Mode setting will
change to NORMAL mode.
The system will be limited to gain
power when driving uphill because
engine torque is restricted.
Information
The system will be limited due to the
Fuel efficiency depends on the driver’s
shift location.
driving habit and road condition.
•
When the accelerator pedal is deeply
depressed for a few seconds:
When ECO mode is activated:
The system will be limited, judging
• The acceleration response may be
that the driver wants to speed up.
slightly reduced as the accelerator
pedal is depressed moderately.
• The air conditioner performance may
be limited.
• The engine noise may get louder.
The above situations are normal
conditions when ECO mode is activated,
to improve fuel efficiency.
6-45

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
SPORT mode
N Mode
SPORT mode manages

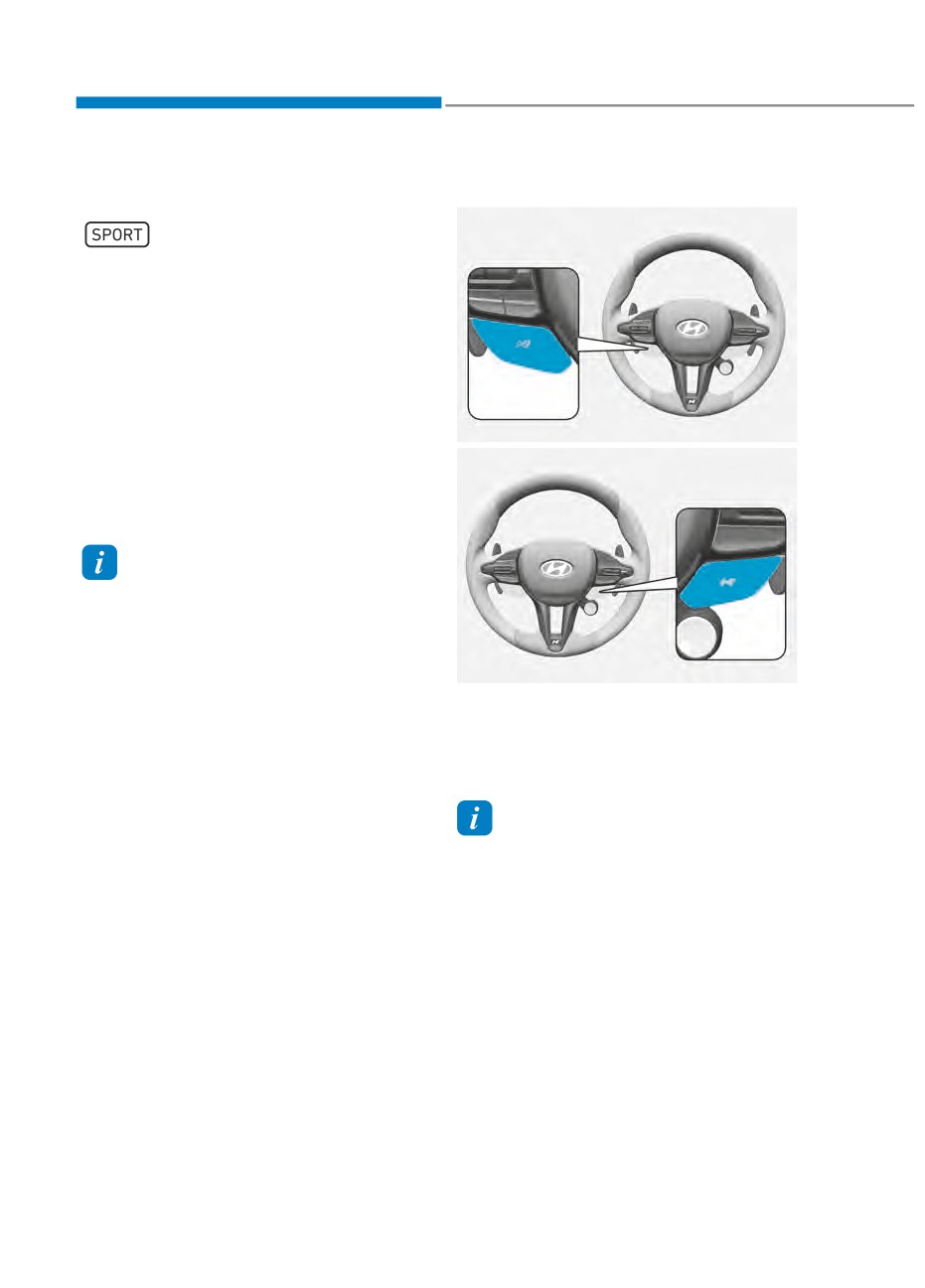

N1 button
the driving dynamics by
automatically adjusting the
steering effort, the engine and
transmission control logic for
enhanced driving performance.
• When SPORT mode is selected by
pressing the DRIVE MODE button, the
SPORT indicator will illuminate.
• When SPORT mode is activated:
- The engine RPM will tend to remain
OCN7N061208
raised over a certain length of time
N2 button
even after releasing the accelerator
- Upshifts are delayed when
accelerating
Information
In SPORT mode, the fuel efficiency may
decrease.
OCN7N071130L
N mode may be selected by pressing the
N1 or N2 button.
The system resets to be in the NORMAL
mode, when the engine is restarted.
Information
The driver can set the N1 or N2 button to
N mode on the infotainment system screen.
For more details on N1 or N2 button
setup, refer to “N button” in this chapter.
6-46

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
N mode
CUSTOM mode
N mode selects the proper
The driver can set the two
driving mode among SPORT
types of CUSTOM mode
and SPORT+ for each
(CUSTOM 1/CUSTOM 2). In
components that will effect
CUSTOM mode, they can
the performance of a high-
select the drive mode for each
performance vehicle.
component they prefer on the
infotainment system screen.
• When N mode is selected, the N
indicator will illuminate.
• Engine : NORMAL/SPORT/ SPORT+
• N mode (SPORT/SPORT+) manages
• Transmission : NORMAL/SPORT/
the driving dynamics by automatically
SPORT+ (For DCT)
adjusting the steering effort, and the
- CREEP START function*1 ON/OFF
engine and transmission control logic
• E-LSD (Electronic Limited Slip
for enhanced driver performance.
Differential) : NORMAL/SPORT
• When N mode (SPORT/SPORT+) is
• Suspension : NORMAL/SPORT/
activated:
SPORT+
- The engine RPM will tend to remain
• Steering : NORMAL/SPORT/ SPORT+
raised over a certain length of time
even after releasing the accelerator
• ESC (Electronic Stability Control) :
NORMAL/SPORT/OFF
- Upshifts are delayed when
accelerating
• Exhaust sound : NORMAL/ SPORT/
SPORT+
*1 CREEP START function (default setting
Information
ON) : When OFF is set, vehicle will not
In SPORT mode, the fuel efficiency may
start automatically even if the brake
decrease.
pedal is not pressed in D stop state.
For more details, refer to the
infotainment system manual separately
supplied.
6-47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
NGS (N Grin Shift)
Activated
Non-operating
Controls engine / transmission to
maximum performance when pressing
NGS button on the steering wheel
remote control in situations where rapid
acceleration is required.
Functional description and
operating conditions
OJSN040333
OOSN061052N
CAUTION
•
The driver should hold the
responsibility to safely drive and
control the vehicle when using N
Grin Shift.
•
Do not attempt dangerous driving
while using N Grin Shift.
OCN7N061188
•
It is recommended to use after
When NGS button is pressed:
vehicle break-in and continuous
• Automatically shifts to the lowest
use of N Grin Shift can overload
allowable gear (Automatic shifting is
the vehicle components such as
not performed in manual shift mode)
transmission, engine and drive shaft.
• Turbo is in overboost mode (number
can be added as well)
• N Grin Shift is available for 20 Seconds
• N Grin Shift can be reused 40 seconds
later after using the function for 20
seconds
N Grin Shift will turn off during operation
or will not operate when:
• Changing Drive-mode during N Grin
Shift operation
• Engine check light is on
• Transmission high temperature
(overheating) lights on
• Transmission malfunction
• Shift lever is in P/ R/ N
• Using N Grin Shift within 40 seconds
after using the function for 20
seconds
6-48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
Vehicle Characteristic
The characteristic of each components varies according to which drive mode is
selected by pressing the N1 or N2 button on the steering wheel or the DRIVE MODE
button.
DRIVE MODE Button
MT
Component
ECO mode
NORMAL mode
SPORT mode
Engine
ECO
NORMAL
SPORT
Engine &
Rev matching
OFF
NORMAL
SPORT
Driving
e-LSD*1
NORMAL
NORMAL
SPORT
Suspension
NORMAL
NORMAL
SPORT
Chassis
Steering
NORMAL
NORMAL
SPORT
ESC *2
NORMAL
NORMAL
NORMAL
Sound
Exhaust sound *3
ECO
NORMAL
SPORT
N mode
MT
Component
REV Button
N mode
CUSTOM mode
Engine
SPORT+
NORMAL / SPORT / SPORT+
SPORT+
Engine &
Rev matching
SPORT+
OFF / NORMAL / SPORT / SPORT+
SPORT+
Driving
e-LSD*1
SPORT
NORMAL / SPORT
Maintain
Suspension
SPORT+
NORMAL / SPORT / SPORT+
mode before
Chassis
Steering
SPORT+
NORMAL / SPORT / SPORT+
entering NGS
ESC *2
SPORT
NORMAL / SPORT / OFF
Exhaust sound
Sound
*3
SPORT+
NORMAL / SPORT / SPORT+
SPORT+
*1 : Electronic Limited Slip Differential
*2 : Electronic Stability Control
*3 : The volume of the exhaust sound made by the exhaust gas flap (if equipped) changes
according to the mode selected. [Quietest] ECO/NORMAL mode < SPORT mode < N
mode [Loudest]
An exhaust crackle sound, to deliver emotional effect, is produced while driving
when the accelerator pedal is released right after being depressed. This exhaust
sound effect will be heard when SPORT+ is selected for the Sound component. To
urn it off, select NORMAL or SPORT for the Engine component in CUSTOM mode.
Please be aware and be mindful when using exhaust sound system in SPORT+ mode
as the pops and bangs can cause disturbance to your neighbors when using it in
a crowded public area, closed parking spaces, and/or residential area.We strongly
recommend to use it with consideration.
MT : Manual Transmission
6-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
DRIVE MODE Button
DCT
Component
ECO mode
NORMAL mode
SPORT mode
Engine
ECO
NORMAL
SPORT
Engine &
Transmission*4
ECO
NORMAL
SPORT
Driving
e-LSD*1
NORMAL
NORMAL
SPORT
Suspension
NORMAL
NORMAL
SPORT
Chassis
Steering
NORMAL
NORMAL
SPORT
ESC *2
NORMAL
NORMAL
NORMAL
Sound
Exhaust sound *3
ECO
NORMAL
SPORT
N mode
NGS Button
DCT
Component
N mode
CUSTOM mode
(N Grin Shift)
Engine
SPORT+
NORMAL / SPORT / SPORT+
SPORT+
Engine &
Transmission*4
SPORT+
NORMAL / SPORT / SPORT+
SPORT+
Driving
e-LSD*1
SPORT
NORMAL / SPORT
Maintain mode
Suspension
SPORT+
NORMAL / SPORT / SPORT+
before entering
Chassis
Steering
SPORT+
NORMAL / SPORT / SPORT+
NGS
ESC *2
SPORT
NORMAL / SPORT / OFF
Exhaust sound
Sound
*3
SPORT+
NORMAL / SPORT / SPORT+
SPORT+
*1 : Electronic Limited Slip Differential
*2 : Electronic Stability Control
*3 : The volume of the exhaust sound made by the exhaust gas flap (if equipped) changes
according to the mode selected. [Quietest] ECO/NORMAL mode < SPORT mode < N
mode [Loudest]
An exhaust crackle sound, to deliver emotional effect, is produced while driving
when the accelerator pedal is released right after being depressed. This exhaust
sound effect will be heard when SPORT+ is selected for the Sound component. To
urn it off, select NORMAL or SPORT for the Engine component in CUSTOM mode.
Please be aware and be mindful when using exhaust sound system in SPORT+ mode
as the pops and bangs can cause disturbance to your neighbors when using it in
a crowded public area, closed parking spaces, and/or residential area.We strongly
recommend to use it with consideration.
*4 : Automatic creep start function can be turned ON / OFF in CUSTOM setup menu.
DCT : Dual Clutch Transmission
6-50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
PERFORMANCE OPTION (IF EQUIPPED)
CAUTION
Please note that using high
performance exhaust sound in a
crowded public area, closed parking
spaces, and/or residential area can
cause disturbance to your neighbors.
Performance Option Settings
OCN7N061221L
2. Touch the performance option (3).
Information
Items of Performance option may
differ depending on the transmission
specification.
OCN7N061219N
OCN7N061220N

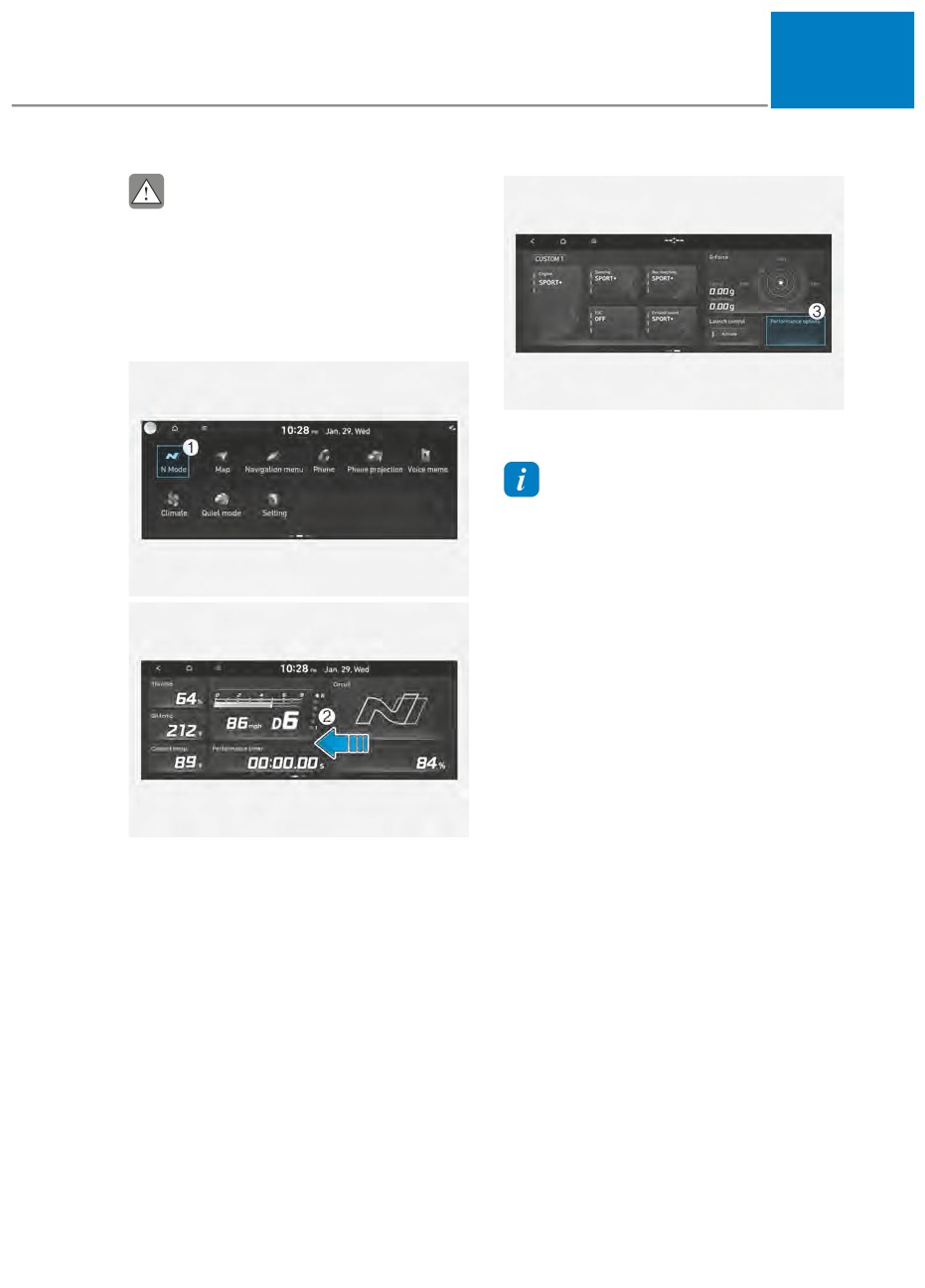

1. You can performance option function
from the Settings menu in the
infotainment system screen. : Touch
the N mode (1)→ Swipe the screen to
left (2)
6-51

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
Launch Control
Launch Control provides maximum
acceleration on dry asphalt roads.
Launch Control not to be used on any
other surface. Excessive slip might occur
and harm your vehicle.
Prerequisite for activation
Launch Control gets ready to be
activated, when the following
prerequisites are satisfied.
OCN7N061232N
• All doors, hood and trunk are closed.

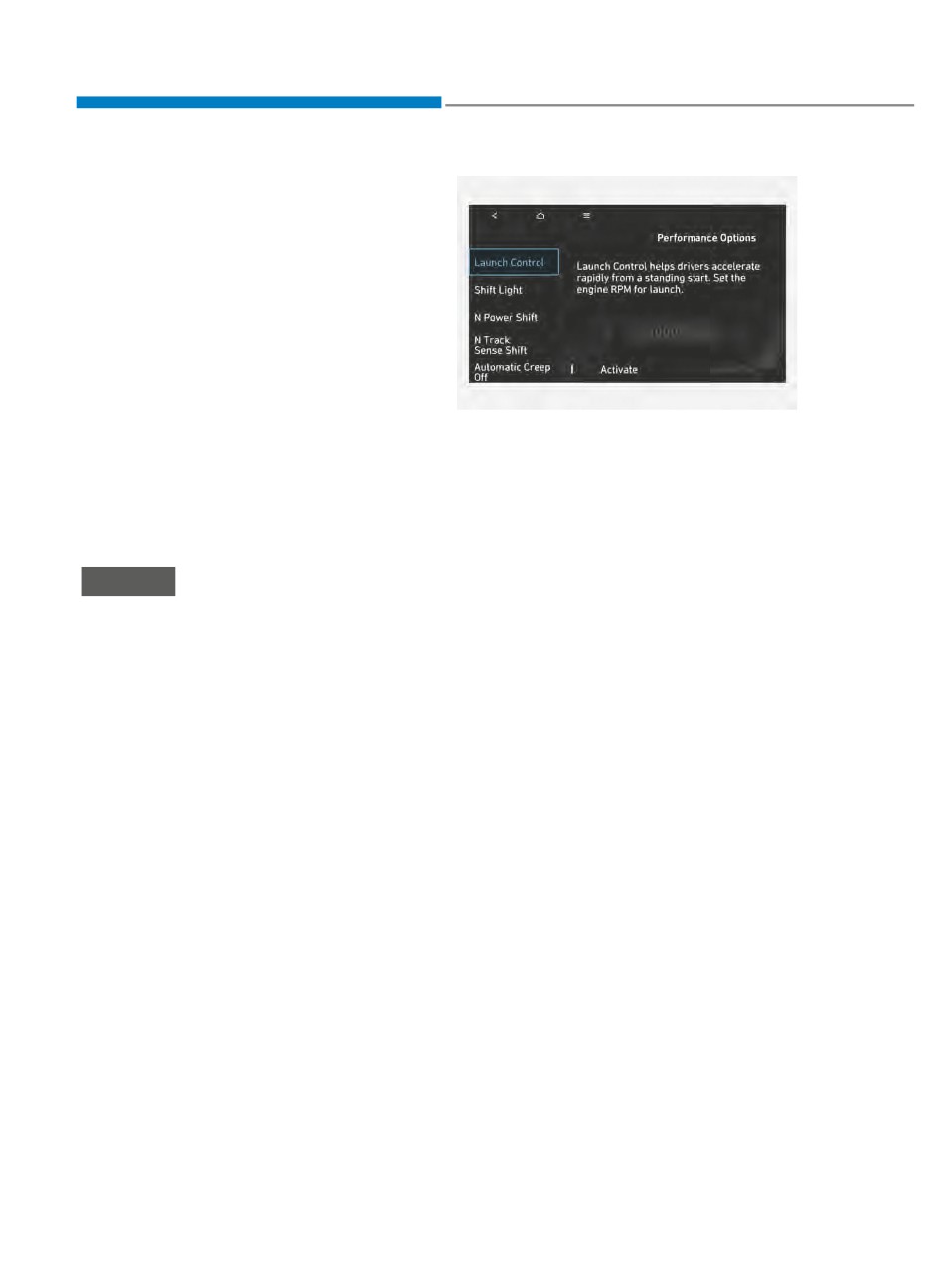

1. Press the ‘Launch control’ tab.
• The vehicle is at a complete stop.
2. Press the ‘< (Left)’ or ‘> (Right)’ to set
• No malfunction warning lights related
the engine RPM for launch control.
to the engine and ESC (Electronic
3. Press ‘Activate’ to enter Launch
Stability Control) is in Sport or Off
Control ready state.
mode.
4. Press ‘Reset RPM’ to reset engine
RPM to default launch control engine
NOTICE
speed.
• Launch Control is intended for use
at a closed race track with dry road
surface and not intended for use on
public roads. It will not compensate
for driver’s who are inexperienced or
lack familiarity with the race track.
• Do not use Launch Control during
break-in period of the vehicle.
• Constant use of Launch Control can
put enormous stress on the vehicle
resulting in premature wear of
related components.
6-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
Launch control on and off (For
Launch control on and off (For Dual
Manual transmission)
clutch transmission)
1. Select N mode with ‘N’ button (N
1. Select N mode with 'N' button
mode indicator will illuminate on
(N-mode indicator lights up on
the cluster) or select SPORT+ for the
cluster) or select SPORT+ for the
engine mode in CUSTOM mode.
engine mode in custom mode.
2. Check that the ESC mode is ESC
2. Check that the ESC mode is ESC
SPORT mode or ESC OFF. If not, press
SPORT or ESC OFF. If not, press
ESC OFF button to set the ESC mode
button to set the ESC mode to ESC
to ESC SPORT mode or ESC OFF.
SPORT or ESC OFF.(Indicator lights on
(Electronic Stability Control (ESC)
the cluster)(Vehicle dynamic control
does not operate when ESC OFF.)
device does not operate when ESC
OFF.)
3. Select 'Performance Options → Launch
Control' to set engine RPM from the
3. Put the transmission gear on
Infotainment system screen. After
'D'(driving) or 'M' (manual mode)
setting RPM, press 'Activate’.
position.(driver must shift by yourself
4. Align the steering wheel straight
when manual mode is selected.)
4. In Launch Control tab of Navigation's
5. Depress the clutch pedal.
Performance Options, select rpm
6. Shift to 1st gear.
and press ‘Activate’ button.(N mode
7. While depressing the clutch pedal
→ Performance Option → Launch
with your left foot, quickly and fully
Control) (button lights on when
depress the accelerator pedal with
activated)
your right foot. Launch control will
5. Align the steering wheel straight.
be in the ready state. The message
6. Press brake pedal to maximum with
'Launch Control Ready' will appear on
the cluster. If necessary, adjust engine
your left foot.
rpm with +/- switch on the steering
7. When you press the brake pedal with
wheel.
your left foot and quickly press and
hold accelerator pedal with your right
8. A smooth, quick release of the
foot, you are ready for launch control.
clutch pedal within 8 seconds,
When it is ready, the text “Launch
while maintaining full depression
Control Ready” is displayed. RPM
of the accelerator pedal will initiate
value can be adjusted with +/- switch
launching of the vehicle. The message
on the steering wheel.
'Launch Control Active' will appear on
the cluster.
8. Release your foot gently off the brake
pedal within 8 seconds to launch
9. Control will deactivate when the
the vehicle, keeping accelerator
accelerator pedal is released.
pedal fully pressed. Launch Control
is activated and the text“ Launch
Control Active” is displayed.
9. Launch control is deactivated when
you release accelerator pedal.
6-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
CAUTION (For Manual
CAUTION
transmission)
Launch performance when using launch
control in vehicle is highly dependent
•
If you press the clutch pedal and the
on the clutch connection technology,
accelerator pedal at the same time
tire friction and road conditions. In
and then release the accelerator
other words, the use of the launch
pedal, the launch control function is
control does not always guarantee
released.
maximum launch performance.
•
To use the Launch Control again, you
must use the vehicle for at least 3
minutes (over 60 km/h) or for at least
after 5 minutes of cooling.
•
If you do not start after 8 seconds by
stepping on the clutch pedal and the
accelerator pedal, the launch control
function is automatically released
and can be reused after cooling
down the vehicle
CAUTION (For Dual clutch
transmission)
•
If you press the brake pedal and the
accelerator pedal at the same time
and then release the accelerator
pedal, the launch control function is
released.
•
To use the Launch Control again, you
must use the vehicle for at least 2
minutes (over 60 km/h) or for at least
after 5 minutes of cooling.
•
If you do not start after 8 seconds by
stepping on the clutch pedal and the
accelerator pedal ,the launch control
function is automatically released
and can be reused after cooling
down the vehicle.
6-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

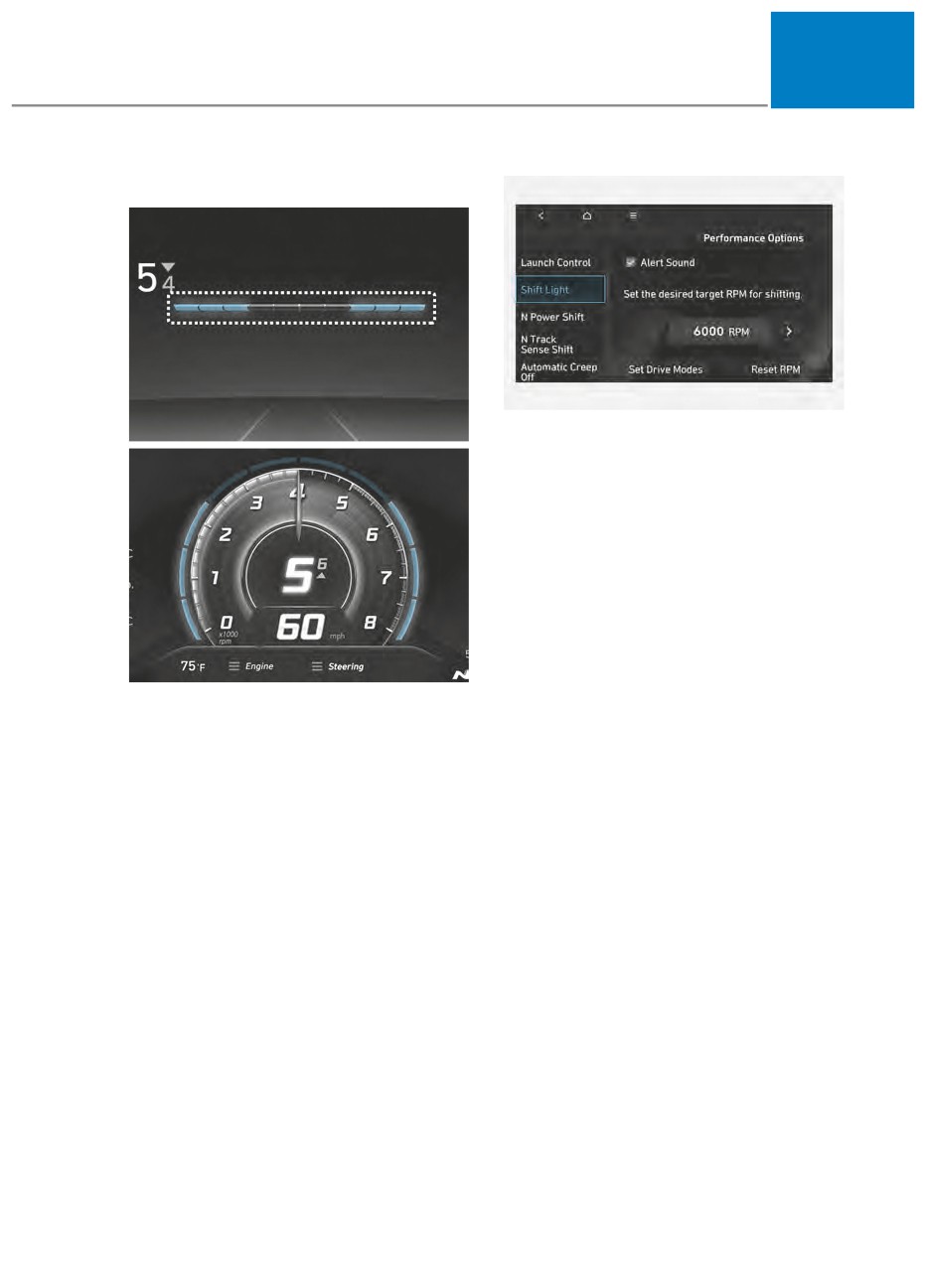

Shift Light
Normal mode
OCN7N061241L
1. Press ‘Shift light’ tab in Performance
OBC3N060029
options.
N mode
2. Select drive mode to activate shift
indicator. (ECO/NORMAL/SPORT/N/
CUSTOM)
3. Set up target RPM by pressing
‘< (Left)’ or ‘> (Right)’.
(6000 RPM ~ 6700 RPM)
4. Check ‘Alert sound’ to choose whether
or not to execute.
5. Press ‘Reset RPM’ to reset the target
RPM speed.
OCN7N061258N
• Engine speed change notification is
When engine is operating in a high
sent before engine speed reaches to
RPM area, it is indicated on the cluster
the set value to shift at set target RPM
according to the corresponding engine
speed.
RPM.
As the engine RPM approaches to the
limit, each of shift lights on both sides,
and when all lights blinks in red or alert
alarm sound, it is time to perform up-
shift immediately.
In the “Shift light” tab of the
performance option, you can set which
mode displays shift light and select
target shift RPM.
(N mode → Performance options → Shift
light)
6-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
Shift Light operation table
Blinking of all 5 LEDs, works only in the fixed shift mode where manual upshift is
required.
Shift lever
LED step
All LED blink (upshift
Shift mode
position
lighting
shift notification)
Automatic shift mode
X
X
N Grin Shift operation
O
X
N Track Shift operation
O
X
D
Temporary manual shift mode
(enter D stage paddle shifter
O
X
operation)
Fixed shift mode (no
M
O
O
automatic upshift)
6-56

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06
N Track Sense Shift (for DCT)
How to set N Track Sense Shift
N Track Sense Shift is automatically
activated when dynamic driving
condition with lots of cornering
maneuver is detected. (i.e. Race track
driving). The program enables stress-
free track driving by automatically
shifting down at the entry of corner and
maintains lower gear during cornering
as if you are shifting manually in
professional manner. N Track Sense Shift
provides lower gear when level of driving
aggression increases.
OCN7N061242L
* DCT : Dual clutch transmission

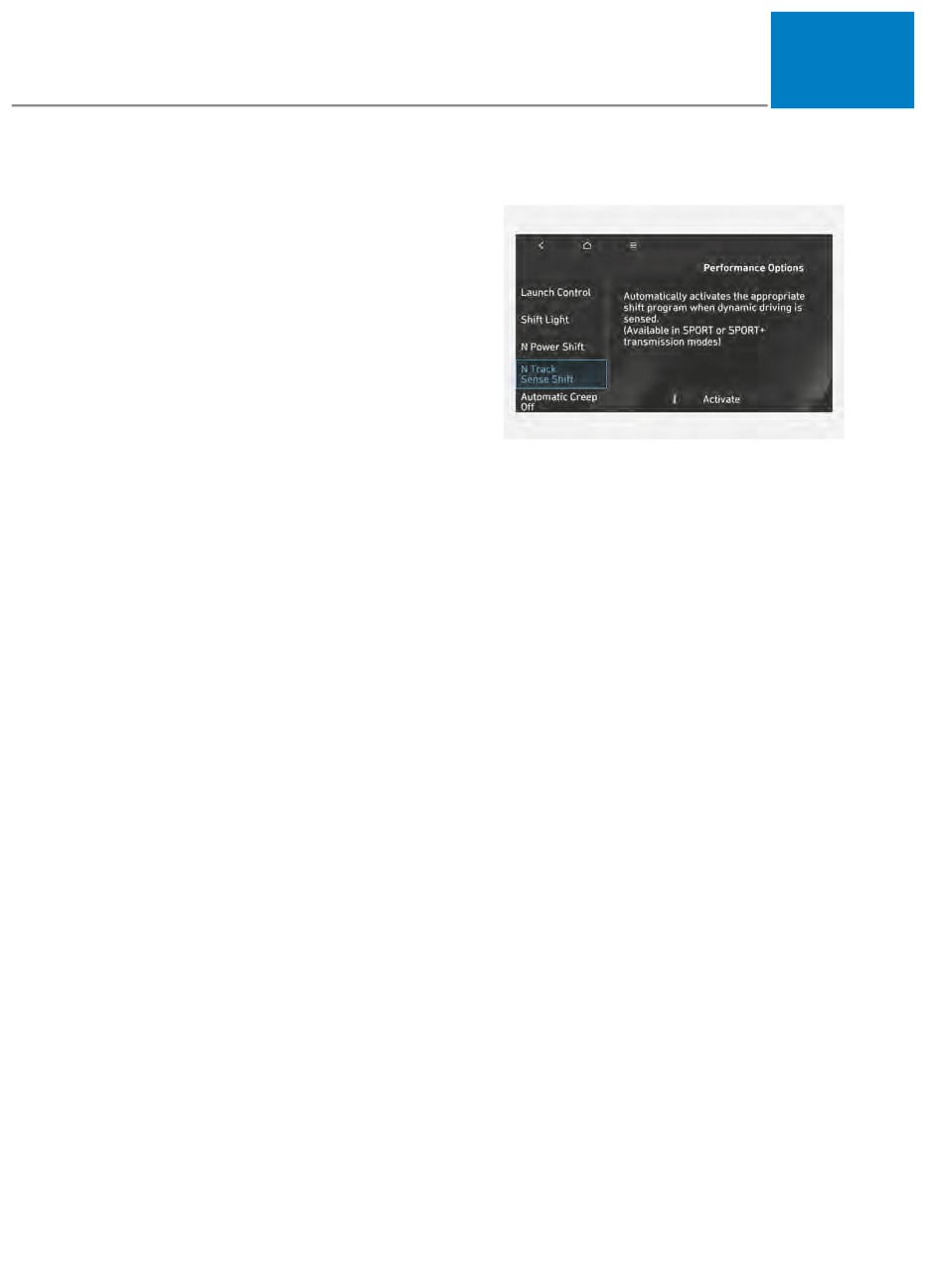

1. Press ‘N Mode → Performance
Option → N Track Sense Shift’ on the
infotainment system home screen to
enter the N Track Sense Shift setting
screen.
2. In N Track Sense Shift setup screen,
press 'Activate' to select enable/
disable features.
 When the vehicle is released for the
first time, function is activated.
 Active/Deactivated setting is saved
even when the vehicle is restarted.
6-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle
Operating condition
Non-operating conditions
• N Track Sense Shift is enabled in the
• N Track Sense Shift is disabled in
Performance Options settings
Performance Options settings
• Shift lever in D (Drive) position
• Shift lever position is in P/R/N
• Transmission mode is SPORT or
• Changing Transmission mode during
SPORT+ (Including SPORT or N mode)
operation (Transmission mode does
not work in ECO, NORMAL or manual
• Vehicle speed is above 21 mph
(35km/h)
shift mode.)
• Cruise Control is operating
• Cornering-oriented dynamic driving
detection
• Vehicle speed is below 21 mph (35
km/h)
 When N Track Sense Shift is
deactivated, the displayed message
will disappear from the instrument
LCD screen.
CAUTION
Vehicle safety and control must be at
your own discretion and do not attempt
to drive dangerously to operate N Track
Sense Shift.
OCN7N061198N
 When N Track Sense Shift is operating,
a message is displayed in the
WARNING
instrument cluster LCD screen as
N Track Sense is activated only
shown below.
automatically when vehicle recognizes
dynamic driving (longitudinal & lateral
forces). Only operate in accordance
with local road rules and in safe
conditions. Driving the vehicle in
certain circumstances or participating
in certain driving activities can impact
your new vehicle warranty. See
your Service Warranty Passport for
full warranty terms, conditions and
exclusions.
6-58

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

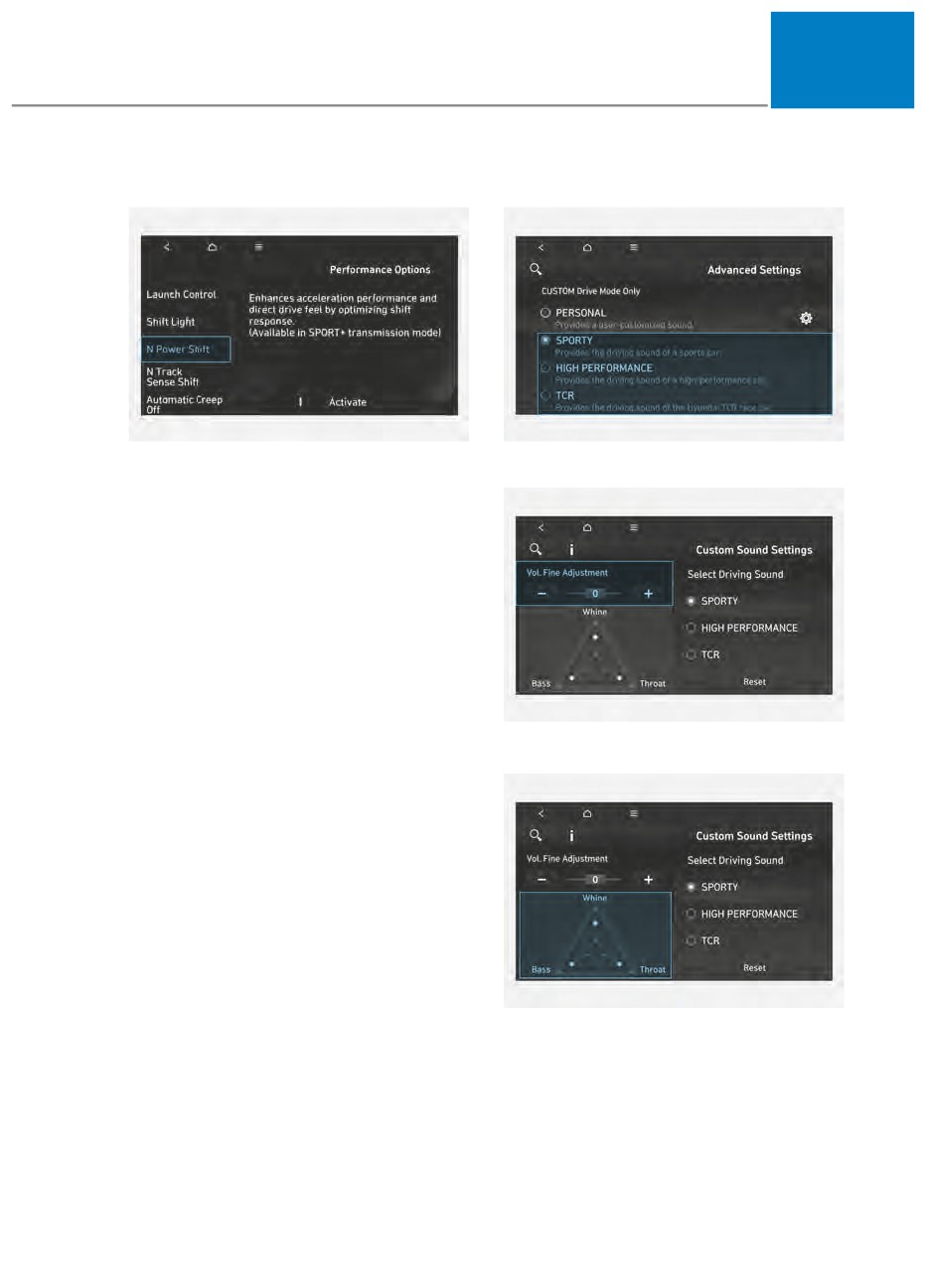

N Power Shift (for DCT)
N Sound Equalizer
OCN7N061255N
OCN7N061244L
When the driver depresses the
Driving sound master volume
accelerator pedal fully (100%) in N mode
for faster acceleration, it controls by (up-
) shifting with minimal energy loss.
N Power Shift can be deactivated by
pressing 'Activate' on the screen. When
N Power Shift is deactivated, vehicle
shifting is similar to normal shifting.
However, it is activated when the engine
is restarted.
* DCT : Dual clutch transmission
OCN7N061246L
Tone equalizer
OCN7N061245L
N Sound Equalizer provides a more
exciting driving sound to the driver
through the existing speakers installed in
the vehicle.
For detailed information, refer to the
infotainment system manual separately
supplied.
6-59















Content      ..     8      9      10      11     ..
