Seats & Safety System

Air bag inflation conditions

Side and curtain air bags

Side and curtain air bags are designed

to inflate when an impact is detected

by side collision sensors depending on

the severity, speed or angles of impact

resulting from a side impact collision.

Although the driver’s and front

passenger’s air bags are designed to

inflate in frontal collisions, they also may

inflate in other types of collisions if the

front impact sensors detect a sufficient

impact. Side and curtain air bags are

OTM030014

designed to inflate in side impact

collisions, but they may inflate in other

Front air bags

collisions if the side impact sensors

Front air bags are designed to inflate

detect a sufficient impact.

in a frontal collision depending on the

Also, the side and curtain air bags are

severity of impact of the front collision.

designed to inflate when a rollover

is detected by a rollover sensor. (if

equipped with rollover sensor)

If the vehicle chassis is impacted by

bumps or objects on unimproved roads,

the air bags may deploy. Drive carefully

on unimproved roads or on surfaces not

designed for vehicle traffic to prevent

unintended air bag deployment.

OTM030013

OTM030033

3-62

03

Air bag non-inflation conditions

OTM030017

OTM030015

Front air bags may not inflate in side

impact collisions, because occupants

In certain low-speed collisions the air

move in the direction of the collision,

bags may not deploy. The air bags are

and thus in side impacts, front air bag

designed not to deploy in such cases

deployment would not provide additional

because they may not provide benefits

occupant protection.

beyond the protection of the seat belts.

However, side and curtain air bags

and front center air bag may inflate

depending on the severity of impact.

OTM030016

Front air bags are not designed to inflate

in rear collisions, because occupants

OTM030034

are moved backward by the force of the

impact. In this case, inflated air bags

In an angled collision, the force of impact

would not provide any additional benefit.

may direct the occupants in a direction

where the air bags would not be able to

provide any additional benefit, and thus

the sensors may not deploy any air bags.

3-63

Seats & Safety System

OTM030018

OTM030019

Just before impact, drivers often brake

Air bags may not inflate if the vehicle

heavily. Such heavy braking lowers the

collides with objects such as utility poles

front portion of the vehicle causing it

or trees, where the point of impact is

to “ride” under a vehicle with a higher

concentrated and the collision energy is

ground clearance. Air bags may not

absorbed by the vehicle structure.

inflate in this “underride” situation

because deceleration forces that are

detected by sensors may be significantly

reduced by such “underride” collisions.

OTM030041

Front air bags may not inflate in

rollover accidents because front air bag

deployment would not provide additional

occupant protection.

However, the side and curtain air bags

and front center air bag may inflate in a

rollover situation, when it is detected by

the rollover sensor.

3-64

Seats & Safety System

Additional safety precautions

Air bag warning labels

Passengers should not move out of

or change seats while the vehicle is

moving. A passenger who is not wearing

a seat belt during a crash or emergency

stop can be thrown against the inside of

the vehicle, against other occupants, or

be ejected from the vehicle.

Do not use any accessories on seat

belts. Devices claiming to improve

occupant comfort or reposition the seat

belt can reduce the protection provided

by the seat belt and increase the chance

OTMA030005

of serious injury in a crash.

Air bag warning labels, required by the

Do not modify the front seats.

U.S. National Highway Traffic Safety

Modification of the front seats could

Administration (NHTSA), are attached

interfere with the operation of the

to alert the driver and passengers of

supplemental restraint system sensing

potential risks of the air bag system. Be

components or side air bags.

sure to read all of the information about

the air bags that are installed on your

Do not place items under the front

vehicle in this Owners Manual.

seats. Placing items under the front seats

could interfere with the operation of the

supplemental restraint system sensing

components and wiring harnesses.

Do not cause impact to the doors.

Impact to the doors when the Engine

Start/Stop button is in the ON or START

position may cause the air bags to

inflate.

Modifications to accommodate

disabilities. If you require modification

to your vehicle to accommodate

a disability, contact the HYUNDAI

Customer Connect Center at 800-633-

5151.

Adding equipment to or modifying

your air bag equipped vehicle

If you modify your vehicle by changing

your vehicle’s frame, bumper system,

front end or side sheet metal or ride

height, this may affect the operation of

your vehicle’s air bag system.

3-66

Instrument cluster

INSTRUMENT CLUSTER

„ 4.2-inch

„ 12.3-inch

The actual cluster in the vehicle may differ from the illustration.

For more information, refer to “Gauges and meters” section in this chapter.

OTMA041001N/OCN7040080N

1. Tachometer

4. Fuel gauge

2. Speedometer

5. Warning and indicator lights

3. Engine coolant temperature gauge

6. LCD display

4-4

04

Instrument cluster control

Gauges and meters

Instrument panel illumination

Speedometer

When the vehicle’s parking lights or

„ 4.2-inch

„ 12.3-inch

headlights are on, press the illumination

control switch to adjust the brightness of

the instrument panel illumination.

When pressing the illumination control

switch, the interior switch illumination

intensity also adjusted.

You can adjust the brightness of the

instrument panel illumination form the

User Settings Mode on the LCD display

ZKHQ WKH LJQLWLRQ VZLWFK LV RQ œ/LJKWV Ɵ

OTM040059L

OTM040006L

Illumination’). When the vehicle’s parking

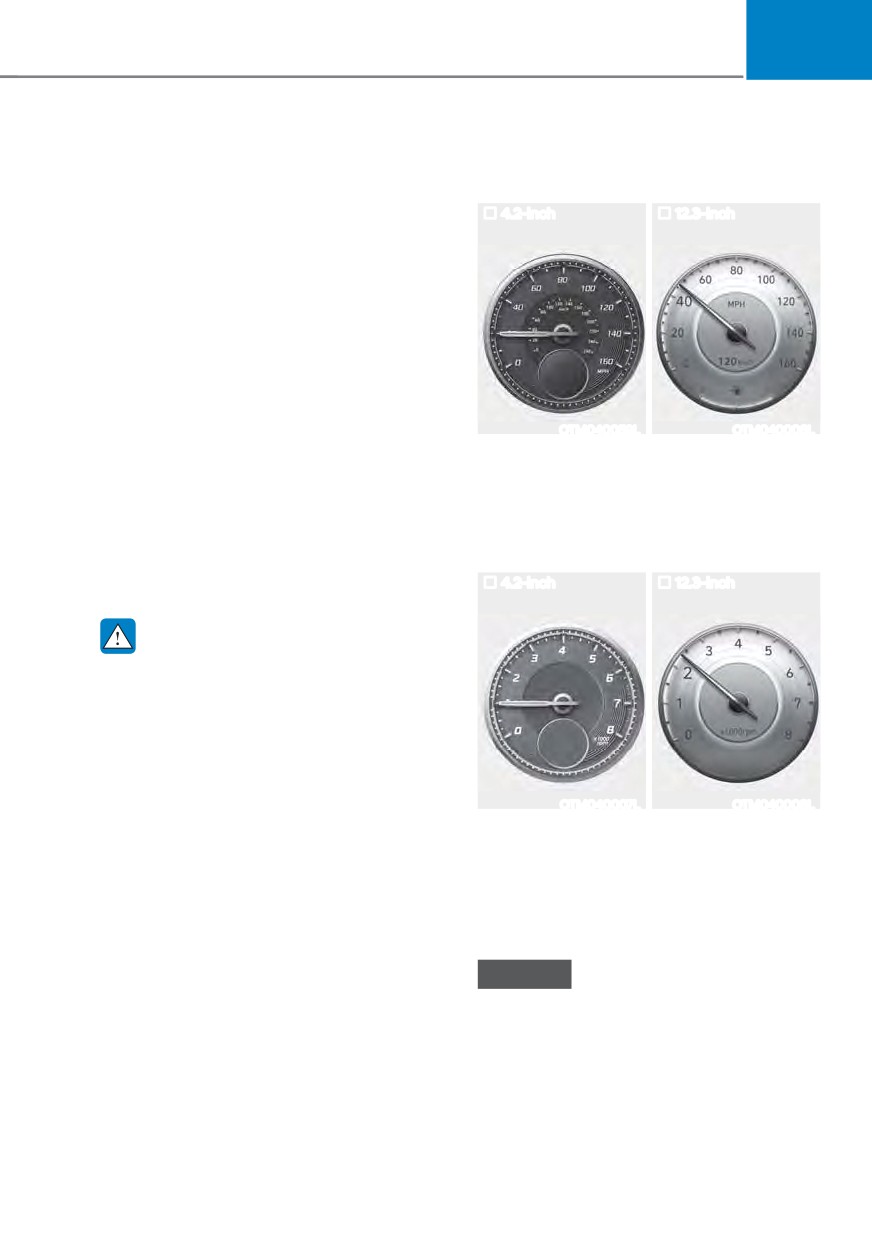

The speedometer indicates the speed of

lights or headlights are on, interior switch

the vehicle and is calibrated in miles per

illumination intensity and mood lamps

hour (MPH) and/or kilometers per hour

are also adjusted.

(km/h).

If your vehicle is equipped with

additional navigation, please refer

Tachometer

to the infotainment system manual

separately supplied.

„ 4.2-inch

„ 12.3-inch

WARNING

Never adjust the instrument cluster

while driving. This could result in loss

of control and lead to an accident that

may cause death, serious injury, or

vehicle damage.

ś The brightness of the instrument

panel illumination is displayed.

OTM040007L

OTM040008L

ś If the brightness reaches the

The tachometer indicates the

maximum or minimum level, a chime

approximate number of engine

will sound.

revolutions per minute (rpm).

Use the tachometer to select the correct

shift points and to prevent lugging and/

or over-revving the engine.

NOTICE

Do not operate the engine within the

tachometer's RED ZONE. This may

cause severe engine damage.

4-5

Instrument cluster

Engine coolant temperature gauge

WARNING

„ 4.2-inch

Never remove the engine coolant

‡ Type A

‡ Type B

reservoir cap when the engine is hot.

The engine coolant is under pressure

and could cause severe burn. Wait until

the engine is cool before adding coolant

to the reservoir.

Fuel gauge

„ 4.2-inch

‡ Type A

‡ Type B

OTM040009

OTM040009L

„ 12.3-inch

‡ Type A

‡ Type B

OTM040011

OTM0400011L

„ 12.3-inch

‡ Type A

‡ Type B

OTM040010

OTM040010L

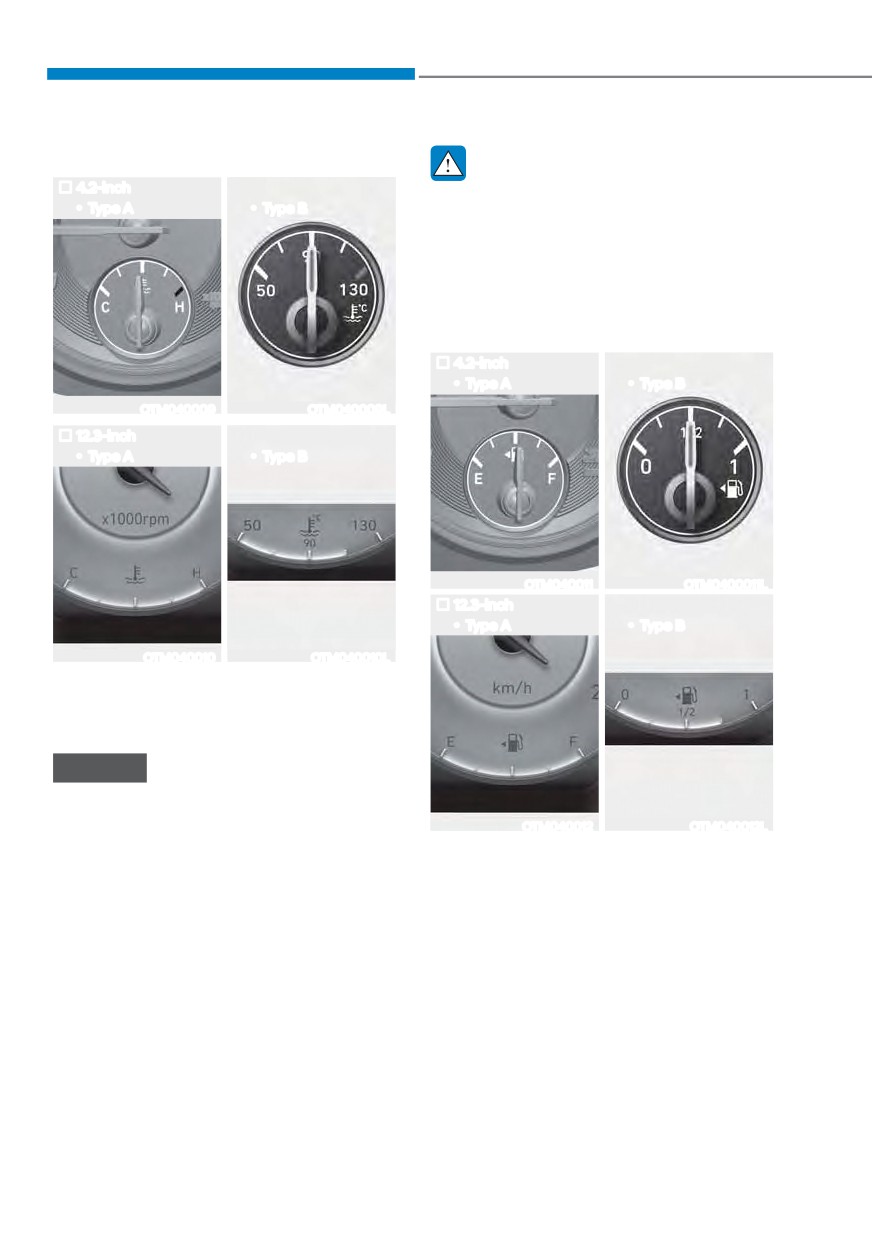

This gauge indicates the temperature

of the engine coolant when the ignition

switch is in the ON position.

NOTICE

If the gauge pointer moves beyond

the normal range area toward the

OTM040012

OTM040012L

“H (Hot) or 130” position, it indicates

This gauge indicates the approximate

overheating that may damage the

amount of fuel remaining in the fuel tank.

engine.

Do not continue driving with an

overheated engine. If your vehicle

overheats, refer to “If the Engine

Overheats” section in chapter 8.

4-6

04

Outside temperature gauge

Information

„ Type A

„ Type B

ś The fuel tank capacity is given in

chapter 2.

ś The fuel gauge is supplemented by

a low fuel warning light, which will

illuminate when the fuel tank is nearly

empty.

ś On inclines or curves, the fuel gauge

pointer may fluctuate or the low fuel

warning light may come on earlier than

usual due to the movement of fuel in

the tank.

OTMA048112

OTMA040008

This gauge indicates the current outside

WARNING

air temperatures by 1°F (1°C).

Running out of fuel can expose vehicle

Note that the temperature indicated

occupants to danger.

on the LCD display may not change

You must stop and obtain additional

as quickly as the outside temperature

fuel as soon as possible after the

(there may be a slight delay before the

warning light comes on or when the

temperature changes.)

gauge indicator comes close to the “E

You can change the temperature unit

(Empty) or 0” level.

from the Settings menu in the Cluster.

Select:

NOTICE

-

6HWXS Ɵ 8QLW Ɵ 7HPSHUDWXUH 8QLW Ɵ

°F/°C

Avoid driving with an extremely low

fuel level. Running out of fuel could

For vehicles equipped with Automatic

cause the engine to misfire damaging

Climate Control, you can also:

the catalytic converter.

- Press the AUTO button while pressing

the OFF button on the climate control

unit for 3 seconds

Both the temperature unit on the cluster

LCD display and climate control screen

will change.

4-7

Instrument cluster

Odometer

Information

„ 4.2-inch

„ 12.3-inch

ś If the vehicle is not on level ground or

the battery power has been interrupted,

the distance to empty function may not

operate correctly.

ś The distance to empty may differ

from the actual driving distance as it

is an estimate of the available driving

distance.

ś The trip computer may not register

additional fuel if less than 6 liters (1.5

gallon) of fuel are added to the vehicle.

OTMA048183

OCN7040015N

ś The distance to empty may vary

The odometer indicates the total

significantly based on driving

distance that the vehicle has been

conditions, driving habits, and

driven and should be used to determine

condition of the vehicle.

when periodic maintenance should be

performed.

Distance to empty

„ 4.2-inch

„ 12.3-inch

OAD048563L

OCN7040016N

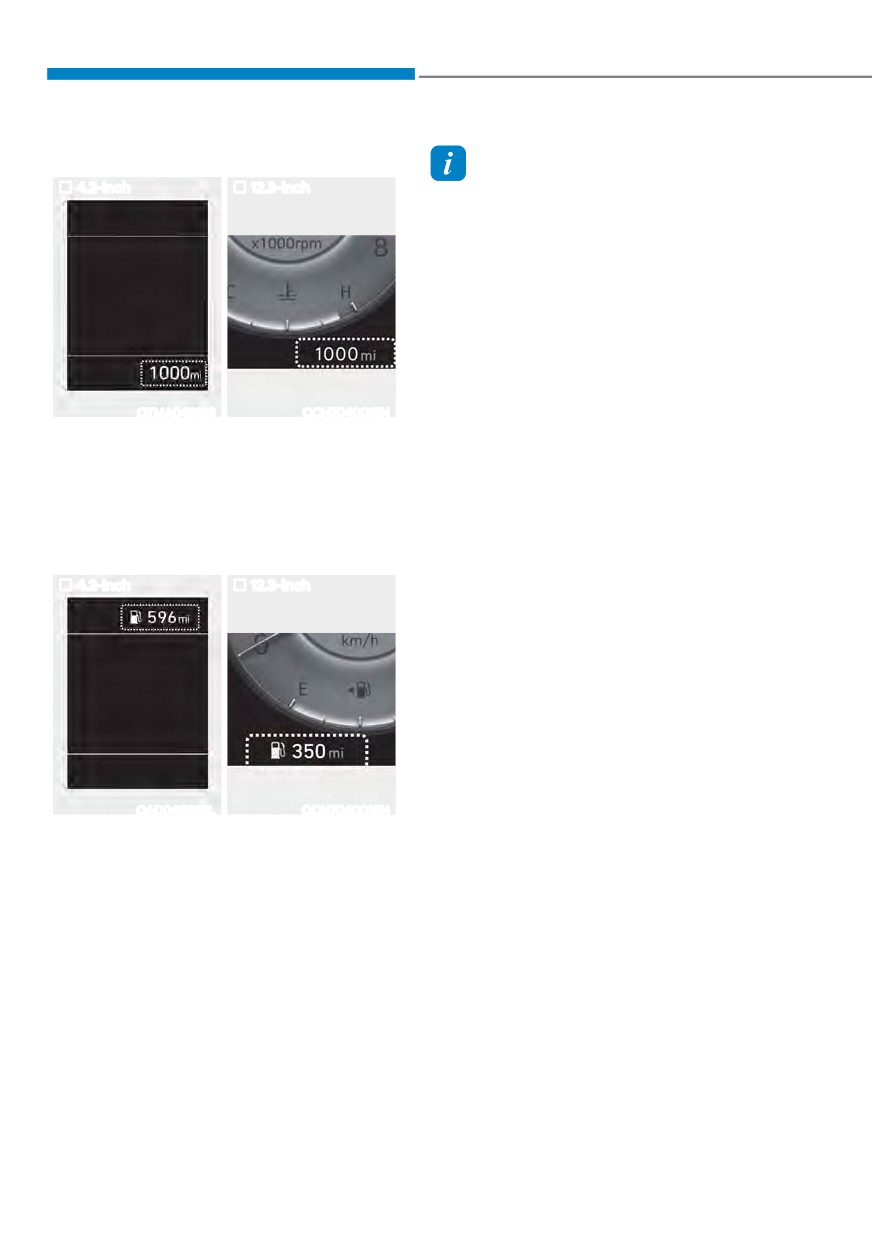

ś The distance to empty is the

estimated distance the vehicle can be

driven with the remaining fuel.

ś If the estimated distance is below

1 mi. (1 km), the trip computer will

display “---” as distance to empty.

4-8

04

Fuel economy (for 12.3-inch cluster)

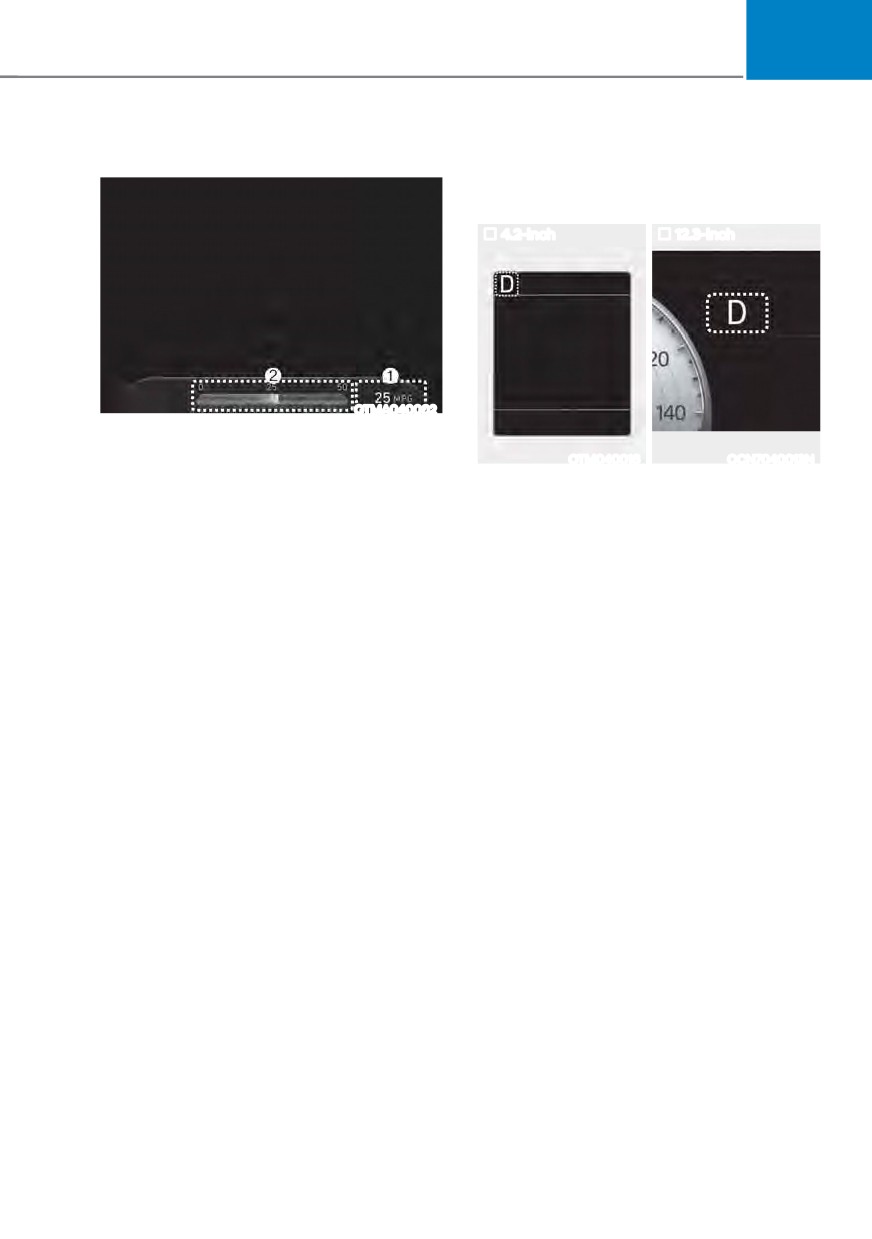

Transmission shift indicator

Automatic transmission / Dual

clutch transmission shift indicator

„ 4.2-inch

„ 12.3-inch

OTMA040002

The average fuel economy (1) and instant

fuel economy (2) is displayed at the

OTM040016

OCN7040013N

bottom of the cluster.

This indicator informs the current gear

engaged.

Automatic reset

To automatically reset the average fuel

economy, select between "After Ignition"

or "After Refueling" from the Settings

menu in the infotainment system screen.

4-9

Instrument cluster

Warning and indicator lights

Parking brake & Brake fluid

warning light

Information

This warning light illuminates:

Make sure that all warning lights are OFF

ś When you set the ignition switch or

after starting the engine. If any light is still

the Engine Start/Stop button to the

ON, this indicates a situation that needs

ON position.

attention.

- The parking brake & brake fluid

warning light illuminates for about 3

Seat belt warning light

seconds and will then turn off once

the parking brake is released.

ś Whenever the parking brake is

This warning light informs the driver that

applied.

the seat belt is not fastened.

ś Whenever the brake fluid level in the

For more details, refer to “Seat Belts”

reservoir is low.

section in chapter 3.

- If the warning light illuminates

with the parking brake released, it

indicates the brake fluid level in the

Air bag warning light

reservoir is low.

If the brake fluid level in the reservoir is

This warning light illuminates:

low:

ś When you turn the ignition switch or

1. Drive carefully to the nearest safe

the Engine Start/Stop button to the

location and stop your vehicle.

ON position.

2. With the engine stopped, check the

- It illuminates for approximately 3~6

brake fluid level immediately and add

seconds and then goes off.

fluid as required (For more details,

ś When there is a malfunction with the

refer to “Brake Fluid” section in

SRS.

chapter 9). After adding brake fluid,

In this case, have the vehicle

check all brake components for fluid

inspected by an authorized HYUNDAI

leaks. If a brake fluid leak is found, or

dealer.

if the warning light remains on, or if

the brakes do not operate properly, do

not drive the vehicle. Have the vehicle

inspected by an authorized HYUNDAI

dealer.

4-10

04

Dual-diagonal braking system

Anti-lock Brake System (ABS)

Your vehicle is equipped with dual-

warning light

diagonal braking system. This means you

still have braking on two wheels even if

This warning light illuminates:

one of the dual systems should fail.

ś When you set the ignition switch or

With only one of the dual systems

the Engine Start/Stop button to the

working, more than normal pedal travel

ON position.

and greater pedal pressure is required to

- The ABS warning light illuminates

stop the vehicle.

for about 3 seconds and then goes

Also, the vehicle will not stop in as short

off.

a distance with only a portion of the

ś Whenever there is a malfunction with

brake system working.

the ABS.

If the brakes fail while you are driving,

Note that the hydraulic braking

shift to a lower gear for additional engine

system will still be operational even if

braking and stop the vehicle as soon as it

there is a malfunction with the ABS.

is safe to do so.

If this occurs, have the vehicle

inspected by an authorized HYUNDAI

WARNING

dealer.

Parking Brake & Brake Fluid warning

Electronic Brake Force

light

Distribution (EBD) system

Driving the vehicle with a warning light

warning light

ON is dangerous. If the Parking Brake

& Brake Fluid warning light illuminates

with the parking brake released, it

indicates that the brake fluid level is

low.

When the ABS warning and

If this occurs, have the vehicle

Parking Brake warning lights are on

inspected by an authorized HYUNDAI

simultaneously, it may indicate a

dealer.

problem with the Electronic Brake Force

Distribution system.

If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

4-11

Instrument cluster

Electric Power Steering (EPS)

WARNING

warning light

Electronic Brake Force Distribution

(EBD) system warning light

This warning light illuminates:

When both ABS and Parking Brake &

ś When you set the ignition switch or

Brake Fluid warning lights are on, the

the Engine Start/Stop button to the

brake system will not work normally

ON position.

and you may experience an unexpected

and dangerous situation during sudden

- The electric power steering warning

braking.

light illuminates for about 3 seconds

and then goes off.

If this occurs, avoid high speed driving

and abrupt braking.

ś Whenever there is a malfunction with

the electric power steering.

Have the vehicle inspected by an

authorized HYUNDAI dealer as soon as

If this occurs, have the vehicle

possible.

inspected by an authorized HYUNDAI

dealer.

NOTICE

Charging system warning

Electronic Brake Force Distribution

light

(EBD) system warning light

When the ABS warning light is on

This warning light illuminates:

or both ABS and Parking Brake &

When there is a malfunction with either

Brake Fluid warning lights are on, the

the alternator or electrical charging

speedometer, odometer, or tripmeter

system.

may not work. Also, the EPS warning

light may illuminate and the steering

effort may increase or decrease.

If there is a malfunction with either the

alternator or electrical charging system:

If this occurs, have the vehicle

inspected by an authorized HYUNDAI

1. Drive carefully to the nearest safe

location and stop your vehicle.

dealer as soon as possible.

2. Turn the engine off and check the

alternator drive belt for looseness or

breakage.

If the belt is adjusted properly, there

may be a problem in the electrical

charging system.

If this occurs, have the vehicle

inspected by an authorized HYUNDAI

dealer as soon as possible.

4-12

04

Engine oil pressure warning

NOTICE

light

If the engine is not stopped

immediately after the Engine Oil

This warning light illuminates:

Pressure warning light is illuminated,

severe damage could result.

When the engine oil pressure is low.

If the engine oil pressure is low:

Low fuel level warning light

1. Drive carefully to the nearest safe

location and stop your vehicle.

2. Turn the engine off and check the

This warning light illuminates:

engine oil level (For more details,

When the fuel tank is nearly empty.

refer to “Engine Oil” section in

Add fuel as soon as possible.

chapter 9). If the level is low, add oil

as required.

If the warning light remains on after

NOTICE

adding oil or if oil is not available, have

Driving with the Low Fuel Level warning

the vehicle inspected by an authorized

light on or with the fuel level below “E

HYUNDAI dealer as soon as possible.

or 0” can cause the engine to misfire

Continued driving with the warning light

and damage the catalytic converter.

on may cause engine failure.

Information

When engine oil pressure decreases due to

insufficient engine oil, etc., the Engine Oil

Pressure warning light will illuminate. In

addition, the enhanced engine protection

system which limits engine power will

be activated. If the engine oil pressure is

restored, the Engine Oil Pressure warning

light and the enhanced engine protection

system will turn off. However, for gasoline

2.5 turbo engine and 2.5 gdi engine, when

the engine oil pressure is restored, the

warning light and the enhanced engine

protection system will turn off after the

engine is restarted.

4-13

Instrument cluster

Malfunction Indicator Lamp

Exhaust system (GPF)

(MIL)

warning light (for gasoline

engine, if equipped)

This indicator light illuminates:

ś This warning light illuminates, when

ś When you set the ignition switch or

accumulated soot reaches a certain

the Engine Start/Stop button to the

amount.

ON position.

ś When this warning light illuminates, it

- The malfunction indicator light

may turn off after driving the vehicle

illuminates for about 3 seconds and

at more than 50 mph (80km/h) for

then goes off.

about 30 minutes (above 3rd gear

with 1500 ~ 4000 engine rpm).

ś Whenever there is a malfunction with

either the emission control system or

If this warning light blinks in spite

the engine or the vehicle powertrain.

of the procedure (at this time LCD

warning message will be displayed),

If this occurs, have the vehicle

have the GPF system checked by an

inspected by an authorized HYUNDAI

authorized HYUNDAI dealer.

dealer.

NOTICE

NOTICE

If you continue to drive with the GPF

ś Driving with the Malfunction

warning light blinking for a long time,

Indicator Lamp (MIL) on may cause

the GPF system can be damaged and

damage to the emission control

fuel consumption can worsen.

system which could affect drivability

and/or fuel economy.

ś If the enhanced engine protection

system becomes activated due to

lack of engine oil, engine power

will be limited. If such condition

continues repeatedly, the

Malfunction Indicator Lamp will

illuminate.

NOTICE

If the Malfunction Indicator Lamp

(MIL) illuminates, potential catalytic

converter damage is possible which

could result in loss of engine power.

If this occurs, have the vehicle

inspected by an authorized HYUNDAI

dealer as soon as possible.

4-14

04

Electronic Parking Brake

Low tire pressure warning

(EPB) warning light

light

(if equipped)

This warning light illuminates:

This warning light illuminates:

ś When you set the ignition switch or

ś When you set the ignition switch or

the Engine Start/Stop button to the

the Engine Start/Stop button to the

ON position.

ON position.

- The EPB warning light illuminates

- The low tire pressure warning light

for about 3 seconds and then goes

illuminates for approximately 3

off.

seconds and then goes off.

ś Whenever there is a malfunction with

ś When one or more of your tires are

EPB.

significantly underinflated. (The

location of the underinflated tires are

If this occurs, have the vehicle

displayed on the LCD display.)

inspected by an authorized HYUNDAI

dealer.

For more details, refer to “Tire Pressure

Monitoring System (TPMS)” section in

chapter 8.

Information

The Electronic Parking Brake (EPB)

This warning light remains ON after

warning light may illuminate when

blinking for approximately 60 seconds, or

the Electronic Stability Control (ESC)

repeatedly blinks ON and OFF in 3 second

indicator light comes on to indicate that

intervals:

ESC is not working properly. This does

When there is a malfunction with the

not indicate malfunction of EPB.

TPMS.

If this occurs, have the vehicle inspected

AUTO HOLD indicator light

by an authorized HYUNDAI dealer as

soon as possible.

For more details, refer to “Tire Pressure

This indicator light illuminates:

Monitoring System (TPMS)” section in

ś

[White] When you activate Auto Hold

chapter 8.

by pressing the AUTO HOLD switch.

ś

[Green] When you stop the vehicle

WARNING

completely by depressing the brake

pedal with Auto Hold activated.

Safe Stopping

ś

[Yellow] Whenever there is a

ś The TPMS cannot alert you to severe

malfunction with the Auto Hold

and sudden tire damage caused by

function.

external factors.

If this occurs, have the vehicle

ś If you notice any vehicle instability,

inspected by an authorized HYUNDAI

immediately take your foot off the

dealer.

accelerator pedal, apply the brakes

gradually with light force, and slowly

For more details, refer to “Electronic

move to a safe position off the road.

Parking Brake (EPB)” section in chapter

6.

4-15

Instrument cluster

Forward Safety warning light

Lane Safety indicator light

(if equipped)

(if equipped)

This warning light illuminates:

This indicator light illuminates:

ś When you set the ignition switch or

ś

[Green] When the system operating

the Engine Start/Stop button to the

conditions are satisfied.

ON position.

ś

[White] When the system operating

- The Forward Safety warning light

conditions are not satisfied.

illuminates for approximately 3

ś

[Yellow] Whenever there is a

seconds and then goes off.

malfunction with Lane Keeping Assist.

ś Whenever there is a malfunction with

If this occurs, have the vehicle

Forward Collision-Avoidance Assist.

inspected by an authorized HYUNDAI

If this occurs, have the vehicle inspected

dealer.

by an authorized HYUNDAI dealer.

For more details, refer to “Lane Keeping

For more details, refer to “Forward

Assist (LKA)” section in chapter 7.

Collision-Avoidance Assist (FCA)”

section in chapter 7.

4 Wheel Drive (4WD) warning

light

This warning light illuminates:

Whenever there is a malfunction with the

4WD system.

If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

For more details, refer to “4 Wheel Drive

(4WD)” section in chapter 6.

4-16

04

4 Wheel Drive (4WD) LOCK

LED headlight warning light

Indicator Light

This indicator light illuminates:

This warning light illuminates:

ś Once you set the ignition switch or

ś When you set the ignition switch or

Engine Start/Stop Button to the ON

the Engine Start/Stop button to the

position.

ON position.

- It illuminates for approximately 3

- The LED headlight warning light

seconds and then goes off.

illuminates for approximately 3

seconds and then goes off.

ś When you select 4WD Lock mode by

pressing the 4WD LOCK button.

ś Whenever there is a malfunction with

the LED headlight.

- The 4WD LOCK mode is to increase

the drive power when driving on

If this occurs, have the vehicle

wet pavement, snow covered roads

inspected by an authorized HYUNDAI

and/or off-road.

dealer.

This warning light blinks:

NOTICE

Whenever there is a malfunction with a

Do not use 4WD LOCK mode on dry

LED headlight related part.

paved roads or highway, it can cause

noise, vibration or damage of 4WD

If this occurs, have the vehicle inspected

related parts.

by an authorized HYUNDAI dealer.

NOTICE

Continuous driving with the LED

Headlight warning light on or blinking

can reduce LED headlight life.

4-17

Instrument cluster

Icy road warning light

Electronic Stability Control

(if equipped)

(ESC) indicator light

This warning light is to warn the driver

This indicator light illuminates:

the road may be icy.

ś When you set the ignition switch or

When the temperature on the outside

the Engine Start/Stop button to the

temperature gauge is approximately

ON position.

below 4°C (40°F), the Icy Road warning

- The Electronic Stability Control

light and Outside Temperature Gauge

indicator light illuminates for about

blinks and then illuminates. Also, the

3 seconds and then goes off.

warning chime sounds 1 time.

ś Whenever there is a malfunction with

You can activate or deactivate Icy Road

ESC system.

Warning function from the User Settings

If this occurs, have the vehicle

menu in the cluster LCD display.

inspected by an authorized HYUNDAI

Select:

dealer.

-

6HWXS Ɵ 8VHU 6HWWLQJV Ɵ &OXVWHU Ɵ ,F\

Road Warning

This indicator light blinks:

While ESC is operating.

Information

For more details, refer to “Electronic

Stability Control (ESC)” section in

If the Icy Road warning light appears

chapter 6.

while driving, you should drive more

attentively and safely refraining from

over-speeding, rapid acceleration, sudden

Electronic Stability Control

braking or sharp turning, etc.

(ESC) OFF indicator light

(if equipped)

This indicator light illuminates:

ś When you set the ignition switch or

the Engine Start/Stop button to the

ON position.

- The ESC OFF indicator light

illuminates for approximately 3

seconds and then goes off.

ś When you deactivate ESC system by

pressing the ESC OFF button.

For more details, refer to “Electronic

Stability Control (ESC)” section in

chapter 6.

4-18

Instrument cluster

Downhill Brake Control (DBC)

AUTO STOP indicator light

indicator light

This indicator light illuminates:

This indicator light illuminates:

ś When you set the ignition switch or

When the engine enters the Idle Stop

the Engine Start/Stop button to the

mode of ISG (Idle Stop and Go) system.

ON position.

When the engine automatically starts,

- The downhill brake control indicator

the AUTO STOP indicator on the cluster

light illuminates for about 3 seconds

Illuminates to white.

and then goes off.

ś When you activate the system by

For more details, refer to "ISG (Idle Stop

pressing the DBC button.

and Go) system" section in chapter 6.

This indicator light blinks:

Information

When Downhill Brake Control system is

When the engine automatically starts

operating.

by the ISG system, some warning lights

(ABS, ESC, ESC OFF, EPS or Parking

This indicator light illuminates yellow:

brake warning light) may turn on for a

Whenever there is a malfunction with

few seconds. This happens because of

Downhill Brake Control system.

low battery voltage. It does not mean the

If this occurs, have the vehicle inspected

system has malfunctioned.

by an authorized HYUNDAI dealer.

For more details, refer to "Downhill

Brake Control (DBC)“ section in chapter

6.

4-20

04

Turn signal indicator light

High Beam Assist indicator

light (if equipped)

This indicator light blinks:

This indicator light illuminates:

When you operate the turn signal

When the high-beam is on with the light

indicator stalk.

switch in the AUTO position.

ś White: When High Beam Assist is

If any of the following occur, there may

ready to operate.

be a malfunction with the turn signal

ś Green: When High Beam Assist is

system.

operating.

- The turn signal indicator light

If your vehicle detects oncoming or

illuminates but does not blink

preceding vehicles, High Beam Assist

- The turn signal indicator light blinks

will switch the high beam to low beam

rapidly

automatically.

- The turn signal indicator light does not

For more details, refer to “High Beam

illuminate at all

Assist (HBA)” section in chapter 5.

If any of these conditions occur, have

the vehicle inspected by an authorized

Cruise Indicator Light

HYUNDAI dealer.

(if equipped)

High beam indicator light

This indicator light illuminates:

When the cruise control system is

enabled.

This indicator light illuminates:

For more details, refer to "Smart Cruise

ś When the headlights are on and in the

Control (SCC)" in chapter 7.

high beam position

ś When the turn signal lever is pulled

into the Flash-to-Pass position.

4-21

Instrument cluster

SPORT Mode Indicator Light

SMART Mode Indicator Light

(if equipped)

(if equipped)

This indicator light illuminates

This indicator light illuminates:

When you select "SPORT" mode as drive

When you select ''SMART" mode as drive

mode.

mode.

For more details, refer to "Drive Mode

For more details, refer to "Drive Mode

Integrated Control System" in chapter

Integrated Control System'' in chapter

6.

6.

Master warning light

This warning light illuminates:

When there is a malfunction in operation

in any of the following systems:

- Forward Collision-Avoidance Assist

malfunction (if equipped)

- Forward Collision-Avoidance Assist

radar blocked (if equipped)

- Blind-Spot Collision Warning

malfunction (if equipped)

- Blind-Spot Collision Warning radar

blocked (if equipped)

- LED headlight malfunction

(if equipped)

- High Beam Assist malfunction

(if equipped)

- Smart Cruise Control with Stop & Go

malfunction (if equipped)

- Smart Cruise Control with Stop & Go

radar blocked (if equipped)

- Tire Pressure Monitoring System

(TPMS) malfunction

To identify the details of the warning,

look at the LCD display.

4-22

04

Door, Hood, Liftgate open indicator

Sunroof open indicator (if equipped)

OTM040032

OTM040034

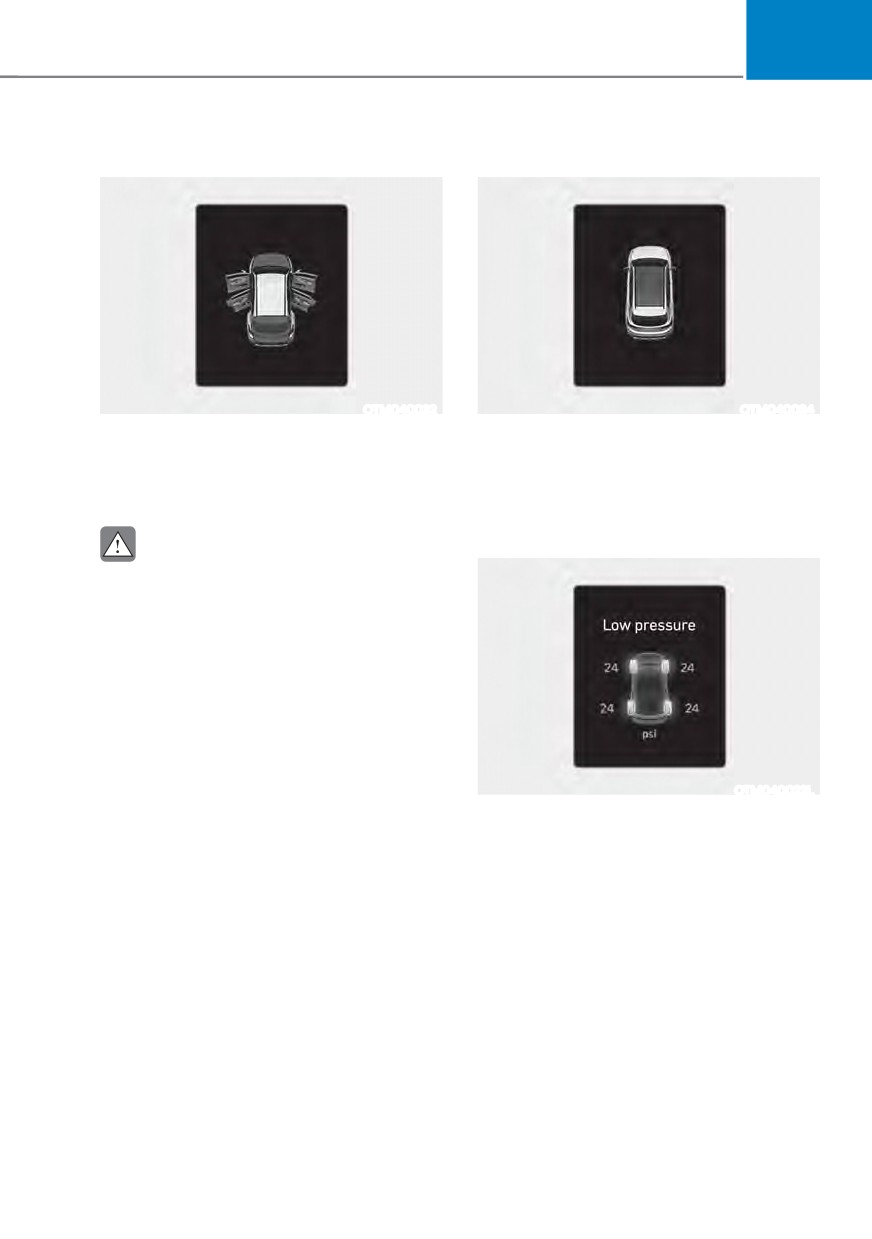

This warning is displayed if any door or

This warning is displayed if you turn off

hood or liftgate is left open. The warning

the engine when the sunroof is open.

will indicate which door is open in the

Close the sunroof securely before leaving

display.

your vehicle.

Low tire pressure

CAUTION

Before driving the vehicle, you should

confirm that the door/ hood/liftgate are

fully closed.

Also, check there is no door/hood/

liftgate open warning light or message

displayed on the instrument cluster.

OTM040022L

This warning message is displayed if the

tire pressure is low. The corresponding

tire on the vehicle will be illuminated.

For more details, refer to “Tire Pressure

Monitoring System (TPMS)” section in

chapter 8.

4-25

Instrument cluster

Lights

Low washer fluid

„ Type A

„ Type B

This message is displayed if the washer

fluid level in the reservoir is nearly empty.

Have the washer fluid reservoir refilled.

Low fuel

This message is displayed if the fuel tank

is almost out of fuel.

When this message is displayed, the low

fuel level warning light in the cluster will

come on.

OJX1049007L

OJX1049062L

It is recommended to look for the nearest

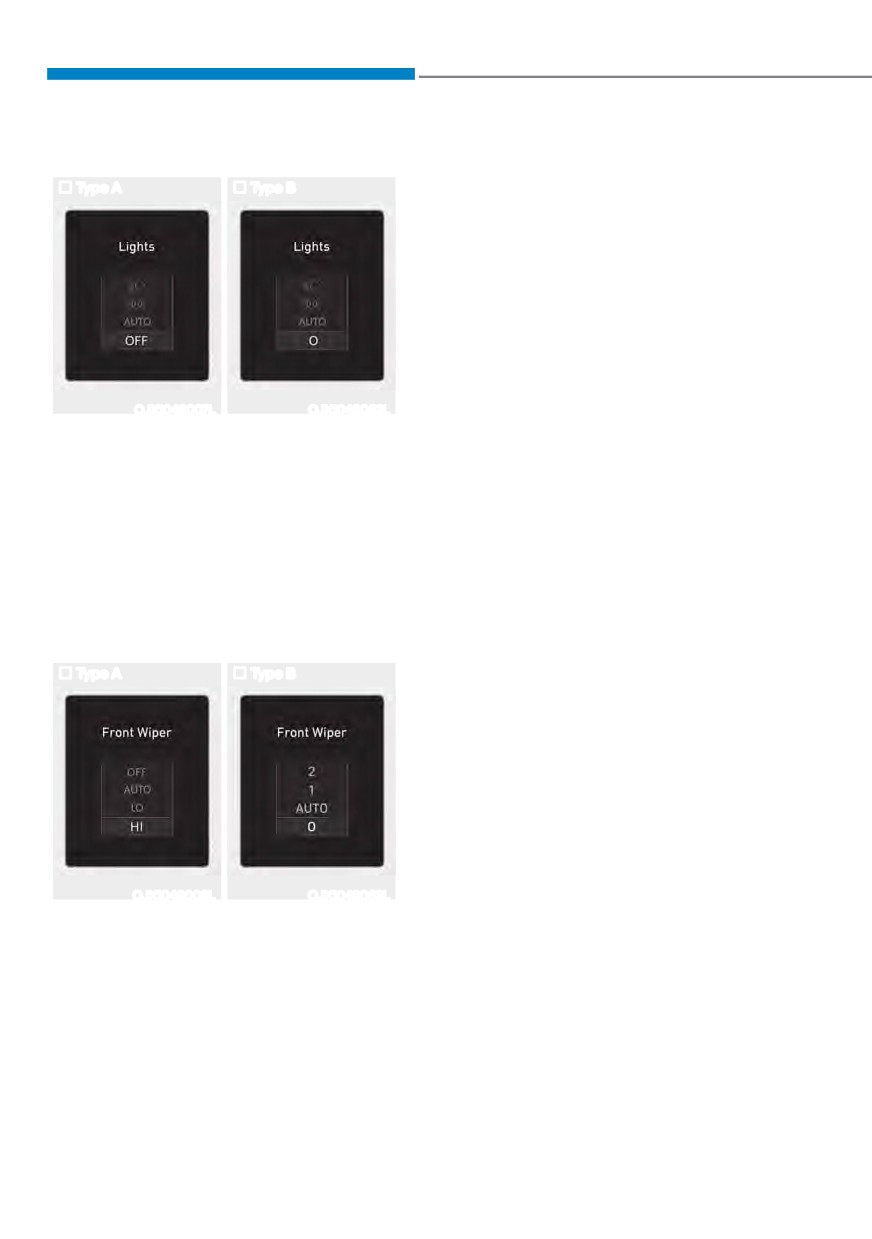

This indicator displays which exterior

fueling station and refuel as soon as

possible.

light is selected using the lighting

control.

Low engine oil (if equipped)

You can activate or deactivate Wiper/

Lights display function from the User

This warning message is displayed when

Settings menu in the cluster LCD display.

the engine oil level should be checked.

Select:

If this warning message is displayed,

-

6HWXS Ɵ 8VHU VHWWLQJV Ɵ &OXVWHU Ɵ

check the engine oil level as soon as

Wiper/Lights display

possible and add engine oil as required.

Slowly pour the recommended oil little

Wiper

by little into a funnel.

„ Type A

„ Type B

Use only the specified engine oil. (Refer

to "Recommended Lubricants and

Capacities“ section in chapter 2.)

Do not overfill the engine oil. Make sure

the oil level is not above F (Full) mark on

the dipstick.

OJX1049008L

OJX1049063L

This indicator displays which wiper speed

is selected using the wiper control.

You can activate or deactivate Wiper/

Lights display function from the User

Settings menu in the cluster LCD display.

Select:

-

6HWXS Ɵ 8VHU VHWWLQJV Ɵ &OXVWHU Ɵ

Wiper/Lights display

4-26

Content      ..     2      3      4      5     ..
