Hyundai Ioniq Hybrid (2019 year). Instruction - part 12

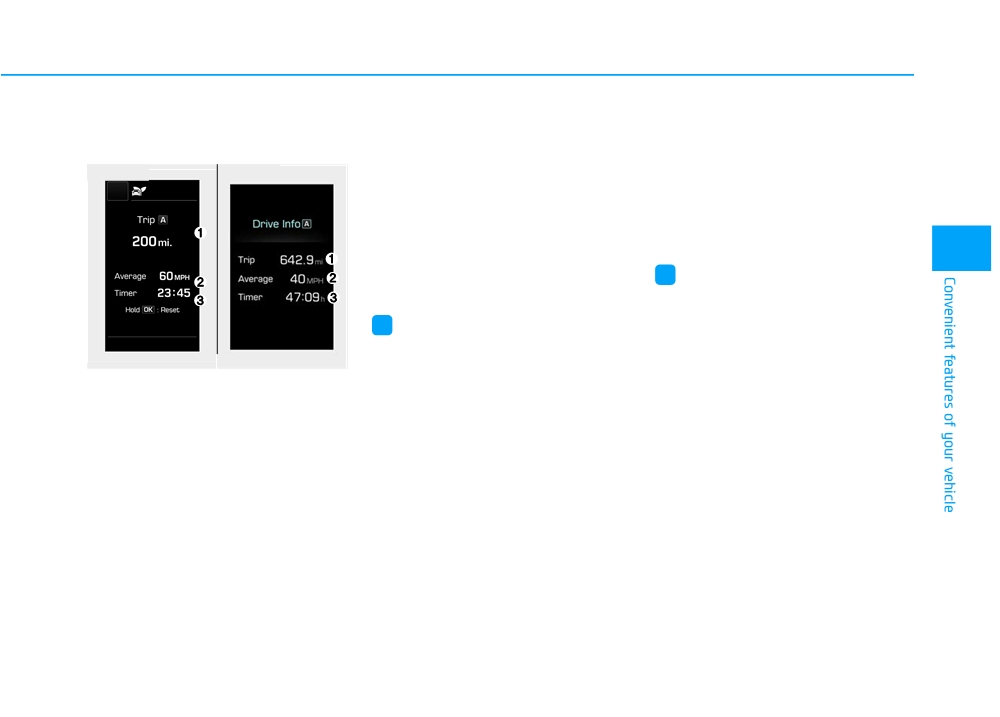

Tripmeter/Average vehicle speed/

Average Vehicle Speed (2)

Timer (3)

Timer

• The average vehicle speed is cal-

• The timer is the total driving time

culated by the total driving dis-

since the last timer reset.

■ Type A

■ Type B

tance and driving time since the

• To reset the timer, press the OK

last average vehicle speed reset.

button on the steering wheel for

• To reset the average vehicle speed,

more than 1 second when the timer

press the OK button on the steering

is displayed.

wheel for more than 1 second when

3

the average vehicle speed is dis-

i

Information

played.

The timer will continue to be counted

while the engine is still running (for

i

Information

example, when the vehicle is in traffic

• The average vehicle speed is not dis-

or stopped at a stop light.)

OAE046503N/OAEE046191N

played if the driving distance is less

Tripmeter (1)

than 0.19 miles (300 meters) or the

driving time is less than 10 seconds,

• The tripmeter is the total driving

distance since the last tripmeter

after resetting the vehicle speed.

reset.

• The average vehicle speed will con-

• To reset the tripmeter, press the

tinue to be calculated and will start

to decrease if the vehicle is stopped

OK button on the steering wheel

for more than 1 second when the

while the engine is still running (for

example, when the vehicle is in traf-

tripmeter is displayed.

fic or stopped at a stop light.)

3-107

Convenient features of your vehicle

Digital speedometer

Drive Info display

i

Information

■ Type A

■ Type B

■ Type A

If sunroof open warning is displayed

in the cluster, the Driving Info mes-

sage will not be displayed.

OTLA045193/OAEE046153R

OAEPH047194N

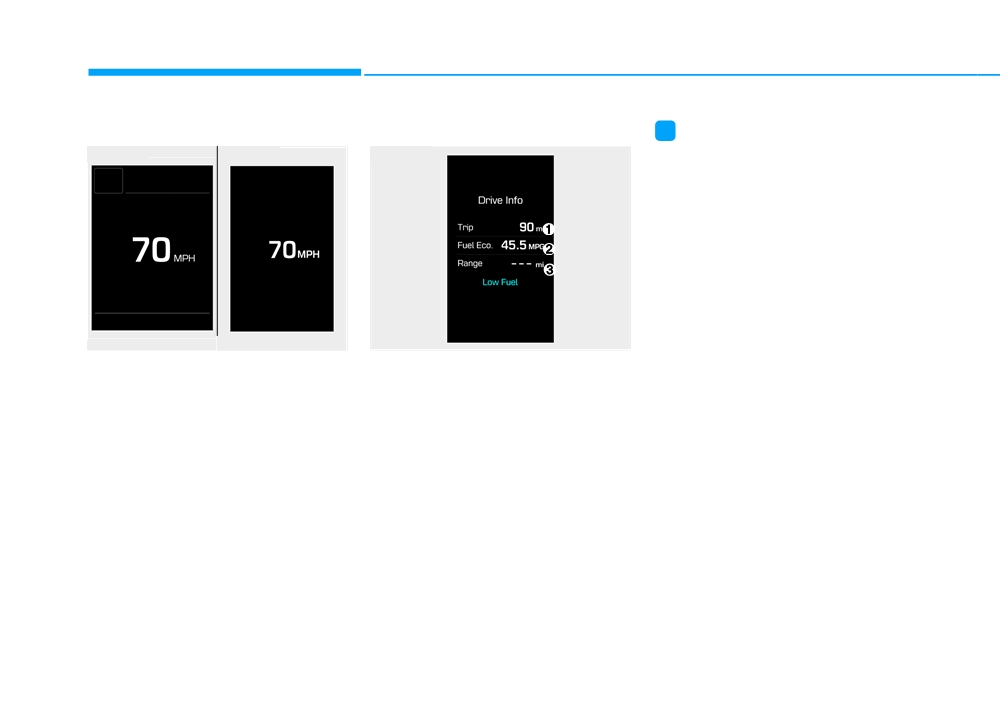

This message shows the speed of

At the end of each driving cycle, the

the vehicle.

Driving Info message is displayed.

This display shows the trip distance

(1), the average fuel economy (2),

and the remaining vehicle range (3).

This information is displayed for a

few seconds when you turn off the

ignition, and then goes off automati-

cally. The information is calculated

for each ignition cycle.

If the estimated remaining vehicle

range is below 1 mi. (1 km), the dis-

tance to empty will display as "----"

and a "Low Fuel" warning message

(4) will be displayed.

3-108

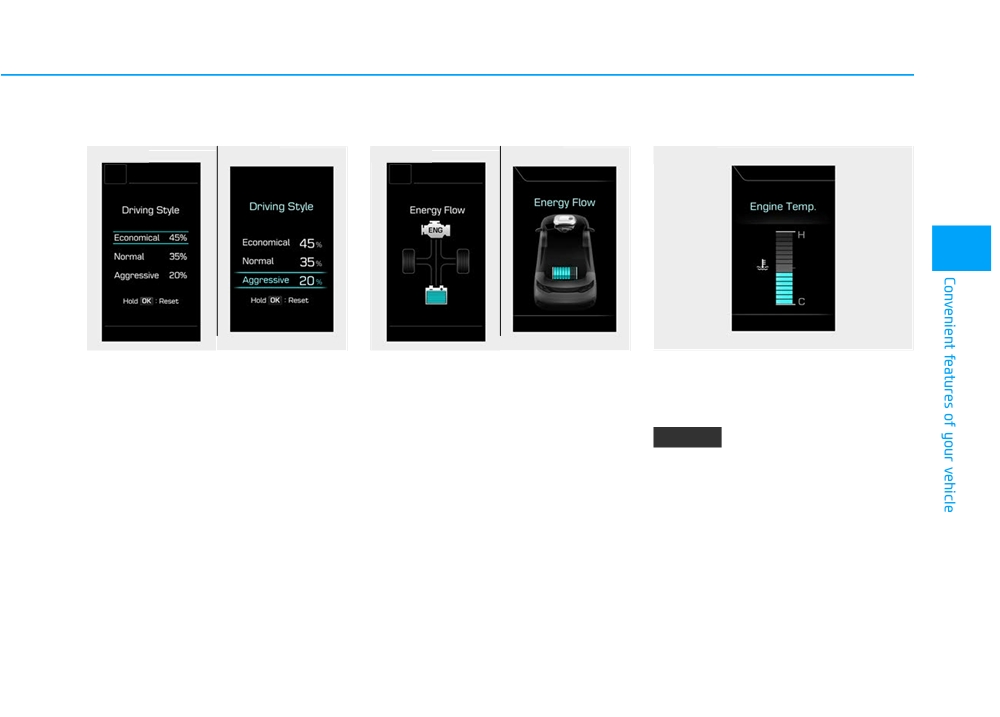

Driving style

Energy flow

Engine coolant temperature

■ Type A

■ Type B

■ Type A

■ Type B

■ Type B

3

OAE046148L/OAE046124L

OAE046149L/OAEQ046001L

OAE046125L

The driving style is displayed when

The hybrid system informs the driv-

This gauge indicates the tempera-

you are driving in ECO mode.

ers its energy flow in various operat-

ture of the engine coolant when the

When you drive in SPORT mode,

ing modes. While driving, the current

engine is running.

energy flow is specified in 11 modes.

each driving category will be dis-

played with "--".

For more information, refer to HEV

NOTICE

Energy Flow in the "Hybrid

When the gauge indicator gets out

System Overview" provided in

of the normal range, toward the "H

front of the owner's manual.

(Hot)" position, it indicates over-

heating of the engine. It may dam-

age the engine.

Do not continue driving with the

overheated engine. For further

information, refer to "If the Engine

Overheats" in the chapter 6.

3-109

Convenient features of your vehicle

TRIP COMPUTER (PLUG-IN HYBRID VEHICLE)

The trip computer is a microcomput-

Trip modes

er-controlled driver information sys-

For cluster type A

For cluster type B

tem that displays information related

to driving.

Range

Range

(Electric/Gasoline)

(Electric/Gasoline)

i

Information

Some driving information stored in the

trip computer (for example Average

• Distance to Empty

• Average Fuel Economy

Vehicle Speed) resets if the battery is

(Only for cluster type A)

• Instant Fuel Economy

disconnected.

• Average Fuel Economy

• Instant Fuel Economy

• Tripmeter

• Average Vehicle Speed

• Tripmeter

• Elapsed Time

• Average Vehicle Speed

• Elapsed Time

Digital Speedometer

Digital Speedometer

Driving Style

Driving Style

Energy Flow

Energy Flow

Engine Coolant Temperature

3-110

Range

■ Type A

i

Information

■ Type A

■ Type B

•

If the vehicle is not on level ground

or the battery power has been inter-

rupted, the range function may not

■ Type B

operate correctly.

•

The range may differ from the actu-

al driving distance as it is an esti-

3

mate of the available driving dis-

■ Type C

tance.

•

The trip computer may not register

additional fuel if less than 1.6 gallons

(6 liters) of fuel are added to the vehi-

OAE046402

OAEPH047534N/OAEPH047153N

cle.

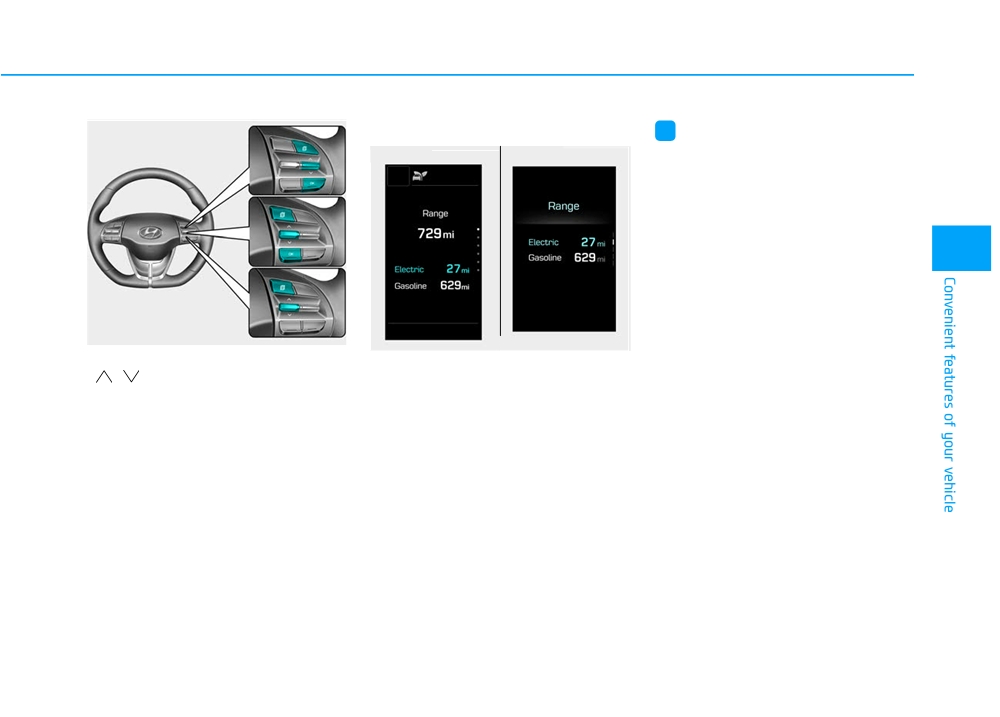

To change the trip mode, toggle the

The range is the estimated distance

•

The range may vary significantly

"

,

" switch on the steering wheel.

the vehicle can be driven with the

based on driving conditions, driving

remaining fuel in the fuel tank

habits, and condition of the vehicle.

(Gasoline) and high-voltage (hybrid)

battery (Electric).

If the estimated distance is below 1

mph (1 km/h), the trip computer will

display "---" as the range.

3-111

Convenient features of your vehicle

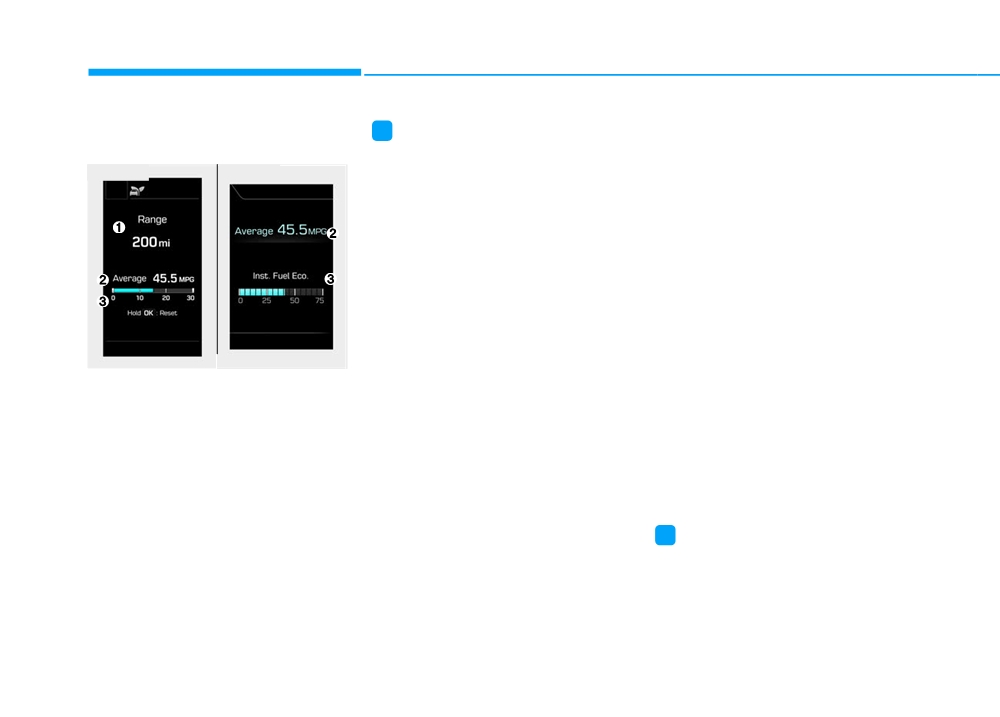

Range/Average fuel economy/

Manual reset

i

Information

Instant fuel economy

To clear the average fuel economy

•

If the vehicle is not on level ground

manually, press the OK button on the

■ Type A

■ Type B

or the battery power has been inter-

steering wheel for more than 1 sec-

rupted, the range function may not

ond when the average fuel economy

operate correctly.

is displayed.

•

The range may differ from the actu-

Automatic reset

al driving distance as it is an esti-

mate of the available driving dis-

To automatically reset the average

tance.

fuel economy, select between "After

•

The trip computer may not register

Ignition" or "After Refueling" in the

User Settings mode on the LCD dis-

additional fuel if less than 1.6 gallons

(6 liters) of fuel are added to the vehi-

play.

cle.

- After Ignition: When the vehicle has

OAEPH047208N/OAEPH047506N

been OFF for 4 hours or longer the

•

The fuel economy and range may

Range (1)

vary significantly based on driving

average fuel economy will reset

automatically.

• The range is the estimated dis-

conditions, driving habits, and condi-

tance the vehicle can be driven

tion of the vehicle.

- After Refueling: The average fuel

with the remaining fuel.

economy will reset automatically

• If the estimated distance is below

after adding 1.6 gallons (6 liters) of

Average Fuel Economy (2)

fuel or more and after driving speed

1 mi. (1 km), the trip computer will

• The average fuel economy is cal-

display "----" as range.

exceeds 1 mph (1 km/h).

culated by the total driving dis-

tance and fuel consumption since

the last average fuel economy

i

Information

reset.

The vehicle must be driven for a mini-

• The average fuel economy can be

mum of 0.19 miles (300 meters) since the

reset both manually and automati-

last ignition key cycle before the average

cally.

fuel economy will be recalculated.

3-112

Instant Fuel Economy (3)

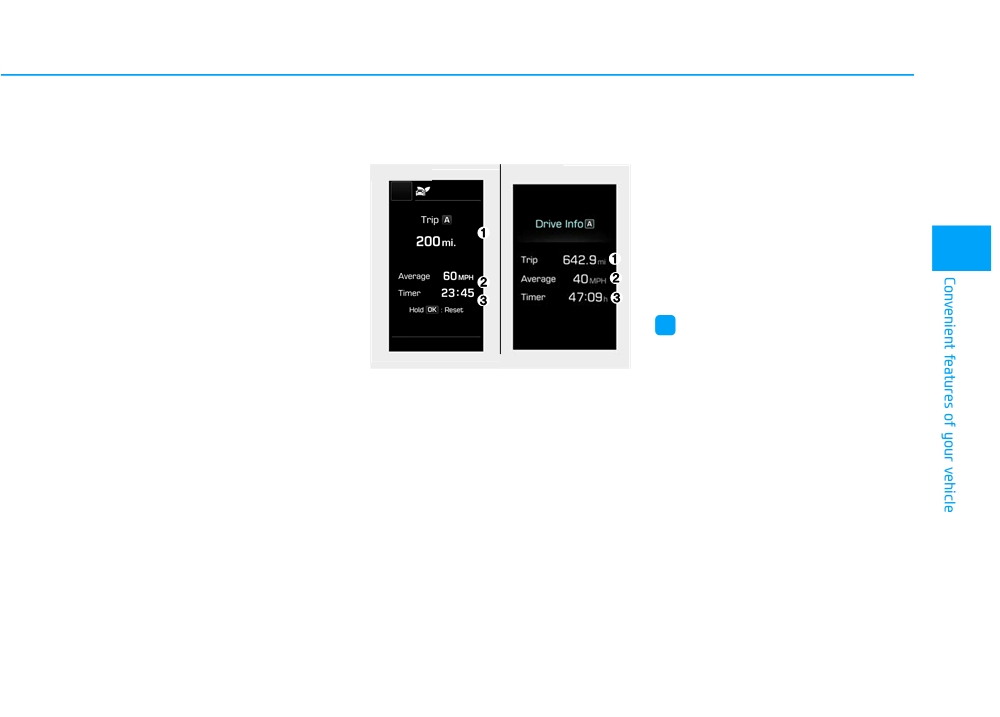

Tripmeter/Average vehicle

Average Vehicle Speed (2)

• This mode displays the instanta-

speed/Timer

• The average vehicle speed is cal-

neous fuel economy while driving.

culated by the total driving dis-

■ Type A

■ Type B

tance and driving time since the

last average vehicle speed reset.

• To reset the average vehicle speed,

press the OK button on the steering

wheel for more than 1 second when

3

the average vehicle speed is dis-

played.

i

Information

• The average vehicle speed is not dis-

OAE046503N/OAEE046191N

played if the driving distance is less

Tripmeter (1)

than 0.19 miles (300 meters) or the

driving time is less than 10 seconds,

• The tripmeter is the total driving

distance since the last tripmeter

after resetting the vehicle speed.

reset.

• The average vehicle speed will con-

• To reset the tripmeter, press the

tinue to be calculated and will start

to decrease if the vehicle is stopped

OK button on the steering wheel

for more than 1 second when the

while the engine is still running (for

example, when the vehicle is in traf-

tripmeter is displayed.

fic or stopped at a stop light.)

3-113

Convenient features of your vehicle

Timer (3)

Digital speedometer

Drive Info display

• The timer is the total driving time

■ Type A

■ Type B

■ Type A

■ Type B

since the last timer reset.

• To reset the timer, press the OK

button on the steering wheel for

more than 1 second when the timer

is displayed.

i

Information

The timer will continue to be counted

while the engine is still running (for

example, when the vehicle is in traffic

OTLA045193/OAEE046153R

OAEPH047195N/OAEPH047538N

or stopped at a stop light.)

This message shows the speed of

At the end of each driving cycle, the

the vehicle.

Driving Info message is displayed.

This display shows the trip distance

(1), average fuel economy (2), remain-

ing vehicle range (3), and charging

status (4).

This information is displayed for a few

seconds when you turn off the vehicle,

and then goes off automatically. The

information is calculated for each time

the vehicle is turned on.

i

Information

If sunroof open warning is displayed

in the cluster, the Driving Info mes-

sage will not be displayed.

3-114

Driving style

Energy flow

Engine coolant temperature

■ Type A

■ Type B

■ Type A

■ Type B

■ Type B

3

OAE046148L/OAE046124L

OAE046149L/OAEQ046001L

OAE046125L

The driving style is displayed when

The hybrid system informs the driv-

This gauge indicates the tempera-

you are driving in ECO mode.

ers its energy flow in various operat-

ture of the engine coolant when the

When you drive in SPORT mode,

ing modes. While driving, the current

engine is running.

energy flow is specified in 11 modes.

each driving category will be dis-

played with "--".

For more information, refer to HEV

NOTICE

Energy Flow in the "Hybrid System

When the gauge indicator gets out

Overview" provided in front of the

of the normal range, toward the "H

owner's manual.

(Hot)" position, it indicates over-

heating of the engine. It may dam-

age the engine.

Do not continue driving with the

overheated engine. For further

information, refer to "If the Engine

Overheats" in the chapter 6.

3-115

Convenient features of your vehicle

LIGHTING

Exterior Lights

Daytime running light (DRL)

(if equipped)

Lighting control

The Daytime Running Lights (DRL)

To operate the lights, turn the knob at

can make it easier for others to see

the end of the control lever to one of

the front of your vehicle during the

the following positions:

day, especially after dawn and before

sunset.

The DRL system will turn the dedi-

cated lamp OFF when :

• The light switch is in the DRL OFF

OAEE046510N

position.

AUTO light position (if equipped)

• The headlamps are ON.

The parking lamp and headlamp will

• The parking lamps are ON.

be turned ON or OFF automatically

• The vehicle is turned off.

depending on the amount of light

outside the vehicle.

OLF044084N

1. DRL (Daytime Running Lights)

Even with the AUTO light feature in

OFF position

operation, it is recommended to

2. AUTO light position

manually turn ON the lamps when

3. Parking lamp position

driving at night or in a fog, driving in

the rain, or when you enter dark

4. Headlamp position

areas, such as tunnels and parking

facilities.

3-116

NOTICE

• Do not cover or spill anything on

the sensor (1) located in front of

the instrument panel.

• Do not clean the sensor using a

window cleaner, the cleanser may

leave a light film which could

3

interfere with sensor operation.

• If your vehicle has window tint

or other types of metallic coat-

ing on the front windshield, the

OLF044086N

OLF044087N

AUTO light system may not work

Parking lamp position (

)

Headlamp position (

)

properly.

The parking lamp, license plate lamp

The headlamp, parking lamp, license

and instrument panel lamp are turned

plate lamp and instrument panel

ON.

lamp are turned ON.

i

Information

The Engine Start/Stop button must be

in the ON position to turn on the

headlamp.

3-117

Convenient features of your vehicle

High beam operation

High Beam Assist (HBA)

(if equipped)

OLF044088N

To flash the high beam headlamp,

OLF044089N

pull the lever towards you, then

OAE048581L

To turn on the high beam headlamp,

release the lever. The high beams

push the lever away from you. The

The High Beam Assist (HBA) is a

will remain ON as long as you hold

lever will return to its original position.

system that automatically adjusts the

the lever towards you.

The high beam indicator will light

headlamp range (switches between

when the headlamp high beams are

high beam and low beam) according

switched on.

to the brightness of other vehicles

and road conditions.

To turn off the high beam headlamp,

pull the lever towards you. The low

beams will turn on.

Operating condition

1. Place the headlamp switch in the

WARNING

AUTO position.

2. Turn on the high beam by pushing

Do not use high beam when there

the lever away from you.

are other vehicles approaching

The High Beam Assist (HBA) (

)

you. Using high beam could

indicator will illuminate.

obstruct the other driver's vision.

3-118

3. The High Beam Assist (HBA) will

When the High Beam Assist (HBA) is

turn on when vehicle speed is

operating, the high beam switches to

above 25 mph (40 km/h).

low beamif any of the following condi-

tions occur :

• If the headlamp switch is pushed

away when the High Beam Assist

-

When the headlamp of an on-com-

(HBA) is operating, the High Beam

ing vehicle is detected.

Assist (HBA) will turn off and the

-

When the tail lamp of a vehicle in

high beam will be on continuously.

3

front is detected.

• If the headlamp switch is pulled

-

When the headlamp or tail lamp of

towards you when the high beam

a motorcycle or a bicycle is detect-

is off, the high beam will turn on

ed.

OAE058237L

without the High Beam Assist

-

When the surrounding ambient light

(HBA) canceled. When you let go

Warning light and message

is bright enough that high beams

of the light switch, the lever will

are not required.

When the High Beam Assist (HBA) is

move to the middle and the high

not working properly, the Check High

beam will turn off.

-

When streetlights or other lights

Beam Assist warning message will

are detected.

• If the headlamp switch is pulled

come on for a few second. After the

towards you when the high beam

-

When the headlamp switch is not in

message disappears, the master

is on by the High Beam Assist

the AUTO position.

warning light (

) will illuminate. Take

(HBA), the low beam will be on

-

When the High Beam Assist (HBA)

your vehicle to an authorized

and the High Beam Assist (HBA)

is off.

HYUNDAI dealer and have the system

will turn off.

-

When vehicle speed is below 15 mph

checked.

• If the headlamp switch is placed

(24 km/h).

to the headlamp ON position, the

High Beam Assist (HBA) will turn

off and the low beam will be on

continuously.

3-119

Convenient features of your vehicle

WARNING

(Continued)

(Continued)

 When external condition is

• When a vehicle suddenly

The driver must be cautious in

intervened

appears from a curve.

the below situations may not

•

When there is a similar shape

• When the vehicle is tilted from

work properly when recognition

lamp with the front vehicle's

a flat tire or being towed.

of light from on-coming or front

lamps.

• When the LKA (Lane Keeping

vehicle is poor or limited:

•

When the headlamp is not

Assist) system failure indica-

 When the light from on-com-

repaired or replaced at an

tor

(yellow) illuminates

(if

ing or front vehicle is poor

authorized dealer.

equipped) and etc.

•

When the light from the on-

•

When headlamp aiming is not

 When front visibility is poor

coming or front vehicle is not

properly adjusted.

•

When the lamp of the on-com-

detected because of lamp

•

When driving on a narrow

ing or front vehicle is covered

damage, hidden from sight,

curved road, rough road,

with dust, snow or water.

etc.

downhill or uphill.

•

When the light from the on-

•

When the lamp of the on-com-

•

When only part of the vehicle

coming or front vehicle is not

ing or front vehicle is covered

in front is visible on a cross-

detected because of exhaust

with dust, snow or water.

road or curved road.

fume, smoke, fog, snow, etc.

•

When the front vehicle's head-

•

When there is a traffic light,

•

When the front window is cov-

lamps are off but the fog

reflecting sign, flashing sign

ered with foreign matters.

lamps on and etc.

or mirror ahead.

•

When it is hard to see

(Continued)

•

When there is a temporary

because of fog, heavy rain or

reflector or flash ahead (con-

snow and etc.

struction area).

(Continued)

•

When the road conditions are

bad such as being wet, iced or

covered with snow.

(Continued)

3-120

Turn signals and lane change

(Continued)

(Continued)

signals

•

Do not disassemble a front

•

At times, the High Beam

view camera temporarily for

Assist may not work properly.

tinted window or attaching

The system is for your con-

any types of coatings and

venience only. It is the respon-

accessories. If you disassem-

sibility of the driver for safe

ble the camera and assemble

driving practices and always

3

it again, take your vehicle to

check the road conditions for

an authorized HYUNDAI deal-

your safety.

er and have the system

•

When the system does not

checked to need a calibration.

operate normally, change the

•

When you replace or reinstall

lamp position manually

the windshield glass, front

between the high beam and

view camera, take your vehi-

low beam.

OLF044091N

cle to an authorized HYUNDAI

To signal a turn, push down on the

dealer and have the system

lever for a left turn or up for a right

checked.

turn in position (A).

•

Be careful that water doesn’t

If an indicator stays on and does not

get into the High Beam Assist

flash or if it flashes abnormally, one of

unit and do not remove or

the turn signal bulbs may be burned

damage related parts of the

out and will require replacement.

High Beam Assist system.

•

Do not place objects on the

crash pad that reflect light

such as mirrors, white paper,

etc. The system may malfunc-

tion if sunlight is reflected.

(Continued)

3-121

NOTICE

AFLS (Adaptive Front Lighting

Change the switch to the AUTO posi-

System) a.k.a. DBL (Dynamic

tion when the vehicle is in the ready

If the driver gets out of the vehicle

(

) mode. The adaptive front light-

Bending Light) (if equipped)

through other doors (except dri-

ing system will operate when the

ver's door), the battery saver func-

headlamp is ON. To turn off the

tion does not operate and the

AFLS, change the switch to other

headlamp delay function does not

positions. After turning the AFLS off,

turn off automatically. Therefore, It

headlamp swiveling no longer

3

causes the battery to be dis-

occurs, but leveling operates contin-

charged. In this case, make sure

uously.

to turn off the lamp before getting

If the AFLS malfunction indicator

out of the vehicle.

comes on, the AFLS is not working

properly. Drive to the nearest safe

location and restart the vehicle (

indicator ON). If the indicator contin-

OAEE046510N

uously remains on, have the system

be checked by an authorized

Adaptive front lighting system uses

HYUNDAI dealer.

the steering angle and vehicle

speed, to keep your field of vision

wide by swiveling and leveling the

headlamp.

3-123

Content   ..  10  11  12  13   ..
