Convenient features of your vehicle

LCD Display Modes (for cluster type A)

Modes

Symbol

Explanation

This mode displays driving information like the tripmeter, fuel economy, etc.

Trip Computer

For more information, refer to "Trip Computer" in this chapter.

Turn By Turn (TBT)

This mode displays the state of the navigation.

This mode displays the state of :

- Lane Keeping Assist (LKA) System

- Smart Cruise Control

- Driver Attention Warning (DAW) system

Assist

For more information, refer to "Smart Cruise Control (SCC)",

"Lane Keeping Assist (LKA) system" and "Driver Attention Warning

(DAW) system" in chapter 5.

A/V

This mode displays the state of the A/V system.

This mode displays the service interval (mileage or days) and warning mes-

Information

or

or

sages related to the Blind-spot Collision Warning (BCW) system, etc.

User Settings

In this mode, you can change settings of the doors, lamps, etc.

The information provided may differ depending on which functions are applicable to your vehicle.

3-90

Edit settings after shifting to P/

Trip computer mode

Turn By Turn (TBT) mode

Shift to P to edit settings

Either message appears if you try to

adjust the User Settings while driv-

ing.

For your safety, change the User

Settings after parking the vehicle,

applying the parking brake and mov-

3

ing the shift lever to P (Park).

Quick guide (Help)

This mode provides quick guides for

OAE046503N

OTL045174

the systems in the User Settings

mode.

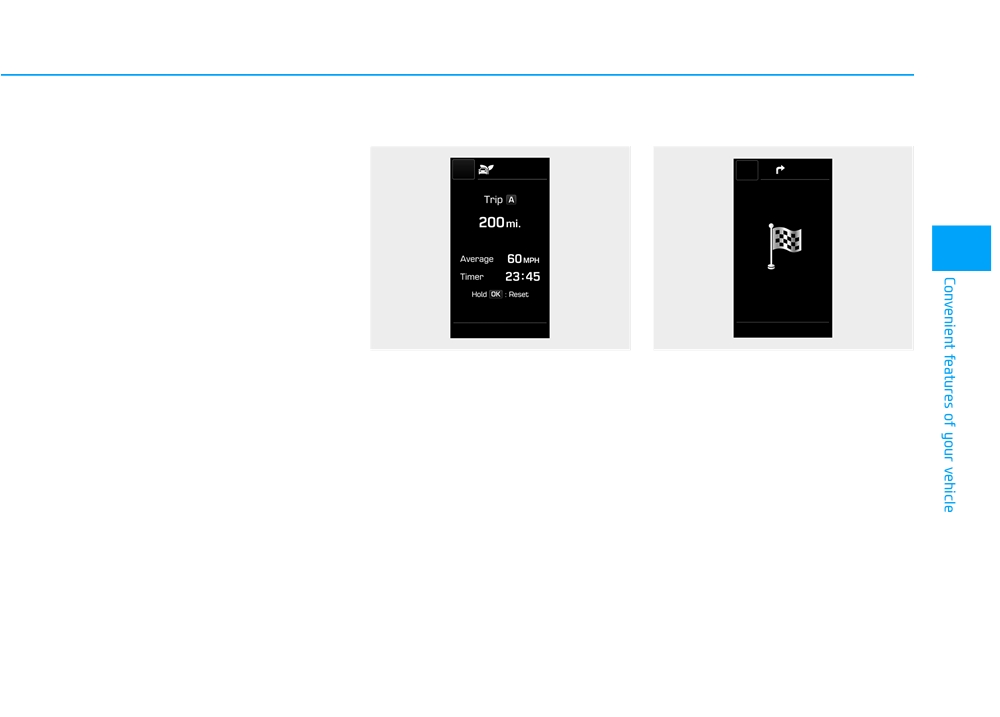

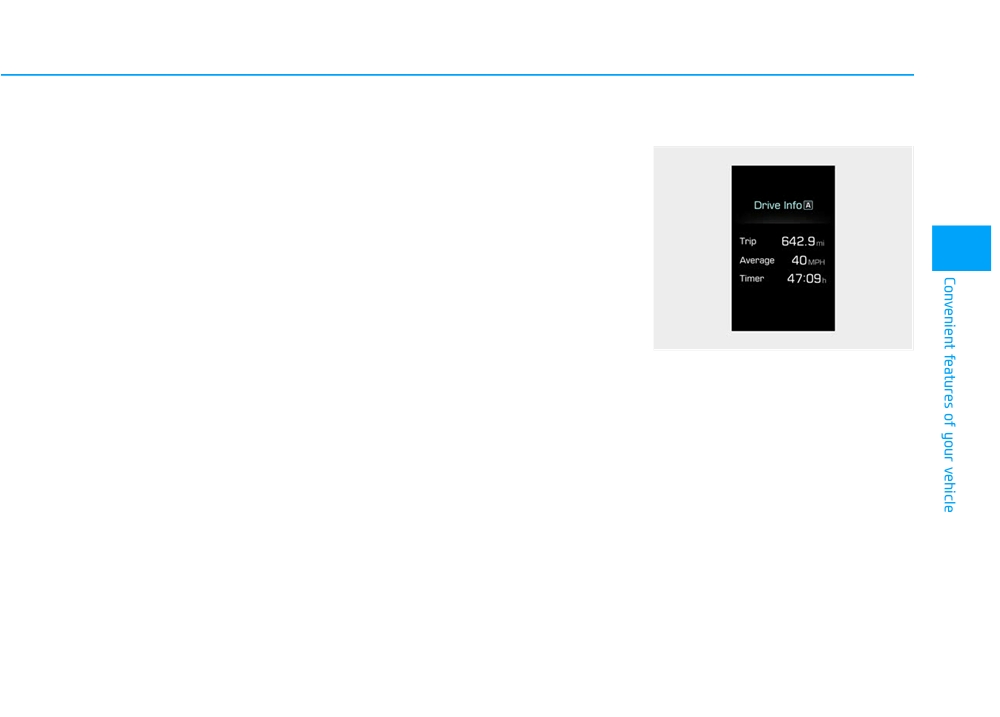

The trip computer mode displays

This mode displays the state of the

information related to vehicle driving

navigation.

Select an item, press and hold the

parameters including fuel economy,

OK button.

tripmeter information and vehicle

speed.

For more information, about each

system, refer to this Owner's

For more information, refer to

Manual.

"Trip Computer" in this chapter.

3-91

Convenient features of your vehicle

Assist mode

A/V mode

Information mode

This mode displays the service inter-

val (mileage and days).

OAE057195N

OTL045178

SCC/LKA/DAW (if equipped)

This mode displays the state of the

A/V system.

OTLA045182

This mode displays the state of the

Smart Cruise Control (SCC), Lane

Service interval

Keeping Assist

(LKA) system and

Service in

Driver Attention Warning (DAW) sys-

It calculates and displays the mainte-

tem.

nance schedule (mileage or days),

as set in the system.

For more information, refer to

When the set mileages or days

each system in chapter 5.

passed, "Service in" message is dis-

played for several seconds each time

Engine Start/Stop button is turned

ON.

3-92

Warning message

If one of followings occurs, warning

messages will be displayed in the

information mode for several seconds.

-

Low washer fluid (if equipped)

-

Exterior lamp malfunction

-

Blind-Spot Collision Warning

3

(BCW) system malfunction

(if equipped)

-

High Beam Assist malfunction

OTLA045297

OTL045299L

(if equipped)

Service required

Service in OFF

-

Tire Pressure Monitoring System

(TPMS) malfunction

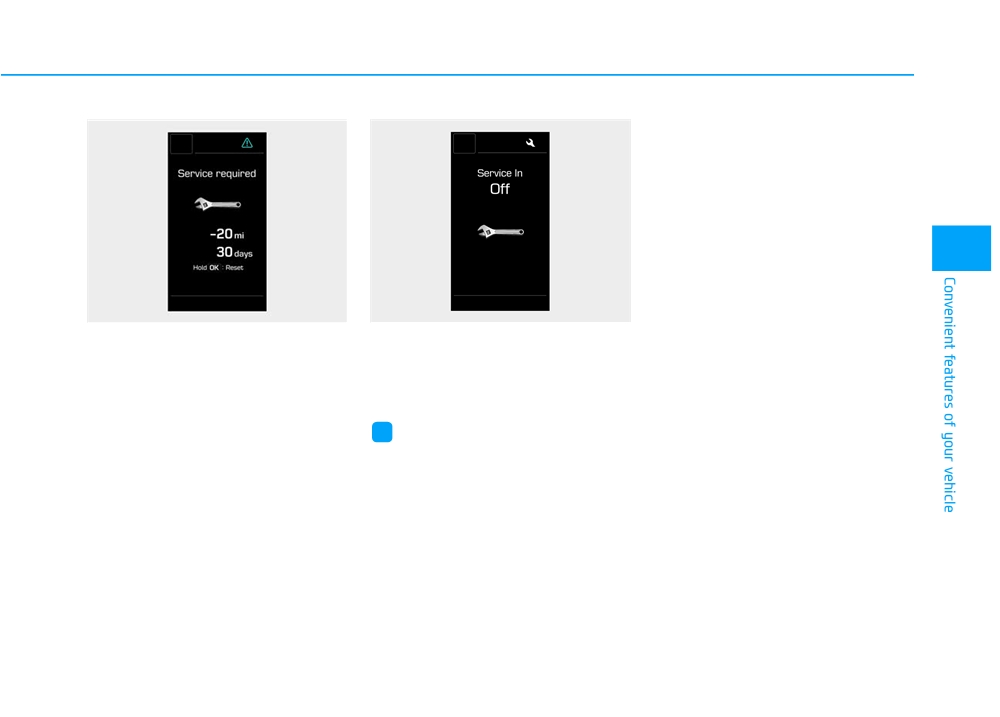

If you exceed the specified service

If the service interval is not set,

interval, a message indicating,

"Service in OFF" message is dis-

-

Forward Collision-Avoidance

"Service required" will be displayed

played on the LCD display.

Assist (FCA) malfunction

each time you turn ON the vehicle.

(if equipped)

i

Information

-

Smart cruise control malfunction

To reset the service interval in

(if equipped)

If any of the following conditions

mileages or days that you initially

-

Service reminder

occur, the mileage and number of days

set, press the OK button for more

to service may be incorrect.

than 1 second.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

3-93

Convenient features of your vehicle

3. Lights

4. Convenience

• Gear Position Pop-up

• One Touch Turn Signal

• Seat Easy Access

To activate or deactivate the gear

position pop-up.

- Off : The one touch turn signal func-

- Off: The seat easy access function

tion will be deactivated.

is deactivated.

When activated, the gear position

will be displayed on the LCD display.

- 3, 5, 7 Flashes: The turn signal indi-

- Normal/Extended: When you turn

cator will blink 3, 5, or 7 times when

off the engine, the driver's seat will

the turn signal lever is moved slightly.

automatically move rearward short

5. Service Interval

(Normal) or long (Extended) for you

For more information, refer to

• Service Interval

to enter or exit the vehicle more

"Lighting" in this chapter.

comfortably.

To activate or deactivate the service

interval function.

For more information, refer to

• Headlight Delay

"Driver Position Memory System"

If the service interval menu is acti-

To activate or deactivate the head-

in this chapter.

vated, you may adjust the time and

lamp delay function.

distance.

For more information, refer to

• Wireless Charging System

"Lighting" in this chapter

To activate or deactivate the wireless

i

Information

charging system in the front seat.

To use the service interval menu, con-

For more information, refer to

sult an authorized HYUNDAI dealer.

"Wireless Charging System" in

this chapter.

• Wiper/Lights Display

To activate or deactivate the Wiper/

Light mode.

When activated, the LCD display

shows the selected Wiper/Light

mode whenever you change the

mode.

3-96

If the service interval is activated and

6. Other (Features)

• Fuel Economy Unit

the time and distance is adjusted,

• Aux. Battery Saver+

To select the fuel economy unit.

messages are displayed in the fol-

(US gallon, UK gallon)

To activate or deactivate the Aux.

lowing situations each time the vehi-

Battery Saver+ function.

cle is turned on.

• Temperature Unit

When activated, the high voltage bat-

- Service in

tery is used to keep the 12V battery

To select the temperature unit.

: Displayed to inform the driver the

charged.

(°C,°F)

remaining mileage and days to

3

For more information, refer to

service.

"Hybrid System Overview" provid-

• Tire Pressure Unit

- Service required

ed in the front of the owner’s man-

To select the tire pressure unit.

: Displayed when the mileage and

ual.

(psi, kPa, bar)

days to service has been reached

or passed.

• Fuel Economy (Auto) Reset

• Language

- Off: The average fuel economy will

i

Information

To select language.

not reset automatically whenever

If any of the following conditions

refueling.

occur, the mileage and number of days

7. Reset

- After Ignition: When the vehicle has

to service may be incorrect.

been OFF for 4 hours or longer the

You can reset the menus in the User

- The battery cable is disconnected.

average fuel economy will reset

Settings Mode. All menus in the User

- The fuse switch is turned off.

automatically.

Settings Mode are reset to factory

settings, except language and serv-

- The battery is discharged.

- After Refueling: The average fuel

ice interval.

economy will reset automatically

after adding 1.6 gallons (6 liters) of

fuel or more and after driving speed

exceeds 1 mph (1 km/h).

For more information, refer to

"Trip Computer" in this chapter.

3-97

Convenient features of your vehicle

LCD Display Modes (for cluster type B)

Modes

Symbol

Explanation

This mode displays driving information like the tripmeter, fuel economy, etc.

Trip Computer

For more information, refer to "Trip Computer" in this chapter.

Turn By Turn (TBT)

This mode displays the state of the navigation.

This mode displays the state of :

- Lane Keeping Assist (LKA) system

- Smart Cruise Control

- Driver Attention Warning (DAW) system

Assist

- Tire pressure

For more information, refer to "Lane Keeping Assist (LKA) system", "Smart

Cruise Control System", "Driver Attention Warning (DAW) system" in chapter 5

and "Tire Pressure Monitoring System (TPMS)" in chapter 6.

User Settings

In this mode, you can change settings of the doors, lamps, etc.

This mode displays warning messages related to the Blind-spot Collision Warning

Warning

(BCW) system, etc.

The information provided may differ depending on which functions are applicable to your vehicle.

3-98

Edit settings after shifting to P/

Quick guide help

Trip computer mode

Shift to P to edit settings

This mode provides quick guides for

Either message appears if you try to

the systems in the User Settings

adjust the User Settings while driv-

mode.

ing.

Select an item, press and hold the

For your safety, change the User

OK button.

Settings after parking the vehicle,

For more information about each

applying the parking brake and mov-

3

system, refer to this Owner's

ing the shift lever to P (Park).

Manual.

OAEE046191N

The trip computer mode displays

information related to vehicle driving

parameters including fuel economy,

tripmeter information and vehicle

speed.

For more information, refer to

"Trip Computer" in this chapter.

3-99

Convenient features of your vehicle

Turn By Turn (TBT) mode

Assist mode

OAE066030L

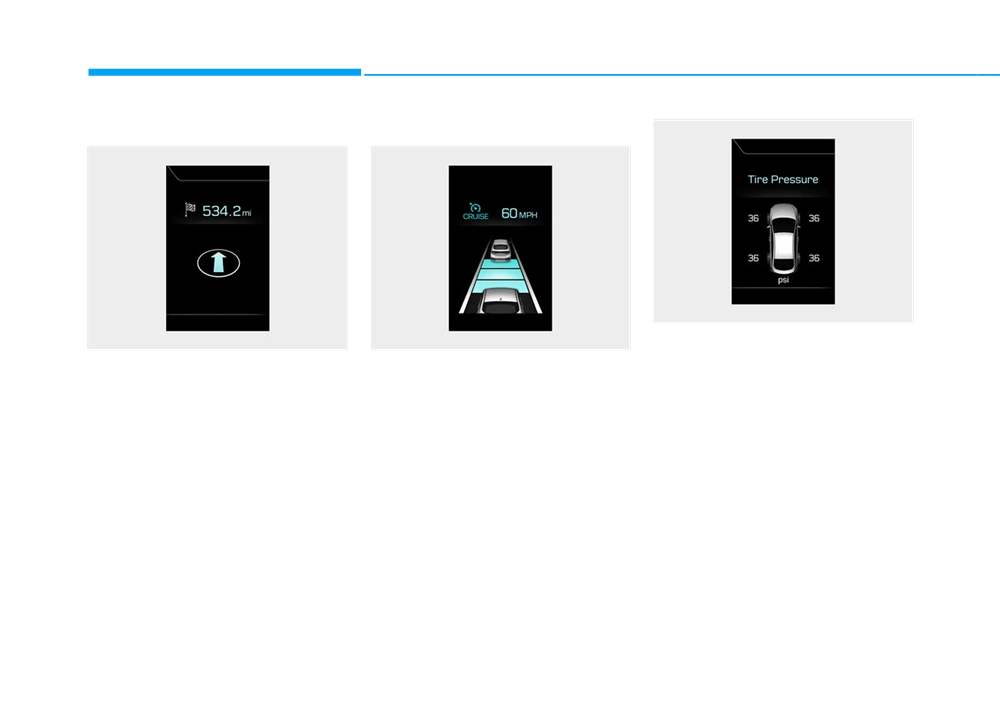

Tire Pressure

OAEE046505N

OAEE046137R

This mode displays information relat-

This mode displays the state of the

SCC/LKA/DAW (if equipped)

ed to Tire Pressure.

navigation.

This mode displays the state of the

Smart Cruise Control (SCC), Lane

For more information, refer to

Keeping Assist

(LKA) system and

"Tire Pressure Monitoring System

Driver Attention Warning (DAW) sys-

(TPMS)" in chapter 6.

tem.

For more information, refer to

each system in chapter 5.

3-100

• Two Press Unlock

4. Convenience

• Gear Position Pop-up

- Off: The two press unlock function

• Seat Easy Access

To activate or deactivate the gear

will be deactivated. Therefore, all

position pop-up.

- Off: The seat easy access function

doors will unlock if the door unlock

is deactivated.

When activated, the gear position

button is pressed.

will be displayed on the LCD display.

- Normal/Extended: When you turn

- On: Only the driver's door will

off the engine, the driver's seat will

unlock if the door unlock button is

automatically move rearward short

5. Service Interval

pressed. When the door unlock

3

(Normal) or long (Extended) for you

button is pressed again within 4

• Service Interval

to enter or exit the vehicle more

seconds, the remaining doors will

comfortably.

To activate or deactivate the service

unlock.

interval function.

For more information, refer to

"Driver Position Memory System"

• Adjust Interval

3. Lights

in this chapter.

If the service interval menu is acti-

• One Touch Turn Signal

vated, you may adjust the time and

- Off: The one touch turn signal func-

• Wireless Charging System

distance.

tion will be deactivated.

To activate or deactivate the wireless

- 3, 5, 7 Flashes: The turn signal indi-

charging system in the front seat.

i

Information

cator will blink 3, 5, or 7 times when

For more information, refer to

To use the service interval menu, con-

the turn signal lever is moved slightly.

"Wireless Charging System" in

sult an authorized HYUNDAI dealer.

For more information, refer to

this chapter.

"Lighting" in this chapter.

• Wiper/Lights Display

• Headlight Delay

To activate or deactivate the Wiper/

Light mode.

To activate or deactivate the head-

lamp delay function.

When activated, the LCD display

shows the selected Wiper/Light

For more information, refer to

mode whenever you changed the

"Lighting" in this chapter

mode.

3-103

Convenient features of your vehicle

If the service interval is activated and

6. Other (Features)

• Fuel Economy Unit

the time and distance is adjusted,

To select the fuel economy unit.

• Aux. Battery Saver+

messages are displayed in the fol-

(US gallon, UK gallon)

To activate or deactivate the Aux.

lowing situations each time the vehi-

Battery Saver+ function.

cle is turned on.

• Temperature Unit

When activated, the high voltage bat-

To select the temperature unit.

- Service in

tery is used to keep the 12V battery

(°C,°F)

: Displayed to inform the driver the

charged.

remaining mileage and days to

For more information, refer to

• Tire Pressure Unit

service.

"Hybrid System Overview" provid-

To select the tire pressure unit.

- Service required

ed in the front of the owner's man-

(psi, kPa, bar)

: Displayed when the mileage and

ual.

days to service has been reached

• Language

or passed.

To select language.

• Fuel Economy (Auto) Reset

- Off: The average fuel economy will

i

Information

7. Reset

not reset automatically whenever

If any of the following conditions

refueling.

You can reset the menus in the User

occur, the mileage and number of days

Settings Mode. All menus in the User

- After Ignition: When the engine has

to service may be incorrect.

Settings Mode are reset to factory

been OFF for 4 hours or longer the

settings, except language and serv-

- The battery cable is disconnected.

average fuel economy will reset

ice interval.

- The fuse switch is turned off.

automatically.

- After Refueling: The average fuel

- The battery is discharged.

economy will reset automatically

after adding 1.6 gallons (6 liters) of

fuel or more and after driving speed

exceeds 1 mph (1 km/h).

For more information, refer to

"Trip Computer" in this chapter.

3-104

TRIP COMPUTER (HYBRID VEHICLE)

The trip computer is a microcomput-

Trip modes

■ Type A

er-controlled driver information sys-

tem that displays information related

• Range

to driving.

(Only for cluster type A)

• Average Fuel Economy

■ Type B

i

Information

• Instant Fuel Economy

Some driving information stored in the

3

trip computer (for example Average

Vehicle Speed) resets if the battery is

■ Type C

disconnected.

• Tripmeter

• Average Vehicle Speed

• Timer

OAE046402

To change the trip mode, toggle the

"

,

" switch on the steering wheel.

Digital Speedometer

Driving Style

Energy Flow

Engine Coolant Temperature

(Only for cluster type B)

3-105

Convenient features of your vehicle

Range/Average fuel economy/

(Continued)

Automatic reset

Instant fuel economy

• The range may differ from the actu-

To automatically reset the average

al driving distance as it is an esti-

fuel economy, select between "After

■ Type A

■ Type B

mate of the available driving dis-

Ignition" or "After Refueling" in the

tance.

User Settings mode on the LCD dis-

• The trip computer may not register

play.

additional fuel if less than 1.6 gallons

- After Ignition: When the vehicle has

(6 liters) of fuel are added to the vehi-

been OFF for 4 hours or longer the

cle.

average fuel economy will reset

• The fuel economy and range may

automatically.

vary significantly based on driving

- After Refueling: The average fuel

conditions, driving habits, and condi-

economy will reset automatically

tion of the vehicle.

after adding 1.6 gallons (6 liters) of

fuel or more and after driving speed

OAEPH047208N/OAEPH047506N

exceeds 1 mph (1 km/h).

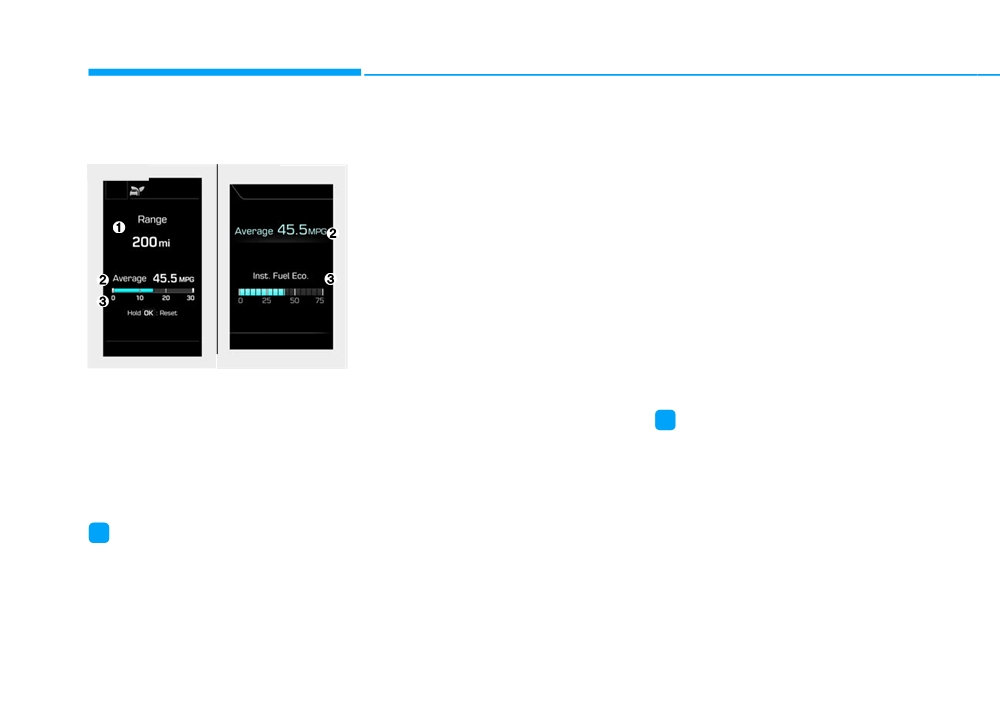

Range (1)

Average Fuel Economy (2)

• The range is the estimated dis-

• The average fuel economy is calcu-

tance the vehicle can be driven

lated by the total driving distance

i

Information

with the remaining fuel.

and fuel consumption since the last

The vehicle must be driven for a min-

average fuel economy reset.

• If the estimated distance is below

imum of 0.19 miles (300 meters) since

1 mi. (1 km), the trip computer will

• The average fuel economy can be

the last ignition key cycle before the

display "----" as range.

reset both manually and automati-

average fuel economy will be recalcu-

cally.

lated.

i

Information

Manual reset

• If the vehicle is not on level ground

Instant Fuel Economy (3)

To clear the average fuel economy

or the battery power has been inter-

• This mode displays the instanta-

manually, press the OK button on the

rupted, the range function may not

neous fuel economy while driving.

steering wheel for more than 1 sec-

operate correctly.

ond when the average fuel economy

(Continued)

is displayed.

3-106

Content   ..  9  10  11  12   ..
