Hyundai i800 (2016 year). Instruction - part 21

Maintenance

WASHER FLUID

PARKING BRAKE

Front

However, use washer solvent with

antifreeze characteristics in cold climates

to prevent freezing.

WARNING - Coolant

•

Do not use radiator coolant or

antifreeze in the washer fluid

reservoir.

•

Radiator coolant can severely

obscure visibility when sprayed

OTQ077010

on the windscreen and may

Rear (if equipped)

cause loss of vehicle control or

OTQ057008

damage to paint and body trim.

Checking the parking brake

•

Windscreen washer fluid agents

contain some amounts of alcohol

Check the stroke of the parking brake by

and can be flammable under cer-

counting the number of “clicks’’ heard

tain circumstances. Do not allow

whilst fully applying it from the released

sparks or flame to contact the

position. Also, the parking brake alone

washer fluid or the washer fluid

should securely hold the vehicle on a fair-

reservoir. Damage to the vehicle

ly steep grade. If the stroke is more or

or occupants could occur.

less than specified, we recommend that

•

Windscreen washer fluid is poi-

the system be serviced by a HYUNDAI

OTQ077011

sonous to humans and animals.

authorised repairer.

Checking the washer fluid level

Do not drink and avoid contact-

The reservoir is translucent so that you

ing windscreen washer fluid.

Stroke : 7

“clicks’’ at a force of

can check the level with a quick visual

Serious injury or death could

44 lbs (20 kg, 196 N).

inspection.

occur.

Check the fluid level in the washer fluid

reservoir and add fluid if necessary. Plain

water may be used if washer fluid is not

available.

7 22

Maintenance

FUEL FILTER (FOR DIESEL)

Draining water from fuel filter

The fuel filter for diesel engine plays an

important role of separating water from

fuel and accumulating the water in its

bottom.

If water accumulates in the

fuel filter, the warning light

comes on when the ignition

switch is in the ON position.

If the stroke is more or less

than specified, we recom-

mend that the system be

OTQ077012R

serviced by a HYUNDAI

authorised repairer.

Fuel filter cartridge replacement

✽ NOTICE

CAUTION

When replacing the fuel filter cartridge,

we recommend that you use parts for

If the water accumulated in the fuel

replacement from a HYUNDAI autho-

filter is not drained at proper times,

rised repairer.

damages to the major parts such as

the fuel system can be caused by

water permeation in the fuel filter.

7 23

Maintenance

AIR CLEANER

OTQ077015

OTQ077013

OTQ077014

Filter replacement

1. Loosen the air cleaner cover attaching

clips and open the cover.

It must be replaced when necessary, and

should not be cleaned and reused.

OTQ077016

2. Replace the air cleaner filter.

3. Lock the cover with the cover attaching

clips.

7 24

Maintenance

CLIMATE CONTROL AIR FILTER (IF EQUIPPED)

Replace the filter according to the

Filter inspection

Maintenance Schedule.

The climate control air filter should be

If the vehicle is operated in extremely

replaced according to the maintenance

dusty or sandy areas, replace the ele-

schedule. If the vehicle is operated in

ment more often than the usual recom-

severely air-polluted cities or on dusty

mended intervals.

rough roads for a long period, it should

be inspected more frequently and

replaced earlier. When you replace the

CAUTION

climate control air filter, replace it per-

• Do not drive with the air cleaner

forming the following procedure, and be

removed; this will result in exces-

careful to avoid damaging other compo-

sive engine wear.

nents.

• When removing the air cleaner fil-

OTQ077018R

ter, be careful that dust or dirt

Filter replacement

does not enter the air intake, or

damage may result.

1. Open the glove box and remove the

support rod (1).

• We recommend that you use

parts for replacement from a

HYUNDAI authorised repairer.

7 25

Maintenance

OTQ077019R

OTQ077020R

OTQ077021

2. With the glove box open, remove the

3. Remove the climate control air filter

4. Replace the climate control air filter.

stoppers on both sides to allow the

cover by turning the cover stopper (1)

5. Reassemble in the reverse order of

glove box to hang freely on the hinges.

and then remove the air filters.

disassembly.

✽ NOTICE

Install a new climate control air filter in

the correct direction with the arrow

symbol (↓) facing downwards.

Otherwise, the climate control effects

may decrease, possibly with a noise.

7 26

Maintenance

WIPER BLADES

Contamination of either the windscreen

Blade replacement

or the wiper blades with foreign matter

When the wipers no longer clean ade-

can reduce the effectiveness of the wind-

quately, the blades may be worn or

screen wipers. Common sources of con-

cracked, and require replacement.

tamination are insects, tree sap, and hot

wax treatments used by some commer-

cial car washes. If the blades are not wip-

CAUTION

ing properly, clean both the window and

To prevent damage to the wiper

the blades with a good cleaner or mild

arms or other components, do not

detergent, and rinse thoroughly with

attempt to move the wipers manual-

clean water.

ly.

1JBA5122/H

CAUTION

CAUTION

Blade inspection

To prevent damage to the wiper

The use of a non-specified wiper

✽ NOTICE

blades, do not use petrol, kerosene,

blade could result in wiper malfunc-

Commercial hot waxes applied by auto-

paint thinner, or other solvents on

tion and failure.

matic car washes have been known to

or near them.

make the windscreen difficult to clean.

7 27

Maintenance

1JBA7037

1LDA5023

OEN076018

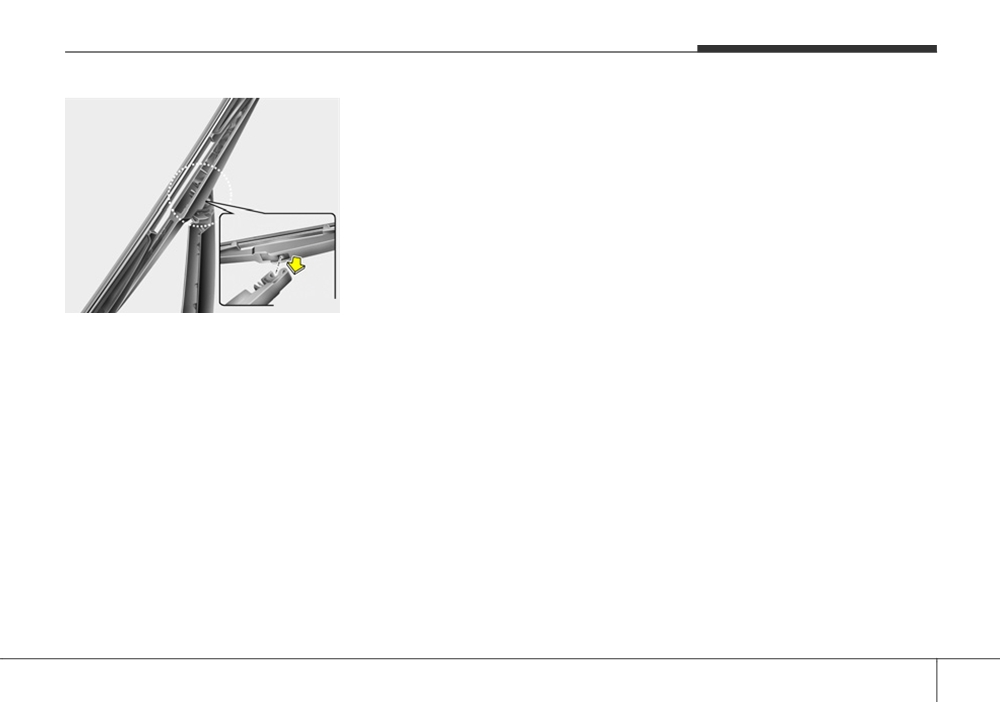

Front windscreen wiper blade

Rear window wiper blade

1. Raise the wiper arm.

(if equipped)

1. Raise the wiper arm and pull out the

wiper blade assembly.

CAUTION

Do not allow the wiper arm to fall

against the windscreen, since it

may chip or crack the windscreen.

1JBA7038

2. Compress the clip and slide the blade

assembly downward.

3. Lift it off the arm.

4. Install the blade assembly in the

reverse order of removal.

7 28

Maintenance

OEN076019

2. Install the new blade assembly by

inserting the centre part into the slot in

the wiper arm until it clicks into place.

3. Make sure the blade assembly is

installed firmly by trying to pull it slight-

ly.

To prevent damage to the wiper arms or

other components, we recommend that

the wiper blade be replaced by a

HYUNDAI authoised repairer.

7 29

Maintenance

BATTERY

✽ NOTICE

Basically equipped battery is mainte-

WARNING - Battery

nance free type. If your vehicle is

dangers

equipped with the battery marked with

Always read the following

LOWER and UPPER on the side, you

instructions carefully when

can check the electrolyte level. The elec-

handling a battery.

trolyte level should be between LOWER

Keep lighted cigarettes and

and UPPER. If the electrolyte level is

all other flames or sparks

low, it needs to add distilled (demineral-

away from the battery.

ized) water (Never add sulfuric acid or

other electrolyte). When refill, be care-

Hydrogen, a highly com-

ful not to splash the battery and adja-

bustible gas, is always

OTQ077022

cent components. And do not overfill the

present in battery cells and

For best battery service

battery cells. It can cause corrosion on

may explode if ignited.

other parts. After then ensure that tight-

• Keep the battery securely mounted.

Keep batteries out of the

en the cell caps. We recommend that you

• Keep the battery top clean and dry.

contact a HYUNDAI authorised repair-

reach of children because

• Keep the terminals and connections

er.

batteries contain highly

clean, tight, and coated with petroleum

corrosive SULFURIC ACID.

jelly or terminal grease.

Do not allow battery acid to

contact your skin, eyes,

• Rinse any spilled electrolyte from the

battery immediately with a solution of

clothing or paint finish.

water and baking soda.

If any electrolyte gets into

• If the vehicle is not going to be used for

your eyes, flush your eyes

an extended time, disconnect the bat-

with clean water for at least

tery cables.

15 minutes and get immedi-

ate medical attention.

(Continued)

7 30

Maintenance

■ Example

(Continued)

(Continued)

• The electrical ignition system

If electrolyte gets on your

works with high voltage. Never

skin, thoroughly wash the

touch these components with the

contacted area. If you feel a

engine running or the ignition

pain or a burning sensa-

switched on.

tion, get medical attention

immediately.

Failure to follow the above warn-

ings can result in serious bodily

Wear eye protection when

injury or death.

charging or working near a

battery. Always provide

ventilation when working in

CAUTION

OJD072039

an enclosed space.

If you connect unauthorised elec-

❈ The actual battery label in the vehicle

An inappropriately dis-

tronic devices to the battery, the

may differ from the illustration.

posed battery can be harm-

battery may be discharged. Never

ful to the environment and

use unauthorised devices.

Battery capacity label

human health. Dispose the

battery according to your

1. CMF60L-BCI : The HYUNDAI model

local law(s) or regulation.

name of battery

2.12V : The nominal voltage

•

When lifting a plastic-cased bat-

3.60Ah (20HR) : The nominal capacity

tery, excessive pressure on the

(in Ampere hours)

case may cause battery acid to

4.92RC : The nominal reserve capacity

leak, resulting in personal injury.

(in min.)

Lift with a battery carrier or with

5.550CCA : The cold-test current in

your hands on opposite corners.

amperes by SAE

•

Never attempt to recharge the

6.440A : The cold-test current in

battery when the battery cables

amperes by EN

are connected.

(Continued)

7 31

Maintenance

TYRES AND WHEELS

Tyre care

CAUTION

For proper maintenance, safety, and

•

Underinflation also results in

maximum fuel economy, you must

excessive wear, poor handling

always maintain recommended tyre

and reduced fuel economy.

inflation pressures and stay within

Wheel deformation also is

the load limits and weight distribution

possible. Keep your tyre pres-

recommended for your vehicle.

sures at the proper levels. If a

tyre frequently needs refilling,

Recommended cold tyre inflation

we recommend that the sys-

pressures

tem be checked by a HYUNDAI

All tyre pressures

(including the

authorised repairer.

OTQ087003/H

spare) should be checked when the

•

Overinflation produces a

tyres are cold. “Cold Tyres” means

All specifications

(sizes and pres-

harsh ride, excessive wear at

sures) can be found on a label

the vehicle has not been driven for at

the centre of the tyre tread,

least three hours or driven less than

attached to the vehicle.

and a greater possibility of

one mile (1.6 km).

damage from road hazards.

Recommended pressures must be

WARNING - Tyre underin-

maintained for the best ride, top vehi-

flation

cle handling, and minimum tyre

Severe underinflation can lead

wear.

to severe heat build-up, causing

For recommended inflation pressure,

blowouts, tread separation and

refer to “Tyre and wheels” in section

other tyre failures that can

9.

result in the loss of vehicle con-

trol leading to severe injury or

death. This risk is much higher

on hot days and when driving

for long periods at high speeds.

7 33

Maintenance

Checking tyre inflation pressure

CAUTION

CAUTION - Tyre pressure

Check your tyres once a month or

•

Warm tyres normally exceed

Always observe the following:

more.

recommended cold tyre pres-

•

Check tyre pressure when the

Also, check the tyre pressure of the

sures by 4 to 6 psi (28 to 41

tyres are cold. (After vehicle

spare tyre.

kPa). Do not release air from

has been parked for at least

warm tyres to adjust the pres-

three hours or hasn't been

sure or the tyres will be under-

How to check

driven more than 1.6 km (one

inflated.

mile) since startup.)

Use a good quality gauge to check

tyre pressure. You can not tell if your

•

Be sure to reinstall the tyre

•

Check the pressure of your

inflation valve caps. Without

tyres are properly inflated simply by

spare tyre each time you

looking at them. Radial tyres may

the valve cap, dirt or moisture

check the pressure of other

could get into the valve core

look properly inflated even when

tyres.

they're underinflated.

and cause air leakage. If a

•

Never overload your vehicle.

valve cap is missing, install a

Check the tyre's inflation pressure

Be careful not to overload a

new one as soon as possible.

when the tyres are cold. - "Cold"

vehicle luggage rack if your

means your vehicle has been sitting

vehicle is equipped with one.

for at least three hours or driven no

•

Worn, old tyres can cause

more than 1 mile (1.6 km).

WARNING - Tyre Inflation

accidents. If your tread is

Overinflation or underinflation

badly worn, or if your tyres

can reduce tyre life, adversely

have been damaged, replace

affect vehicle handling, and

them.

lead to sudden tyre failure. This

could result in loss of vehicle

control and potential injury.

7 34

Maintenance

Remove the valve cap from the tyre

Tyre rotation

valve stem. Press the tyre gauge

WARNING

To equalize tread wear, it is recom-

firmly onto the valve to get a pres-

•

Inspect your tyres frequently

mended that the tyres be rotated

sure measurement. If the cold tyre

for proper inflation as well as

every 7,500 miles

(12,000 km) or

inflation pressure matches the rec-

wear and damage. Always use

sooner if irregular wear develops.

ommended pressure on the tyre and

a tyre pressure gauge.

During rotation, check the tyres for

loading information label, no further

•

Tyres with too much or too lit-

correct balance.

adjustment is necessary. If the pres-

tle pressure wear unevenly

sure is low, add air until you reach

When rotating tyres, check for

causing poor handling, loss of

the recommended amount.

uneven wear and damage. Abnormal

vehicle control, and sudden

wear is usually caused by incorrect

If you overfill the tyre, release air by

tyre failure leading to acci-

tyre pressure, improper wheel align-

pushing on the metal stem in the

dents, injuries, and even death.

ment, out-of-balance wheels, severe

centre of the tyre valve. Recheck the

The recommended cold tyre

braking or severe cornering. Look for

tyre pressure with the tyre gauge. Be

pressure for your vehicle can

bumps or bulges in the tread or side

sure to put the valve caps back on

be found in this manual and on

of tyre. Replace the tyre if you find

the valve stems. They help prevent

the tyre label located on the

either of these conditions. Replace

leaks by keeping out dirt and mois-

driver's side centre pillar.

the tyre if fabric or cord is visible.

ture.

•

Worn tyres can cause acci-

After rotation, be sure to bring the

dents. Replace tyres that are

front and rear tyre pressures to spec-

worn, show uneven wear, or

ification and check lug nut tightness.

are damaged.

Refer to “Tyre and wheels” in section

•

Remember to check the pres-

9.

sure of your spare tyre.

HYUNDAI recommends that

you check the spare every

time you check the pressure

of the other tyres on your

vehicle.

7 35

Maintenance

With a full-size spare tyre

Disc brake pads should be inspected

Wheel alignment and tyre balance

for wear whenever tyres are rotated.

The wheels on your vehicle were

aligned and balanced carefully at the

factory to give you the longest tyre

✽ NOTICE

life and best overall performance.

Rotate radial tyres that have an

asymmetric tread pattern only from

In most cases, you will not need to

front to rear and not from right to

have your wheels aligned again.

left.

However, if you notice unusual tyre

S2BLA790

wear or your vehicle pulling one way

Without a spare tyre

or the other, the alignment may need

WARNING

to be reset.

• Do not use the compact spare

If you notice your vehicle vibrating

tyre for tyre rotation.

when driving on a smooth road, your

• Do not mix bias ply and radial

wheels may need to be rebalanced.

ply tyres under any circum-

stances. This may cause

CAUTION

unusual handling characteris-

Improper wheel weights can

S2BLA790A

tics that could result in death,

damage your vehicle's alu-

Directional tyres (if equipped)

severe injury, or property

minum wheels. Use only

damage.

approved wheel weights.

CBGQ0707A

7 36

Maintenance

Tread wear indicator

CAUTION

WARNING - Replacing

When replacing the tyres,

tyres

recheck and tighten the wheel

To reduce the chance or serious

nuts after driving about

620

or fatal injuries from an acci-

miles (1,000 km). If the steering

dent caused by tyre failure or

wheel shakes or the vehicle

loss of vehicle control:

vibrates whilst driving, the tyre

•

Replace tyres that are worn,

is out of balance. Align the tyre

show uneven wear, or are

balance. If the problem is not

damaged. Worn tyres can

solved, we recommend that you

cause loss of braking effec-

contact a HYUNDAI authorised

OEN076053

tiveness, steering control, and

repairer.

Tyre replacement

traction.

•

Do not drive your vehicle with

If the tyre is worn evenly, a tread

wear indicator will appear as a solid

too little or too much pressure

in your tyres. This can lead to

band across the tread. This shows

there is less than 1/16 inch (1.6 mm)

uneven wear and tyre failure.

of tread left on the tyre. Replace the

•

When replacing tyres, never

tyre when this happens.

mix radial and bias-ply tyres

Do not wait for the band to appear

on the same car. You must

across the entire tread before replac-

replace all tyres (including the

ing the tyre.

spare) if moving from radial to

bias-ply tyres.

(Continued)

7 37

Content   ..  19  20  21  22   ..
