Hyundai i800 (2016 year). Instruction - part 19

What to do in an emergency

WARNING

Ensure the spare tyre retainer is

properly aligned with the centre

of the spare tyre to prevent the

spare tyre “rattling”. Otherwise,

it may cause the spare tyre to

fall off the carrier and lead to an

accident.

OTQ065006

OTQ065007

4. After the spare tyre reaches the

To store the spare tyre:

ground, continue to turn the

1. Lay the tyre on the ground with the

wrench counterclockwise, and

valve stem facing up.

draw the spare tyre outside. Never

2. Place the wheel under the vehicle

rotate the wrench excessively, oth-

and install the retainer (1) through

erwise the spare tyre carrier may

the wheel centre.

be damaged.

3. Turn the wrench clockwise until it

5. Remove the retainer (1) from the

clicks.

centre of the spare tyre.

6 14

What to do in an emergency

WARNING - Changing a tyre

•

To prevent vehicle movement

whilst changing a tyre, always

set the parking brake fully,

and always block the wheel

diagonally opposite the wheel

being changed.

•

We recommend that the

wheels of the vehicle be

blocked, and that no person

OTQ047006K/H

OTQ065022

remain in a vehicle that is

being jacked.

Changing tyres

4. Remove the wheel lug nut wrench,

jack and spare tyre from the vehi-

1. Park on a level surface and apply

cle.

the parking brake firmly.

5. Block both the front and rear of the

2. Shift the shift lever into R

(Reverse) with manual transmis-

wheel that is diagonally opposite

the jack position.

sion or P (Park) with automatic

transmission.

3. Activate the hazard warning flash-

er.

6 15

What to do in an emergency

WARNING - Jack location

To reduce the possibility of

injury, be sure to use only the

jack provided with the vehicle

and in the correct jack position;

never use any other part of the

vehicle for jack support.

OTQ065008

OTQ065018

6. Loosen the wheel lug nuts coun-

7. Place the jack at the front or rear

terclockwise one turn each, but do

jacking position closest to the tyre

not remove any nut until the tyre

you are changing. Place the jack

has been raised off the ground.

at the designated locations under

the frame. The jacking positions

are plates welded to the frame

with two tabs and a raised dot to

index with the jack.

6 16

What to do in an emergency

9. Loosen the wheel nuts and

remove them with your fingers.

WARNING

Slide the wheel off the studs and

Wheels may have sharp edges.

lay it flat so it cannot roll away. To

Handle them carefully to avoid

put the wheel on the hub, pick up

possible severe injury. Before

the spare tyre, line up the holes

putting the wheel into place, be

with the studs and slide the wheel

sure that there is nothing on the

onto them. If this is difficult, tip the

hub or wheel (such as mud, tar,

wheel slightly and get the top hole

gravel, etc.) that interferes with

in the wheel lined up with the top

the wheel from fitting solidly

stud. Then jiggle the wheel back

against the hub.

and forth until the wheel can be

OTQ065016

If there is, remove it. If there is

slid over the other studs.

not good contact on the mount-

8. Insert the jack handle into the jack

and turn it clockwise, raising the

ing surface between the wheel

and hub, the wheel nuts could

vehicle until the tyre just clears the

ground. This measurement is

come loose and cause the loss

of a wheel. Loss of a wheel may

approximately

1.2 in

(30 mm).

Before removing the wheel lug

result in loss of control of the

vehicle. This may cause serious

nuts, make sure the vehicle is sta-

ble and that there is no chance for

injury or death.

movement or slippage.

6 17

What to do in an emergency

10. To reinstall the wheel, hold it on

If you have a tyre gauge, remove the

the studs, put the wheel nuts on

valve cap and check the air pressure.

the studs and tighten them finger

If the pressure is lower than recom-

tight. The nuts should be installed

mended, drive slowly to the nearest

with their tapered small diameter

service station and inflate to the cor-

ends directed inward. Jiggle the

rect pressure. If it is too high, adjust

tyre to be sure it is completely

it until it is correct. Always reinstall

seated, then tighten the nuts as

the valve cap after checking or

much as possible with your fin-

adjusting tyre pressure. If the cap is

gers again.

not replaced, air may leak from the

tyre. If you lose a valve cap, buy

11. Lower the car to the ground by

another and install it as soon as pos-

turning the wheel nut wrench

OTQ065011

sible.

counterclockwise.

Then position the wrench as shown

After you have changed wheels,

in the drawing and tighten the wheel

always secure the flat tyre in its place

nuts. Be sure the socket is seated

and return the jack and tools to their

completely over the nut. Do not stand

proper storage locations.

on the wrench handle or use an

extension pipe over the wrench han-

dle. Go around the wheel tightening

every other nut until they are all tight.

Then double-check each nut for

tightness. After changing wheels, we

recommend that the system be

checked by a HYUNDAI authorised

repairer.

Wheel nut tightening torque:

65~79 lb·ft (9~11 kg·m)

6 18

What to do in an emergency

To prevent the jack, wheel lug nut

CAUTION

WARNING - Wheel studs

wrench and spare tyre from rattling

Your vehicle has metric threads

If the studs are damaged, they

whilst the vehicle is in motion, store

on the wheel studs and nuts.

may lose their ability to retain

them properly.

Make certain during wheel

the wheel. This could lead to the

removal that the same nuts that

loss of the wheel and a collision

WARNING - Inadequate

were removed are reinstalled -

resulting in serious injuries.

spare tyre pressure

or, if replaced, that nuts with

Check the inflation pressures as

metric threads and the same

soon as possible after installing

chamfer configuration are used.

the spare tyre. Adjust it to the

Installation of a non-metric

specified pressure, if necessary.

thread nut on a metric stud or

Refer to “Tyres and wheels” sec-

vice-versa will not secure the

tion 9.

wheel to the hub properly and

will damage the stud so that it

must be replaced.

Note that most lug nuts do not

have metric threads. Be sure to

use extreme care in checking

for thread style before installing

aftermarket lug nuts or wheels.

If in doubt, we recommend that

you consult a HYUNDAI autho-

rised repairer.

6 19

What to do in an emergency

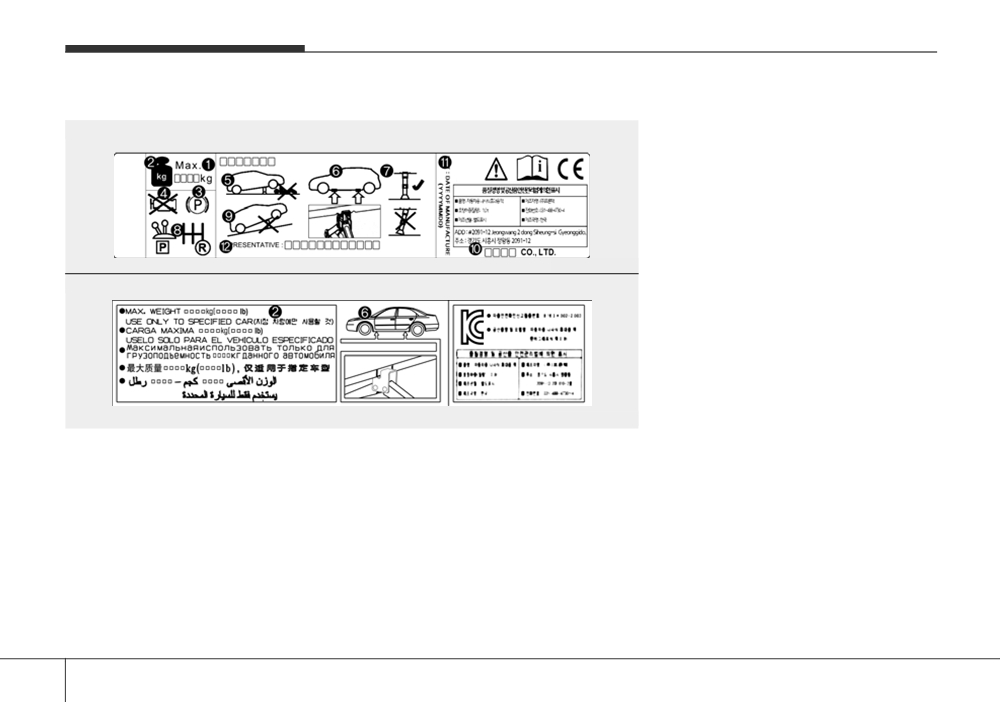

Jack label

1. Model Name

■ Example

2. Maximum allowable load

• Type A

3. When using the jack, set your

parking brake.

4. When using the jack, stop the

engine.

5. Do not get under a vehicle that is

supported by a jack.

OTQ044219

6. The designated locations under

• Type B

the frame

7. When supporting the vehicle, the

base plate of jack must be vertical

under the lifting point.

8. Shift into Reverse gear on vehicles

with manual transaxle or move the

shift lever to the P position on

OHYK064002

vehicles with automatic transaxle.

❈ The actual Jack label in the vehicle may differ from the illustration.

9. The jack should be used on firm

For more detailed specifications, refer to the label attached to the jack.

level ground.

10. Jack manufacture

11. Production date

12. Representative company and

address

6 20

What to do in an emergency

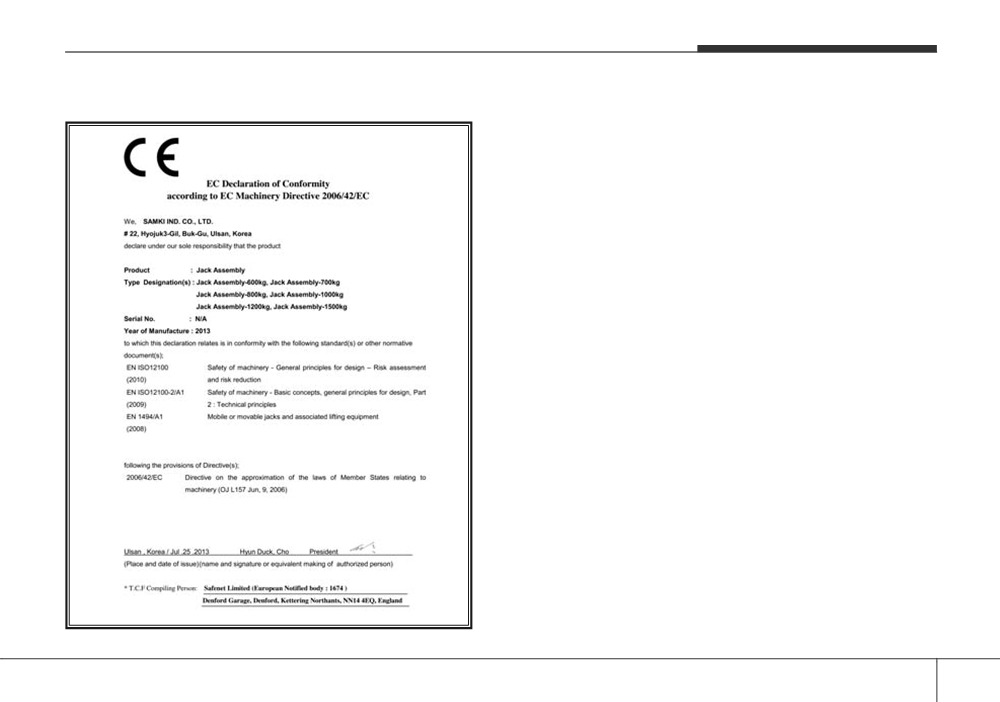

EC Declaration of Conformity for Jack

JACKDOC14S

6 21

What to do in an emergency

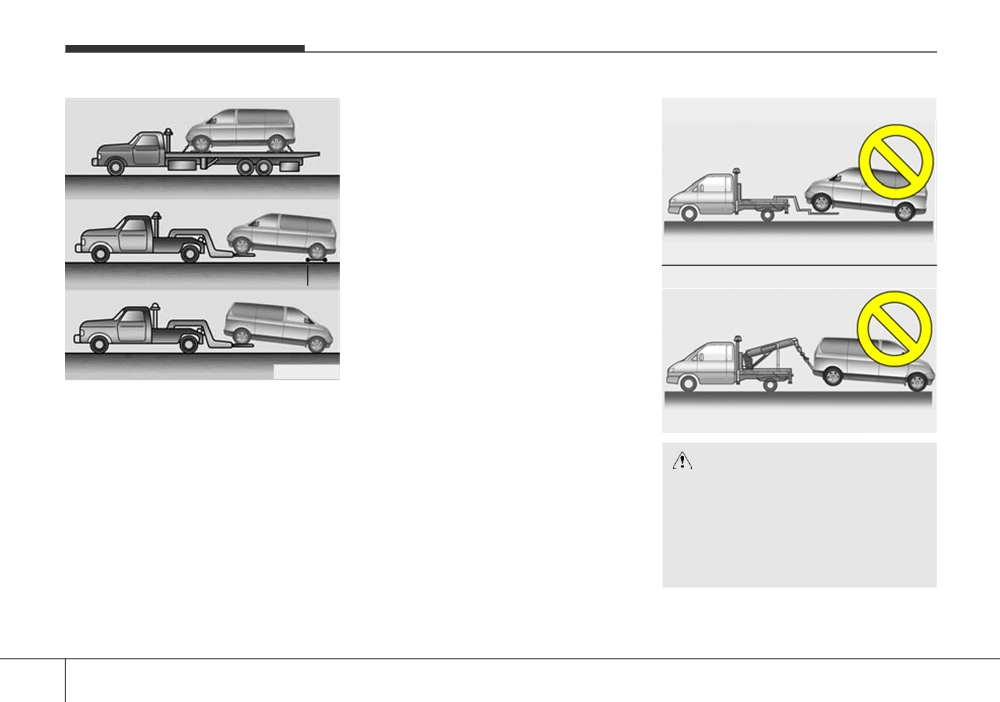

TOWING

It is acceptable to tow the vehicle with the

front wheels on the ground (without dol-

lies) and the rear wheels off the ground.

If any of the loaded wheels or suspen-

sion components are damaged or the

vehicle is being towed with the rear

wheels on the ground, use a towing dolly

under the rear wheels.

When being towed by a commercial tow

truck and wheel dollies are not used, the

OTQ065012

rear of the vehicle should always be lift-

dolly

ed, not the front.

OTQ065009

Towing service

If emergency towing is necessary, we

OTQ065010

recommend having it done by a

HYUNDAI authorised repairer or a com-

mercial tow-truck service. Proper lifting

CAUTION

and towing procedures are necessary to

• Do not tow the vehicle with the

prevent damage to the vehicle. The use

rear wheels on the ground as this

of wheel dollies or flatbed is recommend-

may cause damage to the vehicle.

ed.

• Do not tow with sling-type equip-

ment. Use wheel lift or flatbed

equipment.

6 22

What to do in an emergency

When towing your vehicle in an emer-

gency without wheel dollies :

1. Set the ignition switch in the ACC posi-

tion.

2. Place the transmission shift lever in N

(Neutral).

3. Release the parking brake.

CAUTION

Failure to place the transmission

shift lever in N (Neutral) may cause

internal damage to the transmis-

OTQ066019

OTQ065020

sion.

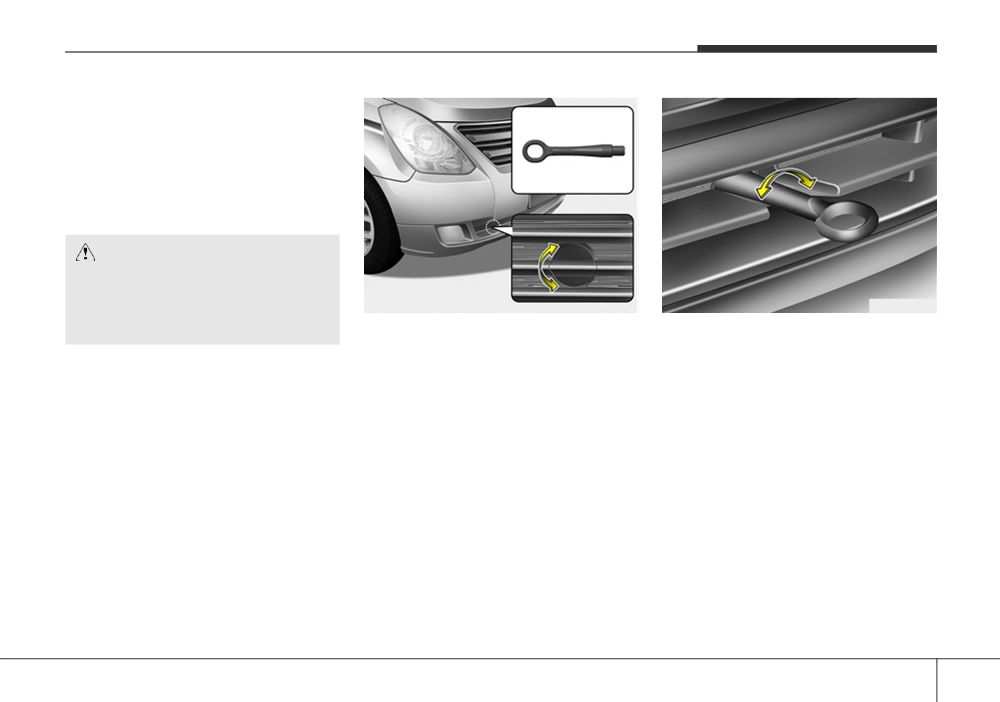

Removable towing hook

3. Install the towing hook by turning it

(front, if equipped)

clockwise into the hole until it is fully

secured.

1. Remove the towing hook from the tool

4. Remove the towing hook and install

case.

the cover after use.

2. Remove the hole cover on the front

bumper by turning it.

6 23

What to do in an emergency

Front (if equipped)

If towing service is not available in an

emergency, your vehicle may be tem-

CAUTION

porarily towed using a cable or chain

• Attach a towing strap to the tow

secured to the emergency towing hook

hook.

under the front (or rear) of the vehicle.

• Using a portion of the vehicle

Use extreme caution when towing the

other than the tow hooks for tow-

vehicle. A driver must be in the vehicle to

ing may damage the body of your

steer it and operate the brakes.

vehicle.

Towing in this manner may be done only

• Use only a cable or chain specifi-

on hard-surfaced roads for a short dis-

cally intended for use in towing

tance and at low speeds. Also, the

vehicles. Securely fasten the

OTQ066021

wheels, axles, power train, steering and

cable or chain to the towing hook

Rear

brakes must all be in good condition.

provided.

•

Do not use the tow hooks to pull a vehi-

cle out of mud, sand or other condi-

•

Before emergency towing, check that

tions from which the vehicle cannot be

the hook is not broken or damaged.

driven out under its own power.

•

Fasten the towing cable or chain

•

Avoid towing a vehicle heavier than the

securely to the hook.

vehicle doing the towing.

•

Do not jerk the hook. Apply steady and

•

The drivers of both vehicles should

even force.

communicate with each other frequent-

ly.

•

To avoid damaging the hook, do not

OTQ067013

pull from the side or at a vertical angle.

Always pull straight ahead.

Emergency towing

If towing is necessary, we recommend

you to have it done by a HYUNDAI

authorised repairer or a commercial

tow truck service.

6 24

What to do in an emergency

Emergency towing precautions

WARNING

•

Turn the ignition switch to ACC so the

Use extreme caution when towing

steering wheel isn’t locked.

the vehicle.

•

Place the transmission shift lever in N

• Avoid sudden starts or erratic

(Neutral).

driving manoeuvres which would

•

Release the parking bake.

place excessive stress on the

•

Press the brake pedal with more force

emergency towing hook and tow-

than normal since you will have

ing cable or chain. The hook and

reduced brake performance.

towing cable or chain may break

•

More steering effort will be required

and cause serious injury or dam-

because the power steering system

age.

will be disabled.

OTQ067014

•

If the disabled vehicle is unable

•

If you are driving down a long hill, the

to be moved, do not forcibly con-

•

Use a towing strap less than 16 feet (5

brakes may overheat and brake per-

tinue the towing. Contact a

m) long. Attach a white or red cloth

formance will be reduced. Stop often

HYUNDAI authorised repairer or a

(about 12 inches (30 cm) wide) in the

and let the brakes cool off.

commercial tow truck service for

middle of the strap for easy visibility.

assistance.

•

Drive carefully so that the towing strap

•

Tow the vehicle as straight ahead

is not loosened during towing.

as possible.

•

Keep away from the vehicle dur-

ing towing.

6 25

What to do in an emergency

Tie-down hook

CAUTION - Automatic

(for flatbed towing)

transmission

•

If the car is being towed with all

WARNING

four wheels on the ground, it can

be towed only from the front. Be

Do not use the hooks under the

sure that the transmission is in

front (or rear) of the vehicle for tow-

neutral. Be sure the steering is

ing purposes. These hooks are

unlocked by placing the ignition

designed ONLY for transport tie-

switch in the ACC position. A

down. If the tie-down hooks are

driver must be in the towed vehi-

used for towing, the tie-down hooks

cle to operate the steering and

or front bumper will be damaged

brakes.

and this could lead to serious

injury.

•

To avoid serious damage to the

automatic transmission, limit the

vehicle speed to 10 mph (15 km/h)

and drive less than 1 mile (1.5

km) when towing.

•

Before towing, check the auto-

matic transmission fluid leak

under your vehicle. If the auto-

matic transmission fluid is leak-

ing, a flatbed equipment or tow-

ing dolly must be used.

6 26

Maintenance

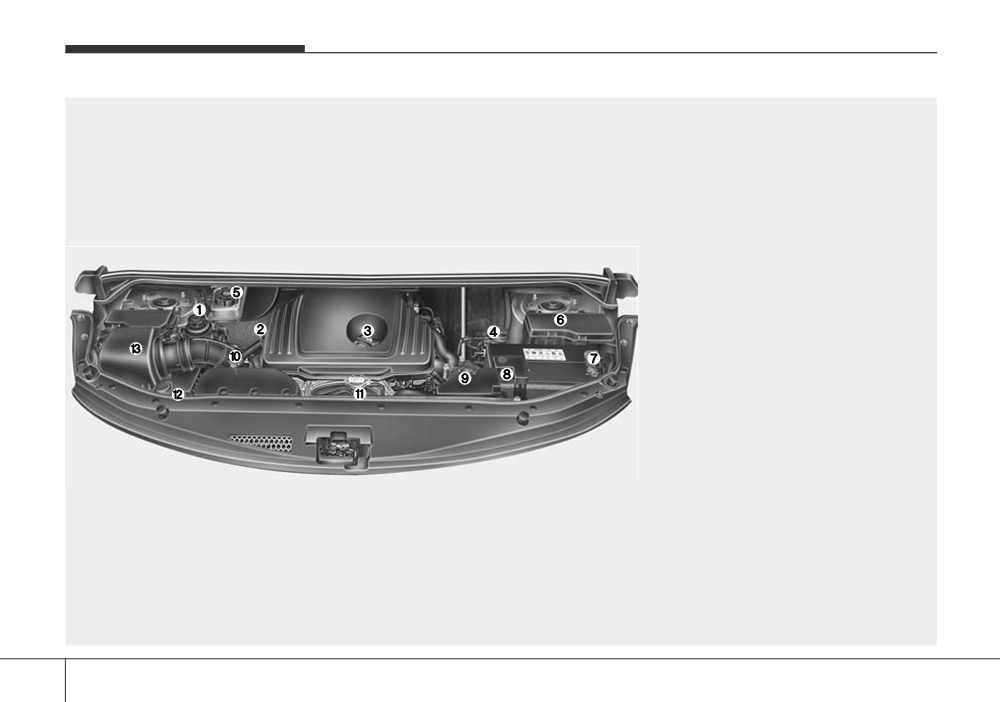

ENGINE COMPARTMENT

■ Diesel Engine

A2 2.5

1. Power steering fluid reservoir

2. Automatic transmission fluid dipstick

(if equipped)

3. Engine oil filler cap

4. Fuel filter

5. Brake fluid reservoir

6. Fuse box

7. Negative battery terminal

8. Positive battery terminal

9. Engine coolant reservoir

10. Engine oil dipstick

11. Radiator cap

12. Windscreen washer fluid reservoir

13. Air cleaner

* The actual engine room in the vehicle may differ from the illustration.

OTQ027003R

7 2

Maintenance

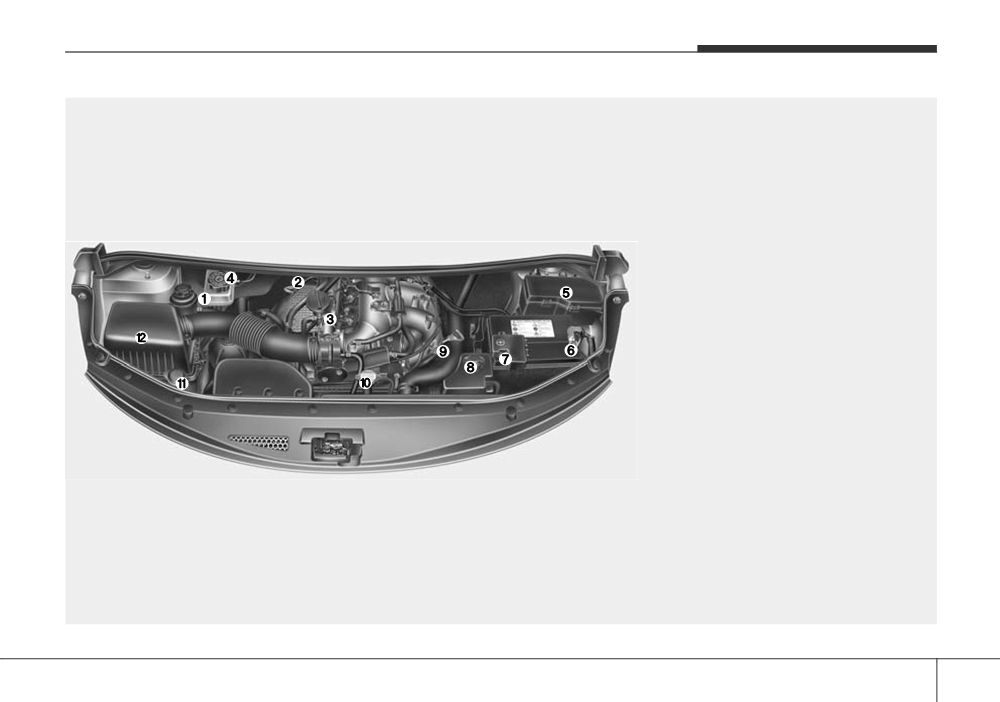

■ Petrol Engine

1. Power steering fluid reservoir

2. Automatic transmission fluid dipstick

(if equipped)

3. Engine oil filler cap

4. Brake fluid reservoir

5. Fuse box

6. Negative battery terminal

7. Positive battery terminal

8. Engine coolant reservoir

9. Engine oil dipstick

10. Radiator cap

11. Windscreen washer fluid reservoir

12. Air cleaner

* The actual engine room in the vehicle may differ from the illustration.

OTQ077066R

7 3

Content   ..  17  18  19  20   ..
