What to do in an emergency
Changing tires
(Continued)
•
ALWAYS place the jack on the
WARNING
designated jacking positions
on the vehicle and NEVER on
A vehicle can slip or roll off of a
the bumpers or any other part
jack causing serious injury or
of the vehicle for jacking sup-
death to you or those nearby.
port.
Take the following safety pre-
•
Do not start or run the engine
cautions:
while the vehicle is on the
•
Do not get under a vehicle
jack.
that is supported by a jack.
OPDEN067038
•
Do not allow anyone to remain
•
NEVER attempt to change a
in the vehicle while it is on the
If it is hard to loosen the tire hold-
tire in the lane of traffic.
jack.
down wing bolt by hand, you can
ALWAYS move the vehicle
loosen it easily using the jack handle.
completely off the road on
•
Keep children away from the
road and the vehicle.
1. Put the jack handle (1) inside of
level, firm ground away from
the tire hold-down wing bolt.
traffic before trying to change
a tire. If you cannot find a
2. Turn the tire hold-down wing bolt
level, firm place off the road,
counterclockwise with the jack
call a towing service for assis-
handle.
tance.
•
Be sure to use the jack pro-
vided with the vehicle.
(Continued)
6-16
Follow these steps to change your
vehicle's tire:
1. Park on a level, firm surface.
2. Move the shift lever into neutral,
apply the parking brake, and place
the ignition switch in the LOCK/
OFF position.
3. Press the hazard warning flasher
button.
Block
4. Remove the wheel lug nut wrench,
jack, jack handle, and spare tire
OPDEN067030
OPDEN067031
from the vehicle.

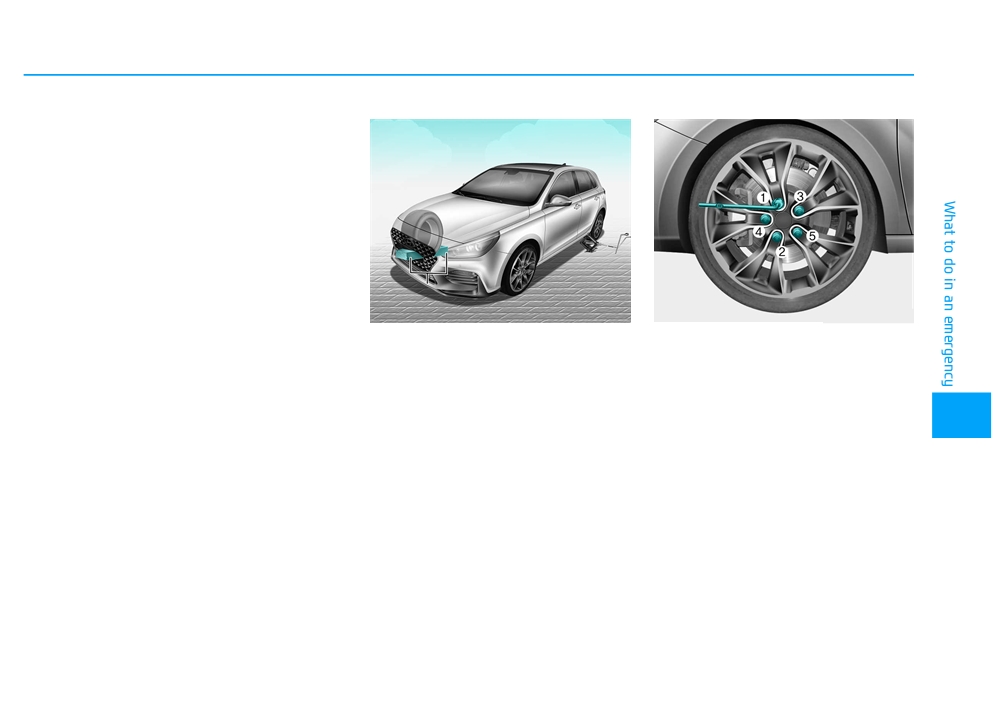

5. Block both the front and rear of the
6. Loosen the wheel lug nuts coun-
tire diagonally opposite of the tire
terclockwise one turn each in the
you are changing.
order shown above, but do not
remove any lug nuts until the tire
has been raised off of the ground.
6
6-17
What to do in an emergency
9. Loosen the lug nuts with the wheel
lug nut wrench and remove them
with your fingers. Remove the
wheel from the studs and lay it flat
on the ground out of the way.
Remove any dirt or debris from
the studs, mounting surfaces, and
■ Front
■ Rear
wheel.
10. Install the spare tire onto the
studs of the hub.
11. Tighten the lug nuts with your fin-
OPDEN067032
OPDEN067033
gers onto the studs with the

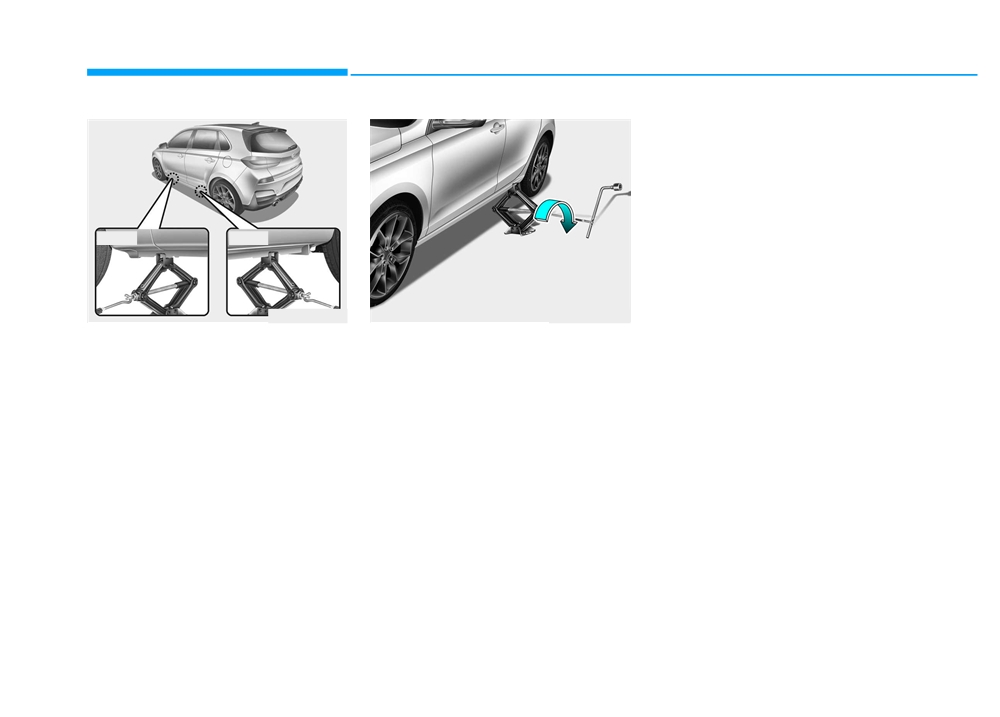

7. Place the jack at the designated
8. Insert the jack handle into the jack
smaller end of the lug nuts clos-
jacking position under the frame
and turn it clockwise, raising the
est to the wheel.
closest to the tire you are chang-
vehicle until the tire clears the
12. Lower the vehicle to the ground
ing. The jacking positions are
ground. Make sure the vehicle is
by turning the jack handle coun-
plates welded to the frame with
stable on the jack.
terclockwise.
two notches. Never jack at any
other position or part of the vehi-
cle. It may damage the side seal
molding.
6-18
If you have a tire gauge, check the
CAUTION
tire pressure
(see "Tires and
Wheels" in chapter 8 for tire pressure
Your vehicle has metric threads
instructions.). If the pressure is lower
on the studs and lug nuts. Make
or higher than recommended, drive
certain during tire changing
slowly to the nearest service station
that the same nuts that were
and adjust it to the recommended
removed are reinstalled. If you
pressure. Always reinstall the valve
have to replace your lug nuts
cap after checking or adjusting tire
make sure they have metric
pressure. If the cap is not replaced,
threads to avoid damaging the
air may leak from the tire. If you lose
studs and ensure the wheel is
a valve cap, buy another and install it
OTL065007
properly secured to the hub. We
as soon as possible. After changing
13. Use the wheel lug nut wrench to
recommend that you consult an
tires, secure the flat tire and return
tighten the lug nuts in the order
authorized HYUNDAI dealer for
the jack and tools to their proper stor-
shown. Double-check each lug
assistance.
age locations.
nut until they are tight. After
changing tires, we recommend
NOTICE
6
that an authorized HYUNDAI
If any of the equipment such as the
dealer tighten the lug nuts to their
jack, lug nuts, studs, or other equip-
• Check the tire pressure as soon
proper torque as soon as possi-
as possible after installing a
ment is damaged or in poor condi-
ble. The wheel lug nut should
tion, do not attempt to change the
spare tire. Adjust it to the rec-
be tightened to 11~13 kgf·m
ommended pressure.
tire and call for assistance.
(79~94 lbf·ft).
• Check and tighten the wheel lug
nuts after driving over 50 km if
tires are replaced. Re-check the
tire wheel lug nuts after driving
over 1,000 km.
6-19
What to do in an emergency
Use of compact spare tires
When driving with the compact spare
NOTICE
(if equipped)
tire mounted to your vehicle:
When the original tire and wheel
Compact spare tires are designed for
•
Check the tire pressure after
are repaired and reinstalled on the
emergency use only. Drive carefully
installing the compact spare tire.
vehicle, the lug nut torque must be
on the compact spare tire and
The compact spare tire should be
set correctly. The correct lug nut
always follow the safety precautions.
inflated to 420 kPa (60 psi).
tightening torque is 11~13 kgf·m
•
Do not take this vehicle through an
(79~94 lbf·ft).
automatic car wash while the com-
WARNING
pact spare tire is installed.
To prevent compact spare tire
•
Do not use the compact spare tire
failure and loss of control pos-
on any other vehicle because this
sibly resulting in an accident:
tire has been designed especially
for your vehicle.
• Use the compact spare tire
only in an emergency.
•
The compact spare tire's tread life
is shorter than a regular tire.
• NEVER operate your vehicle
Inspect your compact spare tire
over 80 km/h (50 mph).
regularly and replace worn com-
• Do not exceed the vehicle's
pact spare tires with the same size
maximum load rating or the
and design, mounted on the same
load carrying capacity shown
wheel.
on the sidewall of the com-
•
Do not use more than one compact
pact spare tire.
spare tire at a time.
• Do not use the compact spare
•
Do not tow a trailer while the com-
tire continuously. Repair or
pact spare tire is installed.
replace the original tire as
soon as possible to avoid fail-
ure of the compact spare tire.
6-20
Jack label
CAUTION
■ Example
To prevent damaging the com-
pact spare tire and your vehicle:
•
Drive slowly enough for the
road conditions to avoid all
hazards, such as a potholes
or debris.
•
Avoid driving over obstacles.
The compact spare tire diame-
OHYK065011
ter is smaller than the diame-
The actual Jack label in the vehicle may differ from the illustration.
ter of a conventional tire and
For more detailed specifications, refer to the label attached to the jack.
reduces the ground clearance
approximately 25 mm (1 inch).
•
Do not use tire chains on the
1. Model Name
8. Shift into Reverse gear on vehicles
with manual transmission or move
compact spare tire. Because
2. Maximum allowable load
of the smaller size, a tire chain
the shift lever to the P position on
6
3. When using the jack, set your
vehicles with automatic transmis-
will not fit properly.
parking brake.
sion/ dual clutch transmission.
•
Do not use the compact spare
4. When using the jack, stop the
9. The jack should be used on firm
tire on any other wheels, nor
engine.
should standard tires, snow
level ground.
5. Do not get under a vehicle that is
tires, wheel covers or trim
10. Jack manufacture
supported by a jack.
rings be used with the com-
11. Production date
pact spare wheel.
6. The designated locations under
12. Representative company and
the frame
address
7. When supporting the vehicle, the
base plate of jack must be vertical
under the lifting point.
6-21
What to do in an emergency

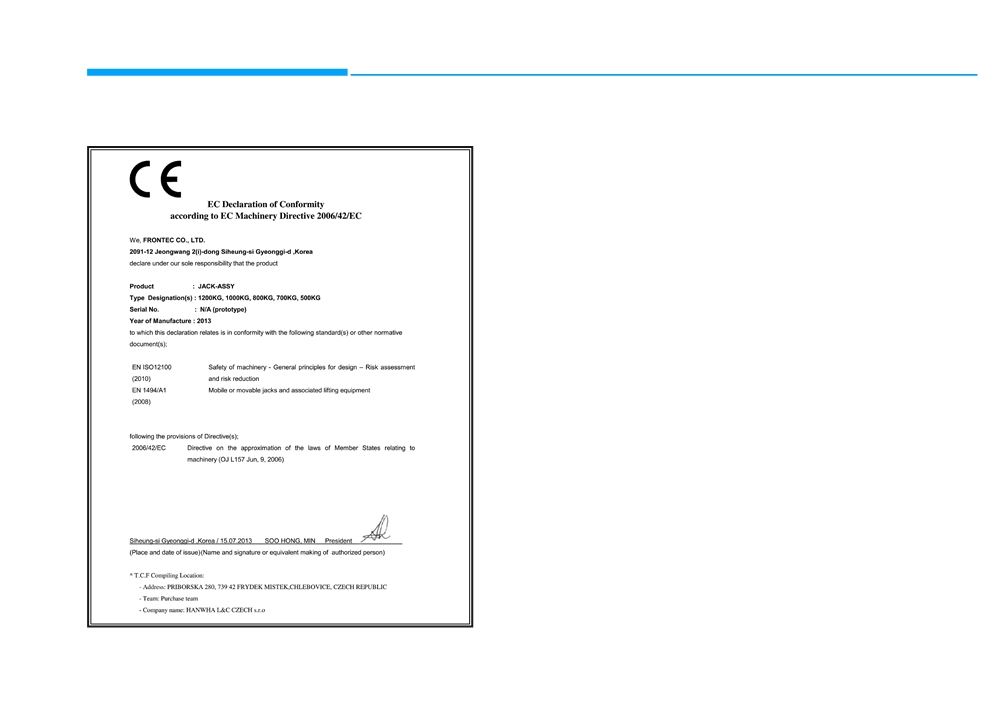

EC Declaration of conformity for Jack
JACKDOC14F
6-22
IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT, IF EQUIPPED) - TYPE A
Introduction
CAUTION
With the Tire Mobility Kit you stay
mobile even after experiencing a tire
When two or more tires are flat,
do not use the tire mobility kit
puncture.
because the supported one
The system of compressor and seal-
sealant of Tire Mobility Kit is
ing compound effectively and com-
only used for one flat tire.
fortably seals most punctures in a
passenger car tire caused by nails
or similar objects and reinflates the
WARNING
tire.
After you ensured that the tire is
OPDEN067010
Do not use the Tire Mobility Kit
properly sealed you can drive cau-
For safe operation, carefully read
to repair punctures in the tire
tiously on the tire (distance up to 200
and follow the instructions in this
walls. This can result in an acci-
km (120 miles)) at a max. speed of
manual before use.
dent due to tire failure.
80 km/h (50 mph) in order to reach a
(1) Compressor
service station or tire dealer to have
(2) Sealant bottle
the tire replaced.
6
WARNING
The Tire Mobility Kit is a temporary
It is possible that some tires, espe-
fix to the tire and we recommend that
cially with larger punctures or dam-
Have your tire repaired as soon
the system be inspected by an
age to the sidewall, cannot be sealed
as possible. The tire may loose
authorized HYUNDAI dealer.
completely.
air pressure at any time after
Air pressure loss in the tire may
inflating with the Tire Mobility Kit.
adversely affect tire performance.
For this reason, you should avoid
abrupt steering or other driving
maneuvers, especially if the vehicle
is heavily loaded or if a trailer is in
use.
6-23
What to do in an emergency
The Tire Mobility Kit is not designed
Notes on the safe use of the
•
Do not remove any foreign objects
or intended as a permanent tire
Tire Mobility Kit
such as nails or screws that have
repair method and is to be used for
penetrated the tire.
•
Park your car at the side of the
one tire only. This instruction shows
•
Provided the car is outdoors, leave
road so that you can work with the
you step by step how to temporarily
the engine running. Otherwise
Tire Mobility Kit away from moving
seal the puncture simply and reliably.
operating the compressor may
traffic.
Read the section "Notes on the safe
eventually drain the car battery.
•
To be sure your vehicle will not
use of the Tire Mobility Kit".
•
Never leave the Tire Mobility Kit
move, even when you're on fairly
level ground, always set your park-
unattended while it is being used.
WARNING
ing brake.
•
Do not leave the compressor run-
ning for more than 10 min. at a time
•
Only use the Tire Mobility Kit for
Do not use the TMK if a tire is
or it may overheat.
sealing/inflation passenger car tires.
severely damaged by driving
Only punctured areas located with-
•
Do not use the Tire Mobility Kit if
run flat or with insufficient air
in the tread region of the tire can be
the ambient temperature is below
pressure.
sealed using the tire mobility kit.
-30°C (-22°F).
Only punctured areas located
•
Do not use on motorcycles, bicy-
•
In case of skin contact with the
within the tread region of the tire
cles or any other type of tires.
sealant, wash the area thoroughly
can be sealed using the TMK.
with plenty of water. If the irritation
•
When the tire and wheel are dam-
persists, seek medical attention.
aged, do not use Tire Mobility Kit
for your safety.
•
In case of eye contact with the
sealant, flush your eyes for at least
•
Use of the Tire Mobility Kit may not
15 minutes. If the irritation persists,
be effective for tire damage larger
seek medical attention.
than approximately 6 mm (0.24 in).
•
In case of swallowing the sealant,
If the tire cannot be made roadwor-
rinse the mouth and drink plenty of
thy with the Tire Mobility Kit, we
water. However, never give anything
recommend that you contact an
to an unconscious person and seek
authorized HYUNDAI dealer.
medical attention immediately.
•
Do not use the Tire Mobility Kit if a
tire is severely damaged by driving
•
Long time exposure to the sealant
may cause damage to bodily tissue
run flat or with insufficient air pres-
such as kidney, etc.
6-24
sure.
Components of the Tire Mobility Kit
Connectors, cable and connection
hose are stored in the compressor
housing.
Strictly
follow
the
specified
sequence, otherwise the sealant
may escape under high pressure.
WARNING
Expired sealant
Do not use the Tire sealant after
the sealant has expired
(i.e.
pasted the expiration date on
the sealant container). This can
increase the risk of tire failure.
6
ODE067044
WARNING
1. Speed-restriction label
5. Holder for the sealant bottle
2. Sealant bottle and label with
6. Compressor
Sealant
speed restriction
7. ON/OFF switch
• Keep out of reach of children.
3. Filling hose from sealant bottle to
8. Pressure gauge for displaying the
• Avoid contact with eyes.
wheel
tire inflation pressure
• Do not swallow.
4. Connectors and cable for the
9. Button for reducing the tire infla-
power outlet direct connection
tion pressure
6-25
What to do in an emergency
Using the Tire Mobility Kit
CAUTION
OIGH067042
OPDEN067015
2. Connect the filling hose (3) to the
4. Unscrew the valve cap from the
sealant bottle (2) in the direction of
valve of the defective wheel and
OPD066013
(A) and connect the sealant bottle
screw the filling hose (3) of the
Detach the speed restriction
to the compressor (5) in the direc-
sealant bottle onto the valve.
label (1) from the sealant bottle
tion of (B).
(2), and place it in a highly visi-
3. Ensure that the compressor is
ble place inside the vehicle
switched OFF.
such as on the steering wheel
to remind the driver not to drive
too fast.
1. Shake the sealant bottle (1).
6-26
Be careful not to overinflate the
CAUTION
tire and stay away from the tire
when filling it.
Securely install the sealant fill-
ing hose to the valve. If not,
sealant may flow backward,
CAUTION
possibly clogging the filling
hose.
Tire pressure
Do not attempt to drive your
vehicle if the tire pressure is
below 200 kPa (29 psi). This
OPDEN067017
could result in an accident due
to sudden tire failure.
5. Plug the compressor power cord
(4) into the vehicle power outlet.
7. Switch off the compressor.
8. Detach the hoses from the sealant
NOTICE
bottle connector and from the tire
Only use the front passenger side
valve.
6
OPDEN067016
power outlet when connecting the
Return the Tire Mobility Kit to its stor-
power cord.
age location in the vehicle.
6. With the ignition switch in the ON
WARNING
position, switch on the compres-
sor and let it run for approximately
Carbon monoxide
5~7 minutes to fill the sealant up
Do not leave your vehicle run-
to proper pressure. (refer to the
ning in a poorly ventilated area
Tire and Wheels, chapter 8). The
for extended periods of time.
inflation pressure of the tire after
Carbon monoxide poisoning
filling is unimportant and will be
and suffocation can occur.
checked/corrected later.
6-27
What to do in an emergency
Distributing the sealant
Checking the tire inflation
pressure

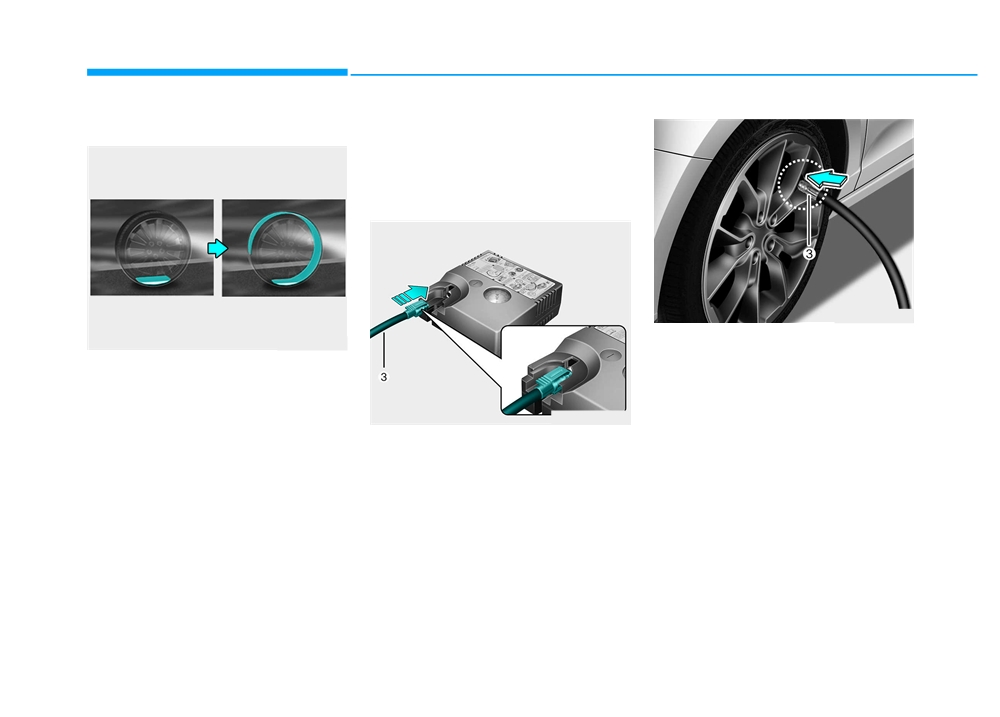

1. After driving approximately 7~10
km (4~6 miles or about 10 min),
stop at a safety location.
OPDEN067015
3. Connect the other end of the filling
OLMF064106
hose (3) directly into the tire valve.
9. Immediately drive approximately
4. Plug the compressor power cord
7~10 km (4~6 miles or, about
(4) into the vehicle power outlet.
10min) to evenly distribute the
sealant in the tire.
OAEPH067042
5. Adjust the tire inflation pressure to
the recomended tire inflation.
Do not exceed a speed of 80 km/h
2. Connect the filling hose (3) direct-
(50 mph). If possible, do not fall
With the ignition swithched on,
ly into the compressor.
below a speed of 20 km/h (12 mph).
proceed as follows.
While driving, if you experience any
- To increase the inflation pres-
unusual vibration, ride disturbance or
sure : Switch on the compressor.
noise, reduce your speed and drive
To check the current inflation
with caution until you can safely pull
pressure setting, briefly switch off
off of the side of the road.
the compressor.
Call for road side service or towing.
- To reduce the inflation pres-
sure: Press the button (9) on the
compressor.
6-28
NOTICE
CAUTION
CAUTION
Do not let the compressor run for
more than 10 minutes, otherwise
If the inflation pressure is not
Tire pressure sensor
the device will overheat and may
maintained, drive the vehicle a
(if equipped with TPMS)
be damaged.
second time,
refer
to
The sealant on the tire pressure
Distributing the sealant. Then
sensor and wheel should be
repeat steps 1 to 4.
i
Information
removed when you replace the
Use of the TMK may be ineffec-
tire with a new one and inspect
The pressure gauge may show higher
tual for tire damage larger than
the tire pressure sensors at an
than actual reading when the com-
approximately 4 mm (0.16 in).
authorized dealer.
pressor is running. To get an accurate
We recommend that you contact
tire reading, the compressor needs to
an authorized HYUNDAI dealer if
be turned off.
the tire cannot be made road-
i
Information
worthy with the Tire Mobility Kit.
When reinstalling the repaired or
replaced tire and wheel on the vehicle,
tighten the wheel lug nut to
11~13
WARNING
kgf·m (79~94 lbf·ft).
6
The tire inflation pressure must
be at least 220 kPa (32 psi). If it
is not, do not continue driving.
Call for road side service or
towing.
6-29
What to do in an emergency
IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT, IF EQUIPPED) - TYPE B
Introduction
CAUTION
With the Tire Mobility Kit you stay
mobile even after experiencing a tire
When two or more tires are flat,
do not use the tire mobility kit
puncture.
because the supported one
The system of compressor and seal-
sealant of Tire Mobility Kit is
ing compound effectively and com-
only used for one flat tire.
fortably seals most punctures in a
passenger car tire caused by nails
or similar objects and reinflates the
WARNING
tire.
After you ensured that the tire is
OPDEN067011
Do not use the Tire Mobility Kit
properly sealed you can drive cau-
For safe operation, carefully read
to repair punctures in the tire
tiously on the tire (distance up to 200
and follow the instructions in this
walls. This can result in an acci-
km (120 miles)) at a max. speed of
manual before use.
dent due to tire failure.
80 km/h (50 mph) in order to reach a
(1) Compressor
service station or tire dealer to have
(2) Sealant bottle
the tire replaced.
WARNING
The Tire Mobility Kit is a temporary
It is possible that some tires, espe-
fix to the tire and we recommend that
cially with larger punctures or dam-
Have your tire repaired as soon
the system be inspected by an
age to the sidewall, cannot be sealed
as possible. The tire may loose
authorized HYUNDAI dealer.
completely.
air pressure at any time after
inflating with the Tire Mobility Kit.
Air pressure loss in the tire may
adversely affect tire performance.
For this reason, you should avoid
abrupt steering or other driving
maneuvers, especially if the vehicle
is heavily loaded or if a trailer is in
use.
6-30
The Tire Mobility Kit is not designed
Notes on the safe use of the
•
Do not remove any foreign objects
or intended as a permanent tire
Tire Mobility Kit
such as nails or screws that have
repair method and is to be used for
penetrated the tire.
•
Park your car at the side of the road
one tire only. This instruction shows
•
Provided the car is outdoors, leave
so that you can work with the Tire
you step by step how to temporarily
the engine running. Otherwise
Mobility Kit away from moving traffic.
seal the puncture simply and reliably.
operating the compressor may
•
To be sure your vehicle will not
Read the section "Notes on the safe
eventually drain the car battery.
move, even when you're on fairly
use of the Tire Mobility Kit".
•
Never leave the Tire Mobility Kit
level ground, always set your park-
unattended while it is being used.
ing brake.
WARNING
•
Do not leave the compressor run-
•
Only use the Tire Mobility Kit for
ning for more than 10 min. at a time
sealing/inflation passenger car tires.
Do not use the TMK if a tire is
or it may overheat.
Only punctured areas located with-
severely damaged by driving
•
Do not use the Tire Mobility Kit if
in the tread region of the tire can be
run flat or with insufficient air
the ambient temperature is below
sealed using the tire mobility kit.
pressure.
-30°C (-22°F).
•
Do not use on motorcycles, bicy-
Only punctured areas located
•
In case of skin contact with the
cles or any other type of tires.
within the tread region of the tire
sealant, wash the area thoroughly
•
When the tire and wheel are dam-
6
can be sealed using the TMK.
with plenty of water. If the irritation
aged, do not use Tire Mobility Kit
persists, seek medical attention.
for your safety.
•
In case of eye contact with the
•
Use of the Tire Mobility Kit may not
sealant, flush your eyes for at least
be effective for tire damage larger
15 minutes. If the irritation persists,
than approximately 6 mm (0.24 in).
seek medical attention.
If the tire cannot be made roadwor-
•
In case of swallowing the sealant,
thy with the Tire Mobility Kit, we
rinse the mouth and drink plenty of
recommend that you contact an
water. However, never give anything
authorized HYUNDAI dealer.
to an unconscious person and seek
•
Do not use the Tire Mobility Kit if a
medical attention immediately.
tire is severely damaged by driving
•
Long time exposure to the sealant
run flat or with insufficient air pres-
may cause damage to bodily tissue
sure.
such as kidney, etc.
6-31
What to do in an emergency
Components of the Tire Mobility Kit
Connectors, cable and connection
hose are stored in the compressor
housing.
Strictly
follow
the
specified
sequence, otherwise the sealant
may escape under high pressure.
WARNING
Expired sealant
Do not use the Tire sealant after
the sealant has expired
(i.e.
pasted the expiration date on
the sealant container). This can
increase the risk of tire failure.
OAE067039
WARNING
1. Speed-restriction label
5. Holder for the sealant bottle
2. Sealant bottle and label with
6. Compressor
Sealant
speed restriction
7. ON/OFF switch
• Keep out of reach of children.
3. Filling hose from sealant bottle to
8. Pressure gauge for displaying the
• Avoid contact with eyes.
wheel
tire inflation pressure
• Do not swallow.
4. Connectors and cable for the
9. Button for reducing the tire infla-
power outlet direct connection
tion pressure
6-32
