Hyundai i10 (2016 year). Instruction - part 17

Maintenance

Replace the filter according to the

Maintenance Schedule.

CAUTION

If the vehicle is operated in extremely

•

Do not drive with the air cleaner

dusty or sandy areas, replace the ele-

removed; this will result in exces-

ment more often than the usual recom-

sive engine wear.

mended

intervals.

(Refer

to

•

When removing the air cleaner fil-

“Maintenance under severe usage condi-

ter, be careful that dust or dirt

tions” in this chapter.)

does not enter the air intake, or

damage may result.

•

We recommend that you use

parts for replacement from an

authorized HYUNDAI dealer. Use

OBA073027

of improper parts could damage

3. Replace the air cleaner filter.

the air flow sensor or turbo charg-

4. Reassemble in the reverse order of

er.

removal.

7 31

Maintenance

CLIMATE CONTROL AIR FILTER (IF EQUIPPED)

Filter inspection

■ Left-hand drive

■ Left-hand drive

The climate control air filter should be

replaced according to the Maintenance

Schedule. If the vehicle is operated in

severely air-polluted cities or on dusty

rough roads for a long period, it should

be inspected more frequently and

replaced earlier. When you replace the

climate control air filter, replace it per-

forming the following procedure, and be

careful to avoid damaging other compo-

OBA073032

OBA073029

nents.

■ Right-hand drive

■ Right-hand drive

OBA073032R

OBA073029R

Filter replacement

2. Remove the climate control air filter

cover.

1. With the glove box opened, push in

both sides of the glove box as shown.

This will ensure that the glove box

stopper pins will get released from its

holding location allowing the glove box

to hang.

7 32

Maintenance

■ Left-hand drive

OBA073030

■ Right-hand drive

OBA073031

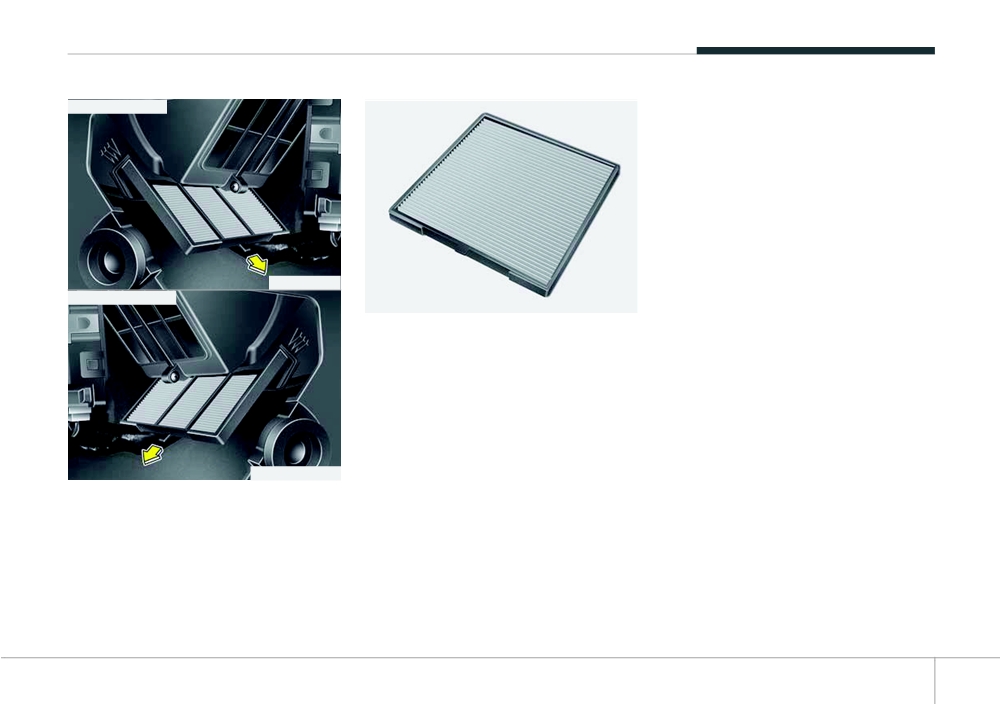

4. Replace the climate control air filter.

5. Reassemble in the reverse order of

disassembly.

✽ NOTICE

When replacing the climate control air

filter install it properly. Otherwise, the

system may produce noise and the effec-

OBA073030R-1

tiveness of the filter may be reduced.

3. Pull out the air filter

7 33

Maintenance

WIPER BLADES

Contamination of either the windshield or

Blade replacement

the wiper blades with foreign matter can

When the wipers no longer clean ade-

reduce the effectiveness of the wind-

quately, the blades may be worn or

shield wipers. Common sources of con-

cracked, and require replacement.

tamination are insects, tree sap, and hot

wax treatments used by some commer-

CAUTION

cial car washes. If the blades are not wip-

ing properly, clean both the window and

To prevent damage to the wiper

arms or other components, do not

the blades with a good cleaner or mild

attempt to move the wipers manual-

detergent, and rinse thoroughly with

ly.

clean water.

1JBA5122

CAUTION

CAUTION

Blade inspection

To prevent damage to the wiper

The use of a non-specified wiper

✽ NOTICE

blades, do not use gasoline,

blade could result in wiper malfunc-

kerosene, paint thinner, or other

Commercial hot waxes applied by auto-

tion and failure.

solvents on or near them.

matic car washes have been known to

make the windshield difficult to clean.

7 34

Maintenance

1JBA7037

1LDA5023

OHM078059

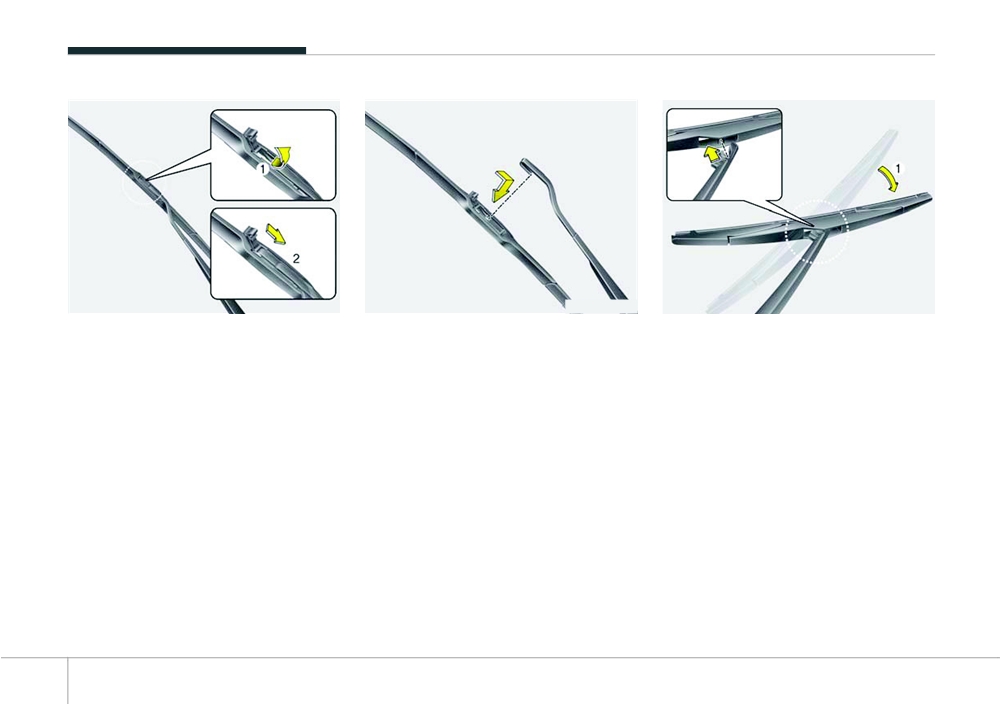

Front windshield wiper blade

Type B

Type A

1. Raise the wiper arm.

1. Raise the wiper arm and rotate the

wiper blade assembly to expose the

CAUTION

plastic locking clip.

Do not allow the wiper arm to fall

against the windshield, since it may

CAUTION

chip or crack the windshield.

Do not allow the wiper arm to fall

against the windshield, since it may

1JBA7038

chip or crack the windshield.

2. Compress the clip (1) and slide the

blade assembly downward (2).

3. Lift it off the arm.

4. Install a blade assembly in the reverse

order of removal.

5. Return the wiper arm on the wind-

shield.

7 35

Maintenance

OHM078060

OHM078061

OPA077017

2. Lift up the wiper blade clip (1). Then

3. Install a new blade assembly in the

Rear window wiper blade

pull down the blade assembly (2) and

reverse order of removal.

(if equipped)

remove it.

4. Return the wiper arm on the wind-

1. Raise the wiper arm and pull out the

shield.

wiper blade assembly.

2. Slightly rotate the wiper blade assem-

bly (1) and pull it out.

7 36

Maintenance

OPA077018

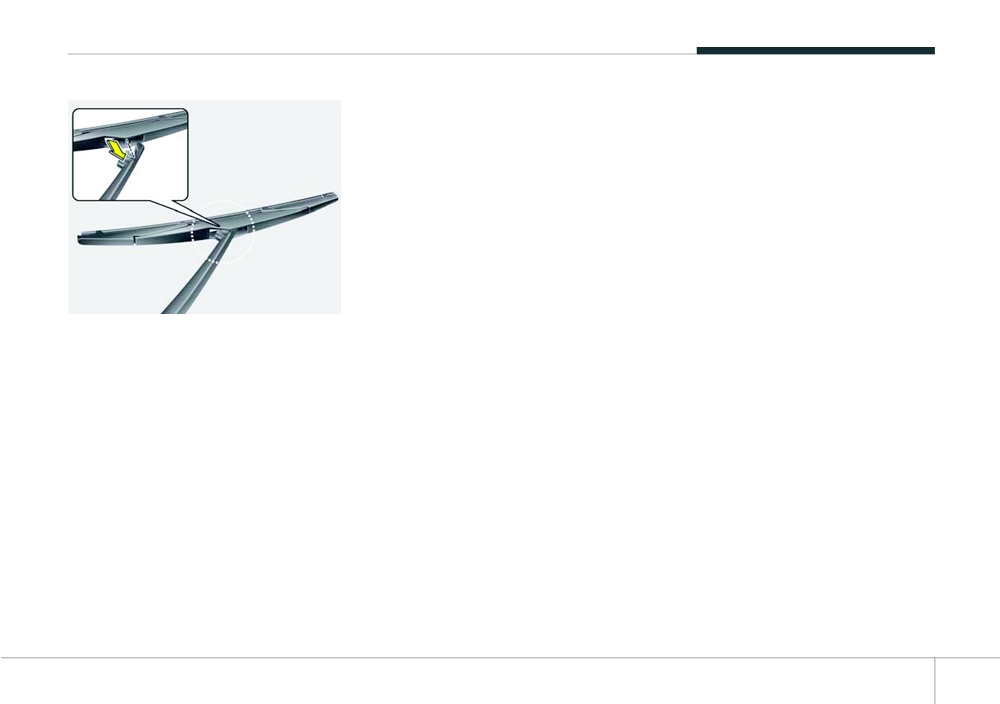

3. Install a new blade assembly by insert-

ing the center part into the slot on the

wiper arm until it clicks into place.

4. Make sure the blade assembly is

installed firmly by trying to pull it slight-

ly.

To prevent damage to the wiper arms or

other components, we recommend that

the wiper blade be replaced by an

authorized HYUNDAI dealer.

7 37

Maintenance

BATTERY

(Continued)

WARNING

If acid gets into your eyes, flush

To prevent SERIOUS INJURY or

your eyes with clean water for at

DEATH to you or bystanders,

least 15 minutes and get immediate

always follow these precautions

medical attention. If acid gets on

when working near or handling the

your skin, thoroughly wash the

battery:

area. If you feel pain or a burning

Always read and follow

sensation, get medical attention

instructions carefully when

immediately.

handling a battery.

•

When lifting a plastic-cased bat-

Wear eye protection

tery, excessive pressure on the

designed to protect the

case may cause battery acid to

OBA073009

eyes from acid splashes.

leak. Lift with a battery carrier or

For best battery service

Keep all flames, sparks, or

with your hands on opposite cor-

•

Keep the battery securely mounted.

smoking materials away

ners.

from the battery.

•

Keep the battery top clean and dry.

•

Do not attempt to jump start your

Hydrogen is always present

vehicle if your battery is frozen.

•

Keep the terminals and connections

in battery cells, is highly

clean, tight, and coated with petroleum

•

NEVER attempt to recharge the

combustible, and may

jelly or terminal grease.

battery when the vehicle’s battery

explode if ignited.

•

Rinse any spilled electrolyte from the

cables are connected to the bat-

Keep batteries out of reach

tery.

battery immediately with a solution of

of children.

water and baking soda.

•

The electrical ignition system

•

If the vehicle is not going to be used for

works with high voltage. NEVER

an extended time, disconnect the bat-

Batteries contain sulfuric

touch these components with the

tery cables.

acid which is highly corro-

engine running or when the igni-

sive. Do not allow acid to

tion switch is in the ON position.

contact your eyes, skin or

clothing.

(Continued)

7 38

Maintenance

■ Example

Battery recharging

CAUTION

Your vehicle has a maintenance-free,

To prevent damage to your vehicle:

calcium-based battery.

• Only use a 12-volt power supply

•

If the battery becomes discharged in a

(battery or jumper system) to

short time (because, for example, the

jump start your vehicle.

headlights or interior lights were left on

• Do not attempt to jump start your

while the vehicle was not in use),

vehicle by push-starting.

recharge it by slow charging (trickle)

for 10 hours.

•

If the battery gradually discharges

✽ NOTICE

because of high electric load while the

An inappropriately disposed

vehicle is being used, recharge it at 20-

OJD072039

battery can be harmful to the

30A for two hours.

environment and human health.

❈ The actual battery label in the vehicle

Dispose the battery according

may differ from the illustration.

to your local law(s) or regula-

tion.

Battery capacity label

1. CMF65L-BCI : HYUNDAI model name

of battery

2.12V : Nominal voltage

3.60Ah(20HR) : Nominal capacity

(in Ampere hours)

4.92RC : Nominal reserve capacity

(in min.)

5.550CCA : Cold-test current

(in amperes by SAE)

6.440A : Cold-test current

(in amperes by EN)

7 39

Maintenance

TIRES AND WHEELS

Tire care

WARNING - Tire underin-

For proper maintenance, safety, and

flation

maximum fuel economy, you must

always maintain recommended tire

Severe underinflation

(70 kPa

inflation pressures and stay within

(10 psi) or more) can lead to

the load limits and weight distribution

severe heat build-up, causing

recommended for your vehicle.

blowouts, tread separation and

other tire failures that can result

in the loss of vehicle control

Recommended cold tire inflation

leading to severe injury or

pressures

death. This risk is much higher

All tire pressures

(including the

on hot days and when driving

OBA073010

spare) should be checked when the

for long periods at high speeds.

All specifications

(sizes and pres-

tires are cold. “Cold Tires” means the

sures) can be found on a label

vehicle has not been driven for at

attached to the vehicle.

least three hours or driven less than

1.6 km (one mile).

Recommended pressures must be

maintained for the best ride, top vehi-

cle handling, and minimum tire wear.

For recommended inflation pressure

refer to “Tire and wheels” in chapter 8.

7 41

Maintenance

CAUTION

CAUTION

CAUTION - Tire pressure

•

Underinflation also results in

•

Warm tires normally exceed

Always observe the following:

excessive wear, poor handling

recommended cold tire pres-

•

Check tire pressure when the

and reduced fuel economy.

sures by 28 to 41 kPa (4 to 6

tires are cold.

(After vehicle

Wheel deformation also is

psi). Do not release air from

has been parked for at least

possible. Keep your tire pres-

warm tires to adjust the pres-

three hours or hasn't been

sures at the proper levels. If a

sure or the tires will be under-

driven more than 1.6 km (one

tire frequently needs refilling,

inflated.

mile) since startup.)

we recommend that the sys-

•

Be sure to reinstall the tire

•

Check the pressure of your

tem be checked by an author-

inflation valve caps. Without

spare tire each time you check

ized HYUNDAI dealer.

the valve cap, dirt or moisture

the pressure of other tires.

•

Overinflation produces a

could get into the valve core

•

Never overload your vehicle.

harsh ride, excessive wear at

and cause air leakage. If a

Be careful not to overload a

the center of the tire tread, and

valve cap is missing, install a

vehicle luggage rack if your

a greater possibility of dam-

new one as soon as possible.

vehicle is equipped with one.

age from road hazards.

•

Worn, old tires can cause acci-

dents. If your tread is badly

WARNING - Tire inflation

worn, or if your tires have

Overinflation or underinflation

been damaged, replace them.

can reduce tire life, adversely

affect vehicle handling, and

lead to sudden tire failure. This

could result in loss of vehicle

control and potential injury.

7 42

Maintenance

Checking tire inflation pressure

Remove the valve cap from the tire

valve stem. Press the tire gage firm-

WARNING

Check your tires once a month or

ly onto the valve to get a pressure

•

Inspect your tires frequently

more.

measurement. If the cold tire inflation

for proper inflation as well as

Also, check the tire pressure of the

pressure matches the recommended

wear and damage. Always use

spare tire.

pressure on the tire and loading

a tire pressure gauge.

information label, no further adjust-

•

Tires with too much or too little

How to check

ment is necessary. If the pressure is

pressure wear unevenly caus-

Use a good quality gage to check tire

low, add air until you reach the rec-

ing poor handling, loss of vehi-

pressure. You can not tell if your tires

ommended amount.

cle control, and sudden tire

are properly inflated simply by look-

If you overfill the tire, release air by

failure leading to accidents,

ing at them. Radial tires may look

pushing on the metal stem in the

injuries, and even death. The

properly inflated even when they're

center of the tire valve. Recheck the

recommended cold tire pres-

underinflated.

tire pressure with the tire gage. Be

sure for your vehicle can be

Check the tire's inflation pressure

sure to put the valve caps back on

found in this manual and on

when the tires are cold.

- "Cold"

the valve stems. They help prevent

the tire label located on the dri-

means your vehicle has been sitting

leaks by keeping out dirt and mois-

ver's side center pillar.

for at least three hours or driven no

ture.

•

Worn tires can cause acci-

more than 1.6 km (1 mile).

dents. Replace tires that are

worn, show uneven wear, or

are damaged.

•

Remember to check the pres-

sure of your spare tire.

HYUNDAI recommends that

you check the spare every

time you check the pressure

of the other tires on your vehi-

cle.

7 43

Maintenance

Tire rotation

With a full-size spare tire (if equipped)

WARNING

To equalize tread wear, it is recom-

mended that the tires be rotated

•

Do not use the compact spare

every 12,000 km (7,500 miles) or

tire for tire rotation.

sooner if irregular wear develops.

•

Do not mix bias ply and radial

During rotation, check the tires for

ply tires under any circum-

correct balance.

stances. This may cause

unusual handling characteris-

When rotating tires, check for uneven

tics that could result in death,

wear and damage. Abnormal wear is

S2BLA790

severe injury,

or property

usually caused by incorrect tire pres-

damage.

sure, improper wheel alignment, out-

Directional tires (if equipped)

of-balance wheels, severe braking or

severe cornering. Look for bumps or

bulges in the tread or side of tire.

Replace the tire if you find either of

these conditions. Replace the tire if

fabric or cord is visible. After rotation,

be sure to bring the front and rear tire

pressures to specification and check

lug nut tightness.

CBGQ0707A

Refer to “Tire and wheels” in chapter

8.

Disc brake pads should be inspected

for wear whenever tires are rotated.

✽ NOTICE

Rotate radial tires that have an

asymmetric tread pattern only from

front to rear and not from right to

left.

7 44

Maintenance

Wheel alignment and tire balance

Tread wear indicator

WARNING - Replacing

The wheels on your vehicle were

tires

aligned and balanced carefully at the

factory to give you the longest tire life

To reduce the chance or serious

and best overall performance.

or fatal injuries from an acci-

dent caused by tire failure or

In most cases, you will not need to

loss of vehicle control:

have your wheels aligned again.

However, if you notice unusual tire

•

Replace tires that are worn,

wear or your vehicle pulling one way

show uneven wear, or are

or the other, the alignment may need

damaged. Worn tires can

to be reset.

cause loss of braking effec-

OEN076053

tiveness, steering control, and

If you notice your vehicle vibrating

traction.

when driving on a smooth road, your

Tire replacement

wheels may need to be rebalanced.

If the tire is worn evenly, a tread wear

•

Do not drive your vehicle with

indicator will appear as a solid band

too little or too much pressure

across the tread. This shows there is

in your tires. This can lead to

CAUTION

less than 1.6 mm (1/16 inch) of tread

uneven wear and tire failure.

Improper wheel weights can

left on the tire. Replace the tire when

•

When replacing tires, never

damage your vehicle's alu-

this happens.

mix radial and bias-ply tires

minum wheels. Use only

approved wheel weights.

Do not wait for the band to appear

on the same car. You must

across the entire tread before replac-

replace all tires (including the

ing the tire.

spare) if moving from radial to

bias-ply tires.

(Continued)

7 45

Maintenance

Wheel replacement

Tire traction

(Continued)

When replacing the metal wheels for

Tire traction can be reduced if you

•

Using tires and wheel other

any reason, make sure the new

drive on worn tires, tires that are

than the recommended sizes

wheels are equivalent to the original

improperly inflated or on slippery

could cause unusual handling

factory units in diameter, rim width

road surfaces. Tires should be

characteristics and poor vehi-

and offset.

replaced when tread wear indicators

cle control, resulting in a seri-

appear. Slow down whenever there

ous accident.

is rain, snow or ice on the road, to

•

Wheels that do not meet

WARNING

reduce the possibility of losing con-

HYUNDAI’s specifications

A wheel that is not the correct

trol.

may fit poorly and result in

size may adversely affect wheel

damage to the vehicle or

and bearing life, braking and

unusual handling and poor

stopping abilities, handling

vehicle control.

characteristics, ground clear-

ance, body-to-tire clearance,

•

The ABS works by comparing

snow

chain

clearance,

the speed of the wheels. Tire

speedometer and odometer cal-

size can affect wheel speed.

ibration, headlight aim and

When replacing tires, all

4

bumper height.

tires must use the same size

originally supplied with the

vehicle. Using tires of a differ-

ent size can cause the ABS

(Anti-lock Brake System) and

ESC

(Electronic Stability

Control) (if equipped) to work

irregularly.

7 46

Maintenance

Tire maintenance

2. Tire size designation

1

In addition to proper inflation, correct

A tire’s sidewall is marked with a tire

5,6

wheel alignment helps to decrease

size designation. You will need this

tire wear. If you find a tire is worn

7

information when selecting replace-

unevenly, have your dealer check the

ment tires for your vehicle. The fol-

wheel alignment.

4

lowing explains what the letters and

numbers in the tire size designation

When you have new tires installed,

mean.

make sure they are balanced. This

2

will increase vehicle ride comfort and

3

Example tire size designation:

tire life. Additionally, a tire should

(These numbers are provided as an

always be rebalanced if it is removed

example only; your tire size designa-

1

I030B04JM

from the wheel.

tor could vary depending on your

Tire sidewall labeling

vehicle.)

This information identifies and

165/60R14 64T

describes the fundamental charac-

teristics of the tire and also provides

165 - Tire width in millimeters.

the tire identification number

(TIN)

for safety standard certification. The

60 - Aspect ratio. The tire’s chapter

height as a percentage of its

TIN can be used to identify the tire in

case of a recall.

width.

R - Tire construction code (Radial).

1. Manufacturer or brand name

14 - Rim diameter in inches.

Manufacturer or Brand name is

64 - Load Index, a numerical code

shown.

associated with the maximum

load the tire can carry.

T - Speed Rating Symbol. See the

speed rating chart in this chapter

for additional information.

7 47

Content   ..  15  16  17  18   ..
