Hyundai H-1 / Grand Starex (2016 year). Instruction - part 2

Safety features of your vehicle

WARNING

•

For maximum effectiveness in

case of an accident, the headrest

should be adjusted so the middle

of the headrest is at the same

height of the center of gravity of

an occupant's head. Generally,

the center of gravity of most peo-

ple's head is similar with the

height of the top of their eyes.

Also, adjust the headrest as close

to your head as possible. The use

OHM038017

OHM038018N

of a cushion that holds the body

Adjusting the height up and down

Removal

away from the seatback is not

To raise the headrest, pull it up to the

To remove the headrest, raise it as far as

recommended.

desired position (1). To lower the head-

it can go then press the release button

•

Do not operate the vehicle with

rest, push and hold the release button (2)

(1) while pulling upward (2).

the headrests removed as severe

on the headrest support and lower the

To reinstall the headrest, put the head-

injury to an occupant may occur

headrest to the desired position (3).

rest poles (3) into the holes while press-

in the event of an accident.

ing the release button (1). Then adjust it

Headrests may provide protec-

to the appropriate height.

tion against severe neck injuries

when properly adjusted.

WARNING

Make sure the headrest locks in

CAUTION

position after adjusting it to proper-

When there is no occupant in the

ly protect the occupants.

rear seats, adjust the height of the

headrest to the lowest position. The

rear seat headrest can reduce the

visibility of the rear area.

3 12

Safety features of your vehicle

C010307ATQ

CAUTION - Damaging rear

Folding the rear seat

seat belt buckles

(4th row seat, if equipped)

When you fold the rear (2nd and/or

The rear seat cushion may be folded to

3rd row) seatback, insert the buckle

facilitate carrying long items or to

in the pocket between the rear seat-

increase the luggage capacity of the

back and cushion. Doing so can

vehicle.

prevent the buckle from being dam-

aged by the rear seatback.

WARNING

The purpose of the fold rear seat is

to allow you to carry longer objects

CAUTION - Rear seat belts

that could not be accommodated in

OTQ037031

When returning the rear (2nd and/or

the cargo area.

C010304ATQ

3rd row) seatbacks to the upright

Never allow passengers to sit on a

Center seat folding (if equipped)

position, remember to return the

improper position (ex : top of the

1. Stow the rear seat belt in the pocket to

rear shoulder belts to their proper

folded seat, floor etc.) while the car

prevent the seat belt from being dam-

position. Routing the seat belt web-

is moving as this is not a proper

aged.

bing through the rear seat belt

seating position and no seat belts

2. Pull the release knob and fold the

guides will help keep the belts from

are available for use. This could

seatback forward.

being trapped behind or under the

result in serious injury or death in

3. Fold up the seat.

seats.

case of an accident or sudden stop.

Objects carried on the cargo area

should not extend higher than the

WARNING - Uprighting

top of the front seatbacks. Doing

seat

this could allow cargo to slide for-

When you return the seatback to its

ward and cause injury or damage

upright position, hold the seatback

during sudden stops.

and return it slowly. If the seatback

is returned without holding it, the

back of the seat could spring for-

ward resulting in injury caused by

being struck by the seatback.

3 13

Safety features of your vehicle

To fold the rear seat:

1. Stow the rear seat belt in the pocket

WARNING

to prevent the seat belt from being

When you return the rear seat

damaged.

cushion to its locking position after

2. Set the 3rd row seatback to the upright

being folded:

position and if necessary, slide the 3rd

Be careful not to damage the seat

row seat forward.

belt webbing or buckle. Do not

allow the seat belt webbing or

buckle to get caught or pinched in

the rear seat. Ensure that the seat

OTQ037016

is completely locked into its proper

position by pushing the seat cush-

ion and seatback.

Otherwise, in an accident or sud-

den stop, the seat could fold, which

could result in serious injury or

death.

OTQ037017

3. Pull on the seatcushion folding lever,

then fold the seat toward the rear of the

vehicle.

4. Increase the luggauge compartment

space by moving the rear seat using

the sliding lever.

3 14

Safety features of your vehicle

WARNING - Cargo

Cargo should always be secured to

prevent it from being thrown about

the vehicle in a collision and caus-

ing injury to the vehicle occupants.

Do not place objects in the rear

seats, since they cannot be proper-

ly secured and may hit the front

seat occupants in a collision.

OUN026140

WARNING - Cargo loading

Make sure the engine is off, the

WARNING

automatic transmission is in P

The headrest on the seat (especial-

(Park) or the manual transmission

ly the last row seat) should be

is in R (Reverse) or 1st, and the

adjusted so the middle of the head-

parking brake is securely applied

rest is at the same height as the top

whenever loading or unloading

of the occupant's eyes.

cargo. Failure to take these steps

If the tailgate is pushed down to

may allow the vehicle to move if the

close when a passenger's head is

shift lever is inadvertently moved to

not against a properly adjusted

another position.

headrest or a tall person is seated,

the tailgate may hit the occupant's

head, which could cause injury.

3 15

Safety features of your vehicle

SEAT BELTS

C020100CUN

(Continued)

(Continued)

Seat belt restraint system

• Avoid wearing twisted seat belts.

Care should be taken to avoid con-

A twisted belt can't do its job as

tamination of the webbing with pol-

WARNING

well. In a collision, it could even

ishes, oils and chemicals and par-

•

For maximum restraint system pro-

cut into you. Be sure the belt web-

ticularly battery acid. Cleaning may

tection, the seat belts must always

bing is straight and not twisted.

safely be carried out using mild

be used whenever the car is mov-

• Be careful not to damage the belt

soap and water. The belt should be

ing.

webbing or hardware. If the belt

replaced if webbing becomes

•

Seat belts are most effective when

webbing or hardware is dam-

frayed, contaminated or damaged.

seatbacks are in the upright posi-

aged, replace it.

It is essential to replace the entire

tion.

assembly after it has been worn in

•

Children age 12 and under must

a severe impact even if damage to

always be properly restrained in

the assembly is not obvious. Belts

WARNING

should not be worn with straps

the rear seat. Never allow children

to ride in the front passenger seat.

Seat belts are designed to bear

twisted. Each seat belt assembly

If a child over 12 must be seated in

upon the bony structure of the

must only be used by one occu-

the front seat, he/she must be prop-

body, and should be worn low

pant; it is dangerous to put a belt

erly belted and the seat should be

across the front of the pelvis, or the

around a child being carried on the

pelvis, chest and shoulders, as

occupant's lap.

moved as far back as possible.

applicable; wearing the lap section

•

Never wear the shoulder belt under

of the belt across the abdominal

your arm or behind your back. An

area must be avoided.

improperly positioned shoulder

belt can cause serious injuries in a

Seat belts should be adjusted as

crash. The shoulder belt should be

firmly as possible, consistent with

positioned midway over your

comfort, to provide the protection

shoulder across your collarbone.

for which they have been designed.

•

Never wear a seat belt over frag-

A slack belt will greatly reduce the

ile objects. If there is a sudden

protection afforded to the occupant.

stop or impact, the seat belt can

(Continued)

damage it.

(Continued)

3 16

Safety features of your vehicle

If you continue not to fasten the seat belt

WARNING

and you drive over 20km/h the seat belt

warning chime will sound for approxi-

•

No modifications or additions

mately 100 seconds and the correspon-

should be made by the user

which will either prevent the seat

ding warning light will blink. (if equipped)

belt adjusting devices from oper-

ating to remove slack, or prevent

the seat belt assembly from being

adjusted to remove slack.

•

When you fasten the seat belt, be

careful not to latch the seat belt in

buckles of other seat. It's very dan-

gerous and you may not be pro-

1GQA2083

tected by the seat belt properly.

Seat belt warning (if equipped)

•

Do not unfasten the seat belt and

As a reminder to the driver, the seat belt

do not fasten and unfasten the

warning light will illuminate for approxi-

seat belt repeatedly while driving.

mately 6 seconds each time you turn the

This could result in loss of con-

ignition switch ON regardless of belt fas-

trol, and an accident causing

tening.

death, serious injury, or property

If the driver’s seat belt is unfastened after

damage.

the ignition switch is ON, the seat belt

•

When fastening the seat belt,

warning light illuminates until the belt is

make sure that the seat belt does

fastened.

not pass over objects that are

If you continue not to fasten the seat belt

hard or can break easily.

and you drive over 9km/h, the illuminated

•

Make sure there is nothing in the

warning light will start to blink until you

buckle. The seat belt may not be

drive under 6km/h. (if equipped)

fastened securely.

3 17

Safety features of your vehicle

✽ NOTICE

If you are not able to pull out the seat

belt from the retractor, firmly pull the

belt out and release it. Then you will be

able to pull the belt out smoothly.

B180A01NF-1

B200A02NF

C020102AEN

Lap/shoulder belt

WARNING

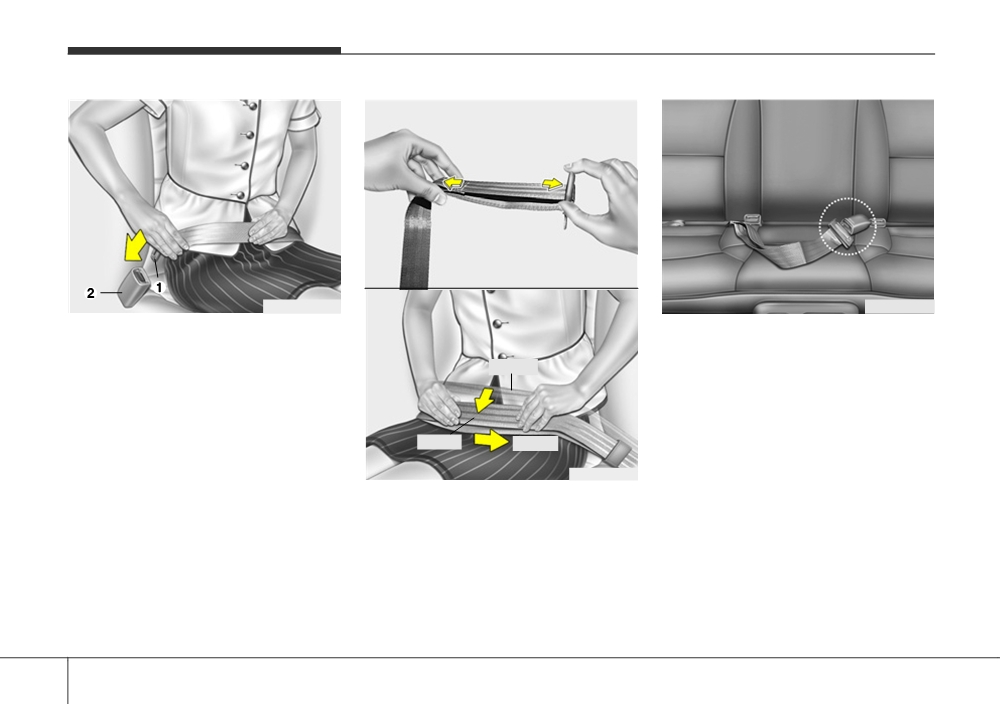

To fasten your seat belt:

You should place the lap belt por-

To fasten your seat belt, pull it out of the

tion as low as possible and snugly

retractor and insert the metal tab (1) into

across your hips, not on your waist.

the buckle (2). There will be an audible

If the lap belt is located too high on

"click" when the tab locks into the buckle.

your waist, it may increase the

The seat belt automatically adjusts to the

chance of injury in the event of a

proper length only after the lap belt por-

collision. Both arms should not be

tion is adjusted manually so that it fits

under or over the belt. Rather, one

snugly around your hips. If you lean for-

should be over and the other under,

ward in a slow, easy motion, the belt will

as shown in the illustration.

extend and let you move around. If there

Never wear the seat belt under the

is a sudden stop or impact, however, the

arm nearest the door.

belt will lock into position. It will also lock

if you try to lean forward too quickly.

3 18

Safety features of your vehicle

Front seat

To raise the height adjuster, pull it up (1).

To lower it, push it down (3) while press-

ing the height adjuster button (2).

Release the button to lock the anchor

into position. Try sliding the height

adjuster to make sure that it has locked

into position.

WARNING

•

Verify the shoulder belt anchor is

locked into position at the appro-

OEN036029

priate height. Never position the

B210A01NF-1

shoulder belt across your neck or

Height adjustment (if equipped)

To release the seat belt:

face. Improperly positioned seat

You can adjust the height of the shoulder

The seat belt is released by pressing the

belts can cause serious injuries

belt anchor to one of 5 positions for max-

release button (1) in the locking buckle.

in an accident.

imum comfort and safety.

When it is released, the belt should auto-

•

Failure to replace seat belts after

The height of the adjusting seat belt

matically draw back into the retractor.

an accident could leave you with

should not be too near your neck. The

If this does not happen, check the belt to

damaged seat belts that will not

shoulder portion should be adjusted so

be sure it is not twisted, then try again.

provide protection in the event of

that it lies across your chest and midway

another collision leading to per-

over your shoulder nearest the door and

sonal injury or death. Replace

not your neck.

your seat belts after being in an

To adjust the height of the seat belt

accident as soon as possible.

anchor, lower or raise the height adjuster

into an appropriate position.

3 19

Safety features of your vehicle

OHM039105N

B220A04NF-1

OTQ037020

C020103AUN

When using the rear center seat belt, the

Lap belt (if equipped)

buckle with the “CENTER” mark must be

To fasten your seat belt:

Too high

used.

To fasten a 2-point static type belt, insert

the metal tab (1) into the locking buckle

(2). There will be an audible "click" when

the tab locks into the buckle. Check to

Correct

Shorten

make sure the belt is properly locked and

that the belt is not twisted.

B220B01NF

With a 2-point static type seat belt, the

length must be adjusted manually so it

fits snugly around your body. Fasten the

belt and pull on the loose end to tighten.

The belt should be placed as low as pos-

sible on your hips, not on your waist. If

the belt is too high, it could increase the

possibility of your being injured in an

accident.

3 20

Safety features of your vehicle

■ Type A

C020105AUN

Stowing the rear seat belt

• The rear seat belt buckles can be

stowed in the pocket between the rear

seatback and cushion when not in use.

• The center seat belt can be stowed

with the plate and webbing rolled in the

pocket between the rear seatback and

cushion.

OTQ037021

■ Type B

B210A02NF-1

To release the seat belt:

When you want to release the seat belt,

press the button (1) in the locking buckle.

WARNING

OTQ037022

The center lap belt latching mecha-

■ Type C

nism is different from those for the

rear seat shoulder belts. When fas-

tening the rear seat shoulder belts

or the center lap belt, make sure

they are inserted into the correct

buckles to obtain maximum protec-

tion from the seat belt system and

assure proper operation.

OTQ037022G

3 21

Safety features of your vehicle

WARNING

For your safety, be sure that the

belt webbing is not loose or twisted

and always sit properly on your

seat.

OED030300

1KMB3311A

C020200CEN

The seat belt pre-tensioner system con-

Pre-tensioner seat belt

sists mainly of the following components.

(if equipped)

Their locations are shown in the illustra-

tion:

Your vehicle is equipped with driver's and

1. SRS air bag warning light

front passenger's pre-tensioner seat

belts. The purpose of the pre-tensioner is

2. Retractor pre-tensioner assembly

to make sure that the seat belts fit tightly

3. SRS control module

against the occupant's body in certain

frontal collisions. The pre-tensioner seat

belts may be activated in crashes where

the frontal collision is severe enough.

When the vehicle stops suddenly, or if

the occupant tries to lean forward too

quickly, the seat belt retractor will lock

into position. In certain frontal collisions,

the pre-tensioner will activate and pull

the seat belt into tighter contact against

the occupant's body.

3 22

Safety features of your vehicle

✽ NOTICE

WARNING

WARNING

Because the sensor that activates the

To obtain maximum benefit from a

SRS air bag is connected with the pre-

•

Pre-tensioners are designed to

pre-tensioner seat belt:

tensioner seat belt, the SRS air bag

operate only one time. After acti-

1. The seat belt must be worn cor-

warning light

on the instrument

vation, pre-tensioner seat belts

rectly and adjusted to the proper

panel will illuminate for approximately

must be replaced. All seat belts,

position. Please read and follow

6 seconds after the ignition switch has

of any type, should always be

all of the important information

been turned to the ON position, and

replaced after they have been

and precautions about your vehi-

then it should turn off.

worn during a collision.

cle’s occupant safety features -

•

The pre-tensioner seat belt

including seat belts and air bags -

assembly mechanisms become

that are provided in this manual.

CAUTION

hot during activation. Do not

If the pre-tensioner seat belt is not

touch the pre-tensioner seat belt

2. Be sure you and your passengers

always wear seat belts properly.

working properly, this warning light

assemblies for several minutes

will illuminate even if there is no

after they have been activated.

malfunction of the SRS air bag.

•

Do not attempt to inspect or

✽ NOTICE

If the SRS air bag warning light

replace the pre-tensioner seat

•

Both the driver's and front passen-

does not illuminate when the igni-

belts yourself. We recommend

ger's pre-tensioner seat belts may be

tion switch is turned to ON, or if it

that the system be inspected by

activated in certain frontal collisions.

remains illuminated after illuminat-

an authorized HYUNDAI dealer.

•

When the pre-tensioner seat belts are

ing for approximately 6 seconds, or

•

Do not strike the pre-tensioner

activated, a loud noise may be heard

if it illuminates while the vehicle is

seat belt assemblies.

and fine dust, which may appear to be

being driven, we recommend that

•

Do not attempt to service or

smoke, may be visible in the passenger

the system be inspected by an

repair the pre-tensioner seat belt

compartment. These are normal oper-

authorized HYUNDAI dealer.

system in any manner.

ating conditions and are not haz-

(Continued)

ardous.

•

Although it is harmless, the fine dust

may cause skin irritation and should

not be breathed for prolonged periods.

Wash all exposed skin areas thorough-

ly after an accident in which the pre-

tensioner seat belts were activated.

3

23

Safety features of your vehicle

C020300AUN

C020306AUN

(Continued)

Seat belt precautions

Infant or small child

•

Improper handling of the pre-ten-

You should be aware of the specific

sioner seat belt assemblies, and

WARNING

requirements in your country. Child

failure to heed the warnings not

and/or infant seats must be properly

to strike, modify, inspect, replace,

All occupants of the vehicle must

placed and installed in the rear seat. For

service or repair the pre-tension-

wear their seat belts at all times.

more information about the use of these

er seat belt assemblies may lead

Seat belts and child restraints

restraints, refer to

“Child restraint sys-

to improper operation or inadver-

reduce the risk of serious or fatal

tem” in this section.

tent activation and serious injury.

injuries for all occupants in the

•

Always wear the seat belts when

event of a collision or sudden stop.

Without a seat belt, occupants

driving or riding in a motor vehi-

WARNING

could be shifted too close to a

cle.

Every person in your vehicle needs

deploying air bag, strike the interior

•

If the vehicle or pre-tensioner

to be properly restrained at all

structure or be thrown from the

seat belt must be discarded, we

times, including infants and chil-

vehicle. Properly worn seat belts

recommend that you contact an

dren. Never hold a child in your

greatly reduce these hazards.

authorized HYUNDAI dealer.

arms or lap when riding in a vehi-

Always follow the precautions

cle. The violent forces created dur-

about seat belts, air bags and occu-

ing a crash will tear the child from

pant seating contained in this man-

your arms and throw the child

CAUTION

ual.

against the interior. Always use a

Body work on the front area of the

child restraint appropriate for your

vehicle may damage the pre-ten-

child's height and weight.

sioner seat belt system. Therefore,

we recommend that the system be

serviced by an authorized HYUNDAI

dealer.

3 24

Safety features of your vehicle

C020305AUN

C020400AEN

C020401AEN

Do not lie down

Care of seat belts

Periodic inspection

To reduce the chance of injuries in the

Seat belt systems should never be disas-

All seat belts should be inspected peri-

event of an accident and to achieve max-

sembled or modified. In addition, care

odically for wear or damage of any kind.

imum effectiveness of the restraint sys-

should be taken to assure that seat belts

Any damaged parts should be replaced

tem, all passengers should be sitting up

and belt hardware are not damaged by

as soon as possible.

and the front and rear seats should be in

seat hinges, doors or other abuse.

an upright position when the car is mov-

C020402AUN

ing. A seat belt cannot provide proper

Keep belts clean and dry

protection if the person is lying down in

WARNING

Seat belts should be kept clean and dry.

the rear seat or if the front and rear seats

When you return the rear seat to its

If belts become dirty, they can be

are in a reclined position.

seating position after the rear seat

cleaned by using a mild soap solution

has been folded, be careful not to

and warm water. Bleach, dye, strong

damage the seat belt webbing or

WARNING

detergents or abrasives should not be

buckle. Be sure that the webbing or

Riding with a reclined seatback

used because they may damage and

buckle does not get caught or

increases your chance of serious or

weaken the fabric.

pinched in the rear seat. A seat belt

fatal injuries in the event of a colli-

with damaged webbing or buckle

sion or sudden stop. The protection

could possibly fail during a colli-

C020403AEN

of your restraint system (seat belts

sion or sudden stop, resulting in

When to replace seat belts

and air bags) is greatly reduced by

serious injury. If the webbing or

Entire in-use seat belt assembly or

reclining your seat. Seat belts must

buckles are damaged, get them

assemblies should be replaced if the

be snug against your hips and

replaced immediately.

vehicle has been involved in an accident.

chest to work properly. The more

This should be done even if no damage

the seatback is reclined, the greater

is visible. If you have additional questions

the chance that an occupant's hips

regarding seat belt operation, we recom-

will slide under the lap belt causing

mend that you consult an authorized

serious internal injuries or the

HYUNDAI dealer.

occupant's neck could strike the

shoulder belt. Drivers and passen-

gers should always sit well back in

their seats, properly belted, and

with the seatbacks upright.

3 26

Safety features of your vehicle

CHILD RESTRAINT SYSTEM

C030000AEN

(Continued)

Children riding in the car should sit in the

WARNING

•

When the child restraint system

rear seat and must always be properly

•

A child restraint system must be

is not in use, store it in the lug-

restrained to minimize the risk of injury in

placed in the rear seat. Never

gage area or fasten it with a seat

an accident, sudden stop or sudden

install a child or infant seat on the

belt so that it will not be thrown

maneuver. According to accident statis-

front passenger's seat. Should an

forward in the case of a sudden

tics, children are safer when properly

accident occur and cause the

stop or an accident.

restrained in the rear seats than in the

passenger-side air bag to deploy,

front seat. Larger children not in a child

•

Children may be seriously injured

it could severely injure or kill an

restraint should use one of the seat belts

or killed by an inflating air bag.

infant or child seated in an infant

provided.

All children, even those too large

or child seat. Thus only use a

You should be aware of the specific

for child restraints, must ride in

child restraint in the rear seat of

requirements in your country. Child

the rear seat.

your vehicle.

and/or infant safety seats must be prop-

•

A seat belt or child restraint sys-

erly placed and installed in the rear seat.

tem can become very hot if it is

You must use a commercially available

left in a closed vehicle on a sunny

child restraint system that meets the

day, even if the outside tempera-

requirements of the Safety Standards of

ture does not feel hot. Be sure to

your country. Child restraint systems are

check the seat cover and buckles

designed to be secured in vehicle seats

before placing a child there.

by lap belts or the lap belt portion of a

(Continued)

lap/shoulder belt, or by a tether anchor

and/or ISOFIX anchors (if equipped).

Children could be injured or killed in a

crash if their restraints are not properly

secured. For small children and babies, a

child seat or infant seat must be used.

Before buying a particular child restraint

system, make sure it fits your car seat

and seat belts, and fits your child.

Follow all the instructions provided by the

manufacturer when installing the child

restraint system.

3 27

Safety features of your vehicle

(Continued)

(Continued)

WARNING

•

Never leave children unattended

•

Never use an infant carrier or a

To reduce the chance of serious or

in a vehicle - not even for a short

child safety seat that "hooks"

fatal injuries:

time. The car can heat up very

over a seatback, it may not pro-

•

Children of all ages are safer

quickly, resulting in serious

vide adequate security in an acci-

when restrained in the rear seat.

injuries to children inside. Even

dent.

A child riding in the front passen-

very young children may inadver-

•

Seat belts can become very hot,

ger seat can be forcefully struck

tently cause the vehicle to move,

especially when the car is parked

by an inflating air bag resulting in

entangle themselves in the win-

in direct sunlight. Always check

serious or fatal injuries.

dows, or lock themselves or oth-

seat belt buckles before fasten-

•

Always follow the child restraint

ers inside the vehicle.

ing them over a child.

system manufacturer’s instruc-

•

Never allow two children, or any

•

After an accident, we recommend

tions for installation and use of

two persons, to use the same

that the system be checked by an

the child restraint.

seat belt.

authorized HYUNDAI dealer.

•

Always make sure the child seat

•

Children often squirm and repo-

is secured properly in the car and

sition themselves improperly.

your child is securely restrained

Never let a child ride with the

in the child seat.

shoulder belt under their arm or

•

Never hold a child in your arms or

behind their back. Always proper-

lap when riding in a vehicle. The

ly position and secure children in

violent forces created during a

the rear seat.

crash will tear the child from your

•

Never allow a child to stand-up or

arms and throw the child against

kneel on the seat or floor of a

the car’s interior.

moving vehicle. During a colli-

•

Never put a seat belt over your-

sion or sudden stop, the child

self and a child. During a crash,

can be violently thrown against

the belt could press deep into the

the vehicle’s interior, resulting in

child causing serious internal

serious injury.

injuries.

(Continued)

(Continued)

3 28

Content   ..   1  2  3   ..
