Your vehicle at a glance

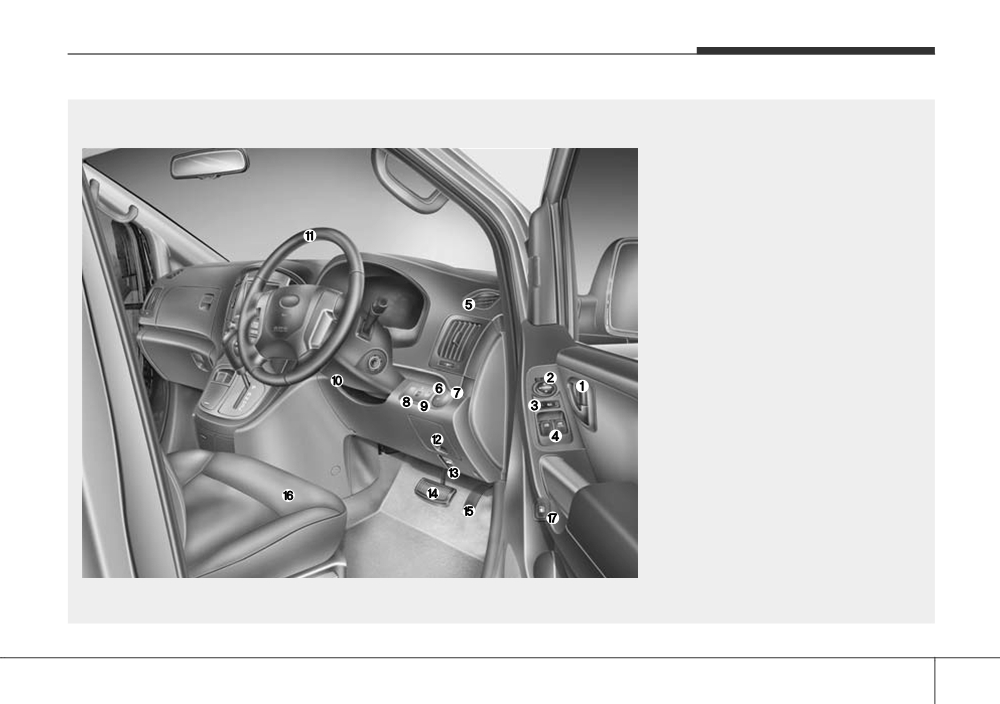

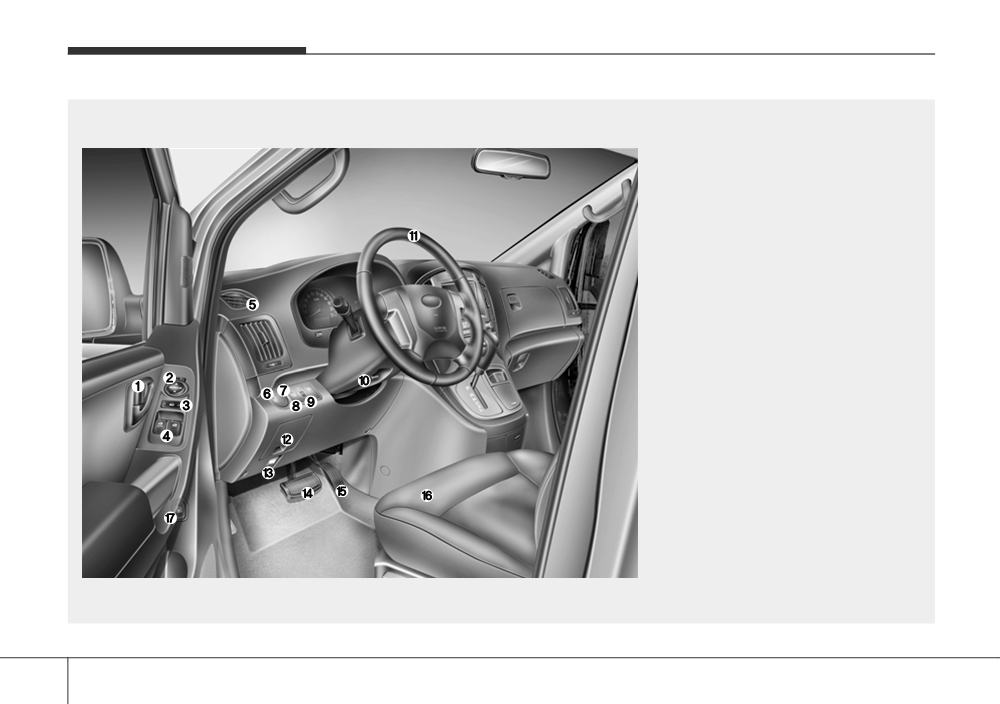

INTERIOR OVERVIEW
■ Left-Hand drive type
1. Door lock/unlock button*
4-10
2. Outside rearview mirror control
switch*
4-35
3. Central door lock switch*
4-11
4. Power window switches*
4-18
5. Air vent
4-79
6. Front fog light switch*
4-67
7. Rear fog light switch*
4-68
8. Head lamp leveling device*
4-69
9. Instrument panel illumination control
knob*
4-39
10. Steering wheel tilt control*
4-33
11. Steering wheel
4-32
12. Fuse box
7-52
13. Hood release lever
4-22
14. Brake pedal
5-19
15. Accelerator pedal
5-6
16. Seat
3-2
17. Fuel filler lid release button
4-24
* : if equipped
❈ The actual shape may differ from the illustration.
OTQ027001G
2 2
Your vehicle at a glance
■ Right-Hand drive type
1. Door lock/unlock button*
4-10
2. Outside rearview mirror control
switch*
4-35
3. Central door lock switch*
4-11
4. Power window switches*
4-18
5. Air vent
4-79
6. Front fog light switch*
4-67
7. Rear fog light switch*
4-68
8. Head lamp leveling device*
4-69
9. Instrument panel illumination control
knob*
4-39
10. Steering wheel tilt control*
4-33
11. Steering wheel
4-32
12. Fuse box
7-52
13. Hood release lever
4-22
14. Brake pedal
5-19
15. Accelerator pedal
5-6
16. Seat
3-2
17. Fuel filler lid release button
4-24
* : if equipped
❈ The actual shape may differ from the illustration.
OTQ027001R
2 3
Your vehicle at a glance

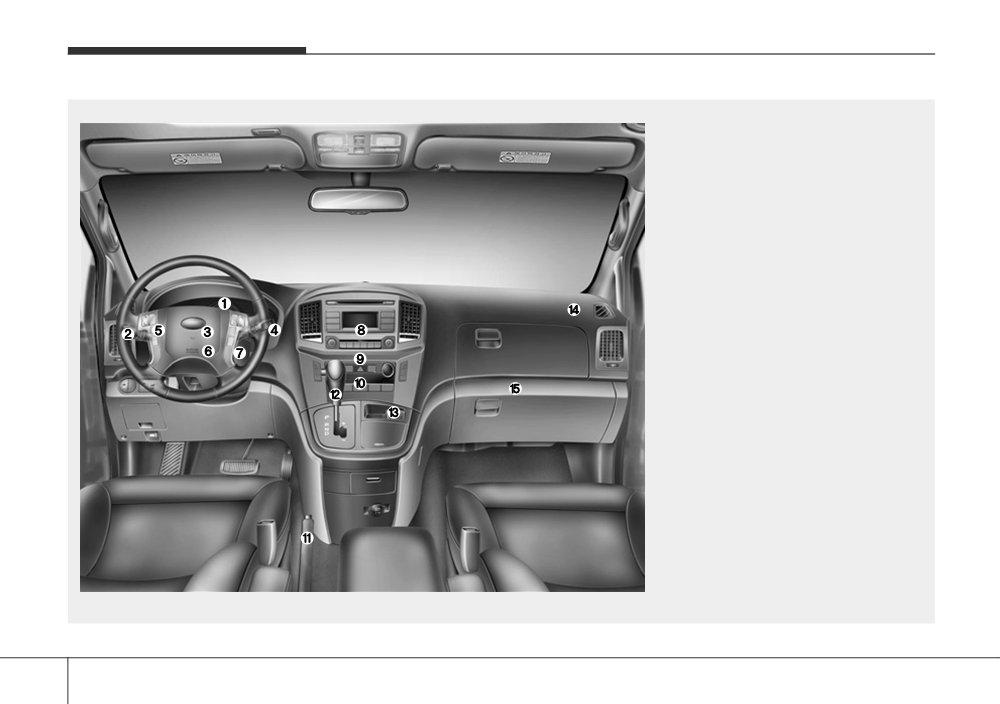

INSTRUMENT PANEL OVERVIEW
■ Left-Hand drive type
1. Instrument cluster
4-38
2. Light control / Turn signals
4-64
3. Horn
4-33
4. Wiper/Washer
4-72
5. Steering wheel audio controls*
4-113
6. Driver’s front air bag*
3-45
7. Ignition switch
5-4
8. Audio*
4-112
9. Hazard warning flasher switch
4-63, 6-2
10. Climate control system*
4-76, 4-88
11. Parking brake
5-20
12. Shift lever
5-12, 5-9
13. AUX, USB*
4-114
14. Passenger’s front air bag*
3-45
15. Glove box
4-103
* : if equipped
❈ The actual shape may differ from the illustration.
OTQ025002
2 4
Your vehicle at a glance

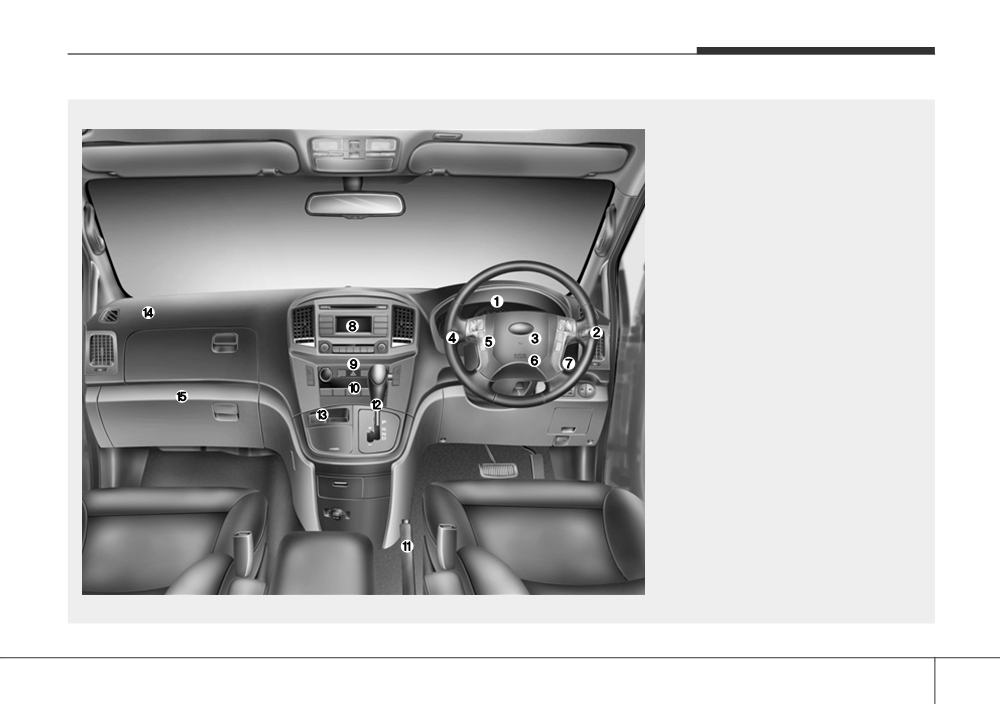

■ Right-Hand drive type
1. Instrument cluster
4-38
2. Light control / Turn signals
4-64
3. Horn
4-33
4. Wiper/Washer
4-71
5. Steering wheel audio controls*
4-113
6. Driver’s front air bag*
3-45
7. Ignition switch
5-4
8. Audio*
4-112
9. Hazard warning flasher
switch
4-63, 6-2
10. Climate control system*
4-76, 4-88
11. Parking brake
5-20
12. Shift lever
5-12, 5-9
13. AUX, USB*
4-114
14. Passenger’s front air bag*
3-45
15. Glove box
4-103
* : if equipped
❈ The actual shape may differ from the illustration.
OTQ025002R
2 5
Your vehicle at a glance

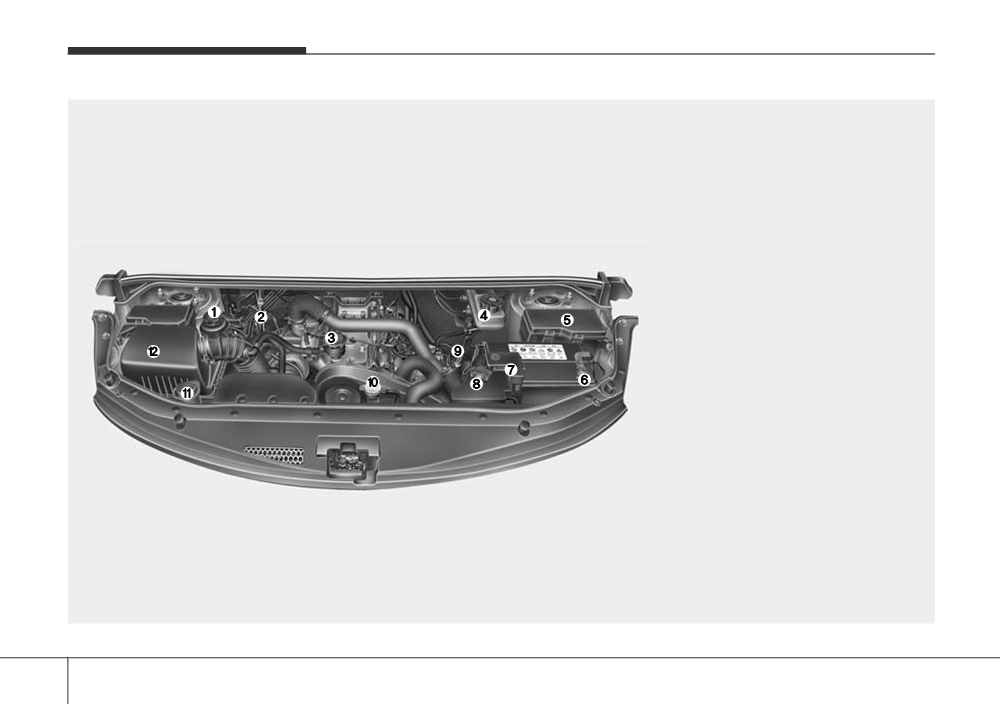

ENGINE COMPARTMENT
1. Power steering fluid reservoir
7-27
2. Automatic transmission fluid
dipstick*
7-28
3. Engine oil filler cap
7-22
4. Brake/clutch fluid reservoir
7-26
5. Fuse box
7-52
6. Negative battery terminal
7-38
7. Positive battery terminal
7-38
8. Engine coolant reservoir
7-23
9. Engine oil dipstick
7-22
10. Radiator cap
7-25
11. Windshield washer fluid reservoir ...7-30
12. Air cleaner
7-32
* : if equipped
❈ The actual engine room in the vehicle may differ from the illustration.
OTQ077001
2 6
Seats / 3-2
Seat belts / 3-16
Child restraint system / 3-27
Air bag - supplemental restraint system / 3-39
Safety features of your vehicle
3
Safety features of your vehicle

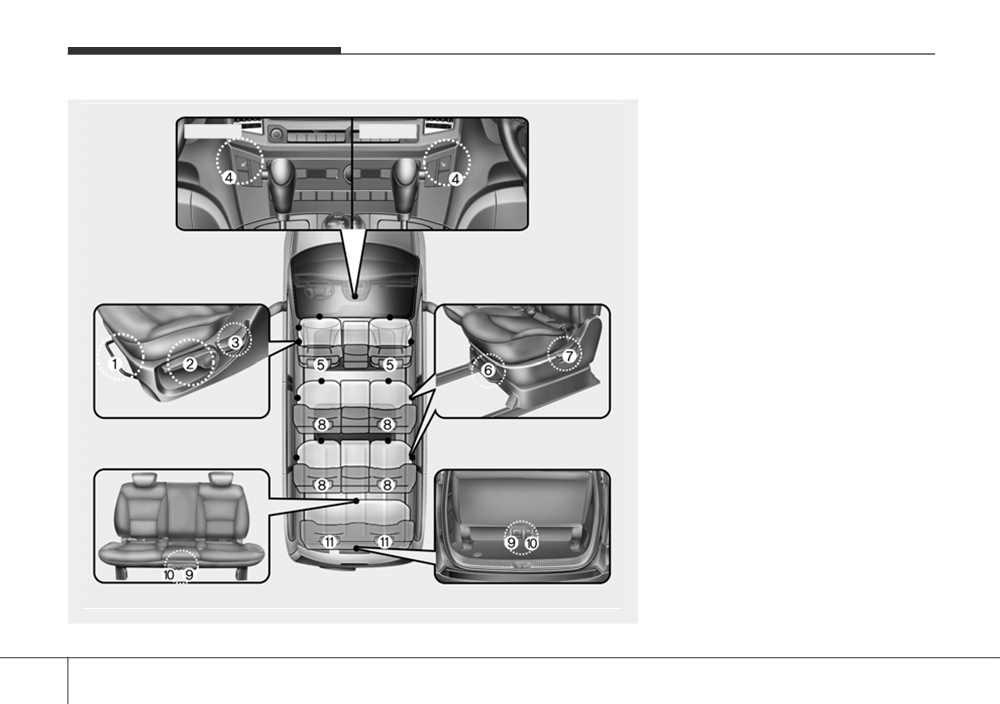

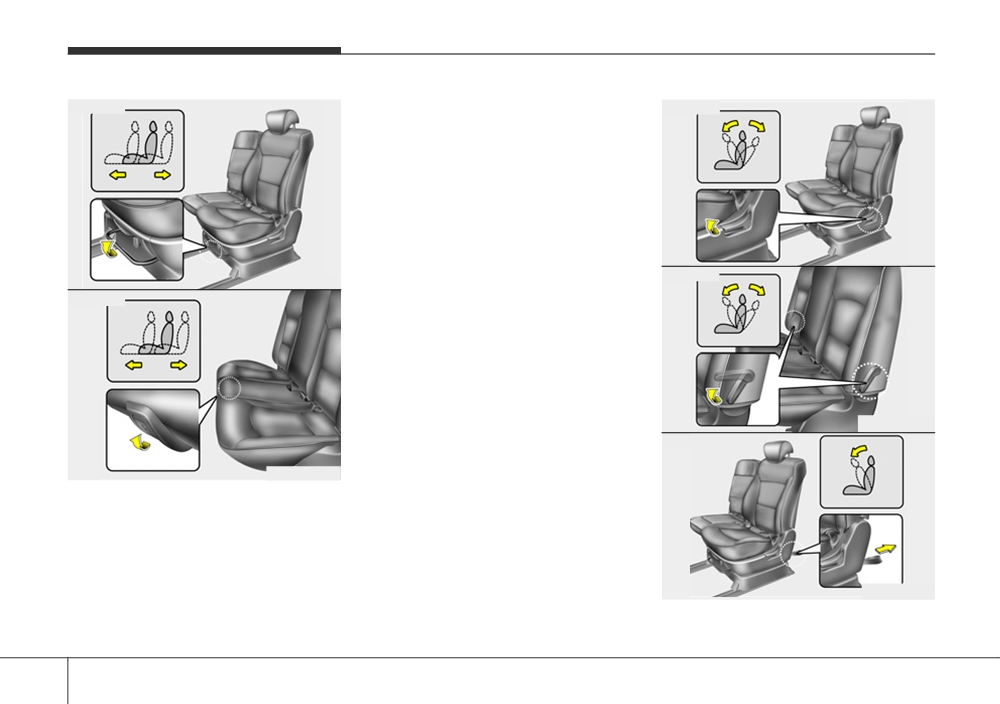

SEATS
Front seat
■ Type A
■ Type B
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)*
(4) Seat warmer (Driver’s seat)*
(5) Headrest
2nd row seat* / 3rd row seat*
(6) Forward and backward/
Seat rotation (2nd row seat only)*
(7) Seatback angle
(8) Headrest
4th row seat*
(9) Forward and backward
(10) Seat cushion folding
(11) Headrest
*: if equipped
OTQ035001L
3 2
Safety features of your vehicle
WARNING - Loose objects
WARNING - Driver respon-
WARNING - Driver’s seat
Loose objects in the driver’s foot
sibility for passengers
• Never attempt to adjust the seat
area could interfere with the opera-
Riding in a vehicle with the seat-
while the vehicle is moving. This
tion of the foot pedals, possibly
back reclined could lead to serious
could result in loss of control,
causing an accident. Do not place
or fatal injury in an accident. If a
and an accident causing death,
anything under the front seats.
seat is reclined during an accident,
serious injury, or property dam-
the occupant’s hips may slide
age.
under the lap portion of the seat
• Do not allow anything to interfere
WARNING - Uprighting
belt applying great force to the
with the normal position of the
unprotected abdomen. Serious or
seatback. Storing items against a
seat
fatal internal injuries could result.
seatback or in any other way
When you return the seatback to its
The driver must advise the front
interfering with proper locking of
upright position, hold the seatback
passenger to keep the seatback in
a seatback could result in serious
and return it slowly and be sure
an upright position whenever the
or fatal injury in a sudden stop or
there are no other occupants
vehicle is in motion.
collision.
around the seat. If the seatback is
returned without being held and
• Always drive and ride with your
controlled, the back of the seat
seatback upright and the lap por-
could spring forward resulting in
WARNING
tion of the seat belt snug and low
accidental injury to a person struck
Do not use a sitting cushion that
across the hips. This is the best
by the seatback.
reduces friction between the seat
position to protect you in case of
an accident.
and passenger. The passenger's
hips may slide under the lap por-
• In order to avoid unnecessary
tion of the seat belt during an acci-
and perhaps severe air bag
dent or a sudden stop. Serious or
injuries, always sit as far back as
fatal internal injuries could result
possible from the steering wheel
because the seat belt can't operate
while maintaining comfortable
normally.
control of the vehicle. We recom-
mend that your chest be at least
250 mm (10 inches) away from
the steering wheel.
3 3
Safety features of your vehicle
(Continued)

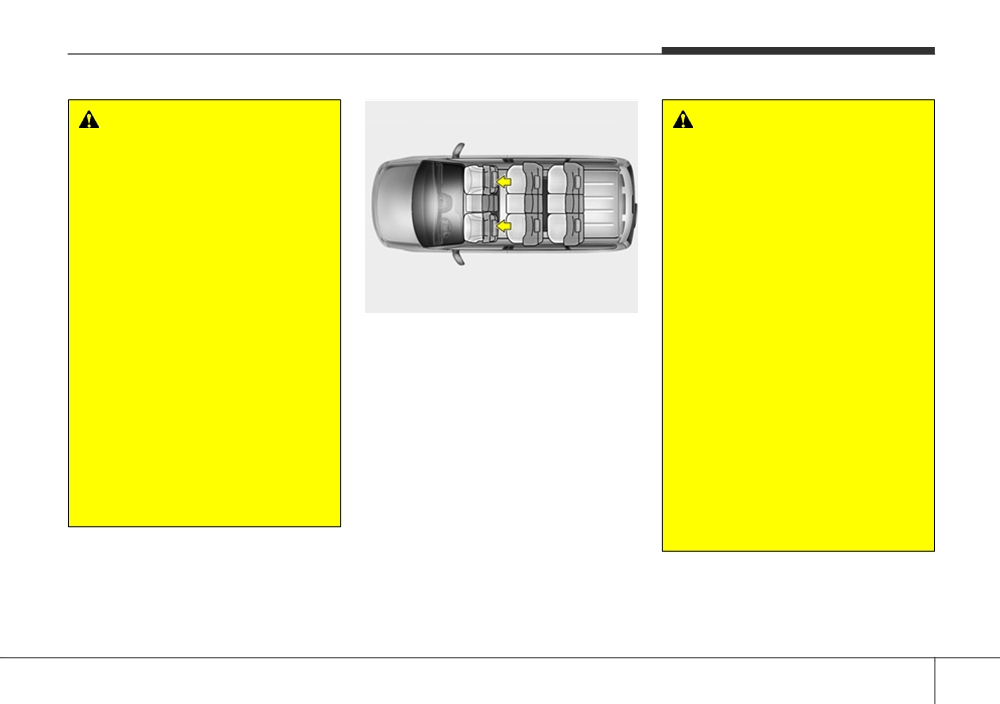

WARNING - Rear seatbacks
WARNING
• To avoid the possibility of burns,
•
The rear seatback must be
•
Do not adjust the seat while wear-
do not remove the carpet in the
securely latched. If not, passen-
ing seat belts. Moving the seat
cargo area. Emission control
gers and objects could be thrown
cushion forward may cause
devices beneath this floor gener-
forward resulting in serious
strong pressure on the abdomen.
ate high temperatures.
injury or death in the event of a
•
Use extreme caution so that
sudden stop or collision.
hands or other objects are not
•
Luggage and other cargo should
caught in the seat mechanisms
be laid flat in the cargo area. If
WARNING
while the seat is moving.
objects are large, heavy, or must
After adjusting the seat, always
•
Do not put a cigarette lighter on
be piled, they must be secured.
check that it is securely locked into
the floor or seat. When you oper-
Under no circumstances should
place by attempting to move the
ate the seat, gas may gush out of
cargo be piled higher than the
seat forward or backward without
the lighter and cause fire.
seatbacks. Failure to follow these
using the lock release lever.
•
If there are occupants in the rear
warnings could result in serious
Sudden or unexpected movement
seats, be careful while adjusting
injury or death in the event of a
of the driver's seat could cause you
the front seat position.
sudden stop, collision or rollover.
to lose control of the vehicle result-
•
Use extreme caution when pick-
•
No passenger should ride in the
ing in an accident.
ing small objects trapped under
cargo area or sit or lie on folded
the seats or between the seat and
seatbacks while the vehicle is
the center console. Your hands
moving. All passengers must be
might be cut or injured by the
properly seated in seats and
sharp edges of the seat mecha-
restrained properly while riding.
nism.
•
When resetting the seatback to
the upright position, make sure it
is securely latched by pushing it
forward and backwards.
(Continued)
3 4
Safety features of your vehicle
OTQ037002
OTQ037003
OTQ037004

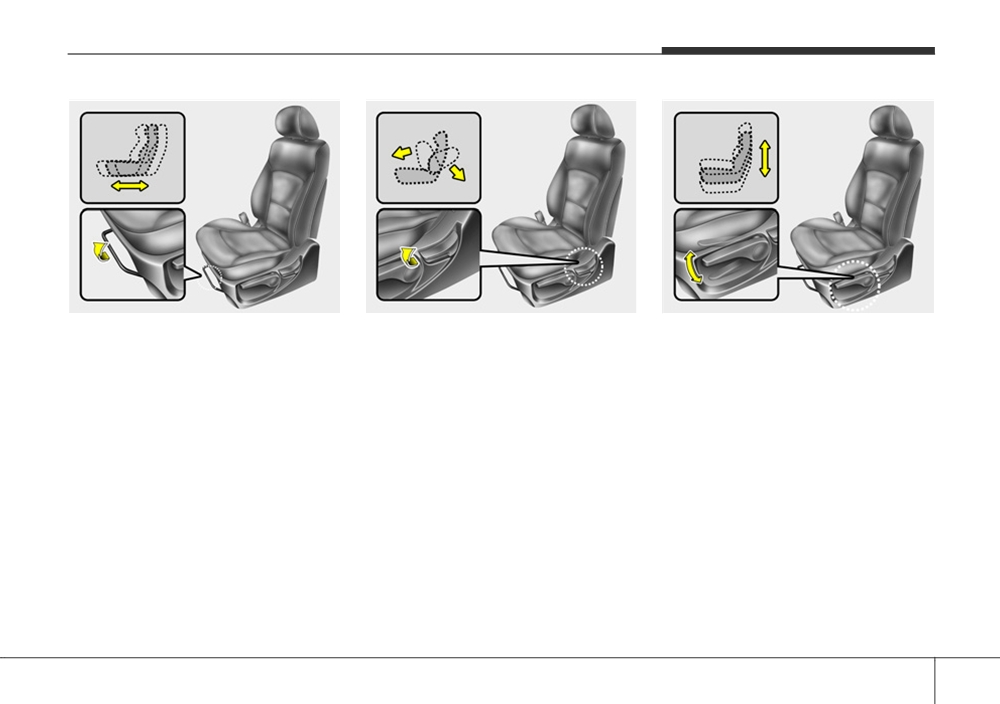

Front seat adjustment
C010102AUN
C010103AUN
Seatback angle
Seat cushion height (for driver’s seat)
C010101AUN
To recline the seatback:
To change the height of the seat cushion,
Forward and backward
1. Lean forward slightly and lift up on the
push the lever that is located on the out-
To move the seat forward or backward:
seatback recline lever located on the
side of the seat cushion upwards or
1. Pull the seat slide adjustment lever
outside of the seat at the rear.
downwards.
under the front edge of the seat cush-
2. Carefully lean back on the seat and
• To lower the seat cushion, push the
ion up and hold it.
adjust the seatback of the seat to the
lever down several times.
2. Slide the seat to the position you
position you desire.
• To raise the seat cushion, pull the lever
desire.
3. Release the lever and make sure the
up several times.
3. Release the lever and make sure the
seatback is locked in place. (The lever
seat is locked in place.
MUST return to its original position for
Adjust the seat before driving, and make
the seatback to lock.)
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
3 5
Safety features of your vehicle

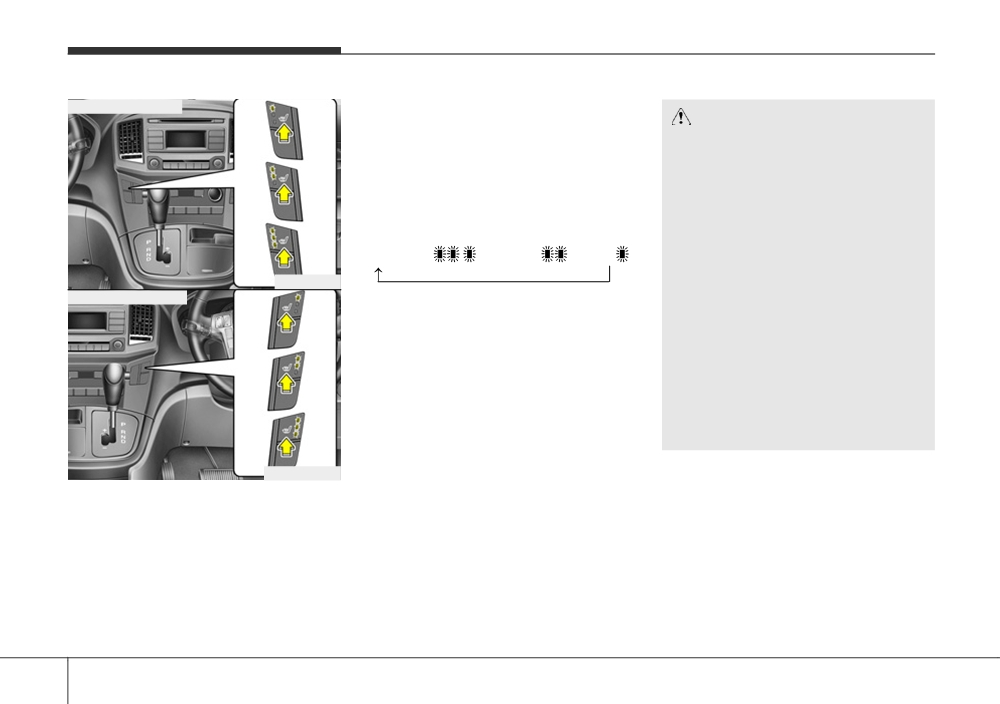

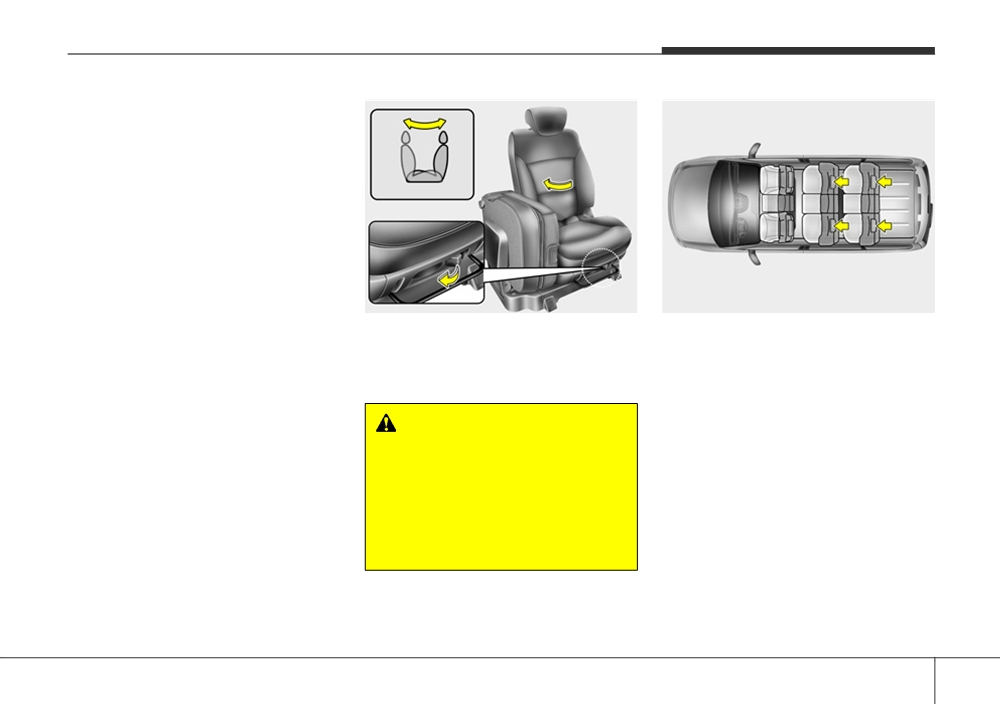

Left-Hand drive type
During mild weather or under conditions
where the operation of the seat warmer
CAUTION
is not needed, keep the switches in the
•
When cleaning the seats, do not
"OFF" position.
use an organic solvent such as
thinner, benzene, alcohol and
• Each time you press the switch, the
gasoline. Doing so may damage
temperature setting of the seat will
the surface of the heater or seats.
change as follows :
•
To prevent overheating the seat
warmer, do not place anything on
OFF→HIGH(
)→MIDDLE(
)→LOW(
)
the seats that insulates against
heat, such as blankets, cushions
OTQ046439
or seat covers while the seat
Right-Hand drive type
• The seat warmer defaults to the OFF
warmer is in operation.
position whenever the ignition switch is
•
Do not place heavy or sharp
turned on.
objects on seats equipped with
seat warmer. Damage to the seat
✽ NOTICE
warming components could occur.
With the seat warmer switch in ON
•
Do not change the seat cover. It
position, the heating system in the seat
may damage the seat warmer or
turns off or on automatically depending
airventilation system.
on the seat temperature.
OTQ046439R
Seat warmer
(Driver’s seat, if equipped)
The seat warmer is provided to warm the
front seats during cold weather. With the
ignition switch in the ON position, push
either of the switches to warm the driver's
seat or the front passenger's seat.
3 6
Safety features of your vehicle
WARNING - Seat warmer
WARNING
burns
•
For maximum effectiveness in
Passengers should use extreme
case of an accident, the headrest
caution when using seat warmers
should be adjusted so the middle
due to the possibility of excess
of the headrest is at the same
heating or burns. The seat warmer
height of the center of gravity of
may cause burns even at low tem-
an occupant's head. Generally,
peratures, especially if used for
the center of gravity of most peo-
long periods of time.
ple's head is similar with the
In particular, the driver must exer-
height of the top of their eyes.
cise extreme care for the following
Also, adjust the headrest as close
OTQC031161E
to your head as possible. For this
types of passengers:
C010104CTQ
reason, the use of a cushion that
1. Infants, children, elderly or hand-
holds the body away from the
icapped persons, or hospital out-
Headrest
seatback is not recommended.
patients
The driver's and front passenger's seats
•
Do not operate the vehicle with
2. Persons with sensitive skin or
are equipped with a headrest for the
the headrests removed as severe
those that burn easily
occupant's safety and comfort.
injury to the occupants may
3. Fatigued individuals
The headrest not only provides comfort
occur in the event of an accident.
4. Intoxicated individuals
for the driver and front passenger, but
Headrests may provide protec-
also helps to protect the head and neck
5. Individuals taking medication
tion against neck injuries when
in the event of a collision.
that can cause drowsiness or
properly adjusted.
sleepiness
(sleeping pills, cold
•
Do not adjust the headrest posi-
tablets, etc.)
tion of the driver's seat while the
vehicle is in motion.
3 7
Safety features of your vehicle
OFD037037
OYFH034205
OTQ033200

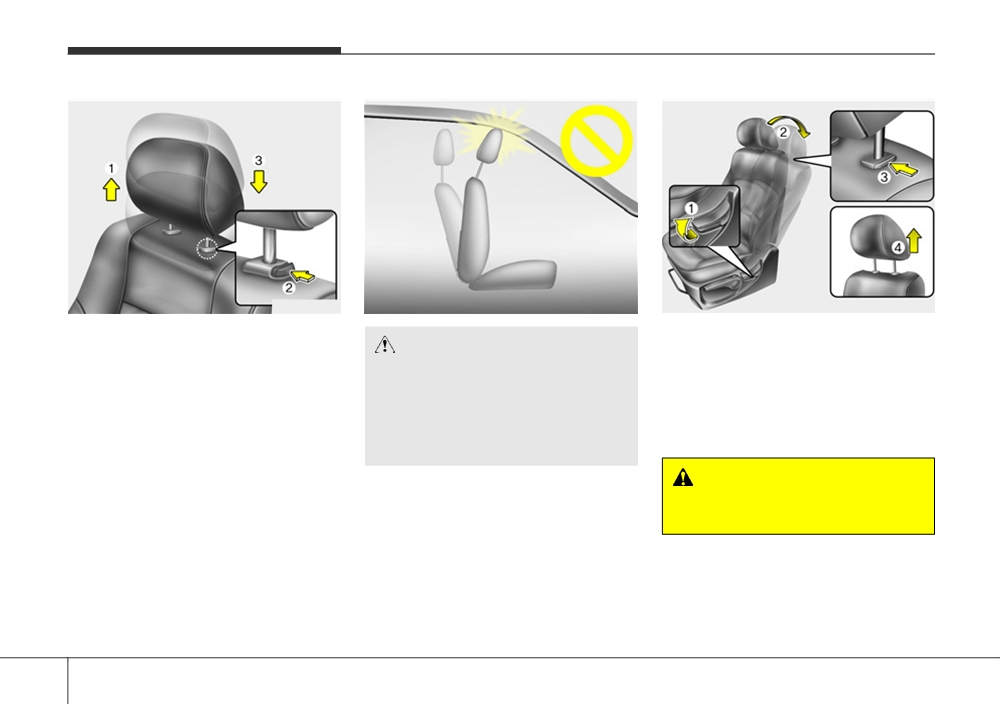

Adjusting the height up and down
Removal
To raise the headrest, pull it up to the
CAUTION
To remove the headrest:
desired position (1). To lower the head-
If you recline the seatback towards
1. Recline the seatback
(2) with the
rest, push and hold the release button (2)
the front with the head restraint and
recline lever (1).
on the headrest support and lower the
seat cushion raised, the head
2. Raise headrest as far as it can go.
headrest to the desired position (3).
restraint may come in contact with
3. Press the headrest release button (3)
the sunvisor or other parts of the
while pulling the headrest up (4).
vehicle.
WARNING
NEVER allow anyone to ride in a
seat with the headrest removed.
3 8
Safety features of your vehicle
WARNING - Seatback
pockets
Do not put heavy or sharp objects
in the seatback pockets. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-
pants.
OTQ033201
OTQ037036

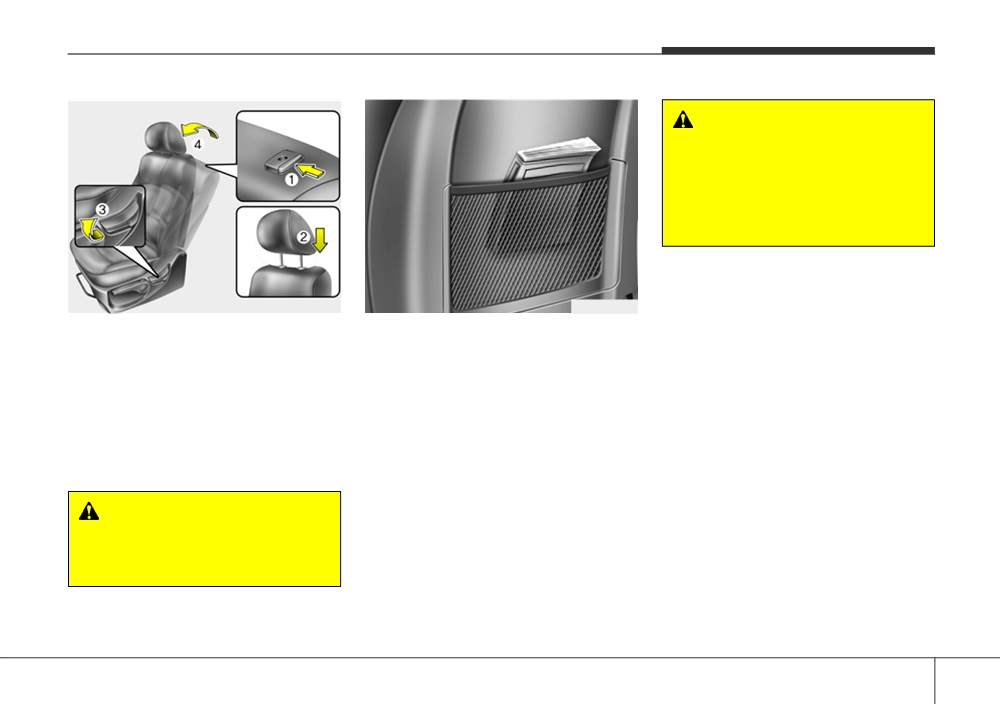

Reinstall
C010108AUN
To reinstall the headrest :
Seatback pocket (if equipped)
1. Put the headrest poles
(2) into the
The seatback pocket is provided on the
holes while pressing the release button
back of the front passenger’s and driver’s
(1).
seatbacks.
2. Recline the seatback
(4) with the
recline lever (3).
3. Adjust the headrest to the appropriate
height.
WARNING
Always make sure the headrest
locks into position after reinstalling
and adjusting it properly.
3 9
Safety features of your vehicle
■ Type A
2. Slide the seat to the position you
■ Type A
desire.
3. Release the lever and make sure the
seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
OTQ037012
■ Type B
OTQ037011
■ Type B
OTQ037012G
■ Type C
OTQ037011G
Rear seat adjustment
C010301ATQ
Forward and backward (2nd and 3rd
row, if equipped)
To move the seat forward or backward:
1. Pull up the seat slide adjustment lever
OTQ037015
under the front edge of the seat cush-
C010302ATQ
ion and hold it.
Seatback angle (if equipped)
3 10
Safety features of your vehicle
To recline the seatback:
1. Pull or pull up the seatback recline
lever.
2. Carefully lean back the seat and adjust
the seatback to the position you
desire.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
OTQ037033
OTQC031161F
Seat rotation
C010303CTQ
(2nd row seat, if equipped)
Headrest
Pull the lever and rotate the seat clock-
The rear seats are equipped with head-
wise.
rests in the outboard seating positions
(except center seating position) for the
occupant's safety and comfort.
WARNING
The headrest not only provides comfort for
• Never rotate the seat while the
passengers, but also helps to protect the
vehicle is in motion.
head and neck in the event of a collision.
• When the seat is rotated, be sure
that the seat is securely locked in
position. It not, it may result in
serious injury in the event of a
sudden stop.
3 11
|
|
|
