Hyundai Grand Santa Fe (2016 year). Instruction - part 2
Safety features of your vehicle
Headrest (for front seat)
Forward and backward adjustment
WARNING
(if equipped)
•
For maximum effectiveness in
case of an accident, the head-
rest should be adjusted so the
middle of the headrest is at the
same height as the center of
gravity of an occupant's head.
Generally, the center of gravity
of most people's head is simi-
lar with the height of the top of
their eyes. Also, adjust the
headrest as close to your head
OHM038048N
as possible. For this reason,
the use of a cushion that holds
ONCESA2015
The driver's and front passenger's
the body away from the seat-
seats are equipped with a headrest
The headrest may be adjusted for-
for the occupant's safety and comfort.
back is not recommended.
ward to 4 different positions by pulling
• Do not operate the vehicle with
the headrest forward to the desired
The headrest not only provides com-
fort for the driver and front passenger,
the headrests removed as
detent. To adjust the headrest to it’s
severe injury to the occupants
furthest backwards position, pull the
but also helps to protect the head and
neck in the event of a collision.
may occur in the event of an
headrest to the desired detent while
accident. Headrests may pro-
pushing the release button. Adjust
vide protection against neck
the headrest so that it properly sup-
injuries when properly adjust-
ports the head and neck.
ed.
•
Do not adjust the headrest
position of the driver's seat
while the vehicle is in motion.
3 11
Safety features of your vehicle
Adjusting the height up and down
■ Type B
■ Type A
ONCESA2016
OYFH034205
To raise the headrest :
ODMESA2220CN
1. Pull it up to the desired position (1).
CAUTION
To raise the headrest :
If you recline the seatback
1. Pull it up to the desired position (1).
towards the front with the head-
To lower the headrest :
rest and seat cushion raised,
1. Push and hold the release button
To lower the headrest :
the headrest may come in con-
(2) on the headrest.
tact with the sunvisor or other
1. Push and hold the release button
2. Lower the headrest to the desired
parts of the vehicle.
(2) on the headrest support.
position (3).
2. Lower the headrest to the desired
position (3).
3 12
Safety features of your vehicle
Removal and installation
3. Press the headrest release button
■ Type A
(3) while pulling the headrest up
■ Type A
(4).
WARNING
NEVER allow anyone to ride in a
seat with the headrest removed.
ONCNSA3151
■ Type B
ONCNSA3150
■ Type B
ONCNSA3153
To reinstall the headrest :
ONCNSA3152
1. Put the headrest poles (2) into the
To remove the headrest:
holes while pressing the release
1. Recline the seatback (2) with the
button (1).
recline lever or switch (1).
2. Recline the seatback (4) with the
2. Raise headrest as far as it can go.
recline lever or switch (3).
3 13
Safety features of your vehicle
3. Adjust the headrest to the appro-
Seat warmer (if equipped)
During mild weather or under condi-
priate height.
tions where the operation of the seat
■ Type A
warmer is not needed, keep the
switches in the "OFF" position.
WARNING
Always make sure the headrest
• Each time you press the switch,
locks into position after rein-
the temperature setting of the seat
stalling and adjusting it properly.
will change as follows :
OFF→HIGH(
)→MIDDLE(
)→LOW(
)
ODM032014
■ Type B
• The seat warmer defaults to the
OFF position whenever the ignition
switch is turned on.
✽ NOTICE
With the seat warmer switch in the
ON position, the heating system in
the seat turns off or on automatically
depending on the seat temperature.
ODM032016
The seat warmer is provided to warm
the front seats during cold weather.
With the ignition switch in the ON
position, push either of the switches
to warm the driver's seat or the front
passenger's seat.
3 14
Safety features of your vehicle
Seat cooler (Air ventilation seat)
CAUTION
WARNING - Seat warmer
(if equipped)
•
When cleaning the seats, do
burns
not use an organic solvent
Passengers should use extreme
such as paint thinner, ben-
caution when using seat warm-
zene, alcohol and gasoline.
ers due to the possibility of
Doing so may damage the sur-
excess heating or burns. The
face of the heater or seats.
seat warmer may cause burns
•
To prevent overheating the
even at low temperatures, espe-
seat warmer, do not place any-
cially if used for long periods of
thing on the seats that insu-
time. In particular, the driver
lates against heat, such as
must exercise extreme care for
blankets, cushions or seat
the following types of passen-
covers while the seat warmer
gers:
ODM032018
is in operation.
1. Infants, children, elderly or
•
Do not place heavy or sharp
handicapped persons, or
The temperature setting of the seat
objects on seats equipped
hospital outpatients
changes according to the switch posi-
with seat warmers. Damage to
tion.
2. Persons with sensitive skin
the seat warming components
or those that burn easily
• If you want to warm your seat cush-
could occur.
ion, press the switch (red color).
3. Fatigued individuals
• If you want to cool your seat cush-
4. Intoxicated individuals
ion, press the switch (blue color).
5. Individuals taking medication
• Each time you press the button, the
that can cause drowsiness or
airflow will change as follows:
sleepiness
(sleeping pills,
cold tablets, etc.)
OFF→HIGH(
)→MIDDLE(
)→LOW(
)
3 15
Safety features of your vehicle
• The seat warmer (with air ventila-
Seatback pocket
Rear seat adjustment
tion) defaults to the OFF position
Forward and backward
whenever the ignition switch is
(2nd row seat)
turned on.
7-seater
CAUTION
•
When cleaning the seats, do
not use an organic solvent
such as paint thinner, ben-
zene, alcohol and gasoline.
Doing so may damage the sur-
face of the heater or seats.
•
To prevent overheating the
OCM030052
seat warmer, do not place any-
ODM032019
The seatback pocket is provided on
6-seater
thing on the seats that insu-
the back of the front passenger’s and
lates against heat, such as
driver’s seatbacks.
blankets, cushions or seat
covers while the seat warmer
is in operation.
WARNING - Seatback
•
Do not place heavy or sharp
pockets
objects on seats equipped with
Do not put heavy or sharp
seat warmers. Damage to the
objects in the seatback pockets.
seat warming components
In an accident they could come
could occur.
loose from the pocket and injure
ONCESA3113L
vehicle occupants.
To move the seat forward or backward:
1. Pull the seat slide adjustment lever
up and hold it.
3 16
Safety features of your vehicle
2. Slide the seat to the position you
Seatback angle
3. Release the lever and make sure
desire.
(2nd row seat)
the seatback is locked in place.
(The lever MUST return to its orig-
3. Release the lever and make sure
7-seater
inal position for the seatback to
the seat is locked in place.
lock.)
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
ODM032020
6-seater
ONCESA3125L
To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seat-
back of the seat to the position you
desire.
3 17
Safety features of your vehicle
Walk-in seat
Folding the rear seat
(2nd row seat, if equipped)
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING
The purpose of the fold-down
rear seatbacks is to allow you to
carry longer objects that could
ONCDSA2114
ODM032055
not be accommodated in the
cargo area.
3.The 2nd row seatback will be fold-
Never allow passengers to sit
ed and push the seat to the far-
thest forward position.
on top of the folded down seat-
back while the vehicle is mov-
After getting in or out, slide the 2nd
ing. This is not a proper seating
row seat to the farthest rearward
position and no seat belts are
position and pull the seatback firmly
available for use. This could
backward until it clicks into place.
result in serious injury or death
Make sure that the seat is locked in
in case of an accident or sud-
place.
den stop. Objects carried on the
ODM032021
folded down seatback should
To get in or out of the 3rd row seat,
WARNING
not extend higher than the top
1. Routing the seat belt webbing
Never attempt to adjust while
of the front seatbacks. This
through the rear seat belt guide clip.
the vehicle is moving or the 2nd
could allow cargo to slide for-
After inserting the seat belt, tighten
row seat is occupied as the seat
ward and cause injury or dam-
the belt webbing by pulling it up.
may suddenly move and cause
age during sudden stops.
the passenger on the seat to be
2. Pull up the walk-in lever (1) on the
injured.
2nd row seatback.
3
18
Safety features of your vehicle
■ 2nd row seat
To fold down the rear seatback

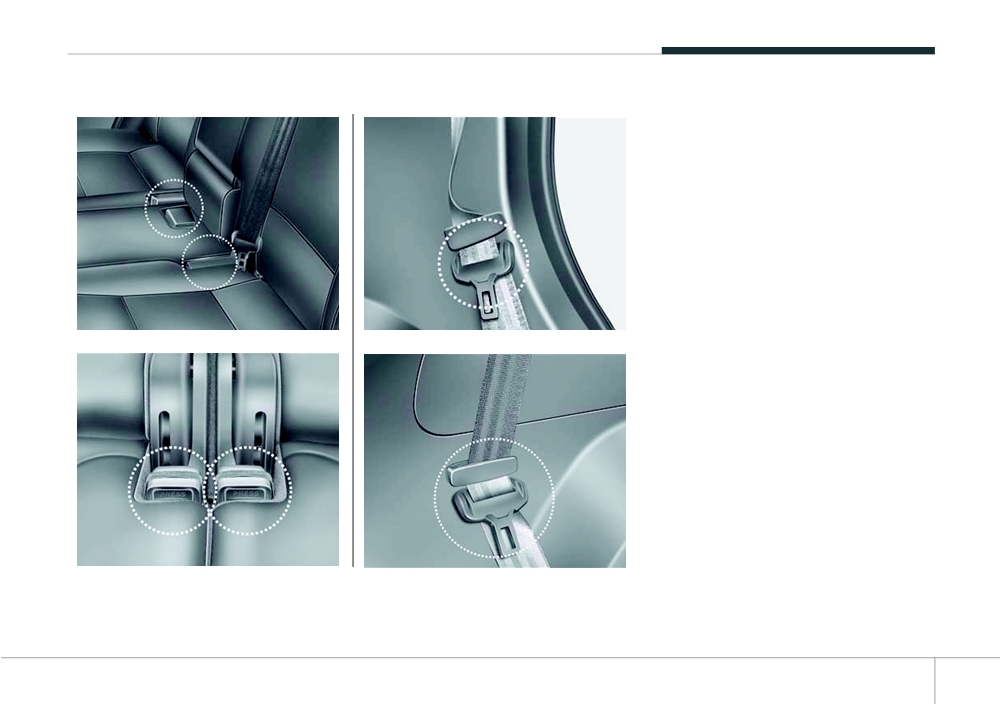

1. Insert the rear seat belt buckle in
the pocket between the rear seat-
back and cushion, and insert the
rear seat belt webbing in the guide
to prevent the seat belt from being
damaged.
2. Set the front seatback to the
upright position and if necessary,
slide the front seat forward.
3. Lower the rear headrests to the
lowest position.
■ 3rd row seat
ODM032034/OXM039030/ODM032027/ODM032035
3 19
Safety features of your vehicle
■ 2nd row seat

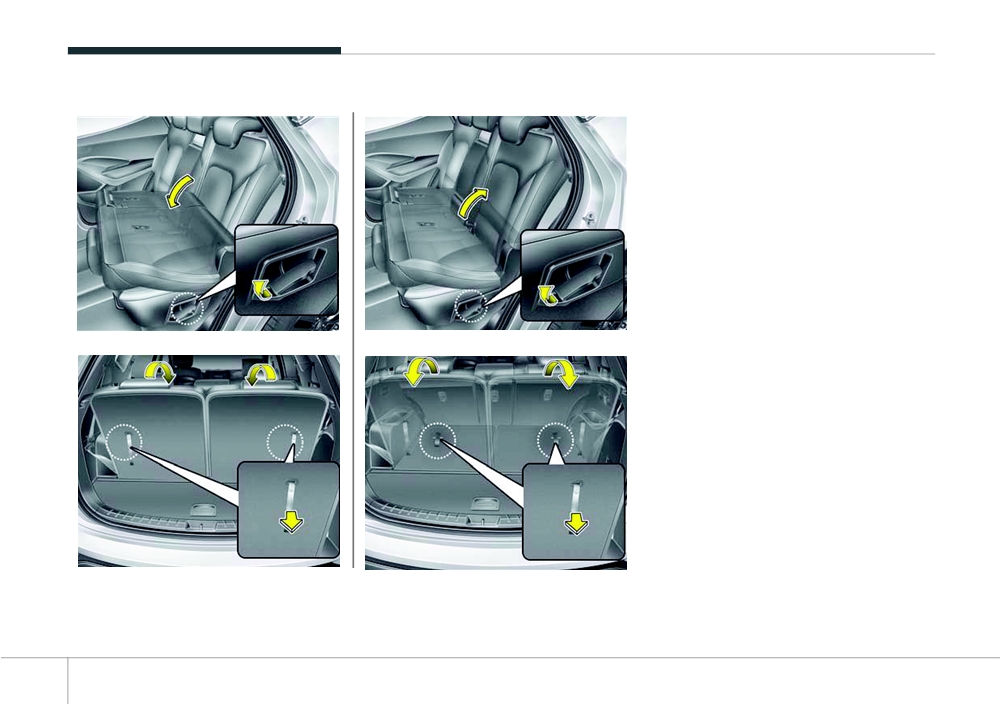

4.For 2nd row seat -
Pull on the seatback folding lever,
then fold the seat toward the front
of the vehicle. When you return the
seatback to its upright position,
always be sure it has locked into
position by pushing on the top of
the seatback.
For 3rd row seat -
Pull the strap. When you return the
seatback to its upright position,
always be sure it has locked into
position by pushing on the top of
■ 3rd row seat
the seatback.
ODM032028/ONCDSA2100/ODM032030/ONCDSA2102
3 20
Safety features of your vehicle
5.For 2nd row seat -
2nd row seat folding
(from outside, if equipped)
WARNING - Rear seat
To use the rear seat, lift and pull
the seatback backward by pulling
folding
on the folding lever.
Do not fold the rear seats (2nd &
3rd row seats), if passengers,
Pull the seatback firmly until it
pets or luggage are in the rear
clicks into place.
seats.
Make sure the seatback is locked
in place.
It may cause injury or damage
to passengers, pets, luggage.
For 3rd row seat -
To use the rear seat, lift and pull
the seatback backward by pulling
on the strap.
Pull the seatback firmly until it
ONCDSA3116
clicks into place.
Pull the 2nd row seat back folding
Make sure the seatback is locked
lever out.
in place.
The 2nd row seat back will be folded.
6.Return the rear seat belt to the
proper position.
If you pull the left side lever (1) out,
left side seat back and center seat
back will be folded.
If you pull the right side lever (2) out,
right side seat back will be folded.
3 21
Safety features of your vehicle
To fold down the rear center seat-
(Continued)
back (for 2nd row seat)
WARNING - 2nd row cen-
• The 2nd row center seat back
ter seat folding
does not fix when it is folded.
If you use the 2nd row center
seat back folding function to
carry long objects, you should
fix the long object to prevent it
from being thrown about the
vehicle in a collision and
causing injury to vehicle
occupants.
ONCESA3117L
1. Lower the rear headrests to the
lowest position.
2. Push the center seatback folding
• Do not fold the 2nd row center
lever up, then fold the seat toward
seat, if the occupants in the
the front of the vehicle.
3rd row seats, It may cause
the injury to occupants by the
seat device.
When you return the seatback to its
upright position, always be sure it
If occupants in the 3rd row
has locked into position by pushing
seats, Fix the upright position
on the top of the seatback.
of the 2nd row center seat.
(Continued)
3 22
Safety features of your vehicle
WARNING - Uprighting
CAUTION - Damaging
WARNING - Cargo
seat
rear seat belt buckles
Cargo should always be
When you return the seatback
When you fold the rear (2nd
secured to prevent it from being
to its upright position, hold the
and/or 3rd row) seatback, insert
thrown about the vehicle in a
seatback and return it slowly. If
the buckle in the pocket between
collision and causing injury to
the seatback is returned with-
the rear seatback and cushion.
the vehicle occupants. Do not
out holding it, the back of the
Doing so can prevent the buckle
place objects in the rear (2nd
seat could spring forward
from being damaged by the rear
and/or 3rd row) seats, since they
resulting in injury caused by
seatback.
cannot be properly secured and
being struck by the seatback.
may hit the front seat occupants
in a collision.
CAUTION - Rear seat belts
When returning the rear (2nd
and/or 3rd row) seatbacks to the
WARNING - Cargo loading
upright position, remember to
Make sure the engine is off, the
return the rear shoulder belts to
automatic transaxle is in P (Park),
their proper position. Routing the
and the parking brake is securely
seat belt webbing through the
applied whenever loading or
rear seat belt guides will help
unloading cargo. Failure to take
keep the belts from being trapped
these steps may allow the vehicle
behind or under the seats.
to move if the shift lever is inad-
vertently moved to another posi-
tion.
3 23
Safety features of your vehicle
Headrest (for rear seat)
Adjusting the height up and down
WARNING
■ 2nd row seat
•
For maximum effectiveness in
case of an accident, the head-
rest should be adjusted so the
middle of the headrest is at the
same height as the center of
gravity of an occupant's head.
Generally, the center of gravity
OHM038049N
ONCDSA3121
of most people's head is simi-
■ 3rd row seat
The rear seat(s) is equipped with
lar with the height of the top of
headrests in all the seating positions
their eyes. Also adjust the
for the occupant's safety and com-
headrest as close to your head
fort.
as possible. For this reason,
the use of a cushion that holds
The headrest not only provides com-
the body away from the seat-
fort for passengers, but also helps
back is not recommended.
protect the head and neck in the
event of a collision.
•
Do not operate the vehicle
with the headrests removed.
Severe injury to an occupant
may occur in the event of an
ODMESA2222CN
accident. Headrests may pro-
vide protection against severe
To raise the headrest :
neck injuries when properly
1. Pull it up to the desired position
adjusted.
(1).
3 24
Safety features of your vehicle
To lower the headrest :
Removal and installation
To reinstall the headrest :
1. Push and hold the release button
1. Put the headrest poles (3) into the
■ 2nd row seat
(2) on the headrest support.
holes while pressing the release
button (1).
2. Lower the headrest to the desired
position (3).
2. Adjust the headrest to the appro-
priate height.
WARNING
Make sure the headrest locks in
position after adjusting it to
properly protect the occupants.
ONCDSA3120
■ 3rd row seat
ODMESA2224CN
To remove the headrest :
1. Raise it as far as it can go.
2. Press the release button (1) while
pulling upward (2).
3 25
Safety features of your vehicle
Armrest (2nd row seat)
Seat warmer
(if equipped, for 2nd row seat)
7-seater
OUN026140
ODM032025
6-seater
WARNING
ODM032026
If the tailgate is pushed down to
The seat warmer is provided to warm
close it when a passenger's
the rear seats during cold weather.
head is not against a properly
With the ignition switch in the ON
adjusted headrest or a tall per-
position, push either of the switches
son is seated, the tailgate may
to warm rear seats.
hit the occupant's head, which
could cause injury.
During mild weather or under condi-
tions where the operation of the seat
ONCESA3108L
warmer is not needed, keep the
To use the armrest, pull it forward
switches in the "OFF" position.
from the seatback.
3 26
Safety features of your vehicle
• Each time you press the button,
the temperature setting of the seat
CAUTION - Seat damage
will change as follows :
•
When cleaning the seats, do
not use an organic solvent
OFF
→ HIGH(
)
→ LOW(
)
such as paint thinner, ben-
zene, alcohol and gasoline.
Doing so may damage the sur-
• The seat warmer defaults to the
face of the heater or seats.
OFF position whenever the ignition
•
To prevent overheating the
switch is turned on.
seat warmer, do not place any-
thing on the seats that insu-
✽ NOTICE
lates against heat, such as
With the seat warmer switch in ON
blankets, cushions or seat
position, the heating system in the
covers on the seats while the
seat turns off or on automatically
seat warmer is in operation.
depending on the seat temperature.
•
Do not place heavy or sharp
objects on seats equipped
with seat warmers. Damage to
the seat warming components
could occur.
3 27
