Hyundai Grand Santa Fe (2016 year). Instruction - part 1

Your vehicle at a glance

EXTERIOR OVERVIEW

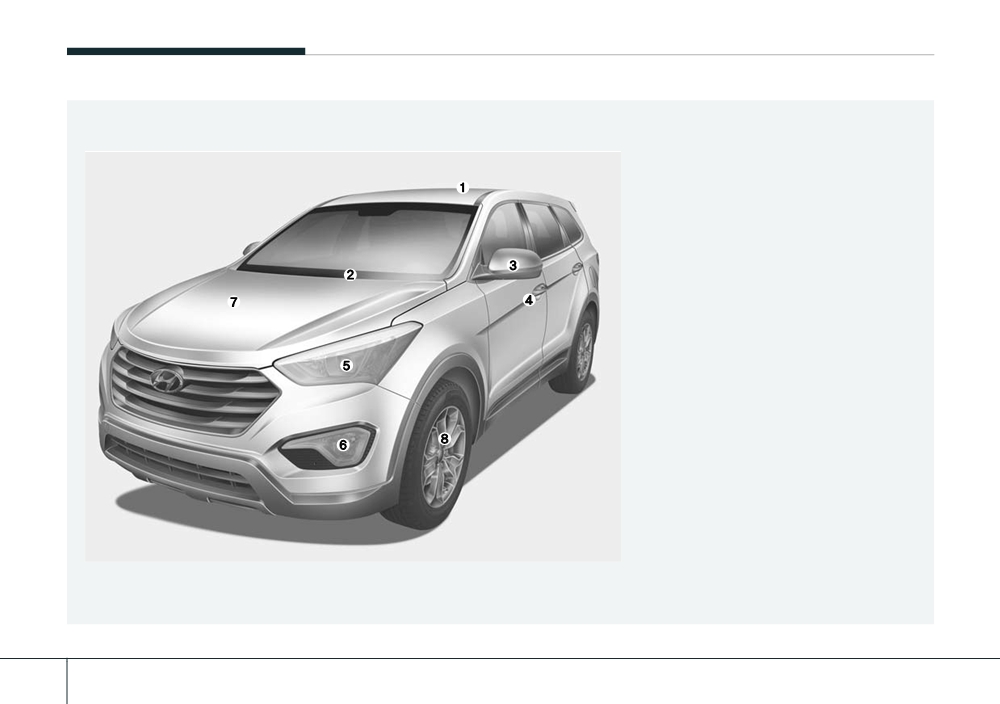

■ Front view

1. Panoramic sunroof

4-44

2. Front windshield wiper blades

7-46

3. Outside rearview mirror

4-59

4. Door locks

4-18

5. Headlight

7-81

6. Front fog light

4-132

7. Hood

4-39

8. Tires and wheels

7-51, 8-4

❈ The actual shape may differ from the illustration.

ONCEIN2001

2 2

Your vehicle at a glance

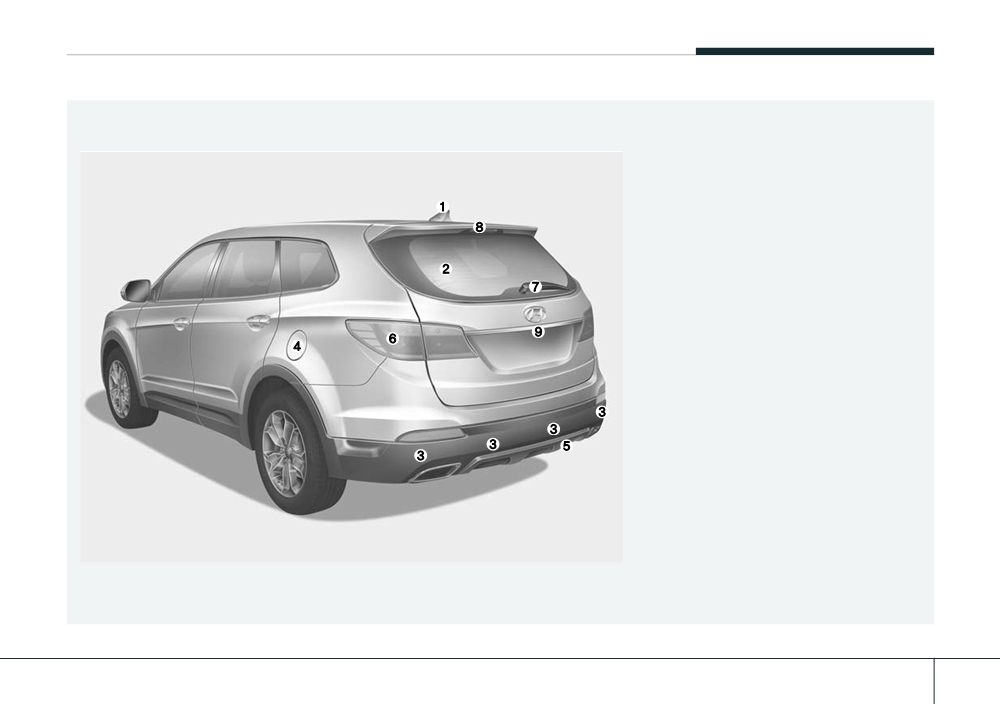

■ Rear view

1. Antenna

4-194

2. Defroster

4-146

3. Parking assist system

4-108

4. Fuel filler lid

4-41

5. Towing hook

6-32

6. Rear combination lamp

7-91

7. Rear window wiper blade

7-47

8. High mounted stop lamp

7-93

9. Rearview camera

4-125

❈ The actual shape may differ from the illustration.

ONCEIN2002

2 3

Your vehicle at a glance

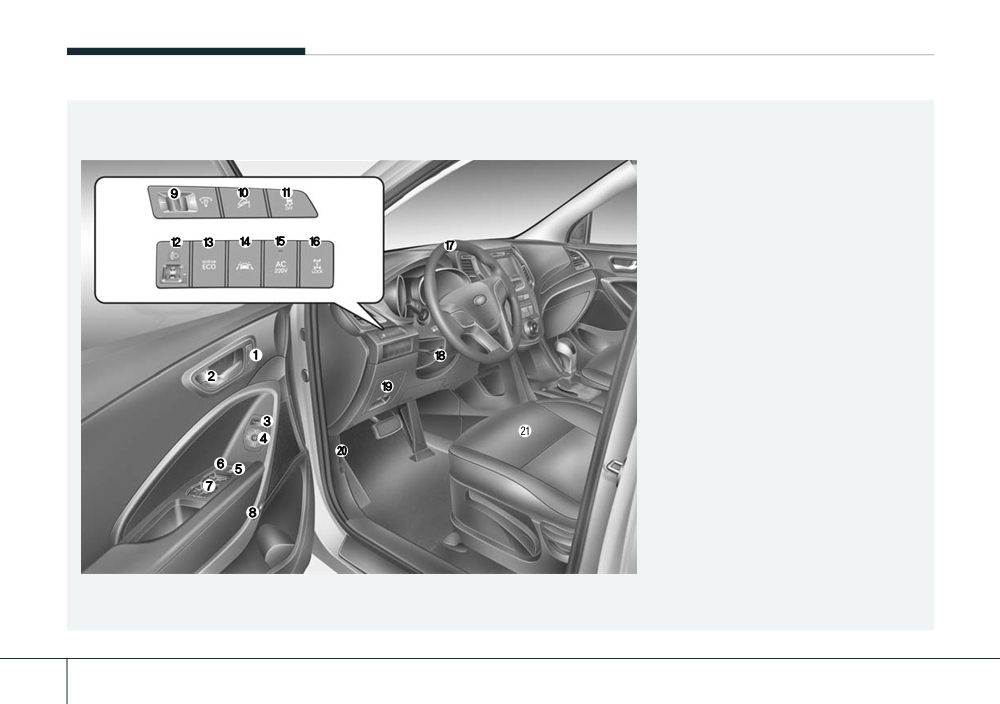

INTERIOR OVERVIEW (I)

1. Driver position memory system

button

3-9

2. Inside door handle

4-19

3. Outside rearview mirror folding

4-61

4. Outside rearview mirror control

4-60

5. Power window lock button

4-37

6. Central door lock switch

4-20

7. Power window switch

4-36

8. Fuel-filler lid opener

4-41

9. Instrument panel illumination

control knob

4-65

10. DBC button

5-55

11. ESC OFF button

5-49

12. Headlight leveling device

4-134

13. Active ECO button

5-72

14. LDWS button

5-68

15. AC inverter button

4-185

16. 4WD LOCK button

5-26

17. Steering wheel

4-49

18. Tilt and telescopic steering

control lever

4-50

19. Inner panel fuse panel

7-67

20. Hood release lever

4-39

21. Seat

3-2

❈ The actual shape may differ from the illustration.

ODMEIN2900

2 4

Your vehicle at a glance

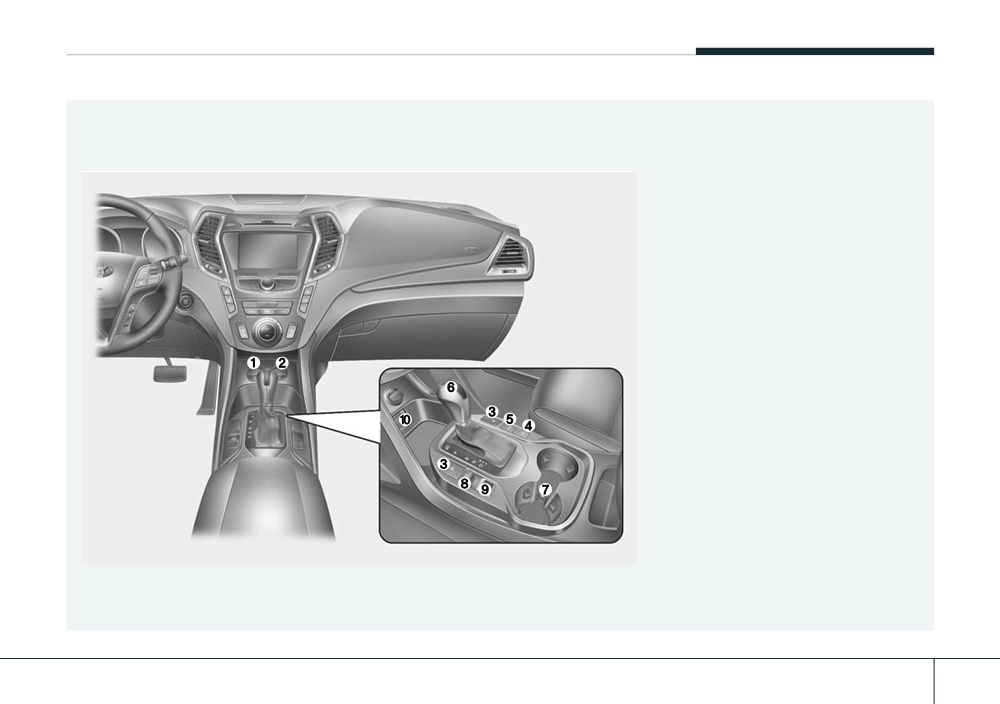

INTERIOR OVERVIEW (II)

1. Cigarette lighter

4-181

2. Power outlet

4-184

3. Seat warmer (front)

3-14

4. SPAS button

4-117

5. Parking assist system button

4-109

6. Shift lever

5-17

7. Cup holder

4-182

8. AUTO HOLD button

5-43

9. EPB switch

5-37

10. Aux, USB and iPod®

4-187

❈ The actual shape may differ from the illustration.

ONCEIN3004

2 5

Your vehicle at a glance

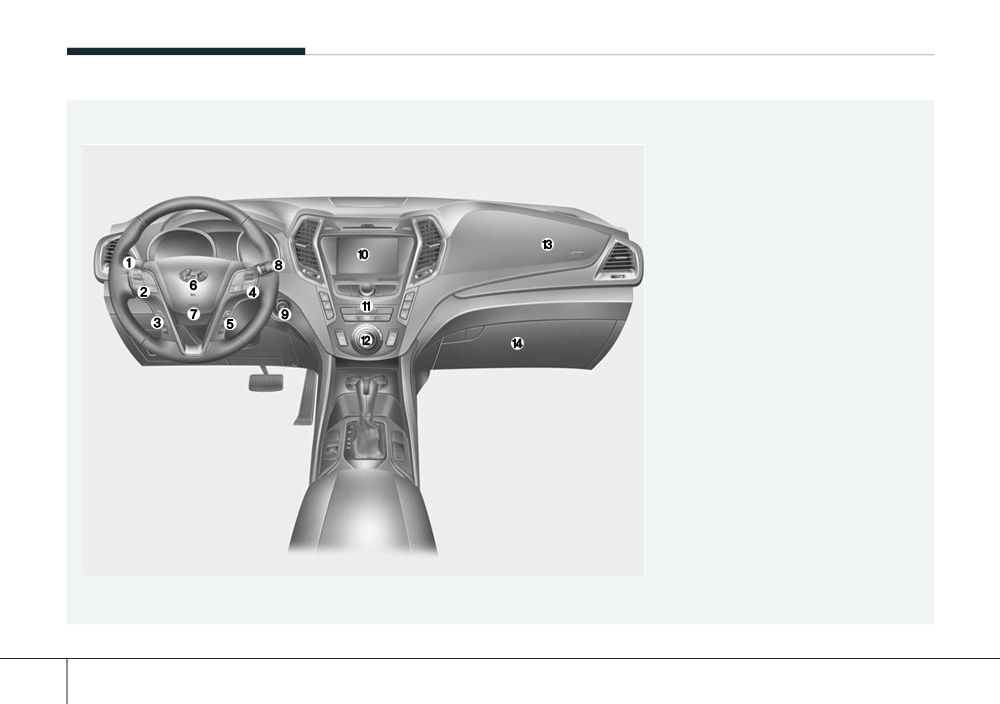

INSTRUMENT PANEL OVERVIEW

1. Lighting control lever

4-123

2. Audio remote control buttons

4-191

3. Bluetooth hands-free buttons

4-241

4. Cruise control button

5-60

5. LCD display control buttons

4-62

6. Horn

4-48

7. Driver’s front air bag

3-62

8. Wiper and washer control lever

4-132

9. Ignition switch or Engine start/stop

button

5-6, 5-10

10. Audio

4-190

11. Hazard warning flasher

4-122

12. Climate control system

4-144, 4-155

13. Passenger’s front air bag

3-63

14. Glove box

4-173

❈ The actual shape may differ from the illustration.

ODM012004

2 6

Your vehicle at a glance

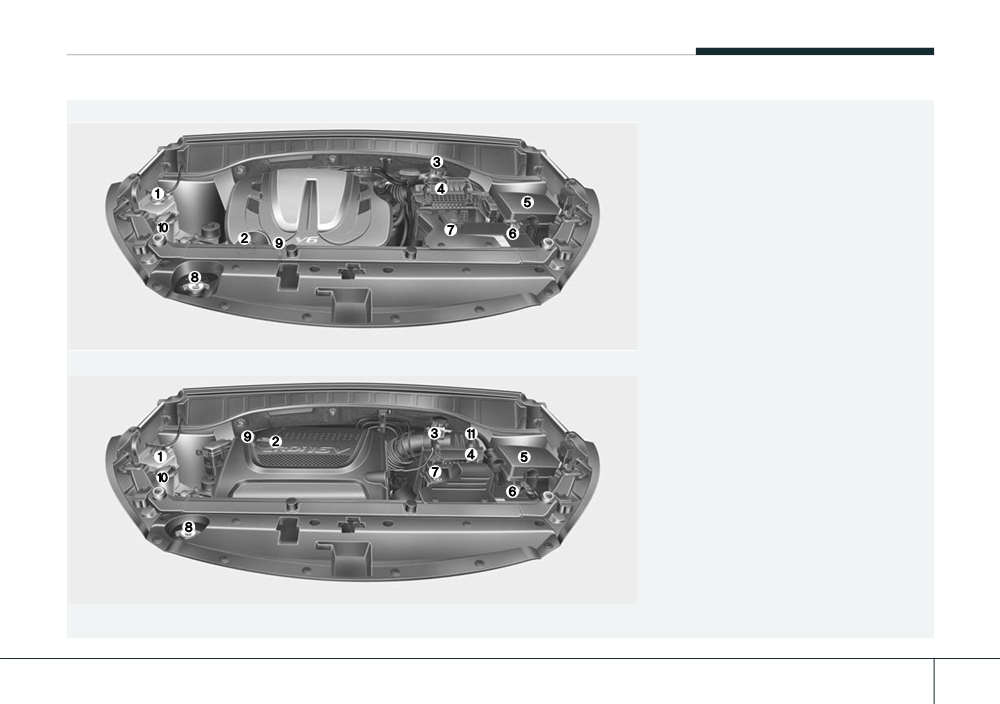

ENGINE COMPARTMENT

■ Gasoline Engine (Lambda II 3.3L) - MPI

1. Engine coolant reservoir

7-35

2. Engine oil filler cap

7-33

3. Brake fluid reservoir

7-37

4. Air cleaner

7-41

5. Fuse box

7-65

6. Negative battery terminal

7-48

■ Diesel Engine (R2.2)

7. Positive battery terminal

7-48

8. Radiator cap

7-36

9. Engine oil dipstick

7-32

10. Windshield washer fluid reservoir

7-38

11. Fuel filter

7-40

❈ The actual engine room in the vehicle may differ from the illustration.

ONCEMC3212/ODM012005

2 7

Safety features of your vehicle

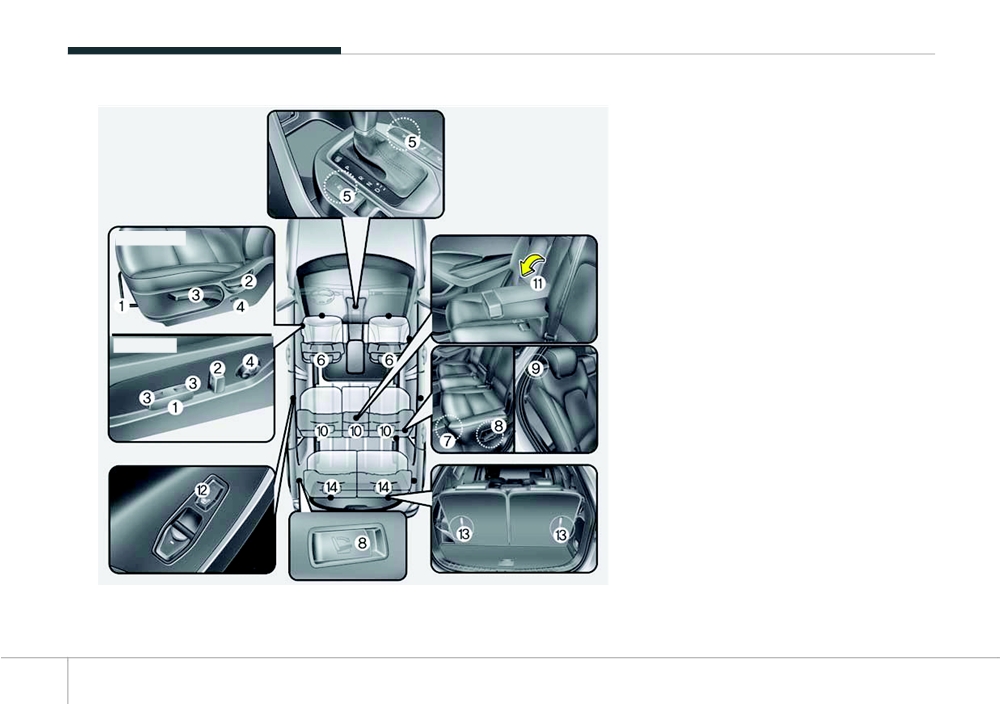

SEATS

Front seat

(1) Forward and backward

(2) Seatback angle

(3) Seat cushion height (Driver’s seat)

(4) Lumbar support (Driver’s seat)*

(5) Seat warmer* /

Manual seat

Air ventilation seat*

(6) Headrest

2nd row seat

(7) Forward and backward

Power seat

(8) Seatback angle and folding

(9) Walk-in seat lever

(10) Headrest

(11) Armrest

(12) Seat warmer*

3rd row seat

(13) Seatback folding

(14) Headrest

* if equipped

ONCESA3001

3 2

Safety features of your vehicle

WARNING - Loose

WARNING - Driver

WARNING

objects

responsibility for front seat

Do not use a sitting cushion that

Loose objects in the driver’s

passenger

reduces friction between the

foot area could interfere with

Riding in a vehicle with a front

seat and passenger. The passen-

the operation of the foot pedals,

seatback reclined could lead to

ger's hips may slide under the

possibly causing an accident.

serious or fatal injury in an acci-

lap portion of the seat belt dur-

Do not place anything under the

dent. If a front seat is reclined

ing an accident or a sudden

front seats.

during an accident, the occu-

stop. Serious or fatal internal

pant’s hips may slide under the

injuries could result because the

lap portion of the seat belt, apply-

seat belt can't operate normally.

ing great force to the unprotect-

WARNING - Uprighting

ed abdomen. Serious or fatal

seat

internal injuries could result. The

driver must advise the front pas-

WARNING

When you return the seatback

senger to keep the seatback in

Occupants should never sit on

to its upright position, hold the

an upright position whenever the

seat cushions. The passenger's

seatback and return it slowly

vehicle is in motion.

hips may slide under the lap

and be sure there are no other

occupants around the seat. If

portion of the seat belt during

the seatback is returned with-

an accident or a sudden stop.

out being held and controlled,

Serious or fatal internal injuries

the back of the seat could

could result because the seat

spring forward resulting in acci-

belt cannot operate normally.

dental injury to a person struck

by the seatback.

3 3

Safety features of your vehicle

(Continued)

WARNING - Driver’s seat

WARNING

•

Never attempt to adjust seat

•

In order to avoid unnecessary

After adjusting the seat, always

while the vehicle is moving.

and perhaps severe air bag

check that it is securely locked

This could result in loss of

injuries, always sit as far back

into place by attempting to

control, and an accident caus-

as possible from the steering

move the seat forward or

ing death, serious injury, or

wheel while maintaining com-

reverse without using the lock

property damage.

fortable control of the vehicle.

release lever. Sudden or unex-

It is recommended that your

•

Do not allow anything to inter-

pected movement of the dri-

chest is at least 250 mm (10

fere with the normal position

ver's seat could cause you to

inches) away from the steer-

of the seatback. Storing items

lose control of the vehicle

ing wheel.

against a seatback or in any

resulting in an accident.

other way interfering with

proper locking of a seatback

could result in serious or fatal

injury in a sudden stop or col-

lision.

• Always drive and ride with your

seatback upright and the lap

portion of the seat belt snug

and low across the hips. This

is the best position to protect

you in case of an accident.

(Continued)

3 4

Safety features of your vehicle

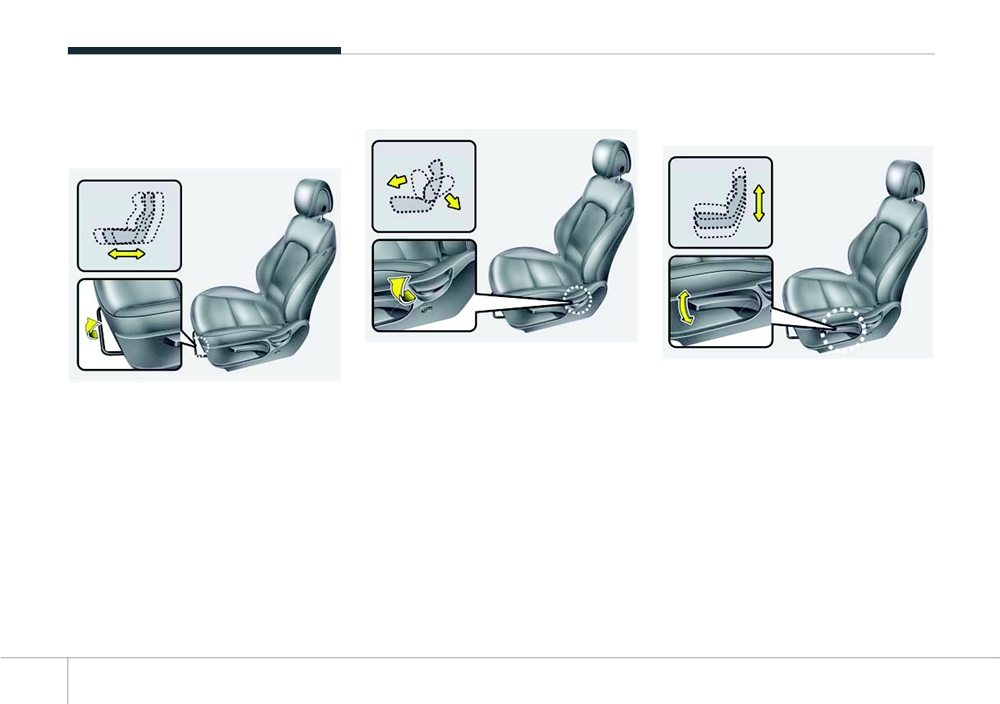

Front seat adjustment - Manual

Seatback angle

Seat cushion height

(if equipped)

(for driver’s seat, if equipped)

Forward and backward

ONCESA2003

ONCESA2004

To recline the seatback:

ONCESA2002

To change the height of the seat

1. Lean forward slightly and lift up on

the seatback recline lever located

cushion, push the lever that is locat-

To move the seat forward or backward:

ed on the outside of the seat cushion

on the outside of the seat at the

1. Pull the seat slide adjustment lever

upwards or downwards.

rear.

under the front edge of the seat

2. Carefully lean back on the seat

• To lower the seat cushion, push

cushion up and hold it.

and adjust the seatback of the

down the lever several times.

2. Slide the seat to the position you

seat to the position you desire.

• To raise the seat cushion, pull up

desire.

the lever several times.

3. Release the lever and make sure

3. Release the lever and make sure

the seatback is locked in place.

the seat is locked in place.

(The lever MUST return to its orig-

Adjust the seat before driving, and

inal position for the seatback to

make sure the seat is locked securely

lock.)

by trying to move forward and back-

ward without using the lever. If the seat

moves, it is not locked properly.

3 6

Safety features of your vehicle

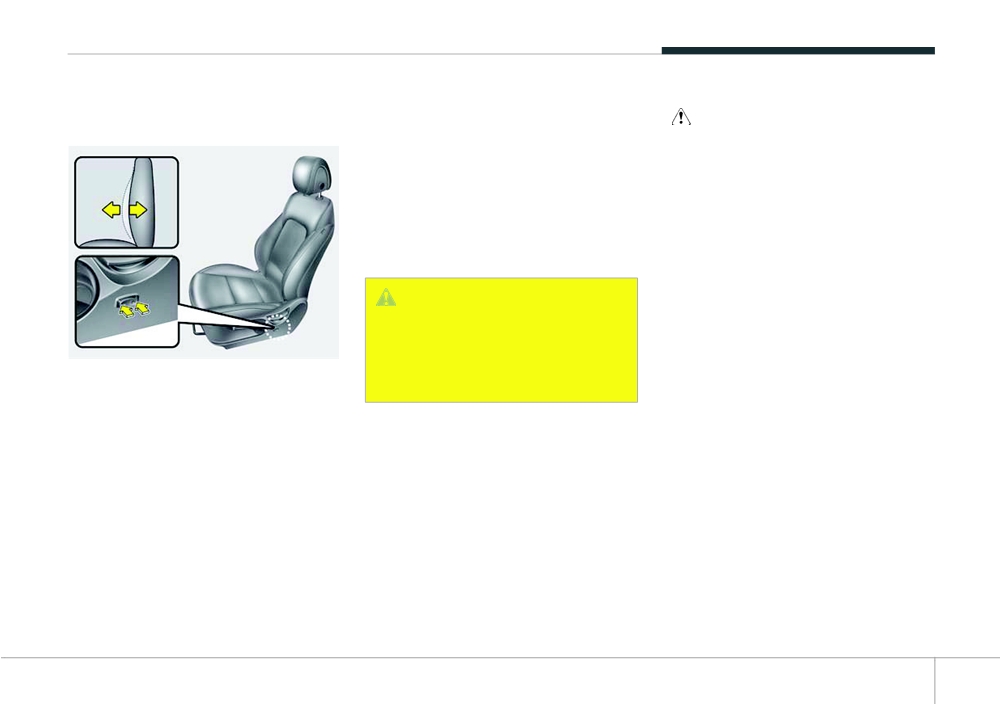

Lumbar support

Front seat adjustment - power

(for driver’s seat, if equipped)

(if equipped)

CAUTION

•

The power seat is driven by an

The front seat can be adjusted by

electric motor. Stop operating

using the control switches located on

once the adjustment is com-

the outside of the seat cushion.

pleted. Excessive operation

Before driving, adjust the seat to the

may damage the electrical

proper position so as to easily con-

equipment.

trol the steering wheel, pedals and

switches on the instrument panel.

•

When in operation, the power

seat consumes a large amount

of electrical power. To prevent

WARNING

unnecessary charging system

The power seat is operable with

drain, don’t adjust the power

the ignition OFF.

seat longer than necessary

ONCESA2005

while the engine is not running.

Children should never be left

The lumbar support can be adjusted

unattended in the vehicle.

•

Do not operate two or more

by pressing the lumbar support

power seat control switches at

switch on the side of the seat.

the same time. Doing so may

1. Press the front portion of the switch

result in power seat motor or

to increase support, or the rear por-

electrical component malfunc-

tion of the switch, to decrease sup-

tion.

port.

2. Release the switch once it reach-

es the desired position.

3 7

Safety features of your vehicle

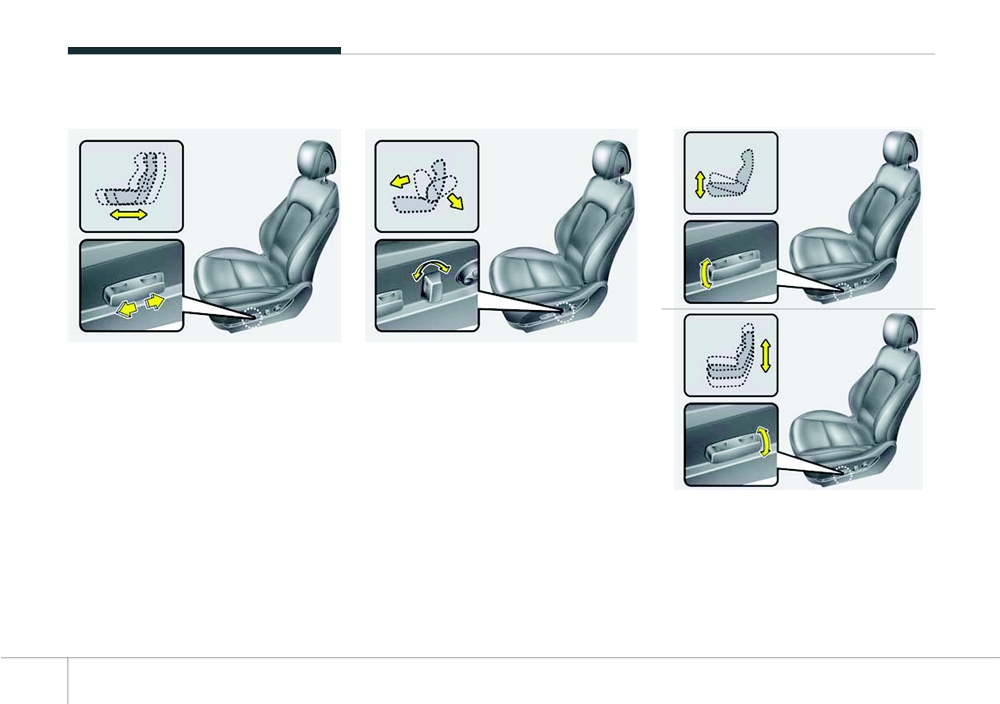

Forward and backward

Seatback angle

Seat height (for driver’s seat)

ONCDSA2009

ONCESA2006

ONCESA2007

1. Push the control switch forward or

1. Push the control switch forward or

backward to move the seat to the

backward to move the seatback to

desired position.

the desired angle.

2. Release the switch once the seat

2. Release the switch once the seat

reaches the desired position.

reaches the desired position.

ONCDSA3113

1. Pull the front portion of the control

switch up to raise or down to lower

the front part of the seat cushion.

Pull the rear portion of the control

switch up to raise or down to lower

the seat cushion.

2. Release the switch once the seat

reaches the desired position.

3 8

Safety features of your vehicle

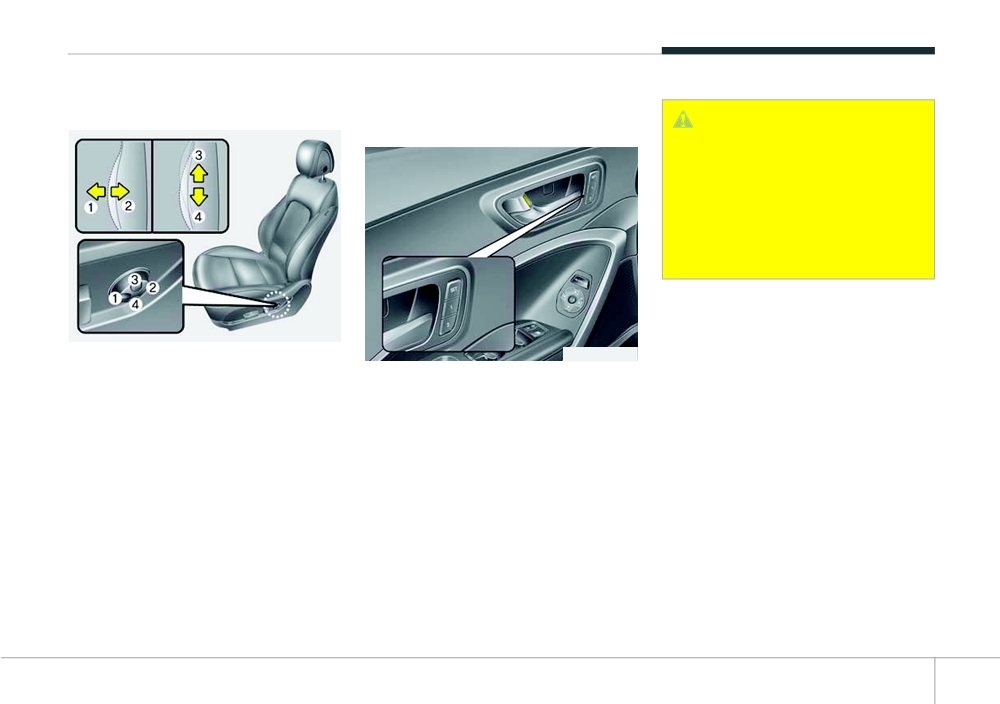

Lumbar support (for driver’s seat)

Driver position memory system

(if equipped, for power seat)

WARNING

Never attempt to operate the

driver position memory system

while the vehicle is moving.

This could result in loss of con-

trol, and an accident causing

death, serious injury, or property

damage.

ONCESA2008

The lumbar support can be adjusted

ODM042335

by pressing the switch.

A driver position memory system is

1. Press the front portion (1) of the

provided to store and recall the driv-

switch to increase support, or the

er seat and outside rearview mirror

rear portion (2) of the switch, to

position with a simple button opera-

decrease support.

tion. By saving the desired position

into the system memory, different

2. Release the switch once it reach-

drivers can reposition the driver seat

es the desired position.

based upon their driving preference.

3. Press the upper portion (3) of the

If the battery is disconnected, the posi-

switch to move the support posi-

tion memory will be erased and the

tion up, or press the lower portion

driving position should be restored in

(4) of the switch, to move the sup-

the system.

port position down.

4. Release the switch once it reach-

es the desired position.

3 9

Safety features of your vehicle

Storing positions into memory

Recalling positions from memory

Easy access function

using the buttons on the door

(if equipped)

1. Shift the shift lever into P or N (for

Storing driver’s seat positions

Automatic transaxle) while the

The system will move the driver's

engine start/stop button is ON or

seat automatically as follows:

1. Shift the shift lever into P or N (for

ignition switch ON.

•

Without smart key system

Automatic transaxle) while the

engine start/stop button is ON or

2. To recall the position in the memo-

- It will move the driver’s seat rear-

ignition switch ON.

ry, press the desired memory but-

ward when the ignition key is

ton (1 or 2). The system will beep

removed and front driver’s door is

2. Adjust the driver’s seat and out-

side rearview mirror comfortable

once, then the driver’s seat will

opened.

automatically adjust to the stored

for the driver.

- It will move the driver’s seat for-

position.

3. Press SET button on the control

ward when the ignition key is

Adjusting the control switch for the

inserted.

panel. The system will beep once.

driver’s seat while the system is

4. Press one of the memory buttons

•

With smart key system

recalling the stored position will

(1 or

2) within

5 seconds after

- It will move the driver’s seat rear-

cause the movement to stop and

pressing the SET button. The sys-

ward when the engine start/stop

move in the direction that the control

tem will beep twice when memory

button is changed to the OFF

switch is moved.

has been successfully stored.

position and front driver’s door is

opened.

WARNING

- It will move the driver’s seat for-

Use caution when recalling the

ward when the engine start/stop

adjustment memory while sit-

button is changed to the ACC or

ting in the vehicle. Push the

START position.

seat position control switch to

the desired position immediate-

You can activate or deactivate this

ly if the seat moves too far in

feature. Refer to "User settings" in

any direction.

section 4.

3 10

Content   ..  1  2  3   ..
