Hyundai Genesis (2016 year). Instruction - part 10

Other Features

Items

Explanation

• Off :

The average fuel economy will not reset automatically whenever refueling.

• On (Auto Reset) :

Fuel Economy Auto Reset

The average fuel economy will reset automatically when refueling.

3

For more details, refer to "Trip Computer" in this chapter.

• Off: The traffic information will not be displayed on the LCD display.

Traffic Information

• On: The LCD display will show traffic information.

• Off: The wiper/lights information will not be displayed on the LCD display.

Wiper/Lights Display

• On: The LCD display will shortly show the selected wiper/lights information.

Fuel Economy Unit

Choose the fuel economy unit. (US gallon, UK gallon)

Temperature Unit

Choose the temperature unit. (°C,°F)

Tire Pressure Unit

Choose the tire pressure unit. (psi, kPa, Bar)

3-79

Convenient features of your vehicle

Warning Messages

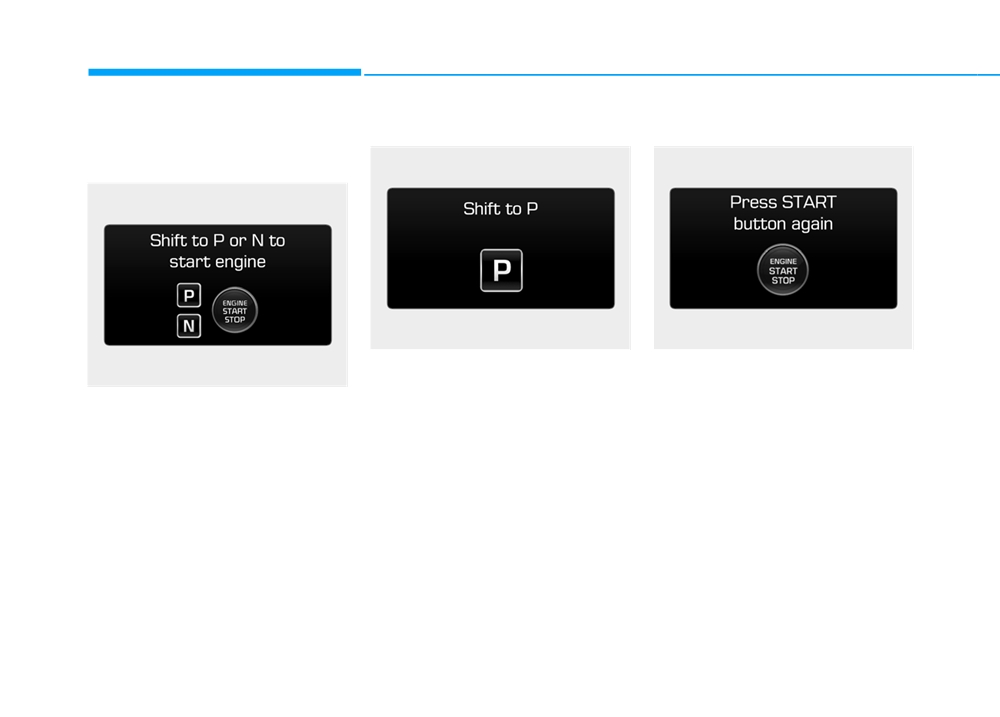

Shift to "P" position

Press START button again

(if equipped)

Shift to "P" or "N" to start engine

ODH043210L

ODH043212L

• This message illuminates if you try

• This message illuminates if you

ODH043214L

to turn off the engine without the

can not operate the Engine

• This warning message illuminates

shift lever in P (Park) position.

Start/Stop button when there is a

if you try to start the engine with

problem with the Engine Start/Stop

• At this time, the Engine Start/Stop

the shift lever not in the P (Park) or

button turns to the ACC position (If

button system.

N (Neutral) position.

you press the Engine Start/Stop

• It means that you could start the

button once more, it will turn to the

engine by pressing the Engine

ON position).

Start/Stop button once more.

✽ NOTICE

• If this warning illuminates each

You can start the engine with the

time you press the Engine

shift lever in the N (Neutral) position.

Start/Stop button, have your vehi-

But, for your safety, we recommend

cle inspected by an authorized

that you start the engine with the

HYUNDAI dealer.

shift lever in the P (Park) position.

3-80

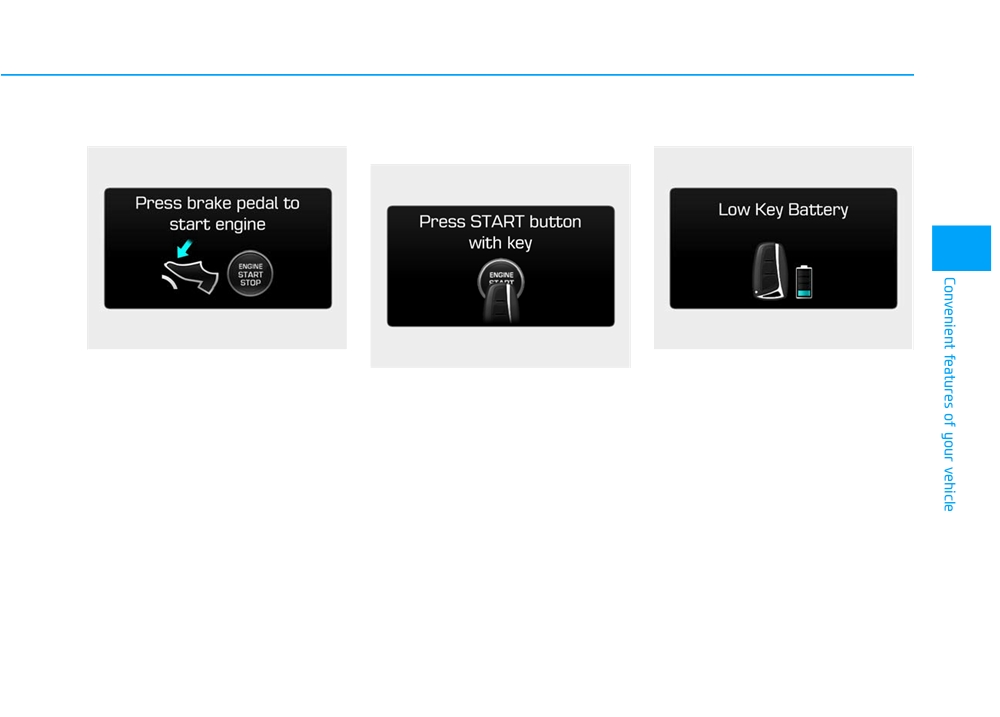

Press brake pedal to start engine

Press START button with smart

Low Key Battery

key

3

ODH043208L

ODH043206L

ODH043204L

• This warning message illuminates

• This warning message illuminates

if the Engine Start/Stop button

• This warning message illuminates

if the battery of the smart key is

changes to the ACC position twice

if you press the Engine Start/Stop

discharged when the Engine

by pressing the button repeatedly

button while the warning message

Start/Stop button changes to the

without depressing the brake pedal.

“Key not detected” is illuminating.

OFF position.

• It means that you should depress

• At this time, the immobilizer indica-

the brake pedal to start the engine.

tor light blinks.

3-81

Convenient features of your vehicle

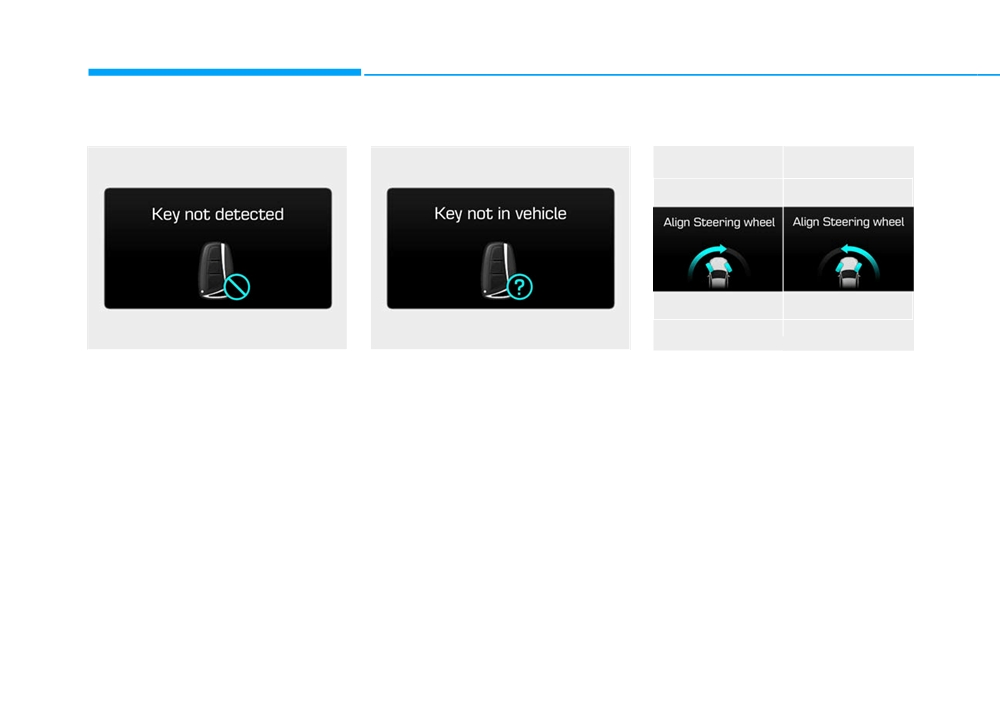

Key not detected

Key not in vehicle

Align steering wheel

ODH043202L

ODH043200L

ODH043240L/ODH043238L

• This warning message illuminates

• This warning message illuminates

• This warning message illuminates

if the smart key is not detected

if the smart key is not in the vehicle

if you start the engine when the

when you press the Engine

when you press the Engine

steering wheel is turned to more

Start/Stop button.

Start/Stop button.

than 90 degrees to the left or right.

• It means that you should always

• It means that you should turn the

have the smart key with you.

steering wheel and make the angle

of the steering wheel be less than

30 degrees.

3-82

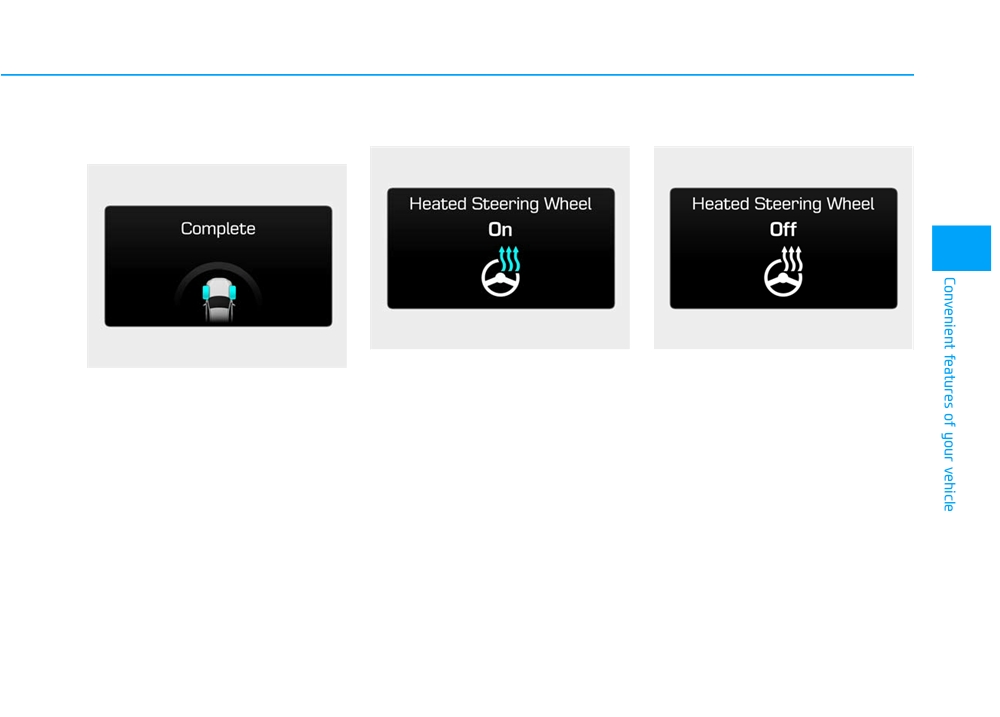

Steering wheel aligning is com-

Heated Steering Wheel On

Heated Steering Wheel Off

pleted

3

ODH043224L

ODH043226L

ODH043244L

• This warning message illuminates

• This warning message illuminates

• If the steering wheel aligning is

if you turn on the heated steering

if you turn off the heated steering

completed after

“Align steering

wheel.

wheel.

wheel” warning message is dis-

played, this message is displayed

For more details, refer to "Heated

For more details, refer to "Heated

for 2 seconds.

Steering Wheel" in this chapter.

Steering Wheel" in this chapter.

3-83

Convenient features of your vehicle

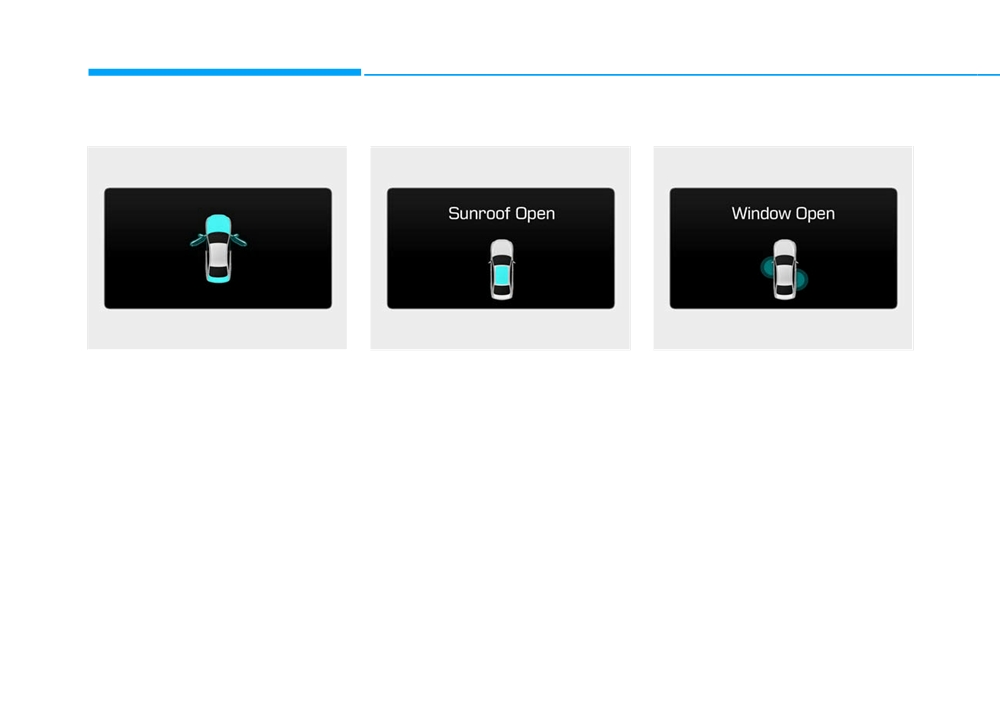

Door / Hood / Trunk Open

Sunroof Open

Window Open

ODH043218

ODH043220L

ODH043222L

• It means that any door, hood, or

• This warning message illuminates

• This warning message illuminates

trunk is open.

if you turn off the engine when the

if you turn off the engine when any

sunroof is open.

window is open.

3-84

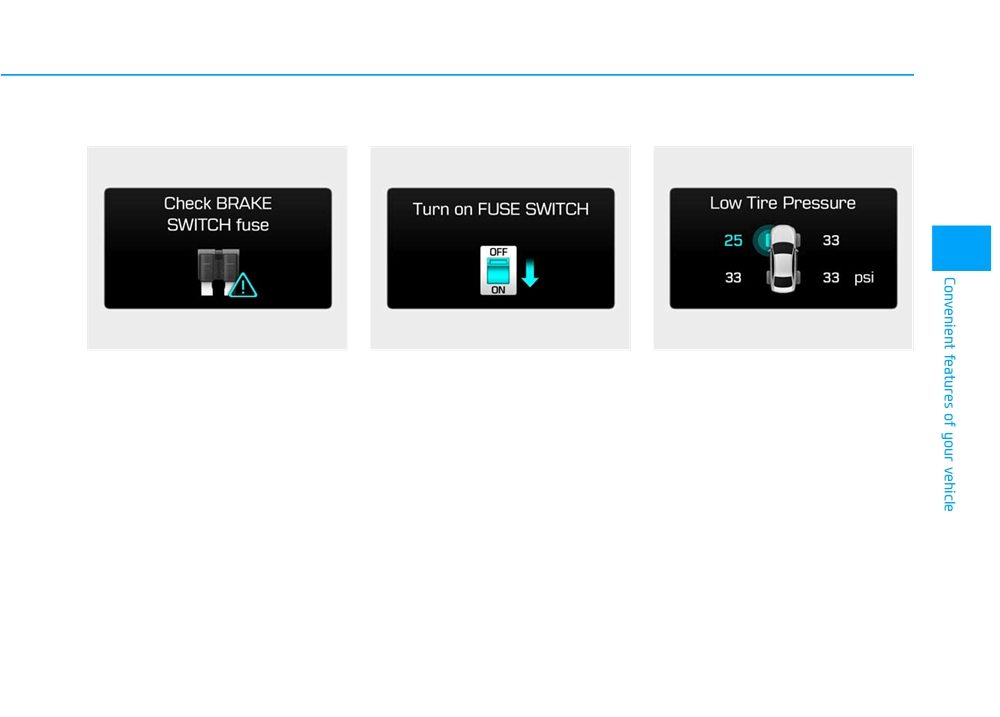

Check BRAKE SWITCH fuse

Turn on "FUSE SWITCH"

Low Tire Pressure

3

ODH043216L

ODH043234L

ODH043232L

• This warning message illuminates

• This warning message illuminates

• This warning message illuminates

if the brake switch fuse is discon-

if the fuse switch under the steer-

if the tire pressure is low with the

nected.

ing wheel is OFF.

Engine Start/Stop button in ON

position.

• It means that you should replace

• It means that you should turn the

the fuse with a new one. If that is

fuse switch on.

not possible, you can start the

For more details, refer to "Tire

engine by pressing the Engine

For more details, refer to "Fuses"

Pressure Monitoring System

Start/Stop button for 10 seconds in

in chapter 7.

(TPMS)" in chapter 6.

the ACC position.

3-85

Convenient features of your vehicle

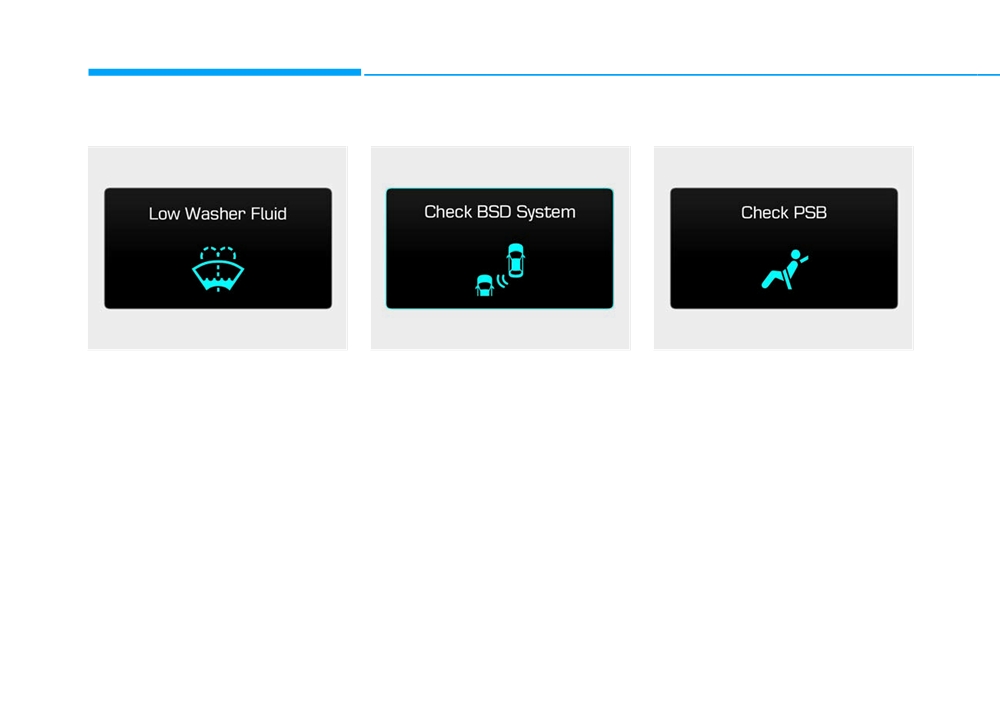

Low Washer Fluid

Check BSD System (if equipped)

Check PSB

ODH043246L

ODH053127L

ODH043254L

• This warning message illuminates

• This warning message illuminates

• This warning message illuminates

on the service reminder mode if

if there is a malfunction with the

if there is a malfunction with the

the washer fluid level in the reser-

Blind Spot Detection (BSD) sys-

Pre-safe Seat Belt (PSB) system.

voir is nearly empty.

tem. And the BSD system will be

In this case, have your vehicle

• It means that you should refill the

automatically deactivated. In this

inspected by an authorized

case, have your vehicle inspected

HYUNDAI dealer.

washer fluid.

by an authorized HYUNDAI dealer.

For more details, refer to "Seat

For more details, refer to "Blind

Belt" in chapter 2.

Spot Detection (BSD) System" in

chapter 5.

3-86

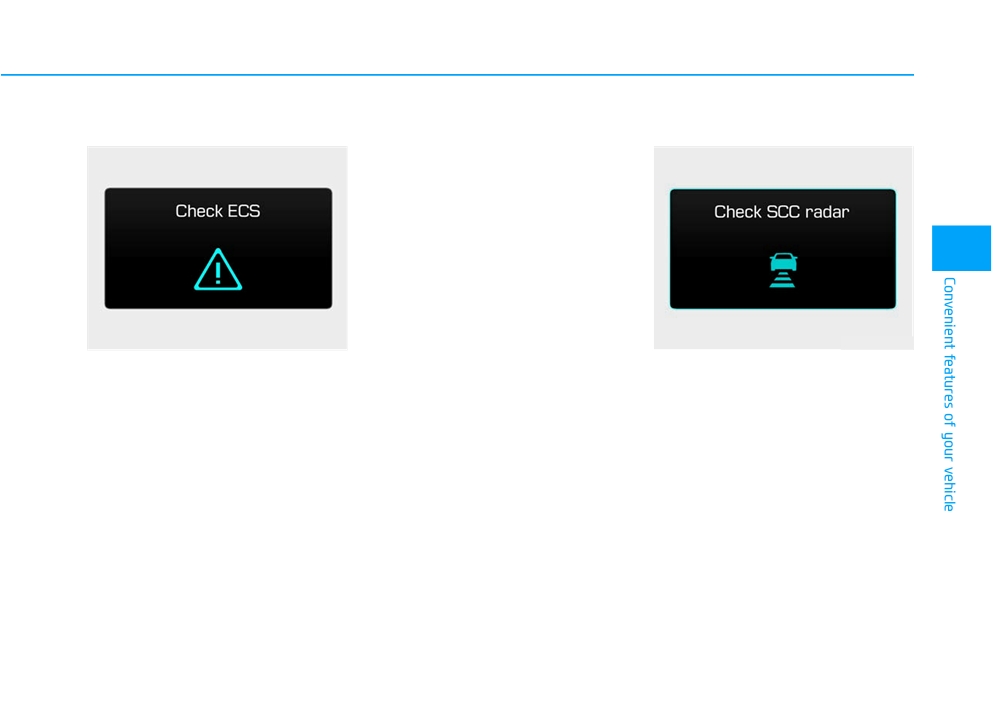

Check ECS

✽ NOTICE - ECS Warning

Check SCC radar

Message

When there is a malfunction with

the Electronic Stability Control

(ESC), the Electronic Control

Suspension (ECS) warning message

may illuminate as well as the

Electronic Stability Control (ESC)

3

Indicator Light.

ODH043242L

ODH053151L

• This warning message illuminates

If the sensor or cover is dirty or

if there is a malfunction with the

obscured with foreign matter such as

Electronic Control Suspension

snow, the message will appear.

(ECS) system. In this case, have

Clean the sensor or cover by using a

your vehicle inspected by an

soft cloth.

authorized HYUNDAI dealer.

For more details, refer to

For more details, refer to

"Advanced Smart Cruise Control

"Electronic Control Suspension

System" in chapter 5.

(ECS)" in chapter 5.

3-87

Convenient features of your vehicle

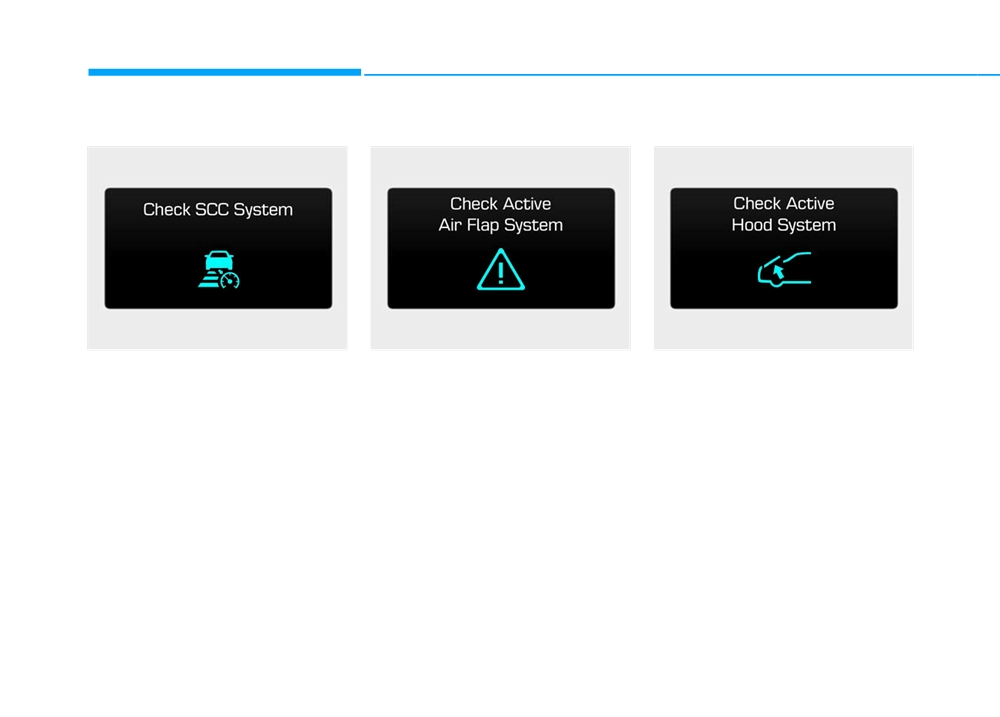

Check SCC System

Check Active Air Flap System

Check Active Hood System

ODH043250L

ODH043236L

ODH043248L

• This warning message illuminates

• This warning message illuminates if

• This warning message illuminates

if there is a malfunction with the

any of following conditions occurs.

if the active hood system has a

advanced smart cruise control sys-

- There is a malfunction with the

malfunction.

tem. In this case, have your vehicle

active air flap system.

In this case, have your vehicle

inspected by an authorized

inspected by an authorized

- A foreign substance is stuck in

HYUNDAI dealer.

HYUNDAI dealer.

the air flap.

- The air flap is frozen.

For more details, refer to

"Advanced Smart Cruise Control

System" in chapter 5.

✽ NOTICE

The warning message "Check

Active Air Flap System" may not be

displayed immediately in colder cli-

mates.

3-88

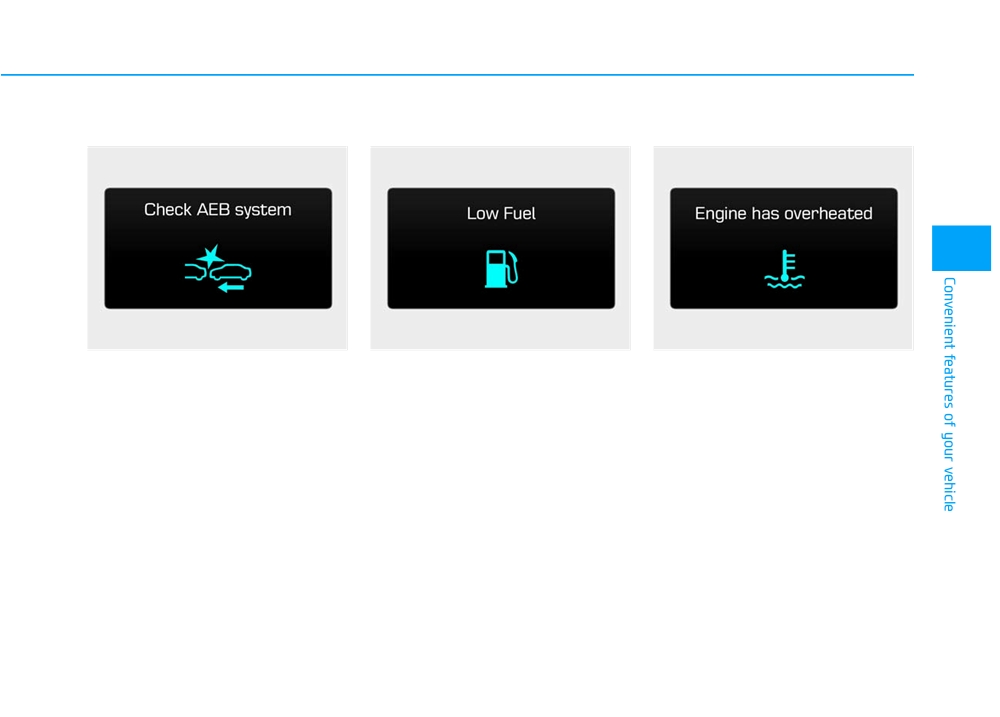

Check AEB system

Low Fuel

Engine has overheated

3

ODH043252L

ODH043256L

ODH043258L

• This warning message illuminates

• This warning message illuminates

• This warning message illuminates

if the sensor or cover is dirty or

if the fuel tank is nearly empty.

when the engine coolant tempera-

obscured with foreign matter such

- When the low fuel level warning

ture is above 248°F (120°C). This

as snow. Clean the sensor or cover

means that the engine is overheat-

light is illuminates.

by using a soft cloth.

ed and may be damaged.

- When the trip computer displays

• This warning message illuminates

“--- mile (or km)” as distance to

if there is a malfunction with the

If your vehicle is overheated, refer

empty.

Autonomous Emergency Braking

to "Overheating" in chapter 6.

Add fuel as soon as possible.

(AEB) system. In this case, have

your vehicle inspected by an

authorized HYUNDAI dealer.

For more details, refer to

"Autonomous Emergency Braking

(AEB) System" in chapter 5.

3-89

Convenient features of your vehicle

TRIP COMPUTER

Overview

Trip Modes

To change the trip mode, rotate the

MOVE switch “▲ , ▼” on the steering

Description

FUEL ECONOMY

wheel.

The trip computer is a microcomput-

• Distance To Empty

er-controlled driver information sys-

For more details, refer to "LCD

tem that displays information related

• Average Fuel Economy

Display Control" in this chapter

to driving.

• Instant Fuel Economy

✽ NOTICE

Some driving information stored in

TRIP A

the trip computer

(for example

Average Vehicle Speed) resets if the

• Tripmeter [A]

battery is disconnected.

• Average Vehicle Speed [A]

• Elapsed Time [A]

TRIP B

• Tripmeter [B]

• Average Vehicle Speed [B]

• Elapsed Time [B]

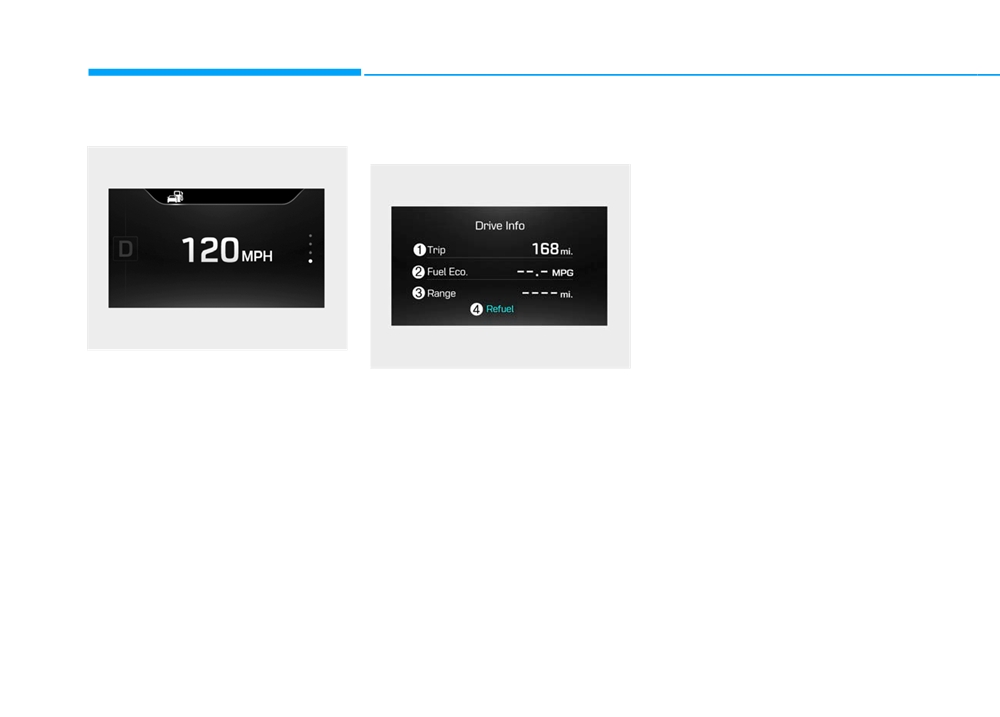

Digital Speedometer

3-90

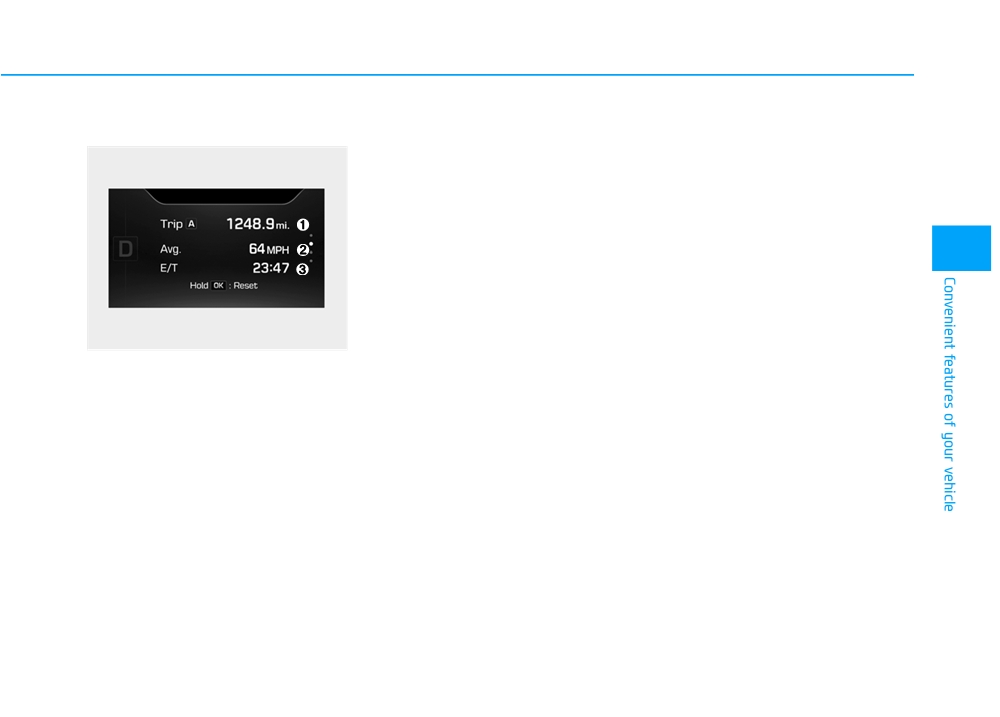

Trip A/B

Tripmeter (1)

Average Vehicle Speed (2)

•

The tripmeter is the total driving

• The average vehicle speed is cal-

distance since the last tripmeter

culated by the total driving dis-

reset.

tance and driving time since the

- Distance range:

last average vehicle speed reset.

0.0 ~ 9999.9 mi. or km

- Speed range: 0 ~ 999 MPH or km/h

•

To reset the tripmeter, press the

• To reset the average vehicle

3

OK button on the steering wheel

speed, press the OK button on the

for more than 1 second when the

steering wheel for more than

1

tripmeter is displayed.

second when the average vehicle

speed is displayed.

ODH043306N

✽ NOTICE

• The average vehicle speed is not

✽ NOTICE

displayed if the driving distance

If you reset one of the tripmeter,

has been less than 0.19 miles (300

elapsed time, and average vehicle

meters) since the Engine Start/Stop

speed, they will be reset all together.

button was turned to ON.

• Even if the vehicle is not in

motion, the average vehicle speed

keeps calculating while the engine

is running.

3-91

Convenient features of your vehicle

Elapsed Time (3)

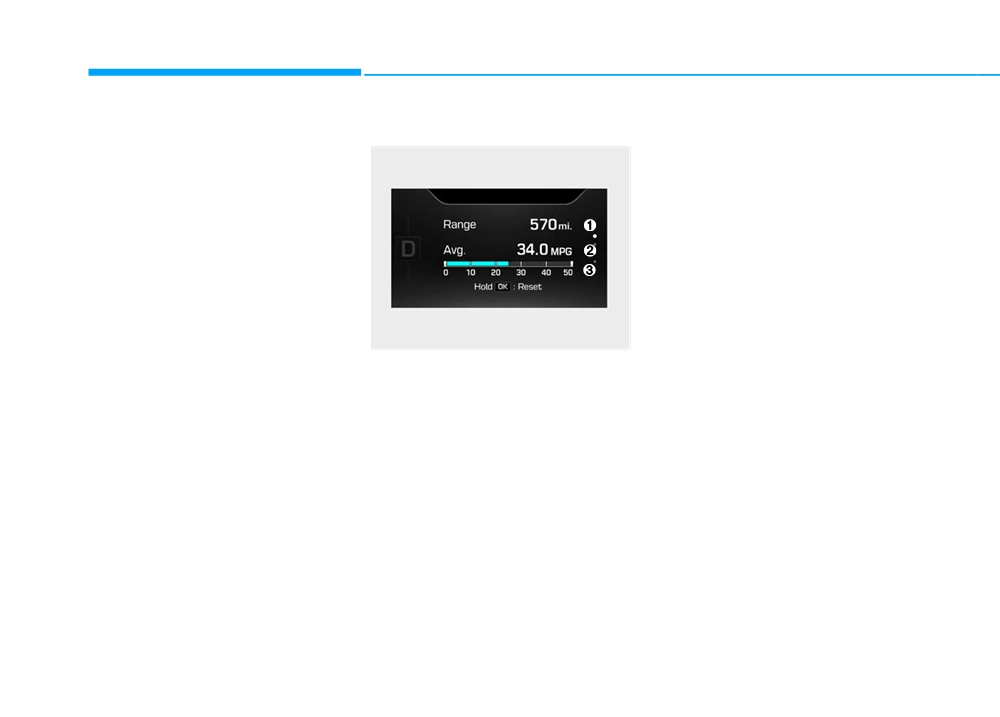

Fuel Economy

Distance To Empty (1)

• The elapsed time is the total driv-

• The distance to empty is the esti-

ing time since the last elapsed time

mated distance the vehicle can be

reset.

driven with the remaining fuel.

- Time range (hh:mm): 00:00 ~ 99:59

- Distance range: 1 ~ 999 mi. or

1 ~ 999 km

• To reset the elapsed time, press the

OK button on the steering wheel for

• If the estimated distance is below

more than

1 second when the

1 mi. (1 km), the trip computer will

elapsed time is displayed.

display “---” as distance to empty.

✽ NOTICE

✽ NOTICE

Even if the vehicle is not in motion,

ODH043271N

• If the vehicle is not on level ground

the elapsed time keeps calculating

or the battery power has been

while the engine is running.

interrupted, the distance to empty

function may not operate correctly.

• The distance to empty may differ

from the actual driving distance as

it is an estimate of the available

driving distance.

• The trip computer may not regis-

ter additional fuel if less than 1.6

gallons (6 liters) of fuel are added

to the vehicle.

• The fuel economy and distance to

empty may vary significantly based

on driving conditions, driving

habits, and condition of the vehicle.

3-92

Convenient features of your vehicle

Digital Speedometer

One time driving information

✽ NOTICE

mode

If “Window Open or Sunroof Open”

warning message are displayed in

the cluster, this display may not be

displayed in the cluster.

ODH043308L

ODH043310N

This message shows the speed of

the vehicle (km/h, MPH).

This display shows trip distance (1),

average fuel economy (2) and the

vehicle can be driven with the

remaining fuel (3).

This information is displayed for a

few seconds when you turn off the

engine and then goes off automati-

cally. The information provided is cal-

culated according to each trip.

If the estimated distance is below

1mi. (1km), the distance to empty (3)

will display as "---" and a refuel mes-

sage will appear (4).

3-94

WARNING AND INDICATOR LIGHTS

Warning lights

Supplemental Restraint

Seat Belt Warning Light

System Warning Light

✽ NOTICE

This warning light illuminates:

Make sure that all warning lights

This warning light informs the driver

• Once you set the Engine

that the seat belt is not fastened.

are OFF after starting the engine. If

any light is still ON, this indicates a

Start/Stop button to the ON posi-

situation that needs attention.

tion.

For more details, refer to the "Seat

3

- It illuminates for approximately 6

Belts" in chapter 2.

seconds and then goes off.

• When there is a malfunction with

the SRS.

In this case, have your vehicle

inspected by an authorized

HYUNDAI dealer.

3-95

Content   ..  8  9  10  11   ..
