Hyundai Genesis (2016 year). Instruction

Convenient features of your vehicle

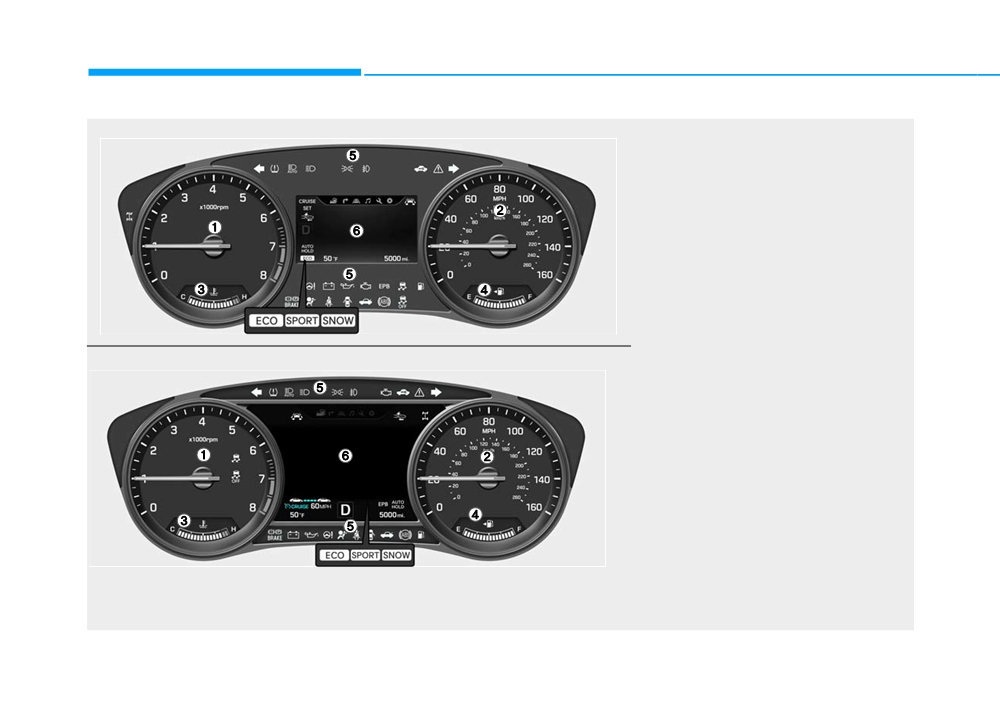

INSTRUMENT CLUSTER

■ Type A

1. Tachometer

2. Speedometer

3. Engine coolant temperature gauge

4. Fuel gauge

■ Type B

5. Warning and indicator lights

6. LCD display (including Trip computer)

For more details, refer to the "Gauges"

in this chapter.

The actual cluster in the vehicle may differ from the illustration.

ODH043051N/ODH043052N

3-62

Instrument Cluster Control

LCD Display Control

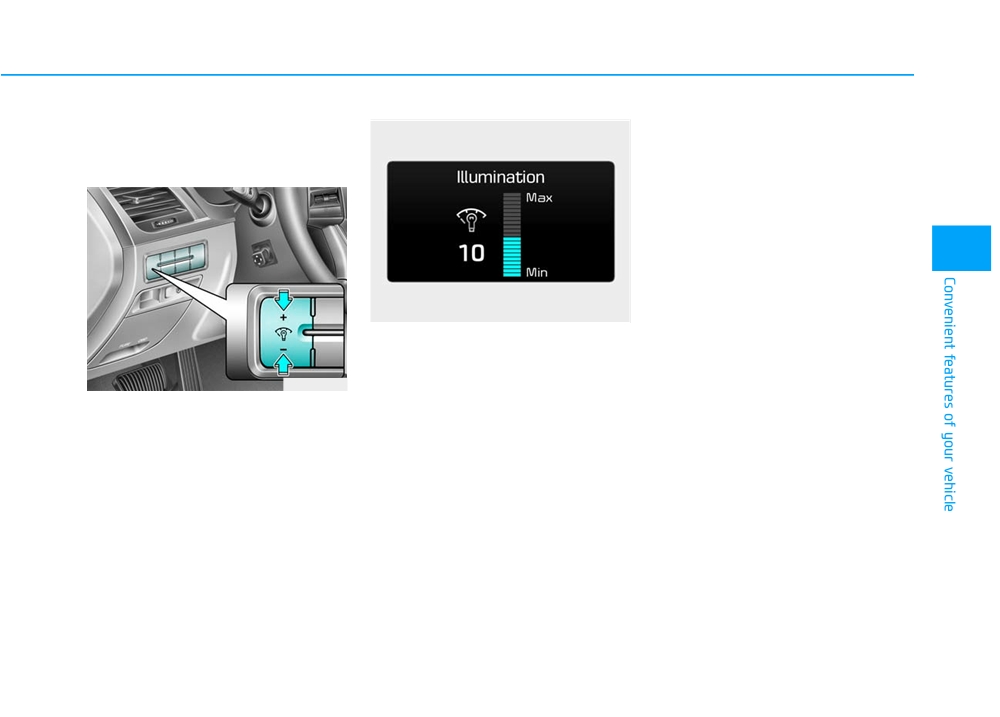

Adjusting Instrument Cluster

The LCD display modes can be

Illumination

changed by using the control buttons

on the steering wheel.

ODH043228L

• The brightness of the instrument

panel illumination is displayed.

• If the brightness reaches to the

ODH043053

maximum or minimum level, an

When the Engine Start Stop button is

alarm will sound.

in the ON position, press the illumina-

tion control button to adjust the instru-

ment panel illumination intensity and

AVN monitor illumination intensity.

When the vehicle’s parking lights or

headlights are on, the interior switch

illumination intensity is adjusted

additionally by pressing the control

button.

3-63

Convenient features of your vehicle

Gauges

Tachometer

■ Type A

Speedometer

■ Type B

ODH043064

(1)

: MODE button for changing

ODH043055

modes

ODH043054N

The tachometer indicates the

(2) ▲, ▼ : MOVE switch for chang-

The speedometer indicates the

approximate number of engine revo-

ing items

speed of the vehicle and is calibrated

lutions per minute (rpm).

(3) OK : SELECT/RESET button for

in miles per hour (mph) and/or kilo-

Use the tachometer to select the cor-

setting or resetting the

meters per hour (km/h).

rect shift points and to prevent lug-

selected item

ging and/or over-revving the engine.

(4)

: BACK button for moving to

upper level menu (if equipped)

CAUTION

For more information on LCD

Do not operate the engine with-

modes, refer to "LCD Display" in

in the tachometer's RED ZONE.

the next pages of this chapter.

This may cause severe engine

damage.

3-64

Engine Coolant Temperature

Fuel Gauge

CAUTION

Gauge

If the gauge pointer moves

beyond the normal range area

toward the "H" position, it indi-

cates overheating that may

damage the engine.

Do not continue driving with an

overheated engine. If your vehi-

cle overheats, refer to "If the

Engine Overheats" in chapter 6.

ODH043057

ODH043056

WARNING

This gauge indicates the approxi-

This gauge indicates the tempera-

mate amount of fuel remaining in the

ture of the engine coolant when the

Never remove the radiator cap

fuel tank.

engine is running.

when the engine is hot. The

engine coolant is under pres-

sure and could severely burn.

Wait until the engine is cool

before adding coolant to the

reservoir.

3-65

Convenient features of your vehicle

✽ NOTICE

Odometer

WARNING

•

The fuel tank capacity is given in

■ Type A

chapter 8.

Running out of fuel can expose

•

The fuel gauge is supplemented by

vehicle occupants to danger.

a low fuel warning light, which

You must stop and obtain addi-

will illuminate when the fuel tank

tional fuel as soon as possible

is nearly empty.

after the warning light comes

•

On inclines or curves, the fuel

on or when the gauge indicator

■ Type B

gauge pointer may fluctuate or the

comes close to the "E (Empty)"

low fuel warning light may come

level.

on earlier than usual due to the

movement of fuel in the tank.

CAUTION

ODH043060N

The odometer indicates the total dis-

Avoid driving with an extremely

tance that the vehicle has been driv-

low fuel level. Running out of

en and should be used to determine

fuel could cause the engine to

when periodic maintenance should

misfire, damaging the catalytic

be performed.

converter.

- Odometer range : 0 ~ 999999 miles

or kilometers.

3-66

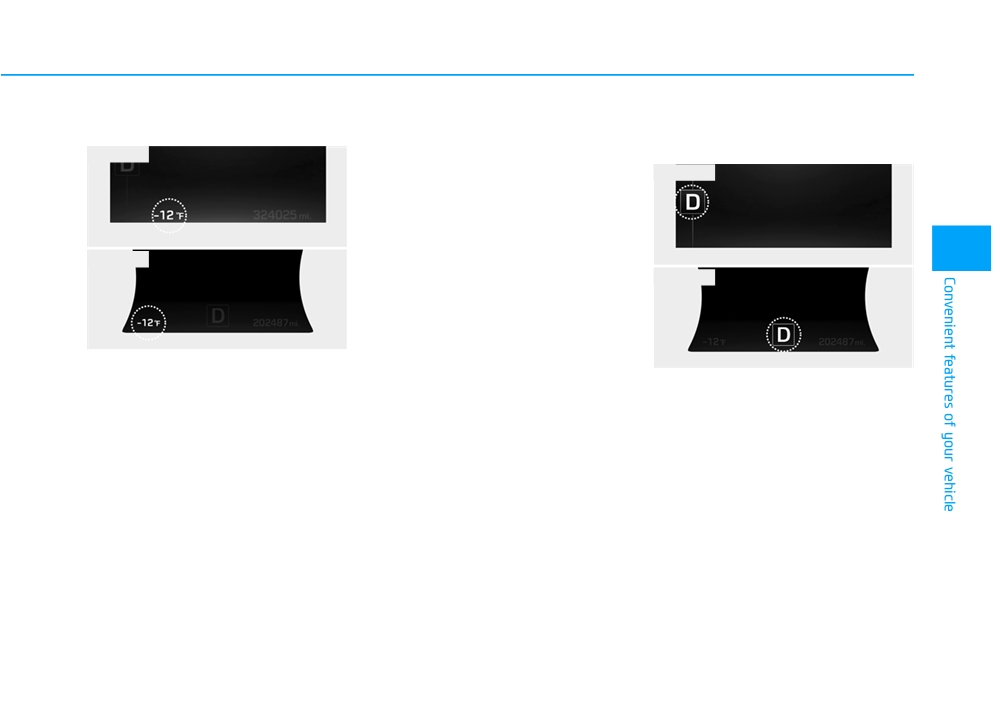

Outside Temperature Gauge

- User Settings Mode in the Cluster :

Automatic Transmission Shift

You can change the temperature

Indicator

■ Type A

unit in the

“Other Features

■ Type A

Temperature unit” .

- Automatic climate control system :

While pressing the OFF button,

press the AUTO button for 3 sec-

onds or more.

■ Type B

ODH043058N

ODH043059N

This gauge indicates the current out-

side air temperatures by 1°F (1°C).

This indicator displays which auto-

- Temperature range : -40°F ~ 140°F

matic transmission shift lever is

(-40°C ~ 60°C)

selected.

The outside temperature on the dis-

play may not change immediately

• Park : P

like a general thermometer to pre-

• Reverse : R

vent the driver from being inattentive.

• Neutral : N

The temperature unit (from °C to °F

• Drive : D

or from °F to °C) can be changed as

• Sports Mode : 1, 2, 3, 4, 5, 6, 7, 8

below procedures.

And, the temperature unit of the clus-

ter and AVN monitor is changed at

the same time.

3-67

Convenient features of your vehicle

LCD DISPLAY

LCD Modes

Modes

Symbol

Explanation

This mode displays driving information like the tripmeter, fuel economy, and so on.

Trip Computer

For more details, refer to "Trip Computer" in this chapter.

Turn By Turn (TBT)

This mode displays the state of the navigation.

(if equipped)

This mode displays the state of the Advanced Smart Cruise Control (ASCC)

and Lane Keeping Assist System (LKAS).

ASCC/LKAS

(if equipped)

For more details, refer to "Advanced Smart Cruise Control (ASCC)" and

Lane Keeping Assist System (LKAS) in chapter 5.

A/V

This mode displays the state of the A/V system.

This mode informs of the tire pressure information, service interval (mileage or days)

Information

and warning messages related to the advanced smart cruise control system,

pre-safe seat belt, and so on.

User Settings

On this mode, you can change settings of the doors, lamps, and so on.

For more information on controlling the LCD modes, refer to "LCD Display Control" in the previous pages of

this chapter.

3-68

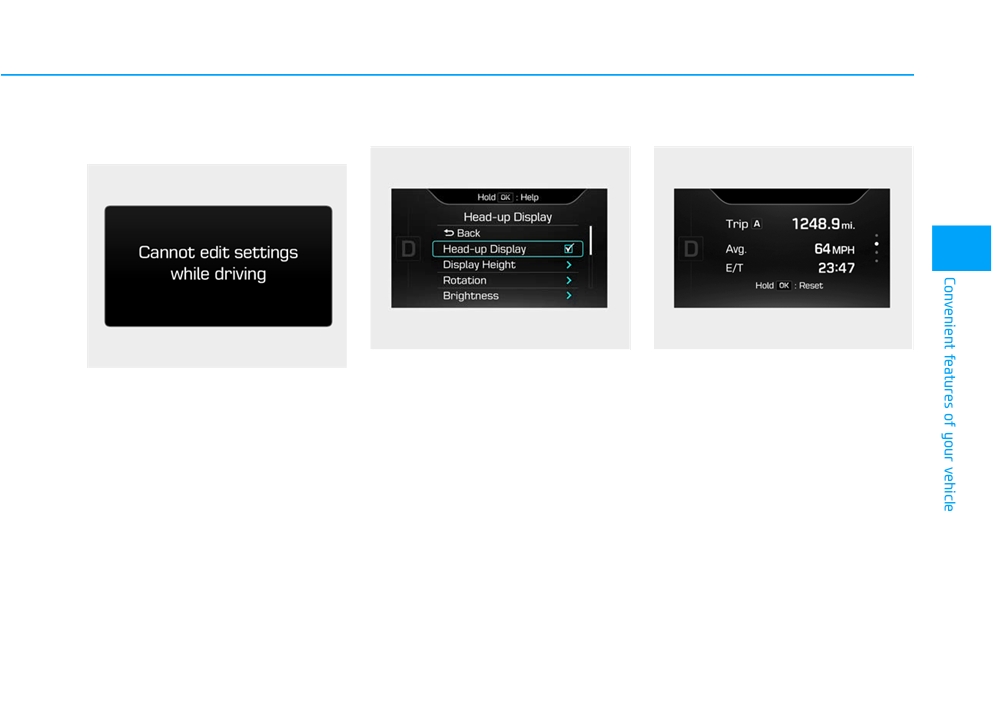

Cannot edit settings while driv-

Quick guide (Help)

Trip Computer Mode

ing

ODH045283N

ODH043306N

ODH043267L

If you press and hold the OK button

This mode displays driving informa-

This warning message illuminates if

in the User Settings Mode, explana-

tion like the tripmeter, fuel economy,

you try to select the other User

tion about the selected item is dis-

and so on.

Settings item except Head-up dis-

played in the cluster.

play item when driving.

For more details, refer to "Trip

For safety, change the User Settings

Computer" in this chapter.

after parking the vehicle and moving

the shift lever to P (Park) position.

3-69

Convenient features of your vehicle

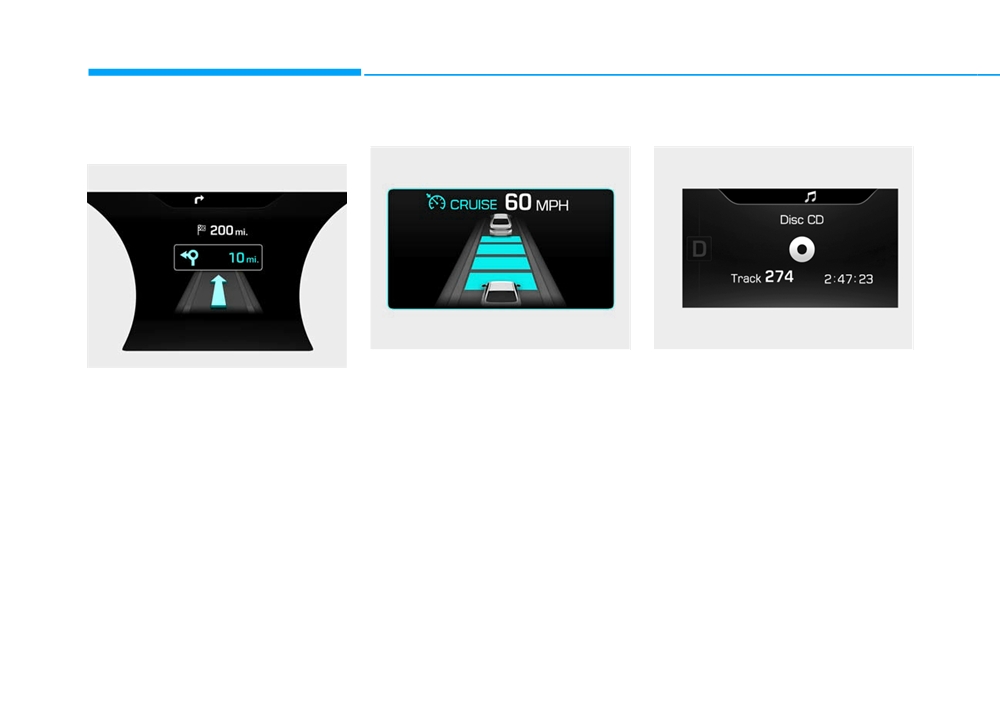

Turn By Turn (TBT) Mode

ASCC/LKAS Mode (if equipped)

A/V Mode

(if equipped)

ODH053081N

ODH044415L

ODH043274N

This mode displays the state of the

Advanced Smart Cruise Control

A/V system.

navigation.

(ASCC) and Lane Keeping Assist

System (LKAS).

For more details, refer to

"Advanced Smart Cruise Control

(ASCC)" and "Lane Keeping

Assist System (LKAS)" in chapter

3-70

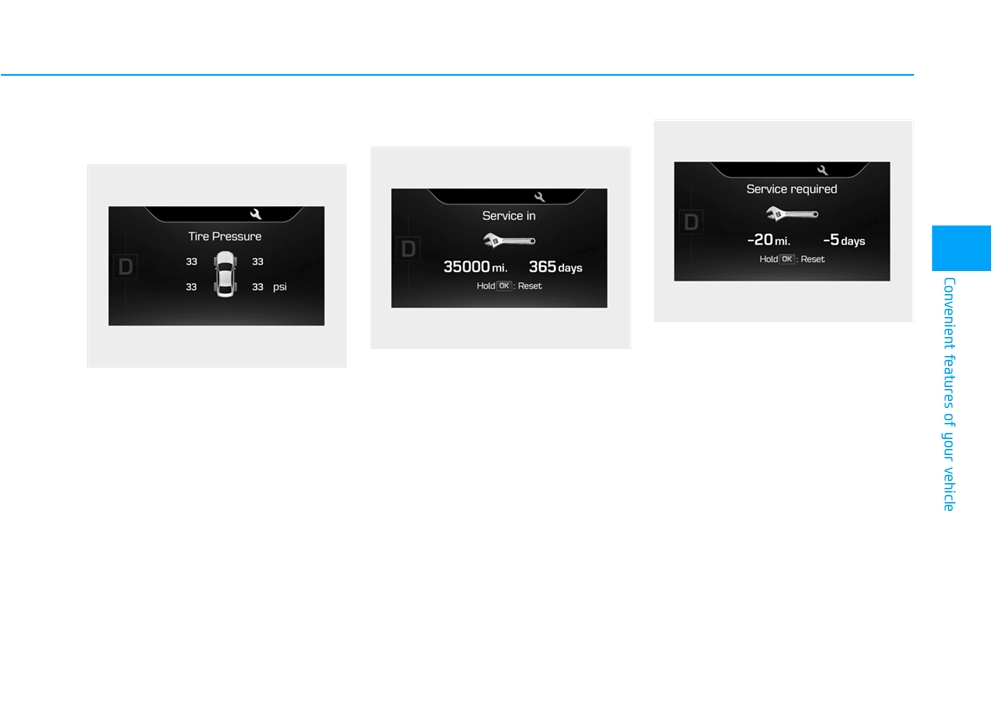

Information Mode

Service Interval

Tire pressure information

ODH043406N

Service required

ODH043277N

ODH063029L

If you do not have your vehicle serv-

Service in

iced according to the already

This mode informs of tire pressure

It calculates and displays when you

inputted service interval, "Service

information.

need a scheduled maintenance

required" message is displayed for

service (mileage or days).

several seconds each time you set

If the remaining mileage or time

the Engine Start/Stop button to the

reaches 900 miles (1,500 km) or 30

ON position.

days, "Service in" message is dis-

To reset the service interval to the

played for several seconds each time

mileage and days you inputted before:

you set the Engine Start/Stop button

- Press the OK button for more than

to the ON position.

1 second

For the setting of the service inter-

val, refer to "User Settings Mode"

of the LCD display.

3-71

Convenient features of your vehicle

Warning Message

If one of followings occurs, warning

messages will be displayed on the

information mode for several seconds.

Malfunction of below systems

• Blind Spot Detection (BSD)

• Presafe Seat Belt (PSB)

• Electronic Control Suspension

(ECS)

• Active Hood System

ODH043405L

• Advanced Smart Cruise Control

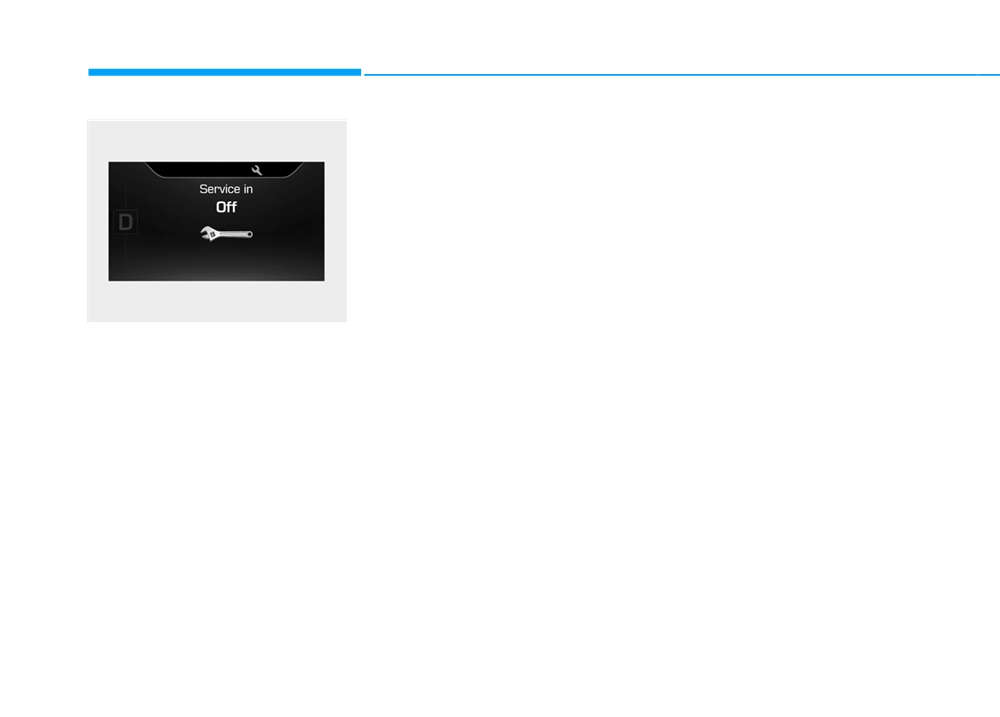

Service in OFF

(ASCC)

If the service interval is not set,

• Haptic Steering Wheel

"Service in OFF" message is dis-

• Lane Keeping Assist System

played on the LCD display.

(LKAS)

• Tire Pressure Monitoring System

✽ NOTICE

(TPMS)

If any of the following conditions

• Autonomous Emergency Braking

occurs, the mileage and days may be

Low washer fluid

incorrect.

- The battery cable is disconnected.

Low fuel etc.

- The fuse switch is turned off.

- The battery is discharged.

3-72

User Settings Mode

On this mode, you can change setting of the Head Up display, the instrument cluster, doors, lamps, and so on.

Head Up Display (if equipped)

Items

Explanation

• On : Activate the Head Up Display.

Head-Up Display (HUD)

• Off : Deactivate the Head Up Display.

Display Height

Adjust the height of the HUD image on the windshield glass.

Brightness

Adjust the intensity of the HUD illumination.

Activate or deactivate each contents of the HUD.

• Turn by Turn

• Traffic Information

Content Select

• Smart Cruise control

• Lane Keep Assist System

• Blind Spot Detection

Speed Size

Choose the speedometer font size of the HUD. (Large, Medium, Small)

Speed Color

Choose the speedometer font color of the HUD. (White, Orange, Green)

3-73

Convenient features of your vehicle

Driving Assist

Items

Explanation

• Pre-departure mode : To activate the pre-departure mode of LKAS function

LKAS

• Post-departure mode : To activate the post-departure mode of LKAS function

(Lane Keeping Assist System)

For more details, refer to "Lane Keeping Assist System (LKAS)" in chapter 5.

AEB (Autonomous

To activate or deactivate the AEB system.

Emergency Braking)

For more details, refer to "Autonomous Emergency Braking (AEB)" in chapter 5.

RCTA

To activate or deactivate the RCTA system.

(Rear Cross Traffic Alert)

For more details, refer to "Rear Cross Traffic Alert (RCTA)" in chapter 5.

3-74

Door/Trunk

Items

Explanation

• Disable: The auto door lock operation will be deactivated.

• Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 9.3mph

(15km/h).

Automatically Lock

• Enable on Shift: All doors will be automatically locked if the automatic transmission shift lever is

shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) posi-

tion.

• Disable: The auto door unlock operation will be canceled.

• Vehicle Off: All doors will be automatically unlocked when the Engine Start/Stop button is set to

the OFF position.

Automatically Unlock

• Driver Door Unlock: All doors will be automatically unlocked if the driver's door is unlocked.

• On Shift to P: All doors will be automatically unlocked if the automatic transmission shift lever is

shifted to the P (Park) position.

Lock/Unlock Sound

To activate or deactivate the lock sound when locking doors.

To activate or deactivate the Smart Trunk system.

Smart Trunk

For more details, refer to "Smart Trunk" in this chapter.

• OFF : The two press unlock function will be deactivated. Therefore, all doors will unlock if the door

is unlocked.

Two Press Unlock

• ON : The driver’s door will unlock if the door is unlocked. When the door is unlocked again within

4 seconds, all doors will unlock.

3-75

Convenient features of your vehicle

Lights

Items

Explanation

• Off: The one touch turn signal function will be deactivated.

• 3, 5, 7 Flashing : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is

One Touch Turn Signal

moved slightly.

For more details, refer to "Light" in this chapter.

• Off : The ambient light of interior will turn off.

Ambient Light

• Auto : The ambient light of interior will turn automatically on or off.

• On : The ambient light of interior will turn on.

• On: The head lamp delay function will be activated.

• Off: The headlamp delay function will be deactivated.

Head Lamp Delay

For more details, refer to "Light" in this chapter.

• On: The welcome light function will be activated.

• Off: The welcome light function will be deactivated.

Welcome Light

For more details, refer to "Welcome System" in this chapter.

3-76

Sound

Items

Explanation

Park Assist System vol.

• Adjust the Park Assist System volume. (Level 1~3)

BSD (Blind Spot Detection)

• Off : The BSD sound function will be deactivated.

Sound

• On : The BSD sound function will be activated.

• Off : The welcome sound function will be deactivated.

Welcome Sound

• On : The welcome sound function will be activated.

3-77

Convenient features of your vehicle

Seat/Steering

Items

Explanation

• Off: The seat easy access function will be deactivated.

• Normal/Extended:

- When you turn off the engine, the driver’s seat will automatically move rearward short (Normal) or

long (Extended) for you to enter or exit the vehicle more comfortably.

Seat Easy Access

- If you change the Engine Start/Stop button from OFF position to the ACC, ON, or START position,

the driver’s seat will return to the original position.

For more details, refer to "Driver Position Memory System" in this chapter.

• On: The steering wheel will automatically move forward or rearward for the driver to enter or exit

the vehicle comfortably.

Steering Easy Access

• Off: The steering easy access function will be deactivated.

For more details, refer to "Driver Position Memory System" in this chapter.

• Off : The steering position function will be deactivated.

Steering Position

• On : The steering position function will be activated.

Service Interval

Items

Explanation

On this mode, you can activate the service interval function with mileage (km or mi.) and period

(months).

Service Interval

• Off : The service interval function will be deactivated.

• On :You can set the service interval (mileage and months).

3-78

Hyundai Genesis (2016 year). Instruction - part 9
