DOOR LOCKS

Operating door locks from

When closing the door, push the

Smart key

outside the vehicle

door by hand. Make sure that doors

are closed securely.

Mechanical key

3

ODH043002

Door

Door

Unlock

Lock

ODH043008

First, remove the cover (1~2), and

then turn the key toward the rear of

the vehicle to unlock and toward the

front of the vehicle to lock (3).

If you lock the driver's door with a

mechanical key, all vehicle doors will

lock. If you unlock the driver's door

OHG040010

with a mechanical key, the driver's

To lock the doors, press the button on

door will unlock.

the outside door handle while carry-

Once the doors are unlocked, they

ing the smart key with you or press

may be opened by pulling the door

the door lock button on the smart key.

handle.

3-11

Convenient features of your vehicle

Press the button on the driver's out-

Power Door Latch (if equipped)

Operating door locks from

side door handle while carrying the

inside the vehicle

smart key with you or press the

With the door lock button

unlock button on the smart key, the

driver's door will unlock. If you press

the button on the front passenger's

outside door, all doors will unlock.

Once the doors are unlocked, they

may be opened by pulling the door

Lock

handle.

Unlock

When closing the door, push the

door by hand. Make sure that doors

are closed securely.

ODH043009

If a door isn’t closed completely but

✽ NOTICE

ODH043010

is closed to the first detent position,

• In cold and wet climates, door lock

the door will close automatically.

•

To unlock a door, push the door

and door mechanisms may not

lock button (1) to the “Unlock” posi-

work properly due to freezing con-

tion. The red mark (2) on the door

CAUTION

ditions.

lock button will be visible.

• If the door is locked/unlocked

To reduce the risk of injury:

•

To lock a door, push the door lock

multiple times in rapid succession

button (1) to the “Lock” position. If

• Before closing the door, check

with either the vehicle key or door

the door is locked properly, the red

there are no obstructions in

lock switch, the system may stop

mark (2) on the door lock button

the path of the door.

operating temporarily in order to

will not be visible.

protect the circuit and prevent

• Keep your fingers away from

•

To open a door, pull the door han-

damage to system components.

the edge of the door or they

dle (3) outward.

may become trapped when the

power door latch operates.

3-12

• If the inner door handle of the dri-

With the central door lock

WARNING

ver’s (or front passenger’s) door is

switch

pulled when the door lock button is

■ Driver’s door

■ Passenger’s door

The doors should always be

in the lock position, the button is

fully closed and locked while

unlocked and door opens.

the vehicle is in motion. If the

• Doors cannot be locked if the

doors are unlocked, the risk of

smart key is in the vehicle and any

being thrown from the vehicle in

door is open.

3

a crash is increased.

✽ NOTICE

WARNING

If a power door lock ever fails to

function while you are in the vehicle

Do not leave children or animals

try one or more of the following

unattended in your vehicle. An

techniques to exit:

ODH043011/ODH043012

enclosed vehicle can become

Operate the door unlock feature

When pressing the (

) switch (1), all

extremely hot, causing death or

repeatedly

(both electronic and

vehicle doors will lock.

serious injury to unattended

manual) while simultaneously

children or animals who cannot

When pressing the (

) switch (2), all

pulling on the door handle.

escape the vehicle. Children

vehicle doors will unlock.

Operate the other door locks and

might operate features of the

handles, front and rear.

If the smart key is in the vehicle and

vehicle that could injure them,

Lower a front window and use the

any door is opened, the doors will

or they could encounter other

mechanical key to unlock the door

not lock even though the lock button

harm, possibly from someone

from outside.

(1) of the central door lock switch is

gaining entry to the vehicle.

pressed.

3-13

Convenient features of your vehicle

Auto door lock/unlock features

Child-protector rear door locks

WARNING

Impact sensing door unlock

Always secure your vehicle.

system

Leaving your vehicle unlocked

All doors will be automatically

increases the potential risk to

unlocked when an impact causes the

you or others from someone

air bags to deploy.

hiding in your vehicle.

To secure your vehicle, while

Speed sensing door lock system

depressing the brake, move the

All doors will be automatically locked

shift lever to the P (Park) posi-

when vehicle speed exceeds 9 mph

tion, engage the parking brake,

(15 km/h).

and press the Engine Start/Stop

All of the doors will be automatically

ODH043013

button to the OFF position, close

unlocked after the engine is turned

all windows, lock all doors, and

The child safety lock is provided to

always take the Smart Key with

off.

help prevent children seated in the

you.

rear from accidentally opening the

Shift lever auto door lock

rear doors. The rear door safety locks

should be used whenever children

All doors will be automatically locked

WARNING

are in the vehicle.

when shifting the shift lever out of P

(Park) with the engine running.

The child safety lock is located on

Opening a door when something

the edge of each rear door. When the

is approaching may cause dam-

(1)

child safety lock is in the lock

age or injury. Be careful when

You can activate or deactivate the

position, the rear door will not open if

opening doors and watch for

Auto Door Lock/Unlock features from

the inner door handle (2) is pulled.

vehicles, motorcycles, bicycles

the User Settings Mode on the LCD

or pedestrians approaching the

display.

vehicle in the path of the door.

For more details, refer to "LCD

Display" in this chapter.

3-14

THEFT-ALARM SYSTEM

To lock the child safety lock, insert a

This system helps to protect your

Once the security system is set,

screwdriver into the hole and turn it

vehicle and valuables. The horn will

opening any door, the trunk, or the

to the lock position.

sound and the hazard warning lights

hood without using the smart key will

will blink continuously if any of the

cause the alarm to activate.

To allow a rear door to be opened

following occurs:

from inside the vehicle, unlock the

The Theft Alarm System will not set if

child safety lock.

- A door is opened without using the

the hood, the trunk, or any door is

smart key.

not fully closed. If the system will not

set, check the hood, the trunk, or the

3

WARNING

- The trunk is opened without using

doors are fully closed.

the smart key.

If children accidently open the

- The engine hood is opened.

Do not attempt to alter this system or

rear doors while the vehicle is

add other devices to it.

The alarm continues for 30 seconds,

in motion, they could fall out of

then the system resets. To turn off

the vehicle. The rear door safety

the alarm, unlock the doors with the

✽ NOTICE

locks should always be used

smart key.

• Do not lock the doors until all pas-

whenever children are in the

The Theft Alarm System automati-

sengers have left the vehicle. If the

vehicle.

cally sets 30 seconds after you lock

remaining passenger leaves the

the doors and the trunk. For the sys-

vehicle when the system is armed,

tem to activate, you must lock the

the alarm will be activated.

doors and the trunk from outside the

• If the vehicle is not disarmed with

vehicle with the smart key or by

the smart key, open the doors by

pressing the button on the outside of

using the mechanical key and

the door handles with the smart key

start the engine.

in your possession.

• When the system is disarmed but a

The hazard warning lights will blink

door or trunk is not opened within

and the chime will sound once to indi-

30 seconds, the system will be

cate the system is armed.

rearmed.

3-15

Convenient features of your vehicle

DRIVER POSITION MEMORY SYSTEM (IF EQUIPPED)

Storing positions into memory

WARNING

1. Check that the shift lever is in P

(Park) while the Engine Start/Stop

Never attempt to operate the driv-

er position memory system while

button is in the ON position.

the vehicle is moving.

2. Adjust the driver's seat position, out-

This could result in loss of con-

side rearview mirror position, steer-

ing wheel position, instrument panel

trol, and an accident causing

death, serious injury, or property

illumination intensity and head-up

display height/brightness to posi-

damage.

tions comfortable for the driver.

3. Press the SET button. The system

ODH043041

✽ NOTICE

will beep once and notify you

The Driver Position Memory System

• If the battery is disconnected, the

"Press button to save settings"on

is provided to store and recall the fol-

position memory will be lost and

the LCD display.

lowing memory settings with a sim-

the driving positions must be

4. Press one of the memory buttons

ple button operation.

stored in the system again.

(1 or 2) within 5 seconds. The sys-

- Driver's seat position

• If the Driver Position Memory

tem will beep twice when the mem-

- Outside rearview mirror position

System does not operate normally,

ory has been successfully stored.

have the system checked by an

- Steering wheel position

5.

authorized HYUNDAI dealer.

- Instrument panel illumination intensity

- Head Up Display (HUD) position

and brightness

ODH043156L/ODH043157L

"Driver 1 (or 2) settings saved" will

appear on the LCD display.

3-16

Recalling positions from memory

✽ NOTICE

Resetting the driver's seat

1. Check that the shift lever is in P

•

While recalling the "1" memory

memory system

(Park) while the Engine Start/Stop

position, pressing the SET or 1

button is in the ON position.

button temporarily stops the

2. Press the desired memory button

adjustment of the recalled memo-

(1 or

2). The system will beep

ry position. Pressing the 2 button

once, and then the driver's seat

recalls the "2" memory position.

position, outside rearview mirror

•

While recalling the "2" memory

3

position, steering wheel position,

position, pressing the SET or 2

instrument panel illumination

button temporarily stops the

intensity and head-up display

adjustment of the recalled memo-

height/brightness will automatical-

ry position. Pressing the 1 button

ly adjust to the stored positions.

recalls the "1" memory position.

•

While recalling the stored posi-

3.

ODH035906

tions, pressing one of the control

buttons for the driver's seat, out-

Take the following procedures to

side rearview mirror, steering

reset the driver's seat memory sys-

wheel, instrument panel illumina-

tem, when it does not operate prop-

tion or head-up display will cause

erly.

the movement of that component

to stop and move in the direction

that the control button is pressed.

ODH043158L/ODH043159L

"Driver 1(or 2) settings is applied" will

appear on the LCD display.

3-17

STEERING WHEEL

Electric power steering (EPS)

✽ NOTICE

Tilt steering / Telescope steering

The system assists you with steering

The following symptoms may occur

Adjust the steering wheel so it points

the vehicle. If the engine is turned off

during normal vehicle operation:

toward your chest, not toward your

or if the power steering system

•

The steering effort may be high

face. Make sure you can see the

becomes inoperative, you may still

immediately after placing the

instrument panel warning lights and

steer the vehicle, but it will require

Engine Start/Stop button in the

gauges. After adjusting, push the

increased steering effort.

ON position.

steering wheel both up and down to

This happens as the system per-

be certain it is locked in position.

3

Should you notice any change in the

forms the EPS system diagnostics.

Always adjust the position of the

effort required to steer during normal

When the diagnostics is complet-

steering wheel before driving.

vehicle operation, we recommend

ed, the steering wheel will return

that the system be checked by an

to its normal condition.

authorized HYUNDAI dealer.

WARNING

•

A click noise may be heard from

the EPS relay after the Engine

NEVER adjust the steering

CAUTION

Start/Stop button is in the ON or

wheel while driving. This may

OFF position.

cause loss of vehicle control

If the Electric Power Steering

•

Motor noise may be heard when

resulting in an accident.

System does not operate nor-

the vehicle is at stop or at a low

mally, the warning light (

) will

driving speed.

illuminate on the instrument

•

When you operate the steering

cluster. The steering wheel will

wheel in low temperature, abnor-

require increase effort. Take

mal noise may occur. If tempera-

your vehicle to an authorized

ture rises, the noise will disappear.

HYUNDAI dealer and have the

This is a normal condition.

system checked as soon as

possible.

3-19

Convenient features of your vehicle

Manual type

Electric type

Heated steering wheel

(if equipped)

■ Type A

ODH044044N

ODH044361N

ODH043043

■ Type B

To change the steering wheel angle

To change the steering wheel angle

and height:

and height:

1. Pull down the lock-release lever (1).

• Move the switch (1) up and down

to adjust the angle (2).

2. Adjust the steering wheel to the

desired angle (2) and height (3).

• Move the switch forward or rear-

ward to adjust the height (3).

3. Pull up the lock-release lever to

lock the steering wheel in place.

CAUTION

ODH044127N

Do not adjust the steering

wheel longer than necessary

when the engine is turned off.

This may result in unnecessary

battery drain.

3-20

■ LCD display

✽ NOTICE

Horn

The heated steering wheel will turn

off automatically approximately 30

minutes.

CAUTION

3

Do not install any cover or acces-

sory on the steering wheel. This

cover or accessory could cause

damage to the heated steering

wheel system.

ODH043045

ODH043224L/ODH043226L

To sound the horn, press the area

When the Engine Start/Stop button

indicated by the horn symbol on your

is in the ON position, press the heat-

steering wheel (see illustration). The

ed steering wheel button to warm the

horn will operate only when this area

steering wheel. The indicator on the

is pressed.

button will illuminate and notify you

on the LCD display.

CAUTION

To turn the heated steering wheel off,

press the button again. The indicator

Do not strike the horn severely to

on the button will turn off and notify

operate it, or hit it with your fist.

you on the LCD display.

Do not press on the horn with a

sharp-pointed object.

3-21

Convenient features of your vehicle

MIRRORS

Inside rearview mirror

Electric chromic mirror (ECM)

WARNING

with HomeLink® system,

Before you start driving, adjust the

compass and Blue Link®

rearview mirror to the center on the

NEVER adjust the mirror while

(for U.S.A)

view through the rear window.

driving. This may cause loss of

Your vehicle may be equipped with a

vehicle control resulting in an

accident.

Gentex Automatic-Dimming Mirror

WARNING

with a Z-Nav™ Electronic Compass

Display and an Integrated HomeLink®

Make sure your line of sight is

CAUTION

Wireless Control System. During

not obstructed. Do not place

nighttime driving, this feature will

objects in the rear seat, cargo

When cleaning the mirror, use a

automatically detect and reduce

area, or behind the rear head-

paper towel or similar material

rearview mirror glare while the com-

rests which could interfere with

dampened with glass cleaner.

pass indicates the direction the vehi-

your vision through the rear

Do not spray glass cleaner

cle is pointed. The HomeLink®

window.

directly on the mirror as that

Universal Transceiver allows you to

may cause the liquid cleaner to

activate your garage door(s), electric

WARNING

enter the mirror housing.

gate, home lighting, etc.

To prevent serious injury during

an accident or deployment of

the air bag, do not modify the

rearview mirror and do not

install a wide mirror.

3-22

Automatic-Dimming Night Vision

Your mirror will automatically dim upon

Safety™ (NVS®) Mirror

detecting glare from the vehicles trav-

(if equipped)

eling behind you. The auto-dimming

function can be controlled by pressing

the Dimming ON/OFF button:

CAUTION

1. Pressing and holding the button

The NVS® Mirror automatically

for 3 seconds turns the auto-dim-

3

reduces glare by monitoring

ming function OFF which is indi-

light levels in the front and the

cated by the green Status

rear of the vehicle. Any object

Indicator LED turning off.

that obstructs either light sen-

ODH044046N

sor will degrade the automatic

2. Pressing and holding the button

(1) Telematics button

dimming control feature.

for

3 seconds again turns the

auto-dimming function ON which

(2) Telematics button

is indicated by the green Status

(3) Telematics button

For more information regarding

Indicator LED turning on.

NVS® mirrors and other applica-

(4) Compass control button &

The mirror defaults to the ON posi-

tions, please refer to the Gentex

Dimming ON/OFF button

tion each time the vehicle is started.

website:

(5) Status indicator LED

www.gentex.com

(6) Channel 1 button

Z-Nav™ Compass Display

(7) Channel 2 button

The NVS™ Mirror in your vehicle is

(8) Channel 3 button

also equipped with a Z-Nav™

(9) Compass display

Compass that shows the vehicle

Compass heading in the Display

(10) Rear light sensor

Window using the 8 basic cardinal

headings (N, NE, E, SE, etc.).

3-23

Convenient features of your vehicle

Compass function

The Compass can be turned ON and

OFF and will remember the last state

when the ignition is cycled. To turn

the display feature ON/OFF:

1. Press and release the

button

within 1 second to turn the display

feature OFF.

2. Press and release the

button

again within 1 second to turn the

display back ON.

Additional options can be set with

press and hold sequences of the

button and are detailed below.

There is a difference between mag-

netic north and true north. To com-

pensate for this difference you will

need to adjust the Zone setting based

on where you live.

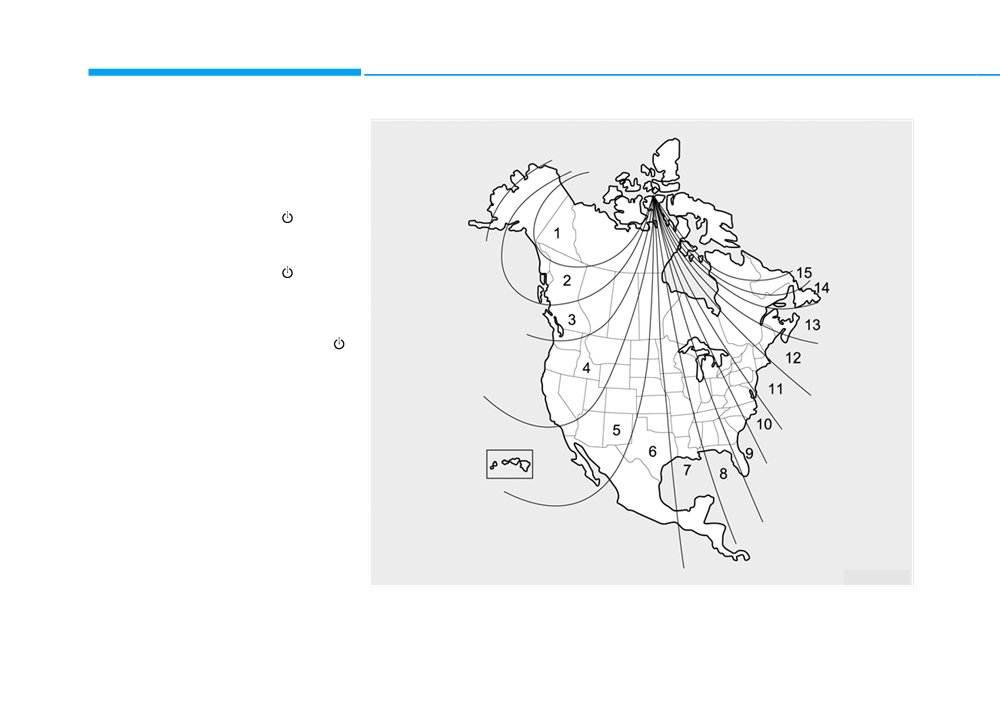

B520C05NF

3-24

To adjust the Zone setting:

If you need to recalibrate the com-

Retain the original transmitter of the

pass:

RF device you are programming for

1. Determine the desired Zone

use in other vehicles as well as for

Number based upon your current

1. Press and hold the

button for

future HomeLink® programming. It is

location on the Zone Map.

more than 9 seconds. When the

also suggested that upon the sale of

compass memory is cleared a "C"

2. Press and hold the button for 6

the vehicle, the programmed

will appear in the display.

seconds, the current Zone

HomeLink® buttons be erased for

Number will appear on the display.

2. Drive the vehicle in 2 complete cir-

security purposes.

cles at less than 5 mph (8 km/h).

3

3. Pressing and holding the button

again will cause the numbers to

increment (Note: they will repeat

Integrated HomeLink® Wireless

…13, 14, 15, 1, 2, …). Releasing

Control System

the button when the desired Zone

The HomeLink® Wireless Control

Number appears on the display

System can replace up to three

will set the new Zone.

hand-held radio-frequency

(RF)

4. Within about 5 seconds the com-

transmitters with a single built-in

pass will start displaying a com-

device. This innovative feature will

pass heading again.

learn the radio frequency codes of

most current transmitters to operate

There are some conditions that can

devices such as gate operators,

garage door openers, entry door

cause changes to the vehicle mag-

nets, such as installing a ski rack or

locks, security systems, even home

lighting. Both standard and rolling

a CB antenna. Body repair work on

the vehicle can also cause changes

code-equipped transmitters can be

programmed by following the out-

to the vehicle's magnetic field. In

these situations, the compass will

lined procedures.

need to be re-calibrated to quickly

Additional HomeLink® information

correct these changes.

can be found at: www.homelink.com

or by calling 1-800-355-3515.

3-25

Convenient features of your vehicle

Programming HomeLink®

Programming

WARNING

Please note the following:

Flashing

Before programming HomeLink®

•

When programming a garage door

to a garage door opener or gate

opener, it is advised to park the

operator, make sure people and

vehicle outside of the garage.

objects are out of the way of the

•

It is recommended that a new bat-

device to prevent potential harm

tery be placed in the hand-held

or damage. Do not use the

transmitter of the device being pro-

HomeLink® with any garage door

grammed to HomeLink® for quicker

opener that lacks the safety stop

training and accurate transmission

and reverse features required by

of the radio-frequency signal.

U.S. federal safety standards

•

Some vehicles may require the

(this includes any garage door

ODH044413N

ignition switch to be placed in the

opener model manufactured

ACC (or "Accessories") position for

To train most devices, follow these

before April 1, 1982). A garage

programming and/or operation of

instructions:

door that cannot detect an object

HomeLink®.

- signaling the door to stop and

1. For first-time programming, press

•

In the event that there are still pro-

reverse - does not meet current

and hold the two outside buttons

gramming difficulties or questions

(

), HomeLink® Channel

1

U.S. federal safety standards.

,

Using a garage door opener

after following the programming

and Channel 3, until the indicator

steps listed below, contact

light begins to flash (after 10 sec-

without these features increases

the risk of serious injury or

HomeLink®homelwww.homelink.com

onds). Release both buttons. Do

or by calling 1-800-355-3515.

not hold the buttons for longer

death.

than 20 seconds.

3-26

✽ NOTICE

5. At the garage door opener receiv-

Flashing

er (motor-head unit) in the garage,

Some devices may require you to

locate the "learn" or "smart" but-

replace this Programming step

3

ton. This can usually be found

with procedures noted in the "Gate

where the hanging antenna wire is

Operator/Canadian Programming"

attached to the motor-head unit.

chapter. If the HomeLink® indicator

light does not change to a rapidly

6. Firmly press and release the

blinking light after performing these

"learn" or "smart" button.

(The

3

steps, contact HomeLink® at

name and color of the button vary

www.homelink.com.

by manufacturer). There are

30

seconds to initiate step 7.

ODH044414N

4. Firmly press, hold for 5 seconds and

7. Return to the vehicle and firmly

release

the

programmed

2. Position the end of your hand-held

press, hold for

2 seconds and

HomeLink® button up to two sepa-

transmitter

1-3 inches

(2-8 cm)

release

the

programmed

rate times to activate the door. If the

away from the HomeLink® button

HomeLink® button. Repeat the

door does not activate, press and

you wish to program while keeping

"press/hold/release" sequence a

hold the just-trained HomeLink® but-

the indicator light in view.

second time, and, depending on

ton and observe the indicator light.

the brand of the garage door

3. Simultaneously press and hold

• If the indicator light stays on con-

opener

(or other rolling code

both the HomeLink® and hand-

stantly, programming is complete

equipped device), repeat this

held transmitter buttons until the

and your device should activate

sequence a third time to complete

HomeLink® indicator light changes

when the HomeLink® button is

the programming process.

from a slow to a rapid blinking

pressed and released.

light. Now you may release both

the HomeLink® and hand-held

• If the indicator light blinks rapidly

HomeLink® should now activate your

transmitter buttons.

for 2 seconds and then turns to a

rolling code equipped device.

constant light, continue with

"Programming" steps 5-7 to com-

plete the programming of a rolling

code equipped device (most com-

monly a garage door opener).

3-27

Content   ..  4  5  6  7   ..
