Air bag inflation conditions

Although the driver’s and front pas-

senger’s air bags are designed to

inflate only in frontal collisions, they

also may inflate in other types of col-

lisions if the front impact sensors

detect a sufficient impact. Side

impact and curtain air bags are

designed to inflate only in side

impact collisions or rollover situa-

tions, but they may inflate in other

collisions if the side impact sensors

ODH033072

detect a sufficient impact.

If the vehicle chassis is impacted by

ODH033071

bumps or objects on unimproved

Front air bag

roads, the air bags may deploy. Drive

carefully on unimproved roads or on

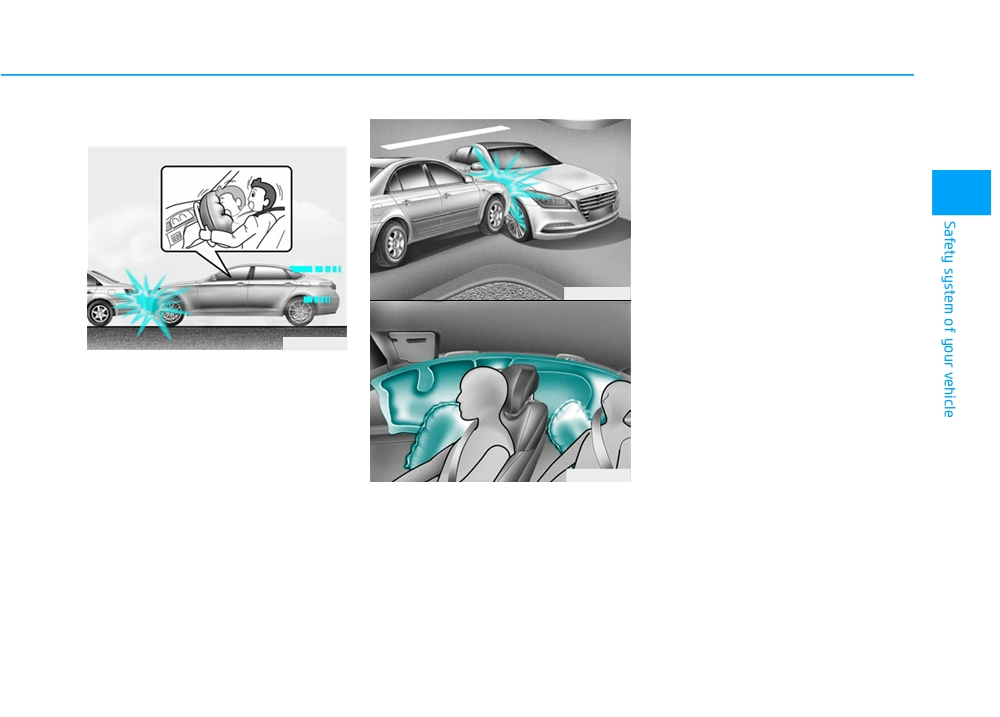

Front air bags are designed to inflate

surfaces not designed for vehicle

in a frontal collision depending on

traffic to prevent unintended air bag

the intensity, speed, or angles of

deployment.

impact of the front collision.

ODH033090

Side impact and curtain air bags

Side impact and curtain air bags are

designed to inflate when an impact is

detected by side collision sensors

depending on the strength, speed, or

angles of impact resulting from a

side impact collision.

2-63

Safety system of your vehicle

Air bag non-inflation conditions

ODH033074

ODH033075

Front air bags are not designed to

Front air bags may not inflate in side

ODH033073

inflate in rear collisions, because

impact collisions, because occupants

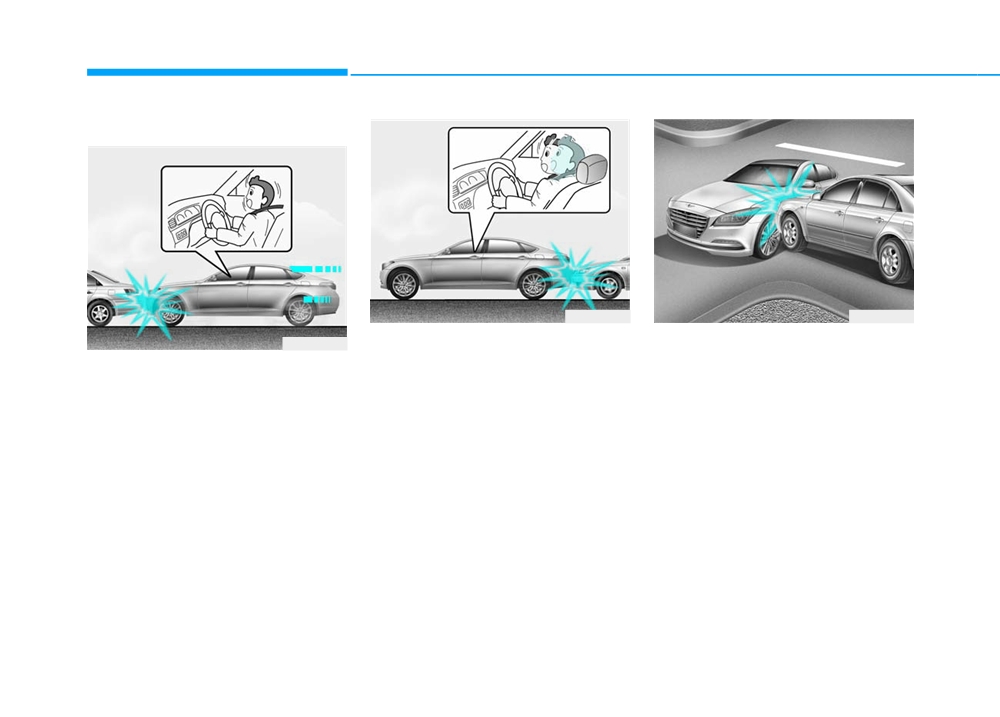

In certain low-speed collisions the air

occupants are moved backward by

move in the direction of the collision,

bags may not deploy. The air bags

the force of the impact. In this case,

and thus in side impacts, front air bag

are designed not to deploy in such

inflated air bags would not provide

deployment would not provide addi-

cases because they may not provide

any additional benefit.

tional occupant protection.

benefits beyond the protection of the

However, side impact and curtain air

seat belts.

bags may inflate depending on the

intensity, vehicle speed and angles

of impact.

2-64

ODH033076

ODH033077

OBH038062

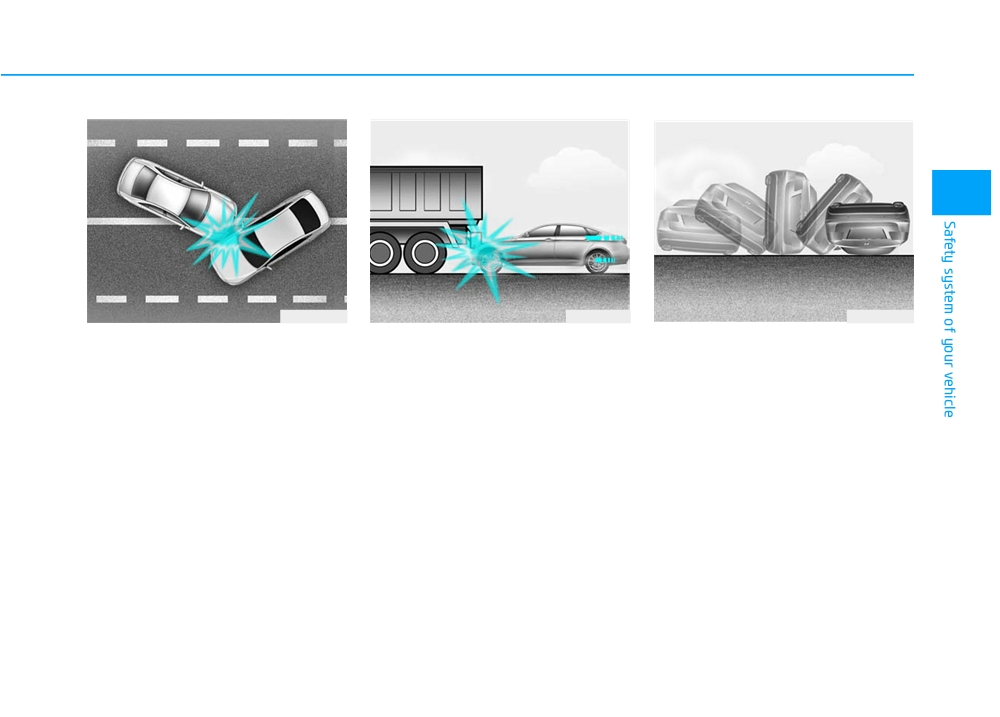

In an angled collision, the force of

Just before impact, drivers often

Front air bags may not inflate in

impact may direct the occupants in a

brake heavily. Such heavy braking

rollover accidents because air bag

direction where the air bags would

lowers the front portion of the vehicle

deployment could not provide protec-

not be able to provide any additional

causing it to “ride” under a vehicle

tion to the occupants.

benefit, and thus the sensors may

with a higher ground clearance. Air

However, side impact and curtain air

not deploy any air bags.

bags may not inflate in this "under-

bags may inflate when the vehicle is

ride" situation because deceleration

rolled over by a side impact collision,

forces that are detected by sensors

if the vehicle is equipped with side air

may be significantly reduced by such

bags and curtain air bags.

“underride” collisions.

Also, if the vehicle is equipped with a

rollover sensor, side impact and cur-

tain air bags may inflate in a rollover.

2-65

Safety system of your vehicle

SRS care

WARNING

The SRS is virtually maintenance-

free and there are no parts you can

To reduce the risk of serious

safely service by yourself. If the SRS

injury or death, take the follow-

air bag warning light does not illumi-

ing precautions:

nate when the Engine Start/Stop but-

•

Do not attempt to modify or

ton is in the ON position, or continu-

disconnect the SRS compo-

ously remains on, have your vehicle

nents or wiring, including the

immediately inspected by an author-

addition of any kind of badges

ized HYUNDAI dealer.

to the pad covers or modifica-

Any work on the SRS system, such

tions to the body structure.

ODH033078

as removing, installing, repairing, or

•

Do not place objects over or

Air bags may not inflate if the vehicle

any work on the steering wheel, the

near the air bag modules on

collides with objects such as utility

front passenger's panel, front seats

the steering wheel, instrument

poles or trees, where the point of

and roof rails must be performed by

panel, or the front passen-

impact is concentrated and the colli-

an authorized HYUNDAI dealer.

ger's panel above the glove

sion energy is absorbed by the vehi-

Improper handling of the SRS system

box.

cle structure.

may result in serious personal injury.

•

Clean the air bag pad covers

with a soft cloth moistened

with plain water. Solvents or

cleaners could adversely

affect the air bag covers and

proper deployment of the sys-

tem.

•

We recommend that inflated

air bags be replaced by an

authorized HYUNDAI dealer.

(Continued)

2-66

Additional safety precautions

Modifications to accommodate

(Continued)

disabilities. If you require modifica-

Passengers should not move out of

•

If components of the air bag

tion to your vehicle to accommodate

or change seats while the vehicle is

system must be discarded, or if

a disability, contact the HYUNDAI

moving. A passenger who is not

the vehicle must be scrapped,

Customer Connect Center at 1-877-

wearing a seat belt during a crash or

certain safety precautions

378-8727.

emergency stop can be thrown

must be observed. Consult an

against the inside of the vehicle,

authorized HYUNDAI dealer for

against other occupants, or be ejected

Adding equipment to or modify-

the necessary information.

from the vehicle.

ing your air bag equipped vehicle

Failure to follow these precau-

tions could increase the risk of

Do not use any accessories on seat

If you modify your vehicle by changing

personal injury.

belts. Devices claiming to improve

your vehicle's frame, bumper system,

occupant comfort or reposition the

front end or side sheet metal or ride

seat belt can reduce the protection

height, this may affect the operation of

provided by the seat belt and increase

your vehicle's air bag system.

the chance of serious injury in a crash

Do not modify the front seats.

Modification of the front seats could

interfere with the operation of the sup-

plemental restraint system sensing

components or side air bags.

Do not place items under the front

seats. Placing items under the front

seats could interfere with the opera-

tion of the supplemental restraint sys-

tem sensing components and wiring

harnesses.

Do not cause impact to the doors.

Impact to the doors when the Engine

Start/Stop button is in the ON position

may cause the air bags to inflate.

2-67

Safety system of your vehicle

Air bag warning labels

ODH034107A/ODH034041N/ODH034042

Air bag warning labels, required by the U.S. National Highway Traffic Safety Administration (NHTSA), are attached to

alert the driver and passengers of potential risks of the air bag system. Be sure to read all of the information about the

air bags that are installed on your vehicle in this Owners Manual.

2-68

Convenient features of your vehicle

Accessing your vehicle

3-4

Mirrors

3-22

Smart key

3-4

Inside rearview mirror

3-22

Smart key precautions

3-7

Outside rearview mirror

3-36

Immobilizer System

3-9

Reverse parking aid function

3-39

Door locks

3-11

Windows

3-40

Operating door locks from outside the vehicle

3-11

Power windows

3-41

Power Door Latch

3-12

Panorama sunroof

3-44

Operating door locks from inside the vehicle

3-12

Sunshade

3-44

Auto door lock/unlock features

3-14

Sliding the sunroof

3-45

Child-protector rear door locks

3-14

Tilting the sunroof

3-45

Theft-alarm system

3-15

Closing the sunroof

3-46

Driver position memory system

3-16

Resetting the sunroof

3-47

Storing positions into memory

3-16

Exterior features

3-48

Resetting the driver's seat memory system

3-17

Hood

3-48

Easy access function

3-18

Trunk

3-49

Steering wheel

3-19

Smart trunk

3-55

Electric power steering (EPS)

3-19

Fuel filler door

3-59

Tilt steering / Telescope steering

3-19

Instrument cluster

3-62

Heated steering wheel

3-20

Instrument Cluster Control

3-63

Horn

3-21

LCD Display Control

3-63

Gauges

3-64

LCD display

3-68

Light

3-110

LCD Modes

3-68

Exterior lights

3-110

Trip Computer Mode

3-69

Smart High Beam

3-112

Turn By Turn (TBT) Mode

3-70

Welcome system

3-117

ASCC/LKAS Mode

3-70

Interior lights

3-118

A/V Mode

3-70

Wipers and washers

3-123

Information Mode

3-71

Windshield wipers

3-123

User Settings Mode

3-73

Windshield washers

3-125

Warning Messages

3-80

Driver assist system

3-126

Trip computer

3-90

Rear view camera

3-126

Overview

3-90

Parking Guide System

3-127

Trip A/B

3-91

Parking Assist System

3-128

Fuel Economy

3-92

Defroster

3-132

Digital Speedometer

3-94

Rear window defroster

3-132

Warning and indicator lights

3-95

Automatic climate control system

3-134

Warning lights

3-95

Automatic heating and air conditioning

3-135

Indicator Lights

3-103

Manual heating and air conditioning

3-136

Head Up Display (HUD)

3-107

System operation

3-144

Description

3-107

Climate control air filter

3-146

Head Up Display ON/OFF

3-108

Air conditioner refrigerant and compressor

Head Up Display Information

3-108

lubricant

3-147

Head Up Display Setting

3-109

Air Conditioning refrigerant label

3-147

Windshield defrosting and defogging

3-148

Auto defogging system ON/OFF

3-150

Climate control additional features

3-151

Cluster ionizer

3-151

Smart ventilation

3-151

Rear climate system ON/OFF

3-152

CO2 control auto air conditioner

3-152

Storage compartment

3-153

Center console storage

3-153

Glove box

3-154

Sunglass holder

3-154

Interior features

3-155

Cup holder

3-155

Sunvisor

3-156

Power outlet

3-156

Clock

3-158

Clothes hanger

3-158

Bag hanger

3-159

Floor mat anchor(s)

3-159

Rear curtain

3-160

Side curtain

3-161

Luggage net holder

3-162

Convenient features of your vehicle

ACCESSING YOUR VEHICLE

Smart key

Locking

✽ NOTICE

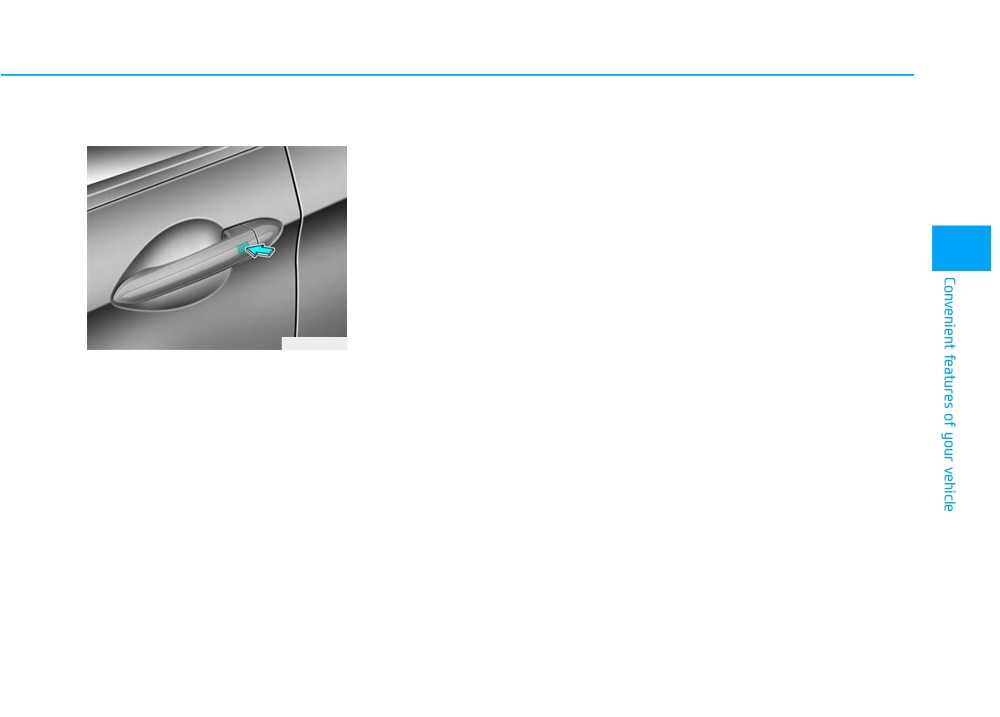

The door handle button will only

operate when the smart key is with-

in 28~40 inches (0.7~1 m) from the

outside door handle.

Even though you press the outside

door handle button, the doors will not

lock and the chime will sound for

three seconds if any of the following

occur:

• The Smart Key is in the vehicle.

ODH043024

ODH043002

• The Engine Start/Stop button is in

To lock :

ACC or ON position.

1. Door Lock

1. Close all doors, engine hood and

• Any door except the trunk is open.

2. Door Unlock

trunk.

3. Trunk Unlock

2. Either press the door handle but-

WARNING

4. Panic

ton or press the Door Lock button

(1) on the smart key.

Do not leave the Smart Key in

Your HYUNDAI uses a Smart Key,

3. The hazard warning lights will

your vehicle with unsupervised

which you can use to lock or unlock

a door (and trunk) and even start the

blink and the chime will sound

children. Unattended children

once. Also, the outside rearview

could press the Engine Start/

engine.

mirror will fold, if the outside

Stop button and may operate

rearview mirror folding switch is in

power windows or other con-

the AUTO position.

trols, or even make the vehicle

move, which could result in

4. Make sure the doors are locked by

serious injury or death.

checking the position of the door

lock button inside the vehicle.

3-4

Unlocking

If you press the driver's outside

Trunk opening

door handle button or Door Unlock

To open:

button on the smart key again with-

1. Carry the smart key.

in four seconds, then all the doors

will unlock.

2. Either press the trunk handle but-

ton or press and hold the Trunk

Unlock button (3) on the smart key

✽ NOTICE

for more than one second.

•

The door handle button will only

3. The hazard warning lights will

operate when the smart key is with-

blink two times.

in 28~40 inches (0.7~1 m) from the

Once the trunk is opened and then

outside door handle and other peo-

closed, the trunk will lock automati-

ple can also open the doors.

cally.

ODH043002

•

If you press the front passenger's

outside door handle, while carrying

To unlock:

the Smart Key, all doors will unlock.

✽ NOTICE

1.Carry the Smart Key.

•

After unlocking the doors, the

The trunk handle button will only

2. Either press the driver’s outside

doors will lock automatically after

operate when the smart key is with-

door handle button or press the

30 seconds unless a door is opened.

in 28 inches (0.7 m) from the trunk

Door Unlock button

(2) on the

•

You can change the system to the

handle.

smart key.

Central Door Unlock mode (unlock

all the doors when you press the

3.The driver’s door will unlock. The

Panic button

unlock button one time). To change

hazard warning lights will blink two

between Two Stage Unlock mode

Press the Panic button (4) and hold

times. Also, the outside rearview

and Central Door Unlock mode,

for more than one second. The horn

mirror will unfold, if the outside

perform the following:

sounds and hazard warning lights

rearview mirror folding switch is in

Press the lock button and unlock

blink for about 30 seconds. To cancel

the AUTO position.

button on the smart key at the

the panic mode, press any button on

same time for 5 seconds or more.

the Smart Key.

The hazard warning lights will

blink four times.

3-5

Convenient features of your vehicle

Start-up

Mechanical key

Loss of a smart key

You can start the engine without

If the Smart Key does not operate

A maximum of three Smart Keys

inserting the key.

normally, you can lock or unlock the

including Card Type Smart Keys can

door by using the mechanical key.

be registered to a single vehicle. If

For more information, refer to the

you happen to lose your smart key, it

Engine Start/Stop button in chap-

is recommended that you should

ter 5.

immediately take the vehicle and

remaining keys to your authorized

HYUNDAI dealer or tow the vehicle,

CAUTION

if necessary.

To prevent damaging the smart

key:

• Keep the smart key away from

water or any liquid and fire. If

the inside of the smart key

gets damp (due to drinks or

moisture), or is heated, inter-

ODH043006

nal circuit may malfunction,

Press and hold the release button (1)

excluding the car from the

and remove the mechanical key (2).

warranty.

Insert the mechanical key into the

• Avoid dropping or throwing

key hole on the door.

the smart key.

To reinstall the mechanical key, put

• Protect the smart key from

the key into the hole and push it until

extreme temperatures.

a click sound is heard.

3-6

Smart key precautions

If the smart key is in close proximity

This device complies with Part 15

to your mobile phone, the signal

of the FCC rules.

The smart key will not work if any of

could be blocked by your mobile

the following occur:

Operation is subject to the following

phones normal operational signals.

two conditions:

• The smart key is close to a radio

This is especially important when the

transmitter such as a radio station

1. This device may not cause harm-

phone is active such as making and

or an airport which can interfere

ful interference, and

receiving calls, text messaging,

with normal operation of the trans-

2. This device must accept any inter-

and/or sending/receiving emails.

mitter.

Avoid placing the smart key and your

ference received, including inter-

• The smart key is near a mobile two

mobile phone in the same pants or

ference that may cause undesired

way radio system or a cellular

jacket pocket and always try to main-

operation.

phone.

tain an adequate distance between

the two devices.

• Another vehicle’s smart key is being

✽ NOTICE

operated close to your vehicle.

Changes or modifications not

CAUTION

When the smart key does not work

expressly approved by the party

correctly, open and close the door

responsible for compliance could

Keep the smart key away from

with the mechanical key. If you have

void the user's authority to operate

electromagnetic materials that

a problem with the smart key, contact

the device.

blocks electromagnetic waves

an authorized HYUNDAI dealer.

to the key surface.

3-7

Convenient features of your vehicle

Restrictions in Handling Keys

To lock:

To unlock:

1. Remove the mechanical key from

1. Open the glove box with the

the Smart Key.

mechanical key.

2. Unlock the glove box by using the

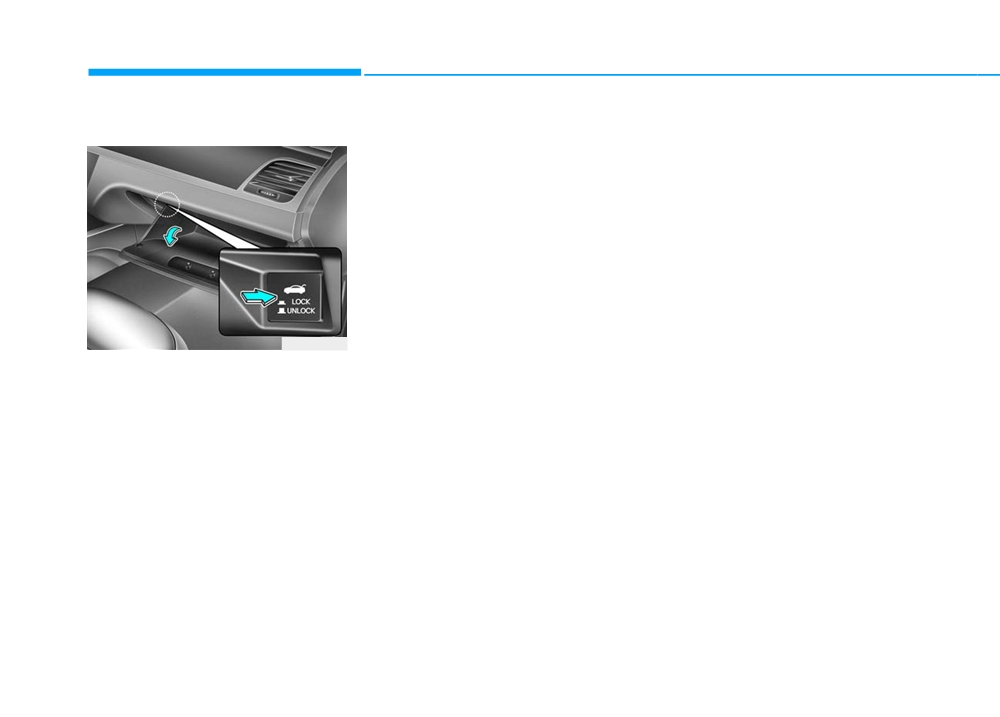

2. Set the Trunk Lid Control button to

mechanical key, then open it.

the UNLOCK position (button not

3. Set the Trunk Lid Control button to

pressed).

the LOCK position (button pressed).

In this position the trunk lid will open

with the Trunk Lid button or the

4. Close and lock the glove box using

Smart Key.

the mechanical key.

5. Leave the Smart Key with the

attendant and keep the mechani-

cal key with you.

ODH043007

The Smart Key can only be used to

When leaving keys with parking lot

start the engine and operate door

and valet attendants, the following

locks.

procedures will ensure your vehicle’s

trunk and glove box compartment

can only be opened with the

mechanical key.

3-8

Battery replacement

If you suspect your smart key might

Immobilizer System

have sustained some damage, or

If the Smart Key is not working prop-

The immobilizer system protects your

you feel your smart key is not work-

erly, try replacing the battery with a

vehicle from theft. If an improperly

ing correctly, contact an authorized

new one.

coded key (or other device) is used,

HYUNDAI dealer.

the engine’s fuel system is disabled.

When the Engine Start/Stop button is

✽ NOTICE

in the ON position, the immobilizer sys-

An inappropriately disposed

tem indicator should come on briefly,

battery can be harmful to

then go off. If the indicator starts to

the environment and human

blink, the system does not recognize

health. Dispose the battery

the coding of the Smart Key.

according to your local

Press the Engine Start/Stop button

law(s) and regulation(s).

to the OFF position, then press the

Engine Start/Stop button to the ON

position again.

ODH043004

The system may not recognize your

Smart Key’s coding if another immo-

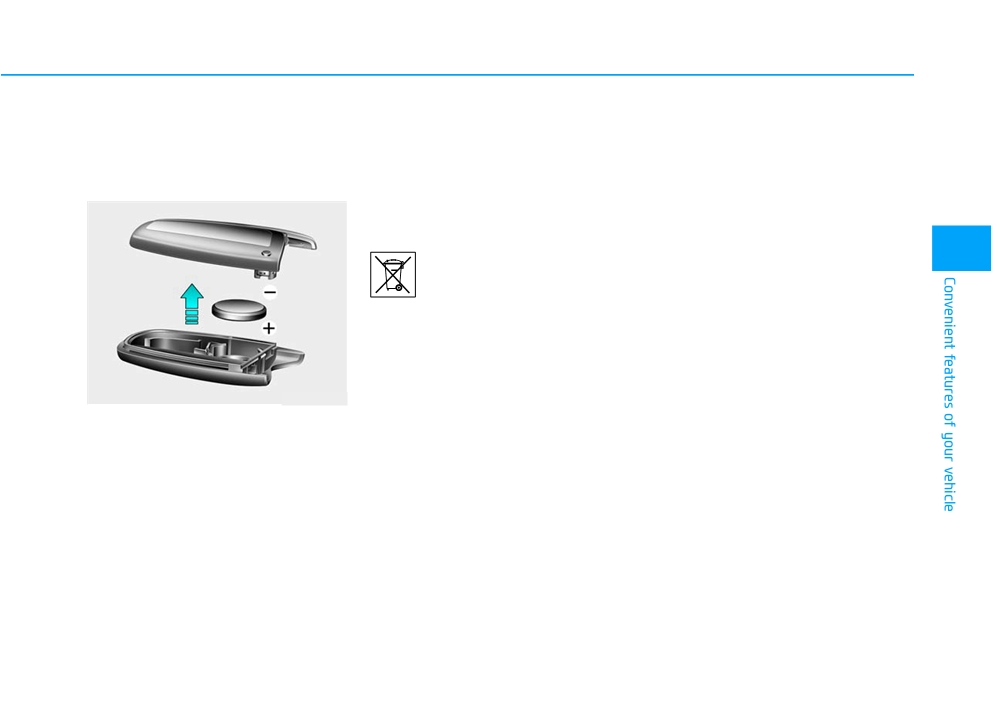

Battery Type: CR2032

bilizer key or other metal object (i.e.,

To replace the battery:

key chain) is near the Smart Key. The

1. Pry open the rear cover of the

engine may not start because the

smart key.

metal may interrupt the transponder

2. Remove the old battery and insert

signal from transmitting normally.

the new battery.

If the system repeatedly does not

3. Reinstall the rear cover of the

recognize the coding of the key, con-

smart key.

tact your HYUNDAI dealer.

3-9

Convenient features of your vehicle

Do not attempt to alter this system or

This device complies with Part 15

CAUTION

add other devices to it. Electrical

of the FCC rules.

problems could result that may make

Operation is subject to the following

The transponder in your key is

your vehicle inoperable.

two conditions:

an important part of the immo-

bilizer system. It is designed to

1. This device may not cause harm-

give years of trouble-free serv-

ful interference, and

WARNING

ice, however you should avoid

2. This device must accept any inter-

In order to prevent theft of your

exposure to moisture, static

ference received, including inter-

vehicle, do not leave spare keys

electricity and rough handling.

ference that may cause undesired

anywhere in your vehicle. Your

Immobilizer system malfunc-

operation.

immobilizer password is a cus-

tion could occur.

tomer unique password and

✽ NOTICE

should be kept confidential.

Changes or modifications not

expressly approved by the party

responsible for compliance could

void the user's authority to operate

the device.

3-10

Hyundai Genesis (2016 year). Instruction - part 5
