Hyundai Elantra (2017 year). Instruction - part 37
Specifications & Consumer information
Recommended SAE viscosity
When choosing an oil, consider the range of temperature your vehicle will be
number
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
CAUTION
Temperature Range for SAE Viscosity Numbers
°C
-30
-20
-10
0
10
20
30
40
50
Always be sure to clean the area
Temperature
(°F)
-10
0
20
40
60
80
100
120
around any filler plug, drain
plug, or dipstick before check-
For Europe
0W-40, 5W-20, 5W-30, 5W-40
ing or draining any lubricant.
This is especially important in
20W-50
Except
dusty or sandy areas and when
Europe &
15W-40
the vehicle is used on unpaved
Middle
10W-30
roads. Cleaning the plug and
Gasoline
East*3
5W-20*1, 5W-30
Engine Oil
dipstick areas will prevent dirt
and grit from entering the
20W-50
engine and other mechanisms
For Middle
15W-40
that could be damaged.
East*3
10W-30
5W-30*2, 5W-40
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
15W-40
weather operating (engine start and
10W-30
engine oil flowability). Lower viscosi-
Diesel Engine Oil
5W-30
ty engine oils can provide better fuel
0W-30
economy and cold weather perform-
ance, however, higher viscosity
*1 :For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
engine oils are required for satisfac-
5W-20
tory lubrication in hot weather. Using
*2 :For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
oils of any viscosity other than those
5W-30. However, if the engine oil is not available in your country, select the proper engine oil
recommended could result in engine
using the engine oil viscosity chart.
damage.
*3 :Middle East includes Morocco, Sudan and Egypt.
8-8

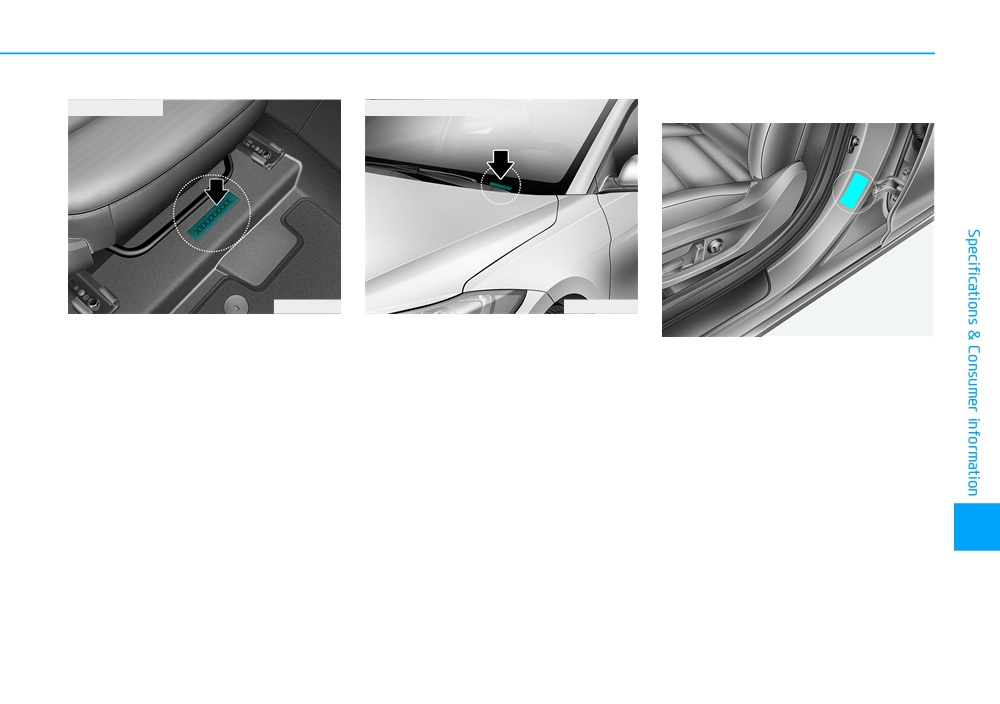

VEHICLE IDENTIFICATION NUMBER (VIN)
VEHICLE CERTIFICATION
■ Frame number
■ VIN label (if equipped)
LABEL
OAD085001
OAD085003
The vehicle identification number
The VIN is also on a plate attached
OAD085008L
(VIN) is the number used in register-
to the top of the dashboard. The
The vehicle certification label
ing your vehicle and in all legal mat-
number on the plate can easily be
attached on the driver’s (or front pas-
ters pertaining to its ownership, etc.
seen through the windshield from
senger’s) side center pillar gives the
outside.
The number is punched on the floor
vehicle identification number (VIN).
under the passenger seat. To check
the number, open the cover.
8
8-9
Specifications & Consumer information

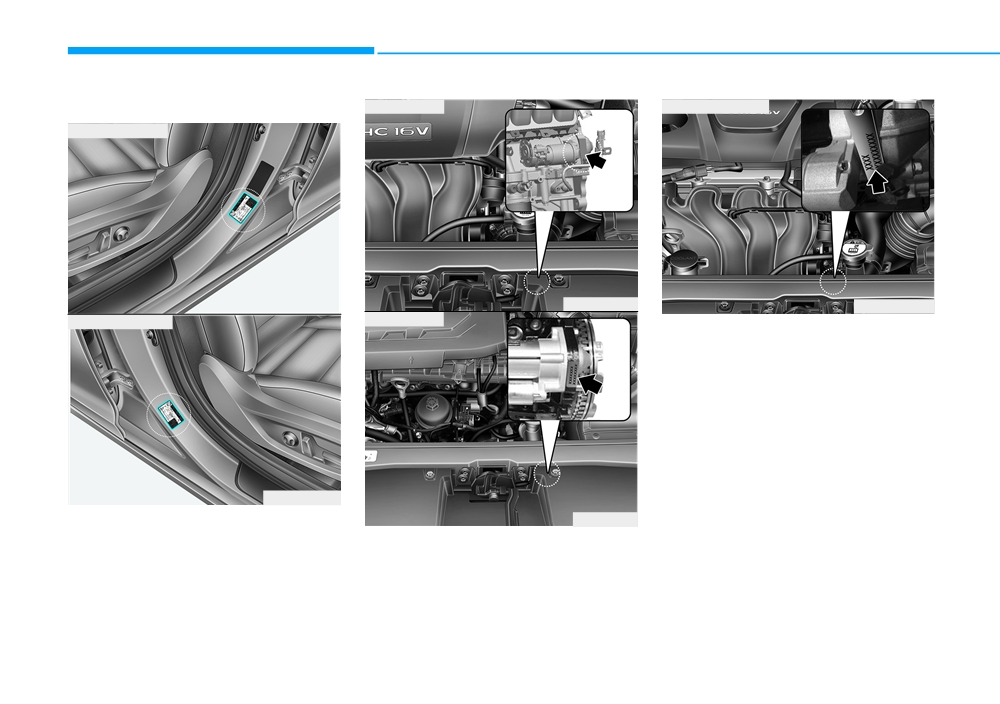

TIRE SPECIFICATION AND
ENGINE NUMBER
PRESSURE LABEL
■ Nu 2.0 MPI
■ Gamma 1.6 MPI
■ Left-hand drive
OAD085007L
OAD085009L
OAD085010L
■ Right-hand drive
■ U2 1.6 TCI
The engine number is stamped on
the engine block as shown in the
drawing.
OAD085007R
OAD085006
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.
8-10

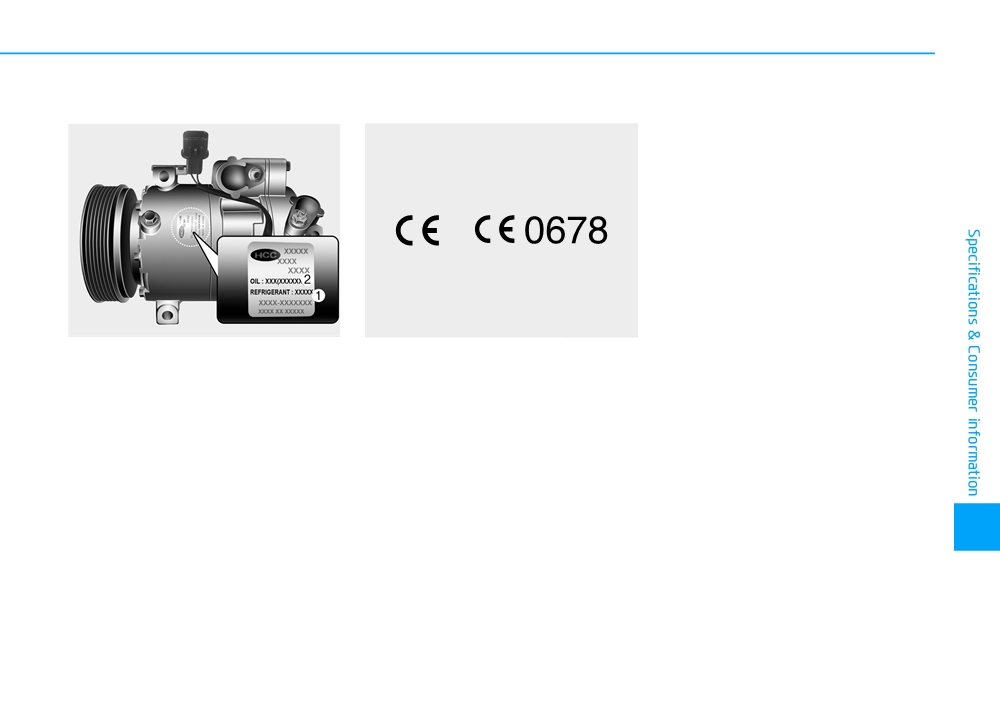

AIR CONDITIONER
DECLARATION OF
COMPRESSOR LABEL
CONFORMITY
■ Example
OHC081001
CE0678
A compressor label informs you the
The radio frequency components of
type of compressor your vehicle is
the vehicle comply with requirements
equipped with such as model, suppli-
and other relevant provisions of
er part number, production number,
Directive 1995/5/EC.
refrigerant (1) and refrigerant oil (2).
Further information including the
manufacturer's declaration of con-
formity is available on HYUNDAI
web site as follows:
