Hyundai Elantra (2017 year). Instruction - part 35

•

Always handle them carefully, and

8. Connect the headlamp bulb sock-

avoid scratches and abrasions. If

et-connector.

the bulbs are lit, avoid contact with

9. Install the headlamp bulb cover by

liquids.

turning it clockwise.

•

Never touch the glass with bare

hands. Residual oil may cause the

Information

bulb to overheat and burst when lit.

Low

High

The headlamp aiming should be

•

A bulb should be operated only

adjusted after an accident or after the

when installed in a headlamp.

headlamp assembly is reinstalled at an

•

If a bulb becomes damaged or

authorized HYUNDAI dealer.

cracked, replace it immediately

OAD075032

and carefully dispose of it.

1. Open the hood.

2. Disconnect the negative battery

cable.

3. Remove the headlamp bulb cover

by turning it counterclockwise.

4. Disconnect the headlamp bulb

socket-connector.

5. Unsnap the headlamp bulb retain-

ing wire by pressing the end and

pushing it upward.

6. Remove the bulb from the head-

lamp assembly.

7. Install a new headlamp bulb and

snap the headlamp bulb retaining

wire into position by aligning the

wire with the groove on the bulb.

7-89

Maintenance

HID Headlamp (Type C Low)

Information

If the HID lamp does not operate, we

HID lamps have superior perform-

recommend that the system be

ance vs. halogen bulbs.

checked by an authorized HYUNDAI

dealer.

HID lamps are estimated by the man-

ufacturer to last twice as long or

longer than halogen bulbs depending

WARNING

on their frequency of use. They will

probably require replacement at some

HID Headlight low beam

point in the life of the vehicle. Cycling

(if equipped)

the headlamps on and off more than

Do not attempt to replace or

typical use will shorten HID lamps

OAD075033

life. HID lamps do not fail in the same

inspect the low beam (XENON

Turn signal lamp

manner as halogen incandescent

bulb) due to electric shock dan-

lamps. If a headlamp goes out after a

1. Open the hood.

ger. If the low beam

(XENON

period of operation but will immedi-

2. Disconnect the negative battery

bulb) is not working, we recom-

ately relight when the headlamp

cable.

mend that the system be

switch is cycled it is likely the HID

checked by an authorized

3.Remove the socket from the

lamp needs to be replaced. HID light-

HYUNDAI dealer.

assembly by turning the socket

ing components are more complex

counterclockwise until the tabs on

than conventional halogen bulbs thus

the socket align with the slots on

have higher replacement cost.

the assembly.

4.Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7-90

5.Insert a new bulb by inserting it into

Daytime running lamp/

Side repeater lamp replace-

the socket and rotating it until it

Position lamp/Fog lamp

ment

locks into place.

If the LED lamp does not operate, we

6.Install the socket in the assembly

recommend that the system be

by aligning the tabs on the socket

checked by an authorized HYUNDAI

with the slots in the assembly.

dealer.

7.Push the socket into the assembly

and turn the socket clockwise.

OAD075035

If the LED lamp does not operate,

have the vehicle checked by an

authorized HYUNDAI dealer.

7-91

Maintenance

Headlamp and front fog lamp

1. Inflate the tires to the specified

Front fog lamp aiming

aiming (For Europe)

pressure and remove any loads

The front fog lamp can be aimed as

from the vehicle except the driver,

Headlamp aiming

the same manner of the headlamps

spare tire, and tools.

aiming.

■ without Headlight leveling device

2. The vehicle should be placed on a

With the front fog lamps and battery

flat floor.

in normal condition, aim the front fog

3. Draw vertical lines (Vertical lines

lamps.

passing through respective head

To aim the front fog lamp up or down,

lamp centers) and a horizontal line

turn the driver clockwise or counter-

(Horizontal line passing through

clockwise.

center of head lamps) on the

screen.

4. With the headlamp and battery in

normal condition, aim the head-

OAD075066L

■ Equipped with Headlight leveling device

lamps so the brightest portion falls

on the horizontal and vertical

lines.

5. To aim the low beam left or right,

turn the driver clockwise or coun-

terclockwise. To aim the low beam

up or down, turn the driver clock-

wise or counterclockwise.

To aim the high beam up or down,

turn the driver clockwise or coun-

OAD075067L

terclockwise.

7-92

Aiming point

H1 : Height between the head lamp bulb center and ground (Low beam)

H2 : Height between the head lamp bulb center and ground (High beam)

H3 : Height between the fog lamp bulb center and ground

W1 : Distance between the two head lamp bulbs centers (Low beam)

W2 : Distance between the two head lamp bulbs centers (High beam)

W3 : Distance between the two fog lamp bulbs centers

OAD075068L

Unit: mm (in)

Vehicle condition

Without driver

685 (26.97)

662 (26.06)

356 (14.02)

1,466 (57.72)

1,242 (48.90)

1,565 (61.61)

With driver

678 (26.69)

655 (25.79)

350 (13.78)

1,466 (57.72)

1,242 (48.90)

1,565 (61.61)

7-93

Maintenance

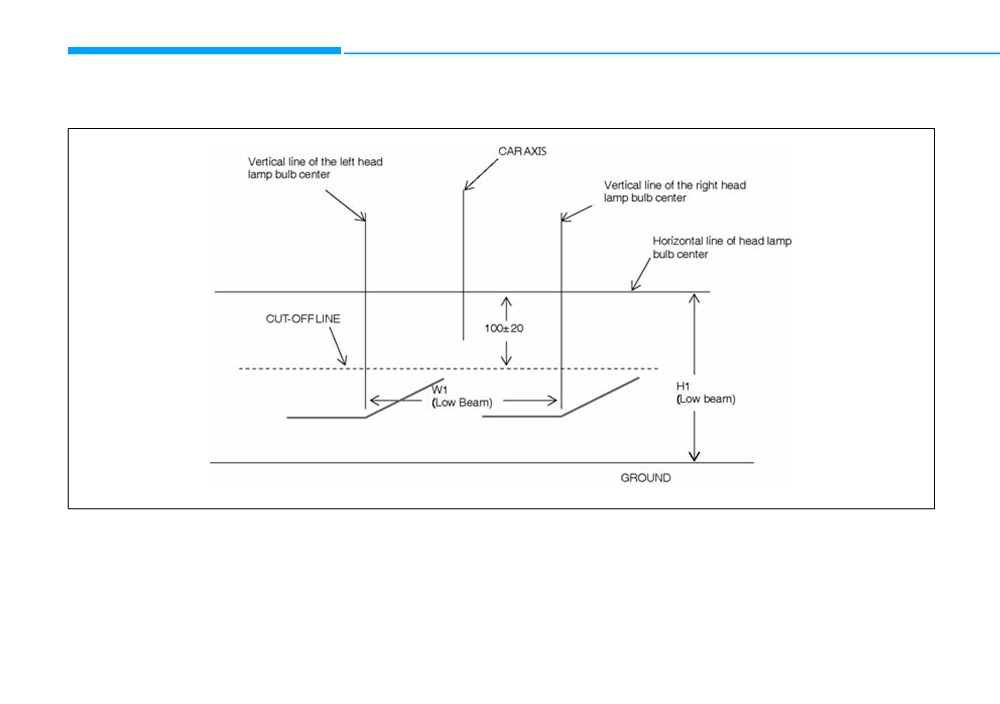

Headlamp low beam (LHD side)

■ Based on 10m screen

OAD075071L

1. Turn the low beam on without driver aboard.

2. The cut-off line should be projected in the cut-off line shown in the picture.

3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

7-94

Headlamp low beam (RHD side)

■ Based on 10m screen

CAR AXIS

Vertical line of the left

head lamp bulb center

Vertical line of the right head

lamp bulb center

Horizontal line of head

lamp bulb center

CUT-OFF LINE

100± 20

Low beam)

Low Beam)

GROUND

OAD075072L

1. Turn the low beam on without driver aboard.

2. The cut-off line should be projected in the cut-off line shown in the picture.

3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

7-95

Maintenance

Front fog lamp

■ Based on 10m screen

CAR AXIS

Vertical line of the left fog lamp bulb center

Vertical line of the right fog lamp bulb center

Upper limit

Horizontal line of fog lamp bulb center

CUT-OFF LINE

W3 (Front fog)

GROUND

OAD075073L

1. Turn the front fog lamp on without the driver aboard.

2. The cut-off line should be projected in the allowable range (shaded region).

7-96

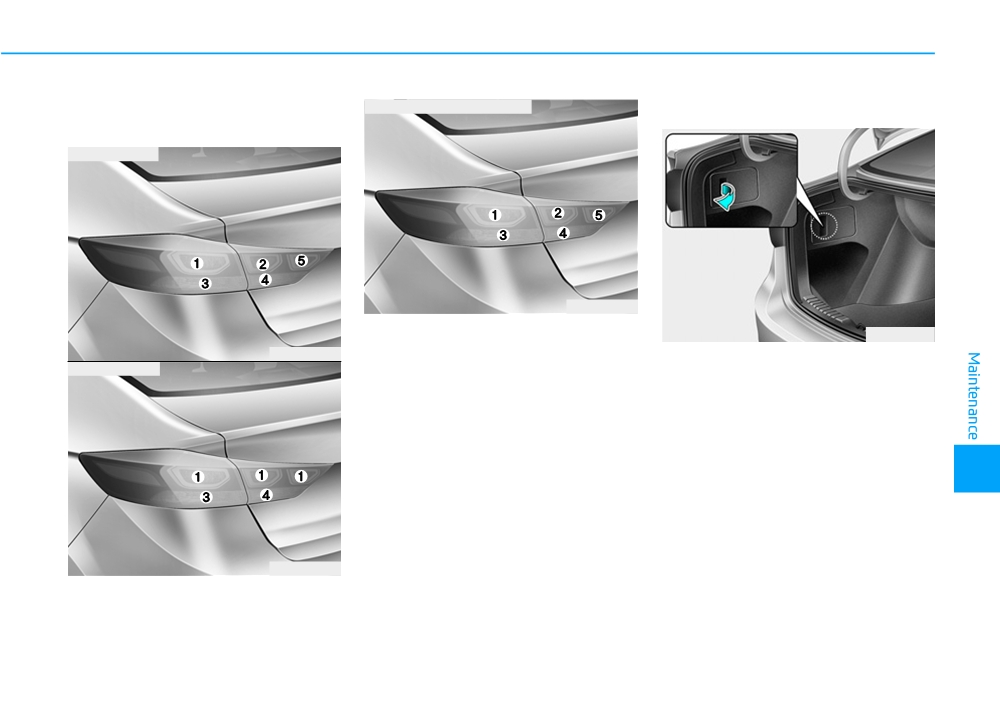

Rear combination lamp bulb

■ Type C (LED with fog lamp)

Outside lamp

replacement

■ Type A (Bulb)

OAD075036

(1) Tail/Stop lamp

OAD075049

OAD075036

(2) Tail lamp

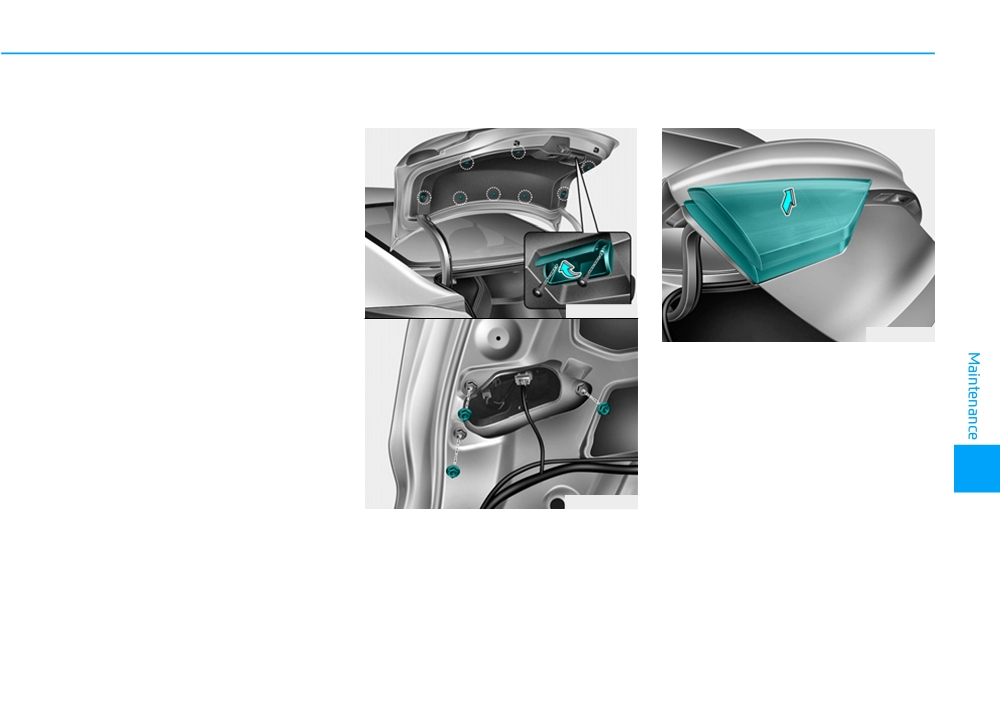

1.Open the trunk lid.

■ Type B (LED)

(3) Turn signal lamp

2.Remove the service cover by

(4) Back-up lamp

pulling out the service cover.

(5) Fog lamp (if equipped)

OAD075036

7-97

Maintenance

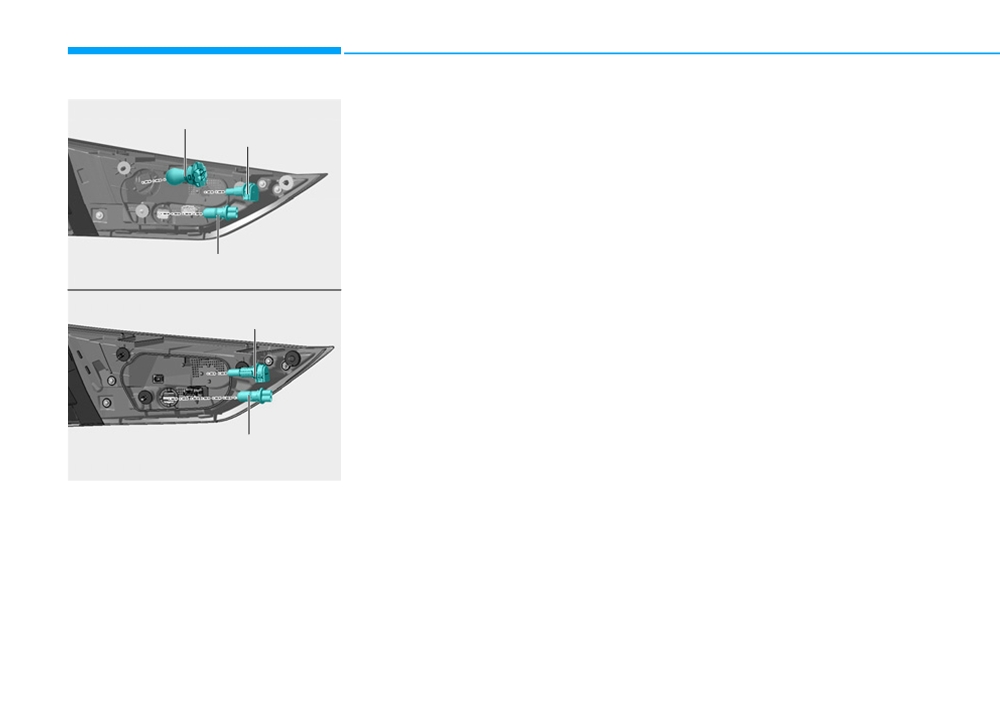

■ Type A

Tail/stop

Turn signal

OAD075037

■ Type B, C

OAD075051

OAD075050

3.Loosen the assembly retaining

4.Remove the rear combination light

nuts.

assembly from the body of the

vehicle.

Turn signal

OAD075038

Stop/Tail lamp and turn signal

lamp

5.Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

7-98

6.Remove the bulb from the socket

Inside lamp

Back up lamp

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7.Insert a new bulb by inserting it into

the socket and rotating it until it

locks into place.

8.Install the socket in the assembly

by aligning the tabs on the socket

with the slots in the assembly.

OAD075055

Push the socket into the assembly

OAD075056

and turn the socket clockwise.

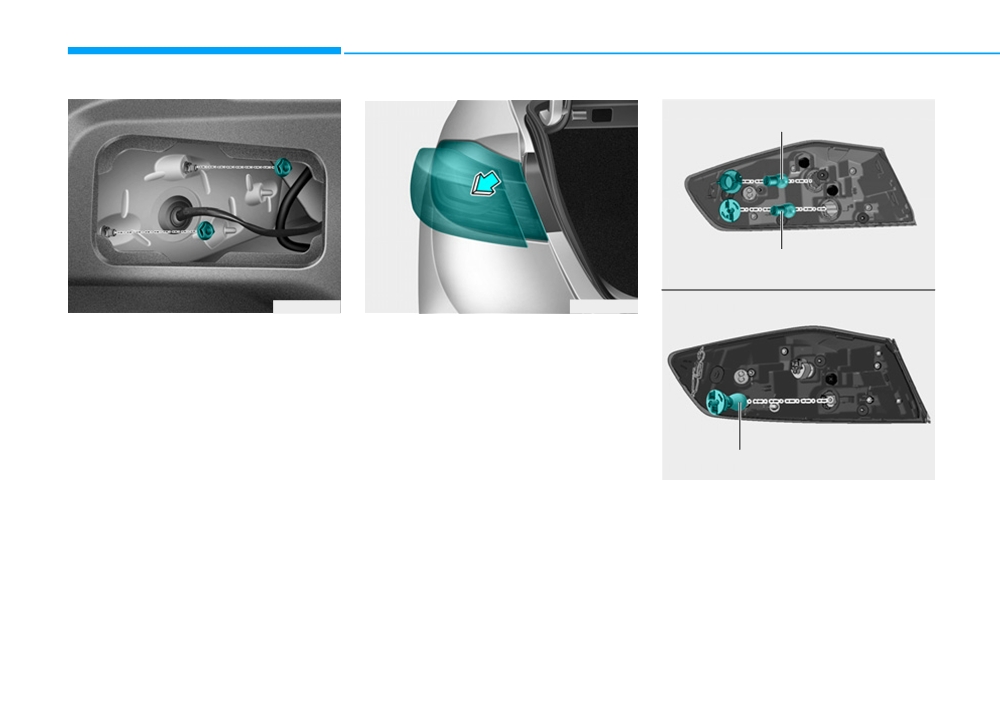

1.Take the light assembly out.

OAD075052

1.Open the trunk.

2.Loosen the retaining screw of the

trunk lid cover and then remove the

cover.

3.Disconnect the connector and then

remove the nuts by turning the nuts

counter clockwise.

7-99

Maintenance

■ Type A

5.Install the light assembly to the

Tail and rear fog lamp (if equipped)

Tail

Fog

trunk.

4.Remove the socket from the

(if equipped)

6.Reinstall the nuts and connector

assembly by turning the socket

and then the trunk lid cover by

counterclockwise until the tabs on

pushing in the screw.

the socket align with the slots on

the assembly.

5.Remove the bulb from the socket

by pressing it in and rotating it

Back up

counterclockwise until the tabs on

the bulb align with the slots in the

OAD075069L

■ Type B, C

socket. Pull the bulb out of the

Fog

socket.

(if equipped)

6.Insert a new bulb by inserting it into

the socket and rotating it until it

locks into place.

7.Install the socket in the assembly

by aligning the tabs on the socket

with the slots in the assembly.

Back up

Push the socket into the assembly

and turn the socket clockwise.

OAD075070L

2.Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

3.Remove the bulb by pulling it out

4.Insert a new bulb by inserting it into

the socket.

7-100

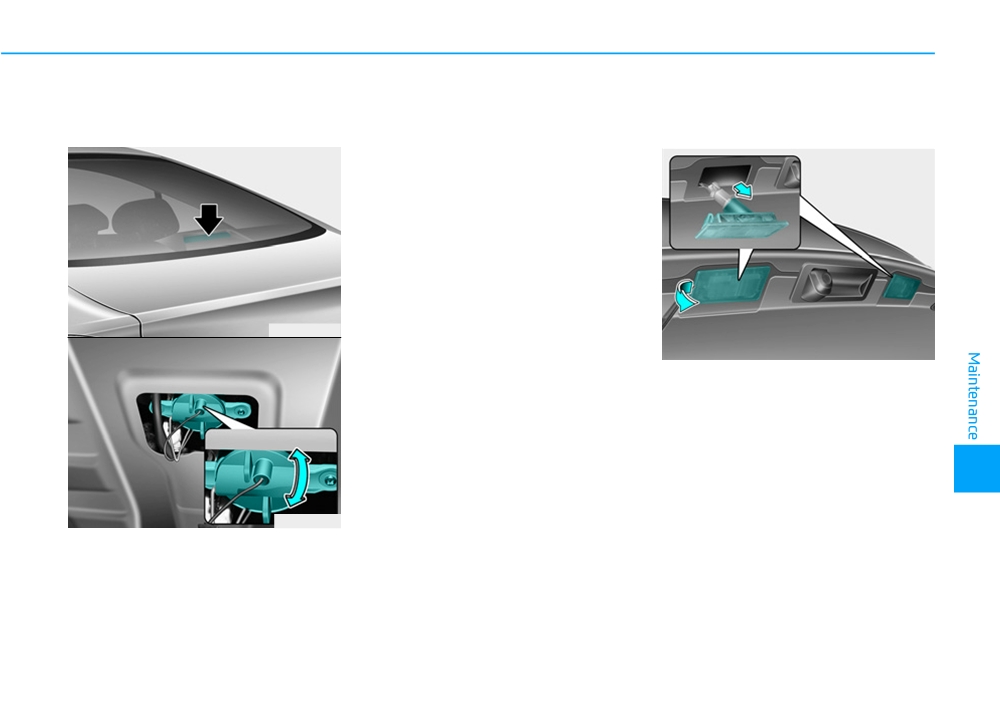

High mounted stop lamp

3.Remove the bulb from the socket

License plate light bulb

replacement

by pressing it in and rotating it

replacement

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

4.Insert a new bulb by inserting it into

the socket and rotating it until it

locks into place.

5.Install the socket in the assembly

by aligning the tabs on the socket

with the slots in the assembly.

OAD075041

Push the socket into the assembly

and turn the socket clockwise.

OAD075043

1.Remove the cover by pressing it as

direction of the arrows.

2.Remove the bulb by pulling it

straight out.

3.Install a new bulb.

4.Reinstall in the reverse order.

OAD075042

1.Open the trunk.

2.Remove the socket by turning it

counterclockwise until the tabs on

the socket align with the slots.

7-101

Maintenance

Interior light bulb replacement

1.Using a flat-blade screwdriver,

gently pry the lens from the interior

■ Map lamp

■ Luggage room lamp

light housing.

2.Remove the bulb by pulling it

straight out.

WARNING

Prior to working on the Interior

Lights, ensure that the “OFF”

button is depressed to avoid

burning your fingers or receiv-

OAD075044

OAD075047

ing an electric shock.

■ Room lamp

■ Sunvisor lamp

3.Install a new bulb in the socket.

4.Align the lens tabs with the interior

light housing notches and snap the

lens into place.

CAUTION

Use care not to dirty or damage

lens, lens tab, and plastic hous-

ings.

OAD075045

OAD075046

7-102

APPEARANCE CARE

Exterior care

Finish maintenance

NOTICE

Exterior general caution

Washing

•

Do not use strong soap, chemi-

To help protect your vehicle’s finish

It is very important to follow the label

cal detergents or hot water, and

directions when using any chemical

from rust and deterioration, wash it

do not wash the vehicle in direct

thoroughly and frequently at least

cleaner or polish. Read all warning

sunlight or when the body of the

and caution statements that appear

once a month with lukewarm or cold

vehicle is warm.

water.

on the label.

•

Be careful when washing the

If you use your vehicle for off-road

side windows of your vehicle.

driving, you should wash it after each

High-pressure washing

Especially, with high-pressure

off-road trip. Pay special attention to

•

When using high-pressure wash-

the removal of any accumulation of

water, water may leak through

ers, make sure to maintain suffi-

salt, dirt, mud, and other foreign

the windows and wet the interi-

cient distance from the vehicle.

materials. Make sure the drain holes

or.

Insufficient clearance or excessive

in the lower edges of the doors and

•

To prevent damage to the plastic

pressure can lead to component

rocker panels are kept clear and

parts and lamps, do not clean

damage or water penetration.

clean.

with chemical solvents or strong

Insects, tar, tree sap, bird droppings,

detergents.

•

Do not spray the camera, sensors

industrial pollution and similar

or its surrounding area directly with

deposits can damage your vehicle’s

a high pressure washer. Shock

finish if not removed immediately.

applied from high pressure water

Even prompt washing with plain

may cause the device to not oper-

water may not completely remove all

ate normally.

these deposits.

•

Do not bring the nozzle tip close to

A mild soap, safe for use on painted

boots (rubber or plastic covers) or

surfaces, may be used.

connectors as they may be dam-

After washing, rinse the vehicle thor-

aged if they come into contact with

oughly with lukewarm or cold water.

high pressure water.

Do not allow soap to dry on the finish.

7-103

Maintenance

Waxing

WARNING

Wax the vehicle when water will no

longer bead on the paint.

Wet brakes

Always wash and dry the vehicle

After washing the vehicle, test

before waxing. Use a good quality

the brakes while driving slowly

liquid or paste wax, and follow the

to see if they have been affected

manufacturer’s instructions. Wax all

by water. If braking performance

metal trim to protect it and to main-

is impaired, dry the brakes by

tain its luster. Removing oil, tar, and

applying them lightly while

similar materials with a spot remover

maintaining a slow forward

will usually strip the wax from the fin-

speed.

OLMB073082

ish. Be sure to re-wax these areas

even if the rest of the vehicle does

NOTICE

not yet need waxing.

•

Water washing in the engine

compartment including high

NOTICE

pressure water washing may

• Wiping dust or dirt off the body

cause the failure of electrical cir-

with a dry cloth will scratch the

cuits located in the engine com-

finish.

partment.

• Do not use steel wool, abrasive

•

Never allow water or other liq-

cleaners, or strong detergents

uids to come in contact with

containing highly alkaline or

electrical/electronic

compo-

caustic agents on chrome-plat-

nents inside the vehicle as this

ed or anodized aluminum parts.

may damage them.

This may result in damage to the

protective coating and cause

discoloration or paint deteriora-

tion.

7-104

Finish damage repair

Bright-metal maintenance

Underbody maintenance

Deep scratches or stone chips in the

•

To remove road tar and insects,

Corrosive materials used for ice and

painted surface must be repaired

use a tar remover, not a scraper or

snow removal and dust control may

promptly. Exposed metal will quickly

other sharp object.

collect on the underbody. If these

rust and may develop into a major

•

To protect the surfaces of bright-

materials are not removed, acceler-

repair expense.

ated rusting can occur on underbody

metal parts from corrosion, apply a

coating of wax or chrome preser-

parts such as the fuel lines, frame,

NOTICE

vative and rub to a high luster.

floor pan and exhaust system, even

though they have been treated with

•

During winter weather or in coastal

If your vehicle is damaged and

rust protection.

areas, cover the bright metal parts

requires any metal repair or

Thoroughly flush the vehicle under-

with a heavier coating of wax or

replacement, be sure the body

body and wheel openings with luke-

preservative. If necessary, coat the

shop applies anti-corrosion materi-

warm or cold water once a month,

parts with non-corrosive petroleum

als to the parts repaired or replaced.

after off-road driving and at the end of

jelly or other protective compound.

each winter. Pay special attention to

these areas because it is difficult to

see all the mud and dirt. It will do

more harm than good to wet down the

road grime without removing it. The

lower edges of doors, rocker panels,

and frame members have drain holes

that should not be allowed to clog with

dirt; trapped water in these areas can

cause rusting.

7-105

Content .. 33 34 35 36 ..
