Hyundai Elantra (2017 year). Instruction

Maintenance

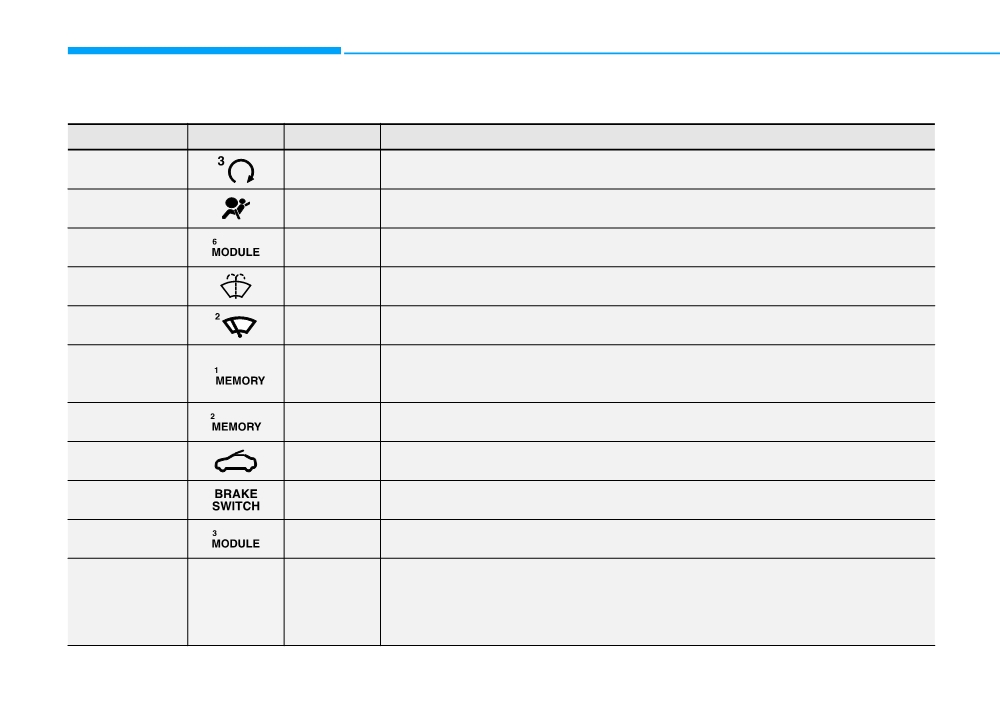

Driver’s side fuse panel

Fuse Name

Symbol

Fuse rating

Circuit Protected

BUTTON START3

7.5A

Immobilizer Module, Smart Key Control Module

A/BAG

15A

SRS Control Module

MODULE6

7.5A

Smart Key Control Module, BCM

WASHER

15A

Multifunction Switch

WIPER2

10A

BCM, ECM/PCM

Driver/Passenger Door Module, Driver IMS Module, BCM, Data Link Connector,

MEMORY1

10A

Digital Clock, Rain Sensor, A/C Control Module, Instrument Cluster,

ICM Relay Box (Outside Mirror Folding/Unfolding Relay)

MEMORY2

7.5A

Not Used

SUNROOF

20A

Sunroof Motor

BRAKE SWITCH

7.5A

Stop Lamp Switch, Smart Key Control Module

MODULE3

10A

Stop Lamp Switch, BCM, Sport Mode Switch, Driver Door Module, Passenger Door Module

MTS E-Call Module, Crash Pad Switch, A/T Shift Lever Indicator, A/V &,

Navigation Head Unit, A/C Control Module, Console Switch LH/RH,

MODULE5

10A

Head Lamp Leveling Device Actuator LH/RH, DC-DC Converter,

MODULE

Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module,

Rear Seat Warmer Control Module, Driver Ims Module

7-72

Driver’s side fuse panel

Fuse Name

Symbol

Fuse rating

Circuit Protected

SPARE3

15A

Spare

SPARE

SPARE5

25A

Spare

SPARE

S/HEATER REAR

25A

Rear Seat Warmer Control Module

AMP

25A

DC-DC Converter, AMP

SPARE4

SPARE

20A

Spare

BUTTON START2

7.5A

Smart Key Control Module, Immobilizer Module

IG1

25A

PCB Block (Fuse : F9, F10B, F12, F13) E/R Junction Block (RLY.13A)

AEB

10A

Not Used

MODULE4

10A

Parking Assist Buzzer, BCM, Blind Spot Detection Radar LH/RH

MODULE

P/WDW RH

25A

Power Window RH Rleay Driver Safety Power Window Module (RHD)

TRUNK

10A

Trunk Relay, Trunk Lid Latch

DRV

P/SEAT DRV

30A

Driver Seat Manual Switch, Driver Seat Manual Switch, Driver Ims Module

7-73

Maintenance

Driver’s side fuse panel

Fuse Name

Symbol

Fuse rating

Circuit Protected

S/HEATER

FRT

20A

Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module

FRONT

Burglar Alarm Relay, Transmission Range Switch, Ignition Lock & Clutch Switch,

START

7.5A

Smart Key Control Module, ECM/PCM, E/R Jnction Block (RLY.4)

BUTTON START1

15A

Smart Key Control Module

A/CON2

10A

E/R Junction Block (RLY.12), Blower Motor, Blower Resistor, A/C Control Module

SPARE1

SPARE

20A

Spare

P/WDW LH

25A

Power Window LH Rleay Driver Safety Power Window Module (LHD)

Ignition Key ILL. & Door Warning Switch, Trunk Room Lamp, Front Vanity Lamp, LH/RH,

INTERIOR LAMP

10A

Room Lamp, Overhead Console Lamp

Digital Clock, USB Charging Connector, MTS E-Call Module, Smart Key Control,

MODULE2

MODULE

10A

Module, BCM, Audio, A/V & Navigation Head Unit, Power Outside Mirror Switch,

DC-DC Converter, AMP, E/R Junction Block (RLY.14)

7-74

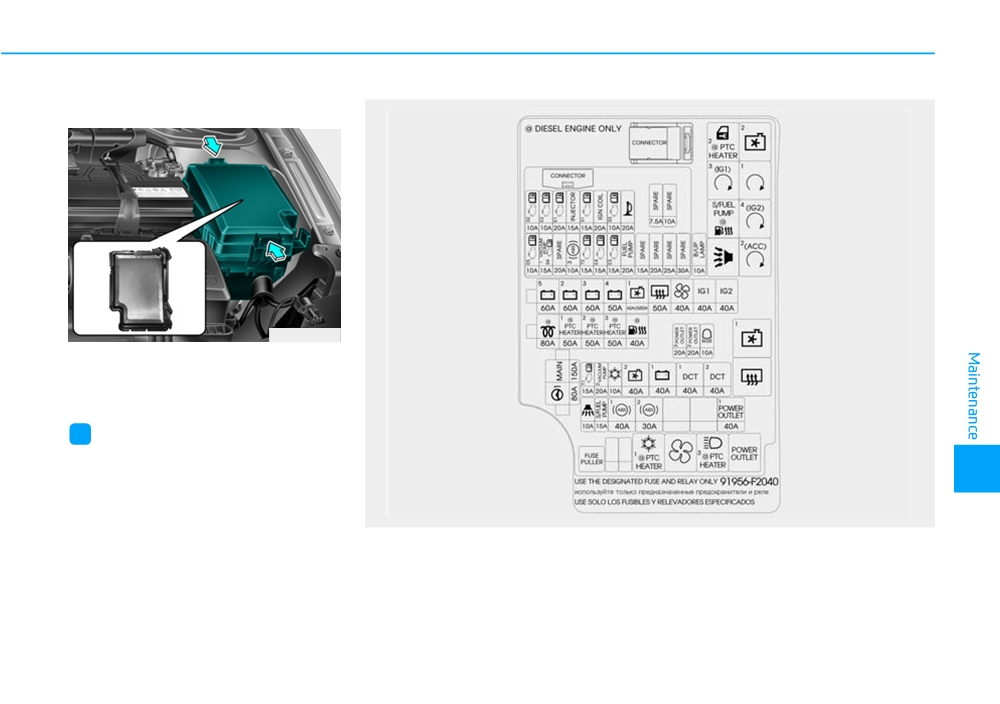

Engine compartment fuse panel

OAD075027

Inside the fuse/relay box covers, you

can find the fuse/relay label describ-

ing fuse/relay name and capacity.

Information

Not all fuse panel descriptions in this

manual may be applicable to your

vehicle. It is accurate at the time of

printing. When you inspect the fuse

OAD075065L

box on your vehicle, refer to the fuse

box label.

7-75

Maintenance

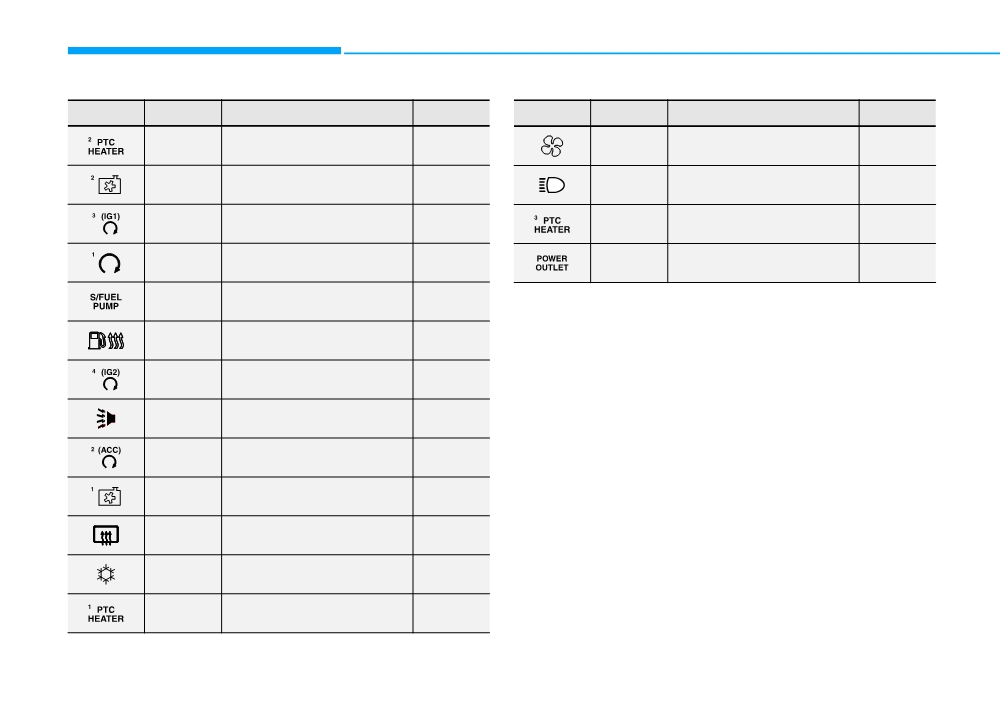

Symbol

Relay NO.

Relay Name

Type

Symbol

Relay NO.

Relay Name

Type

RLY. 1B

PTC HEATER #2 Relay

MICRO

RLY. 12

BLOWER Relay

MICRO

RLY. 2

COOLING FAN2 Relay

MICRO

RLY. 13A

H/LAMP HI Relay

MICRO

PTC HEATER #3 Relay

RLY. 3

PDM #3 (IG1) Relay

MICRO

RLY. 13B

MICRO

(D4FB)

POWER OUTLET Relay

RLY. 4

START #1 Relay

MICRO

RLY. 14

MICRO

(D4FB)

RLY. 5A

SUB FUEL PUMP Relay

MICRO

RLY. 5B

FUEL HEATER Relay (D4FB)

MICRO

RLY. 6

PDM #4 (IG2) Relay

MICRO

RLY. 7

B/ALARM HORN Relay

MICRO

RLY. 8

PDM #2 (ACC) Relay

MICRO

RLY. 9

COOLING FAN1 Relay

MINI

RLY. 10

REAR HEATED Relay

MINI

RLY. 11A

A/C Relay

MICRO

PTC HEATER #1 Relay

RLY. 11B

MICRO

(D4FB)

7-76

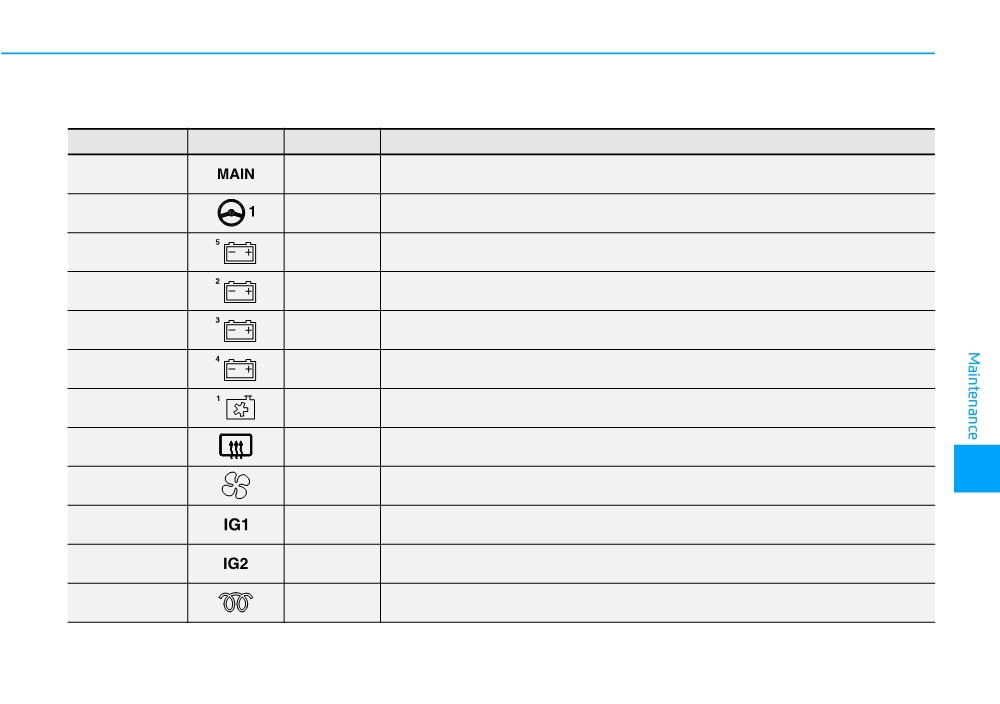

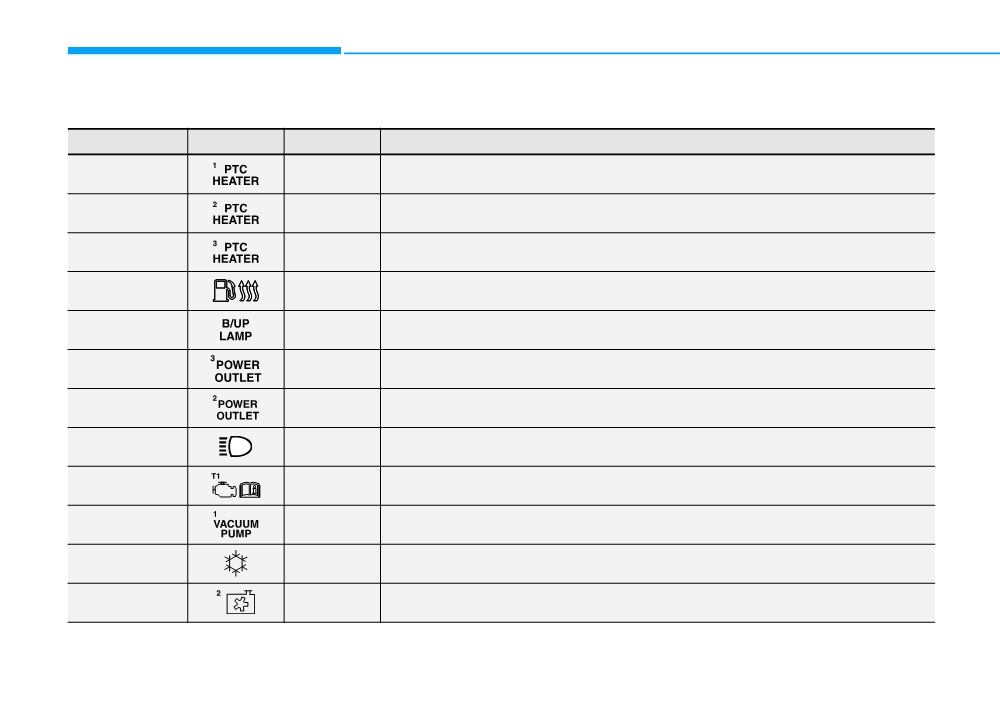

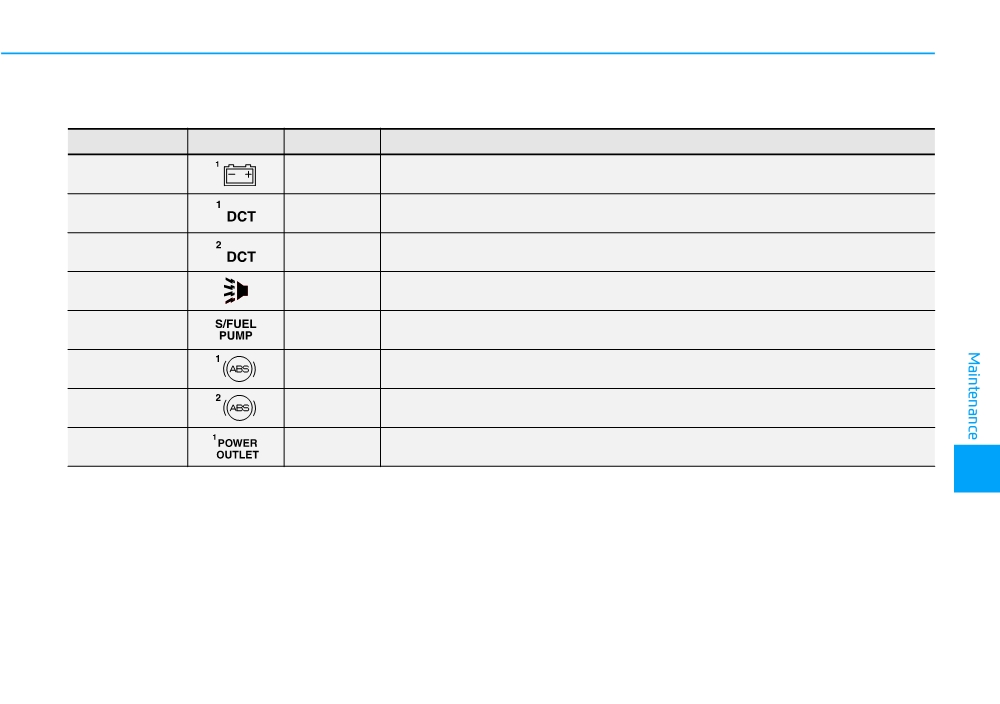

Engine compartment main fuse panel

Fuse Name

Symbol

Fuse rating

Circuit Protected

MAIN

150A

Fuse : F28, F29, F30, F31, F34

MDPS1

80A

MDPS Unit

BATT5

60A

PCB Block (Fuse : F8, F14, F15, F16, Engine Control Relay)

BATT2

60A

Smart Junction Block (Fuse : F36, ARISU)

BATT3

60A

Smart Junction Block (Fuse : ARISU, IPS)

BATT4

50A

Smart Junction Block (Fuse : F20, F26, F27, F33, F34, F35, F41)

COOLING FAN1

50A

RLY.9, RLY.2 (DSL)

RR HTD

50A

RLY.10

BLOWER

40A

RLY.12

IG1

40A

Ignition Switch, E/R Junction Block (RLY.3, RLY8)

IG2

40A

Ignition Switch, E/R Junction Block (RLY.6)

GLOW

80A

Glow Relay Unit

7-77

Maintenance

Engine compartment main fuse panel

Fuse Name

Symbol

Fuse rating

Circuit Protected

PTC HEATER1

50A

RLY.11B

PTC HEATER2

50A

RLY.1B

PTC HEATER3

50A

RLY.13B

FUEL HEATER

40A

RLY.5B

Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH, Audio, MTS E-Call Module,

B/UP LAMP

10A

Smart Junction Block (IPS Control Module)

POWER

20A

Cigarette Lighter

OUTLET3

POWER

20A

Power Outlet

OUTLET2

HEAD LAMP HI

20A

RLY.13A

TCU1

15A

TCM

VACUUM PUMP1

20A

Net Used

A/CON

10A

Net Used

COOLING FAN2

40A

RLY.9, RLY.2 (GSL)

7-78

Engine compartment main fuse panel

Fuse Name

Symbol

Fuse rating

Circuit Protected

Smart Junction Block (LEAK CURRENT AUTOCUT DEVICE,

BATT1

40A

Fuse : F10, F12, F21, F29, F38)

DCT1

40A

TCM

DCT2

40A

TCM

B/ALARM HORN

10A

RLY.7

S/FUEL PUMP

15A

RLY.5

ABS1

40A

ABS Control Module, ESC Control Module, Multipurpose Check Connector

ABS2

30A

ABS Control Module, ESC Control Module, Multipurpose Check Connector

POWER

40A

RLY.14

7-79

Maintenance

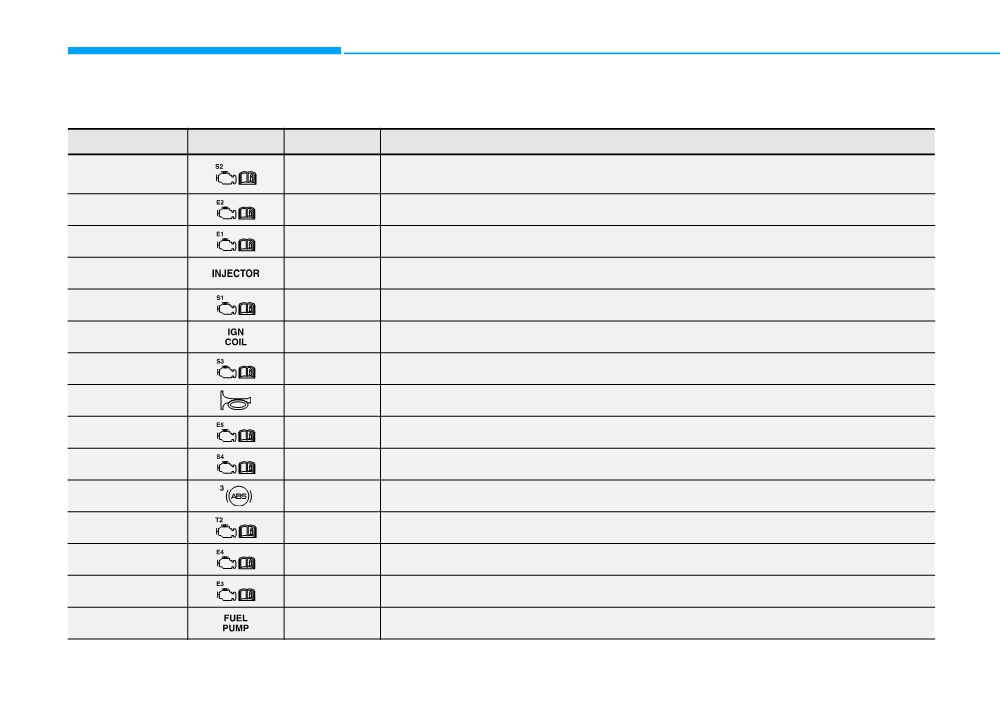

Engine compartment main fuse panel - PCB Block (Gamma 1.6 MPI)

Fuse Name

Symbol

Fuse rating

Circuit Protected

Purge Control Solenoid Valve, Variable Intake Solenoid Valve,

SNSR2

10A

E/R Junction Block (RLY.2, RLY.9)

ECU2

15A

ECU1

10A

ECM/PCM

INJ.

15A

INJECTOR #1~#4

SNSR1

15A

Oxygen Sensor (Up), Oxygen Sensor (Down)

IGN.

15A

Ignition Coil #1~#4, Condenser

SNSR3

20A

Fuel Pump Relay, Oil Control Valve #1, Oil Control Valve #2

HORN

10A

Horn Relay

ECU5

10A

ECM/PCM

SNSR4

20A

ABS3

15A

ABS/ESC Control Module, Multipurpose Check Connector

TCU2

15A

Vehicle Speed Sensor, Transmission Range Switch, E/R Junction Block (Fuse : F17)

ECU4

20A

ECM/PCM

ECU3

10A

ECM/PCM

F/PUMP

20A

Fuel Pump Relay

7-80

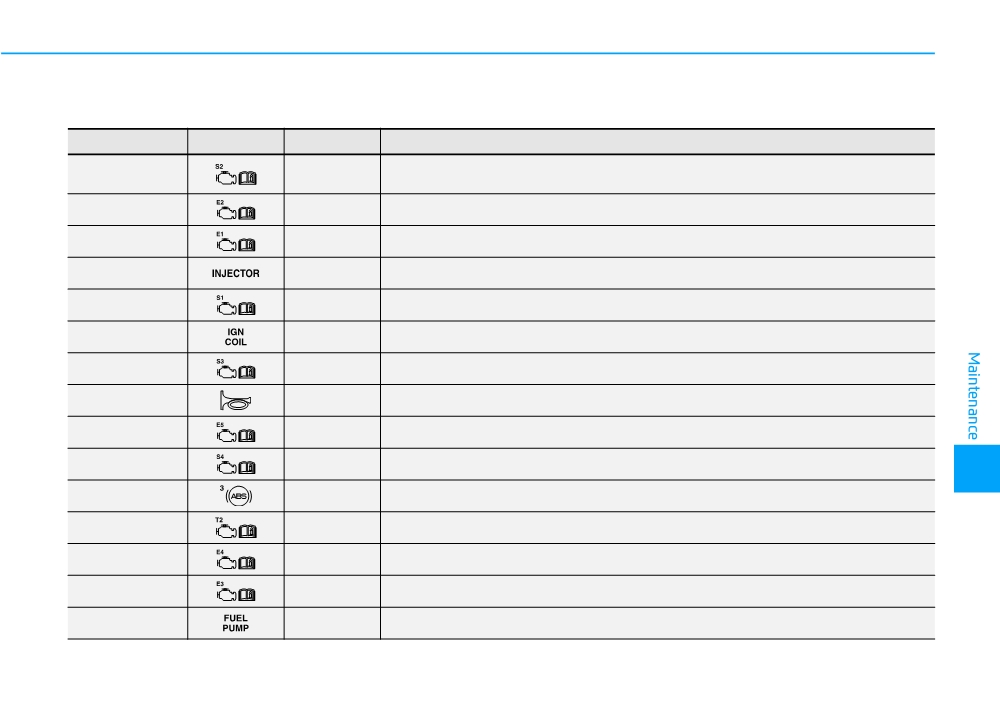

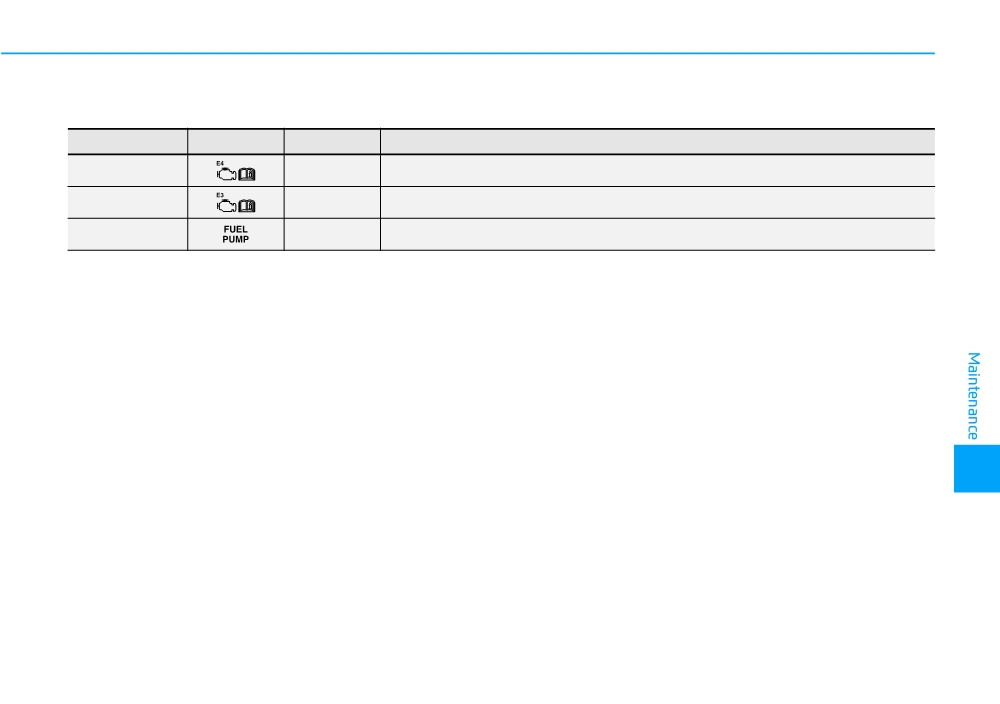

Engine compartment main fuse panel - PCB Block (Nu 2.0 MPI)

Fuse Name

Symbol

Fuse rating

Circuit Protected

Purge Control Solenoid Valve, Variable Intake Solenoid Valve,

SNSR2

10A

E/R Junction Block (RLY.2, RLY.9), Cold Start Solenoid Valve

ECU2

15A

PCM

ECU1

10A

INJ.

15A

INJECTOR #1~#4

SNSR1

15A

Oxygen Sensor (Up), Oxygen Sensor (Down)

IGN.

15A

Ignition Coil #1~#4, Condenser

SNSR3

20A

Fuel Pump Relay, Oil Control Valve #1, Oil Control Valve #2

HORN

10A

Horn Relay

ECU5

10A

PCM

SNSR4

20A

ABS3

15A

ABS/ESC Control Module, Multipurpose Check Connector

TCU2

15A

Vehicle Speed Sensor, Transmission Range Switch, E/R Junction Block (Fuse : F17)

ECU4

20A

PCM

ECU3

10A

PCM

F/PUMP

20A

Fuel Pump Relay

7-81

Maintenance

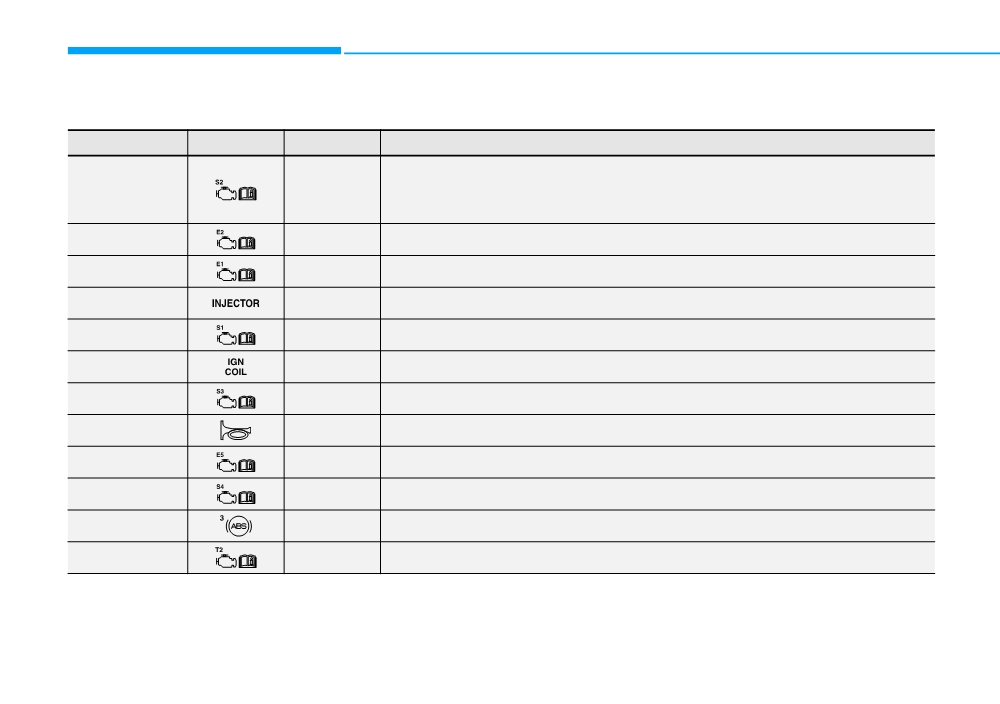

Engine compartment main fuse panel - PCB Block (UII 1.6 TCI)

Fuse Name

Symbol

Fuse rating

Circuit Protected

Electronic Vgt Actuator, Egr Cooling Bypass Solenoid Valve,

SNSR2

10A

Stop Lamp Switch, Pm (Particulate Matter) Sensor, Fuel Pressure Regulating Valve,

Rail Pressure Regulating Valve, E/R Junction Block (RLY.2, RLY.9, RLY.5B, RLY,11B)

ECU2

15A

ECU1

10A

ECM

INJ.

15A

SNSR1

15A

Lambda Sensor #1, Lambda Sensor #2

IGN.

15A

SNSR3

20A

Fuel Pump Relay, Air Flow Sensor, Camshaft Position Sensor, Oil Control Valve

HORN

10A

Horn Relay

ECU5

10A

ECM

SNSR4

20A

Fuel Filter Warning Sensor, Glow Relay Unit

ABS3

15A

ABS/ESC Control Module, Multipurpose Check Connector

TCU2

15A

TCM, Transmission Range Switch

7-82

Maintenance

LIGHT BULBS

Consult an authorized HYUNDAI

WARNING

CAUTION

dealer to replace most vehicle light

bulbs. It is difficult to replace vehicle

If you don’t have necessary

Prior to working on the light,

light bulbs because other parts of the

tools, the correct bulbs and the

firmly apply the parking brake,

vehicle must be removed before you

expertise, consult an authorized

ensure that the ignition switch

can get to the bulb. This is especially

HYUNDAI dealer. In many cases,

is in the LOCK/OFF position

true for removing the headlamp

it is difficult to replace vehicle

and turn off the lights to avoid

assembly to get to the bulb(s).

light bulbs because other parts

sudden movement of the vehi-

Removing/installing the headlamp

of the vehicle must be removed

cle and burning your fingers or

assembly can result in damage to

receiving an electric shock.

before you can get to the bulb.

the vehicle.

This is especially true if you

have to remove the headlamp

NOTICE

assembly to get to the bulb(s).

Be sure to replace the burned-out

Removing/installing the head-

bulb with one of the same wattage

lamp assembly can result in

rating. Otherwise, it may cause

damage to the vehicle.

damage to the fuse or electric

wiring system.

7-84

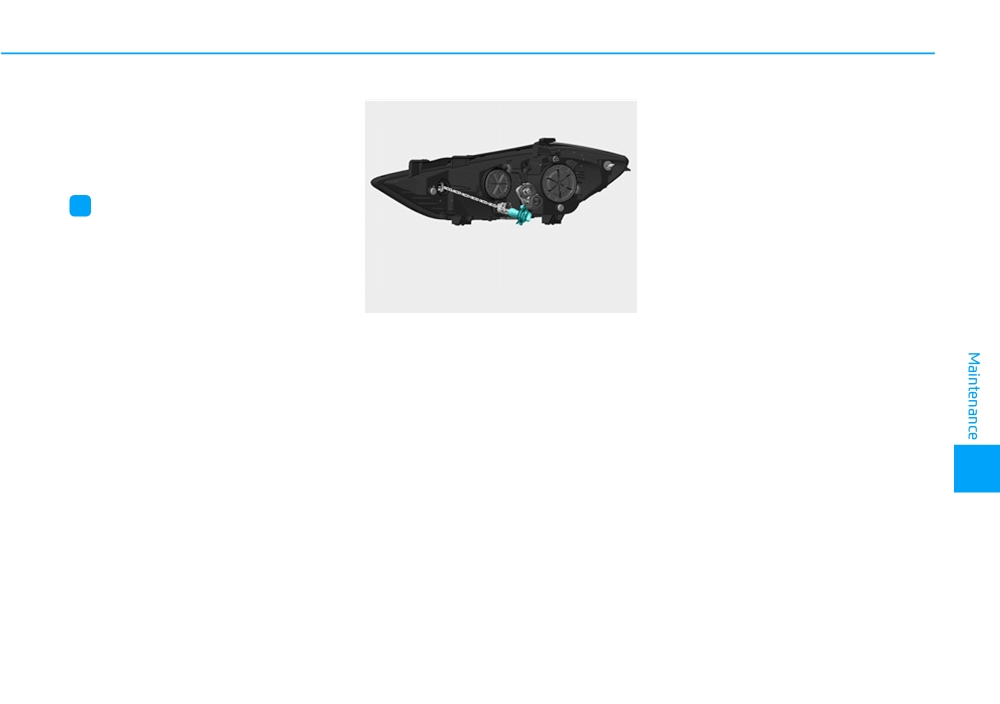

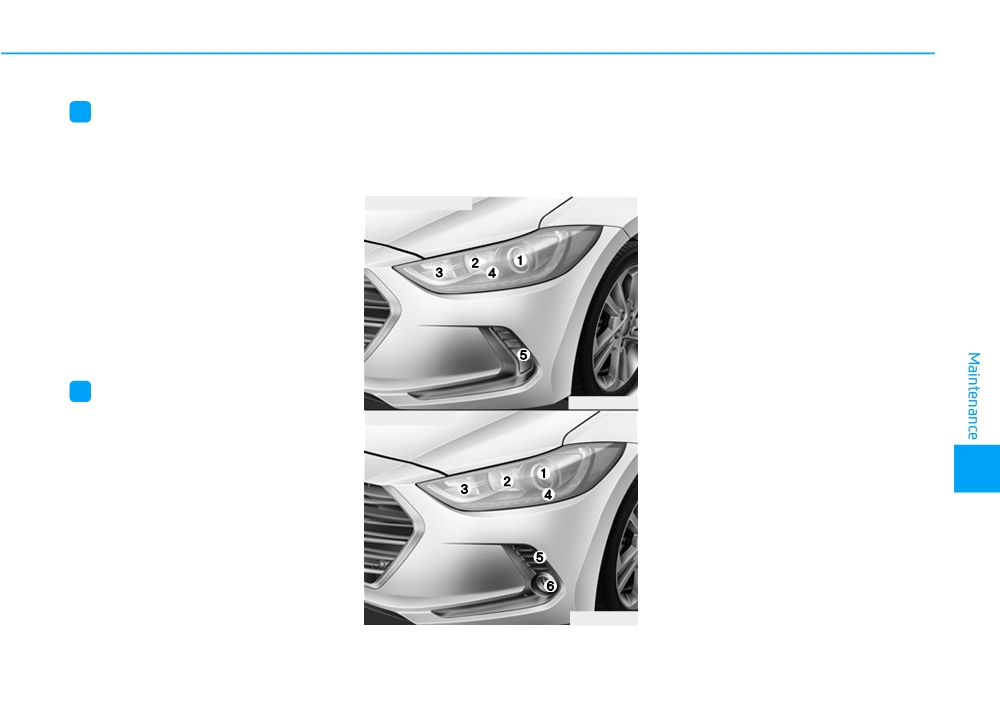

Headlamp, position lamp,

(1) Headlamp (Low)

Information

turn signal lamp and fog lamp

(2) Headlamp (High)

After heavy driving, rain or washing,

light bulb replacement

(3) Turn signal lamp

headlamp and tail lamp lenses could

appear frosty. This condition is caused

Type A - Standard

(4) Position lamp

by the temperature difference between

(5) Daytime running lamp (DRL)

■ without fog lamp

the lamp inside and outside.

(6) Fog lamp (if equipped)

This is similar to the condensation on

your windows inside your vehicle dur-

ing the rain and doesn’t indicate a

problem with your vehicle. If the

water leaks into the lamp bulb circuit-

ry, we recommend that the system be

checked by an authorized HYUNDAI

dealer.

Information (For Europe)

OAD075048

The low beam light distribution is

■ with fog lamp

asymmetric. If you go abroad to a

country with opposite traffic direction,

this asymmetric part will dazzle

oncoming car driver. To prevent daz-

zle, ECE regulation demand several

technical solutions

(ex. automatic

change system, adhesive sheet, down

aiming). These headlamps are designed

not to dazzle opposite drivers. So, you

need not change your headlamps in a

country with opposite traffic direction.

OAD075031

7-85

Maintenance

•

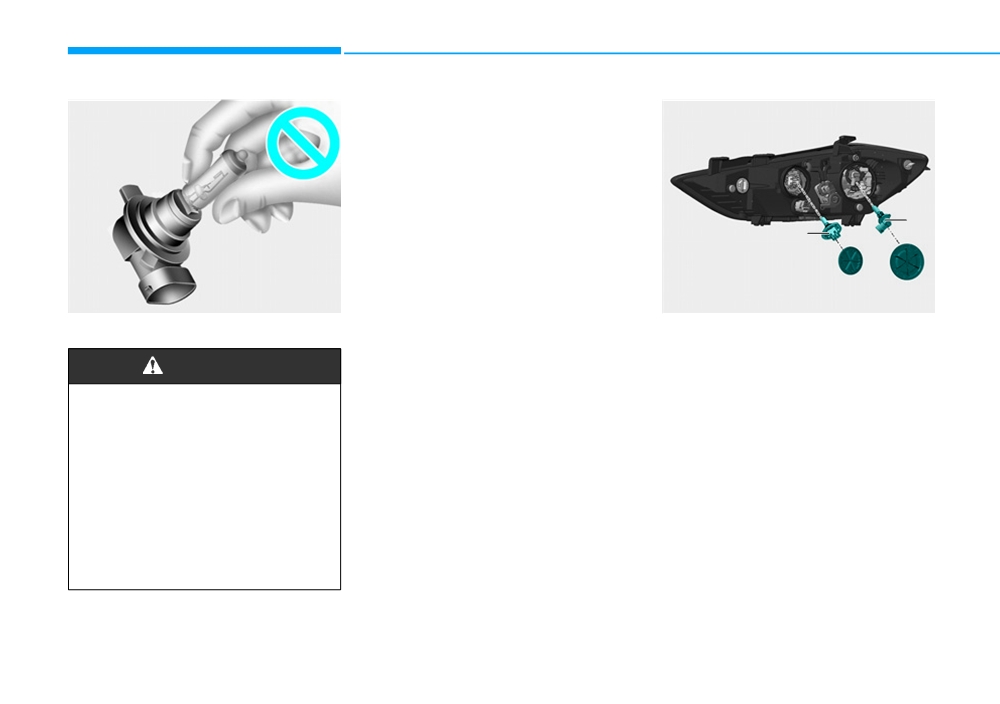

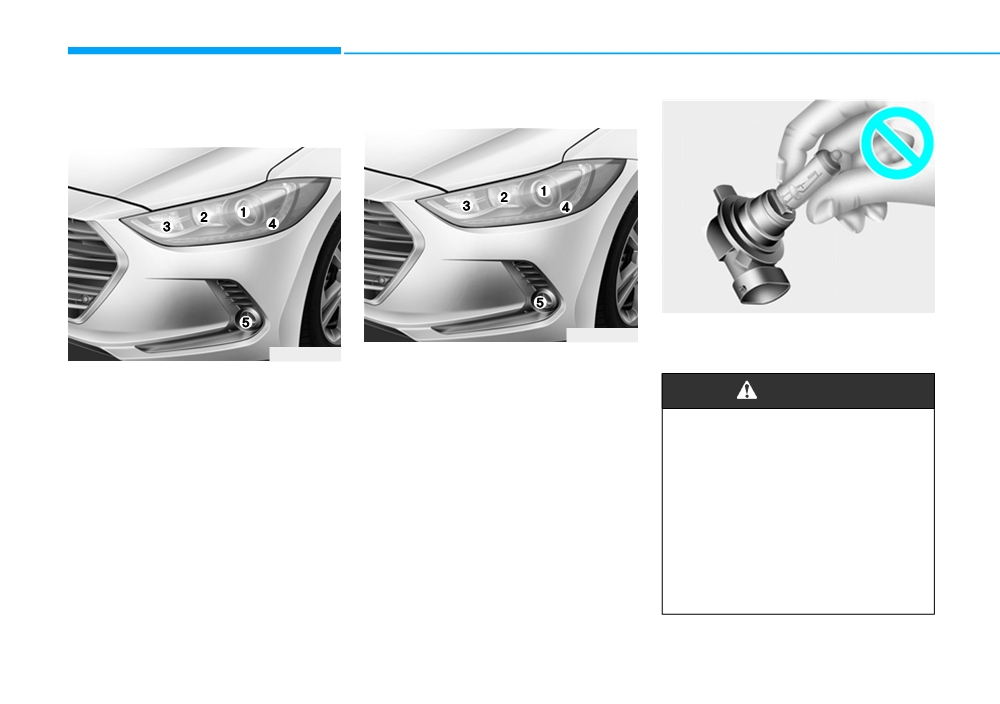

Always handle them carefully, and

avoid scratches and abrasions. If

the bulbs are lit, avoid contact with

liquids.

•

Never touch the glass with bare

hands. Residual oil may cause the

bulb to overheat and burst when lit.

Low

High

•

A bulb should be operated only

when installed in a headlamp.

•

If a bulb becomes damaged or

cracked, replace it immediately

OLMB073042L

OAD075032

and carefully dispose of it.

Headlamp (Halogen bulb)

1. Open the hood.

2. Disconnect the negative battery

WARNING

cable.

3. Remove the headlamp bulb cover

•

Handle halogen bulbs with

by turning it counterclockwise.

care. Halogen bulbs contain

4. Disconnect the headlamp bulb

pressurized gas that will pro-

socket-connector.

duce flying pieces of glass

that could cause injuries if

5. Unsnap the headlamp bulb retain-

broken.

ing wire by pressing the end and

pushing it upward.

•

Wear eye protection when

changing a bulb. Allow the

6. Remove the bulb from the head-

bulb to cool down before han-

lamp assembly.

dling it.

7. Install a new headlamp bulb and

snap the headlamp bulb retaining

wire into position by aligning the

wire with the groove on the bulb.

7-86

8. Connect the headlamp bulb sock-

5.Insert a new bulb by inserting it into

et-connector.

the socket and rotating it until it

locks into place.

9. Install the headlamp bulb cover by

turning it clockwise.

6.Install the socket in the assembly

by aligning the tabs on the socket

with the slots in the assembly.

Information

7.Push the socket into the assembly

The headlamp aiming should be

and turn the socket clockwise.

adjusted after an accident or after the

headlamp assembly is reinstalled at an

authorized HYUNDAI dealer.

Daytime running lamp/

OAD075033

Position lamp/Fog lamp

If the LED lamp does not operate, we

Turn signal lamp

recommend that the system be

1. Open the hood.

checked by an authorized HYUNDAI

2. Disconnect the negative battery

dealer.

cable.

3.Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

4.Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7-87

Maintenance

Type B - LED Daytime running

Type C - HID headlamp

lamp

OLMB073042L

Halogen Headlamp

OAD075031

(Type B Low/High, Type C High)

OAD075031

(1) Headlamp (Low)

(2) Headlamp (High)

WARNING

(2) Headlamp (High)

(3) Turn signal lamp

(4) Position lamp/

• Handle halogen bulbs with

(4) Position lamp/

Daytime running lamp (DRL)

care. Halogen bulbs contain

Daytime running lamp (DRL)

(5) Fog lamp

pressurized gas that will pro-

(5) Fog lamp

duce flying pieces of glass

that could cause injuries if

broken.

• Wear eye protection when

changing a bulb. Allow the

bulb to cool down before han-

dling it.

7-88

Hyundai Elantra (2017 year). Instruction - part 34
