Convenient features of your vehicle

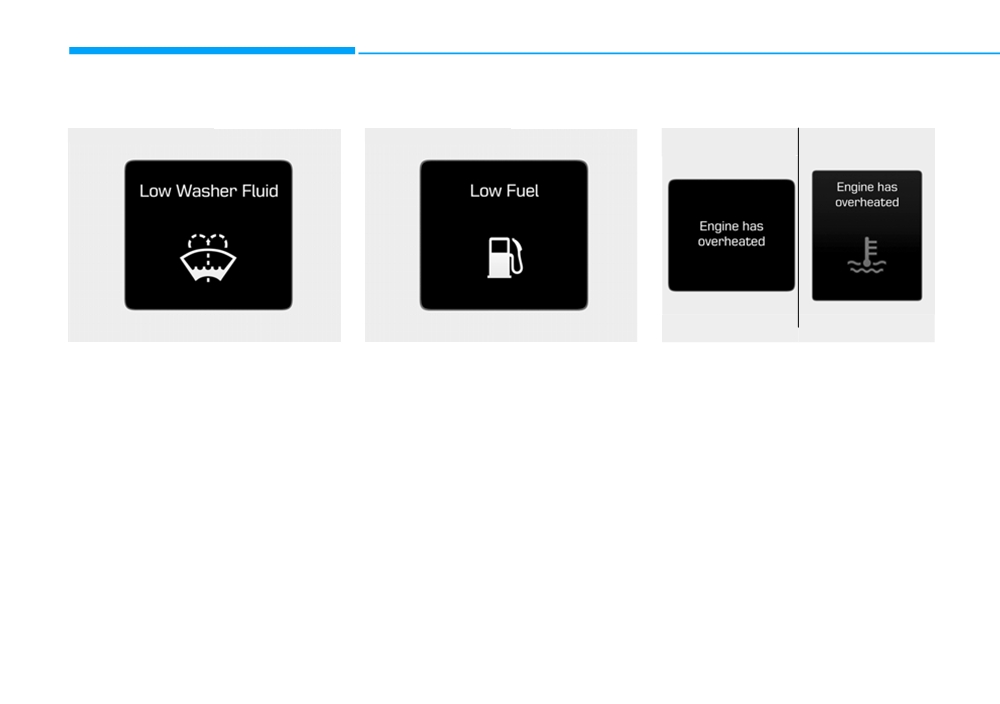

Low Washer Fluid (if equipped)
Low Fuel
Engine has overheated
■ Supervision cluster
■ Supervision cluster
■ Supervision cluster
■ Supervision cluster
(Type A)
(Type B)
OTL045159L
OTL045160L
OAD045125L/OAD045126L
This warning message is displayed
This warning message is displayed if
This warning message is displayed
in the service reminder mode if the
the fuel tank is almost out of fuel.
when the engine coolant tempera-
washer fluid level in the reservoir is
When this message is displayed, the
ture is above
120°C (248°F). This
nearly empty.
means that the engine is overheated
low fuel level warning light in the
Have the washer fluid reservoir
cluster will come on.
and may be damaged.
refilled.
It is recommended to look for the
If your vehicle is overheated, refer
nearest fueling station and refuel as
to "Overheating" in chapter 6.
soon as possible.
Add fuel as soon as possible.
3-80

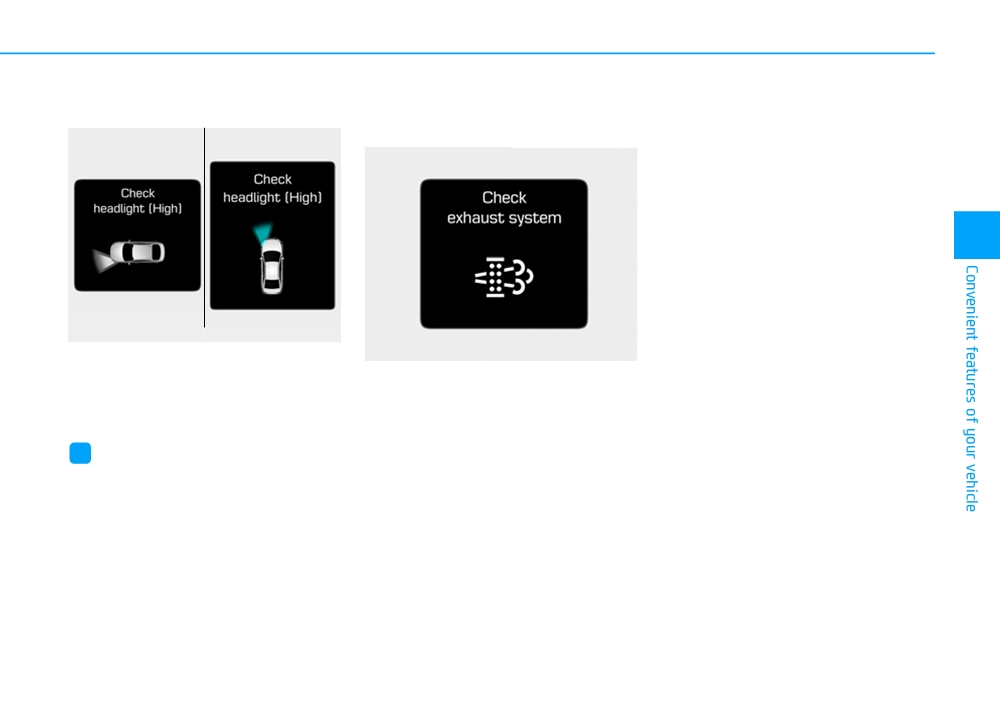

Check headlight (if equipped)
Diesel Particulate Filter (DPF)
warning (for diesel engine)
■ Supervision cluster
■ Supervision cluster
(Type A)
(Type B)
■ Supervision cluster
3
OAD045141L/OAD045142L
OTL045165L
This warning message is displayed if
the headlamps are not operating
This warning message is displayed if
properly. The headlamp bulb may
the DPF system has a malfunction.
need to be replaced.
At this time, DPF warning light also
blinks.
i
Information
In this case, we recommend that you
have the DPF system checked by an
Make sure to replace the burned out
authorized HYUNDAI dealer.
bulb with a new one of the same
wattage rating.
For more details, refer to "Warning
Lights" in this chapter.
3-81
Convenient features of your vehicle
LCD DISPLAY (FOR SUPERVISION CLUSTER)
LCD display control
LCD modes
■ Type A
Modes
Symbol
Explanation
This mode displays driving information like
the tripmeter, fuel economy, etc.
Trip Computer
For more details, refer to "Trip Computer"
in this chapter.
■ Type B
Turn By Turn
This mode displays the state of the navi-
(TBT)
gation.
(if equipped)
A/V
This mode displays the state of the A/V
OAD045109L
(If equipped)
system.
The LCD display modes can be
changed by using the control buttons.
This mode displays the service interval
(mileage or days) and warning messages
Information
or
or
related to the Blind Spot Detection system,
(1)
: MODE button for changing
etc.
modes
(2) ▲, ▼ : MOVE switch for chang-
In this mode, you can change settings of
ing items
User Settings
the doors, lamps, etc.
(3) OK : SELECT/RESET button for
setting or resetting the
selected item
3-82

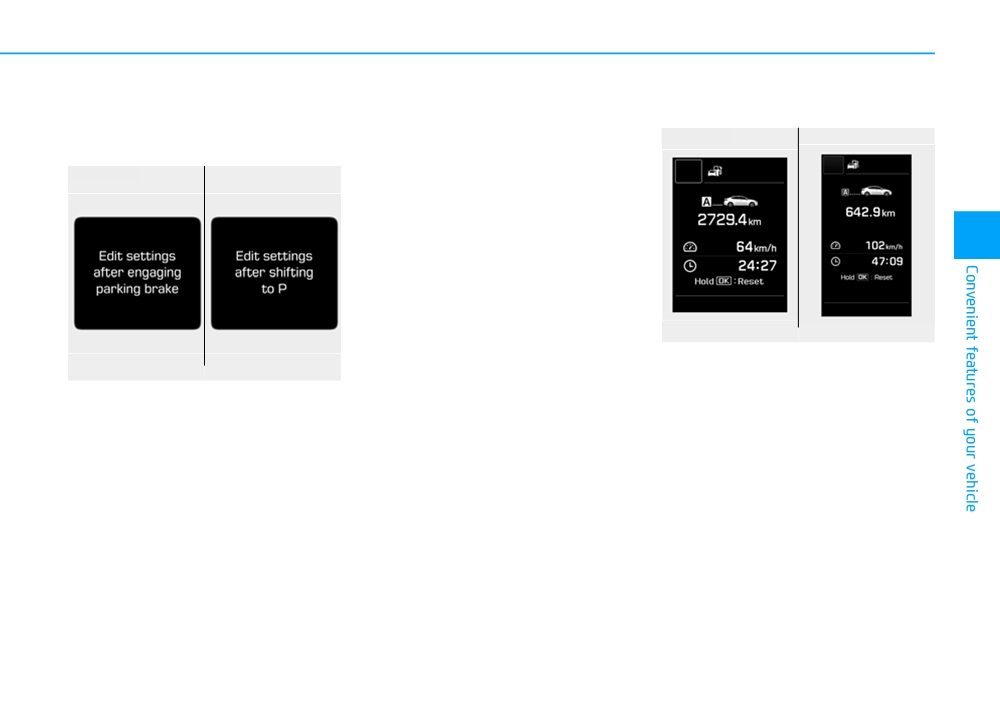

Edit settings after engaging
Quick guide (Help, if equipped)
Trip computer mode
parking brake / Edit settings
This mode provides quick guides for
■ Type A
■ Type B
after shifting to P
the systems in the User Settings
mode.
■ Type A
■ Type B
Select an item, press and hold the
OK button.
3
For more details about each sys-
tem, refer to this Owner’s Manual.
OAD045166L/OAD045165L
The trip computer mode displays
OAD045161L/OAD045162L
information related to vehicle driving
This warning message appears if
parameters including fuel economy,
you try to adjust the User Settings
trip meter information and vehicle
while driving.
speed.
- Automatic transmission / dual
For more details, refer to "Trip
clutch transmission
Computer" in this chapter.
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and mov-
ing the shift lever to P (Park).
- Manual transmission
For your safety, change the User
Settings after engaging the parking
brake.
3-83
Convenient features of your vehicle

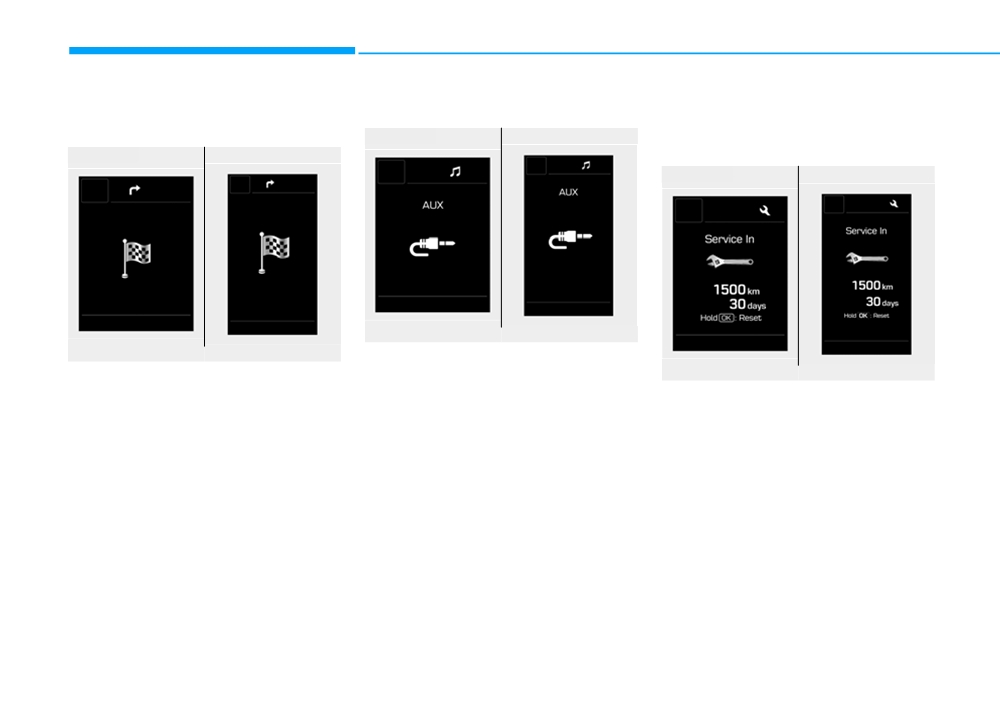

Turn By Turn (TBT) mode
A/V mode (if equipped)
Information mode
(if equipped)
This mode displays the service inter-
■ Type A
■ Type B
val (mileage and days).
■ Type A
■ Type B
■ Type A
■ Type B
OTL045177/OTL045178
OTL045173/OTL045174
This mode displays the state of the
A/V system.
OTL045181L/OTL045182L
This mode displays the state of the
navigation.
Service interval
Service in
It calculates and displays the mainte-
nance schedule (mileage or days),
as set in the system.
When the set mileages or days
passed, "Service in" message is dis-
played for several seconds each time
ignition switch is turned ON.
3-84
■ Type A
■ Type B
■ Type A
■ Type B
Warning message
If one of followings occurs, warning
messages will be displayed in the
information mode for several seconds.
-
Low washer fluid (if equipped)
-
Exterior lamp malfunction
-
Blind Spot Detection (BSD) mal-
3
function (if equipped)
-
Tire Pressure Monitoring System
(TPMS, if equipped)
OTL045296L/OTL045297L
OTL045298L/OTL045299L
-

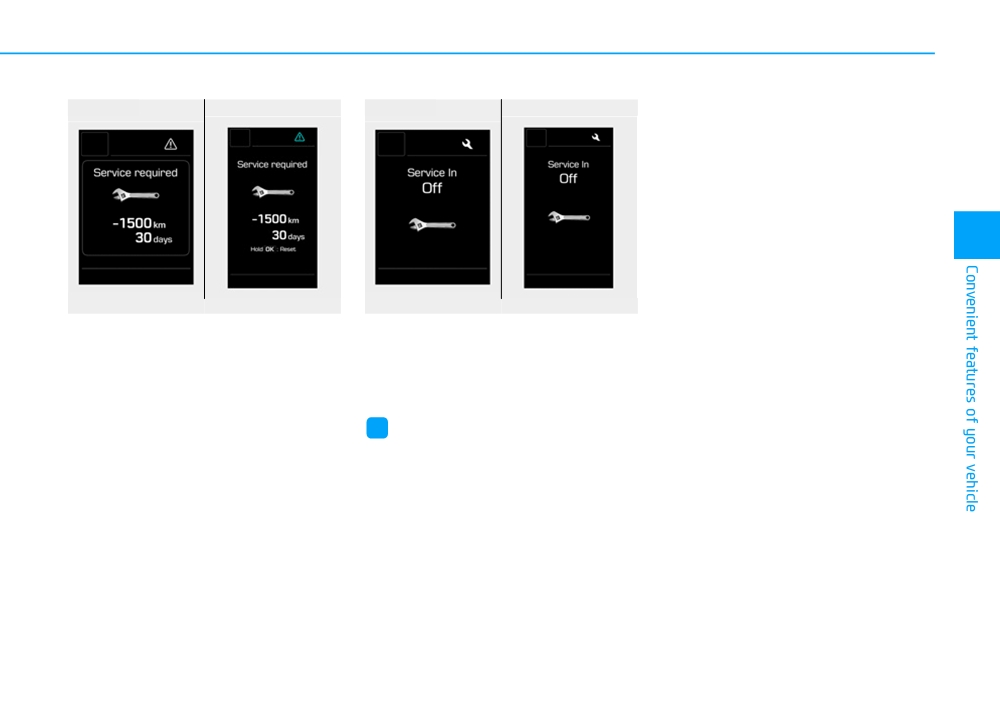

Service reminder
Service required
Service in OFF
If you exceed the specified service
If the service interval is not set,
interval, a message indicating,
"Service in OFF" message is dis-
"Service required" will be displayed
played on the LCD display.
each time you turn ON the vehicle.
i
Information
To reset the service interval in
If any of the following conditions
mileages or days that you initially
occur, the mileage and number of days
set:
to service may be incorrect.
- Activate the reset mode by press-
- The battery cable is disconnected.
ing the OK button for more than 5
second, then press the OK button
- The fuse switch is turned off.
again for more than 1 second (for
- The battery is discharged.
Europe).
- Press the OK button for more than
1 second (except Europe).
3-85
Convenient features of your vehicle
User settings mode
In this mode, you can change setting of the instrument cluster, doors, lamps, and so on.
Driving Assist (if equipped)
Items
Explanation
Rear Cross Traffic Alert
If this item is checked, the rear cross traffic alert function will be activated.
(if equipped)
For more details, refer to "Blind Spot Detection System" in chapter 5.
Door
Items
Explanation
• Disable : The automatic door lock operation will be deactivated.
• Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 15km/h
Auto Lock
(9.3mph).
• Enable on Shift: All doors will be automatically locked if the automatic transmission shift lever is shift-
ed from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
• Disable : The automatic door unlock operation will be canceled.
• On key out : All doors will be automatically unlocked when the ignition key is removed from the
ignition switch or the Engine Star/Stop button is set to the OFF position.
Auto Unlock
• Driver Door Unlock: All doors will be automatically unlocked if the driver's door is unlocked.
• On Shift to P: All doors will be automatically unlocked if the automatic transmission shift lever is shift-
ed to the P (Park) position.
(Continued)
3-86
(Continued)
Items
Explanation
If this item is checked, the horn feedback operation will be activated.
Horn Feedback
After locking the door by pressing the lock button on the remote key, if you press the lock button
again within 4 seconds, the warning sound will operate once to indicate that all doors are locked.
Smart Trunk
If this item is checked, the smart trunk function will be activated.
3
(if equipped)
For more details, refer to "Smart Trunk" in this chapter.
Light
Items
Explanation
• Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is
One Touch Turn Signal
moved slightly.
For more details, refer to "Light" in this chapter.
Head Lamp Delay
• If this item is checked, the head lamp delay function will be activated.
Welcome light
• If this item is checked, the welcome light function will be activated.
(if equipped)
3-87
Convenient features of your vehicle
Sound
Items
Explanation
Cluster Voice Guidance
• To adjust the cluster voice guidance volume (Level 0~3)
Volume
Park Assist System Vol.
• To adjust the Park Assist System volume. (Level 1~3)
(if equipped)
For more details, refer to "Parking Assist System" in this chapter.
Blind Spot Detection Sound
• If this item is checked, the blind spot detection sound will be activated.
(if equipped)
For more details, refer to "Blind Spot Detection System" in chapter 5.
Welcome sound
• If this item is checked, the welcome sound function will be activated.
(if equipped)
Convenience
Items
Explanation
• None: The seat easy access function is deactivated.
• Normal/Extended:
- When you turn off the engine, the driver’s seat will automatically move rearward short (Normal)
Seat Easy Access
or long (Extended) for you to enter or exit the vehicle more comfortably.
- If you change the Engine Start/Stop button from OFF position to the ACC, ON, or START posi-
tion, the driver’s seat will return to the original position.
For more information, refer to “Driver Position Memory System” in this chapter.
Steering Position
If this item is checked, the message “Align Steering Wheel” will be displayed on the LCD if the steer-
(if equipped)
ing wheel has been turned to the left or right over 90 degrees when the engine is turned ON.
Gear Position Pop-up
If this item is checked, the gear position will be displayed when you move the shift lever.
(if equipped)
3-88
Service interval
Items
Explanation
In this mode, you can activate the service interval function with mileage (km or mi.) and period
(days)
Service Interval
• Off : The service interval function will be deactivated.
(Except Europe)
• On :You can set the service interval (mileage and days).
3
For more details, refer to "Information Mode" in this chapter.
Other features
Items
Explanation
• Off : The average fuel economy will not reset automatically whenever refueling.
• After Ignition : The average fuel economy will reset automatically when driving.
Fuel Economy Auto Reset
• After Refueling : The average fuel economy will reset automatically when refueling.
For more details, refer to “Trip Computer” in this chapter.
Fuel Economy Unit
Choose the fuel economy unit. (Km/L, L/100)
Temperature Unit
Choose the temperature unit. (°C,°F)
Tire Pressure Unit
Choose the tire pressure unit. (psi, kPa, bar)
(if equipped)
Language
Choose the language.
3-89
Convenient features of your vehicle
TRIP COMPUTER
Conventional cluster
Trip modes
The trip computer is a microcomput-
FUEL ECONOMY
er-controlled driver information sys-
tem that displays information related
• Distance To Empty
to driving.
• Average Fuel Economy
• Instant Fuel Economy
i
Information
Some driving information stored in the
trip computer (for example Average

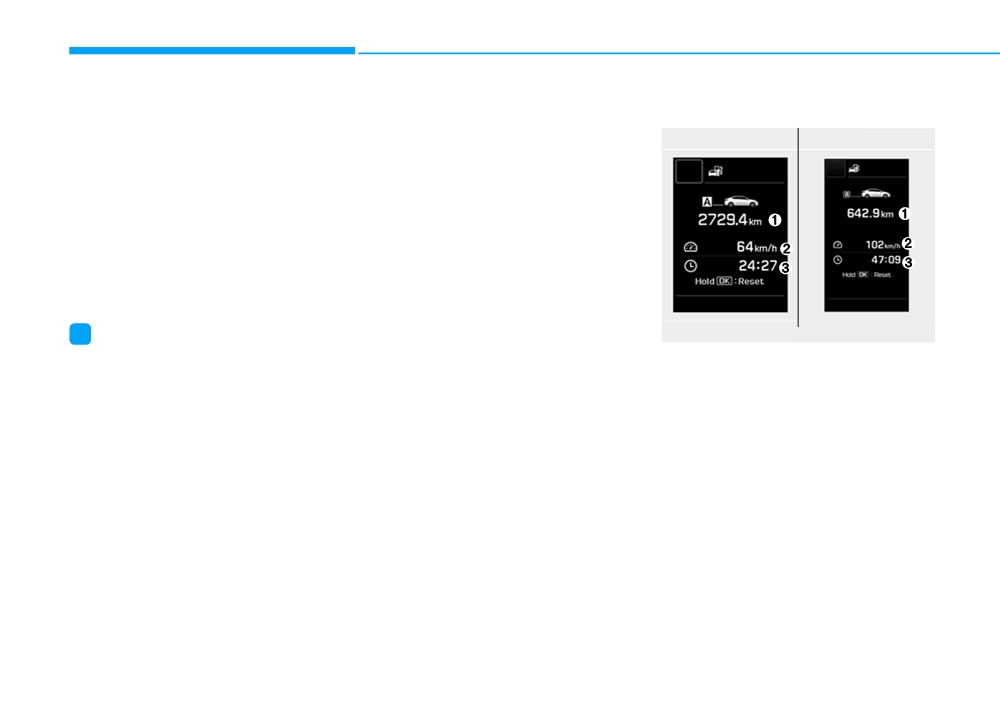

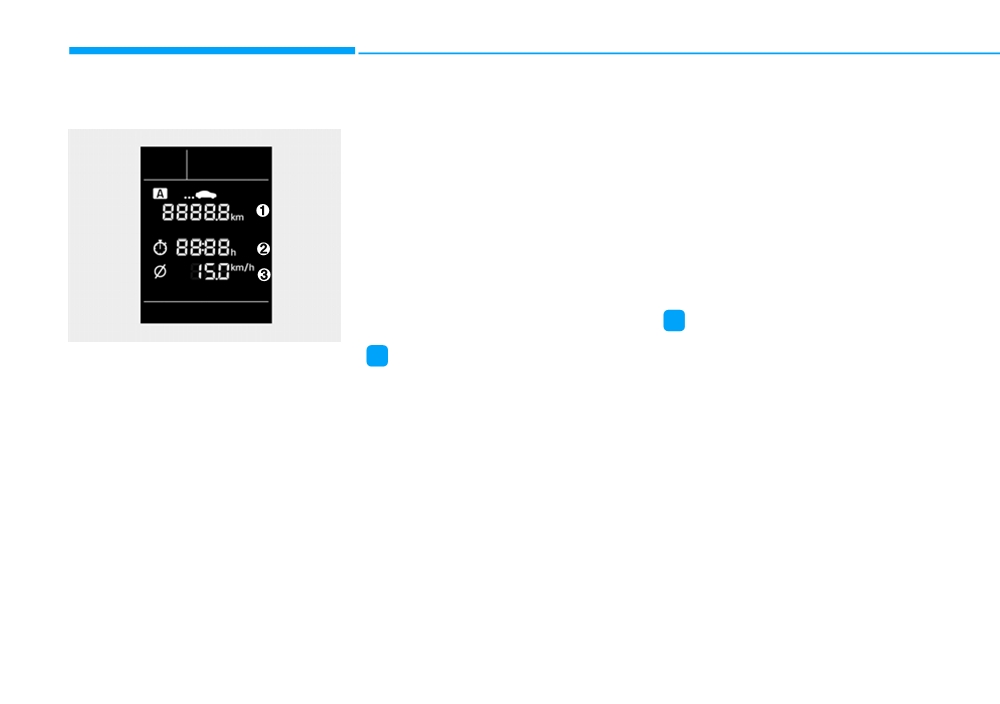

TRIP A
Vehicle Speed) resets if the battery is
disconnected.
• Tripmeter [A]
OAD045450N
• Average Vehicle Speed [A]
To change the trip mode, press the
TRIP button on the steering wheel.
• Elapsed Time [A]
TRIP B
• Tripmeter [B]
• Average Vehicle Speed [B]
• Elapsed Time [B]

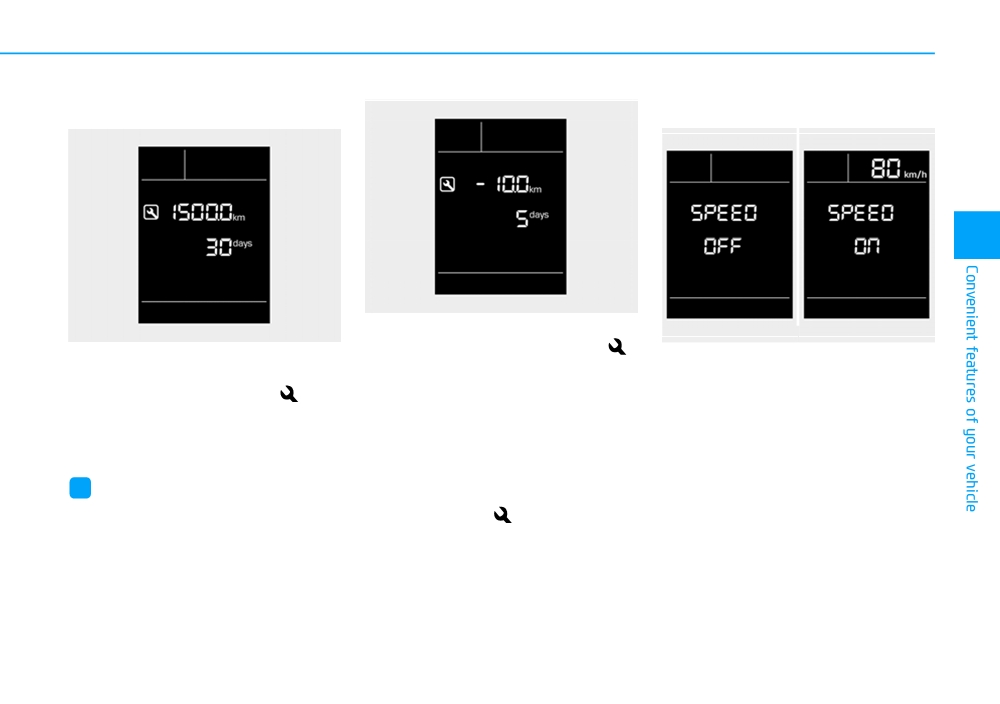

Service Information
Digital Speed ON/OFF
3-90

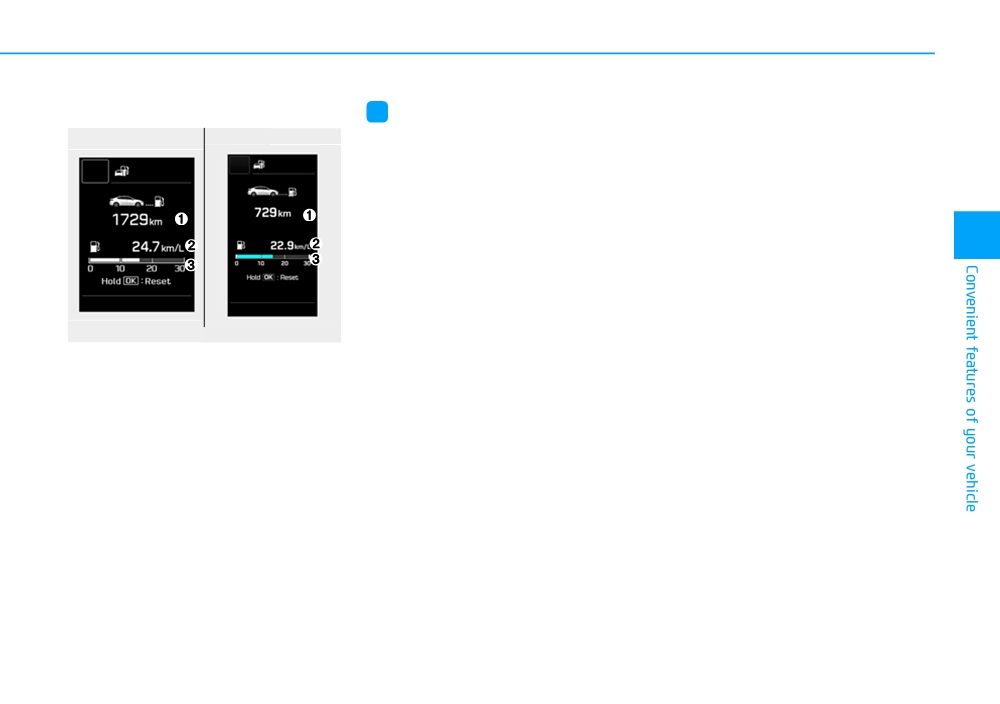

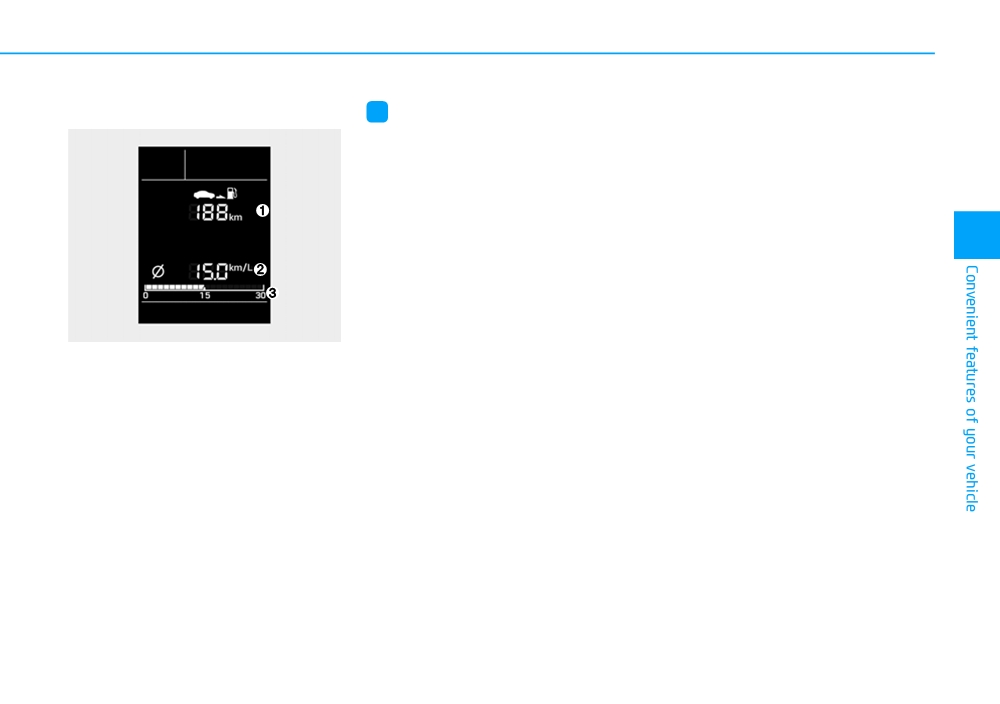

Fuel economy
Average Fuel Economy (2)
i
Information
• The average fuel economy is calcu-
•
If the vehicle is not on level ground
lated by the total driving distance
or the battery power has been inter-
and fuel consumption since the last
rupted, the distance to empty func-
average fuel economy reset.
tion may not operate correctly.
- Fuel economy range:
•
The distance to empty may differ
0.0 ~ 99.9 L/100km, km/L or MPG
from the actual driving distance as
3
it is an estimate of the available
• To clear the average fuel economy
manually, press the RESET button
driving distance.
on the steering wheel for more than
•
The trip computer may not register
1 second when the average fuel
additional fuel if less than 3 liters (1
economy is displayed.
gallon) of fuel are added to the vehi-
OAD045151
cle.
Instant Fuel Economy (3)
Distance To Empty (1)
•
The fuel economy and distance to
empty may vary significantly based
• This mode displays the instanta-
• The distance to empty is the esti-
on driving conditions, driving habits,
neous fuel economy while driving
mated distance the vehicle can be
and condition of the vehicle.
when the vehicle speed is greater
driven with the remaining fuel.
than 10 km/h (6.2 mph).
- Distance range:
- Fuel economy range:
1 ~ 9999 km or 1 ~ 9999 mi.
0~30 L/100km, km/L or 0~50 MPG
• If the estimated distance is below
1 km (1 mi.), the trip computer will
display "----" as distance to empty.
3-91
Convenient features of your vehicle
Trip A/B
Average Vehicle Speed (2)
Elapsed Time (3)
• The average vehicle speed is cal-
• The elapsed time is the total driv-
culated by the total driving dis-
ing time since the last elapsed time
tance and driving time since the
reset.
last average vehicle speed reset.
- Time range (hh:mm):
- Speed range:
00:00 ~ 99:59
0 ~ 240 km/h or 0 ~ 160 MPH
• To reset the elapsed time, press the
• To reset the average vehicle speed,
RESET button on the steering
press the RESET button on the
wheel for more than 1 second when
steering wheel for more than 1 sec-
the elapsed time is displayed.
ond when the average vehicle
speed is displayed.
i
Information
OAD045152
The elapsed time will continue to be
i
Information
Tripmeter (1)
counted while the engine is still run-
• The average vehicle speed is not dis-
ning (for example, when the vehicle is
• The tripmeter is the total driving
distance since the last tripmeter
played if the driving distance is less
in traffic or stopped at a stop light.)
than 300 meters (0.19 miles) or the
reset.
driving time is less than 10 seconds
- Distance range:
since the ignition switch or the Engine
0.0 ~ 9999.9 km or mi.
Start/Stop button is turned to ON.
• To reset the tripmeter, press the
• The average vehicle speed will con-
RESET button on the steering
tinue to be calculated and will start
wheel for more than
1 second
to decrease if the vehicle is stopped
when the tripmeter is displayed.
while the engine is still running (for
example, when the vehicle is in traf-
fic or stopped at a stop light.)
3-92
Service information
Digital speedometer
3
OAD045182N
If you exceed the specified service
OAD045179N
OAD045177N/OAD045176N
interval, the service symbol
(
)
If the remaining mileage or time
This message shows the speed of
will blink each time you turn ON the
reaches 1,500 km (900 miles) or 30
the vehicle (in mph, km/h).
vehicle.
days, the service symbol (
) will
To turn the digital speedometer ON
To reset the service interval, press
blink for several seconds each time
and OFF press the RESET button for
the RESET button for more than 5
you set the ignition switch or Engine
more than 1 second when the digital
seconds and then when the miles
Start/Stop button to the ON position.
speedometer is displayed.
and days blink press the RESET but-
ton for more than 1 second.
i
Information
If the service interval is not set, the
To change or deactivate the service
service symbol (
) will not be dis-
interval, consult an authorized
played.
HYUNDAI dealer.
3-93
Convenient features of your vehicle
Supervision cluster
Trip modes
The trip computer is a microcomput-
FUEL ECONOMY
er-controlled driver information sys-
tem that displays information related
• Distance To Empty
to driving.
• Average Fuel Economy
• Instant Fuel Economy
i
Information
Some driving information stored in the
trip computer (for example Average
TRIP A
Vehicle Speed) resets if the battery is
• Tripmeter [A]
disconnected.
OAD045449
• Average Vehicle Speed [A]
To change the trip mode, toggle the
• Elapsed Time [A]
“▲, ▼” switch on the steering wheel.
TRIP B
• Tripmeter [B]
• Average Vehicle Speed [B]
• Elapsed Time [B]
Auto Stop Time
Digital Speedometer
3-94
Fuel economy
Average Fuel Economy (2)
i
Information
• The average fuel economy is calcu-
■ Type A
■ Type B
•
If the vehicle is not on level ground
lated by the total driving distance
or the battery power has been inter-
and fuel consumption since the last
rupted, the distance to empty func-
average fuel economy reset.
tion may not operate correctly.
- Fuel economy range:
•
The distance to empty may differ
0.0 ~ 99.9 L/100km, km/L or MPG
from the actual driving distance as
3
it is an estimate of the available
• The average fuel economy can be
reset both manually and automati-
driving distance.
cally.
•
The trip computer may not register
additional fuel if less than 3 liters (1
Manual reset
gallon) of fuel are added to the vehi-
OAD045170L/OAD045167L
cle.
To clear the average fuel economy
manually, press the [OK] button on
Distance To Empty (1)
•
The fuel economy and distance to
empty may vary significantly based
the steering wheel for more than 1
• The distance to empty is the esti-
second when the average fuel econo-
on driving conditions, driving habits,
mated distance the vehicle can be
and condition of the vehicle.
my is displayed.
driven with the remaining fuel.
- Distance range:
1 ~ 9999 km or 1 ~ 9999 mi.
• If the estimated distance is below
1 km (1 mi.), the trip computer will
display "----" as distance to empty.
3-95
Convenient features of your vehicle
Automatic reset
Instant Fuel Economy (3)
Trip A/B
To automatically reset the average fuel
• This mode displays the instanta-
■ Type A
■ Type B
economy after refueling, select the
neous fuel economy while driving
"Auto Reset" mode in User Settings
when the vehicle speed is greater
menu on the LCD display (Refer to
than 10 km/h (6.2 mph).
"LCD Display" in this chapter).
- Fuel economy range:
In "Auto Reset" mode, the average fuel
0~30 L/100km, km/L or 0~50 MPG
economy will be reset to zero (----),
when driving speed exceeds 1 km/h,
after adding 3~6 liters (1~2 gallon) of
fuels or more.
i
Information
OAD045166L/OAD045165L
The vehicle must be driven for a min-
Tripmeter (1)
imum of 300 meters (0.19 miles) since
• The tripmeter is the total driving
the last ignition key cycle before the
distance since the last tripmeter
average fuel economy will be recalcu-
reset.
lated.
- Distance range:
0.0 ~ 9999.9 km or mi.
• To reset the tripmeter, press the
[OK] button on the steering wheel
for more than 1 second when the
tripmeter is displayed.
3-96
