Hyundai Accent (2019 year). Instruction - part 23

Instrument Panel Fuse

Inner panel fuse replacement

5. Pull the suspected fuse straight

Replacement

out. Use the removal tool provided

in the engine compartment fuse

Power connector

panel.

6. Check the removed fuse; replace it

if it is blown. Spare fuses are pro-

vided in the instrument panel fuse

panels (or in the engine compart-

ment fuse panel).

7. Push in a new fuse of the same

rating, and make sure it fits tightly

in the clips. If it fits loosely, consult

an authorized HYUNDAI dealer.

HCR076020

1. Turn the engine off.

OHCR076048

Information

2. Turn all other switches OFF.

If you do not have a spare, use a fuse

If your vehicle is to be parked for

3. Open the fuse panel cover.

of the same rating from a circuit you

more than a month you need to do

4. Refer to the label on the inside of

may not need for operating the vehi-

as follows previously in order to pre-

the fuse panel cover to locate the

cle, such as the cigar lighter fuse.

vent battery discharge.

suspected fuse location.

If the headlights or other electrical

1. Turn off the engine.

components do not work and the

2. Turn off the headlamps and tail

fuses are OK, check the fuse block in

lamps.

the engine compartment. If a fuse is

3. Open the inner fuse panel cover

blown, it must be replaced with the

and pull out the power connector.

same rating.

7-47

Maintenance

In an emergency, if you do not have

Engine Compartment Panel

CAUTION

a spare fuse, use a fuse of the same

Fuse Replacement

rating from a circuit you may not

■ Blade type fuse

After checking the fuse box in

need for operating the vehicle.

the engine compartment secure-

If the headlamps or other electrical

ly close the fuse box cover

components do not work and the

inside the engine compartment,

fuses are undamaged, check the

until it clicks.

fuse panel in the engine compart-

If the fuse box is not closed

ment. If a fuse is blown, it must be

properly, water may leak in side,

replaced with the same rating.

possibly causing a malfunction

with the electrical system.

OHCA077070

1. Turn the engine off.

2. Turn all other switches OFF.

3. Remove the fuse panel cover by

pressing the tap and pulling up.

4. Check the removed fuse; replace it

if it is blown. To remove or insert

the fuse, use the fuse puller in the

engine compartment fuse panel.

5. Push in a new fuse of the same

rating, and make sure it fits tightly

in the clips. If it fits loosely, consult

an authorized HYUNDAI dealer.

7-48

Main fuse

Multi fuse

OHCA077071

If the main fuse is blown, it must be

If the multi fuse is blown, it must be

removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery

cable.

3. Remove the fuse panel cover by

pressing the tab and pulling it up.

4. Remove the nuts shown in the pic-

ture above.

5. Replace the fuse with a new one

of the same rating.

6. Reinstall in the reverse order of

removal.

Information

If the main fuse is blown, consult an

If the multi fuse is blown, consult an

authorized HYUNDAI dealer.

7-49

Maintenance

Fuse/Relay Panel Description

Instrument panel fuse panel

HCR076020

Inside the fuse/relay box cover, you

can find the fuse/relay label describ-

ing fuse/relay names and ratings.

Information

Not all fuse panel descriptions in this

manual may be applicable to your

vehicle; the information is accurate at

OHCA077076

the time of printing. When you inspect

the fuse box on your vehicle, refer to

the fuse box label.

7-50

Fuse Name

Fuse Rating

Circuit Protected

DOOR LOCK

20A

I/P Junction Block (Tail Gate Unlock Relay, Door Lock/Unlock Relay, Two Turn Unlock Relay)

POWER OUTLET

20A

Power Outlet

SAFETY P/WINDOW

25A

Driver Safety Power Window Module

STOP LAMP

15A

I/P Junction Block(Stop Signal Electronic Module)

T/SIGNAL LAMP

15A

BCM, SLM

C/LIGHTER

20A

Cigarette Lighter

HEATED MIRROR

10A

Driver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module

DRL

10A

BCM

P/WINDOW RH

25A

Power Window Main Switch, Passenger Power Window Switch

S/HEATER

20A

Front Seat Warmer Control Module

SPARE1

10A

With Smart Key : ECM/PCM, E/R Junction Block(Start Relay), Smart Key Control Module,

START

7.5A

Transaxle Range Switch, Ignition Lock & Clutch Switch

W/O Smart Key : Burglar Alarm Relay, Transaxle Range Switch, Ignition Lock & Clutch Switch

7-51

Maintenance

Fuse Name

Fuse Rating

Circuit Protected

Head Lamp RH, Rear Combination Lamp (OUT) RH, License Lamp RH,

TAIL LAMP RH

7.5A

Rear Combination Lamp (IN) RH, ILL (+)

MODULE2

10A

FCA Module, Crash Pad Switch

TCU

15A

E/R Junction Block(Fuse - B/UP LAMP), A/T Shift Lever, Transaxle Range Switch, Stop Lamp Switch

P/WINDOW LH

25A

Power Window Main Switch

SPARE2

25A

Spare

FOG LAMP REAR

10A

HEATED STEERING

15A

Clock Spring

TAIL LAMP LH

7.5A

Head Lamp LH, License Lamp LH, Rear Combination Lamp (OUT) LH, Rear Combination Lamp (IN) LH

Front Seat Warmer Control Module, Audio, Electro Chromic Mirror, A/C Control Module,

MODULE3

7.5A

Clock Spring, A/T Shift Lever Indicator

ABS3

7.5A

E/R Junction Block(Multipurpose Check Connector), ESC Module

BRAKE SWITCH

10A

Smart Key Control Module, Stop Lamp Switch

BCM

10A

BCM

7-52

Fuse Name

Fuse Rating

Circuit Protected

FOG LAMP FRONT

15A

I/P Junction Block(Front Fog Lamp Relay)

A/C1

7.5A

E/R Junction Block(Blower Relay), A/C Control Module

MODULE5

10A

Sunroof Motor, Front Seat Warmer Control Module

MODULE7

10A

TPMS Unit

ECU

10A

ECM/PCM, Immobilizer Module, Smart Key Control Module

SUNROOF

15A

Sunroof Motor

IMMO.

10A

Immobilizer Module

MODULE6

10A

Key Solenoid

SPARE4

10A

Spare

MODULE4

7.5A

SLM, BCM, Smart Key Control Module

SPARE5

10A

Spare

AIR BAG

10A

SRS Control Module, Occupant Detection Sensor

7-53

Maintenance

Fuse Name

Fuse Rating

Circuit Protected

MODULE1

7.5A

BCM, SLM, Key Interlock

SMART KEY

25A

Smart Key Control Module

A/C2

7.5A

WIPER RR

15A

Multifunction Switch, Rear Wiper Motor, Rear Wiper Relay

WIPER FRT

25A

Multifunction Switch, Front Wiper Motor, E/R Junction Block(Wiper Lo Relay)

I/P Junction Block(Power Outlet Relay), BCM, SLM, Audio,

ACC

10A

Key Interlock Power Outside Mirror Switch, Smart Key Control Module, USB Charging Connecto

SPARE3

20A

Spare

A/BAG IND

7.5A

Instrument Cluster, A/C Control Module

CLUSTER

7.5A

Instrument Cluster

MDPS2

7.5A

MDPS Unit

AUDIO

20A

Audio

I/P Junction Block(Room Lamp Relay), Overhead Console Lamp , A/C Control Module, SLM, BCM,

ROOM LP

10A

Auto Light & Photo Sensor, TPMS Unit ,Instrument Cluster, Data Link Connector, Room Lamp,

Trunk Room Lamp, Electro Chromic Mirror

7-54

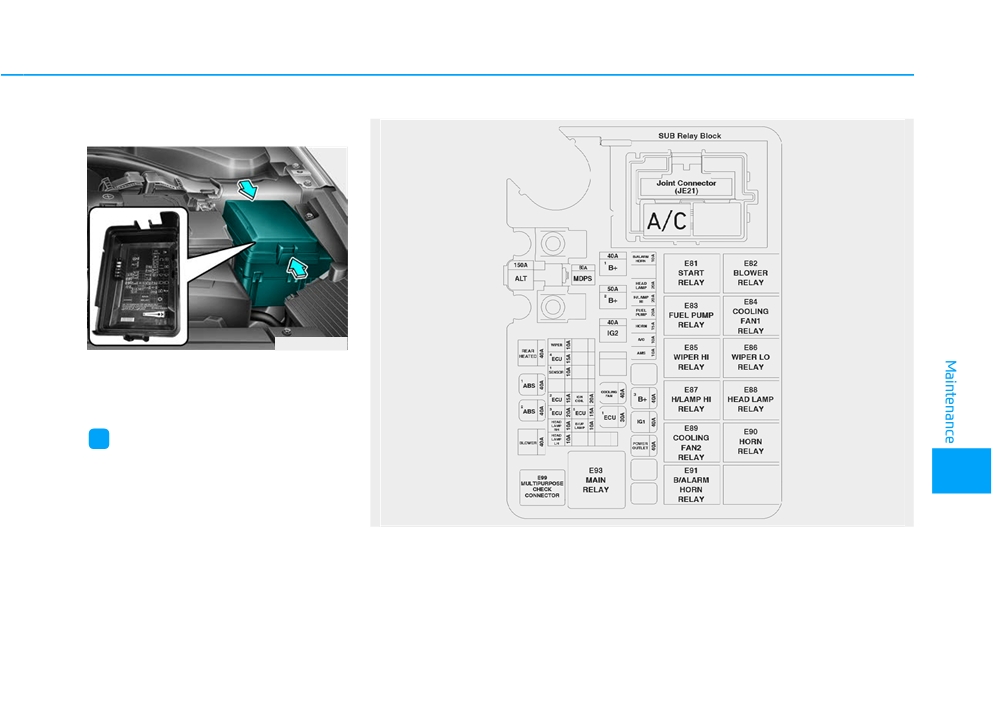

Engine compartment fuse panel

OHCA077022

Inside the fuse/relay box cover, you

can find the fuse/relay label describ-

ing fuse/relay names and ratings.

Information

Not all fuse panel descriptions in this

manual may be applicable to your

vehicle; the information is accurate at

the time of printing. When you inspect

OHCA077077

the fuse panel in your vehicle, refer to

the fuse panel label.

7-55

Maintenance

Type

Relay NO.

Relay Name

A/C Relay

E81

Start Relay

E82

Blower Relay

E83

Fuel Pump Relay

E84

Cooling Fan1 Relay

E85

Wiper HI Relay

MICRO

E86

Wiper LO Relay

E87

H/Lamp HI Relay

E88

Head Lamp Relay

E89

Cooling Fan2 Relay

E90

Horn Relay

E91

B/Alarm Horn Relay

MINI

E93

Horn Relay

7-56

Fuse Name

Fuse Rating

Circuit Protected

MDPS

80A

MDPS Unit

ALT

150A

E/R Junction Block (Fuse - ABS1, ABS2, BLOWER, REAR HEATED)

REAR HEATED

40A

I/P Junction Block (Rear Defogger Relay)

ABS1

40A

ESC Module, Multipurpose Check Connector

ABS2

40A

ESC Module

BLOWER

40A

E/R Junction Block (Blower Relay)

WIPER

10A

Front Wiper Motor, Multifunction Switch, E/R Junction Block (Wiper LO Relay)

ECU4

15A

ECM/PCM

Oil Control Valve #1/#2, E/R Junction Block (Cooling Fan1/2 Relay),

SENSOR1

10A

Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve,

Sub Relay Block (A/C Relay) Purge Control Solenoid Valve, Canister Close Valve

ECU2

15A

ECM/PCM

ECU3

20A

ECM/PCM

HEAD LAMP RH

10A

Head Lamp RH

7-57

Maintenance

Fuse Name

Fuse Rating

Circuit Protected

HEAD LAMP LH

10A

Head Lamp LH

IGN COIL

20A

Ignition Coil #1~#4, Condenser

ECU5

15A

ECM/PCM, E/R Junction Block (Fuel Pump Relay)

B/UP LAMP

10A

Back-Up Lamp Switch

I/P Junction Block (Fuse - DRL, FOGLAMP FRONT,

B+1

40A

STOP LAMP, MODULE6, Power Connector (AUDIO, ROOM LAMP))

I/P Junction Block (Fuse - IMMO, SMART KEY1, BRAKE SWITCH,

B+2

50A

BCM, SAFETY P/WINDOW, S/HEATER, SUNROOF, Power Window Relay)

IG2

40A

Ignition Switch, PDM Relay Box (IG2 Relay), E/R Junction Block (Start Relay)

COOLING FAN

40A

E/R Junction Block (Cooling Fan1/2 Relay)

ECU1

30A

E/R Junction Block (Fuse - ECU3, ECU4, Main Relay)

B/ALARM HORN

10A

B/Alarm Horn Relay

HEAD LAMP

20A

E/R Junction Block (Head Lamp Relay)

W/O DRL : E/R Junction Block (H/Lamp HI Relay)

H/LAMP HI

20A

With DRL : SLM, BCM

7-58

Fuse Name

Fuse Rating

Circuit Protected

FUEL PUMP

20A

E/R Junction Block (Fuel Pump Relay)

HORN

10A

E/R Junction Block (Horn Relay)

A/C

10A

Sub Relay Block (A/C Relay)

AMS

10A

Battery Sensor

B+3

40A

I/P Junction Block (Fuse - T/SIGNAL LAMP, DOOR LOCK, Tail Lamp Relay)

IG1

40A

Ignition Switch, PDM Relay Box (IG1 Relay, ACC Relay)

POWER OUTLET

40A

I/P Junction Block (Power Outlet Relay)

7-59

Maintenance

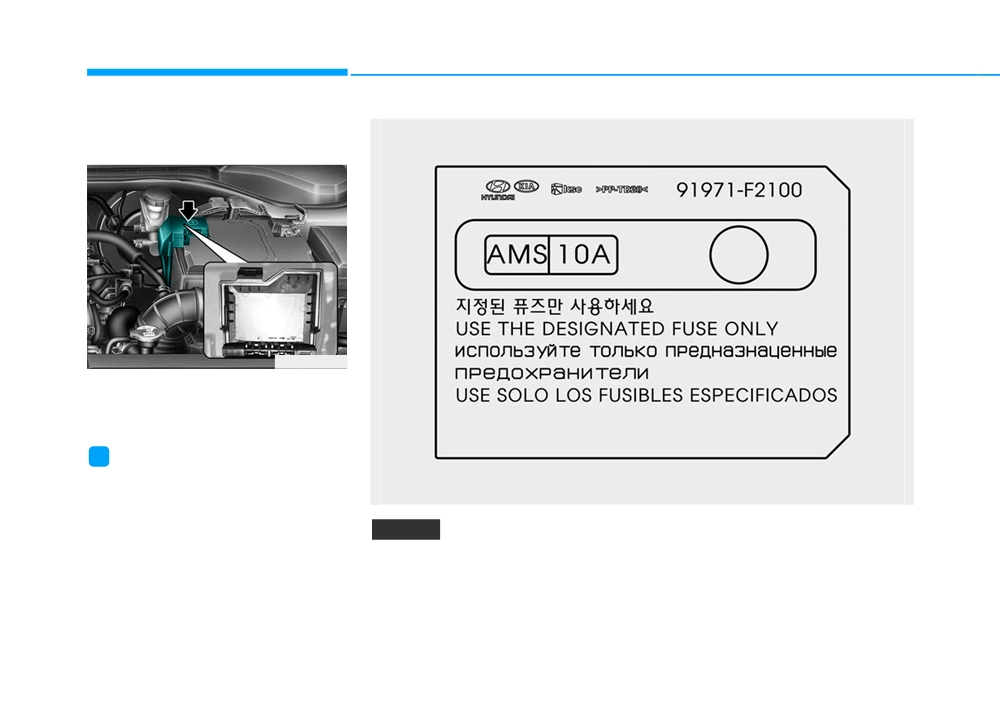

Engine compartment fuse panel

(Battery terminal cover)

OHCA077078

Inside the fuse/relay box cover, you

can find the fuse/relay label describ-

ing fuse/relay names and ratings.

Information

Not all fuse panel descriptions in this

manual may be applicable to your

OHCA077078

vehicle; the information is accurate at

the time of printing. When you inspect

NOTICE

the fuse panel in your vehicle, refer to

After checking the fuse panel in the engine compartment, securely

the fuse panel label.

install the cover. If it is not securely latched, electrical failure may occur

from water contact.

7-60

LIGHT BULBS

Consult an authorized HYUNDAI

Headlamp, Position lamp, Fog

WARNING

dealer to replace most vehicle light

lamp, Daytime Running Light,

bulbs. It is difficult to replace vehicle

Turn Signal Lamp and Side

•

Prior to replacing a lamp,

light bulbs because other parts of the

Marker

vehicle must be removed before you

depress the foot brake, move

the shift lever into P

(Park)

Type A

can get to the bulb. This is especially

true for removing the headlamp

apply the parking brake, place

the ignition switch to the

assembly to get to the bulb(s).

LOCK/OFF position, and take

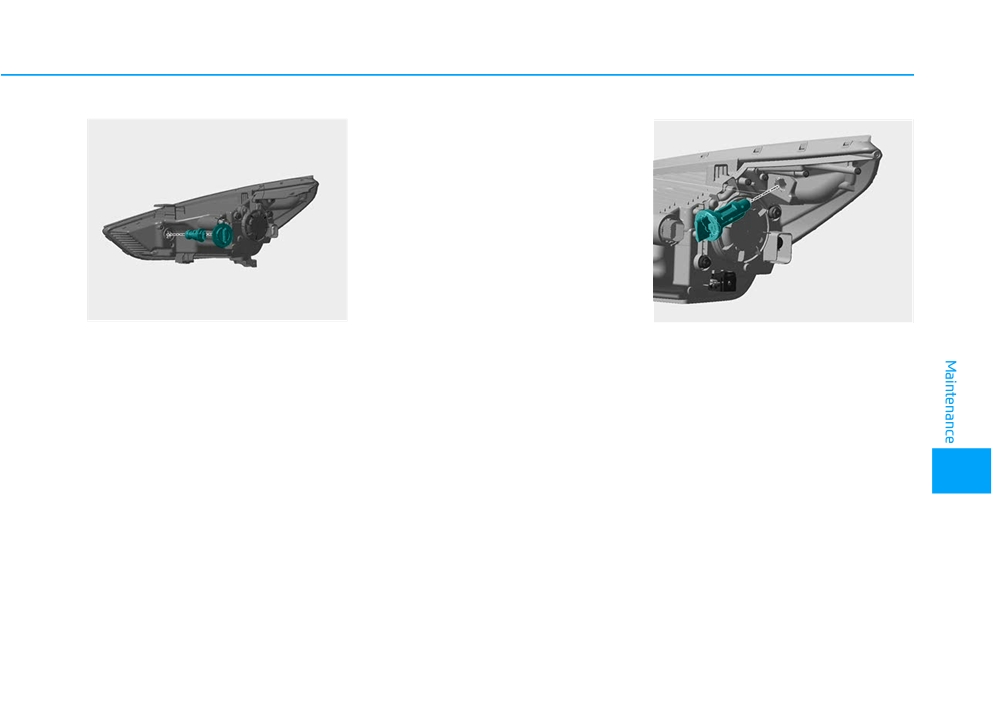

Removing/installing the headlamp

the key with you when leaving

assembly can result in damage to

the vehicle to avoid sudden

the vehicle.

movement of the vehicle and

to prevent possible electric

Information

shock.

After heavy driving, rain or washing,

•

Be aware the bulbs may be

headlamp and trunk lenses could

hot and may burn your fin-

appear frosty. This condition is caused

gers.

by the temperature difference

OHCA077030

between the lamp inside and the out-

side temperature. This is similar to the

(1) Headlamp (High/Low)

condensation on your windows inside

(2) Front turn signal lamp/

your vehicle during the rain and does-

Position lamp

n’t indicate a problem with your vehi-

(3) Side marker

cle. If the water leaks into the lamp

(4) Front fog lamp*

bulb circuitry, have your vehicle

checked by an authorized HYUNDAI

* : if equipped

dealer.

7-61

Maintenance

•

Never touch the glass with bare

4. Disconnect the headlamp bulb

WARNING

hands. Residual oil may cause the

socket-connector.

bulb to overheat and burst when lit.

5. Unsnap the headlamp bulb retain-

•

A bulb should be operated only

ing wire by pressing the end and

when installed in a headlamp.

pushing it upward.

•

If a bulb becomes damaged or

6. Remove the bulb from the head-

cracked, replace it immediately

lamp assembly.

and carefully dispose of it.

7. Install a new headlamp bulb and

snap the headlamp bulb retaining

wire into position by aligning the

wire with the groove on the bulb.

8. Connect the headlamp bulb sock-

OLMB073042L

et-connector.

9. Install the headlamp bulb cover by

•

Handle halogen bulbs with

care. Halogen bulbs contain

turning it clockwise.

pressurized gas that will pro-

duce flying pieces of glass

Information

that could cause injuries if

The headlamp aiming should be

broken.

adjusted after an accident or after the

•

Wear eye protection when

headlamp assembly is reinstalled at an

changing a bulb. Allow the

OHCR076036

authorized HYUNDAI dealer.

bulb to cool down before han-

Headlamp (Halogen bulb)

dling it.

1. Open the hood.

2. Disconnect the negative battery

cable.

• Always handle them carefully, and

avoid scratches and abrasions. If

3. Remove the headlamp bulb cover

the bulbs are lit, avoid contact with

by turning it counterclockwise.

liquids.

7-62

5.Insert a new bulb by inserting it into

the socket and rotating it until it

locks into place.

6.Install the socket in the assembly

by aligning the tabs on the socket

with the slots in the assembly.

7.Push the socket into the assembly

and turn the socket clockwise.

OHCR076038

OHCA067038

Turn signal lamp / Position lamp

Side marker

1. Open the hood.

2. Disconnect the negative battery

cable.

3.Remove the socket from the

3. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

4.Remove the bulb from the socket

4. Remove the bulb from the socket

by pressing it in and rotating it

by pulling out the bulb.

counterclockwise until the tabs on

5. Insert a new bulb.

the bulb align with the slots in the

socket. Pull the bulb out of the

socket.

7-63

Content .. 21 22 23 24 ..
