Features of your vehicle

Type A

WARNING

The following must be observed

when installing ANY floor mat to

the vehicle.

• Ensure that the floor mats are

securely attached to the vehicle's

floor mat anchor(s) before driving

the vehicle.

• Do not use ANY floor mat that

cannot be firmly attached to the

OEN047164

vehicle's floor mat anchors.

Type B

B570A01JM-A

• Do not stack floor mats on top of

Floor mat anchor(s) (if equipped)

one another (e.g. all-weather rub-

When using a floor mat on the front floor

ber mat on top of a carpeted floor

carpet, make sure it attaches to the floor

mat). Only a single floor mat

mat anchor(s) in your vehicle. This keeps

should be installed in each posi-

the floor mat from sliding forward.

tion.

IMPORTANT - Your vehicle was man-

ufactured with driver's side floor

mat anchors that are designed to

securely hold the floor mat in

OEN047165L-1

place. To avoid any interference

81000AEN

with pedal operation, HYUNDAI

Luggage net (holder)

recommends that only the

HYUNDAI floor mat designed for

(if equipped)

use in your vehicle be installed.

To keep items from shifting in the cargo

area, you can use the 6 holders located

in the cargo area to attach the luggage

net.

4 118

Features of your vehicle

EXTERIOR FEATURES

If necessary, contact your authorized

HYUNDAI dealer to obtain a luggage net.

CAUTION

• When carrying cargo on the roof

rack, take the necessary precau-

CAUTION

tions to make sure the cargo does

To prevent damage to the goods or

not damage the roof of the vehicle.

the vehicle, care should be taken

• When carrying large objects on

when carrying fragile or bulky

the roof rack, make sure they do

objects in the luggage compart-

not exceed the overall roof length

ment.

or width.

WARNING

OEN049175L

Avoid eye injury. DO NOT over-

WARNING

D290100AEN

stretch the luggage net, ALWAYS

• The following specification is the

Roof rack (if equipped)

keep your face and body out of the

maximum weight that can be

luggage net’s recoil path. DO NOT

If the vehicle has a roof rack, you can

loaded onto the roof rack.

use when the strap has visible

load cargo on top of your vehicle.

Distribute the load as evenly as

signs of wear or damage.

possible onto roof rack and

✽ NOTICE

secure the load firmly.

If the vehicle is equipped with a sunroof,

ROOF

220 lbs. (100 kg)

be sure not to position cargo onto the

RACK

EVENLY DISTRIBUTED

roof rack in such a way that it could

interfere with sunroof operation.

Loading cargo or luggage in

excess of the specified weight

limit on the roof rack may dam-

age your vehicle.

(Continued)

4 119

Features of your vehicle

AUDIO SYSTEM

✽ NOTICE

(Continued)

CAUTION

If you install an aftermarket HID head-

•

The vehicle center of gravity will

•

Before entering a place with a low

lamp, your vehicle's audio and electron-

be higher when items are loaded

height clearance or a car wash,

ic device may malfunction.

onto the roof rack. Avoid sudden

remove the antenna by rotating it

starts, braking, sharp turns,

Type A

Type B

counterclockwise. If not, the

abrupt maneuvers or high speeds

antenna may be damaged.

that may result in loss of vehicle

•

When reinstalling your antenna, it

control or rollover resulting in an

is important that it is fully tight-

accident.

ened and adjusted to the upright

•

Always drive slowly and turn cor-

position to ensure proper recep-

ners carefully when carrying

tion. But it could be folded or

items on the roof rack. Severe

removed when parking the vehi-

wind updrafts, caused by passing

cle or when loading cargo on the

vehicles or natural causes, can

roof rack.

cause sudden upward pressure

•

When cargo is loaded on the roof

on items loaded on the roof rack.

rack, do not place the cargo near

This is especially true when car-

OEN046166N

the antenna pole to ensure proper

rying large, flat items such as

Antenna

reception.

wood panels or mattresses. This

D300102AUN

could cause the items to fall off

Roof antenna

the roof rack and cause damage

to your vehicle or others around

Your car uses a roof antenna to receive

you.

both AM and FM broadcast signals. This

antenna is a removable type. To remove

•

To prevent damage or loss of

the antenna, turn it counterclockwise. To

cargo while driving, check fre-

install the antenna, turn it clockwise.

quently before or while driving to

make sure the items on the roof

rack are securely fastened.

4 120

Features of your vehicle

D300204AEN

If the SEEK/PRESET button is pressed

VOLUME (VOL +/-)

for less than 0.8 second, it will work as

• Press the up button (+) to increase vol-

follows in each mode.

ume.

• Press the down button (-) to decrease

RADIO mode

volume.

It will function as the PRESET STATION

select buttons.

D300205AEN

MUTE

CDP mode

• Press the MUTE button to cancel the

It will function as the TRACK UP/DOWN

sound.

button.

OEN046168L

• Press the MUTE button again to acti-

vate the sound.

CDC mode

D300200AEN

It will function as the TRACK UP/DOWN

Steering wheel audio control

D300203AEN

button.

(if equipped)

SEEK/PRESET (

/

)

The steering wheel audio control button

If the SEEK/PRESET button is pressed

Detailed information for audio control

is installed to promote safe driving.

for 0.8 second or more, it will work as fol-

buttons is described in the following

lows in each mode.

pages in this section.

CAUTION

Do not operate audio remote con-

RADIO mode

trol buttons simultaneously.

It will function as the AUTO SEEK select

button.

D300202AEN

CDP mode

It will function as the FF/REW button.

MODE

Press the button to select Radio or CD

(compact disc).

CDC mode

It will function as the DISC UP/DOWN

button.

4 121

Features of your vehicle

✽ NOTICE

FM reception

• To prevent noise, devices connected to

the AUX port should have the volume

adjusted high.

• If an external power connector is con-

nected to the vehicle, static noise may

occur. If noise is heard, verify the

AUX device volume is turned up, then

test the sound with the power cable

disconnected. If necessary, use the

AUX device powered from its internal

battery, or purchase a ground loop

OEN049170L

JBM001

isolator to connect the AUX device to

D300600AEN-EU

the vehicle.

D300800BEN-EU

Aux, USB and iPod® port

How car audio works

(if equipped)

❈ iPod® is a trademark of Apple Inc.

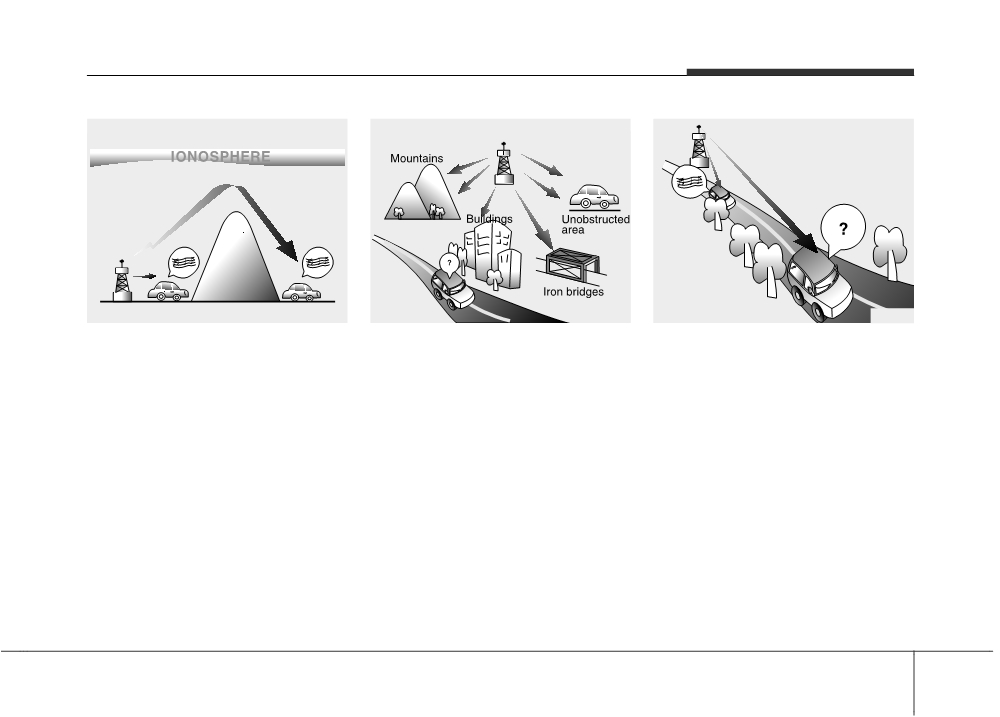

AM and FM radio signals are broadcast

If your vehicle has an aux and/or

from transmitter towers located around

USB(universal serial bus) port or iPod®

your city. They are intercepted by the

port, you can use an aux port to connect

radio antenna on your car. This signal is

audio devices and the USB port to plug

then received by the radio and sent to

in a USB device.

your car speakers.

Both ports are used together with the

When a strong radio signal has reached

accessory iPod® cable to connect an

your vehicle, the precise engineering of

iPod®.

your audio system ensures the best pos-

sible quality reproduction. However, in

some cases the signal coming to your

vehicle may not be strong and clear. This

can be due to factors such as the dis-

tance from the radio station, closeness of

other strong radio stations or the pres-

ence of buildings, bridges or other large

obstructions in the area.

4

122

Features of your vehicle

AM reception

FM radio station

JBM002

JBM003

JBM004

AM broadcasts can be received at

FM broadcasts are transmitted at high

• Fading - As your car moves away from

greater distances than FM broadcasts.

frequencies and do not bend to follow the

the radio station, the signal will weaken

This is because AM radio waves are

earth's surface. Because of this, FM

and sound will begin to fade. When this

transmitted at low frequencies. These

broadcasts generally begin to fade at

occurs, we suggest that you select

long, low frequency radio waves can fol-

short distances from the station. Also,

another stronger station.

low the curvature of the earth rather than

FM signals are easily affected by build-

• Flutter/Static

- Weak FM signals or

travelling straight out into the atmos-

ings, mountains, or other obstructions.

large obstructions between the trans-

phere. In addition, they curve around

These can result in certain listening con-

mitter and your radio can disturb the

obstructions so that they can provide bet-

ditions which might lead you to believe a

signal causing static or fluttering nois-

ter signal coverage.

problem exists with your radio. The fol-

es to occur. Reducing the treble level

lowing conditions are normal and do not

may lessen this effect until the distur-

indicate radio trouble:

bance clears.

4 123

Features of your vehicle

Satellite radio reception

• If you are driving on a mountain road

You may experience receiving difficulties

where the signal is blocked by moun-

receiving XM™ satellite radio signals in

tains.

the following situations.

JBM005

•

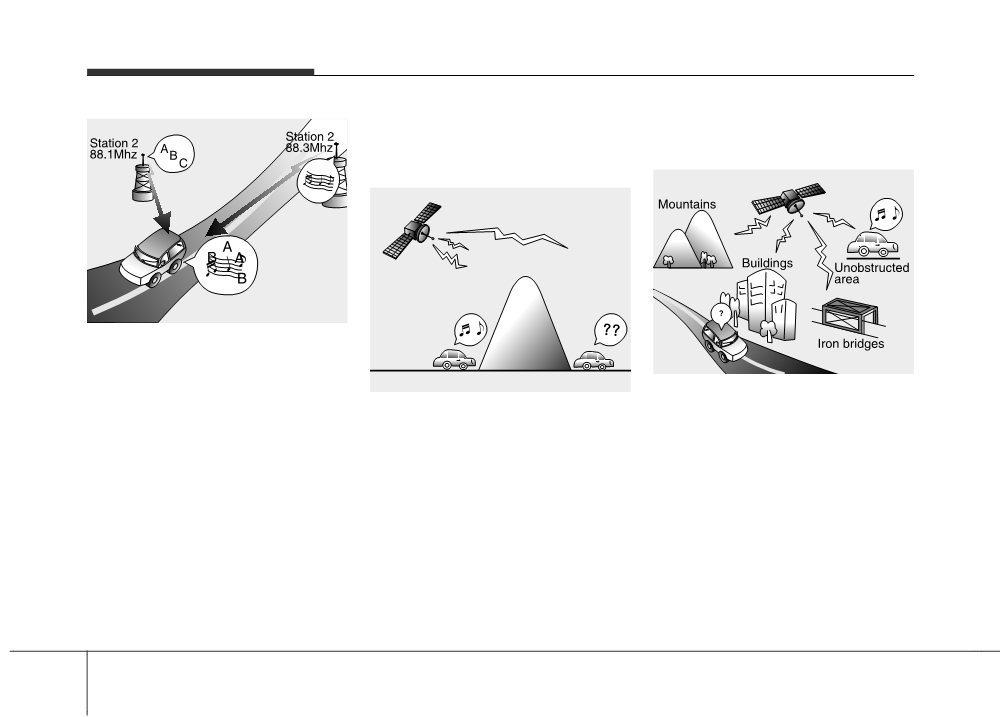

Station Swapping - As a FM signal

weakens, another more powerful sig-

nal near the same frequency may

begin to play. This is because your

• If you are driving in an area with tall

radio is designed to lock onto the clear-

•

If you are driving in a tunnel or a cov-

trees that block the signal

(10m or

est signal. If this occurs, select anoth-

ered parking area.

more) ; for example, on a road through

er station with a stronger signal.

•

If you are driving beneath the top level

a dense forest.

•

Multi-Path Cancellation - Radio signals

of a multi-level freeway.

• The signal can become weak in some

being received from several directions

•

If you drive under a bridge.

areas that are not covered by the XM™

can cause distortion or fluttering. This

repeater network.

can be caused by a direct and reflect-

•

If you are driving next to a tall vehi-

ed signal from the same station, or by

cle(such as a truck or a bus) that block

signals from two stations with close

the signal.

NOTE:

frequencies. If this occurs, select

•

If you are driving in a valley where the

There may be other unforeseen cir-

another station until the condition has

surrounding hills or peaks block the

cumstances leading to reception

passed.

signal from the satellite.

problems with XM™ satellite radio

signal.

4 124

Features of your vehicle

Using a cellular phone or a two-way

Care of discs

• Keep CDs in their cases after use to

radio

protect them from scratches or dirt.

•

If the temperature inside the car is too

When a cellular phone is used inside the

high, open the car windows for ventila-

• Depending on the type of CD-R/CD-

vehicle, noise may be produced from the

tion before using your car audio.

RW CDs, certain CDs may not operate

audio equipment. This does not mean

normally according to manufacturing

•

It is illegal to copy and use MP3/WMA

that something is wrong with the audio

companies or making and recording

files without permission. Use CDs that

equipment. In such a case, use the cellu-

methods. In such circumstances, if you

are created only by lawful means.

lar phone at a place as far as possible

still continue to use those CDs, they

•

Do not apply volatile agents such as

from the audio equipment.

may cause the malfunction of your car

benzene and thinner, normal cl eaners

audio system.

and magnetic sprays made for ana-

logue disc onto CDs.

CAUTION

✽ NOTICE - Playing an

•

To prevent the disc surface from get-

When using a communication sys-

ting damaged. Hold and carry CDs by

Incompatible Copy

tem such a cellular phone or a radio

the edges or the edges of the center

Protected Audio CD

set inside the vehicle, a separate

hole only.

Some copy protected CDs, which do not

external antenna must be fitted.

•

Clean the disc surface with a piece of

comply with the international audio CD

When a cellular phone or a radio set

soft cloth before playback (wipe it from

standards (Red Book), may not play on

is used with an internal antenna

the center to the outside edge).

your car audio. Please note that if you

alone, it may interfere with the vehi-

try to play copy protected CDs and the

cle's electrical system and adverse-

•

Do not damage the disc surface or

CD player does not perform correctly

ly affect safe operation of the vehi-

attach pieces of sticky tape or paper

onto it.

the CDs maybe defective, not the CD

cle.

player.

•

Make sure on undesirable matter other

than CDs are inserted into the CD

player (Do not insert more than one

WARNING

CD at a time).

Don't use a cellular phone when

you are driving. You should stop at

a safe place to use a cellular phone.

4 125

Features of your vehicle

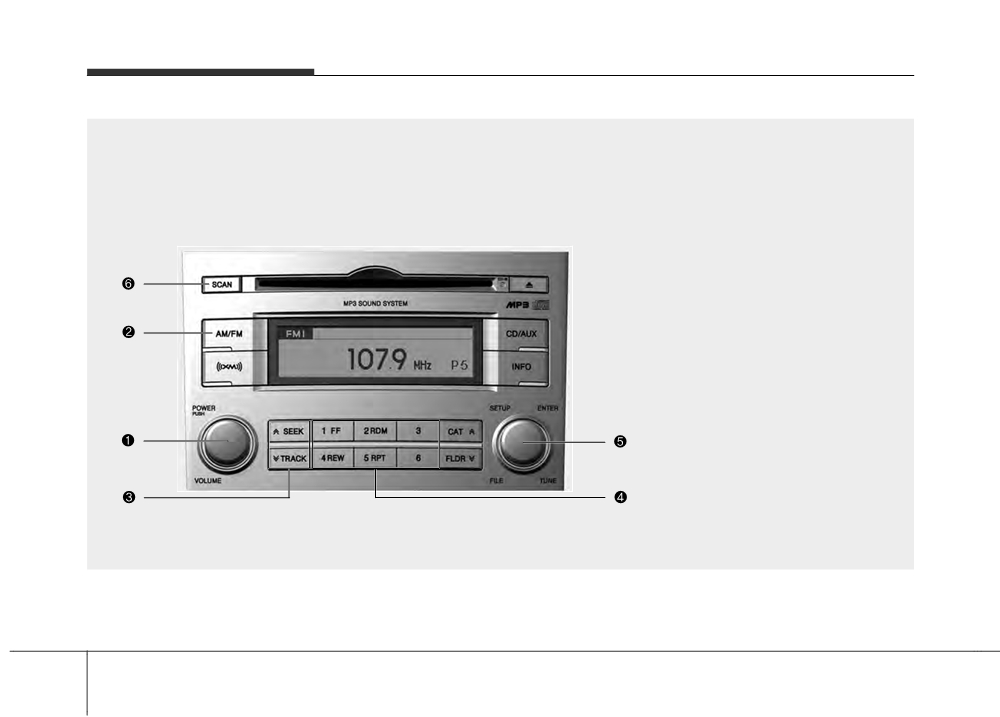

RADIO, SET UP, VOLUME, AUDIO CONTROL(PA710S)

1. Power ON/OFF Button & Volume Control

Knob

2. FM/AM Selection Button

3. Automatic Channel Selection Button

4. Preset Button

5. Manual Channel Selection Knob &

SETUP Button

6. SCAN Button

A-200ENL

4 126

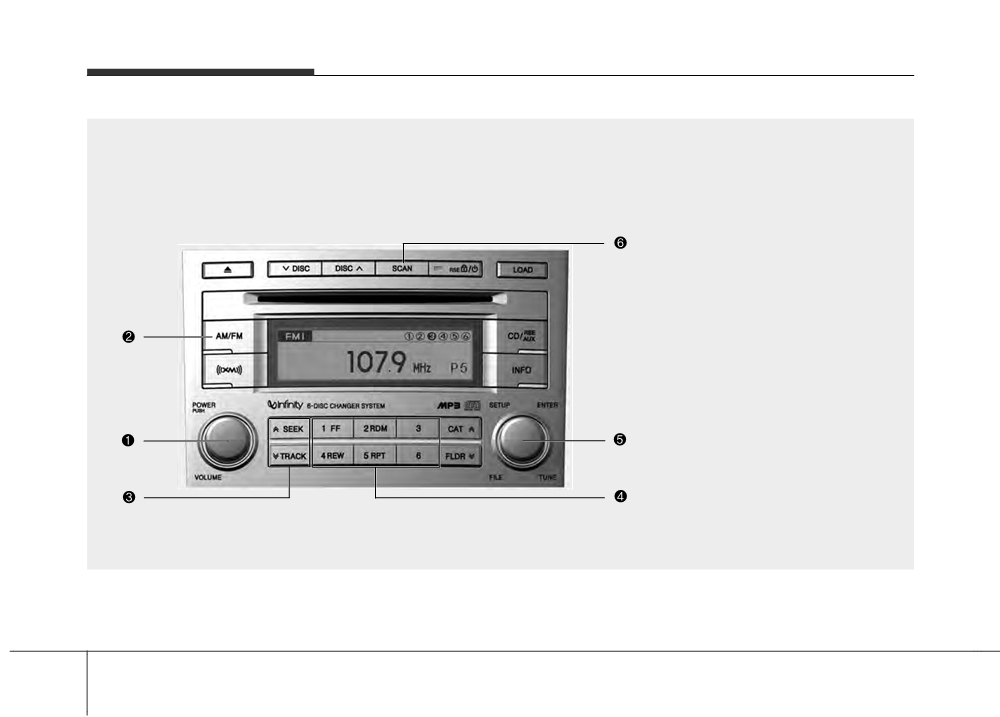

Features of your vehicle

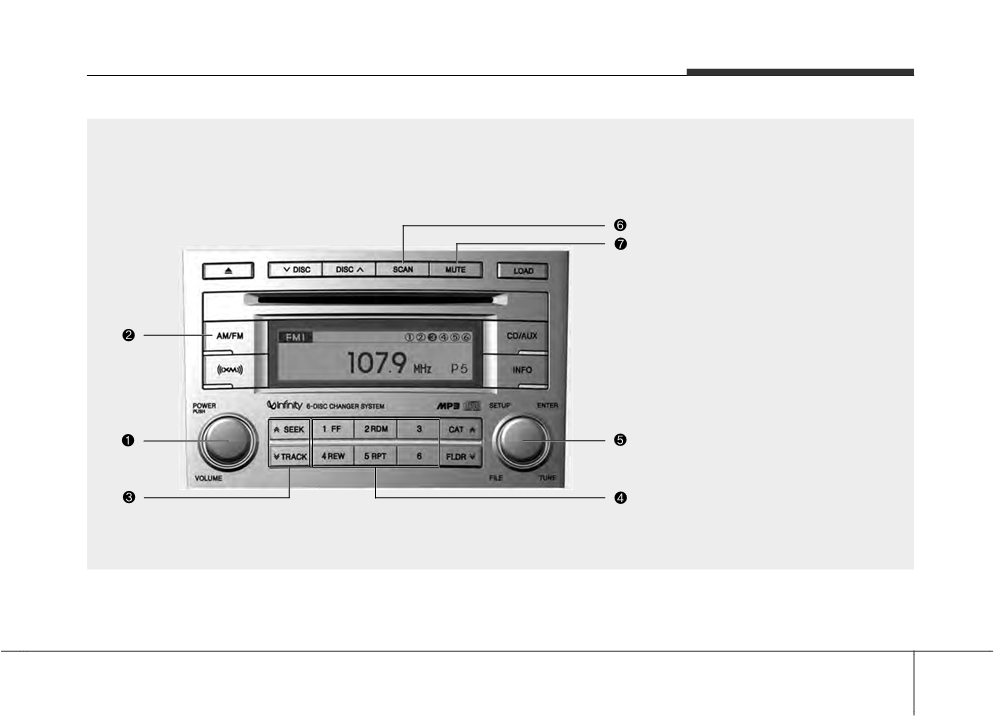

RADIO, SET UP, VOLUME, AUDIO CONTROL(PA760S)

1. Power ON/OFF Button & Volume Control

Knob

2. FM/AM Selection Button

3. Automatic Channel Selection Button

4. Preset Button

5. Manual Channel Selection Knob &

SETUP Button

6. SCAN Button

7. MUTE Button

A-300ENL

4 127

Features of your vehicle

RADIO, SET UP, VOLUME, AUDIO CONTROL(PA760S RSE)

1. Power ON/OFF Button & Volume Control

Knob

2. FM/AM Selection Button

3. Automatic Channel Selection Button

4. Preset Button

5. Manual Channel Selection Knob &

SETUP Button

6. SCAN Button

A-350CML

4 128

Features of your vehicle

1. Power ON/OFF Button &

4. Preset Button

• PA760S RSE ONLY

Volume Control Knob

Push [1]~[6] buttons less than 0.8 sec-

Press this button to turn to the XM option,

Turns the set on/off when the ignition

ond to play the channel saved in each

SCROLL, SURROUND and adjustment

switch is on ACC or ON. If the button is

button. Push Preset button for 0.8 sec-

mode. If no action is taken for 5 seconds

turned to the right, it increases the vol-

ond or longer to save current channel to

after pressing the button, it will return to

ume and left, it decreases the volume.

the respective button with a beep.

the play mode.(After entering SETUP

mode, move between items using the left,

right and PUSH functions of the [TUNE]

2. FM/AM Selection Button

5. Manual Channel Selection

button.)

Knob & SETUP Button

Turns to FM or AM mode, and toggles in

The setup item changes from SCROLL ➟

the order of FM1 ➟ FM2 ➟ AM ➟ FM1...

Manual Channel Selection knob

SURROUND ➟ XM...

when the button is pressed each time.

Turn this control while listening to a radio

channel to manually adjust frequency.

Sound Quality Control Knob

Turn clockwise to increase frequency and

3. Automatic Channel Selection

Pressing the button changes the TONE

counterclockwise to reduce frequency.

and POSITION mode. The mode select-

Button

ed is shown on the display. After select-

• When the [SEEK

] button is pressed,

SETUP Button

ing each mode, rotate the Audio control

it increases the band frequency to auto-

Press this button to turn to the XM

knob clockwise or counterclockwise.

matically select a channel.

option, SCROLL and adjustment mode. If

Stops at the previous frequency if no

no action is taken for 5 seconds after

channel is found.

• BASS Control

pressing the button, it will return to the

• When the [TRACK

] button is press-

To increase the BASS, rotate the knob

play mode.(After entering SETUP mode,

ed, it reduces the band frequency to

clockwise, while to decrease the BASS,

move between items using the left, right

automatically select a channel.

rotate the knob counterclockwise.

and PUSH functions of the [TUNE] but-

Stops at the previous frequency if no

ton.)

channel is found.

The setup item changes from SCROLL

• MIDDLE Control

➟ XM...

To increase the MIDDLE, rotate the knob

clockwise, while to decrease the MID-

DLE, rotate the knob counterclockwise.

4 129

Features of your vehicle

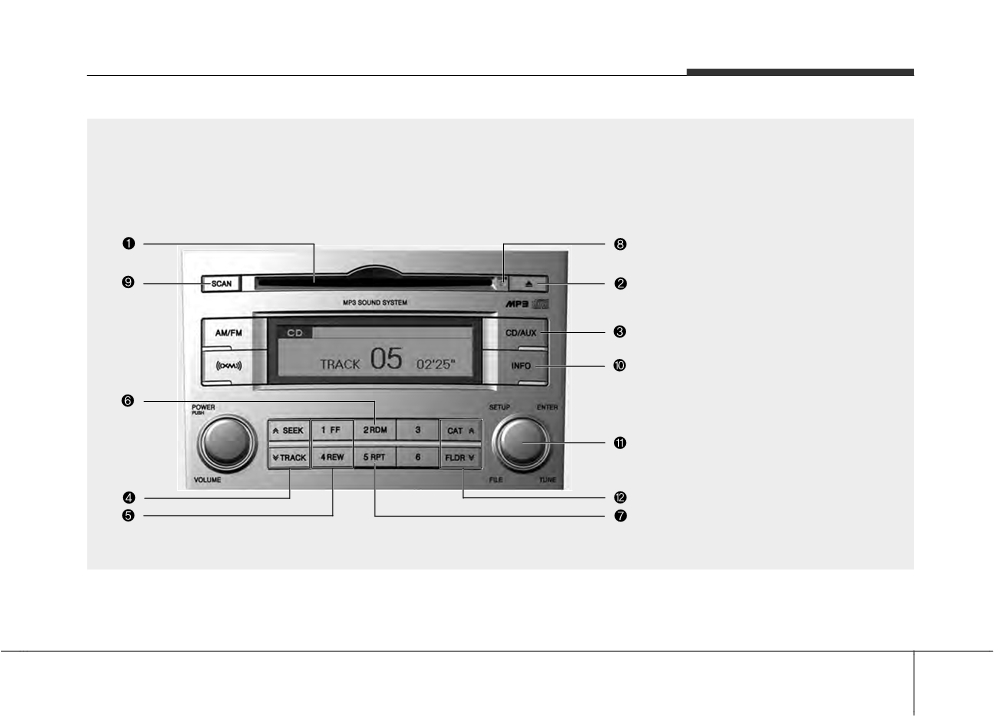

CDP, AUX(PA710S)

1. CD Loading Slot

2. CD Eject Button

3. CD/AUX Selection Button

4. Automatic Track Selection Button

5. Fast Search Button

6. RANDOM Play Button

7. REPEAT Button

8. CD Indicator

9. SCAN Play Button

10. INFO Button

11. SEARCH Knob & ENTER Button

12. FOLDER Moving Button

A-200ENL

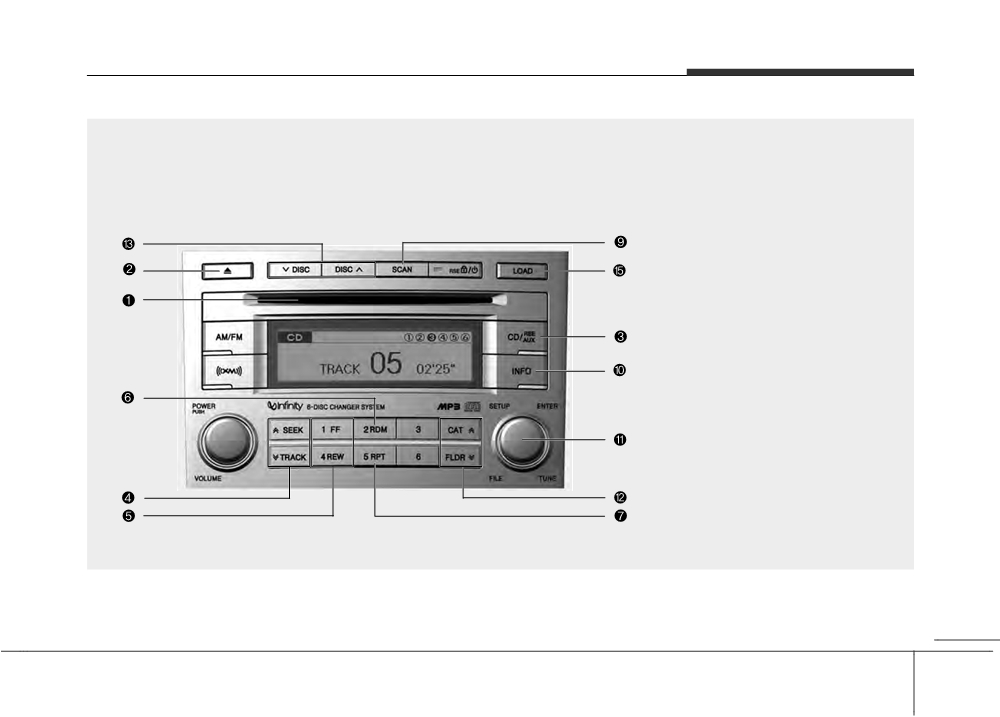

4 131

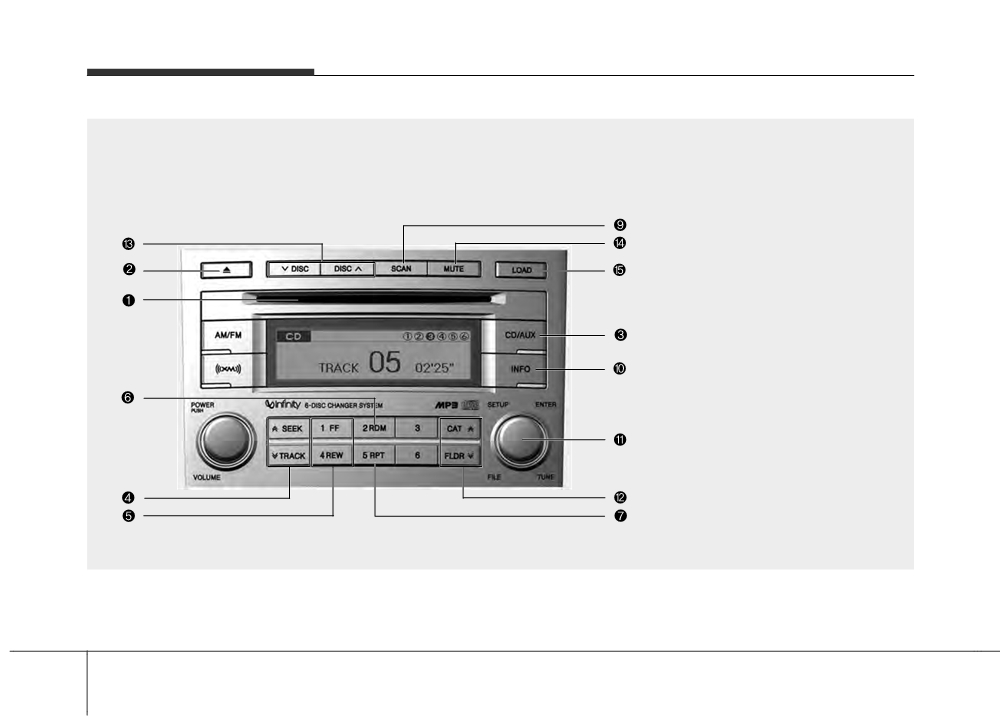

Features of your vehicle

CDC, AUX(PA760S)

1. CD Loading Slot

2. CD Eject Button

3. CD/AUX Selection Button

4. Automatic Track Selection Button

5. Fast Search Button

6. RANDOM Play Button

7. REPEAT Button

9. SCAN Play Button

10. INFO Button

11. SEARCH Knob & ENTER Button

12. FOLDER Moving Button

13. DISC Selection Button

14. MUTE Button

15. CD LOAD Button

A-300ENL

4 132

Features of your vehicle

CDC, AUX(PA760S RSE)

1. CD Loading Slot

2. CD Eject Button

3. CD/AUX/RSE Selection Button

4. Automatic Track Selection Button

5. Fast Search Button

6. RANDOM Play Button

7. REPEAT Button

9. SCAN Play Button

10. INFO Button

11. SEARCH Knob & ENTER Button

12. FOLDER Moving Button

13. DISC Selection Button

15. CD LOAD Button

A-350ENL

4 133

Features of your vehicle

1. CD Loading Slot

• CD/AUX Selection Button

4. Automatic Track Selection

Please face printed side upward and gen-

If the auxiliary device is connected, it

Button

tly push in. When the ignition switch is on

switches to the AUX mode from the other

• Push [TRACK

] button for less than

ACC or ON and power is off, power is

mode to play the sound from the auxiliary

0.8 second to play from the beginning

automatically turned on if the CD is

player.

of current song.

loaded. This CDP supports only 12cm CD.

If the CD is loaded, turns to CD mode,

• Push [TRACK

] button for less than

If a VCD, Data CD are loaded, "Reading

and if a device is connected to AUX then

0.8 second and press again within 1

Error" message will appear and CD will be

it toggles. CD ➟ AUX ➟ CD... when the

seconds to play the previous song.

ejected.

button is pressed each time.(It will not

• Push [SEEK

] button for less than 0.8

turn to AUX if the auxiliary device is not

second to play the next song.

connected)

2. CD Eject Button

If no CD and auxiliary device is connect-

Push button for less than 0.8 second

5. Fast Search Button

ed, it displays "No Media" for 3 seconds

to eject the CD during CD playback.

and returns to the previous mode.

• Push

[FF] button for

0.8 second or

This button is enabled when ignition

longer to initiate high speed sound

switch is off.

search of current song.

• CD/AUX/RSE Selection Button

• ALL EJECT(CDC Only)

• Push [REW] button for 0.8 second or

If the auxiliary device is connected, it

Press this button for more than 0.8 sec-

longer to initiate reverse direction high

switches to the AUX mode from the other

ond to eject all discs inside the deck in

speed sound search of current song.

mode to play the sound from the auxiliary

respective order.

player.

If the CD is loaded, turns to CD mode,

6. RANDOM Play Button

3. CD or CD/AUX or CD/AUX/RSE

and if a device is connected to AUX and

Press this button for less than 0.8 second

Selection Button

there is a CD in the RSE then it toggles.

to activate ‘RDM’ mode and more than

• CD Selection Button

CD ➟ AUX ➟ RSE ➟ CD... when the but-

0.8 second to activate ‘ALL RDM’ mode.

ton is pressed each time.(It will not turn

If the CD is loaded, turns to CD mode. If

• RDM : Only files/tracks in a folder/disc

to AUX and RSE if the auxiliary device is

no CD, it displays "No Disc" for 3 sec-

are played back in a random sequence.

not connected and there is no CD in the

onds and returns to th previous mode.

• ALL RDM(MP3/WMA Only) : All files in

RSE)

a disc are played back in the random

If no CD and auxiliary device is connect-

sequence.

ed, it displays "No Media" for 3 seconds

and returns to the previous mode.

4 134

Content   ..  10  11  12  13   ..
