Hyundai Sonata Hybrid (2017 year). Instruction - part 26

Components of the Tire Mobility Kit

9. Hose to connect compressor and

sealant bottle or compressor and

wheel

Connectors, cable and connection

hose are stored in the compressor

housing.

Strictly

follow

the

specified

sequence, otherwise the sealant

may escape under high pressure.

WARNING

Do not use the tire sealant after

the sealant has expired

(i.e.

pasted the expiration date on

the sealant container). This can

6

increase the risk of tire failure.

OEL069020

WARNING

0. Speed restriction label

4. Holder for the sealant bottle

• Keep out of reach of children.

1. Sealant bottle and label with

5. Compressor

speed restriction

• Avoid contact with eyes.

6. ON/OFF switch

• Do not swallow.

2. Filling hose from sealant bottle to

7. Pressure gauge for displaying the

wheel

tire inflation pressure

3. Connectors and cable for power

8. Screw cap for reducing tire infla-

outlet direct connection

tion pressure

6-25

What to do in an emergency

Using the Tire Mobility Kit

1. Detach the speed restriction label

(0) from the sealant bottle (1), and

place it in a highly visible place

inside the vehicle such as on the

steering wheel to remind the driv-

er not to drive too fast.

OLMF064104

OLF064017

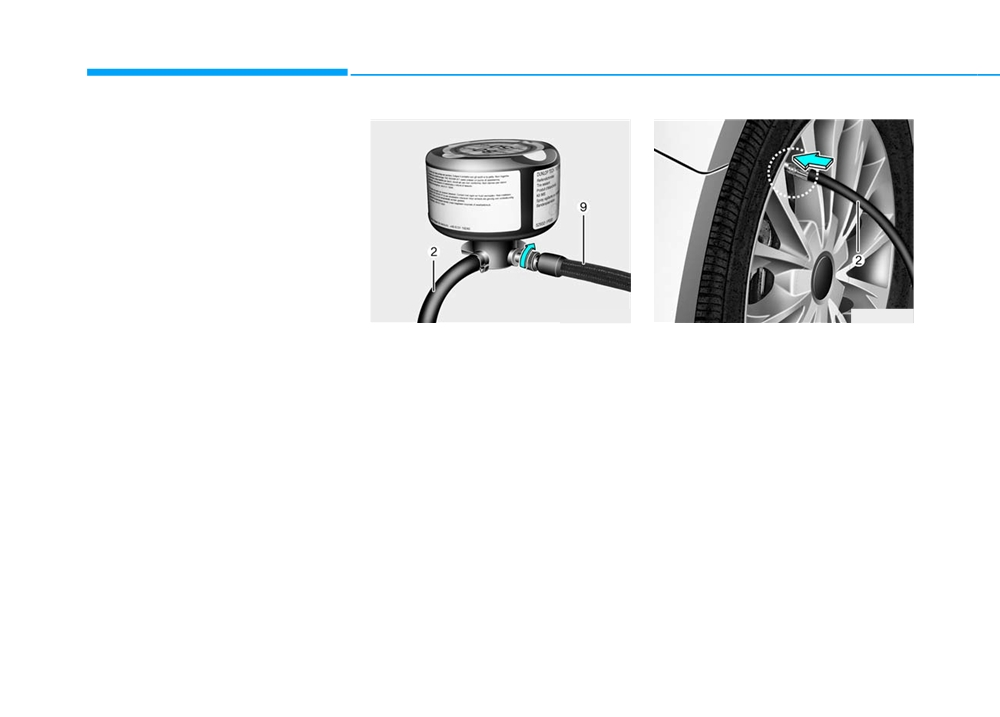

2. Screw the connection hose

(9)

4. Unscrew the valve cap from the

onto the connector of the sealant

valve of the flat tire and screw the

bottle.

filling hose (2) of the sealant bottle

onto the valve.

3. Ensure that the screw cap (8) is

closed.

6-26

CAUTION

Securely install the sealant fill-

ing hose to the valve. If not,

sealant may flow backward,

possibly clogging the filling

hose.

OLMF064105

OLF064019N

5. Insert the sealant bottle into the

7. Plug the compressor power cord

housing (4) of the compressor so

(3) into the vehicle power outlet.

that the bottle is upright.

8. With the ignition switch in the ON

6. Ensure that the compressor is

position, switch on the compres-

switched off, position 0.

sor and let it run for approximately

6

OHY015012

5~7 minutes to fill the sealant up

to proper pressure. (refer to the

Tire and Wheels, chapter 8). The

inflation pressure of the tire after

filling is unimportant and will be

checked/corrected later.

Be careful not to overinflate the

tire and stay away from the tire

when filling it.

6-27

What to do in an emergency

Distributing the sealant

CAUTION

11. Immediately drive approximately

4~6miles (7~10km or about 10

Do not attempt to drive your

minutes) to evenly distribute the

vehicle if the tire pressure is

sealant in the tire.

below

29 psi

(200kpa). This

could result in an accident due

Do not exceed a speed of 50 mph

to sudden tire failure.

(80 km/h). If possible, do not fall

below a speed of 12 mph (20 km/h).

While driving, if you experience any

9. Switch off the compressor.

unusual vibration, ride disturbance or

10. Detach the hoses from the

noise, reduce your speed and drive

OLF064020

sealant bottle connector and

with caution until you can safely pull

from the tire valve.

off of the side of the road.

Checking the tire inflation pres-

sure

Return the Tire Mobility Kit to its stor-

Call for road side service or towing.

age location in the vehicle.

1. After

driving

approximately

When you use the Tire Mobility Kit,

4~6miles

(7~10km or about

the tire pressure sensors and wheel

10 minutes), stop at a safe loca-

WARNING

may be damaged by sealant, have it

tion.

inspected at an authorized dealer.

Do not leave your vehicle run-

2. Connect hose (9) of the compres-

sor directly to the tire valve.

ning in a poorly ventilated area

for extended periods of time.

3. Plug the compressor power cord

Carbon monoxide poisoning

into the vehicle power outlet.

and suffocation can occur.

6-28

4. Adjust the tire inflation pressure to

CAUTION

the recommended tire inflation.

With the ignition switched on, pro-

When you use the Tire Mobility

ceed as follows.

Kit including sealant not

- To increase the inflation pres-

approved by HYUNDAI, the tire

sure:

pressure sensors may be dam-

Switch on the compressor, posi-

aged by sealant. The sealant on

tion to [I]. To check the current

the tire pressure sensor and

inflation pressure setting, briefly

wheel should be removed when

switch off the compressor.

you replace the tire with a new

one and inspect the tire pres-

- To reduce the inflation pres-

sure sensors at an authorized

sure:

dealer.

Loosen the screw cap (8) on the

compressor hose.

i

Information

6

The pressure gauge may show higher

than actual reading when the com-

pressor is running. To get an accurate

tire pressure, the compressor needs to

be turned off.

6-29

What to do in an emergency

TOWING

Towing Service

It is acceptable to tow the vehicle

with the rear wheels on the ground

A

(without dollies) and the front wheels

off the ground.

If any of the loaded wheels or sus-

pension components are damaged

or the vehicle is being towed with the

front wheels on the ground, use a

B

towing dolly under the front wheels.

OLF064023

When being towed by a commercial

tow truck and wheel dollies are not

used, the front of the vehicle should

C

always be lifted, not the rear.

Dolly

OLF064021N

OLF064022

If emergency towing is necessary,

we recommend having it done by an

authorized HYUNDAI dealer or a

CAUTION

commercial tow-truck service.

• Do not tow the vehicle with

Proper lifting and towing procedures

the front wheels on the

are necessary to prevent damage to

ground as this may cause

the vehicle. The use of wheel dollies

damage to the vehicle.

or flatbed is recommended.

• Do not tow with sling-type

equipment. Use wheel lift or

flatbed equipment.

6-30

When towing your vehicle in an

Emergency Towing

If towing service is not available in an

emergency without wheel dollies :

(if equipped)

emergency, your vehicle may be

temporarily towed using a cable or

1. Place the ignition switch in the

■ Rear

chain secured to the emergency tow-

ACC position.

ing hook at the rear of the vehicle.

2. Place the shift lever in N (Neutral).

Use extreme caution when towing

3. Release the parking brake.

the vehicle with a cable or chain. A

driver must be in the vehicle to steer

CAUTION

it and operate the brakes.

Towing in this manner may be done

Failure to place the transmis-

only on hard-surfaced roads for a

sion shift lever in N (Neutral)

short distance and at low speeds.

may cause internal damage to

Also, the wheels, axles, power train,

the transmission.

steering and brakes must all be in

OLF064027

good condition.

If towing is necessary, we recom-

mend you to have it done by an

authorized HYUNDAI dealer or a

6

commercial tow truck service.

6-31

What to do in an emergency

Always follow these emergency tow-

CAUTION

ing precautions:

•

Place the ignition switch in the

To avoid damage to your vehicle

ACC position so the steering

and vehicle components when

wheel is not locked.

towing:

•

Place the shift lever in N (Neutral).

•

Always pull straight ahead

•

Release the parking brake.

when using the towing hooks.

•

Depress the brake pedal with more

Do not pull from the side or at

force than normal since you will

a vertical angle.

have reduced braking perform-

•

Do not use the towing hooks

ance.

ODH063025

to pull a vehicle out of mud,

•

More steering effort will be

sand or other conditions from

•

Use a towing cable or chain less

required because the power steer-

which the vehicle cannot be

than 16 feet (5 m) long. Attach a

ing system will be disabled.

driven out under its own

white or red cloth (about 12 inches

power.

•

Use a vehicle heavier than your

(30 cm) wide) in the middle of the

own to tow your vehicle.

cable or chain for easy visibility.

•

Limit the vehicle speed to 10

mph (15 km/h) and drive less

•

The drivers of both vehicles should

•

Drive carefully so the towing cable

than 1 mile (1.5 km) when tow-

communicate with each other fre-

or chain remains tight during tow-

ing to avoid serious damage

quently.

ing.

to the automatic transmis-

•

Before emergency towing, check

•

Before towing, check the automat-

sion.

that the hook is not broken or dam-

ic transmission for fluid leaks under

aged.

your vehicle. If the automatic trans-

mission fluid is leaking, flatbed

•

Fasten the towing cable or chain

securely to the hook.

equipment or a towing dolly must

be used.

•

Do not jerk the hook. Apply steady

and even force.

6-32

Maintenance

Engine Compartment

7-3

Brake Discs, Pads, Calipers and Rotors

7-23

Maintenance Services

7-6

Exhaust Pipe and Muffler

7-23

Owner’s Responsibility

7-6

Suspension Mounting Bolts

7-23

Owner Maintenance Precautions

7-6

Steering Gear Box, Linkage &

Boots/Lower Arm Ball Joint

7-23

Owner Maintenance

7-7

Drive Shafts and Boots

7-23

Owner Maintenance Schedule

7-8

Air Conditioning Refrigerant

7-23

Scheduled Maintenance Services

7-9

Engine Oil

7-24

Normal Maintenance Schedule

7-10

Checking the Engine Oil Level

7-24

Maintenance Under Severe Usage Conditions

7-20

Checking the Engine Oil and Filter

7-26

Explanation of Scheduled Maintenance Items..7-21

Engine Coolant

7-27

Engine Oil and Filter

7-21

Checking the Engine Coolant Level

7-27

Drive Belts

7-21

Changing Engine Coolant

7-29

Fuel Filter

7-21

Fuel Lines, Fuel Hoses and Connections

7-21

Brake Fluid

7-30

Vapor Hose and Fuel Filler Cap

7-21

Checking the Brake Fluid Level

7-30

Air Cleaner Filter

7-21

Washer Fluid

7-31

Spark Plugs

7-21

Checking the Washer Fluid Level

7-31

Valve Clearance

7-22

Parking Brake

7-31

Cooling System

7-22

Checking the Parking Brake

7-31

7

Engine Coolant

7-22

Air Cleaner

7-32

Automatic Transmission Fluid

7-22

Filter Replacement

7-32

Ecoshift Dual Clutch Transmission Fluid

7-22

Climate Control Air Filter

7-34

Brake hoses and Lines

7-23

Filter Inspection

7-34

Brake Fluid

7-23

Parking Brake

7-23

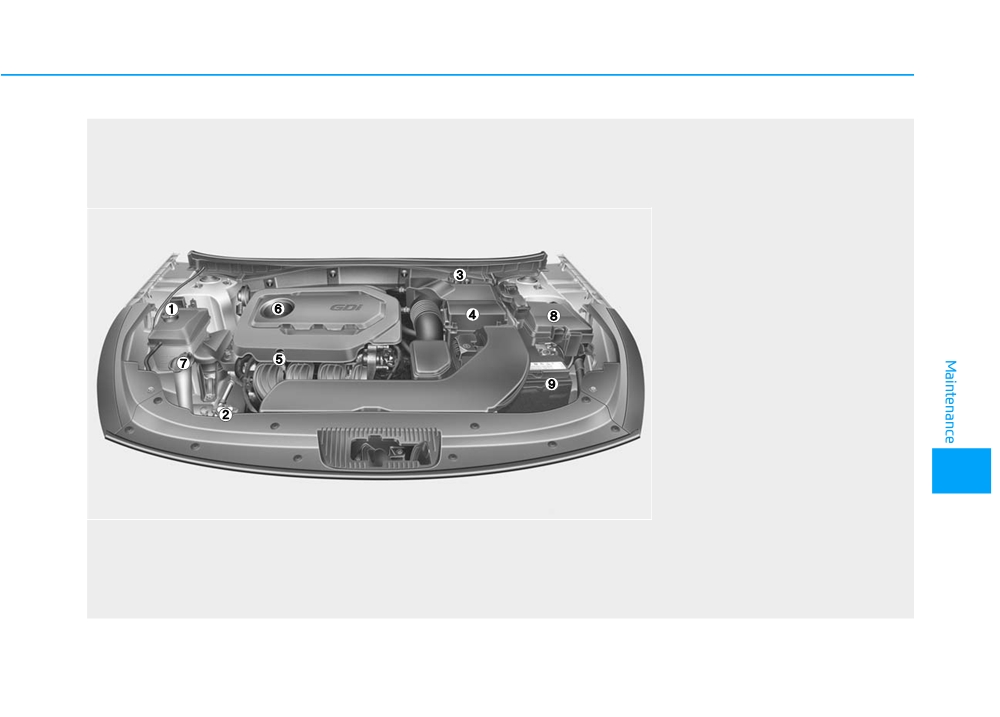

ENGINE COMPARTMENT

■ 1.6 T-GDI

1. Engine oil filler cap

2. Engine oil dipstick

3. Brake fluid reservoir

4. Positive battery terminal

5. Negative battery terminal

6. Fuse box

7. Air cleaner

8. Radiator cap

9. Engine coolant reservoir

10. Windshield washer fluid reservoir

The actual engine compartment in the vehi-

7

cle may differ from the illustration.

OLF014009N

7-3

Maintenance

■ 2.0 T-GDI

1. Engine oil filler cap

2. Engine oil dipstick

3. Brake fluid reservoir

4. Positive battery terminal

5. Negative battery terminal

6. Fuse box

7. Air cleaner

8. Radiator cap

9. Engine coolant reservoir

10. Windshield washer fluid reservoir

The actual engine compartment in the vehi-

cle may differ from the illustration.

OLF014008N

7-4

■ 2.4 GDI

1. Engine coolant reservoir

2. Radiator cap

3. Brake fluid reservoir

4. Air cleaner

5. Engine oil dipstick

6. Engine oil filler cap

7. Windshield washer fluid reservoir

8. Fuse box

9. Battery

The actual engine compartment in the

vehicle may differ from the illustration.

7

OLF014006

7-5

Maintenance

MAINTENANCE SERVICES

You should exercise the utmost care

Detailed warranty information is pro-

NOTICE

to prevent damage to your vehicle

vided in your Owner's Handbook &

and injury to yourself whenever per-

Warranty Information booklet.

Improper owner maintenance dur-

forming any maintenance or inspec-

ing the warranty period may affect

Repairs and adjustments required as

tion procedures.

warranty coverage. For details,

a result of improper maintenance or

read the separate Owner's

We recommend you have your vehi-

a lack of required maintenance are

Handbook & Warranty Information

cle maintained and repaired by an

not covered.

booklet provided with the vehicle.

authorized HYUNDAI dealer. An

If you're unsure about any service

authorized HYUNDAI dealer meets

Owner Maintenance

or maintenance procedure, have it

HYUNDAI's high service quality

Precautions

done by an authorized HYUNDAI

standards and receives technical

Inadequate, incomplete or insuffi-

dealer.

support from HYUNDAI in order to

cient servicing may result in opera-

provide you with a high level of serv-

tional problems with your vehicle that

ice satisfaction.

could lead to vehicle damage, an

accident, or personal injury. This

Owner’s Responsibility

chapter provides instructions only for

the maintenance items that are easy

Maintenance service and record reten-

to perform. Several procedures can

tion are the owner’s responsibility.

be done only by an authorized

You should retain documents that

HYUNDAI dealer with special tools.

show proper maintenance has been

Your vehicle should not be modified

performed on your vehicle in accor-

in any way. Such modifications may

dance with the scheduled mainte-

adversely affect the performance,

nance service charts shown on the

safety or durability of your vehicle

following pages. You need this infor-

and may, in addition, violate condi-

mation to establish your compliance

tions of the limited warranties cover-

with the servicing and maintenance

ing the vehicle.

requirements of your vehicle war-

Certain modifications may also be in

ranties.

violation of regulations established by

the U.S. Department of Transportation

and other federal or state agencies.

7-6

OWNER MAINTENANCE

The following lists are vehicle checks

WARNING

(Continued)

and inspections that should be per-

•

If you must run the engine

formed by the owner or an author-

Performing maintenance work

during maintenance, do so

ized HYUNDAI dealer at the frequen-

on a vehicle can be dangerous.

out doors or in an area with

cies indicated to help ensure safe,

If you lack sufficient knowledge

plenty of ventilation.

dependable operation of your vehi-

and experience or the proper

•

Keep flames, sparks, or smok-

cle.

tools and equipment to do the

ing materials away from the

Any adverse conditions should be

work, have it done by an author-

battery and fuel-related parts.

brought to the attention of your deal-

ized HYUNDAI dealer. ALWAYS

er as soon as possible.

follow these precautions for

performing maintenance work:

These Owner Maintenance vehicle

checks are generally not covered by

• Park your vehicle on level

warranties and you may be charged

ground, move the shift lever

for labor, parts and lubricants used.

into the P (Park, for automatic

transmission vehicle) posi-

tion, apply the parking brake,

place the ignition switch in

the LOCK/OFF position.

• Block the tires (front and back)

to prevent the vehicle from

7

moving.

Remove loose clothing or jew-

elry that can become entan-

gled in moving parts.

(Continued)

7-7

Maintenance

Owner Maintenance Schedule

While operating your vehicle:

At least monthly:

When you stop for fuel:

•

Note any changes in the sound of

•

Check coolant level in the engine

the exhaust or any smell of

coolant reservoir.

• Check the engine oil level.

exhaust fumes in the vehicle.

•

Check the operation of all exterior

• Check coolant level in the engine

•

Check for vibrations in the steering

lights, including the stoplights, turn

coolant reservoir.

wheel. Notice if there is any

signals and hazard warning flashers.

• Check the windshield washer fluid

increased steering effort or loose-

•

Check the inflation pressures of all

level.

ness in the steering wheel, or

tires including the spare for tires

• Check for low or under-inflated

change in its straight-ahead posi-

that are worn, show uneven wear,

tires.

tion.

or are damaged.

•

Notice if your vehicle constantly

•

Check for loose wheel lug nuts.

turns slightly or "pulls" to one side

WARNING

when traveling on smooth, level

Be careful when checking your

road.

engine coolant level when the

•

When stopping, listen and check

engine is hot. This may result in

for unusual sounds, pulling to one

coolant being blown out of the

side, increased brake pedal travel

opening and cause serious

or "hard-to-push" brake pedal.

burns and other injuries.

•

If any slipping or changes in the

operation of your transmission

occurs, check the transmission

fluid level.

•

Check the automatic transmission

/ecoshift dual clutch transmission

P (Park) function.

•

Check the parking brake.

•

Check for fluid leaks under your

vehicle (water dripping from the air

conditioning system during or after

use is normal).

7-8

Content   ..  24  25  26  27   ..
