Hyundai Sonata Hybrid (2017 year). Instruction - part 25

IF THE ENGINE OVERHEATS

If your temperature gauge indicates

4. Check for coolant leaking from the

WARNING

overheating, you experience a loss

radiator, hoses or under the vehi-

of power, or hear loud pinging or

cle.

(If the air conditioning had

While the engine is

knocking, the engine may be over-

been in use, it is normal for cold

running, keep hands,

heating. If this happens, you should:

water to be draining from it when

clothing and tools

you stop.)

1. Pull off the road and stop as soon

away from the mov-

as it is safe to do so.

5. If engine coolant is leaking out,

ing parts such as the

stop the engine immediately and

2. Place the shift lever in P (Park)

cooling fan and drive

call the nearest authorized

and set the parking brake. If the air

belt to prevent seri-

HYUNDAI dealer for assistance.

conditioning is ON, turn it OFF.

ous injury.

3. If engine coolant is running out

under the vehicle or steam is com-

ing out from the hood, stop the

engine. Do not open the hood until

the coolant has stopped running

or the steaming has stopped. If

there is no visible loss of engine

6

coolant and no steam, leave the

engine running and check to be

sure the engine cooling fan is

operating. If the fan is not running,

turn the engine off.

6-7

What to do in an emergency

6. If you cannot find the cause of the

WARNING

overheating, wait until the engine

temperature has returned to nor-

NEVER remove the

mal. Then, if coolant has been

radiator cap or the

lost, carefully add coolant to the

drain plug while the

reservoir to bring the fluid level in

engine and radiator

the reservoir up to the halfway

are hot. Hot coolant

mark.

and steam may blow out under

7. Proceed with caution, keeping

pressure, causing serious

alert for further signs of overheat-

injury.

ing. If overheating happens again,

Turn the engine off and wait

call an authorized HYUNDAI deal-

until the engine cools down.

er for assistance.

Use extreme care when remov-

ing the radiator cap. Wrap a

thick towel around it, and turn it

CAUTION

counterclockwise slowly to the

first stop. Step back while the

Serious loss of coolant indi-

pressure is released from the

cates a leak in the cooling sys-

cooling system. When you are

tem and should be checked as

sure all the pressure has been

soon as possible by an author-

released, press down on the

ized HYUNDAI dealer.

cap, using a thick towel, and

continue turning counterclock-

wise to remove it.

6-8

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Check Tire Pressure

• The displayed tire pressure values

may differ from those measured

with a tire pressure gauge.

• You can change the tire pressure

unit in the User Settings Mode on

the cluster.

- psi, kpa, bar (Refer to the "User

Settings Mode" section in

chapter 3).

OLF064003

OLF066028N

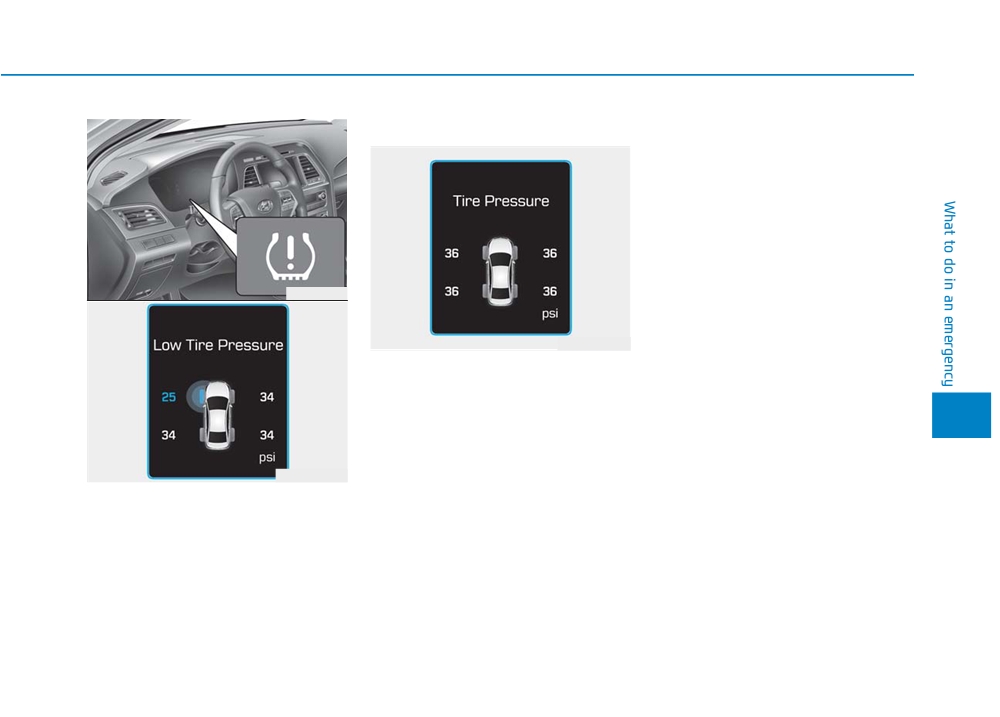

• You can check the tire pressure in

the Information Mode on the clus-

ter.

6

Refer to the "User Settings

Mode" section in chapter 3.

• Tire pressure is displayed after a

OLF044147N

few minutes of driving after initial

(1) Low Tire Pressure Telltale/TPMS

engine start up.

Malfunction Indicator

• If tire pressure is not displayed

(2) Low Tire Pressure Position

when the vehicle is stopped, “Drive

Telltale and Tire Pressure Telltale

to display” message will appear.

(Shown on the LCD display)

After driving, check the tire pres-

sure.

6-9

NOTICE

Low Tire Pressure

If you cannot reach a service station

Telltale

or if the tire cannot hold the newly

If any of the below happens, have

added air, replace the low pressure

the system checked by an author-

tire with the spare tire.

ized HYUNDAI dealer.

Low Tire Pressure

The Low Tire Pressure Telltale will

1. The Low Tire Pressure Telltale/

Position and Tire

remain on and the TPMS Malfunction

TPMS Malfunction Indicator

Pressure Telltale

Indicator may blink for one minute

does not illuminate for 3 sec-

and then remain illuminated (when

onds when the ignition switch

the vehicle is driven approximately

OLF044147N

is placed to the ON position or

20 minutes at speed above 15.5 mph

engine is running.

When the tire pressure monitoring

(25 km/h)) until you have the low

system warning indicators are illumi-

2. The TPMS Malfunction Indicator

pressure tire repaired and replaced

nated and warning message dis-

remains illuminated after blink-

on the vehicle.

played on the cluster LCD display,

ing for approximately 1 minute.

one or more of your tires is signifi-

3. The Low Tire Pressure Position

i

Information

cantly under-inflated. The Low Tire

Telltale remains illuminated.

Pressure Position Telltale will indi-

The spare tire is not equipped with a

cate which tire is significantly under-

tire pressure sensor.

6

inflated by illuminating the corre-

sponding position light.

If either telltale illuminates, immedi-

ately reduce your speed, avoid hard

cornering and anticipate increased

stopping distances. You should stop

and check your tires as soon as pos-

sible. Inflate the tires to the proper

pressure as indicated on the vehi-

cle’s placard or tire inflation pressure

label located on the driver’s side cen-

ter pillar outer panel.

6-11

What to do in an emergency

TPMS (Tire Pressure

CAUTION

WARNING

Monitoring System)

Malfunction Indicator

In winter or cold weather, the

Low pressure damage

Low Tire Pressure Telltale may

The TPMS Malfunction Indicator will

Significantly low tire pressure

be illuminated if the tire pres-

illuminate after it blinks for approxi-

makes the vehicle unstable and

sure was adjusted to the recom-

mately one minute when there is a

can contribute to loss of vehicle

mended tire inflation pressure

problem with the Tire Pressure

control and increased braking

in warm weather. It does not

Monitoring System.

distances.

mean your TPMS is malfunc-

Have the system checked by an

tioning because the decreased

Continued driving on low pres-

authorized HYUNDAI dealer as soon

temperature leads to a propor-

sure tires can cause the tires to

as possible.

tional lowering of tire pressure.

overheat and fail.

When you drive your vehicle

NOTICE

from a warm area to a cold area

If there is a malfunction with the

or from a cold area to a warm

TPMS, the Low Tire Pressure

area, or the outside temperature

Position Telltale will not be dis-

is greatly higher or lower, you

played even though the vehicle

should check the tire inflation

has an under-inflated tire.

pressure and adjust the tires to

the recommended tire inflation

pressure.

6-12

NOTICE

Changing a Tire with TPMS

Once the original tire equipped with

a tire pressure monitoring sensor is

If you have a flat tire, the Low Tire

The TPMS Malfunction Indicator

reinflated to the recommended pres-

Pressure and Position telltales will

may illuminate after blinking for

sure and reinstalled on the vehicle,

come on. Have the flat tire repaired

one minute if the vehicle is near

the Low Tire Pressure Telltale and

by an authorized HYUNDAI dealer

electric power supply cables or

TPMS Malfunction Indicator will go

as soon as possible or replace the

radio transmitters such as police

off within a few minutes of driving.

flat tire with the spare tire.

stations, government and public

If the indicators do not extinguish

offices, broadcasting stations,

after a few minutes, please visit an

military installations, airports,

CAUTION

authorized HYUNDAI dealer.

transmitting towers, etc.

Each wheel is equipped with a tire

Additionally, the TPMS Malfunction

Never use a puncture-repairing

pressure sensor mounted inside the

Indicator may illuminate if snow

agent not approved by HYUNDAI

tire behind the valve stem (except for

chains are used or electronic

dealer to repair and/or inflate a

the spare tire). You must use TPMS

devices such as computers, charg-

low pressure tire. Tire sealant

specific wheels. It is recommended

ers, remote starters, navigation,

not approved by HYUNDAI deal-

that you always have your tires serv-

etc. This may interfere with normal

er may damage the tire pressure

iced by an authorized HYUNDAI

operation of the TPMS.

sensor.

6

dealer.

You may not be able to identify a tire

The spare tire (if equipped) does not

with low pressure by simply looking

come with a tire pressure monitoring

at it. Always use a good quality tire

sensor. When the low pressure tire or

pressure gauge to measure. Please

the flat tire is replaced with the spare

note that a tire that is hot (from being

tire, the Low Tire Pressure Telltale

driven) will have a higher pressure

will remain on. Also, the TPMS

measurement than a tire that is cold.

Malfunction Indicator will illuminate

after blinking for one minute if the

vehicle is driven at speed above 15.5

mph (25 km/h) for approximately 20

minutes.

6-13

What to do in an emergency

A cold tire means the vehicle has

i

Information

WARNING

been sitting for 3 hours and driven for

less than 1 mile (1.6 km) in that 3

This device complies with Part 15 of

Tampering with, modifying, or

the FCC rules.

hour period.

disabling the Tire Pressure

Allow the tire to cool before measur-

Operation is subject to the following

Monitoring System

(TPMS)

ing the inflation pressure. Always be

three conditions:

components may interfere with

sure the tire is cold before inflating to

1. This device may not cause harmful

the system’s ability to warn the

the recommended pressure.

interference, and

driver of low tire pressure con-

ditions and/or TPMS malfunc-

2. This device must accept any inter-

tions. Tampering with, modify-

ference received, including interfer-

WARNING

ing, or disabling the Tire

ence that may cause undesired

Pressure Monitoring System

operation.

• The TPMS cannot alert you to

severe and sudden tire dam-

(TPMS) components may void

3.

Changes or modifications not

age caused by external fac-

the warranty for that portion of

expressly approved by the party

tors such as nails or road

the vehicle.

responsible for compliance could

debris.

void the user’s authority to operate

the equipment.

• If you feel any vehicle instabil-

ity, immediately take your foot

off the accelerator, apply the

brakes gradually with light

force, and slowly move to a

safe position off the road.

6-14

IF YOU HAVE A FLAT TIRE

With Spare Tire (if equipped)

Jack and tools

WARNING

Changing a tire can be danger-

ous. Follow the instructions in

this section when changing a

tire to reduce the risk of serious

injury or death.

OLF064031N

CAUTION

Turn the winged hold down bolt

OLF064004N

counterclockwise to remove the

Be careful as you use the jack

➀ Jack handle

spare tire.

handle to stay clear of the flat

② Jack

Store the spare tire in the same com-

end. The flat end has sharp

③ Wheel nut wrench

partment by turning the winged hold

edges that could cause cuts.

6

down bolt clockwise.

The jack, jack handle, and wheel lug

To prevent the spare tire and tools

nut wrench are stored in the luggage

from

“rattling,” store them in their

compartment under the luggage box

proper location.

cover.

The jack is provided for emergency

tire changing only.

6-15

What to do in an emergency

Changing tires

(Continued)

•

ALWAYS place the jack on the

WARNING

designated jacking positions

on the vehicle and NEVER on

A vehicle can slip or roll off of a

the bumpers or any other part

jack causing serious injury or

of the vehicle for jacking sup-

death to you or those nearby.

port.

Take the following safety pre-

•

Do not start or run the engine

cautions:

while the vehicle is on the

•

Never place any portion of

jack.

your body under a vehicle that

OLF064005

•

Do not allow anyone to remain

is supported by a jack.

in the vehicle while it is on the

If it is hard to loosen the tire hold-

•

NEVER attempt to change a

jack.

down wing bolt by hand, you can

tire in the lane of traffic.

loosen it easily using the jack handle.

•

Keep children away from the

ALWAYS move the vehicle

road and the vehicle.

1. Put the jack handle (1) inside of

completely off the road on

the tire hold-down wing bolt.

level, firm ground away from

traffic before trying to change

2. Turn the tire hold-down wing bolt

a tire. If you cannot find a

counterclockwise with the jack

level, firm place off the road,

handle.

call a towing service for assis-

tance.

•

Be sure to use the jack pro-

vided with the vehicle.

(Continued)

6-16

Follow these steps to change your

vehicle’s tire:

1. Park on a level, firm surface.

2. Move the shift lever into P(Park),

apply the parking brake, and place

the ignition switch in the

LOCK/OFF position.

3. Press the hazard warning flasher

button.

4. Remove the wheel lug nut wrench,

jack, jack handle, and spare tire

Block

OLF064007

OLF064009

from the vehicle.

5. Block both the front and rear of the

6. Insert the flat tip on the jack han-

tire diagonally opposite of the tire

dle

(or screwdriver) into the

you are changing.

groove of the wheel cap and pry

gently to remove the wheel cap (If

equipped).

6

6-17

What to do in an emergency

■ Front

■ Rear

OLF064010

OLF064011N

OLF064012

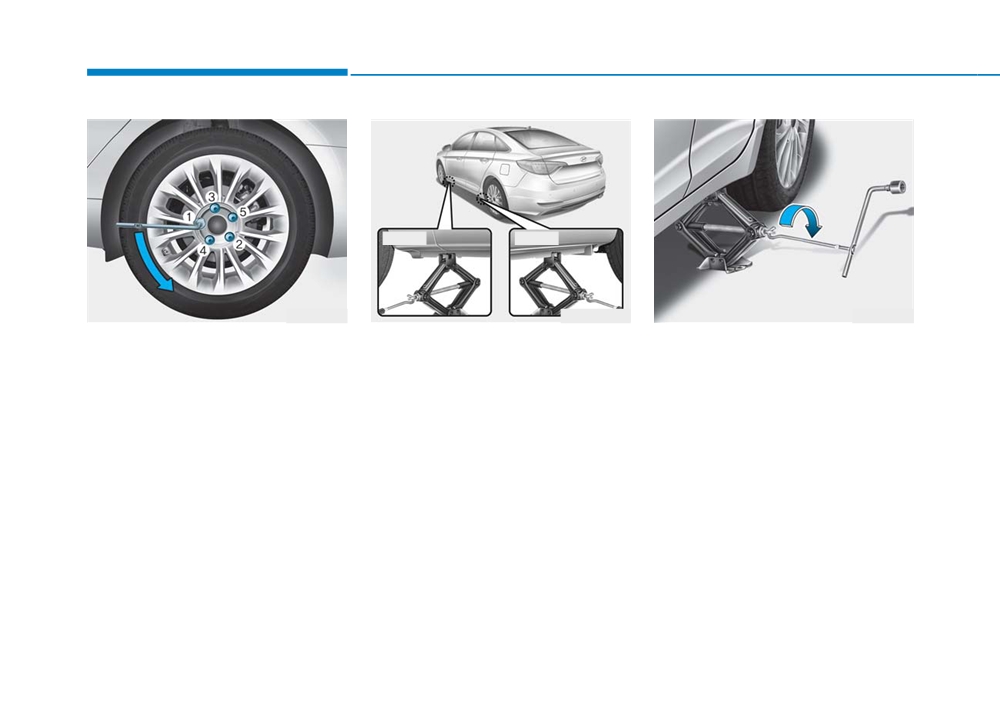

7. Loosen the wheel lug nuts coun-

8. Place the jack at the designated

9. Insert the jack handle into the jack

terclockwise one turn each in the

jacking position under the frame

and turn it clockwise, raising the

order shown above, but do not

closest to the tire you are chang-

vehicle until the tire clears the

remove any lug nuts until the tire

ing. The jacking positions are

ground. Make sure the vehicle is

has been raised off of the ground.

plates welded to the frame with

stable on the jack.

two notches and two dimples.

Never jack any other position or

part of the vehicle. It may damage

to the side seal molding.

6-18

10. Loosen the lug nuts with the

■ Rear

If you have a tire gauge, check the

wheel lug nut wrench and

tire pressure (see “Tires and Wheels”

remove them with your fingers.

in chapter 8 for tire pressure instruc-

Remove the wheel from the

tions.). If the pressure is lower or

studs and lay it flat on the ground

higher than recommended, drive

out of the way. Remove any dirt

slowly to the nearest service station

or debris from the studs, mount-

and adjust it to the recommended

ing surfaces, and wheel.

pressure. Always reinstall the valve

cap after checking or adjusting tire

11. Install the spare tire onto the

pressure. If the cap is not replaced,

studs of the hub.

air may leak from the tire. If you lose

12. Tighten the lug nuts with your fin-

a valve cap, buy another and install it

OLF064013

gers onto the studs with the

as soon as possible. After changing

smaller end of the lug nuts clos-

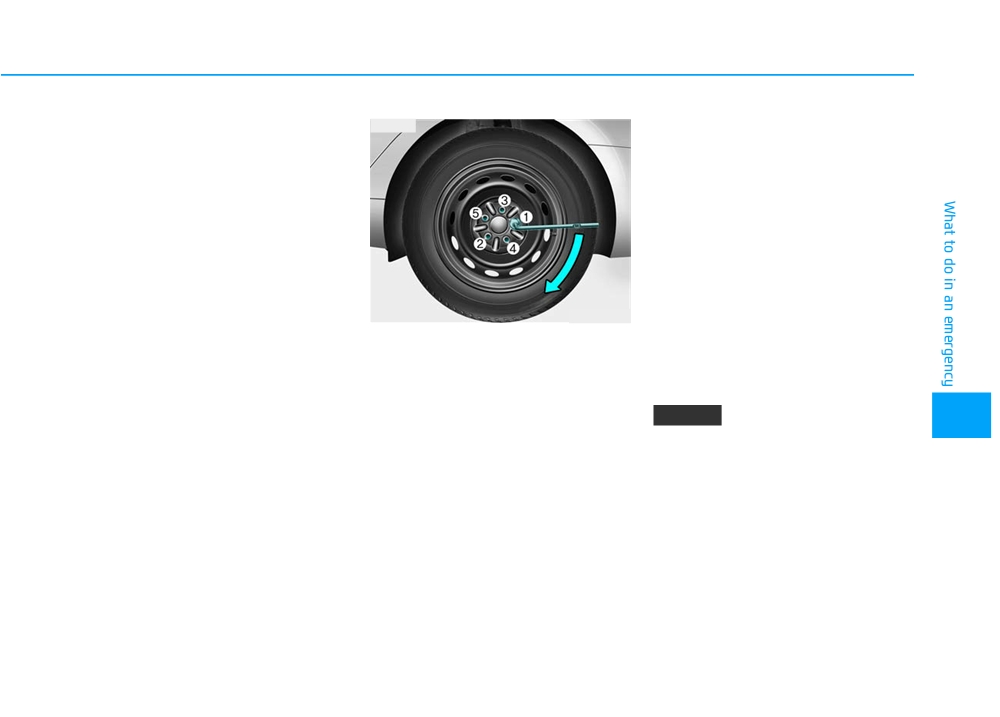

14. Use the wheel lug nut wrench to

tires, secure the flat tire and return

est to the wheel.

tighten the lug nuts in the order

the jack and tools to their proper stor-

13. Lower the vehicle to the ground

shown. Double-check each lug

age locations.

by turning the jack handle coun-

nut until they are tight. After

terclockwise.

changing tires, have an author-

NOTICE

6

ized HYUNDAI dealer tighten the

lug nuts to their proper torque as

Check the tire pressure as soon

soon as possible. The wheel lug

as possible after installing a spare

nut should be tightened to

tire. Adjust it to the recommended

65~79 lbf•ft (9~11 kgf•m).

pressure.

6-19

What to do in an emergency

Use of compact spare tires

CAUTION

WARNING

(if equipped)

Compact spare tires are designed for

Your vehicle has metric threads

To prevent compact spare tire

emergency use only. Drive carefully

on the studs and lug nuts. Make

failure and loss of control pos-

on the compact spare tire and

certain during tire changing

sibly resulting in an accident:

always follow the safety precautions.

that the same nuts that were

•

Use the compact spare tire

removed are reinstalled. If you

only in an emergency.

have to replace your lug nuts

•

NEVER operate your vehicle

make sure they have metric

over 50 mph (80 km/h).

threads to avoid damaging the

•

Do not exceed the vehicle’s

studs and ensure the wheel is

properly secured to the hub.

maximum load rating or the

load carrying capacity shown

Consult

an

authorized

on the sidewall of the com-

HYUNDAI dealer for assistance.

pact spare tire.

•

Do not use the compact spare

If any of the equipment such as the

tire continuously. Repair or

jack, lug nuts, studs, or other equip-

replace the original tire as

ment is damaged or in poor condi-

soon as possible to avoid fail-

tion, do not attempt to change the

ure of the compact spare tire.

tire and call for assistance.

6-20

When driving with the compact spare

NOTICE

CAUTION

tire mounted to your vehicle:

When the original tire and wheel

•

Check the tire pressure after

are repaired and reinstalled on the

To prevent damaging the com-

installing the compact spare tire.

vehicle, the lug nut torque must be

pact spare tire and your vehicle:

The compact spare tire should be

set correctly. The correct lug nut

•

Drive slowly enough for the

inflated to 60 psi (420 kPa).

tightening torque is 65-79 lbf•ft (9-

road conditions to avoid all

•

Do not take this vehicle through an

11 kgf•m).

hazards, such as a potholes

automatic car wash while the com-

or debris.

pact spare tire is installed.

•

Avoid driving over obstacles.

•

Do not use the compact spare tire

The compact spare tire diame-

on any other vehicle because this

ter is smaller than the diame-

tire has been designed especially

ter of a conventional tire and

for your vehicle.

reduces the ground clearance

•

The compact spare tire’s tread life

approximately 1 inch (25 mm).

is shorter than a regular tire.

•

Do not use tire chains on the

Inspect your compact spare tire

compact spare tire. Because

regularly and replace worn com-

of the smaller size, a tire chain

6

pact spare tires with the same size

will not fit properly.

and design, mounted on the same

•

Do not use the compact spare

wheel.

tire on any other wheels, nor

•

Do not use more than one compact

should standard tires, snow

spare tire at a time.

tires, wheel covers or trim

rings be used with the com-

pact spare wheel.

6-21

What to do in an emergency

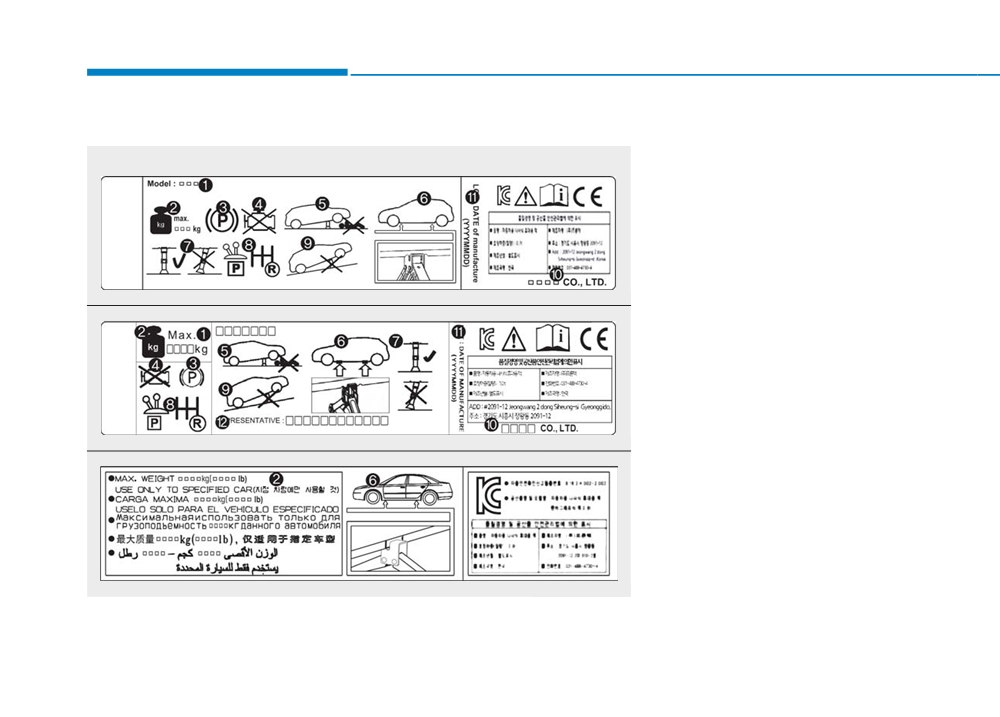

Jack label

■ Example

1. Model Name

• Type A

2. Maximum allowable load

3. When using the jack, set your

parking brake.

4. When using the jack, stop the

engine.

5. Do not get under a vehicle that is

supported by a jack.

OHYK065010

• Type B

6. The designated locations under

the frame

7. When supporting the vehicle, the

base plate of jack must be vertical

under the lifting point.

8. Shift into Reverse gear on vehicles

with manual transmission or move

the shift lever to the P (Park) posi-

OHYK065011

• Type C

tion on vehicles with automatic

transmission.

9. The jack should be used on firm

level ground.

10. Jack manufacture

11. Production date

12. Representative company and

OHYK064002

address

The actual Jack label in the vehicle may differ from the illustration.

For more detailed specifications, refer to the label attached to the jack.

6-22

With Tire Mobility Kit

Introduction

CAUTION

(TMK, if equipped)

One sealant bottle for one tire

When two or more tires are flat,

do not use the tire mobility kit

because the supported one

sealant of Tire Mobility Kit is

only used for one flat tire.

WARNING

OLF064015

Tire wall

OLF064014

With the Tire Mobility Kit you stay

Do not use the Tire Mobility Kit

For safe operation, carefully read

mobile even after experiencing a tire

to repair punctures in the tire

and follow the instructions in this

puncture.

walls. This can result in an acci-

manual before use.

The compressor and sealing com-

6

dent due to tire failure.

pound system effectively and com-

(1) Compressor

fortably seals most punctures in a

(2) Sealant bottle

passenger car tire caused by nails

The Tire Mobility Kit is a temporary fix

WARNING

or similar objects and reinflates the

to the tire and the tire should be

tire.

inspected by an authorized HYUNDAI

Temporary fix

After you ensure that the tire is prop-

dealer as soon as possible.

Have your tire repaired as soon

erly sealed you can drive cautiously

as possible. The tire may lose

on the tire (distance up to 120 miles

air pressure at any time after

(200 km)) at a max. speed of (50mph

inflating with the Tire Mobility

(80 km/h)) in order to reach a service

Kit.

station or tire dealer for the tire

replacement.

6-23

Content   ..  23  24  25  26   ..
