If the Cruise Control was in use
■ Type A
■ Type B
■ Type A
■ Type B
when the ESC activates, the
Cruise Control automatically disen-
gages. The Cruise Control can be
reengaged when the road condi-
tions allow. See "Cruise Control
System" later in this chapter. (if
equipped)
•
When moving out of the mud or
driving on a slippery road, the
engine rpm
(revolutions per
minute) may not increase even if
OLF054439N/OLF054101N
OLF054438N/OLF054100N
you press the accelerator pedal
ESC OFF condition
• State 2
deeply. This is to maintain the sta-
To cancel ESC operation :
Press the ESC OFF button for more
bility and traction of the vehicle and
than 3 seconds. ESC OFF indicator
does not indicate a problem.
light and message illuminates with
• State 1
an ESC OFF warning chime. At this
Press the ESC OFF button shortly
state, the engine control function and
(ESC OFF indicator light and mes-
brake control function does not oper-
sage illuminates). At this state, the
ate. In other words, the vehicle sta-
engine control function does not
bility control function does not oper-
operate. In other words, the traction
ate any more.
control function does not operate but
only the brake control function oper-
If the ignition switch is placed to the
ates.
LOCK/OFF position when ESC is off,
ESC remains off. Upon restarting the
engine, the ESC will automatically
turn on again.
5-44
Indicator lights
The ESC OFF indicator light comes
ESC OFF usage
on when the ESC is turned off.
When Driving
■ ESC indicator light (blinks)
The ESC OFF mode should only be
WARNING
used briefly to help free the vehicle if
stuck in snow or mud by temporarily
When the ESC is blinking, this
stopping operation of the ESC to
indicates the ESC is active:
maintain wheel torque.
■ ESC OFF indicator light (comes on)
Drive slowly and NEVER
To turn ESC off while driving, press
attempt to accelerate. NEVER
the ESC OFF button while driving on
turn the ESC off while the ESC
a flat road surface.
indicator light is blinking or you
may lose control of the vehicle
resulting in an accident.
When the ignition switch is placed to
5
the ON position, the ESC indicator
NOTICE
light illuminates, then goes off if the
ESC system is operating normally.
Driving with varying tire or wheel
The ESC indicator light blinks when-
sizes may cause the ESC system
ever the ESC is operating.
to malfunction. When replacing
tires, make sure they are the same
If ESC indicator light stays on, your
size as your original tires for this
vehicle may have a malfunction with
vehicle.
the ESC system. When this warning
light illuminates have your vehicle
checked by an authorized HYUNDAI
dealer as soon as possible.
5-45
Driving your vehicle
NOTICE
Hill-Start Assist Control (HAC)
NOTICE
The Hill-Start Assist Control (HAC)
To prevent damage to the trans-
•
The HAC does not operate when
prevents the vehicle from rolling
mission:
the shift lever is in P (Park) or N
backwards when starting a vehicle
(Neutral)
• Do not allow wheel(s) of one
from a stop on a hill. The system
axle to spin excessively while
•
The HAC activates even though
operates the brakes automatically for
the ESC, ABS, and brake warn-
the ESC
(Electronic Stability
approximately 2 seconds and releas-
ing lights are displayed. The
Control) is off but does not acti-
es the brake when the accelerator
repairs would not be covered by
vate when the ESC has malfunc-
pedal is depressed or after 2 sec-
the vehicle warranty. Reduce
tioned.
onds.
engine power and do not spin
the wheel(s) excessively while
these lights are displayed.
WARNING
• When operating the vehicle on a
Always be ready to depress the
dynamometer, ensure the ESC is
accelerator pedal when starting
turned off (ESC OFF light illumi-
off on a incline. The HAC acti-
nated).
vates only for approximately 2
seconds.
i
Information
Turning the ESC off does not affect
ABS or standard brake system opera-
tion.
5-46
Good Braking Practices
Wet brakes can be dangerous! The
Keep your foot firmly on the brake
brakes may get wet if the vehicle is
pedal when the vehicle is stopped to
driven through standing water or if it
prevent the vehicle from rolling for-
WARNING
is washed. Your vehicle will not stop
ward.
as quickly if the brakes are wet. Wet
Whenever leaving the vehicle or
brakes may cause the vehicle to pull
parking, always come to a com-
to one side.
plete stop and continue to
depress the brake pedal. Move
To dry the brakes, apply the brakes
the shift lever into the P (Park)
lightly until the braking action returns
position, then apply the parking
to normal, taking care to keep the
brake, and place the ignition
vehicle under control at all times. If
switch in the OFF position.
the braking action does not return to
normal, stop as soon as it is safe to
Vehicles with the parking brake
do so and call an authorized
not fully engaged are at risk for
HYUNDAI dealer for assistance.
5
moving inadvertently and caus-
ing injury to yourself or others.
DO NOT drive with your foot resting
on the brake pedal. Even light, but
constant pedal pressure can result in
the brakes overheating, brake wear,
and possibly even brake failure.
If a tire goes flat while you are driv-
ing, apply the brakes gently and
keep the vehicle pointed straight
ahead while you slow down. When
you are moving slowly enough for it
to be safe to do so, pull off the road
and stop in a safe location.
5-47
Driving your vehicle
DRIVE MODE INTEGRATED CONTROL SYSTEM
The mode changes whenever the
ECO mode (Active ECO)
DRIVE MODE switch is pressed.
Active ECO helps improve
ECO
fuel efficiency by control-
NORMAL
ECO
SPORT
ling certain engine and
transmission
system
operating parameters.
Fuel efficiency depends on the dri-
When NORMAL mode is selected, it
ver’s driving habit and road condi-
is not displayed on the instrument
tion.
cluster.
• When the DRIVE MODE switch is
The selected mode is displayed on
pressed and the ECO mode is
OLF054021N
the instrument cluster.
selected, the ECO indicator
The drive mode may be selected
(green) will illuminate to show that
according to the driver's preference
the Active ECO is operating.
or road condition.
• When the Active ECO is activated,
The system resets to be in the NOR-
and the engine is turned off and on
MAL mode (except for ECO mode),
it will maintain ECO mode.
when the engine is restarted.
i
Information
If there is a problem with the instru-
ment cluster system, the drive mode
will be in NORMAL mode and may
not change to ECO mode or SPORT
mode.
5-48
When Active ECO is activated:
Limitation of Active ECO opera-
SPORT mode
tion:
• The acceleration response may be
SPORT mode focuses on
slightly reduced as the accelerator
If the following conditions occur while
SPORT
dynamic driving by auto-
pedal is depressed moderately.
Active ECO is operating, the system
matically controlling the
operation is limited even though
steering wheel, engine
• The air conditioner performance
there is no change in the ECO indi-
and transmission system.
may be limited.
cator.
•
When the DRIVE MODE switch is
• The shift pattern of the automatic
transmission may change.
•
When the coolant temperature is
pressed and the SPORT mode is
low:
selected, the SPORT indicator
The system will be limited until
(yellow) will illuminate.
The above situations are normal
engine performance becomes nor-
•
When the SPORT mode is activat-
conditions when the Active ECO sys-
mal.
ed, and the engine is turned off
tem is activated to improve fuel effi-
and on it will change to NORMAL
•
When driving up a hill:
ciency.
mode. To turn on the SPORT
5
The system will be limited to gain
mode, press the DRIVE MODE
power when driving uphill because
switch again.
engine torque is restricted.
• If the system is activated:
•
When using the automatic trans-
- After accelerating and releasing
mission Manual shift mode:
the accelerator pedal, the gear
The system will be limited accord-
and engine speed RPM may not
ing to the shift location.
drop as soon as in NORMAL
mode.
- Up-shifting is delayed.
i
Information
In SPORT mode, the fuel efficiency
may decrease.
5-49
Driving your vehicle
CRUISE CONTROL (IF EQUIPPED)
Cruise Control Operation
To set Cruise Control speed
WARNING
Take the following precautions:
•
If the Cruise Control is left on,
(CRUISE indicator light in the
instrument cluster illuminat-
ed) the Cruise Control can be
activated unintentionally.
Keep the Cruise Control sys-
tem off
(CRUISE indicator
light OFF) when the Cruise
Control is not in use, to avoid
OLF054040
OLF054041
inadvertently setting a speed.
1. CRUISE indicator
•
Use the Cruise Control system
1. Push the CRUISE button on the
only when traveling on open
steering wheel to turn the system
2. SET indicator
highways in good weather.
on. The CRUISE indicator will illu-
minate.
•
Do not use the Cruise Control
The Cruise Control system allows
2. Accelerate to the desired speed,
when it may not be safe to
you to drive at speeds above 20 mph
keep the vehicle at a constant
which must be more than 20 mph
(30 km/h) without depressing the
(30 km/h).
speed:
accelerator pedal.
- Driving in heavy or varying
speed traffic.
- On slippery
(rainy, icy or
snow covered) roads.
- Hilly or winding roads.
- Very windy areas.
5-50
To increase Cruise Control
• Depress the accelerator pedal.
speed
When the vehicle attains the
desired speed, push the toggle
switch (1) down (SET-).
OLF054042/Q
3. Push the toggle switch (1) down
(SET-), and release it. The SET
OLF054043/Q
5
indicator light will illuminate.
•
Push the toggle switch
(1) up
4. Release the accelerator pedal.
(RES+) and hold it, while monitor-
ing the SET speed on the instru-
i
Information
ment cluster. Release the toggle
switch when the desired speed is
The vehicle may slow down or speed
shown and the vehicle will acceler-
up slightly while going uphill or down-
ate to that speed.
hill.
•
Push the toggle switch
(1) up
(RES+) and release it immediately.
The cruising speed will increase
1.0 mph (1.6 km/h) each time the
toggle switch is operated in this
manner.
5-51
Driving your vehicle
To decrease Cruise Control
To temporarily accelerate with
Cruise Control will be canceled
speed
the Cruise Control ON
when:
Depress the accelerator pedal. When
you take your foot off the accelerator,
the vehicle will return to the previ-
ously set speed.
If you push the toggle switch down
(SET-) at the increased speed, the
Cruise Control will maintain the
increased speed.
OLF054042/Q
OLF054044
•
Push the toggle switch (1) down
•
Depressing the brake pedal.
(SET-) and hold it. Your vehicle will
•
Pressing the CANCEL switch
gradually slow down. Release the
located on the steering wheel.
toggle switch at the speed you
•
Pushing the CRUISE button. Both
want to maintain.
the CRUISE indicator and the SET
•
Push the toggle switch (1) down
indicator will turn OFF.
(SET-) and release it immediately.
•
Moving the shift toggle switch into
The cruising speed will decrease
N (Neutral).
1.0 mph (1.6 km/h) each time the
toggle switch is operated in this
manner.
•
Lightly tap the brake pedal. When
the vehicle attains the desired
speed, push the toggle switch (1)
down (SET-).
5-52
• Decreasing the vehicle speed
To resume preset Cruising
To turn Cruise Control off
lower than the memory speed by
speed
5 mph (10 km/h).
• Decreasing the vehicle speed to
less than approximately
20 mph
(30 km/h).
• The ESC
(Electronic Stability
Control) is operating.
• Downshifting to the
2nd gear in
Manual shift mode.
i
Information
OLF054041
Each of the above actions will cancel
OLF054043/Q
5
• Push the CRUISE button
(the
Cruise Control operation
(the SET
Push the toggle switch
(1) up
CRUISE indicator light will go off).
indicator light in the instrument clus-
ter will go off), but only pressing the
(RES+). If the vehicle speed is over
• Turn the engine OFF.
CRUISE button will turn the system
20 mph (30 km/h), the vehicle will
resume the preset speed.
off. If you wish to resume Cruise
Control operation, push the toggle
switch up
(RES+) located on your
steering wheel. You will return to your
previously preset speed, unless the
system was turned off using the
CRUISE button.
5-53
Driving your vehicle
SMART CRUISE CONTROL SYSTEM (IF EQUIPPED)
WARNING
(Continued)
•
Use the Smart Cruise Control
The Smart Cruise Control
System when traveling on
System is not a substitute for
open highways in good
safe driving practices, but a
weather.
convenience function only. It is
•
Do not use the Smart Cruise
the responsibility of the driver
Control when it may not be
to always check the speed and
safe to keep the vehicle at a
distance to the vehicle ahead.
constant speed:
- Driving in heavy or varying
OLF054430N
speed traffic.
WARNING
➀ Cruise Indicator
- On slippery
(rainy, icy or
snow covered) roads.
➁ Set Speed
Take the following precautions:
- Construction areas
➂ Vehicle-to-Vehicle Distance
• If the Smart Cruise Control is
left on,
(CRUISE indicator
- Parking areas
The Smart Cruise Control System
light in the instrument cluster
- Hilly or winding roads.
allows you to program the vehicle to
is illuminated) the Smart
- Very windy areas.
maintain constant speed and dis-
Cruise Control can be activat-
tance detecting the vehicle ahead
ed unintentionally. Keep the
without depressing the accelerator/
Smart Cruise Control System
brake pedal.
off
(CRUISE indicator light
OFF) when the Smart Cruise
Control is not in use, to avoid
WARNING
inadvertently setting a speed.
(Continued)
For your safety, please read the
owner's manual before using the
Smart Cruise Control system.
5-54
To Adjust the Sensitivity of
• Normal:
To Convert to Cruise Control
Smart Cruise Control
Vehicle speed following the front
Mode
vehicle to maintain the set distance
is normal
• Fast:
Vehicle speed following the front
vehicle to maintain the set distance
is faster than normal speed.
OLF054205N
OLF056441N
5
The sensitivity of vehicle speed
when following the front vehicle to
maintain the set distance can be

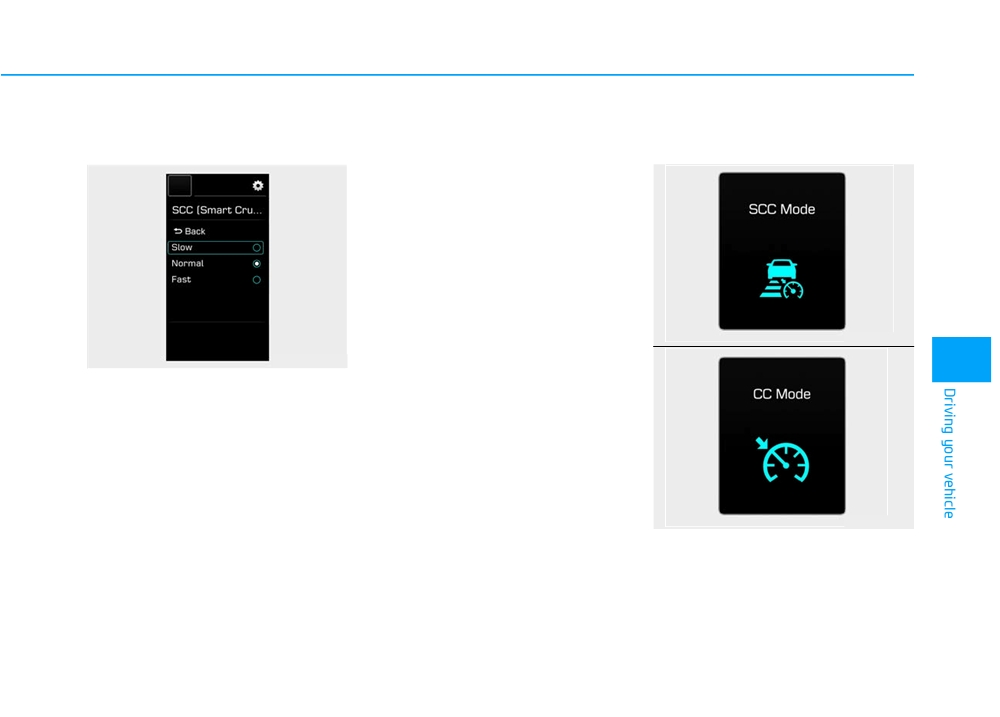

adjusted. Go to the User Settings
Mode (Driving Assist) and select
SCC (Smart Cruise Control). You
may select one of the three stages
you prefer.
• Slow:
OLF054431N
Vehicle speed following the front
The driver may choose to only use
vehicle to maintain the set distance
the Cruise Control Mode (speed con-
is slower than normal speed.
trol function) by doing as follows:
5-55
Driving your vehicle
1.Turn the Smart Cruise Control
Smart Cruise Control Speed
System on (the cruise indicator
To set Smart Cruise Control
light will be on but the system will
speed
not be activated).
2.Push and hold the Vehicle-to-
Vehicle Distance button for more
than 2 seconds.
3.Choose between "Smart Cruise
Control (SCC) Mode" and "Cruise
Control (CC) Mode".
OLF054042
When the system is canceled using
3. Push the toggle switch down
the CRUISE button or the CRUISE
(SET-), and release it at the
button is used after the engine is
desired speed. The Set Speed
turned on, the SCC Mode will turn
OLF054041
and Vehicle-to-Vehicle Distance
on.
1. Push the CRUISE button on the
on the LCD display will illuminate.
steering wheel to turn the system
4. Release the accelerator pedal.
WARNING
on. The CRUISE indicator will illu-
The desired speed will automati-
minate.
cally be maintained.
When using the Cruise Control
2. Accelerate to the desired speed.
If there is a vehicle in front of you, the
Mode, you must manually
speed may decrease to maintain the
The Smart Cruise Control speed
adjust the distance to other
can be set as follows:
distance to the vehicle ahead.
vehicles by depressing the
• 20 mph (30 km/h)~110 mph (180
On a steep grade, the vehicle may
accelerator or brake pedal. The
slow down or speed up slightly while
km/h): when there is no vehicle
system does not automatically
in front
going uphill or downhill.
adjust the distance to vehicles
in front of you.
• 0 mph (0 km/h)~110 mph (180
km/h): when there is a vehicle in
front
5-56
To increase Smart Cruise
To decrease the Smart Cruise
To temporarily accelerate with
Control set speed
Control set speed
the Smart Cruise Control on
If you want to speed up temporarily
when the Smart Cruise Control is on,
depress the accelerator pedal.
Increased speed will not interfere
with Smart Cruise Control operation
or change the set speed.
To return to the set speed, take your
foot off the accelerator.
If you push the toggle switch down
(SET-) at increased speed, the cruis-
ing speed will be set again.
OLF054043
OLF054042
5
Follow either of these procedures:
Follow either of these procedures:
CAUTION
• Push the toggle switch up (RES+),
• Push the toggle switch down (SET-),
Be careful when accelerating
and hold it. Your vehicle set speed
and hold it. Your vehicle set speed
temporarily, because the speed
will increase by 5 mph (10 km/h).
will decrease by 5 mph (10 km/h).
is not controlled automatically
Release the toggle switch at the
Release the toggle switch at the
at this time even if there is a
speed you want.
speed you want.
vehicle in front of you.
• Push the toggle switch up (RES+),
• Push the toggle switch down (SET-),
and release it immediately. The
and release it immediately. The
cruising speed will increase by 1.0
cruising speed will decrease by 1.0
mph (1.0 km/h) each time you
mph (1.0 km/h) each time you move
move the toggle switch up in this
the toggle switch down in this man-
manner.
ner.
• You can set the speed to 110 mph
• You can set the speed to 20 mph
(180 km/h).
(30 km/h).
5-57
Driving your vehicle
Smart Cruise Control will be
Canceled automatically
•
The driver starts driving by pushing
temporarily canceled when:
the toggle switch up (RES +) or
•
The driver's door is opened.
down (SET -) or depressing the
•
The shift toggle switch is shifted to N
accelerator pedal, after stopping
(Neutral), R (Reverse) or P (Park).
the vehicle with a vehicle stopped
•
The EPB
(Electronic Parking
far away in front.
Brake) is applied.
•
The accelerator pedal is continu-
•
The vehicle speed is over 120 mph
ously depressed for more than 5
(190 km/h)
minutes.
•
The ESC
(Electronic Stability
Each of these actions will cancel
Control), TCS
(Traction Control
the Smart Cruise Control opera-
System) or ABS is operating.
tion. (The Set Speed and Vehicle-
•
The ESC is turned off.
to-Vehicle Distance on the LCD
display will go off.)
OLF054044
•
The AEB (Automatic Emergency
Btaking) system is operating.
In a condition the Smart Cruise
Canceled manually
Control is canceled automatically,
•
The radar or the cover is dirty or
• Depressing the brake pedal.
the Smart Cruise Control will not
blocked with foreign matter.
• Pressing the CANCEL button
resume even though the RES+ or
•
The engine speed is over 7000 rpm.
located on the steering wheel.
SET- toggle switch is pushed. Also,
•
The SCC system has malfunctioned.
the EPB will be applied when the
•
When the vehicle is stopped for
vehicle is stopped.
The Smart Cruise Control turns off
temporarily when the indicator on the
more than 5 minutes.
LCD display turns off.
•
The driver starts driving by pushing
NOTICE
The CRUISE indicator is illuminated
the toggle switch up (RES +) or
If the Smart Cruise Control is can-
continuously.
down (SET -) or depressing the
celed by other than the reasons
accelerator pedal, approximately 3
mentioned, have your vehicle
seconds after the vehicle is
checked by an authorized HYUNDAI
stopped by the Smart Cruise
dealer.
Control System with no other vehi-
cle ahead.
5-58
To resume Smart Cruise Control
CAUTION
set speed
Always check the road condi-
tions when you push the toggle
switch up
(RES+) to resume
speed.
OLF054201N
If the system is canceled, the warn-
ing chime will sound and a message
OLF054043
5
will appear for a few seconds.
If any method other than the
You must adjust the vehicle speed by
CRUISE toggle switch was used to
depressing the accelerator or brake
cancel cruising speed and the sys-
pedal according to the road condition
tem is still activated, the cruising
ahead and driving condition.
speed will automatically resume
Always check the road conditions.
when you push the toggle switch up
Do not rely on the warning chime.
(RES+) or down (SET-).
If you push the toggle switch up
(RES+), the speed will resume to the
recently set speed. However, if vehi-
cle speed has dropped below
approximately 20 mph (30 km/h), it
will resume when there is a vehicle in
front of your vehicle.
5-59
Driving your vehicle
To turn Cruise Control off
Smart Cruise Control Vehicle-
Each time the button is pressed, the
to-Vehicle Distance
vehicle to vehicle distance changes
as follows:
To set Vehicle-to-Vehicle
Distance
Distance 4
Distance 3
Distance 2
Distance 1
For example, if you drive at 56 mph
(90 km/h), the distance maintain as
follows:
OLF054041
Distance 4 - approximately 172 feet
(52.5 m)
Push the CRUISE button
(the
CRUISE indicator light will go off).
Distance 3 - approximately 130 feet
OLF054045
(40 m)
Distance 2 - approximately 106 feet
When the Smart Cruise Control
(32.5 m)
System is ON, you can set and main-
tain the distance from the vehicle
Distance 1 - approximately
82 feet
ahead of you without pressing the
(25 m)
accelerator or brake pedal.
i
Information
Distance 4 is always set when the sys-
tem is used for the first time after
starting the engine.
5-60
