Fuel Filler Door

Information

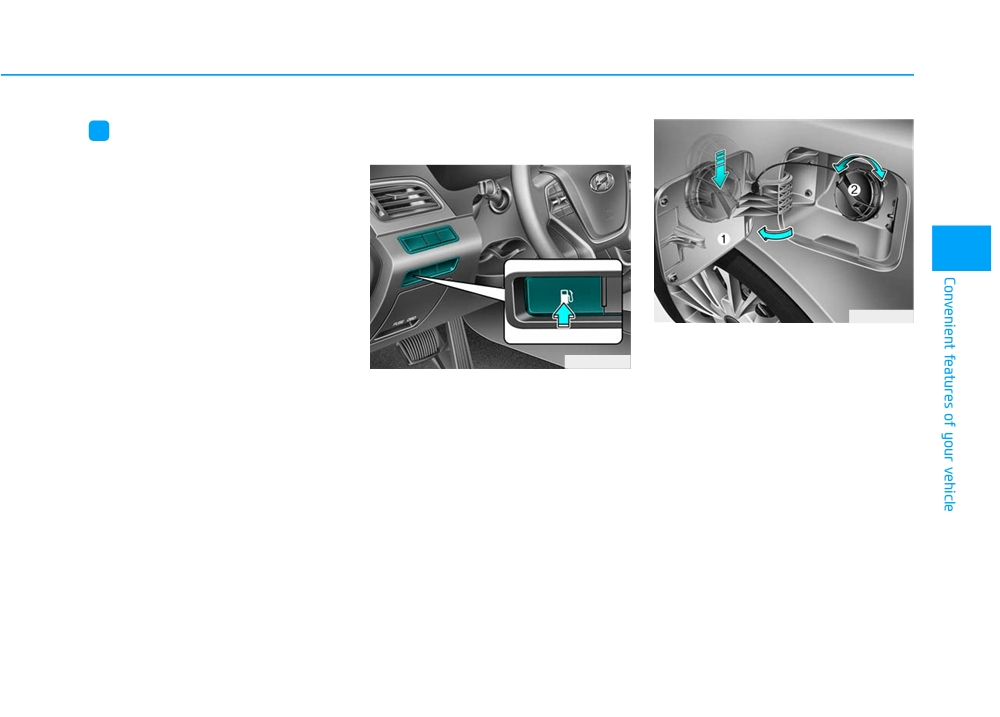

Opening the fuel filler door

•

The Smart Trunk function will not

work if any of the following occurs:

- The smart key is close to a radio

transmitter such as a radio station

or an airport which can interfere

with normal operation of the

transmitter.

- The smart key is near a mobile two

way radio system or a cellular

phone.

OLF044052

- Another vehicle’s smart key is being

3. Pull the fuel filler door (1) out to

operated close to your vehicle.

fully open.

OLF044051

•

The detecting range may decrease

4. To remove the fuel tank cap (2),

The fuel filler door must be opened

or increase when :

turn it counterclockwise. You may

from inside the vehicle by pushing

hear a hissing noise as the pres-

- One side of the tire is raised to

the fuel filler door opener button.

sure inside the tank equalizes.

replace a tire or to inspect the vehi-

1. Turn the engine off.

cle.

5. Place the cap on the fuel filler door.

2. Push the fuel filler door opener

- The vehicle is parked on a slope or

button.

unpaved road, etc.

3-63

Convenient features of your vehicle

Closing the fuel filler door

Information

WARNING

1. To install the fuel tank cap, turn it

If the fuel filler door does not open

clockwise until it “clicks” one time.

because ice has formed around it, tap

Gasoline is highly flammable

lightly or push on the door to break

2. Close the fuel filler door until it is

and explosive. Failure to follow

the ice and release the door. Do not

latched securely.

these guidelines may result in

pry on the door. If necessary, spray

SERIOUS INJURY or DEATH:

around the door with an approved de-

•

Read and follow all warnings

icer fluid (do not use radiator anti-

posted at the gas station.

freeze) or move the vehicle to a warm

•

Before refueling, note the

place and allow the ice to melt.

location of the Emergency

Gasoline Shut-Off, if available,

at the gas station.

•

Before touching the fuel noz-

zle, you should eliminate the

potential build-up of static

electricity by touching a metal

part of the vehicle, a safe dis-

tance away from the fuel filler

neck, nozzle, or other gas

source, with your bare hand.

•

Do not use cellular phones

while refueling. Electric cur-

rent and/or electronic interfer-

ence from cellular phones can

potentially ignite fuel vapors

and cause a fire.

(Continued)

3-64

(Continued)

•

Do not get back into a vehicle

Once refueling has begun,

•

If a fire breaks out during refu-

once you have begun refuel-

contact between your bare

eling, leave the vicinity of the

ing. You can generate a build-

hand and the vehicle should

vehicle, and immediately con-

up of static electricity by

be maintained until the filling

tact the manager of the gas

touching, rubbing or sliding

is complete.

station and then contact the

against any item or fabric

local fire department. Follow

•

Use only approved portable

capable of producing static

any safety instructions they

plastic fuel containers designed

electricity. Static electricity

provide.

to carry and store gasoline.

discharge can ignite fuel

•

If pressurized fuel sprays out,

•

When refueling, always move

vapors causing a fire. If you

the shift lever to the P (Park)

it can cover your clothes or

must re-enter the vehicle, you

skin and thus subject you to

position, set the parking

should once again eliminate

brake, and place the ignition

the risk of fire and burns.

potentially dangerous static

Always remove the fuel cap

switch to the LOCK/OFF posi-

electricity discharge by touch-

tion. Sparks produced by

carefully and slowly. If the cap

ing a metal part of the vehicle,

is venting fuel or if you hear a

electrical components related

away from the fuel filler neck,

to the engine can ignite fuel

hissing sound, wait until the

nozzle or other gasoline

condition stops before com-

vapors causing a fire.

source, with your bare hand.

pletely removing the cap.

•

Do not use matches or a

•

When using an approved

•

Always check that the fuel cap

lighter and do not smoke or

portable fuel container, be

is installed securely to pre-

leave a lit cigarette in your

sure to place the container on

vent fuel spillage in the event

vehicle while at a gas station,

the ground prior to refueling.

of an accident.

especially during refueling.

Static electricity discharge

from the container can ignite

•

Do not over-fill or top-off your

fuel vapors causing a fire.

vehicle tank, which can cause

gasoline spillage.

(Continued)

3-65

Convenient features of your vehicle

Emergency fuel filler door release

Information

Make sure to refuel your vehicle

according to the "Fuel Requirements"

suggested in the Introduction chapter.

NOTICE

• Do not spill fuel on the exterior

surfaces of the vehicle. Any type

of fuel spilled on painted sur-

faces may damage the paint.

• If the fuel filler cap requires

replacement, use only a genuine

OLF044054

HYUNDAI cap or the equivalent

If the fuel filler door does not open

specified for your vehicle. An

using the remote fuel filler door

incorrect fuel filler cap can

release button, you can open it man-

result in a serious malfunction

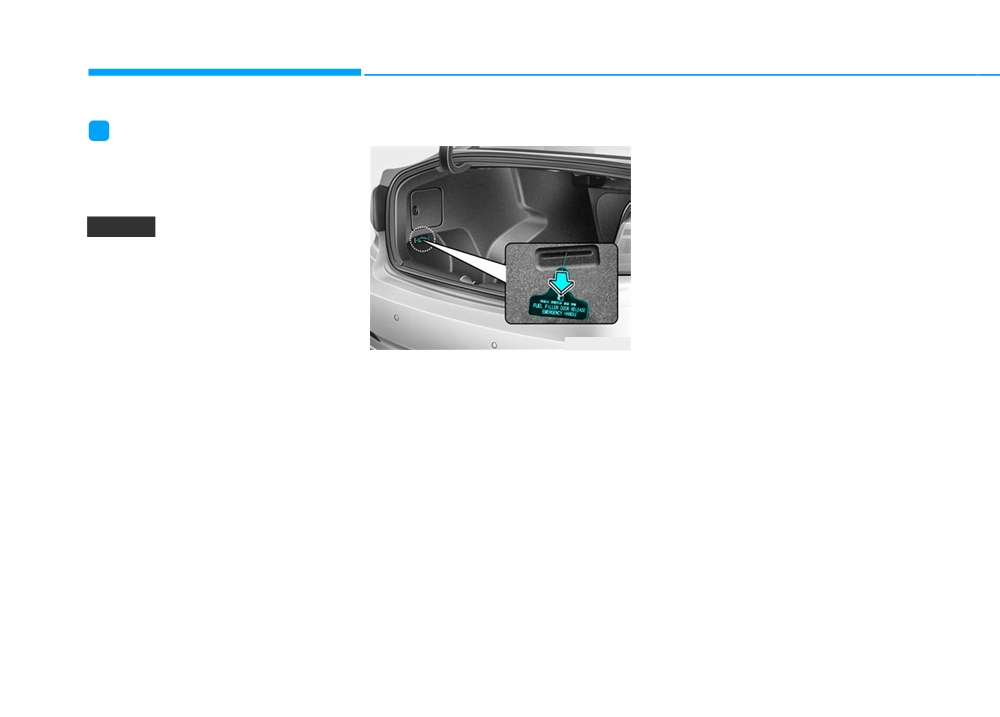

ually. Pull the release located on the

of the fuel system or emission

left side of the trunk compartment.

control system.

3-66

INSTRUMENT CLUSTER

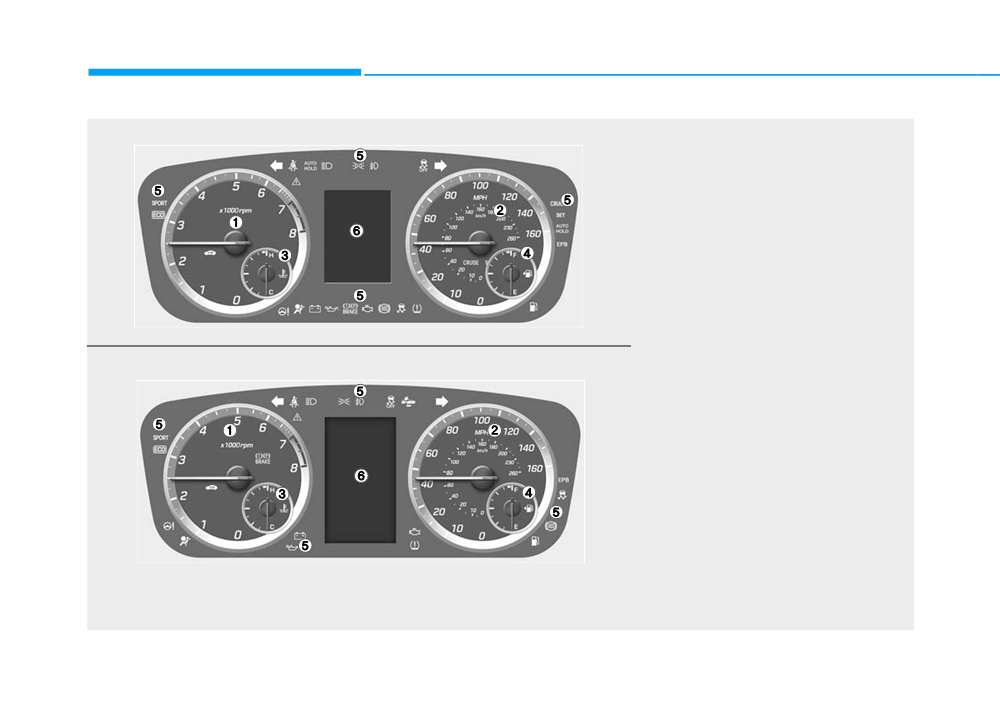

■ Type A

1. Tachometer

2. Speedometer

3. Engine coolant temperature gauge

4. Fuel gauge

■ Type B

5. Warning and indicator lights

6. LCD display (including Trip computer)

The actual cluster in the vehicle may dif-

fer from the illustration.

OLF044100N/OLF046101N

3-67

Convenient features of your vehicle

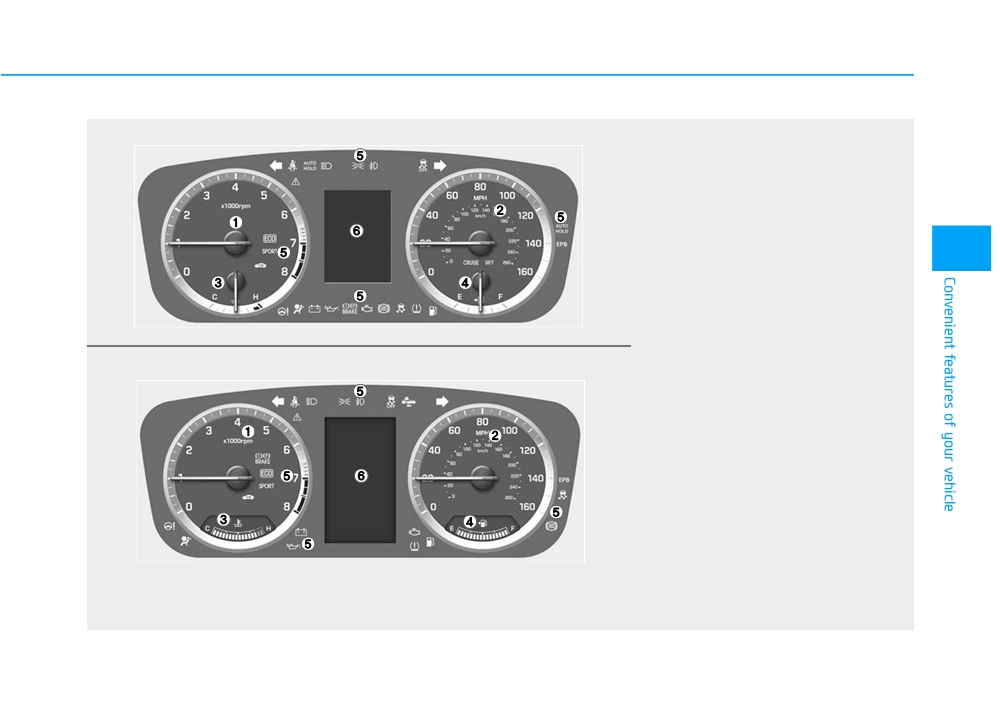

■ Type C

1. Tachometer

2. Speedometer

3. Engine coolant temperature gauge

4. Fuel gauge

■ Type D

5. Warning and indicator lights

6. LCD display (including Trip computer)

The actual cluster in the vehicle may dif-

fer from the illustration.

OLF044504N/OLF046505N

3-68

Instrument Cluster Control

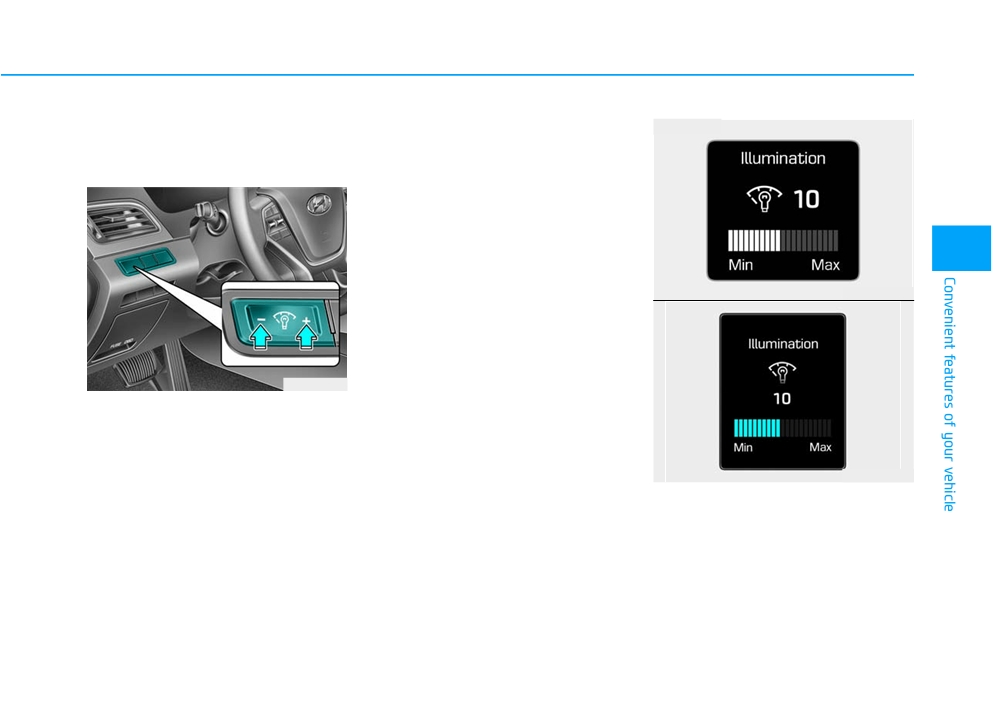

When pressing the illumination con-

■ Type A, C

trol button, the interior switch illumi-

Adjusting instrument cluster

nation intensity is also adjusted. The

illumination

selected brightness of illumination

can be saved in the Driver Position

Memory System (if equipped).

For more information, refer to

"Driver position Memory System"

in this chapter.

OLF044142L

■ Type B, D

OLF044102

When the vehicle's parking lights or

headlights are on, press the illumina-

tion control button to adjust the

brightness of the instrument panel

illumination.

OLF044143L

• The brightness of the instrument

panel illumination is displayed.

• If the brightness reaches the maxi-

mum or minimum level, an alarm

will sound.

3-69

Convenient features of your vehicle

LCD Display Control

Gauges

Tachometer

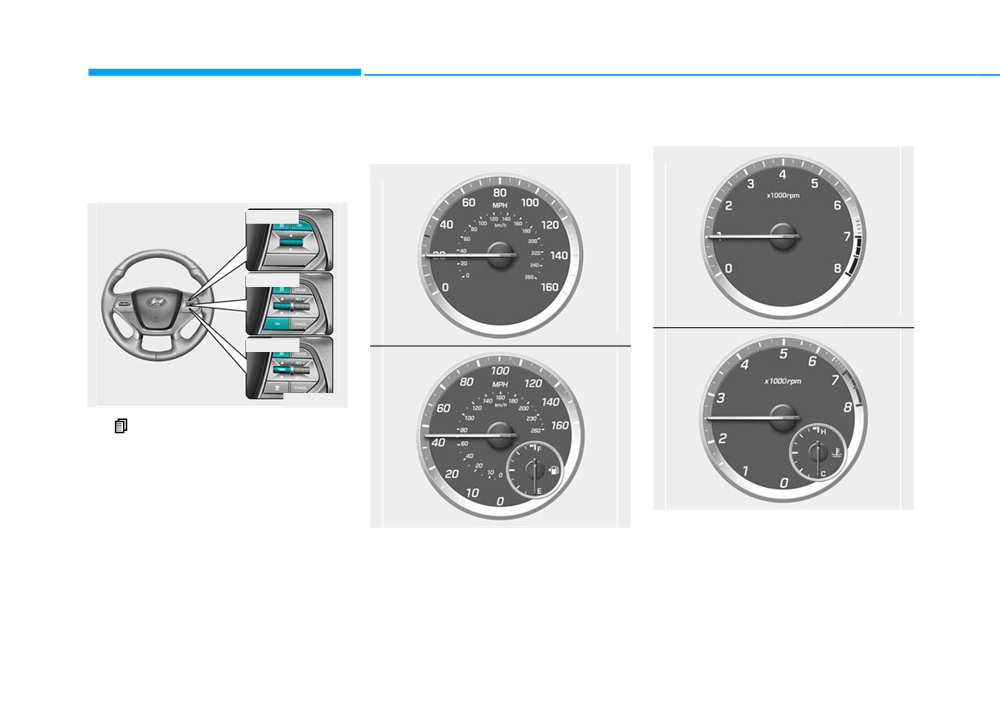

The LCD display modes can be

Speedometer

■ Type A, B

changed by using the control buttons

■ Type A, B

on the steering wheel.

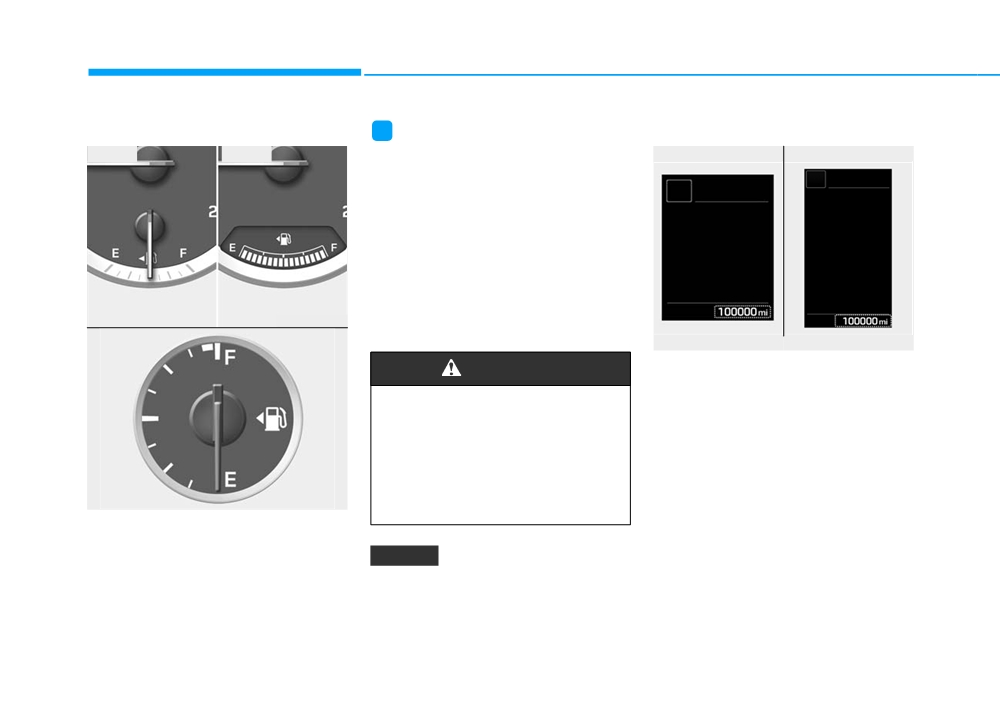

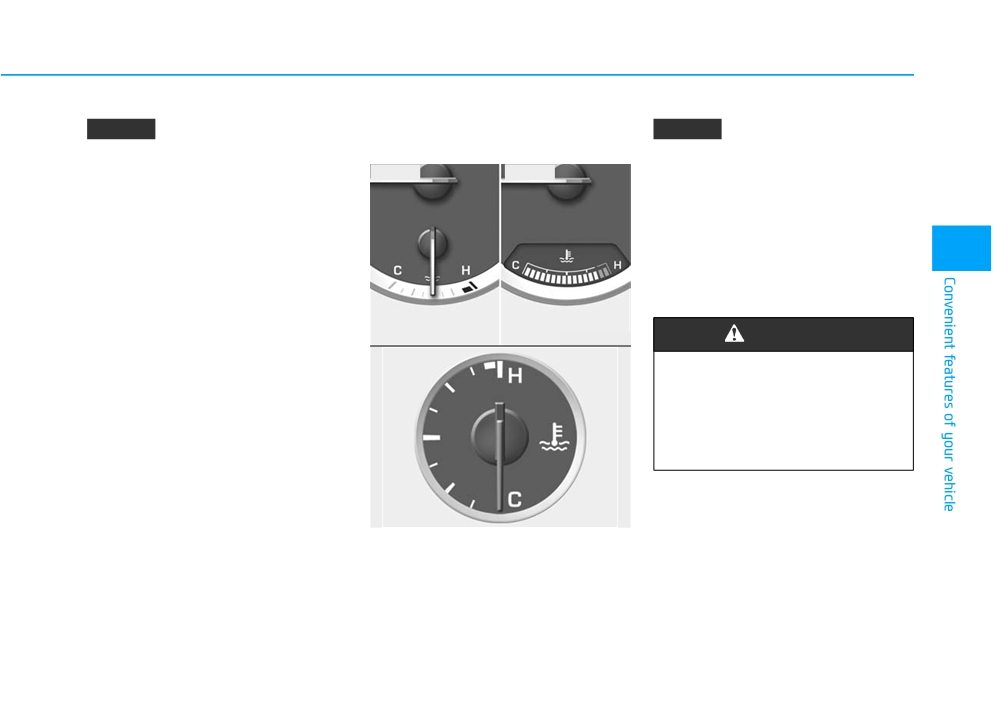

■ Type A

■ Type B

OLF044105L

OLF044103N

■ Type C, D

■ Type C

■ Type C, D

OLF044201

(1)

: MODE button for changing

modes

(2) ▲, ▼ : MOVE switch for chang-

ing items

(3) OK : SELECT/RESET button for

OLF044501N

setting or resetting the

OLF044500N

The tachometer indicates the

selected item

The speedometer indicates the

approximate number of engine revo-

speed of the vehicle and is calibrated

lutions per minute (rpm).

For more information on LCD

in miles per hour (mph) and/or kilo-

Use the tachometer to select the cor-

Modes, refer to "LCD Display" in

meters per hour (km/h).

rect shift points and to prevent lug-

the next pages of this chapter.

ging and/or over-revving the engine.

3-70

NOTICE

Engine Coolant Temperature

NOTICE

Gauge

Do not operate the engine within

If the gauge pointer moves

the tachometer's RED ZONE. This

■ Type A

■ Type B

beyond the normal range area

may cause severe engine damage.

toward the "H" position, it indi-

cates overheating that may dam-

age the engine.

Do not continue driving with an

overheated engine. If your vehicle

overheats, refer to "If the Engine

Overheats" in chapter 6.

OLF044107

WARNING

■ Type C, D

Never remove the radiator cap

when the engine is hot. The

engine coolant is under pressure

and could severely burn. Wait

until the engine is cool before

adding coolant to the reservoir.

OLF044506N

This gauge indicates the tempera-

ture of the engine coolant when the

ignition switch or Engine Start/Stop

button is ON.

3-71

Convenient features of your vehicle

Fuel Gauge

Odometer

Information

■ Type A

■ Type B

• The fuel tank capacity is given in

■ Type A, C

■ Type B, D

chapter 8.

• The fuel gauge is supplemented by a

low fuel warning light, which will

illuminate when the fuel tank is

nearly empty.

• On inclines or curves, the fuel gauge

pointer may fluctuate or the low fuel

warning light may come on earlier

OLF044108

than usual due to the movement of

■ Type C, D

fuel in the tank.

OLF046559N/OLF0436558N

WARNING

The odometer indicates the total dis-

tance that the vehicle has been driv-

Running out of fuel can expose

en and should be used to determine

when periodic maintenance should

vehicle occupants to danger.You

must stop and obtain additional

be performed.

fuel as soon as possible after

- Odometer range : 0 ~ 999999 miles

the warning light comes on or

or kilometers.

when the gauge indicator comes

OLF044503N

close to the "E (Empty)" level.

This gauge indicates the approxi-

mate amount of fuel remaining in the

fuel tank.

NOTICE

Avoid driving with an extremely

low fuel level. Running out of fuel

could cause the engine to misfire,

damaging the catalytic converter.

3-72

Outside temperature gauge

The outside temperature on the dis-

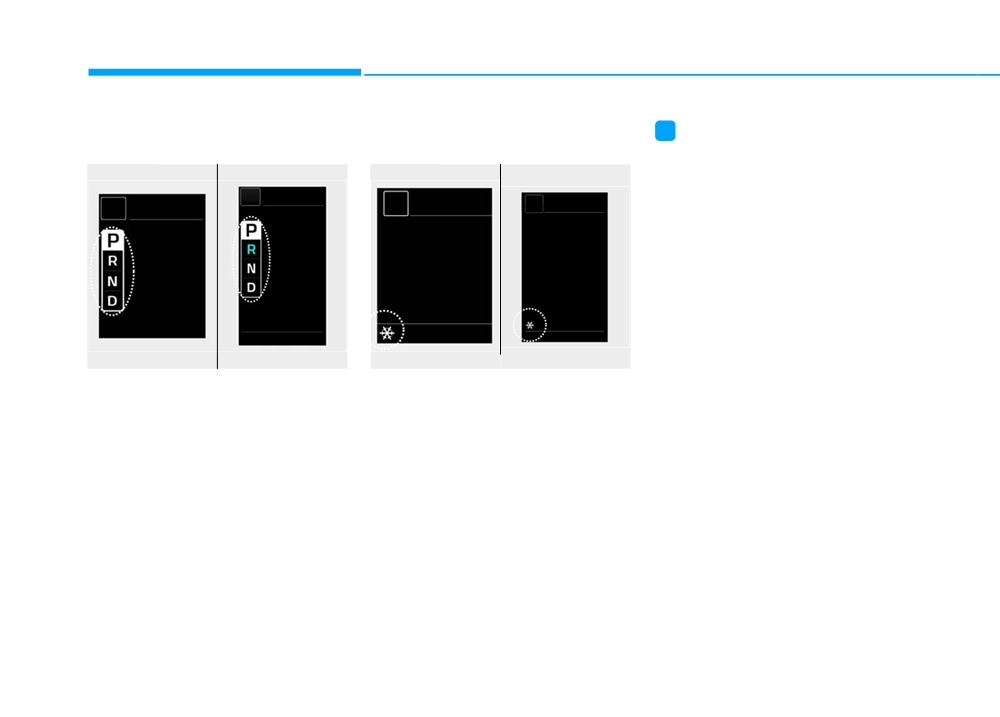

Automatic transmission shift

play may not change immediately

indicator / Ecoshift dual clutch

■ Type A, C

■ Type B, D

like a general thermometer to pre-

transmission shift indicator

vent the driver from being inattentive.

(If equipped)

To change the temperature unit from

■ Type A, C

■ Type B, D

°F to °C or °C to °F, it can be select-

ed by one of the following methods :

- Go to User Settings Mode ➝ Other

Features ➝ Temperature Unit.

- Press the AUTO button for 3 sec-

onds while pressing the OFF button.

(Automatic climate control system)

OLF046565N/OLF046564N

This gauge indicates the current out-

Both the temperature unit on the

side air temperatures by 1°F (1°C).

cluster LCD display and climate con-

OLF046562L/OLF044540

- Temperature range : -40°F ~ 140°F

trol screen will change.

This indicator displays which auto-

(-40°C ~ 60°C)

matic transmission shift lever is

selected.

• Park : P

• Reverse : R

• Neutral : N

• Drive : D

• Sports Mode

- Auto Transmission : 1, 2, 3, 4, 5, 6

- Ecoshift Dual Clutch Transmission:

1, 2, 3, 4, 5, 6, 7

3-73

Convenient features of your vehicle

Shift indicator pop-up

Icy Road Warning Light

Information

(if equipped)

If the icy road warning light appears

■ Type A, C

■ Type B, D

■ Type A, C

■ Type B, D

while driving, you should drive more

attentively and safely refraining from

over-speeding, rapid acceleration,

sudden braking or sharp turning, etc.

OLF046421/OLF046420

OLF046112N/OLF046113N

The pop-up displays the current gear

This warning light is to warn the driv-

position selected for

2 seconds

er the road may be icy.

(P/R/N/D).

When the following conditions occur,

the warning light (including Outside

Temperature Gauge) blinks 5 times

and then illuminates, and also warn-

ing chime sounds 1 times.

- The temperature on the Outside

Temperature Gauge is below

approximately 40°F (4°C).

3-74

LCD DISPLAY

LCD Modes

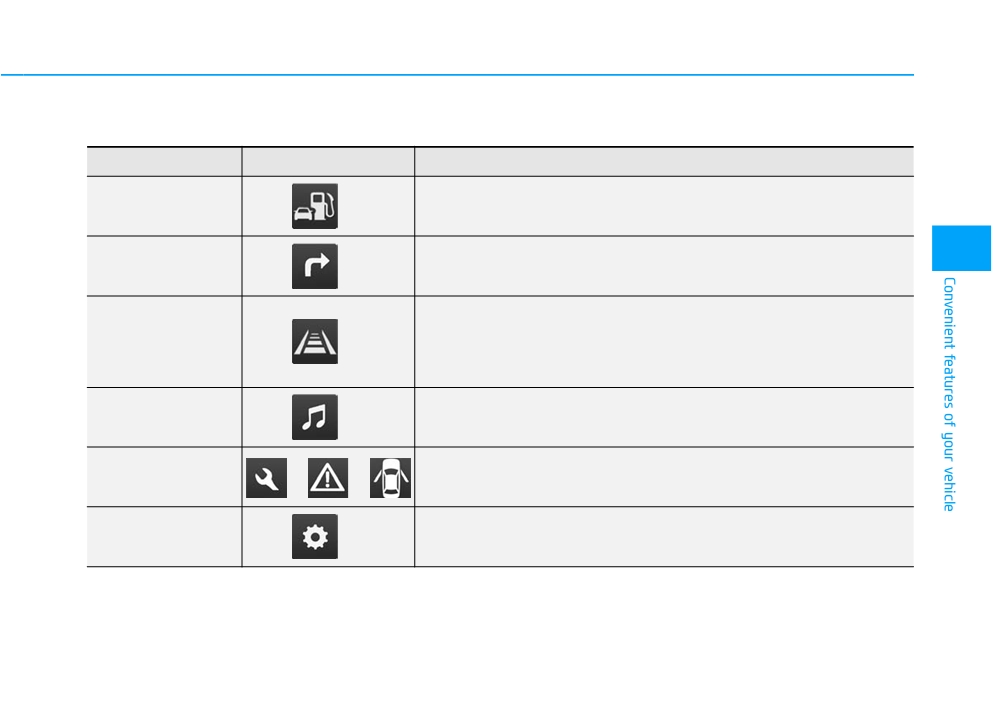

Modes

Symbol

Description

This mode displays information related to driving such as tripmeter, fuel

Trip Computer

economy, etc.

For more information, refer to "Trip Computer" in this chapter.

Turn By Turn (TBT)

This mode displays the state of the navigation.

(if equipped)

This mode displays the state of the Smart Cruise Control (SCC) and Lane

Departure Warning System (LDWS).

SCC/LDWS

(If equipped)

For more information, refer to "Smart Cruise Control (SCC)" and

Lane Departure Warning System (LDWS) in chapter 5.

A/V

This mode displays the state of the A/V system.

(If equipped)

This mode displays information such as tire pressure, service intervals, warning

Information

messages related to the Smart Cruise Control, etc.

User Settings

On this mode, you can change settings of the doors, lamps, etc.

For more information on controlling the LCD Modes, refer to "LCD Display Control" in the previous pages of

this chapter.

3-75

Convenient features of your vehicle

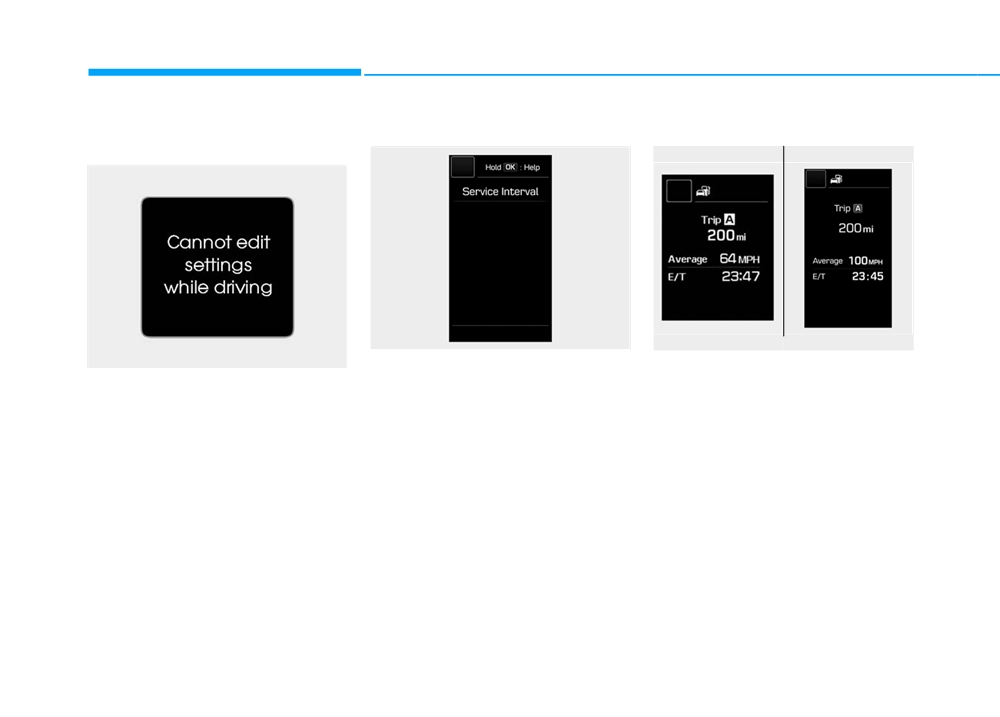

Cannot edit settings while driv-

Quick guide (Help, if equipped)

Trip Computer Mode

ing

■ Type A, C

■ Type B, D

OLF046563L

OLF046432N/OLF046438N

OLF044168L

Press and hold the OK button in the

This mode displays driving informa-

This warning message illuminates if

User Settings Mode, the explanation

tion like the tripmeter, fuel economy,

you try to select the other User

about the selected item is displayed.

and so on.

Settings item when driving.

For safety, change the User Settings

For more information, refer to

after parking the vehicle and moving

"Trip Computer" in this chapter.

the shift lever to P (Park) position.

3-76

Turn By Turn (TBT) Mode

SCC/LDWS Mode (if equipped)

A/V Mode (if equipped)

(if equipped)

■ Type A, C

■ Type B, D

■ Type A, C

■ Type B, D

OLF044174N

OLF046175/OLF046176

OLF046172/OLF046173

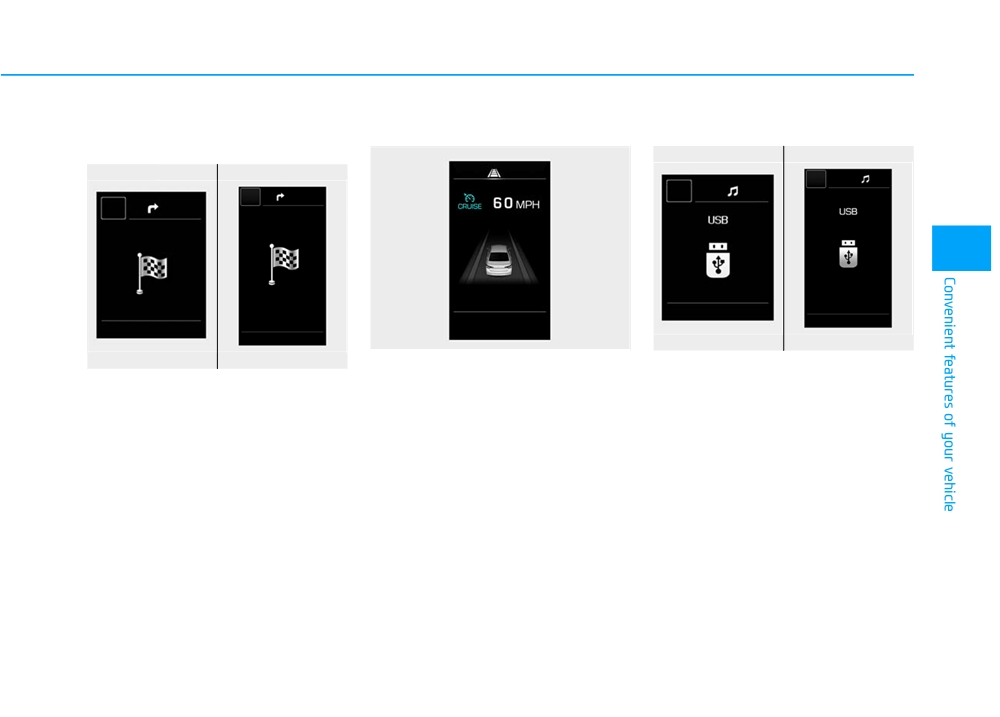

This mode displays the state of the

Smart Cruise Control

(SCC) and

A/V system.

navigation.

Lane Departure Warning System

(LDWS).

For more information, refer to

"Smart Cruise Control (SCC)" and

"Lane Departure Warning System

(LDWS)" in chapter 5.

3-77

Convenient features of your vehicle

Information Mode

Service Interval

■ Type A, C

■ Type B, D

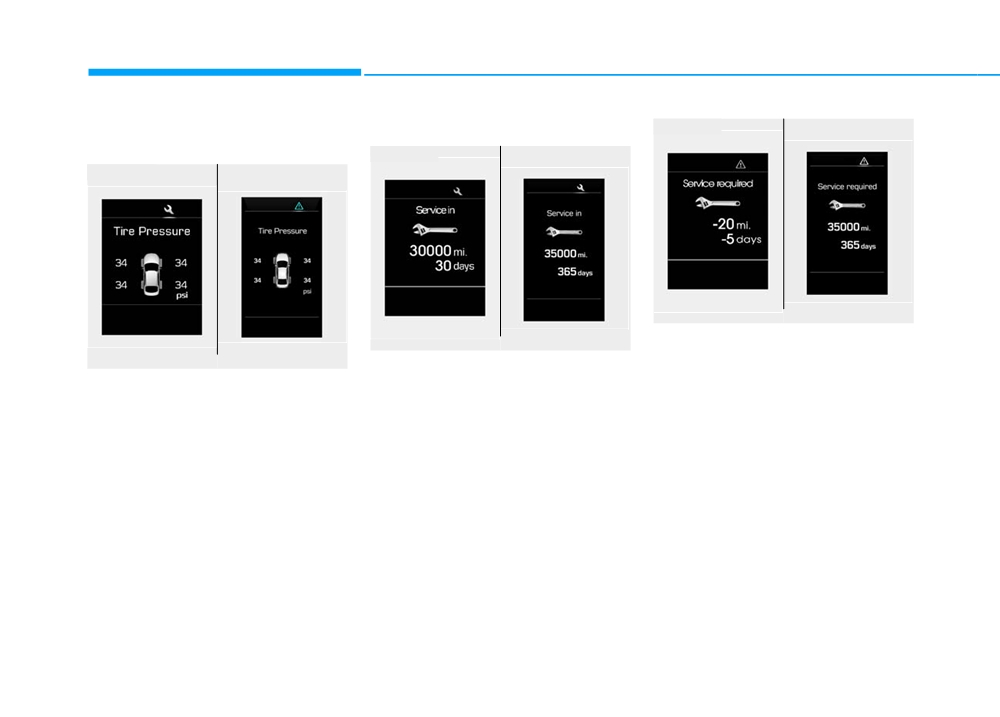

Tire pressure information

■ Type A, C

■ Type B, D

■ Type A, C

■ Type B, D

OLF044455N/OLF044454N

Service required

OLF044179L/OLF044180L

OLF044421L/OLF044420L

If you exceed specified service inter-

Service in

val, "Service required" message will

Displays tire pressure information.

If the remaining mileage or time

be displayed each time you set the

reaches 900 miles (1,500 km) or 30

ignition switch or Engine Start/Stop

days, "Service in" message is dis-

button to the ON position.

played for several seconds each time

To reset the service interval, press

you set the ignition switch or Engine

the OK button for more than 1 sec-

Start/Stop button to the ON position.

ond.

For the setting of the service inter-

val, refer to "User Settings Mode"

of the LCD display.

3-78

■ Type A, C

■ Type B, D

Warning Message

Information

If one of followings occurs, warning

If any of the following conditions

messages will be displayed on the

occurs, the mileage and days may be

information mode for several seconds.

incorrect.

- Malfunction of below systems

- The battery cable is disconnected.

• Smart Cruise Control (SCC)

- The fuse switch is turned off.

• Blind Spot Detection (BSD)

- The battery is discharged.

• Tire Pressure Monitoring System

(TPMS)

• Automatic Emergency Braking

OLF044457N/OLF044456N

system (AEB)

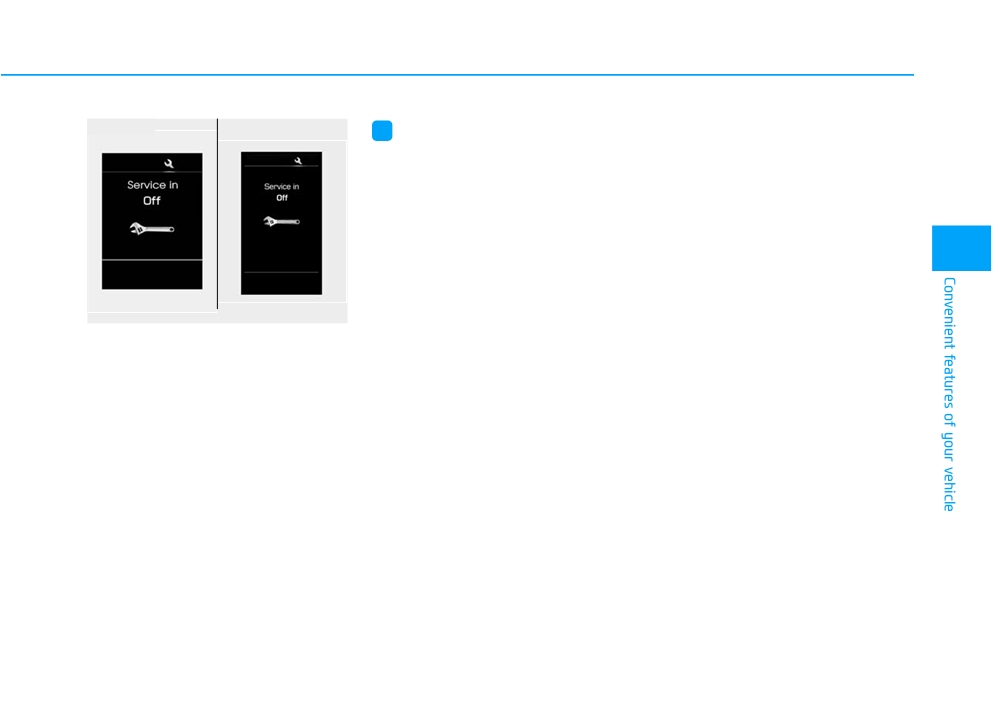

Service in OFF

• High Beam Assist system (HBA)

If the service interval is not set,

"Service in OFF" message is dis-

played.

3-79

Content .. 7 8 9 10 ..
