Hyundai Sonata Hybrid (2017 year). Instruction - part 7

To adjust the Zone setting:

If you need to recalibrate the com-

Integrated HomeLink® Wireless

pass:

Control System

1. Determine the desired Zone

Number based upon your current

1. Press and hold the

button for

The HomeLink® Wireless Control

location on the Zone Map.

more than 9 seconds. When the

System can replace up to three

compass memory is cleared a "C"

hand-held radio-frequency

(RF)

2. Press and hold the button for 6

will appear in the display.

transmitters with a single built-in

seconds, the current Zone

Number will appear on the display.

2. Drive the vehicle in 2 complete cir-

device. This innovative feature will

learn the radio frequency codes of

3

3. Pressing and holding the button

cles at less than 5 mph (8 km/h).

most current transmitters to operate

again will cause the numbers to

devices such as gate operators,

increment (Note: they will repeat

garage door openers, entry door

…13, 14, 15, 1, 2, …). Releasing

locks, security systems, even home

the button when the desired Zone

lighting. Both standard and rolling

Number appears on the display

code-equipped transmitters can be

will set the new Zone.

programmed by following the out-

4. Within about 5 seconds the com-

lined procedures.

pass will start displaying a com-

Additional HomeLink® information

pass heading again.

can be found at: www.homelink.com

or by calling 1-800-355-3515.

There are some conditions that can

Retain the original transmitter of the

cause changes to the vehicle mag-

RF device you are programming for

nets, such as installing a ski rack or

use in other vehicles as well as for

a CB antenna. Body repair work on

future HomeLink® programming. It is

the vehicle can also cause changes

also suggested that upon the sale of

to the vehicle’s magnetic field. In

the vehicle, the programmed

these situations, the compass will

HomeLink® buttons be erased for

need to be re-calibrated to quickly

security purposes.

correct these changes.

3-29

Convenient features of your vehicle

Programming HomeLink®

Programming

WARNING

Please note the following:

Flashing

Before programming HomeLink®

•

When programming a garage door

to a garage door opener or gate

opener, it is advised to park the

operator, make sure people and

vehicle outside of the garage.

objects are out of the way of the

•

It is recommended that a new bat-

device to prevent potential harm

tery be placed in the hand-held

or damage. Do not use the

transmitter of the device being pro-

HomeLink® with any garage door

grammed to HomeLink® for quicker

opener that lacks the safety stop

training and accurate transmission

and reverse features required by

of the radio-frequency signal.

U.S. federal safety standards (this

•

Some vehicles may require the

includes any garage door opener

ODH044413N

ignition switch to be placed in the

model manufactured before April

ACC (or "Accessories") position for

To train most devices, follow these

1, 1982). A garage door that can-

programming and/or operation of

instructions:

not detect an object - signaling

HomeLink®.

the door to stop and reverse -

1. For first-time programming, press

•

In the event that there are still pro-

does not meet current U.S. feder-

and hold the two outside buttons

gramming difficulties or questions

(

), HomeLink® Channel

1

al safety standards. Using a

,

garage door opener without

after following the programming

and Channel 3, until the indicator

steps listed below, contact

light begins to flash (after 10 sec-

these features increases the risk

of serious injury or death.

HomeLink®homelwww.homelink.com

onds). Release both buttons. Do

or by calling 1-800-355-3515.

not hold the buttons for longer

than 20 seconds.

3-30

4. Firmly press, hold for 5 seconds and

Flashing

i

Information

release

the

programmed

Some devices may require you to

HomeLink® button up to two sepa-

replace this Programming step 3 with

rate times to activate the door. If the

procedures noted in the "Gate

door does not activate, press and

Operator/Canadian Programming"

hold the just-trained HomeLink® but-

chapter. If the HomeLink® indicator

ton and observe the indicator light.

light does not change to a rapidly

• If the indicator light stays on con-

3

blinking light after performing these

stantly, programming is complete

steps,

contact HomeLink®

at

and your device should activate

www.homelink.com.

when the HomeLink® button is

ODH044414N

pressed and released.

2. Position the end of your hand-held

• If the indicator light blinks rapidly

transmitter

1-3 inches

(2-8 cm)

for 2 seconds and then turns to a

away from the HomeLink® button

constant light, continue with

you wish to program while keeping

"Programming" steps 5-7 to com-

the indicator light in view.

plete the programming of a rolling

code equipped device (most com-

3. Simultaneously press and hold

monly a garage door opener).

both the HomeLink® and hand-

held transmitter buttons until the

5. At the garage door opener receiv-

HomeLink® indicator light changes

er (motor-head unit) in the garage,

from a slow to a rapid blinking

locate the "learn" or "smart" but-

light. Now you may release both

ton. This can usually be found

the HomeLink® and hand-held

where the hanging antenna wire is

transmitter buttons.

attached to the motor-head unit.

3-31

Convenient features of your vehicle

6. Firmly press and release the

Gate operator & Canadian program-

Reprogramming a single HomeLink®

"learn" or "smart" button.

(The

ming

button

name and color of the button vary

During programming, your handheld

To program a device to HomeLink®

by manufacturer). There are

30

transmitter may automatically stop

using a HomeLink® button previously

seconds to initiate step 7.

transmitting. Continue to press the

trained, follow these steps:

7. Return to the vehicle and firmly

Integrated HomeLink® Wireless

1.Press and hold the desired

press, hold for

2 seconds and

Control System button (note steps 2

HomeLink® button. DO NOT

release

the

programmed

through 3 in the Programming portion

release the button.

HomeLink® button. Repeat the

of this document) while you press

2.The indicator light will begin to flash

"press/hold/release" sequence a

and re-press ("cycle") your handheld

after 20 seconds. Without releasing

second time, and, depending on the

transmitter every two seconds until

the HomeLink® button, proceed

brand of the garage door opener (or

the frequency signal has been

with "Programming" step 2.

other rolling code equipped device),

learned. The indicator light will flash

repeat this sequence a third time to

slowly and then rapidly after several

complete

the

programming

seconds upon successful training.

For questions or comments, contact

process.

HomeLink®omelwww.homelink.com or

1-800-355-3515.

Operating HomeLink®

HomeLink® should now activate your

To operate, simply press and release

rolling code equipped device.

the programmed HomeLink® button.

Activation will now occur for the

trained device

(i.e. garage door

opener, gate operator, security sys-

tem, entry door lock, home/office

lighting, etc.). For convenience, the

hand-held transmitter of the device

may also be used at any time.

3-32

Erasing HomeLink® buttons

Electric chromic mirror (ECM)

i

Information

Individual buttons cannot be erased.

with compass and HomeLink®

This device complies with Part 15 of

However, to erase all three pro-

system (for Canada)

the FCC Rules.

grammed buttons:

Your vehicle may be equipped with a

Operation is subject to the following

1. Press and hold the two outer

Gentex Automatic-Dimming Mirror

three conditions:

HomeLink® buttons until the indi-

with a Z-Nav™ Electronic Compass

cator light begins to flash after 10

1. This device may not cause harmful

Display and an Integrated HomeLink®

seconds.

interference, and

Wireless Control System.

3

2. Release both buttons. Do not hold

2. This device must accept any inter-

During nighttime driving, this feature

ference received, including interfer-

will automatically detect and reduce

for longer than 20 seconds.

ence that may cause undesired

rearview mirror glare while the com-

The Integrated HomeLink® Wireless

operation.

pass indicates the direction the vehi-

Control System is now in the training

cle is pointed. The HomeLink®

(learn) mode and can be pro-

3. The transceiver has been tested and

complies with FCC and Industry

Universal Transceiver allows you to

grammed at any time following the

activate your garage door(s), electric

appropriate

steps

in

the

Canada rules. Changes or modifica-

tions not expressly approved by the

gate, home lighting, etc.

Programming chapters above.

party responsible for compliance

could void the user’s authority to

NVS® is a registered trademark and

operate the device.

Z-Nav™ is a trademark of the Gentex

Corporation, Zeeland, Michigan.

HomeLink® is a registered trademark

owned by Johnson Controls,

Incorporated, Milwaukee, Wisconsin.

FCC ID: NZLTLMHL4

IC: 4112A-TLMHL4

3-33

Convenient features of your vehicle

Automatic-Dimming Night Vision

The auto-dimming function can be

Safety™ (NVS®) Mirror

controlled by pressing the ON/OFF

(if equipped)

button:

The NVS® Mirror automatically

reduces glare by monitoring light lev-

1. Pressing the button turns the auto-

els in the front and the rear of the

dimming function OFF which is

vehicle. Any object that obstructs

indicated by the green Status

either light sensor will degrade the

Indicator LED turning off.

automatic dimming control feature.

2. Pressing the button again turns

the auto-dimming function ON

For more information regarding

which is indicated by the green

OLF044476N

NVS® mirrors and other applica-

Status Indicator LED turning on.

tions, please refer to the Gentex

(1) Channel 1 button

The mirror defaults to the ON posi-

website:

(2) Channel 2 button

tion each time the vehicle is started.

www.gentex.com

(3) Status indicator LED

(4) Channel 3 button

Z-Nav™ Compass Display

(5) Rear light sensor

The NVS™ Mirror in your vehicle is

(6) Dimming ON/OFF button

also equipped with a Z-Nav™

Compass that shows the vehicle

(7) Compass control button

Compass heading in the Display

(8) Compass display

Window using the 8 basic cardinal

headings (N, NE, E, SE, etc.).

3-34

Compass function

The Compass can be turned ON and

OFF and will remember the last state

when the ignition is cycled. To turn

the display feature ON/OFF:

1. Press and release the button to

turn the display feature OFF.

3

2. Press and release the

button

again to turn the display back ON.

Additional options can be set with

press and hold sequences of the but-

ton and are detailed below.

There is a difference between mag-

netic north and true north. To com-

pensate for this difference you will

need to adjust the Zone setting

based on where you live.

B520C05NF

3-35

Convenient features of your vehicle

To adjust the Zone setting:

If you need to recalibrate the com-

Integrated HomeLink® Wireless

pass:

Control System

1. Determine the desired Zone

Number based upon your current

1. Press and hold the

button for

The HomeLink® Wireless Control

location on the Zone Map.

more than 6 seconds. When the

System can replace up to three hand-

compass memory is cleared a "C"

held radio-frequency (RF) transmit-

2. Press and hold the

button for

will appear in the display.

ters with a single built-in device. This

more than 3 but less than 6 sec-

onds, the current Zone Number

2. Drive the vehicle in 2 complete cir-

innovative feature will learn the radio

frequency codes of most current

will appear on the display.

cles at less than 5 mph (8 km/h).

transmitters to operate devices such

3. Pressing and holding the button

as gate operators, garage door open-

again will cause the numbers to

ers, entry door locks, security sys-

increment (Note: they will repeat

tems, even home lighting. Both stan-

…13, 14, 15, 1, 2, …). Releasing

dard and rolling code-equipped trans-

the button when the desired Zone

mitters can be programmed by fol-

Number appears on the display

lowing the outlined procedures.

will set the new Zone.

Additional HomeLink® information

4. Within about 5 seconds the com-

can be found at: www.homelink.com

pass will start displaying a com-

or by calling 1-800-355-3515.

pass heading again.

Retain the original transmitter of the

RF device you are programming for

There are some conditions that can

use in other vehicles as well as for

cause changes to the vehicle mag-

future HomeLink® programming. It is

nets, such as installing a ski rack or

also suggested that upon the sale of

a CB antenna. Body repair work on

the vehicle, the programmed

the vehicle can also cause changes

HomeLink® buttons be erased for

to the vehicle’s magnetic field. In

security purposes.

these situations, the compass will

need to be re-calibrated to quickly

correct these changes.

3-36

Programming HomeLink®

Rolling code programming

WARNING

Please note the following:

Rolling code devices which are

"code-protected" and manufactured

Before programming HomeLink®

•

When programming a garage door

after 1996 may be determined by the

to a garage door opener or gate

opener, it is advised to park the

following:

operator, make sure people and

vehicle outside of the garage.

objects are out of the way of the

•

Reference the device owner’s

•

It is recommended that a new bat-

device to prevent potential harm

tery be placed in the hand-held

manual for verification.

3

or damage. Do not use the

transmitter of the device being pro-

•

The handheld transmitter appears

HomeLink® with any garage door

grammed to HomeLink® for quicker

to program the HomeLink®

opener that lacks the safety stop

training and accurate transmission

Universal Transceiver but does not

and reverse features required by

of the radio-frequency signal.

activate the device.

U.S. federal safety standards (this

•

Some vehicles may require the

•

Press and hold the trained

includes any garage door opener

ignition switch to be placed in the

HomeLink button. The device has

model manufactured before April

ACC (or "Accessories") position for

the rolling code feature if the indi-

1, 1982). A garage door that can-

programming and/or operation of

cator light flashes rapidly and then

not detect an object - signaling

HomeLink®.

turns solid after 2 seconds.

the door to stop and reverse -

•

In the event that there are still pro-

does not meet current U.S. feder-

gramming difficulties or questions

al safety standards. Using a

after following the programming

garage door opener without

steps listed below, contact

these features increases the risk

HomeLink®homelwww.homelink.com

of serious injury or death.

or by calling 1-800-355-3515.

3-37

Convenient features of your vehicle

Erasing HomeLink® buttons

Side View Mirrors

i

Information

Individual buttons cannot be erased.

This device complies with Part 15 of

However, to erase all three pro-

the FCC Rules.

grammed buttons:

Operation is subject to the following

1. Press and hold the two outer

three conditions:

HomeLink® buttons until the indi-

cator light begins to flash-after 20

1. This device may not cause harmful

seconds.

interference, and

2. Release both buttons. Do not hold

2. This device must accept any interfer-

ence received, including interference

for longer than 30 seconds.

that may cause undesired operation.

The Integrated HomeLink® Wireless

Control System is now in the training

3. The transceiver has been tested and

(learn) mode and can be pro-

complies with FCC and Industry

OLF044024

grammed at any time following the

Canada rules. Changes or modifica-

Be sure to adjust mirror angles

appropriate steps in the Programming

tions not expressly approved by the

before driving.

chapters above.

party responsible for compliance

could void the user’s authority to

Your vehicle is equipped with both

operate the device.

left-hand and right-hand side view

NVS® is a registered trademark and

mirrors. The mirrors can be adjusted

Z-Nav™ is a trademark of the Gentex

remotely with the remote switch. The

Corporation, Zeeland, Michigan.

mirror heads can be folded to pre-

HomeLink® is a registered trademark

vent damage during an automatic

owned by Johnson Controls,

car wash or when passing through a

Incorporated, Milwaukee, Wisconsin.

narrow street.

FCC ID: NZLZTVHL3

The right side view mirror is convex.

IC: 4112A-ZTVHL3

Objects seen in the mirror are closer

than they appear.

3-40

Use your interior rearview mirror or

Blind spot mirror

WARNING

direct observation to determine the

actual distance of following vehicles

• Always check the road condi-

when changing lanes.

tion while driving for unex-

pected situations even though

WARNING

the vehicle is equipped with a

blind spot mirror.

Do not adjust or fold the side

3

• The blind spot mirror is a

view mirrors while driving. This

device made for convenience.

may cause loss of vehicle con-

Do not solely rely on the mir-

trol resulting in an accident.

ror but always pay attention to

OLF044477N

traffic around you.

CAUTION

NOTICE

•

Do not scrape ice off the mir-

Do not clean the mirror with harsh

ror face; this may damage the

abrasives, fuel or other petroleum

surface of the glass.

based cleaning products.

•

If the mirror is jammed with

ice, do not adjust the mirror by

force. Use an approved spray

de-icer (not radiator antifreeze)

OLF044478N

spray, or a sponge or soft cloth

with very warm water, or move

The Blind Spot Mirror (BSM) is a

supplemental mirror that reduces the

the vehicle to a warm place

driver’s blind spot by showing the

and allow the ice to melt.

rear side area of the vehicle. The

blind spot mirror is equipped on the

left-hand side view mirror.

3-41

Convenient features of your vehicle

Side view mirrors control

NOTICE

Folding the side view mirrors

•

The mirrors stop moving when

they reach the maximum adjust-

ing angles, but the motor contin-

ues to operate while the switch

is pressed. Do not press the

switch longer than necessary,

the motor may be damaged.

•

Do not attempt to adjust the side

view mirrors by hand or the

motor may be damaged.

OLF044025N

OLF044026

Adjusting the rearview mirrors:

To fold the side view mirrors, grasp

the housing of the mirror and then

1. Move the lever

(1) towards the

L(Left) or R(Right) to select the

fold it toward the rear of the vehicle.

rearview mirror you would like to

adjust.

2. Use the mirror adjustment control

switch to position the selected mir-

ror up, down, left or right.

3. After adjustment, place the lever

(1) in the center to prevent inad-

vertent adjustment.

3-42

Reverse Parking Aid Function

The side view mirrors will automati-

cally revert to their original positions if

any of the following occur:

• The ignition switch is placed to

either the LOCK/OFF position or

the ACC position.

• The shift lever is moved to any

position except R (Reverse).

3

• The remote control side view mirror

switch is not selected.

OLF044014N

When you move the shift lever to the

R (Reverse) position, the side view

mirror(s) will rotate downwards to aid

with driving in reverse. The position

of the side view mirror switch

(1)

determines whether or not the mir-

rors will move:

Left/Right : When either the L (Left) or

R (Right) switch is select-

ed, both side view mirrors

will move.

Neutral : When neither switch is select-

ed, the side view mirrors will

not move.

3-43

Convenient features of your vehicle

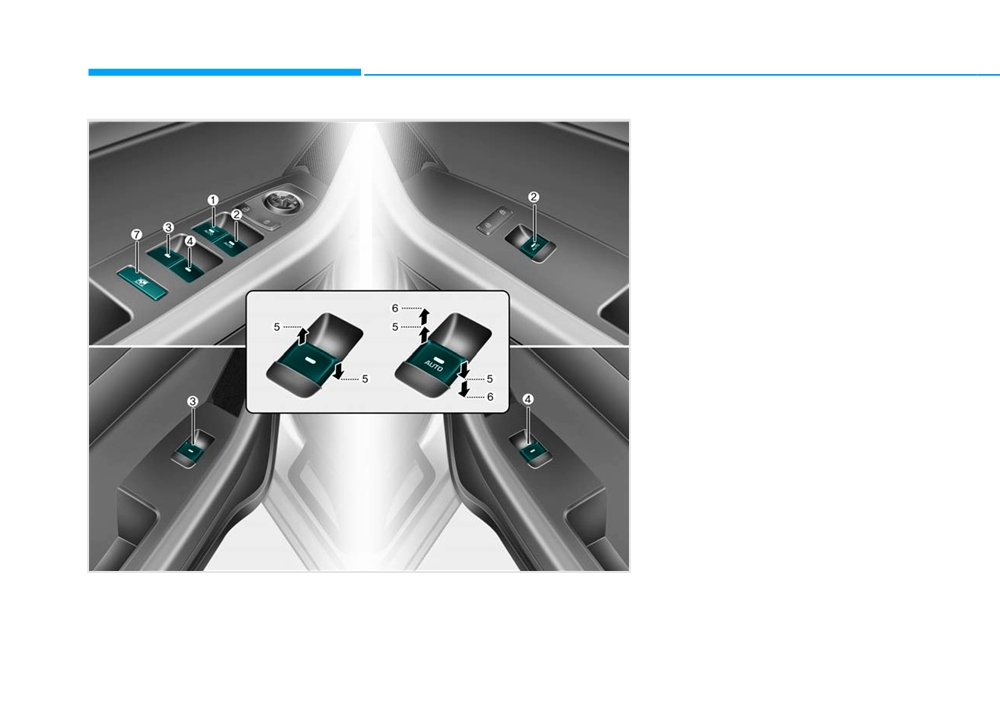

WINDOWS

(1) Driver’s door power window

switch

(2) Front passenger’s door power

window switch

(3) Rear door (left) power window

switch

(4) Rear door (right) power window

switch

(5) Window opening and closing

(6) Automatic power window

(7) Power window lock switch

OLF044030N

3-44

Power Windows

Window opening and closing

i

Information

The ignition switch must be in the ON

•

In cold and wet climates, power win-

position to be able to raise or lower

dows may not work properly due to

the windows. Each door has a Power

freezing conditions.

Window switch to control that door’s

•

While driving with the rear win-

window. The driver has a Power

dows down or with the sunroof (if

Window Lock switch which can block

equipped) opened

(or partially

the operation of passenger windows.

3

opened), your vehicle may demon-

The power windows will operate for

strate a wind buffeting or pulsation

approximately 30 seconds after the

noise. This noise is normal and can

ignition switch is placed in the ACC

be reduced or eliminated by taking

or LOCK/OFF position. However, if

the following actions. If the noise

the front doors are opened, the

occurs with one or both of the rear

OLF044031

Power Windows cannot be operated

windows down, partially lower both

even within the 30 second period.

To open:

front windows approximately one

Press the window switch down to the

inch. If you experience the noise

first detent position (5). Release the

WARNING

with the sunroof open, slightly close

switch when you want the window to

the sunroof.

stop.

To avoid serious injury or death,

do not extend your head, arms

or body outside the windows

To close:

while driving.

Pull the window switch up to the first

detent position (5). Release the win-

dow switch when you want the win-

dow to stop.

3-45

Content   ..  5  6  7  8   ..
