Convenient features of your vehicle

Battery replacement

If you suspect your smart key might

Immobilizer System

have sustained some damage, or

If the Smart Key is not working prop-

The immobilizer system protects your

you feel your smart key is not work-

erly, try replacing the battery with a

vehicle from theft. If an improperly

ing correctly, contact an authorized

new one.

coded key (or other device) is used,

HYUNDAI dealer.

the engine’s fuel system is disabled.

When the ignition switch is placed in

i

Information

the ON position, the immobilizer sys-

An inappropriately disposed

tem indicator should come on briefly,

battery can be harmful to the

then go off. If the indicator starts to

environment and human

blink, the system does not recognize

health. Dispose the battery

the coding of the key.

according to your local law(s)

Place the ignition switch to the

and regulation(s).

LOCK/OFF position, then place the

ignition switch to the ON position again.

The system may not recognize your

OLF044008

key’s coding if another immobilizer

key or other metal object (i.e., key

Battery Type: CR2032

chain) is near the key. The engine

To replace the battery:

may not start because the metal may

1. Pry open the rear cover of the

interrupt the transponder signal from

smart key.

transmitting normally.

2. Remove the old battery and insert

If the system repeatedly does not

the new battery.

recognize the coding of the key, it is

3. Reinstall the rear cover of the

recommended that you contact your

smart key.

HYUNDAI dealer.

3-12

Do not attempt to alter this system or

i

Information

add other devices to it. Electrical

problems could result that may make

This device complies with Part 15 of

your vehicle inoperable.

the FCC rules.

Operation is subject to the following

WARNING

three conditions:

1. This device may not cause harmful

In order to prevent theft of your

interference, and

3

vehicle, do not leave spare keys

2. This device must accept any interfer-

anywhere in your vehicle. Your

ence received, including interference

immobilizer password is a cus-

that may cause undesired operation.

tomer unique password and

3. Changes or modifications not

should be kept confidential.

expressly approved by the party

responsible for compliance could

void the user’s authority to operate

NOTICE

the device.

The transponder in your key is an

important part of the immobilizer

system. It is designed to give

years of trouble-free service, how-

ever you should avoid exposure to

moisture, static electricity and

rough handling. Immobilizer sys-

tem malfunction could occur.

3-13

Convenient features of your vehicle

DOOR LOCKS

Operating Door Locks from

Remote key

i

Information

Outside the Vehicle

•

In cold and wet climates, door lock

Mechanical key

and door mechanisms may not work

■ Remote key

■ Smart key

properly due to freezing conditions.

•

If the door is locked/unlocked multi-

ple times in rapid succession with

either the vehicle key or door lock

switch, the system may stop operat-

ing temporarily in order to protect

the circuit and prevent damage to

system components.

OLF044470N/Q

To lock the doors, press the Door

OLF046009N

Lock button (1) on the remote key.

Press the Door Unlock button (2) on

If you lock the driver's door with a

the remote key, the driver's door will

mechanical key, all vehicle doors will

unlock. If you press the Door Unlock

lock. If you unlock the driver's door

button on the remote key again with-

with a mechanical key, the driver's

in four seconds, then all the doors

door will unlock.

will unlock.

Once the doors are unlocked, they

Once the doors are unlocked, they

may be opened by pulling the door

may be opened by pulling the door

handle.

handle.

When closing the door, push the

door by hand. Make sure that doors

When closing the door, push the

door by hand. Make sure that doors

are closed securely.

are closed securely.

3-14

Smart key

Press the button on the driver's out-

Operating Door Locks from

side door handle while carrying the

Inside the Vehicle

Smart Key with you or press the

With the door lock button

Door Unlock button on the Smart

Key, the driver's door will unlock. If

you press the button on the front

passenger's outside door, all doors

will unlock.

3

Once the doors are unlocked, they

Lock

may be opened by pulling the door

Unlock

handle.

When closing the door, push the

OLF046002N

door by hand. Make sure that doors

Door

Door

are closed securely.

Unlock

Lock

OLF044010

i

Information

•

To unlock a door, push the door

• In cold and wet climates, door lock

lock button (1) to the "Unlock" posi-

and door mechanisms may not work

tion. The red mark (2) on the door

properly due to freezing conditions.

lock button will be visible.

• If the door is locked/unlocked multi-

•

To lock a door, push the door lock

ple times in rapid succession with

button (1) to the "Lock" position. If

OLF044003

either the vehicle key or door lock

the door is locked properly, the red

To lock the doors, press the button

switch, the system may stop operat-

mark (2) on the door lock button

on the outside door handle while car-

ing temporarily in order to protect

will not be visible.

rying the Smart Key with you or

the circuit and prevent damage to

•

To open a door, pull the door han-

press the Door Lock button on the

system components.

dle (3) outward.

Smart Key.

3-15

Convenient features of your vehicle

• If the inner door handle of the dri-

With the central door lock

WARNING

ver's (or front passenger's) door is

switch

pulled when the door lock button is

■ Driver’s door

The doors should always be

in the lock position, the button is

fully closed and locked while

unlocked and door opens.

the vehicle is in motion. If the

• Front doors cannot be locked if the

doors are unlocked, the risk of

key is in the ignition switch and any

being thrown from the vehicle in

front door is open.

a crash is increased.

• Doors cannot be locked if the

smart key is in the vehicle and any

door is open.

WARNING

Do not leave children or animals

i

Information

unattended in your vehicle. An

OLF044011N/OLF044480N

If a power door lock ever fails to func-

enclosed vehicle can become

tion while you are in the vehicle try

When pressing the (

) switch (1), all

extremely hot, causing death or

one or more of the following tech-

vehicle doors will lock.

serious injury to unattended

niques to exit:

children or animals who cannot

When pressing the (

) switch (2), all

• Operate the door unlock feature

escape the vehicle. Children

vehicle doors will unlock.

repeatedly

(both electronic and

might operate features of the

If the key is in the ignition switch and

manual) while simultaneously

vehicle that could injure them,

any door is opened, the doors will not

pulling on the door handle.

or they could encounter other

lock even though the lock button (1) of

harm, possibly from someone

• Operate the other door locks and

the central door lock switch is pressed.

gaining entry to the vehicle.

handles, front and rear.

If the smart key is in the vehicle and

• Lower a front window and use the

any door is opened, the doors will

mechanical key to unlock the door

not lock even though the lock button

from outside.

(1) of the central door lock switch is

pressed.

3-16

Auto Door Lock/Unlock Features

Shift lever auto door lock

WARNING

Impact sensing door unlock

All doors will be automatically locked

system

when shifting the shift lever out of P

Always secure your vehicle.

(Park) with the engine running.

Leaving your vehicle unlocked

All doors will be automatically

increases the potential risk to

unlocked when an impact causes the

you or others from someone

air bags to deploy.

You can activate or deactivate the

hiding in your vehicle.

Auto Door Lock/Unlock features from

3

the User Settings Mode on the LCD

To secure your vehicle, while

Speed sensing door lock system

display.

depressing the brake, move the

All doors will be automatically locked

shift lever to the P (Park) posi-

when vehicle speed exceeds 9 mph

For more information, refer to the

tion, engage the parking brake,

(15 km/h).

"LCD Display" section in this

and place the ignition switch in

All of the doors will be automatically

chapter.

the LOCK/OFF position, close

unlocked after the engine is turned off.

all windows, lock all doors, and

always take the key with you.

CAUTION

Opening a door when something

is approaching may cause dam-

age or injury. Be careful when

opening doors and watch for

vehicles, motorcycles, bicycles

or pedestrians approaching the

vehicle in the path of the door.

3-17

Convenient features of your vehicle

Child-Protector Rear Door locks

To lock the child safety lock, insert a

screwdriver into the hole and turn it

to the lock position.

To allow a rear door to be opened

from inside the vehicle, unlock the

child safety lock.

WARNING

If children accidently open the

rear doors while the vehicle is

in motion, they could fall out of

OLF044012

the vehicle. The rear door safety

locks should always be used

The child safety lock is provided to

whenever children are in the

help prevent children seated in the

vehicle.

rear from accidentally opening the

rear doors. The rear door safety locks

should be used whenever children

are in the vehicle.

The child safety lock is located on

the edge of each rear door. When the

child safety lock is in the lock

(1)

position, the rear door will not open if

the inner door handle (2) is pulled.

3-18

Convenient features of your vehicle

DRIVER POSITION MEMORY SYSTEM (IF EQUIPPED)

Storing Positions into Memory

WARNING

1. Check that the shift lever is in P

(Park) while the ignition switch is

Never attempt to operate the driv-

er position memory system while

in the ON position.

the vehicle is moving.

2. Adjust the driver’s seat position,

This could result in loss of con-

side view mirror position and

instrument panel illumination

trol, and an accident causing

death, serious injury, or property

intensity to positions comfortable

for the driver.

damage.

3. Press the SET button. The system

will beep once and notify you

OLF044013

"Press button to save settings"on

The Driver Position Memory System

the LCD display.

is provided to store and recall the fol-

4. Press one of the memory buttons

lowing memory settings with a sim-

(1 or 2) within 5 seconds. The sys-

ple button operation.

tem will beep twice when the mem-

- Driver’s seat position

ory has been successfully stored.

- Side view mirror position

5.

- Instrument panel illumination intensity

If the battery is disconnected, the

position memory will be lost and the

driving positions must be stored in

the system again.

If

the Driver Position Memory

System does not operate normally,

OLF044403N/OLF044404N

have the system checked by an

authorized HYUNDAI dealer.

"Driver 1 (or 2) settings saved" will

appear on the LCD display.

3-20

Recalling positions from memory

NOTICE

Easy Access Function

1. Check that the shift lever is in P

When exiting the vehicle the driver’s

•

While recalling the "1" memory

(Park) while the ignition switch is

seat will move rearward when the

position, pressing the SET or 1

in the ON position.

engine is turned off and the shift lever

button temporarily stops the

2. Press the desired memory button

in P (Park).

adjustment of the recalled memo-

(1 or 2). The system will beep once,

ry position. Pressing the 2 button

When entering the vehicle the dri-

and then the driver’s seat position,

recalls the "2" memory position.

ver’s seat will move forward when the

side view mirror position and instru-

3

ignition switch is placed to the ACC

•

While recalling the "2" memory

ment panel illumination intensity

position.

position, pressing the SET or 2

will automatically adjust to the

button temporarily stops the

You can activate or deactivate the

stored positions.

adjustment of the recalled memo-

Easy Access Function from the User

3.

ry position. Pressing the 1 button

Settings Mode on the LCD display.

recalls the "1" memory position.

For more information, refer to the

•

While recalling the stored posi-

"LCD Display" section in this

tions, pressing one of the con-

chapter.

trol buttons for the driver’s seat,

side view mirror or instrument

panel illumination will cause the

movement of that component to

OLF044401N/OLF044402N

stop and move in the direction

"Driver 1(or 2) settings is applied" will

that the control button is

appear on the LCD display.

pressed.

3-21

Convenient features of your vehicle

STEERING WHEEL

Electric Power Steering (EPS)

i

Information

CAUTION

The system assists you with steering

The following symptoms may occur

the vehicle. If the engine is turned off

If the Electric Power Steering

during normal vehicle operation:

or if the power steering system

System does not operate nor-

•

The steering effort may be high

becomes inoperative, you may still

mally, the warning light (

) will

immediately after placing the igni-

steer the vehicle, but it will require

illuminate on the instrument

tion switch in the ON position.

increased steering effort.

cluster. You may steer the vehi-

This happens as the system per-

Should you notice any change in the

cle, but it will require increased

forms the EPS system diagnostics.

effort required to steer during normal

steering efforts. Take your vehi-

When the diagnostics is completed,

vehicle operation, have the system

cle to an authorized HYUNDAI

the steering wheel will return to its

checked by an authorized HYUNDAI

dealer and have the system

normal condition.

dealer.

checked as soon as possible.

•

A click noise may be heard from the

EPS relay after the ignition switch is

in the ON or OFF position.

•

Motor noise may be heard when the

vehicle is at a stop or at a low driv-

ing speed.

•

When you operate the steering

wheel in low temperature, abnormal

noise may occur. If temperature

rises, the noise will disappear. This

is a normal condition.

3-22

Tilt Steering / Telescope Steering

Heated Steering Wheel

(if equipped)

Adjust the steering wheel so it points

toward your chest, not toward your

■ Type A

face. Make sure you can see the

instrument panel warning lights and

gauges. After adjusting, push the

steering wheel both up and down to

be certain it is locked in position.

3

Always adjust the position of the

steering wheel before driving.

OLF044015

WARNING

To change the steering wheel angle

OLF044016

and height:

■ Type B

NEVER adjust the steering

wheel while driving. This may

1. Pull down the lock-release lever (1).

cause loss of vehicle control

2. Adjust the steering wheel to the

resulting in an accident.

desired angle (2) and height (3).

3. Pull up the lock-release lever to

lock the steering wheel in place.

i

Information

After adjustment, sometimes the lock

OLF044017

release lever may not lock the steering

When the ignition switch is in the ON

wheel. It is not a malfunction. This

position or when the engine is running,

occurs when two gears are not

press the heated steering wheel but-

engaged correctly. In this case, adjust

ton to warm the steering wheel. The

the steering wheel again and then lock

indicator on the button will illuminate.

the steering wheel.

3-23

Convenient features of your vehicle

To turn the heated steering wheel off,

Horn

press the button again. The indicator

on the button will turn off.

The heated steering wheel will auto-

matically turn off after approximately

30 minutes.

NOTICE

Do not install any cover or acces-

sory on the steering wheel. The

cover or accessory could cause

damage to the heated steering

wheel system.

OLF044018

To sound the horn, press the area

indicated by the horn symbol on your

steering wheel (see illustration). The

horn will operate only when this area

is pressed.

NOTICE

Do not strike the horn severely to

operate it, or hit it with your fist.

Do not press on the horn with a

sharp-pointed object.

3-24

MIRRORS

Inside Rearview Mirror

Day/night rearview mirror

WARNING

(if equipped)

Before you start driving, adjust the

rearview mirror to the center on the

NEVER adjust the mirror while

■ Type A

view through the rear window.

driving. This may cause loss of

vehicle control resulting in an

accident.

Night

WARNING

3

Make sure your line of sight is

NOTICE

not obstructed. Do not place

objects in the rear seat, cargo

When cleaning the mirror, use a

area, or behind the rear head-

paper towel or similar material

rests which could interfere with

dampened with glass cleaner. Do

Day

your vision through the rear

not spray glass cleaner directly on

OLF044019N

■ Type B

window.

the mirror as that may cause the

liquid cleaner to enter the mirror

housing.

WARNING

To prevent serious injury during

an accident or deployment of

the air bag, do not modify the

rearview mirror and do not

install a wide mirror.

OLF044474N

Make this adjustment before you

start driving and while the day/night

lever is in the day position.

3-25

Convenient features of your vehicle

Pull the day/night lever toward you to

Blue Link® center (if equipped)

Electric chromic mirror (ECM)

reduce glare from the headlights of

with HomeLink® system,

the vehicles behind you during night

compass and Blue Link®

driving.

(for U.S.A)

Remember that you lose some

Your vehicle may be equipped with a

rearview clarity in the night position.

Gentex Automatic-Dimming Mirror

with a Z-Nav™ Electronic Compass

Display and an Integrated HomeLink®

Wireless Control System. During

nighttime driving, this feature will

automatically detect and reduce

rearview mirror glare while the com-

pass indicates the direction the vehi-

OLF044021

cle is pointed. The HomeLink®

For details, refer to the Blue Link®

Universal Transceiver allows you to

Owner’s Guide, Navigation Manual

activate your garage door(s), electric

or Audio Manual.

gate, home lighting, etc.

3-26

Automatic-Dimming Night Vision

Your mirror will automatically dim

Safety™ (NVS®) Mirror

upon detecting glare from the vehi-

(if equipped)

cles traveling behind you. The auto-

dimming function can be controlled

The NVS® Mirror automatically

by pressing the Dimming ON/OFF

reduces glare by monitoring light lev-

button:

els in the front and the rear of the

vehicle. Any object that obstructs

either light sensor will degrade the

1. Pressing and holding the button

3

automatic dimming control feature.

for 3 seconds turns the auto-dim-

ming function OFF which is indi-

For more information regarding

cated by the green Status

OLF044475N

NVS® mirrors and other applica-

Indicator LED turning off.

(1) Telematics button

tions, please refer to the Gentex

2. Pressing and holding the button

website:

for

3 seconds again turns the

(2) Telematics button

www.gentex.com

auto-dimming function ON which

(3) Telematics button

is indicated by the green Status

(4) Compass control button &

Indicator LED turning on.

Dimming ON/OFF button

The mirror defaults to the ON posi-

(5) Status indicator LED

tion each time the vehicle is started.

(6) Channel 1 button

(7) Channel 2 button

Z-Nav™ Compass Display

(8) Channel 3 button

The NVS™ Mirror in your vehicle is

(9) Compass display

also equipped with a Z-Nav™

Compass that shows the vehicle

(10) Rear light sensor

Compass heading in the Display

Window using the 8 basic cardinal

headings (N, NE, E, SE, etc.).

3-27

Convenient features of your vehicle

Compass function

The Compass can be turned ON and

OFF and will remember the last state

when the ignition is cycled. To turn

the display feature ON/OFF:

1. Press and release the

button

within 1 second to turn the display

feature OFF.

2. Press and release the

button

again within 1 second to turn the

display back ON.

Additional options can be set with

press and hold sequences of the

button and are detailed below.

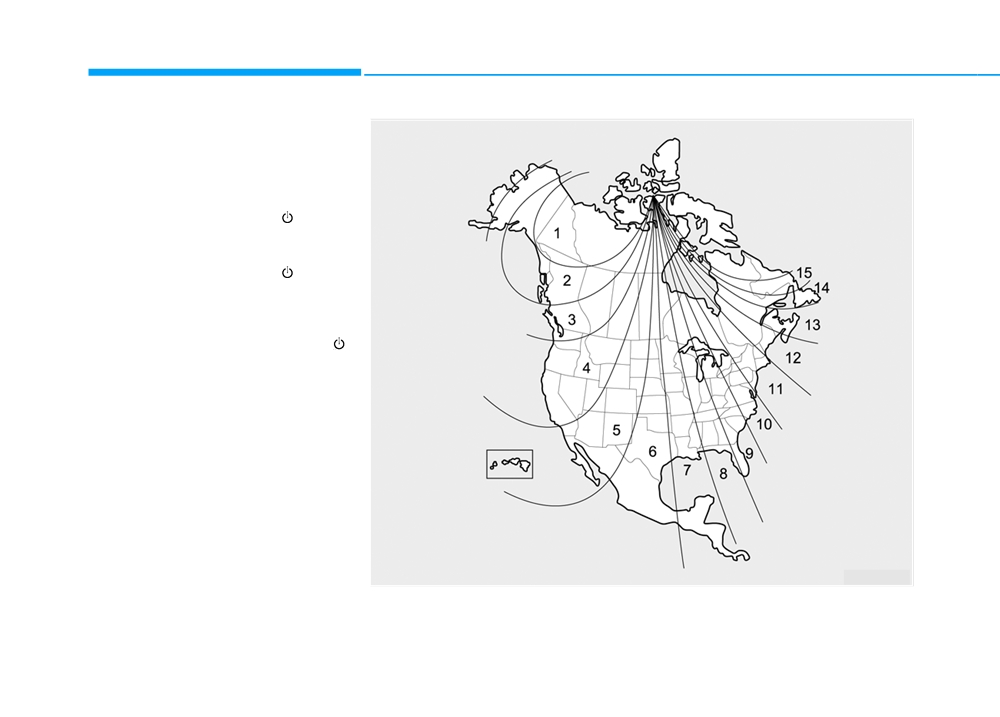

There is a difference between mag-

netic north and true north. To com-

pensate for this difference you will

need to adjust the Zone setting based

on where you live.

B520C05NF

3-28

Content   ..  4  5  6  7   ..
