Hyundai Santa Fe (2019 year). Instruction

The Diesel Particulate Filter

(DPF)

Lean NOx Trap (if equipped)

Urea gauge (if equipped)

Lamp stops illuminating, when the

The Lean NOx Trap (LNT) system

driving speed exceeds 37 mph (60

removes the nitrogen oxide from the

km/h), or when the engine rpm is

exhaust gas. A smell can occur in the

between 1,500 and 2,500 with the

exhaust gas depending on the quali-

gear in the 2nd position or above for

ty of the fuel, and it can degrade NOx

approximately 25 minutes.

reduction performance. Please use

When the DPF Lamp continuously

the regulated automotive diesel fuel.

blinks or the warning message “Check

exhaust system” illuminates in the

Selective Catalytic Reduction

above cases, we recommend that you

(if equipped)

have the DPF system checked by a

HYUNDAI authorised repairer.

The Selective Catalytic Reduction

OTM048163L

When the vehicle is continuously driv-

(SCR) system is to catalytically con-

en with the DPF Lamp flashing for an

vert NOx to Nitrogen and Water by

The urea solution gauge indicates

extended period of time, it may dam-

using the reduction agent, the urea

the approximate amount of remain-

age the DPF system and lower the

solution.

ing urea solution inside the urea

fuel economy.

solution tank.

❈ The urea gauge image pops up,

whenever the ignition switch is

pressed to the ON position.

7-85

Maintenance

The lack warning messages of Urea

When "Low urea" or "Refill urea"

appear below Urea 5.4 litre. When

message is displayed, add at least 4

the warning message "Low urea" is

litres of urea. When "Refill urea in

displayed with SCR warning lamp

000km or vehicle will not start" mes-

(

), the urea tank needs to be

sage is displayed, fill up urea at least

refilled. If not refilled for a consider-

6 litres. When "Refill urea tank

able mileage, visual warning system

Otherwise vehicle will not start" mes-

will escalate the intensity by display-

sage is displayed with SCR warning

ing the message "Refill urea" with

lamp

(

), the vehicle can't be

SCR warning lamp (

restarted once the engine is turned

In this case, the tank soon needs to

off by ignition key. For the above

cases, full replenishment is always

be refilled. The remaining urea in the

tank approaches to too low level the

recommended.

warning message "Refill urea in

000km or vehicle will not start" with

SCR warning lamp (

). "xxx mile

(km)" represents the remaining trav-

el distance allowed, so do not contin-

ue driving to the limit of the remain-

ing travel distance without refilling.

Otherwise, the vehicle can't be

restarted once the engine is turned

off by ignition key. Based on the driv-

ing pattern, environmental condition

and road profile, the deducted

remaining mileage may differ from

the actual travel distance.

OTM078072R/OTM078075R/OTM078074L/OTM078073

7-86

Malfunction with the SCR system (if equipped)

Driving 50 km after detecting

Upon detecting a malfunction

a malfunction

Urea system failure

(= no fuel injection)

Incorrect urea detected

(= abnormal urea)

Abnormal urea-solution

consumption

(= post treatment failure)

SCR system has malfunction due to disconnected electrical components, incorrect urea and so on.

"xxx km(mile)" represents the remaining travel distance allowed, so do not continue driving to the limit of the remain-

ing travel distance without fixing the source of the malfunction. Otherwise, the vehicle can't be restarted once the

engine is turned off by ignition key. In this case, we recommend that the system be inspected by a HYUNDAI autho-

rised repairer.

7-87

Maintenance

Clearing the vehicle-restarting restriction (if equipped)

Once the inducement system

reached to final status and disabled

No restart

the vehicle restart, it will only be

deactivated in case the urea tank is

replenished or the malfunctions have

been rectified. If the vehicle can't be

Low urea solution level

restarted with "Refill urea tank

Otherwise vehicle will not start" mes-

sage, refill more than 6 litres urea,

wait for minutes and try vehicle start-

ing again. If vehicle starting is not

possible regardless of urea level, we

Urea system failure

recommend that the system be

(= no fuel injection)

inspected by a HYUNDAI authorised

repairer.

Incorrect urea detected

(= abnormal urea)

Abnormal urea-solution consumption

(= post treatment failure)

7-88

Adding the urea solution

❈ Pay the great caution not to add

To refill the urea solution from

the urea solution into the fuel

the refill bottle

To refill the urea solution from

tank. If not, it surely applies

1. Press the ignition switch to the

the refill hose

adverse impact on the vehicle

OFF position

performance, causing various

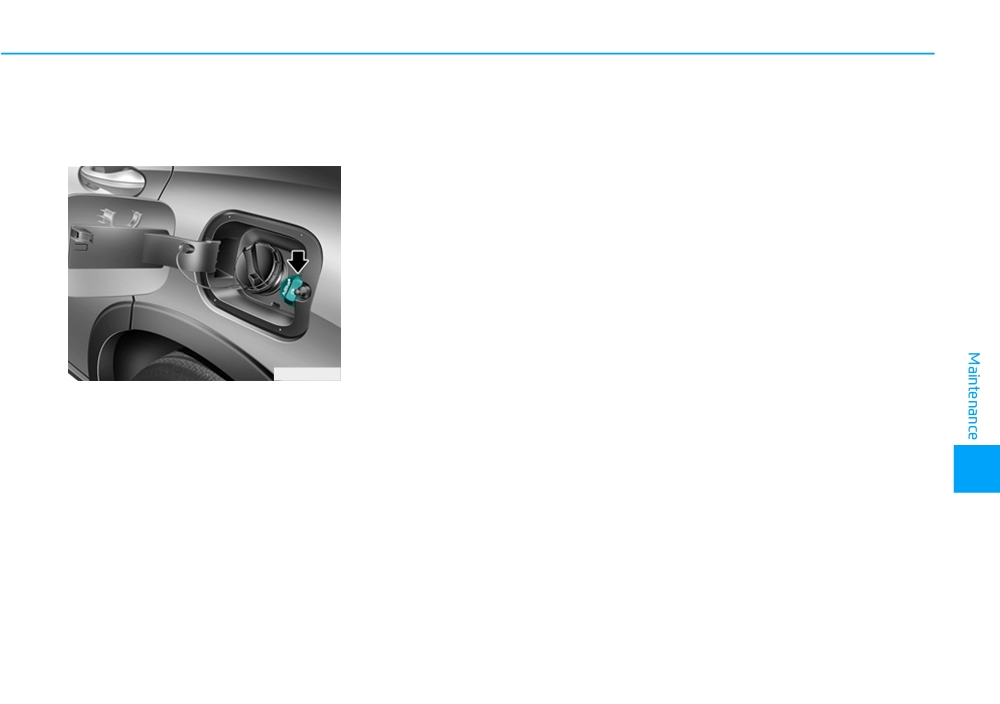

2. Turn the urea solution tank cap in

malfunctions.

a counterclockwise direction to

❈ Never use the urea solution mix-

open it.

ture with additives or water. It

3. Add the ISO 22241-specified urea

may allow foreign substances to

solution over 5 litres or above the

enter the urea solution tank. If

mark on the urea solution tank.

so, it surely applies adverse

impact on the vehicle perform-

❈ Pay the great caution not to add

ance, causing various malfunc-

the urea solution into the fuel

tions.

tank. If not, it surely applies

adverse impact on the vehicle

❈ Use only the ISO 22241-speci-

OTM048419

performance, causing various

fied urea solution. Any unautho-

malfunctions.

rised urea solution surely

1. Press the ignition switch to the

applies adverse impacts on the

❈ Pay the great caution not to

OFF position.

vehicle performance, causing

over-fill the (completely) fulfilled

2. Turn the urea solution tank cap in

various malfunctions.

urea solution tank by force whilst

a counterclockwise direction to

refilling the urea solution from

4. Turn the urea solution tank cap in

open it.

the refill bottle. The over-filled

a clockwise direction to securely

3. Fully insert the refill hose to add

urea solution tank will be

close it.

the ISO

22241-specified urea

expanded when it becomes

solution over 5 litres or above the

frozen and this can cause a seri-

mark on the urea solution tank.

ous malfunction of the urea solu-

❈ When "Refill Urea tank or vehicle

tion tank or urea solution sys-

will not start" message is dis-

tem.

played, fill up urea at least 6 litres.

7-89

Maintenance

❈ Never use the urea solution mix-

Adding the urea solution: Every

•

Any arbitrary manipulation or

ture with additives or water. It

approximately

3,700 miles

(6,000

modification of the DPF sys-

may allow foreign substances to

km) (The urea solution consumption

tem may cause a system mal-

enter the urea solution tank. If

is dependent on the road profile,

function. The DPF system is

so, it surely applies adverse

driving pattern and environmental

controlled by the complex

impact on the vehicle perform-

condition)

device.

ance, causing various malfunc-

❈ It takes some time to update the

tions.

•

Wait for the DPF system to

cluster gauges after the UREA

cool down before the mainte-

❈ Use only the ISO 22241-speci-

injection.

nance service, as it is hot due

fied urea solution. Any unautho-

to the heat generation.

rised urea solution surely

WARNING

Otherwise, it may case a skin

applies adverse impacts on the

burn.

vehicle performance, causing

•

Do not apply any external

various malfunctions.

impact on the DPF system. It

•

Add only the specified urea

may damage the catalyst,

solution, when your vehicle is

4. Turn the urea solution tank cap in

which is equipped inside the

equipped with the urea solu-

a clockwise direction to securely

DPF system.

tion system.

close it.

•

Do not arbitrarily modify or

•

The urea solution system (i.e.

manipulate the DPF system

urea solution nozzle, urea

by redirecting or lengthen the

solution pump, and DCU)

exhaust pipe. It may adversely

operates for approximately 2

impact the DPF system.

minutes more to eliminate the

remaining urea solution

•

Avoid contact with the

inside, even after the ignition

drained water from the

switch is pressed to the OFF

exhaust pipe. The water is

position. Before the mainte-

slightly acid and harmful to

nance service, make sure that

skin. If contacted, thoroughly

the urea solution system is

wash it.

completely turned OFF.

7-90

•

The poor urea solution or the

•

When you have an allergic

•

Store the urea solution tank

unauthorised liquids may

reaction to the urea solution,

only in the well-ventilated

damage the vehicle compo-

immediately consult a doctor.

locations. When the urea solu-

nents, including the DPF sys-

tion is exposed to the hot tem-

•

Do not allow a child to contact

tem. Any unverified additives

perature at approximately

the urea solution.

in the urea solution may clog

50°C for an extended period of

•

Wipe off any urea solution

the SCR catalyst and cause

time (i.e. under the direct sun-

spillage with water or cloth.

other malfunctions, which

light), the chemical decompo-

When the urea solution is

require the expensive DPF

sition may occur, emitting the

crystalized, wipe it off with the

system to be replaced.

ammonia vapour.

sponge or the cloth, which is

•

When the urea solution con-

dampened in the cold water.

tacts with the eyes or the skin,

When the urea solution

you should thoroughly wash

spillage is exposed in the air

the contaminated skin area. .

for an extended period of

•

When you swallow the urea

time, it is crystalised in white,

solution, thoroughly rinse

damaging the vehicle surface.

your mouth and drink a lot of

•

The urea solution is not the

fresh water. Then, immediately

fuel additives. Thus, it should

consult a doctor.

not be injected to the fuel

•

When your cloth is contami-

tank. Otherwise, it may dam-

nated with the urea solution,

age the engine.

immediately change your

•

The urea solution is the aque-

cloth.

ous solution, which is inflam-

mable, non-toxic, colourless

and odourless.

7-91

Maintenance

Storing the urea solution

Urea solution purity

Specification of the

•

It is improper to store the urea

•

The following situations may dam-

tandard urea solution

solution in the containers made

age the DPF system.

with the certain materials (i.e. alu-

- Fuels or any unauthorised liquids

Liquid such as diesel, petrol and

minium, copper, copper alloy, non-

are added into the urea solution

alcohol shall never be used for

alloyed still, and galvanized steel).

tank.

SCR system. Any fluid other than

The urea solution dissolves the

recommended urea solution (con-

- Additives are mixed in the urea

metal materials, severely damag-

form to ISO22241 or DIN70070)

solution.

ing the exhaust purification system

can damage SCR system hard-

to be non-repairable.

- Water is added to dilute the urea

ware and deteriorate vehicle emis-

solution.

•

Store the urea solution only in the

sion.

containers made with the following

•

Use only the ISO

22241- or

materials.

DIN7007O-specified urea solution.

When any unauthorised urea solu-

(DIN EN 10 088-1-/-2-/-3-specified

tion is added to the tank, we rec-

CR-Ni steel, Mo-Cr-Ni steel,

ommend you to contact a

polypropylene, and polyethylene)

HYUNDAI authorised repairer.

•

When any unauthorised impurities

enter the urea solution tank, it may

occur the following problems.

- Increased emission

- Malfunction with the DPF system

- Engine failure

Never add the used urea solution,

which is drained from the tank (i.e.

whilst maintaining the vehicle). Its

purity cannot be guaranteed. Always

add the new urea solution.

7-92

WARNING

•

When handling with urea

•

In case the vehicle was

solution in closed space,

parked at very low ambient

•

When opening the urea solu-

ensure good ventilation.

temperature (below 11 dgree

tion tank cap at high outside

When the bottle of urea solu-

Celcius) for a long time, the

temperatures,

ammonia

tion container is opened, pun-

urea solution will be frozen in

vapours

may escape.

gent smelling fumes may

the urea solution tank. With

Ammonia vapours have a

escape.

frozen urea, the tank level may

pungent smell and primarily

•

Keep urea solution out of

not be detected correctly until

cause irritation of the:

reach of children.

the urea solution will be

defrosted by activated heater.

- Skin

•

When urea solution overflows

Incorrect urea or diluted urea

- Mucous membranes

into vehicle surface, wash out

can increase the freezing

vehicle surface with clean

- Eyes

point, and thus defrosting

water to prohibit corrosion

may not be properly done by

You may experience a burning

from occurring.

sensation in your eyes, nose

the heater which is activated

•

When replenishing, be careful

below certain temperatures.

and throat, as well as cough-

lest the urea solution should

This phenomenon may cause

ing and watering of the eyes.

overflow.

malfunction of the SCR sys-

Do not inhale ammonia

vapours. Do not allow urea

tem which can lead to the pro-

hibition of engine restarting.

solution to come in direct

contact with your skin. It is

•

The time to defrost the urea

hazardous to your health.

solution varies in accordance

Wash any affected areas off

with driving conditions and

with plenty of clean water. If

outside temperatures.

necessary, consult a doctor.

7-93

Maintenance

CAUTION

•

If defective urea solution or

liquid that is not recommend-

ed is supplied, there may be

damage on the parts of the

vehicle such as processing

device. If defective fuel is

used, foreign objects will be

accumulated to SCR catalyst

and cause catalyst pushed

away or breaking.

After adding the incorrect

urea solution, please visit the

closest service centre as early

as possible.

•

Liquid that are not recom-

mended such as diesel,

petrol, and alcohol shall never

be used other than the recom-

mended urea solution that

satisfy ISO22241 or DIN70070.

7-94

Specifications & Consumer information

Dimensions

8-2

Engine

8-2

Bulb wattage

8-3

Tyres and wheels

8-4

Load and speed capacity tyres

8-5

Air conditioning system

8-5

Vehicle weight and luggage volume

8-6

Recommended lubricants and capacities

8-7

Recommended engine oil

8-9

Recommended SAE viscosity number

8-9

Vehicle identification number (VIN)

8-11

Vehicle certification label

8-11

Tyre specification and pressure label

8-12

Engine number

8-12

Air conditioner compressor label

8-13

Refrigerant label

8-13

Declaration of conformity

8-13

Specifications & Consumer information

DIMENSIONS

mm (in)

Items

mm (in)

Overall length

4770 (187.8)

Overall width

1890 (74.41)

Overall height

1680 (66.14) / 1705 (67.13)*1

235/65 R17

1643 (64.69)

Front tread

235/60 R18

1638 (64.49)

235/55 R19

1635 (64.37)

235/65 R17

1652 (65.04)

Rear tread

235/60 R18

1647 (64.84)

235/55 R19

1644 (64.72)

Wheelbase

2765 (108.86)

*1 : with roof rack

ENGINE

Petrol

Item

Diesel R2.0

Diesel R2.2

theta II 2.4

Displacement

2,359

1,995

2,199

cc (cu. in)

(143.95)

(121.74)

(134.19)

Bore x Stroke

88x97

84x90

85.4x96

mm (in.)

(3.46X3.81)

(3.30X3.54)

(3.34X3.77)

Firing order

1-3-4-2

No. of cylinders

4. In-line

8-2

BULB WATTAGE

Light Bulb

Bulb Type

Wattage

Low(Type A)

HB3

High(Type A)

HB3

Headlamp

Low(Type B)

LED

High(Type B)

LED

Front

Turn signal lamp

PY21W

Turn signal lamp (Outside mirror)

LED

Daytime running lamp (DRL) / position lamp

LED

Fog lamp (Type A)

Fog lamp (Type B)

LED

Stop/Tail (Type A)

P21/5W

21/5

Tail (Type A)

W5W

Stop/Tail (Type B)

LED

Rear combination lamp

Tail (Type B)

LED

Rear

Turn signal

PY21W

Back up

W16W

Fog lamp

LED

High mounted stop lamp

LED

License plate lamp

W5W

Map lamp (Type A)

FESTOON

Map lamp (Type B)

LED

Room lamp (Type A)

FESTOON

Interior

Room lamp (Type B)

LED

Sunvisor lamp

FESTOON

Tailgate room lamp

FESTOON

Glove box lamp

FESTOON

8-3

Specifications & Consumer information

TYRES AND WHEELS

Inflation Pressure Bar (kPa, psi)

Wheel Lug Nut

Item

Tyre Size

Wheel Size

Normal load

Maximum load

Torque kgf.m

(lbf.ft, N.m)

Front

Rear

Front

Rear

235/65 R17

7.0J x 17

Full size tyre

235/60 R18

7.5J x 18

2.4 (240,35)

11~13

235/55 R19

8.0J x 19

(79~94,107~127)

T165/90 R17

4.0T x 17

Compact spare tyre

4.2 (420, 60)

T155/85 R18

4.0T x 18

NOTICE

• It is permissible to add 20 kPa (3 psi) to the standard tyre pressure specification if colder temperatures are

expected soon. Tyres typically lose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme tempera-

ture variations are expected, recheck your tyre pressure as necessary to keep them properly inflated.

• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan

to drive a high-altitude area, check the tyre pressures in advance. If necessary, inflate them to a proper level

(Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile)).

• Must do not exceed maximum inflation pressure shown on equipped tyre sidewall.

CAUTION

When replacing tyres, use the same size originally supplied with the vehicle.

Using tyres of a different size can damage the related parts or make it work irregularly.

8-4

LOAD AND SPEED CAPACITY TYRES

Load Capacity

Speed Capacity

Item

Tyre Size

Wheel Size

LI *1

SS *2

km/h

235/65 R17

7.0J x 17

104

900

210

Full size tyre

235/60 R18

7.5J x 18

107

975

240

235/55 R19

8.0J x 19

101

825

240

T165/90 R17

4.0T x 17

116

1250

130

Compact spare tyre

T155/85 R18

4.0T x 18

115

1215

130

*1 LI

: LOAD INDEX

*2 SS : SPEED SYMBOL

AIR CONDITIONING SYSTEM

Items

Weight of Volume

Classification

Front

625(22.05) ± 25(0.88)

R1234yf

Front + Rear

800(28.22) ± 25(0.88)

R-1234yf (For Europe)

Refrigerant

g (oz.)

Front

700(24.69) ± 25(0.88)

R-134a (Except Europe)

R134a

Front + Rear

850(29.98) ± 25(0.88)

Front

120 (4.23) ± 10(0.35)

Compressor lubricant

g (oz.)

PAG

Front + Rear

210 (7.4) ± 10(0.35)

Contact a HYUNDAI authorised repairer for more details.

8-5

Specifications & Consumer information

VEHICLE WEIGHT AND LUGGAGE VOLUME

Vehicle weight

■ Euro 6d

Theta II 2.4 GDI

R2.0 (Diesel)

R2.2 (Diesel)

Item

A/T 4WD

M/T 2WD

M/T 4WD

A/T 4WD

M/T 2WD

M/T 4WD

A/T 2WD

A/T 4WD

2,264

2,341

2,399

2,402

2,341

2,400

2,346

2,407

5 Seater [kg(lbs.)]

(4,991)

(5,161)

(5,289)

(5,296)

(5,161)

(5,291)

(5,172)

(5,307)

2,452

2,528

2,587

2,589

2,529

2,588

2,534

2,594

7 Seater [kg(lbs.)]

(5,406)

(5,573)

(5,703)

(5,708)

(5,575)

(5,706)

(5,587)

(5,719)

■ Euro 4,5

Theta II 2.4 GDI

Theta II 2.4 MPI

R2.2 (Diesel)

Item

A/T 4WD

M/T 2WD

M/T 4WD

M/T 2WD

M/T 4WD

A/T 2WD

A/T 4WD

2,264

2,205

2,263

2,341

2,400

2,346

2,407

5 Seater [kg(lbs.)]

(4,991)

(4,861)

(4,989)

(5,161)

(5,291)

(5,172)

(5,307)

2,452

2,392

2,450

2,529

2,588

2,534

2,594

7 Seater [kg(lbs.)]

(5,406)

(5,273)

(5,401)

(5,575)

(5,706)

(5,587)

(5,719)

M/T : Manual transmission

A/T : Automatic transmission

Luggage volume

Item

5 Seater

7 Seater

MIN.

625 L (22.1 cu ft)

547 L (19.3 cu ft)

VDA

MAX.

1,695 L (59.8 cu ft)

1,625 L (57.3 cu ft)

Min : Behind rear seat to upper edge of the seat back.

Max : Behind front seat to roof.

8-6

RECOMMENDED LUBRICANTS AND CAPACITIES

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.

The correct lubricants also help promote engine efficiency that results in improved fuel economy.

These lubricants and fluids are recommended for use in your vehicle.

Lubricant

Volume

Classification

Engine oil *1 *2

Petrol

Theta II 2.4 MPI,

(drain and refill)

4.8 l (4.22 lmp. qts.)

ACEA A5/B5

Engine

Theta II 2.4 GDI

Recommends

R 2.0 with DPF*3

ACEA C3 or C2

Diesel

R 2.2 with DPF*3

6.5 l (5.72 lmp. qts.)

Engine

R 2.0 without DPF*3

ACEA A3/B4

R 2.2 without DPF*3

API GL-4, SAE 70W

1.8 ~ 1.9 l

(HK MTF 70W (SK),

Manual transmission fluid

(1.58 ~ 1.67 lmp. qts.)

SPIRAX S6 GHME 70W (H.K.SHELL),

GS MTF HD 70W (GS CALTEX))

*1 : Refer to the recommended SAE viscosity numbers on the next page.

*2 : Engine oils labelled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reduc-

ing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a

year’s time, they can offer significant cost and energy savings.

*3 : Diesel Particulate Filter

*4 : If the ACEA A5 engine oil is not available in your country, you are able to use API service SL, ILSAC GF-3, ACEA A3

8-7

Hyundai Santa Fe (2019 year). Instruction - part 39
