Hyundai Santa Fe (2019 year). Instruction

Reducing the risk of a rollover

WARNING

Your multi-purpose passenger vehi-

cle is defined as a Sports Utility

Utility vehicles have a signifi-

In a rollover crash, an unbelted

Vehicle

(SUV). SUV’s have higher

cantly higher rollover rate than

person is significantly more

ground clearance and a narrower

other types of vehicles. To pre-

likely to die than a person wear-

track to make them capable of per-

vent rollovers or loss of control:

ing a seat belt. Make sure all

forming in a wide variety of off-road

passengers are wearing their

•

Take corners at slower speeds

applications. The specific design

seat belts.

than you would with a passen-

characteristics give them a higher

ger vehicle.

centre of gravity than ordinary vehi-

cles making them more likely to roll

•

Avoid sharp turns and abrupt

manoeuvres.

over if you make abrupt turns. Utility

vehicles have a significantly higher

•

Do not modify your vehicle in

rollover rate than other types of vehi-

any way that you would raise

cles. Due to this risk, driver and pas-

the centre of gravity.

sengers are strongly recommended

•

Keep tyres properly inflated.

to buckle their seat belts. In a rollover

•

Do not carry heavy cargo on

crash, an unbelted person is signifi-

the roof.

cantly more likely to die than a per-

son wearing a seat belt.

There are steps that a driver can

make to reduce the risk of a rollover.

If at all possible, avoid sharp turns or

abrupt manoeuvres, do not load your

vehicle with heavy cargo on the roof,

and never modify your vehicle in any

way.

5-195

Driving your vehicle

WINTER DRIVING

The severe weather conditions of

Snow or icy conditions

Snow tyres

winter quickly wear out tyres and

You need to keep sufficient distance

cause other problems. To minimise

between your vehicle and the vehicle

WARNING

winter driving problems, you should

in front of you.

take the following suggestions:

Snow tyres should be equivalent

Apply the brakes gently. Speeding,

rapid acceleration, sudden brake

in size and type to the vehicle's

standard tyres. Otherwise, the

applications, and sharp turns are

potentially very hazardous practices.

safety and handling of your vehi-

cle may be adversely affected.

During deceleration, use engine

braking to the fullest extent. Sudden

brake applications on snowy or icy

If you mount snow tyres on your vehi-

roads may cause skids to occur.

cle, make sure to use radial tyres of

To drive your vehicle in deep snow, it

the same size and load range as the

may be necessary to use snow tyres

original tyres. Mount snow tyres on

or to install tyre chains on your tyres.

all four wheels to balance your vehi-

Always carry emergency equipment.

cle’s handling in all weather condi-

Some of the items you may want to

tions. The traction provided by snow

carry include tyre chains, tow straps

tyres on dry roads may not be as

or chains, a flashlight, emergency

high as your vehicle's original equip-

flares, sand, a shovel, jumper cables,

ment tyres. Check with the tyre

a window scraper, gloves, ground

repairer for maximum speed recom-

cloth, coveralls, a blanket, etc.

mendations.

Information

Do not install studded tyres without

first checking local and municipal regu-

lations for possible restrictions against

their use.

5-196

Tyre chains

When using tyre chains, attach them

Information

to the drive wheels as follows.

• Install tyre chains on the front tyres.

2WD : Front wheels

It should be noted that installing

4WD : All four wheels

tyre chains on the tyres will provide

If a full set of chains is not

a greater driving force, but will not

available for an 4WD vehicle,

prevent side skids.

chains may be installed on

• Do not install studded tyres without

the front wheels only.

first checking local and municipal

regulations for possible restrictions

against their use.

WARNING

The use of tyre chains may

Chain Installation

OTM058044

adversely affect vehicle han-

When installing tyre chains, follow

Since the sidewalls of radial tyres are

dling:

the manufacturer's instructions and

thinner than other types of tyres, they

• Drive less than

20 mph (30

mount them as tightly possible. Drive

may be damaged by mounting some

km/h) or the chain manufac-

slowly (less than 20 mph (30 km/h))

types of tyre chains on them.

turer’s recommended speed

with chains installed. If you hear the

Therefore, the use of snow tyres is

limit, whichever is lower.

chains contacting the body or chas-

recommended instead of tyre chains.

• Drive carefully and avoid

sis, stop and tighten them. If they still

Do not mount tyre chains on vehicles

bumps, holes, sharp turns,

make contact, slow down until the

equipped with aluminium wheels; if

and other road hazards, which

noise stops. Remove the tyre chains

unavoidable use a wire type chain. If

may cause the vehicle to

as soon as you begin driving on

tyre chains must be used, use gen-

bounce.

cleared roads.

uine HYUNDAI parts and install the

tyre chain after reviewing the instruc-

• Avoid sharp turns or locked

When mounting snow chains, park

tions provided with the tyre chains.

wheel braking.

the vehicle on level ground away

Damage to your vehicle caused by

from traffic. Turn on the vehicle

improper tyre chain use is not cov-

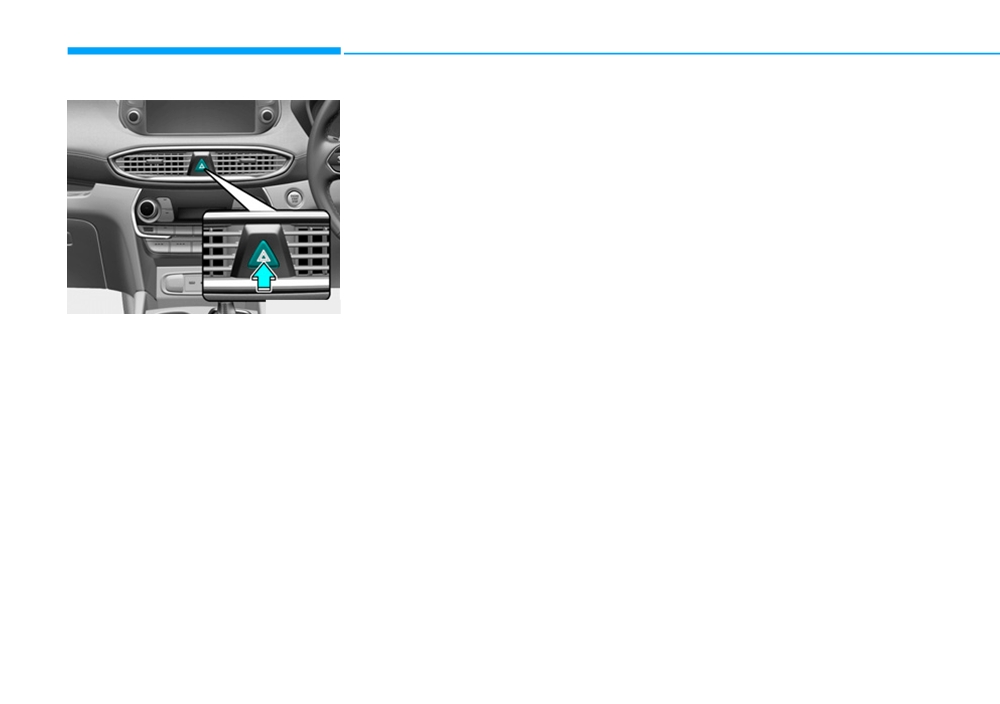

Hazard Warning Flasher and place a

ered by your vehicle manufacturer’s

triangular emergency warning device

warranty.

behind the vehicle (if available).

5-197

Driving your vehicle

Always place the vehicle in P (Park),

Winter Precautions

Change to "winter weight" oil if

apply the parking brake and turn off

necessary

Use high quality ethylene glycol

the engine before installing snow

coolant

In some regions during winter, it is

chains.

recommended to use the "winter

Your vehicle is delivered with high

weight" oil with lower viscosity. For

quality ethylene glycol coolant in the

NOTICE

further information, refer to the chap-

cooling system. It is the only type of

ter 8. When you are not sure about a

When using tyre chains:

coolant that should be used because

type of winter weight oil, consult a

it helps prevent corrosion in the cool-

•

Wrong size chains or improperly

HYUNDAI authorised repairer.

ing system, lubricates the water

installed chains can damage

pump and prevents freezing. Be sure

your vehicle's brake lines, sus-

to replace or replenish your coolant

Check spark plugs and ignition

pension, body and wheels.

in accordance with the maintenance

system

•

Use SAE “S” class or wire chains.

schedule. Before winter, have your

Inspect the spark plugs, as speci-

•

If you hear noise caused by

coolant tested to assure that its

fied in the chapter 7. If necessary,

chains contacting the body,

freezing point is sufficient for the

replace them. Also check all ignition

retighten the chain to prevent

temperatures anticipated during the

wirings and components for any

contact with the vehicle body.

winter.

cracks, wear-out, and damage.

•

To prevent body damage, retight-

en the chains after driving 0.3~0.6

Check battery and cables

To prevent locks from freezing

miles (0.5~1.0 km).

Winter temperatures affect battery

To prevent the locks from being

•

Do not use tyre chains on vehi-

performance. Inspect the battery

frozen, spray approved de-icing fluid

cles equipped with aluminium

and cables, as specified in the

or glycerin into key holes. When a

wheels. If unavoidable, use a

chapter 7. The battery charging level

lock opening is already covered with

wire type chain.

can be checked by a HYUNDAI

ice, spray approved de-icing fluid

•

Use wire chains less than 15 mm

authorised repairer or in a service

over the ice to remove it. When an

(0.59 in) wide to prevent damage

station.

internal part of a lock freezes, try to

to the chain’s connection.

thaw it with a heated key. Carefully

use the heated key to avoid an injury.

5-198

Use approved window washer

Do not let ice and snow accumu-

Do not place objects or materials

anti-freeze solution in system

late underneath

in the engine compartment

To prevent the window washer from

Under some conditions, snow and

Putting objects or materials in the

being frozen, add authorised window

ice can build up under the fenders

engine compartment may cause an

washer anti-freeze solution, as spec-

and interfere with the steering. When

engine failure or combustion, because

ified on the window washer contain-

driving in such conditions during the

they may block the engine cooling.

er. Window washer anti-freeze solu-

severe winter, you should check

Such damage will not be covered by

tion is available from a HYUNDAI

underneath the vehicle on a regular

the manufacturer’s warranty.

authorised repairer, and most vehicle

basis, to ensure that the front wheels

accessory outlets. Do not use engine

and the steering components is

coolant or other types of anti-freeze

unblocked.

solution, to prevent any damage to

the vehicle paint.

Carry emergency equipment

In accordance with weather condi-

Do not let your parking brake

tions, you should carry appropriate

freeze

emergency equipment, whilst driv-

Under some conditions your parking

ing. Some of the items you may want

brake can freeze in the engaged

to carry include tyre chains, tow

position. This is most likely to hap-

straps or chains, flashlight, emer-

pen when there is an accumulation

gency flares, sand, shovel, jumper

of snow or ice around or near the

cables, window scraper, gloves,

rear brakes or if the brakes are wet.

ground cloth, coveralls, blanket, etc.

When there is the risk that your park-

ing brake may freeze, temporarily

apply it with the shift lever in P

(Park). Also, block the rear wheels in

advance, so the vehicle may not roll.

Then, release the parking brake.

5-199

Driving your vehicle

TRAILER TOWING

If you are considering to tow with

This section contains many time-

WARNING

your vehicle, you should first your

tested, important trailering tips and

country's legal requirements. As laws

safety rules. Many of these are

Take the following precautions:

vary the requirements for towing trail-

important for your safety and that of

ers, cars, or other types of vehicles

your passengers. Please read this

•

If you don't use the correct

or apparatus may differ. Ask a

section carefully before you pull a

equipment and/or drive improp-

HYUNDAI authorised repairer for fur-

trailer.

erly, you can lose control of the

ther details before towing.

vehicle when you are pulling a

trailer. For example, if the trailer

Remember that trailering is different

is too heavy, the braking per-

than just driving your vehicle by itself.

formance may be reduced. You

Trailering means changes in han-

and your passengers could be

dling, durability, and fuel economy.

seriously or fatally injured. Pull

Successful, safe trailering requires

a trailer only if you have fol-

correct equipment, and it has to be

lowed all the steps in this sec-

used properly. Damage to your vehi-

tion.

cle caused by improper trailer towing

is not covered by your vehicle manu-

•

Before towing, make sure the

facturer’s warranty.

total trailer weight, GCW

(Gross Combination Weight),

GVW (Gross Vehicle Weight),

GAW (Gross Axle Weight) and

trailer tongue load are all with-

in the limits.

•

When you tow a trailer, make

sure to turn off the ISG sys-

tem.

5-200

If you decide to pull a trailer?

•

On a long uphill gradient, do not

Information

exceed 45 mph (70 km/h) or the

Here are some important points if

•

The technically permissible maxi-

posted towing speed limit,

you decide to pull a trailer:

mum load on the rear axle(s) may be

whichever is lower.

exceeded by not more than 15 %

•

Consider using a sway control. You

•

Carefully observe the weight and

and the technically permissible

can ask a trailer towbar dealer

load limits provided in the following

maximum laden mass of the vehicle

about sway control.

pages.

may be exceeded by not more than

•

Do not do any towing with your

10% or 100 kg (220.4 lbs), whichev-

vehicle during its first

2,000 km

er value is lower. In this case, do not

(1,200 miles) in order to allow the

exceed

62.1 mph (100 km/h) for

engine to properly break in. Failure

vehicle of category M1 or 49.7 mph

to heed this caution may result in

(80 km/h) for vehicle of category N1.

serious engine or transmission

•

When a vehicle of category M1 is

damage.

towing a trailer, the additional load

•

When towing a trailer, be sure to

imposed at the trailer coupling

consult a HYUNDAI authorised

device may cause the tyre maximum

repairer for further information on

load ratings to be exceeded, but not

additional requirements such as a

by more than 15%. In this case, do

towing kit, etc.

not exceed 62.1 mph (100 km/h) and

•

Always drive your vehicle at a mod-

increase the tyre inflation pressure

erate speed

(less than

60 mph

by at least 0.2 bar.

(100 km/h)) or posted towing

speed limit.

5-201

Driving your vehicle

Trailer weight

Tongue load

WARNING

Take the following precautions:

•

Never load a trailer with more

weight in the rear than in the

front. The front should be

loaded with approximately

60% of the total trailer load;

the rear should be loaded with

approximately 40% of the total

Tongue Load

Total Trailer Weight

Gross Axle Weight

Gross Vehicle Weight

trailer load.

•

Never exceed the maximum

OLMB053047

OLMB053048

weight limits of the trailer or

What is the maximum safe weight of a

The tongue load is an important

trailer towing equipment.

trailer? It should never weigh more

weight to measure because it affects

Improper loading can result in

than the maximum trailer weight with

the total Gross Vehicle Weight

damage to your vehicle and/or

trailer brakes. But even that can be

(GVW) of your vehicle. The trailer

personal injury. Check weights

too heavy. It depends on how you plan

tongue should weigh a maximum of

and loading at a commercial

to use your trailer. For example,

10% of the total loaded trailer weight,

scale or highway patrol office

speed, altitude, road grades, outside

within the limits of the maximum trail-

equipped with scales.

temperature and how often your vehi-

er tongue load permissible.

cle is used to pull a trailer are all

After you've loaded your trailer,

Information

important. The ideal trailer weight can

weigh the trailer and then the tongue,

also depend on any special equip-

separately, to see if the weights are

With increasing altitude the engine

ment that you have on your vehicle.

proper. If they aren’t, you may be

performance decreases. From 1,000 m

able to correct them simply by mov-

above sea level and for every 1,000 m

ing some items around in the trailer.

thereafter

10% of vehicle/trailer

weight (trailer weighter + gross vehi-

cle weight) must be deducted.

5-202

Reference weight and distance when towing a trailer

Petrol Engine

Diesel Engine

(2.4L GDI)

(2.4L MPI)

(2.0L, 2.2L)

Item

A/T

M/T

A/T

M/T

A/T

Without brake system

750 (1653)

Maximum trailer weight

kg (lbs.)

With brake system

2000 (4409)

2500 (5512)

2000 (4409)

Maximum permissible static vertical load on the

coupling device

100 (220)

kg (lbs.)

Recommended distance from rear wheel centre to

coupling point

1,165 (45.87)

mm (inch)

M/T : Manual transmission

A/T : Automatic transmission

5-203

Driving your vehicle

Trailer towing equipment

•

Do you have to make any holes in

Trailer brakes

the body of your vehicle when you

Towbars

If your trailer is equipped with a brak-

install a trailer towbar? If you do,

ing system, make sure it conforms to

then be sure to seal the holes later

your country's regulations and that it

when you remove the towbar. If you

is properly installed and operating

don’t seal them, carbon monoxide

correctly.

(CO) from your exhaust can get

If your trailer weighs more than the

into your vehicle, as well as dirt

maximum trailer weight without trail-

and water.

er brakes loaded, then it needs its

•

The bumpers on your vehicle are

own brakes and they must be ade-

not intended for towbars. Do not

quate. Be sure to read and follow the

attach rental towbars or other

instructions for the trailer brakes so

bumper-type towbars to them. Use

you'll be able to install, adjust and

only a frame-mounted towbar that

maintain them properly. Be sure not

OTM058150L

does not attach to the bumper.

to modify your vehicle's brake sys-

•

A HYUNDAI trailer towbar acces-

tem.

Information

sory is available at a HYUNDAI

The mounting hole for

towbars are

authorised repairer.

WARNING

located on both sides of the underbody

behind the rear tyres.

Safety chains

Do not use a trailer with its own

You should always attach chains

brakes unless you are absolute-

It's important to have the correct tow-

ly certain that you have proper-

between your vehicle and your trailer.

bar equipment. Crosswinds, large

ly set up the brake system. This

Instructions about safety chains may

trucks going by, and rough roads are

is not a task for amateurs. Use

be provided by the towbar manufac-

a few reasons why you’ll need the

an experienced, competent trail-

turer or trailer manufacturer. Follow

right towbar. Here are some rules to

er shop for this work.

the manufacturer's recommendation

follow:

for attaching safety chains. Always

leave just enough slack so you can

turn with your trailer. And, never

allow safety chains to drag on the

ground.

5-204

Driving with a trailer

Passing

Turn signals

Towing a trailer requires a certain

You will need more passing distance

When you tow a trailer, your vehicle

amount of experience. Before setting

up ahead when you’re towing a trail-

has to have a different turn signal

out for the open road, you must get

er. And, because of the increased

flasher and extra wiring. The green

to know your trailer. Acquaint your-

vehicle length, you’ll need to go

arrows on your instrument panel will

self with the feel of handling and

much farther beyond the passed

flash whenever you signal a turn or

braking with the added weight of the

vehicle before you can return to your

lane change. Properly connected,

trailer. And always keep in mind that

lane.

the trailer lights will also flash to alert

the vehicle you are driving is now

other drivers you’re about to turn,

longer and not nearly as responsive

change lanes, or stop.

Backing up

as your vehicle is by itself.

When towing a trailer, the green

Hold the bottom of the steering

Before you start, check the trailer

arrows on your instrument panel will

wheel with one hand. Then, to move

towbar and platform, safety chains,

flash for turns even if the bulbs on

the trailer to the left, move your hand

electrical connector(s), lights, tyres

the trailer are burned out. Thus, you

to the left. To move the trailer to the

and brakes.

may think drivers behind you are

right, move your hand to the right.

seeing your signals when, in fact,

During your trip, occasionally check

Always back up slowly and, if possi-

they are not. It’s important to check

to be sure that the load is secure,

ble, have someone guide you.

occasionally to be sure the trailer

and that the lights and trailer brakes

bulbs are still working. You must also

are still working.

Making turns

check the lights every time you dis-

connect and then reconnect the

When you’re turning with a trailer,

Distance

wires.

make wider turns than normal. Do this

Stay at least twice as far behind the

so your trailer won’t strike soft shoul-

vehicle ahead as you would when

ders, kerbs, road signs, trees, or other

driving your vehicle without a trailer.

objects. Avoid jerky or sudden

This can help you avoid situations

manoeuvres. Signal well in advance.

that require heavy braking and sud-

den turns.

5-205

Driving your vehicle

If your trailer weighs more than the

•

If you tow a trailer with the max-

WARNING

maximum trailer weight without trail-

imum gross vehicle weight and

er brakes and you have automatic

maximum trailer weight, it can

Do not connect a trailer lighting

transmission, you should drive in D

cause the engine or transmis-

system directly to your vehi-

(Drive) when towing a trailer.

sion to overheat. When driving

cle's lighting system. Use an

Operating your vehicle in D (Drive)

in such conditions, allow the

approved trailer wiring harness.

engine to idle until it cools

when towing a trailer will minimise

Failure to do so could result in

heat build-up and extend the life of

down.You may proceed once the

damage to the vehicle electrical

engine or transmission has

your transmission.

system and/or personal injury.

cooled sufficiently.

Consult a HYUNDAI authorised

NOTICE

•

When towing a trailer, your vehi-

repairer for assistance.

cle speed may be much slower

To prevent engine and/or trans-

than the general flow of traffic,

mission overheating:

especially when climbing an

Driving on hills

•

When towing a trailer on steep

uphill gradient. Use the right

Reduce speed and shift to a lower

grades (in excess of 6%) pay

hand lane when towing a trailer

gear before you start down a long or

close attention to the engine

on an uphill gradient. Choose

steep downgrade. If you don't shift

coolant temperature gauge to

your vehicle speed according to

down, you might have to use your

ensure the engine does not

the maximum posted speed limit

brakes so much that they would get

overheat. If the needle of the

for vehicles with trailers, the

overheated and may not operate effi-

coolant temperature gauge

steepness of the gradient, and

ciently.

moves towards "H" (HOT), pull

your trailer weight.

On a long uphill grade, shift down

over and stop as soon as it is

•

Vehicles equipped with a auto-

and reduce your speed to around 70

safe to do so, and allow the

matic transmission when towing

km/h (45 mph) to reduce the possi-

engine to idle until it cools

a trailer on steep gradients,

bility of engine and transmission

down.You may proceed once the

need to be aware that the clutch

overheating.

engine has cooled sufficiently.

in the transmission could over-

heat.

5-206

When the clutch is overheated,

Parking on hills

6. Reapply the brakes and parking

the safe protection mode

brakes.

Generally, if you have a trailer

engages. If the safe protection

attached to your vehicle, you should

7. Move the shift lever to P (Park, for

mode engages, the gear posi-

not park your vehicle on a hill.

automatic transmission vehicle) or

tion indicator on the cluster

1st gear (for manual transmission

blinks with a chime sound.

vehicle) when the vehicle is

However, if you ever have to park your

At this time, a warning message

parked on a uphill gradient and in

trailer on a hill, here's how to do it:

will appear on the LCD display

R (Reverse) on a downhill.

and driving may not be smooth.

1. Pull the vehicle into the parking

8. Shut off the vehicle and release

space.

If you ignore this warning, the

the vehicle brakes but leave the

driving condition may become

Turn the steering wheel in the

parking brake set.

worse.

direction of the kerb (left if headed

down hill, right if headed up hill).

To return to normal driving con-

WARNING

ditions, stop the vehicle on a flat

2. Shift the vehicle to P

(Park, for

road and apply the foot brake for

automatic transmission vehicle) or

To prevent serious or fatal

a few minutes before driving off.

neutral

(for manual transmission

injury:

vehicle).

• Do not get out of the vehicle

3. Set the parking brake and shut off

without the parking brake

the vehicle.

firmly set. If you have left the

4. Place wheel chocks under the

engine running, the vehicle

trailer wheels on the down hill side

can move suddenly. You and

of the wheels.

others could be seriously or

5. Start the vehicle, hold the brakes,

fatally injured.

shift to neutral, release the park-

• Do not apply the accelerator

ing brake and slowly release the

pedal to hold the vehicle on

brakes until the trailer chocks

an uphill.

absorb the load.

5-207

Driving your vehicle

Ready to leave after parking on

Maintenance when towing a

NOTICE

a hill

trailer

To prevent vehicle damage:

1. With the shift lever in P (Park, for

Your vehicle will need service more

•

Due to higher load during trailer

automatic transmission vehicle) or

often when you regularly pull a trail-

usage, overheating might occur

neutral

(for manual transmission

er. Important items to pay particular

on hot days or during uphill driv-

vehicle), apply your brakes and

attention to include engine oil, auto-

ing. If the coolant gauge indi-

hold the brake pedal down whilst

matic transmission fluid, axle lubri-

cates over-heating, switch off

you:

cant and cooling system fluid. Brake

the air conditioner and stop the

• Start your engine;

condition is another important item to

vehicle in a safe area to cool

frequently check. If you're trailering,

• Shift into gear; and

down the engine.

it's a good idea to review these items

• Release the parking brake.

•

Do not switch off the engine

before you start your trip. Don't forget

2. Slowly remove your foot from the

to also maintain your trailer and tow-

whilst the coolant gauge indi-

brake pedal.

bar. Follow the maintenance sched-

cates over-heating.

3. Drive slowly until the trailer is clear

ule that accompanied your trailer and

(Keep the engine idle to cool

of the chocks.

check it periodically. Preferably, con-

down the engine)

duct the check at the start of each

4. Stop and have someone pick up

•

When towing check automatic

day's driving. Most importantly, all

and store the chocks.

transmission fluid more fre-

towbar nuts and bolts should be

quently.

tight.

•

If your vehicle is not equipped

with an air conditioner, you

should install a condenser fan

to improve engine performance

when towing a trailer.

5-208

VEHICLE WEIGHT

Two labels on your driver's door sill

GAW (Gross Axle Weight)

Overloading

show how much weight your vehicle

This is the total weight placed on

was designed to carry: the Tyre and

each axle (front and rear) - including

WARNING

Loading Information Label and the

vehicle kerb weight and all payload.

Certification Label.

The Gross Axle Weight Rating

Before loading your vehicle, familiar-

(GAWR) and the Gross Vehicle

GAWR (Gross Axle Weight Rating)

ize yourself with the following terms

Weight Rating (GVWR) for your

for determining your vehicle's weight

This is the maximum allowable

vehicle are on the Certification

ratings, from the vehicle's specifica-

weight that can be carried by a single

Label attached to the driver's

tions and the Certification Label:

axle (front or rear). These numbers

(or front passenger's) door.

are shown on the Certification Label.

Exceeding these ratings can

The total load on each axle must

cause an accident or vehicle

Base Kerb Weight

never exceed its GAWR.

damage. You can calculate the

This is the weight of the vehicle includ-

weight of your load by weighing

ing a full tank of fuel and all standard

the items (and people) before

GVW (Gross Vehicle Weight)

equipment. It does not include pas-

putting them in the vehicle. Be

sengers, cargo, or optional equipment.

This is the Base Kerb Weight plus

careful not to overload your

actual Cargo Weight plus passen-

vehicle.

gers.

Vehicle Kerb Weight

This is the weight of your new vehicle

GVWR (Gross Vehicle Weight

when you picked it up from your deal-

Rating)

er plus any aftermarket equipment.

This is the maximum allowable

weight of the fully loaded vehicle

Cargo Weight

(including all options, equipment,

This figure includes all weight added

passengers and cargo). The GVWR

to the Base Kerb Weight, including

is shown on the Certification Label

cargo and optional equipment.

located on the driver's door sill.

5-209

What to do in an emergency

Hazard warning flasher

6-2

If you have a flat tyre (with spare tyre)

6-15

In case of an emergency whilst driving

6-2

Jack and tools

6-15

If the engine stalls whilst driving

6-2

Removing and storing the spare tyre

6-16

If the engine stalls at a crossroad or crossing

6-2

Changing tyres

6-17

If you have a flat tyre whilst driving

6-3

Jack label

6-24

EC Declaration of conformity for Jack

6-25

If the engine will not start

6-3

If the engine doesn't turn over

If you have a flat tyre

or turns over slowly

6-3

(with tyre mobility kit)

6-26

If the engine turns over normally

Introduction

6-26

but doesn't start

6-4

Notes on the safe use of the Tyre Mobility Kit

6-27

Components of the Tyre Mobility Kit

6-28

Jump starting

6-4

Using the Tyre Mobility Kit

6-29

If the engine overheats

6-7

Checking the tyre inflation pressure

6-31

Tyre pressure monitoring system (TPMS)

6-9

Towing

6-33

Check tyre pressure

6-9

Towing service

6-33

Tyre pressure monitoring system

6-10

Removable towing hook

6-34

Low tyre pressure telltale

6-11

Emergency towing

6-35

Low tyre pressure position telltale

Emergency commodity

6-37

and tyre pressure telltale

6-11

Fire extinguisher

6-37

TPMS (Tyre Pressure Monitoring System)

First aid kit

6-37

malfunction indicator

6-12

Triangle reflector

6-37

Changing a tyre with TPMS

6-13

Tyre pressure gauge

6-37

What to do in an emergency

HAZARD WARNING FLASHER

IN CASE OF AN EMERGENCY

To turn the hazard warning flasher

WHILST DRIVING

on or off, press the hazard warning

If the engine stalls whilst driv-

flasher button with the ignition switch

in any position. The button is located

ing

in the centre fascia panel. All turn

• Reduce your speed gradually,

signal lights will flash simultaneously.

keeping a straight line. Move cau-

•

The hazard warning flasher oper-

tiously off the road to a safe place.

ates whether your vehicle is run-

• Turn on your hazard warning flash-

ning or not.

er.

•

The turn signals do not work when

• Try to start the engine again. If your

the hazard flasher is on.

vehicle will not start, we recom-

OTM068001R

mend that you contact a HYUNDAI

The hazard warning flasher serves

authorised repairer.

as a warning to other drivers to exer-

cise extreme caution when approach-

If the engine stalls at a cross-

ing, overtaking, or passing your vehi-

cle.

road or crossing

It should be used whenever emer-

If the engine stalls at a crossroads or

gency repairs are being made or

crossing, if safe to do so, move the

when the vehicle is stopped near the

shift lever to the N (Neutral) position

edge of a roadway.

and then push the vehicle to a safe

location.

6-2

Hyundai Santa Fe (2019 year). Instruction - part 31
