Hyundai Santa Fe (2019 year). Instruction - part 7
You can activate or deactivate the
Driver position memory system
Initialisation in the process:
Easy Access Function from the User
reset
1. Initialisation begins as the alarm
Settings mode on the LCD display.
sounds.
If the Driver position memory system
- Seat easy access: Convenience →
does not work properly, initialise the
2. The seat and seatback will auto-
Seat easy access
→ Off/
system as follows.
matically move backwards. The
Normal/Extended.
alarm sound will continue whilst
How to initialise:
- Steering easy access: Convenience
the system is in operation.
→ Steering easy access → On/Off.
1. Stop the vehicle and open the dri-
3
3. Initialisation will be complete after
ver’s door with the Engine Start/
the seat and seatback move to the
For more details, refer to "LCD
Stop button in the ON position and
centre with an alarm sound. If,
Display" in this chapter.
the vehicle shifted to P (Park).
however, cases as follows occur,
2. Pull the driver’s seat forward as far
the initialisation process will come
CAUTION
as possible and have the seatback
to a stop and the alarm sound will
upright as much as possible using
stop as well.
Driver should be cautious when
the driver’s seat forward/backward
- When pushing driving position
using this function to assure no
adjustment and seatback angle
memory system button
injury to passenger or child on
(recline) switches.
- When pushing driver’s seat
the back seat. In case of emer-
3. Push the SET button and seat for-
height adjustment switch
gency the driver has to stop
ward movement switch for 2 sec-
movement of front seat (when
- When shifting from P (Park) to
onds simultaneously.
easy access feature is activat-
other positions
ed) by pressing SET button or
- When driving speed exceeds
any of the driver seat control
2mph (3 km/h)
switches.
- When the driver’s door is closed
3-25
Convenient features of your vehicle
STEERING WHEEL
Electric power steering (EPS)
• When abnormality is detected in
•
Motor noise may be heard when the
the electric power steering sys-
vehicle is at a stop or at a low driv-
The system assists you with steering
tem, to prevent a deadly acci-
ing speed.
the vehicle. If the engine is off or if
dent, the steering assist function
•
When you operate the steering
the power steering system becomes
will stop. At this time, the warn-
inoperative, the vehicle may still be
wheel in low temperatures, abnor-
ing light turns on or blinks on
mal noise may occur. If the temper-
steered, but it will require increased
the cluster. The steering wheel
steering effort.
ature rises, the noise will disappear.
may become difficult to control
This is a normal condition.
Also, the steering effort becomes
or operate. Have your vehicle
heavier as the vehicle’s speed
•
When the vehicle is stationary, if
checked immediately, after mov-
increases and becomes lighter as
you turn the steering wheel all the
ing the vehicle to a safe zone.
the vehicle’s speed decreases for
way to the left or right continuously,
better control of the steering wheel.
the steering wheel effort increases.
i
Information
This is not a system malfunction. As
Should you notice any change in the
time passes, the steering wheel
effort required to steer during normal
The following symptoms may occur
effort will return to its normal con-
vehicle operation, we recommend
during normal vehicle operation:
dition.
that the system be checked by a
•
The steering effort may be high
HYUNDAI authorised repairer.
immediately after placing the igni-
tion switch in the ON position.
NOTICE
This happens as the system per-
forms the EPS system diagnostics.
• If the Electric Power Steering
When the diagnostics are complet-
System does not operate nor-
ed, the steering wheel will return to
mally, the warning light (
) will
its normal condition.
illuminate or blink on the instru-
ment cluster. The steering wheel
•
A click noise may be heard from the
may become difficult to control
EPS relay after the ignition switch is
or operate. Take your vehicle to a
placed in the ON or LOCK/OFF
HYUNDAI authorised repairer
position.
and have the system checked as
soon as possible.
3-26
Tilt steering / Telescopic steering
Heated steering wheel
(if equipped)
WARNING
Never adjust the steering wheel
whilst driving. You may lose
steering control and cause
severe personal injury, death or
3
accidents.
OTM048009R
i
Information
Pull down the lock-release lever (1) on
After adjustment, sometimes the lock-
the steering wheel column and adjust
release lever may not lock the steering
OTM048010R
the steering wheel angle (2) and posi-
wheel.
tion (3). Move the steering wheel, so it
When the ignition switch is in the ON
It is not a malfunction. This occurs
points toward your chest, not toward
position or when the engine is running,
when two gears are not engaged cor-
your face.
press the heated steering wheel but-
rectly. In this case, adjust the steering
ton to warm the steering wheel.
Make sure you can see the instrument
wheel again and then lock the steering
panel warning lights and gauges.
The indicator on the button will illumi-
wheel.
nate.
After adjusting, pull up the lock-
release lever (1) to lock the steering
To turn the heated steering wheel off,
wheel in place. Push the steering
press the button again. The indicator
wheel both up and down to be cer-
on the button will turn off.
tain it is locked in position. Always
adjust the position of the steering
wheel before driving.
3-27
Convenient features of your vehicle
Horn
i
Information
The heated steering wheel will turn off
automatically approximately 30 min-
utes after the heated steering wheel is
turned on.
NOTICE
Do not install any cover or acces-
sory on the steering wheel. This
cover or accessory could cause
damage to the heated steering
wheel system.
OTM048408
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel. The horn will operate
only when this area is pressed.
NOTICE
Do not strike the horn severely to
operate it, or hit it with your fist.
Do not press on the horn with a
sharp-pointed object.
3-28
MIRRORS
Inside rearview mirror
NOTICE
Pull the day/night lever towards you
to reduce glare from the headlamps
Before you start driving, adjust the
When cleaning the mirror, use a
of the vehicles behind you during
rearview mirror to the centre on the
paper towel or similar material
night driving.
view through the rear window.
dampened with glass cleaner. Do
Remember that you lose some
not spray glass cleaner directly on
rearview clarity in the night position.
WARNING
the mirror as that may cause the
liquid cleaner to enter the mirror
3
Make sure your line of sight is
housing.
Electric Chromic Mirror (ECM)
not obstructed. Do not place
(if equipped)
objects in the rear seat, cargo
Day/night rearview mirror
The electric rearview mirror automati-
area or behind the rear head
cally controls the glare from the head-
(if equipped)
restraints which could interfere
lamp of the vehicle behind you in
with your vision through the
nighttime or low light driving condi-
rear window.
tions.
When the engine is running, the
glare is automatically controlled by
WARNING
the sensor mounted in the rearview
mirror. The sensor detects the light
To prevent serious injury during
level around the vehicle, and auto-
an accident or deployment of
matically adjusts to control the head-
the air bag, do not modify the
lamp glare from vehicles behind you.
rearview mirror and do not
install a wide mirror.
Whenever the shift lever is placed in
R (Reverse), the mirror will automat-
OTM048011
ically go to the brightest setting in
WARNING
[A] : Day, [B] : Night
order to improve the driver’s view
behind the vehicle.
Make this adjustment before you
NEVER adjust the mirror whilst
start driving and whilst the day/night
driving. This may cause loss of
lever is in the day position.
vehicle control resulting in an
accident.
3-29
Convenient features of your vehicle
NOTICE
4. Compass button
5. Display window
When cleaning the mirror, use a
paper towel or similar material
Automatic dimming rear view mirror
dampened with glass cleaner. Do
controls automatically the glare of
not spray glass cleaner directly on
headlights of the vehicle behind you
the mirror as that may cause the
when it turned on by pressing the
liquid cleaner to enter the mirror
ECM ON/OFF button. It is turned off
housing.
by pressing he ECM ON/OFF button
once more.
Electric chromic mirror (ECM)
OTM048428L
with compass
1. To operate Compass feature
[1] : Indicator, [2] : ON/OFF button, [3] : Sensor
Press and release the compass but-
To operate the electric rearview
ton, then the vehicle's directional
mirror:
heading will be displayed. Pressing
• Press the on/off button (1) to turn
and releasing the button again will
the automatic dimming function on.
turn off the display.
The mirror indicator light will illumi-
nate.
Heading display
Press the on/off button to turn the
automatic dimming function off.
- E : East
The mirror indicator light will turn
- W : West
off.
- S : South
• The mirror defaults to the ON posi-
OTM048429L
- N : North
tion whenever the ignition switch is
1. Rear light sensor
ex) NE : North East
turned on.
2. Status indicator LED
3. ECM ON/OFF button
3-30
2. Calibration procedure

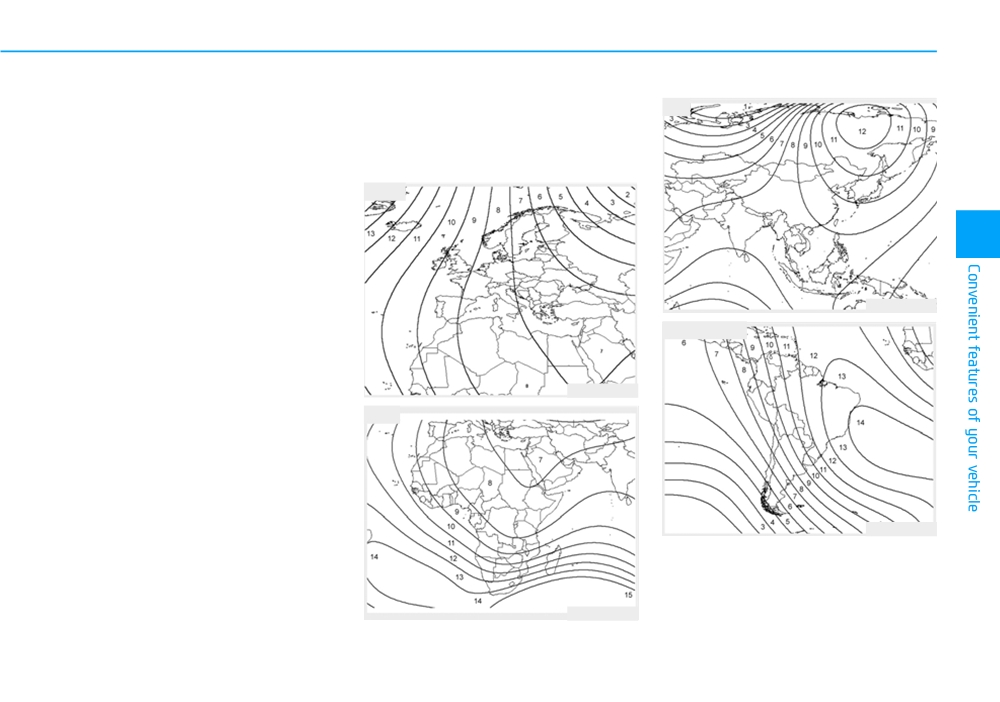

3. Setting the compass zone
Asia
Press and hold the button for more
1. Find your current location and
than 6 but less than 9 seconds. When
variance zone number on the zone
the compass memory is cleared a "C"
map.
will appear in the display.
Europe
- Driving the vehicle in a circle at less
3
than 8km/h 2 times or until the com-
pass heading appears.
- Driving in a circle in right-handed
direction and opposite direction are
B520C03JM
possible, and if the calibration is
South America
completed, the compass heading
will appear.
- Keep driving in a circle until a com-
B520C01JM
pass heading appears.
Africa
B520C04JM
2. Press and hold the button for more
than 3 but less than 6 seconds.
The current zone number will
appear in the display.
B520C05JM
3-31
Convenient features of your vehicle
3. Press the button until the new zone
4. When cleaning the mirror, use a
Outside rearview mirror
number appears in the display.
paper towel or similar material
After you stop pressing the button
dampened with glass cleaner.
in, the display will show a compass
Do not spray glass cleaner
direction within a few seconds.
directly on the mirror as that
may cause the liquid cleaner to
NOTICE
enter the mirror housing.
1. Do not install the ski rack,
antenna, etc. which are
attached to the vehicle by
means of a magnet. They affect
the operation of the compass.
2. If the compass deviates from
OTM048015
the correct indication soon
Be sure to adjust mirror angles
after repeated adjustment, we
before driving.
recommend that you have the
Your vehicle is equipped with both
compass checked at a
left-hand and right-hand outside
HYUNDAI authorised repairer.
rearview mirrors.
3. The compass may not indicate
The mirror can be adjusted remotely
the correct compass point in
with the remote switch.
tunnels or whilst driving up or
down a steep hill.
The mirror heads can be folded to
prevent damage during an automatic
(The compass returns to the
car wash or when passing through a
correct compass point when
narrow street.
the vehicle moves to an area
where the geomagnetism is sta-
bilized.)
3-32
NOTICE
Adjusting the rearview mirrors
WARNING
•
Do not scrape ice off the mirror
•
The outside rearview mirror is
face; this may damage the sur-
convex. Objects seen in the
face of the glass.
mirror are closer than they
•
If the mirror is jammed with ice,
appear.
do not adjust the mirror by
•
Use your interior rearview
force. Use an approved spray
3
mirror or turn your head and
de-icer (not radiator antifreeze)
look to determine the actual
spray, or a sponge or soft cloth
distance of following vehicles
with very warm water, or move
when changing lanes.
the vehicle to a warm place and
allow the ice to melt.
OTM048016R
1. Move the lever (1) either to the L
WARNING
(left side) or R (right side) to select
the rearview mirror you would like
Do not adjust or fold the outside
to adjust.
rearview mirrors whilst driving.
This may cause loss of vehicle
2. Use the mirror adjustment control
control resulting in an accident.
(2) to position the selected mirror
up, down, left or right.
3. After adjustment, move the lever
(1) to the middle to prevent inad-
vertent adjustment.
3-33
Convenient features of your vehicle
Folding the outside rearview
NOTICE
mirror
•
The mirrors stop moving when
they reach the maximum adjust-
ing angles, but the motor contin-
ues to operate whilst the switch
is pressed. Do not press the
switch longer than necessary,
the motor may be damaged.
•
Do not attempt to adjust the out-
side rearview mirror by hand
otherwise the motor may be
OTM048017R
damaged.
Electric type
The outside rearview mirror can be
OTM048430L
folded or unfolded by pressing the
Manual type
switch.
To fold the outside rearview mirror,
• If 'Convenience → Welcome mirror/
grasp the housing of the mirror and
light → On door unlock' is selected in
then fold it toward the rear of the
the User Settings mode on the LCD
vehicle.
display, the outside mirror will fold or
unfold automatically as follows:
- The mirror will fold or unfold when
the door is locked or unlocked by
the smart key.
- The mirror will fold or unfold when
the door is locked or unlocked by
the button on the outside door
handle.
3-34
• If 'Convenience → Welcome mirror/
Reverse parking aid function
The outside rearview mirrors will
light
→ On door unlock' and
(if equipped)
automatically revert to their original
'Convenience → Welcome mirror/
positions if any of the following occur:
light
→ On driver approach' is
•
The Engine Start/Stop button is
selected in the User Settings mode
placed to either the OFF position
on the LCD display, the outside mir-
or the ACC position.
ror will unfold automatically when
•
The shift lever is moved to any
you approach the vehicle (all doors
position except R (Reverse).
3
closed and locked) with a smart key
in possession.
•
The outside rearview mirror switch
is not selected.
NOTICE
The electric type outside rearview
mirror operates even though the
OTM048008R
ignition switch is in the OFF posi-
tion. However, to prevent unnec-
When you move the shift lever to the
essary battery discharge, do not
R (Reverse) position, the outside
adjust the mirrors longer than
rearview mirror(s) will rotate down-
wards to aid with driving in reverse.
necessary whilst the engine is not
running.
The position of the outside rearview
mirror switch (1) determines whether
NOTICE
or not the mirrors will move:
Left/Right : When either the L (Left) or
Do not fold the electric type out-
R (Right) switch is select-
side rearview mirror by hand. It
ed, both outside rearview
could cause motor failure.
mirrors will move.
Neutral : When neither switch is select-
ed, the outside rearview mir-
rors will not move.
3-35
Convenient features of your vehicle
WINDOWS
Power windows (if equipped)

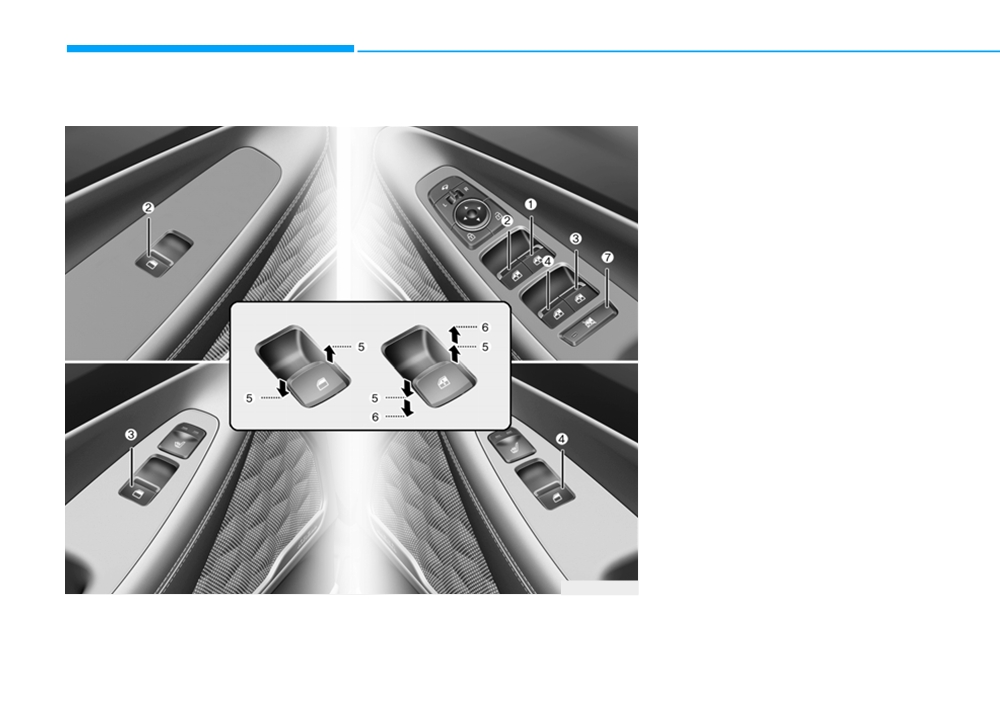

(1) Driver’s door power window
switch
(2) Front passenger’s door power
window switch
(3) Rear door (right) power window
switch*
(4) Rear door (left) power window
switch*
(5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch
* : if equipped
The ignition switch must be in the ON
position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that door's
window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 10 minutes after the
ignition switch is placed in the ACC
or OFF position. However, if the front
OTM048020R
doors are opened, the Power
Windows cannot be operated even
within the 10 minutes period.
3-36
Window opening and closing
Auto up/down window
WARNING
(if equipped)
Pressing or pulling up the power win-
To avoid serious injury or death,
dow switch momentarily to the sec-
do not extend your head, arms
ond detent position
(6) completely
or body outside the windows
lowers or lifts the window even when
whilst driving.
the switch is released. To stop the
window at the desired position whilst
3
i
Information
the window is in operation, pull up or
press down and release the switch.
•
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
•
Whilst driving with the rear windows
OTM048441R
down or with the sunroof
(if
To open:
equipped) opened
(or partially
Press the window switch down to the
opened), your vehicle may demon-
first detent position (5). Release the
strate a wind buffeting or pulsation
switch when you want the window to
noise. This noise is normal and can
stop.
be reduced or eliminated by taking
the following actions. If the noise
occurs with one or both of the rear
To close:
windows down, partially lower both
Pull the window switch up to the first
front windows approximately 2.5 cm
detent position (5). Release the win-
(1 inch). If you experience the noise
dow switch when you want the win-
with the sunroof open, slightly close
dow to stop.
the sunroof.
3-37
Convenient features of your vehicle
To reset the power windows
Automatic reverse (if equipped)
i
Information
If the power windows do not operate
The automatic reverse feature is only
normally, the automatic power win-
active when the “Auto Up” feature is
dow system must be reset as follows:
used by fully pulling up the switch to
1. Place the ignition switch to the ON
the second detent.
position.
2. Close the window and continue
WARNING
pulling up on the power window
switch for at least one second.
Make sure body parts or other
If the power windows do not operate
objects are safely out of the way
properly after resetting, it is recom-
before closing the windows to
mended that the system be checked
avoid injuries or vehicle damage.
by a HYUNDAI authorised repairer.
OTM048021R
Objects less than 4 mm (0.16
If a window senses any obstacle
inch) in diameter caught between
WARNING
whilst it is closing automatically, it will
the window glass and the upper
stop and lower approximately 30 cm
window channel may not be
The automatic reverse feature
(12 inches) to allow the object to be
detected by the automatic reverse
cleared.
doesn’t activate whilst resetting
window and the window will not
power window system. Make
If the window detects the resistance
stop and reverse direction.
sure body parts or other objects
whilst the power window switch is
are safely out of the way before
pulled up continuously, the window
closing the windows to avoid
will stop upward movement then
NOTICE
injuries or vehicle damage.
lower approximately 2.5 cm (1 inch).
If the power window switch is pulled
Do not install any accessories on
up continuously again within 5 sec-
the windows. The automatic
onds after the window is lowered by
reverse feature may not operate.
the automatic window reverse fea-
ture, the automatic window reverse
will not operate.
3-38
Power window lock switch
❈ If the power window lock switch is
NOTICE
operated (indicator turns on), rear
passenger can not open the rear
•
To prevent possible damage to
door. (if equipped)
the power window system, do
not open or close two windows
For more details, refer to “Safe Exit
or more at the same time. This
Assist” system in this chapter.
will also ensure the longevity of
the fuse.
3
WARNING
•
Never try to operate the main
switch on the driver's door and
Do not allow children to play
the individual door window
with the power windows. Keep
switch in opposite directions at
the driver’s door power window
the same time. If this is done, the
OTM048006R
window will stop and cannot be
lock switch in the LOCK posi-
The driver can disable the power
tion. Serious injury or death can
opened or closed.
window switches on the rear passen-
result from unintentional win-
gers' doors by pressing the power
dow operation by a child.
window lock switch.
When the power window lock switch
is pressed:
• The driver's master control can
operate all the power windows.
• The front passenger's control can
operate the front passenger's
power window.
• The rear passenger's control can-
not operate the rear passengers'
power window.
3-39
Convenient features of your vehicle
Remote window closing
i
Information
WARNING
function (if equipped)
•
The remote window closing function
•
NEVER leave the keys in your
may abruptly stop, when you move
vehicle with unsupervised
away from your vehicle during the
children, when the engine is
operation. Stay in close proximity of
running.
your vehicle, whilst monitoring the
•
NEVER leave any child unat-
window movement.
tended in the vehicle. Even
•
One of the windows may stop oper-
very young children may inad-
ating, when the window is interrupt-
vertently cause the vehicle to
ed by certain force. However, the
move, entangle themselves in
other windows will keep operating.
the windows, or otherwise
Thus, you should make sure that all
injure themselves or others.
windows are closed, and that the
OPD047004L
hazard warning lights blink 3 times.
•
Always double check to make
sure all arms, hands, head
You can still control the window
•
The remote window closing function
and other obstructions are
is only operated by the vehicle
movement with the engine turned off
safely out of the way before
by pressing the Door Lock button (1)
equipped with an automatic power
closing a window.
window on all windows.
for more than 3 seconds. The window
•
Do not allow children to play
moves (up), as long as you press the
with the power windows. Keep
door lock button. The window move-
the driver’s door power window
ment stops, when you release the
lock switch in the LOCK posi-
door lock button. The hazard warning
tion
(pressed). Serious injury
lights blink 3 times, when the window
can result from unintentional
is completely closed.
window operation by the child.
•
Do not extend your head,
arms or body outside the win-
dows whilst driving.
3-40
PANORAMA SUNROOF (IF EQUIPPED)
If your vehicle is equipped with a
i
Information
WARNING
sunroof, you can slide or tilt your
sunroof with the sunroof control lever
• In cold and wet climates, the sun-
roof may not work properly due to
•
Never adjust the sunroof or
located on the overhead console.
freezing conditions.
sunshade whilst driving. This
could result in loss of control
• After the vehicle is washed or in a
and an accident that may
rainstorm, be sure to wipe off any
cause death, serious injury, or
water that is on the sunroof before
3
property damage.
operating it.
•
Make sure heads, other body
parts or objects are out of the
NOTICE
way before using the sunroof.
•
Do not continue to move the sun-
•
Do not leave the engine run-
roof control lever after the sun-
ning and the key in your vehi-
roof is fully opened, closed, or
cle with unsupervised children.
tilted. Damage to the motor or
OTM048022
system components could occur.
Unattended children could
operate the sunroof, which
The ignition switch must be in the ON
•
Make sure the sunroof is closed
could result in serious injury.
position before you can open or
fully when leaving your vehicle.
•
The panorama sunroof is
close the sunroof.
If the sunroof is open, rain or
made of glass, subject to
The sunroof can be operated for
snow may leak through the sun-
break in case of accident.
approximately 10 minutes after the
roof and wet the interior as well
Passengers without the appro-
ignition key is removed or turned to
as allow theft.
priate protection(e.g. seat belt,
the ACC or LOCK(or OFF) position.
CRS, etc.) on may project out
However, if the front door is opened,
through the broken glasses
the sunroof cannot be operated even
and get seriously injured or
within 10 minutes.
even result in death.
•
Do not sit on the top of the
vehicle. It may cause injuries
or vehicle damage.
3-41
