Hyundai H-100 Truck (2012 year). Instruction - part 3

FEATURES OF YOUR HYUNDAI

INSTRUMENT CLUSTER

B265A01B-GAT

SB210U1-G

B280A02A-AAT

Fuel Filter Warning Light

OVER SPEED WARNING

FUEL GAUGE

BUZZER (If Installed)

Without Tachometer

This light illuminates when the ignition

When the car speed is in excess of 120

switch is set to the "ON" position and

km/h (75 mph), a buzzer will sound to

goes off after the engine has started. If

warn you.

it lights up while the engine is running,

it indicates that water has accumu-

B270A01A-AAT

lated inside the fuel filter. If this hap-

BRAKE PAD WEAR WARNING

pens, remove the water from the fuel

SOUND

filter. (Refer to "6-28 page")

The front disc brake pads have wear

indicators that should make a high-

HHR2058

pitched squealing or scraping noise

B270B01HR-GAT

when new pads are needed. The sound

With Tachometer

PARKING START WARNING

may come and go or be heard all the

SOUND

time when the vehicle is moving. It

may also be heard when the brake

If the vehicle is driven at 10km/h(6mph)

pedal is pushed down firmly. Exces-

for more 2~3 than seconds, the warning

sive rotor damage will result if the worn

chime will sound continuously when the

pads are not replaced. See your

parking brake engaged.

Hyundai dealer immediately.

HHR2015

The needle on the gauge indicates the

approximate fuel level in the fuel tank.

The fuel capacity is given in Section 9.

1 FEATURES OF YOUR HYUNDAI

B290A02A-AAT

ENGINE COOLANT TEMPERA-

CAUTION:

TURE GAUGE

WARNING:

Avoid driving with a very low fuel

Never remove the radiator cap when

Without Tachometer

level. If you run out of fuel, it could

the engine is hot. The engine cool-

cause the engine to misfire and re-

ant is under pressure and could

sult in excessive loading of the cata-

erupt and cause severe burns. Wait

lytic converter.

until the engine is cool before re-

moving the radiator cap.

The needle on the engine coolant tem-

perature gauge should stay in the nor-

mal range. If it moves across the dial to

HHR2059

"H" (Hot), pull over and stop as soon as

possible and turn off the engine. Then

With Tachometer

open the hood and, after the engine has

cooled, check the coolant level and the

water pump drive belt. If you suspect

cooling system trouble, have your cool-

ing system checked by a Hyundai dealer

as soon as possible.

HHR2016

FEATURES OF YOUR HYUNDAI

B300A01A-GAT

B330A02A-AAT

B310B01HR-GAT

SPEEDOMETER

TACHOMETER (If Installed)

ODOMETER/TRIP ODOMETER

HHR2011

B330A01HR

HHR2060

Your Hyundai's speedometer is cali-

The tachometer registers the speed of

brated in kilometers per hour or miles

your engine in revolutions per minute

per hour.

(rpm).

CAUTION:

The engine should not be raced to

such a speed that the needle enters

the red zone on the tachometer face.

This can cause severe engine dam-

Reset switch

age and may void your warranty.

HHR2061

1 FEATURES OF YOUR HYUNDAI

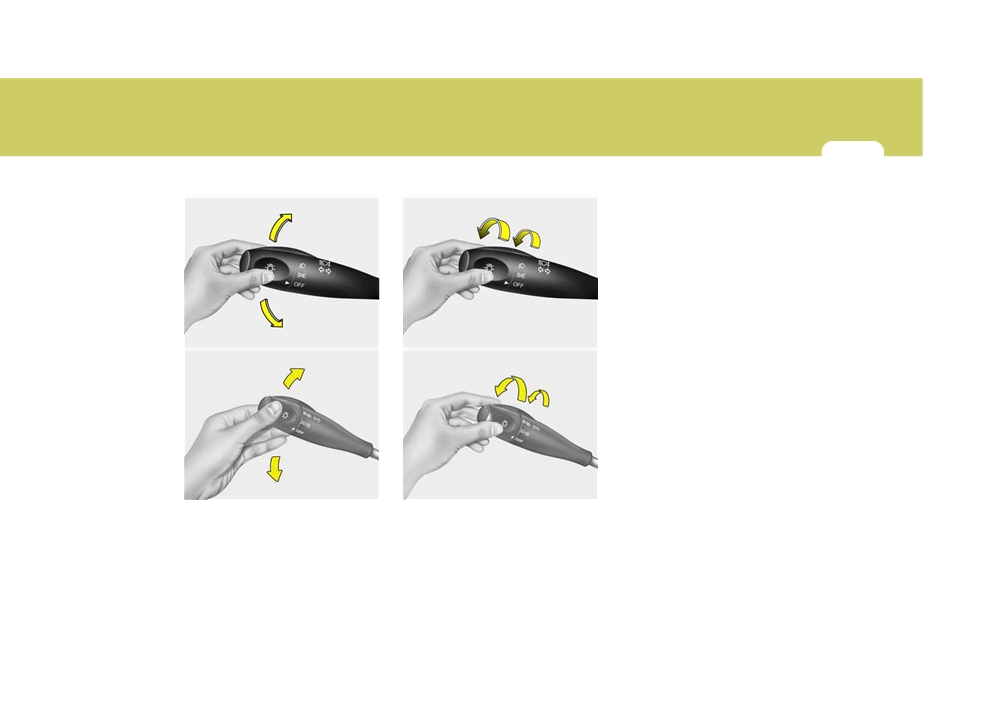

COMBINATION TURN SIGNAL,

HEADLIGHT AND HIGH-BEAM

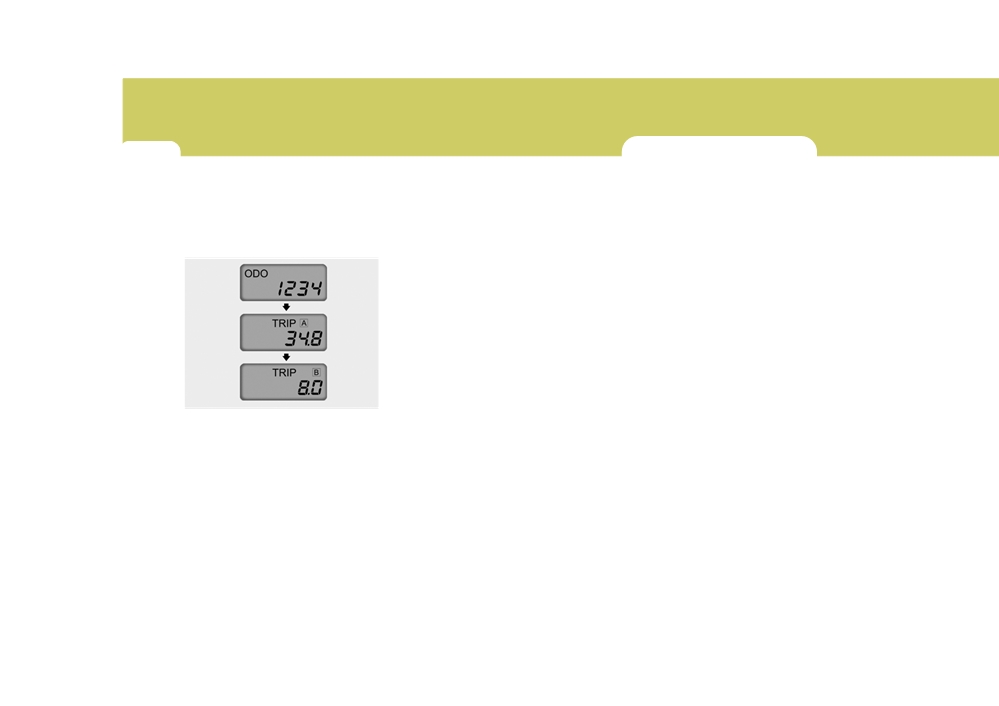

Function of digital odometer/trip

NOTE:

SWITCH

odometer

Any alteration of the odometer may

B340A01A-AAT

void your warranty coverage.

Pushing in the reset switch when the

Turn Signal Operation

ignition switch is turned "ON" will dis-

2,3 Trip odometer

Pulling down on the lever causes the

play the following sequence:

turn signals on the left side of the car to

Records the distance of 2 trips in kilo-

blink. Pushing upwards on the lever

meters or miles.

causes the turn signals on the right

TRIP A: First distance you have trav-

side of the car to blink. As the turn is

eled from your origination point to a first

completed, the lever will automatically

destination.

return to the center position and turn

TRIP B: Second distance from the first

off the turn signals at the same time. If

destination to the final destination.

either turn signal indicator light blinks

more rapidly than usual, goes on but

To shift from TRIP A to TRIP B, press

does not blink, or does not go on at all,

the reset switch. When it pressed for

there is a malfunction in the system.

more than 1 second, the trip odometer

Check for a burned-out fuse or bulb or

will reset to 0.

B310B01HR

see your Hyundai dealer.

1. Odometer

The odometer records the total driving

distance in kilometers or miles, and is

useful for keeping a record for mainte-

nance intervals.

It is normal for a new vehicle to have the

odometer indicating less than 50 km.

FEATURES OF YOUR HYUNDAI

B340B01A-AAT

B340C03FC-GAT

NOTE:

Lane Change Signal

Headlight Switch

The ignition must be in the "ON"

Type A

position to turn on the headlights.

Battery Saver Function

The purpose of this feature is to

prevent the battery from being dis-

charged.

The system automatically turns off

the parking lights when the driver

removes the ignition key and opens

the driver- side door.

OHR0292004

OHR0292001

With this feature, the parking lights

Type B

will be turned off automatically if the

driver parks on the side of road at

night.

If necessary, to keep the lights on

when the ignition key is removed,

perform the following :

1) Open the driver-side door.

2) Turn the parking lights OFF and

ON again using the light switch on

the steering column.

HHR2004

HHR2001

To indicate a lane change, move the

To operate the headlights, turn the bar-

lever up or down to a point where it

rel on the end of the multi-function

begins flashing.

switch. The first position turns on the

The lever will automatically return to

parking lights, sidelights, tail lights and

the center position when released.

instrument panel lights. The second

position turns on the headlights.

1 FEATURES OF YOUR HYUNDAI

Type B

B340E01A-AAT

Headlight Flasher

CAUTION:

Type A

If the driver gets out of the vehicle

through other doors (except driver’s

door), the battery saver function does

not operate. Therefore, it causes the

battery to be discharged. In this case,

make sure to turn off the lamp before

getting out of the vehicle.

HHR2002

B340D01A-AAT

OHR0292003

To turn on the headlight high beams,

High-beam Switch

Type B

push the lever forward (away from

Type A

you). The high beam indicator light will

come on at the same time. For low

beams, pull the lever back toward you.

WARNING:

Do not use high beam when there are

other vehicles. Using high beam

could obstruct the other driver’s vi-

sion.

HHR2003

OHR0292002

To flash the headlights, pull the switch

lever toward you, then release it. The

headlights can be flashed even though

the headlight switch is in the "OFF"

position.

FEATURES OF YOUR HYUNDAI

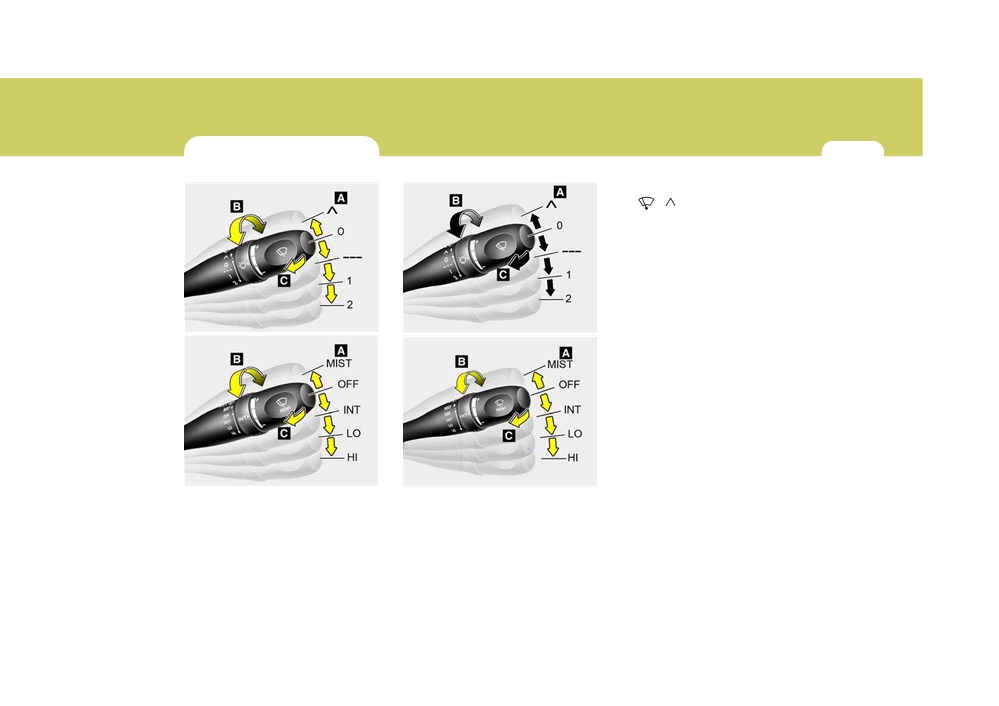

WINDSHIELD WIPER AND

WASHER SWITCH

B350A02HR-AAT

Type A

Type C

A:Wiper speed control

(

or MIST) - Single wipe

· OFF (0) - Off

· INT (---) - Intermittent wipe

· LO (1) - Low wiper speed

· HI (2) - High wiper speed

B:Intermittent wipe time adjustment

C:Wash with brief wipes

OHR0292901

OPU028055

Type B

Type D

OHR0292900

OHR048900

1 FEATURES OF YOUR HYUNDAI

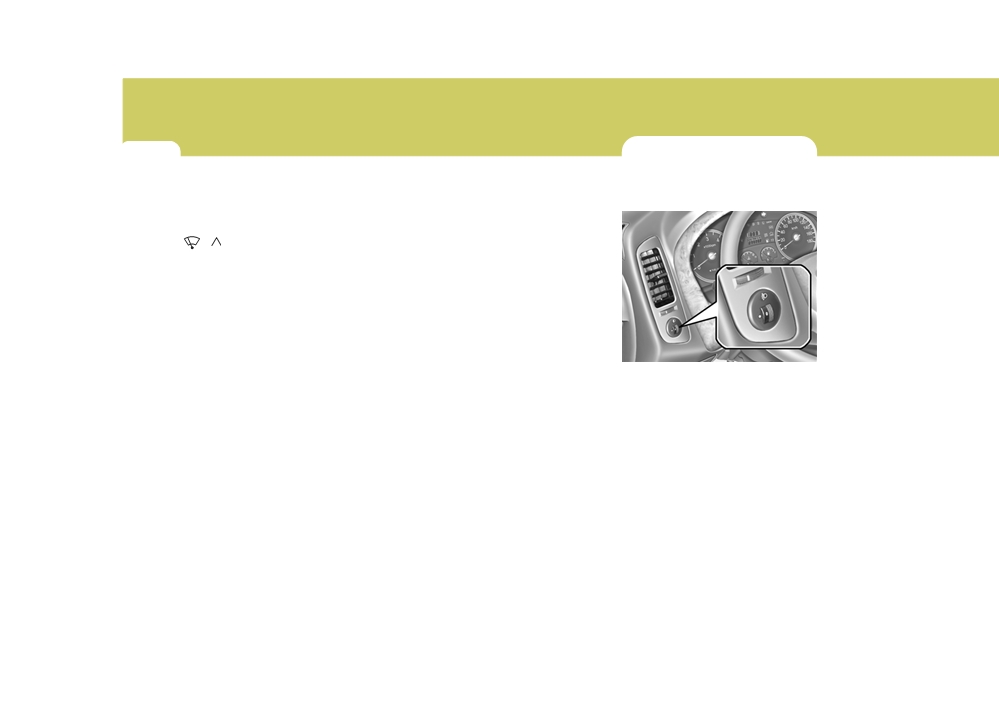

HEADLIGHT LEVELING DE-

VICE SYSTEM

B350B01O-GAT

B350C02O-AAT

B340G01HR-GAT

Windshield wiper

Adjustable Intermittent Wiper

(Left-hand Drive Type)

Operates as follows when the ignition

Operation

(If Installed)

switch is turned ON.

To use the intermittent wiper feature,

place the wiper switch (1) in the "INT (-

(

or MIST) : For a single wiping

--)" position.

cycle, push the lever upward

With the switch in this position, the

and release it with the lever in

interval between wipes can be varied

the OFF (0) position. The wip-

from approximately 1 to 18 seconds by

ers will operate continuously

turning the interval adjuster barrel.

if the lever is pushed upward

B350D01O-GAT

and held.

Windshield Washer Operation

OFF (0) : Wiper is not in operation

To use the windshield washer, pull the

INT (---) : Wiper operates intermittently

wiper/washer lever toward the steering

B340G01HR

at the same wiping intervals.

wheel. When the washer lever is oper-

Use this mode in a light rain or

To adjust the headlight beam level ac-

ated, the wipers automatically make

mist. To vary the speed set-

cording to the number of the passen-

two passes across the windshield.

ting, turn the speed control

gers and the loading weight in the cargo

The washer continues to operate until

knob. (If installed)

area, turn the beam leveling switch.

the lever is released.

LO (1) : Normal wiper speed

The higher the number of the switch

HI (2) : Fast wiper speed

NOTE:

position, the lower the headlight beam

o Do not operate the washer more

level. Always keep the headlight beam

NOTE:

than 15 seconds at a time or when

at the proper leveling position, or head-

To prevent damage to the wiper sys-

the fluid reservoir is empty.

lights may dazzle other road users.

tem, do not attempt to wipe away

o In icy or freezing weather, be sure

Listed below are the examples of proper

heavy accumulations of snow or ice.

the wiper blades are not frozen to

switch settings. For loading conditions

Accumulated snow and ice should be

the glass prior to operating the

other than those listed below, adjust

removed manually. If there is only a

wipers.

the switch position so that the beam

light layer of snow or ice, operate the

o In areas where water freezes in

level may be the nearest as the condi-

heater in the defrost mode to melt the

winter, use windshield washer

tion obtained according to the list.

snow or ice before using the wiper.

antifreeze.

FEATURES OF YOUR HYUNDAI

FOG LIGHT SWITCH

B360B01FC-GAT

B360A01Y-GAT

Loading condition

Switch position

Front Fog Light Switch

Rear Fog Light Switch

Driver only

(If Installed)

Driver + Permissible

RR axle load

OHR028100

OHR028101

To turn on the front fog lights, push the

To turn on the rear fog lights, push the

switch in the "ON" position. They will

switch. They will light when the head-

light when the headlight switch is in the

light switch is in the second position

first or second position.

and the key is in the "ON" position.

1 FEATURES OF YOUR HYUNDAI

HAZARD WARNING

REAR WINDOW

SYSTEM

DEFROSTER SWITCH

B370A01A-AAT

B380A02HR-GAT

(If Installed)

CAUTION:

Do not clean the inner side of the

rear window glass with an abrasive

type of glass cleaner or use a scraper

to remove foreign deposits from the

inner surface of the glass as this may

cause damage to the defroster ele-

ments.

NOTE:

OHR028102

The engine must be running for the

The hazard warning system should be

OHR028103

rear window defroster to operate.

used whenever you find it necessary to

The rear window defroster is turned on

stop the car in a hazardous location.

by pushing in the switch. To turn the

When you must make such an emer-

defroster off, push the switch a second

gency stop, always pull off the road as

time. The rear window defroster auto-

far as possible.

matically turns itself off after about 20

The hazard warning lights are turned

minutes. To restart the defroster cycle,

on by pushing in the hazard switch.

push in the switch again after it has

This causes all turn signal lights to

turned itself off.

blink. The hazard warning lights will

operate even though the key is not in

the ignition.

To turn the hazard warning lights off,

push the switch a second time.

FEATURES OF YOUR HYUNDAI

TICKET HOLDER

DIGITAL CLOCK

B590A01HR-GAT

B400A01HR-GAT

Reset:

(If Installed)

Press the switch for more than 1 sec-

ond to reset minutes to ":00" or to

facilitate resetting the clock to the cor-

rect time. When this is done:

Pressing the switch between 9 : 01 and

9 : 29 changes the readout to 9 : 00.

Pressing the switch between 9 : 30 and

9 : 59 changes the readout to 10 : 00.

OHR028104

Digital Clock Reset Switch

B400A01HR

For your convenience, it may be used

There is a digital clock reset switch for

CAUTION:

for holding a tollgate ticket or a card.

the digital clock. Its functions are:

Don't turn the switch excessively to

prevent switch damage.

Hour/Minute Adjustment:

Turn the switch counterclockwise for

less than 1.5 seconds to advance the

hour indicated. Turn the switch clock-

wise for less than 1.5 seconds to ad-

vance the minute indicated.

Auto Mode:

Turn the switch counterclockwise or

clockwise for more than 1.5 seconds to

advance the hour or the minute auto-

matically.

1 FEATURES OF YOUR HYUNDAI

CIGARETTE LIGHTER

ASHTRAY

B420A02A-AAT

B430A01HR-GAT

CAUTION:

Do not use electric accessories or

equipment other than the Hyundai

genuine parts in the socket.

B420A01HR

B430A01HR

For the cigarette lighter to work, the key

The front ashtray may be opened by

must be in the "ACC" position or the

pulling it out by its grip. To remove the

"ON" position.

ashtray to empty or clean it, press down

To use the cigarette lighter, push it all

on the spring-loaded tab inside the ash-

the way into its socket. When the ele-

tray and pull it all the way out.

ment has heated, the lighter will pop

out to the "ready" position.

Do not hold the cigarette lighter pressed

in. This can damage the heating ele-

ment and create a fire hazard.

If it is necessary to replace the cigarette

lighter, use only a genuine Hyundai

replacement or its approved equivalent.

FEATURES OF YOUR HYUNDAI

ENGINE ILDE RPM ADJUST-

DRINK HOLDER

MENT KNOB

B420B01HR-GAT

B450A01HR-GAT

(If Installed)

WARNING:

Keep cans or bottles out of direct sun

light and do not put them in a vehicle

that is heated up. It may explode.

B420B01HR

B450A01HR

When the outside air temperature is

very low or it is necessary to warm up

the engine, turn the knob clockwise to

WARNING:

that point at which the engine runs

o Use caution when using the drink

smoothly. Once the warming up is com-

holders. A spilled beverage that is

pleted, fully turn the knob counterclock-

very hot can injure you or your

wise.

passengers. Spilled liquids can

damage interior trim and electri-

cal components.

o Do not place anything except

CAUTION:

drinks in the drink holder. Such

Never attempt to adjust the control

objects can be thrown out, possi-

knob during driving.

bly injuring persons in the vehicle

This can cause severe engine dam-

during sudden braking or in the

age.

event of an accident.

1 FEATURES OF YOUR HYUNDAI

INTERIOR LIGHT

This light produces a spot beam for

o "DOOR"

convenient use as a map light at night

In the "DOOR" position, the interior

WARNING:

or as a personal light for the driver and

courtesy light comes on when any

Do not use the interior lights when

the passenger.

door is opened regardless of the

driving in the dark. Accidents could

ignition key position. The light goes

o " "

happen because the view may be

out gradually 6 seconds after the

With this button pressed, both map

obscured by interior lights.

door is closed.

lights come on when any door is opened

regardless of the ignition key position.

o "ON"

The light goes out gradually 6 seconds

B480A01HR-GAT

after the door is closed.

In the "ON" position, the light stays

Map Light

on at all times.

(If installed, With Spectacle Case)

B490A01HR-GAT

Interior Light

(If installed,Without Spectacle Case)

CAUTION:

Do not leave the switch in this posi-

tion for an extended period of time

when the vehicle is not running.

o "OFF"

In the "OFF" position, the light stays

off at all times even though a door is

HHR2072

open.

The map light has two kinds button. The

two buttons are as follow:

HHR2070

o " "

The interior courtesy light switch has

Push in this button to turn on or off the

three positions. The three positions

map light.

are:

FEATURES OF YOUR HYUNDAI

SPECTACLE CASE

GLOVE BOX

B491A02O-GAT

B500A01A-AAT

B500C01HR-GAT

(If Installed)

Pen, Card and Tissue Holder

(3)

(1)

(2)

OHR028105

HHR2108

B500C01HR

o To open the glove box, pull on the

The spectacle case is located on the

For your convenience, a pen holder (1),

glove box release lever.

front overhead console.

a card holder (2) and a tissue holder (3)

Push the end of the cover to open the

are located in the glove box cover.

spectacle case.

WARNING:

o To avoid the possibility of injury

in case of an accident or a sudden

WARNING:

stop, the glove box door should

Do not keep objects such as sharp or

be kept closed when the car is in

unsuitable things inside the spec-

motion.

tacle case. Such objects can be

o Do not keep food in the glove box

thrown out in the event of a sudden

for a long time.

stop or an accident, possibly injur-

ing the passengers in the vehicle.

1 FEATURES OF YOUR HYUNDAI

CENTER SEATBACK CON-

SOLE COMPARTMENT

B505A01HR-GAT

B505B01HR-GAT

B505C01HR-GAT

(If Installed)

Multi Tray

Auxiliary Drink Holder

(If Installed)

Lever

B500B01HR

HHR2107

Your vehicle is equipped with a console

The multi tray is used for storing cas-

B500B02HR

compartment on the backside of front

sette tapes or small articles.

The auxiliary drink holder is used for

center seat.

To open the multi tray lid, press the

holding cups or cans.

To use console compartment, push

hook in the lid's grip and pull up the lid.

down the lever and tilt the seatback

forward.

WARNING:

o Use caution when using the drink

holders. A spilled beverage that is

very hot can injure you or your

passengers. Spilled liquids can

damage interior trim and electri-

cal components.

o Do not place anything except

drinks in the drink holder. Such

objects can be thrown out, possi-

bly injuring persons in the vehicle

during sudden braking or in the

event of an accident.

FEATURES OF YOUR HYUNDAI

OUTSIDE REARVIEW

MIRROR

B505D01HR-GAT

B510A01HR-GAT

Coin Holder

Manual Type

CAUTION:

If the mirror control is jammed with

ice, do not attempt to break it free

using the control handle or by ma-

nipulating the face of the mirror. Use

an approved spray de-icer (not radia-

tor antifreeze) to release the frozen

mechanism or move the vehicle to a

warm place and allow the ice to melt.

HHR2114

HHR2134

The coin holder is used to store coins.

Before driving away, always check that

WARNING:

your mirrors are positioned so you can

Be careful when judging the size or

see behind you, both to the left and right

distance of any object seen in the

sides, as well as directly behind your

rearview mirror. It is a convex mirror

vehicle. When using the mirror, always

with a curved surface. Any objects

exercise caution when attempting to

seen in this mirror are closer than

judge the distance of vehicles behind or

they appear.

along side of you.

Check your inside rearview mirror or

glance over your shoulder before

NOTE:

changing lanes.

There is the assist convex mirror at

the under side of driver's outside

rearview mirror. You can take a bet-

ter look at the dead zone. But, the

object seems to be distorted.

Content .. 1 2 3 4 ..
