Hyundai Getz (2010 year). Instruction - part 2
1- 12 FEATURES OF YOUR HYUNDAI
B070C01FC-GAT
B070D02TB-AAT
NOTE:
Alarm Stage
Disarmed Stage
1) If any door, tail gate or engine
hood remains open, the system
The alarm will be activated if any of the
will not be armed.
following occurs while the car is parked
2) If this happens, rearm the system
and the system is armed.
as described above.
1) A front or rear door is opened with-
out using the transmitter.
!
2) The tail gate is opened without us-
CAUTION:
ing the transmitter.
Do not arm the system until all
passengers have left the car. If the
3) The engine hood is opened.
system is armed while a
The alarming horn will sound and the
passenger(s) remains in the car,
HTB202
the alarm may be activated when
turn signal light will blink continuously
for 27 seconds (E.C only/ Except E.C
The system will be disarmed when the
the remaining passenger(s) leaves
3 times). To turn off the system, unlock
driver's or passenger's door is un-
the car.
the door or tail gate with the transmit-
locked by depressing the button on the
ter.
transmitter.
After completion of the step above, the
turn signal lights will blink twice to
indicate that the system is disarmed.
NOTE:
Once the system has been dis-
armed, it can not be rearmed except
by repeating the arming procedures.
FEATURES OF YOUR HYUNDAI 1- 13
B070F02TB-GAT
- The transmitter is close to a radio
Keyless Entry System
transmitter such as a radio station
!
CAUTION:
(If Installed)
or an airport which can interfere
Only the transmitter can disarm the
Locking doors
with normal operation of the trans-
armed stage. If the transmitter does
mitter.
not disarm the system, it is neces-
1. Close all doors.
When the transmitter does not work
2. Push the button on the transmitter.
sary to take the following steps;
correctly, open and close the door
3. At the same time all doors lock, the
1. Unlock the door with the key,
with the ignition key. If you have a
turn signal lights will blink once to
which will cause, the alarm to be
problem with the transmitter, con-
indicate that the system is armed.
activated.
tact an authorized Hyundai Dealer.
2. Insert the key in the ignition key
Unlocking doors
cylinder and turn the ignition key
NOTE:
to "ON" position.
1. Push the button on the transmitter.
Keep the transmitter away from wa-
3. Wait for 30 seconds.
2. At the same time all doors unlock,
ter or any liquid. If the keyless entry
the turn signal light will blink twice to
system is inoperative due to expo-
After completing the steps above,
indicate that the system is disarmed.
sure to water or liquids, it will not be
the system will be disarmed.
covered by your manufacturer ve-
NOTE:
hicle warranty.
The transmitter will not work if any of
!
following occur:
CAUTION:
- The ignition key is in ignition
Do not change, alter or adjust the
B070E02TB-GAT
switch.
theft-alarm system because it could
Replacing the battery
cause the theft-alarm system to mal-
- You exceed the operating distance
When the transmitter's battery begins
limit (10 m).
function and should only be ser-
to get weak, it may take several pushes
- The battery in the transmitter is
viced by an authorized HYUNDAI
on the button to lock or unlock the
dealer.
weak.
doors, and the LED will not light. Re-
- Other vehicles or objects may be
Malfunctions caused by improper
place the battery as soon as possible.
blocking the signal.
alterations, adjustments or modifi-
cations to the theft-alarm system are
- The weather is extremely cold.
Battery type : CR1220
not covered by your vehicle manu-
facturer warranty.
1- 14 FEATURES OF YOUR HYUNDAI
B050A01A-AAT
Replacement instructions:
WINDOW GLASS
Battery
HTB055
HTB053
4. Remove the old battery from the
HTB257
case and note the polarity. Make
1. Remove the screw with a phillips
screwdriver.
sure the polarity of the new battery
To raise or lower the window, turn the
2. Carefully separate the case with a
is the same (+side facing up), then
window regulator handle clockwise or
flat-head screwdriver as shown in
insert it in the transmitter.
counterclockwise.
the illustration.
!
!
WARNING:
CAUTION:
When opening or closing the win-
An inappropriately disposed battery
dows, make sure your passenger's
can be harmful to the environment
arms, hands and body are safely
and human health.
out of the way.
Dispose the battery according to your
local law(s) or regulation.
HTB054
3. Remove four screws back side of the
built-in circuit.
FEATURES OF YOUR HYUNDAI 1- 15
B060A02E-AAT
NOTE:
POWER WINDOWS (If Installed)
While driving with the rear windows
down or with the sunroof (if equipped)
(1)
in an open (or partially open posi-
tion), your vehicle may demonstrate
a wind buffeting or pulsation noise.
This noise is a normal occurrence
and can be reduced or eliminated by
taking the following actions. If the
noise occurs with one or both of the
rear windows down, partially lower
HTB066
both front windows approximately
one inch. If you experience the noise
In order to prevent operation of the
HTB064
with the sunroof open, slightly re-
passenger front and rear windows, a
The power windows operate when the
duce the size of the sunroof open-
window lock switch is provided on the
ignition key is in the "ON" position. The
ing.
armrest of the driver's door. To disable
main switches are located on the
the power windows, press the window
driver's armrest and control the front
lock switch.
and rear windows on both sides of the
To revert to normal operation, press
vehicle. The windows may be opened
the window lock switch a second time.
by depressing the appropriate window
switch and closed by pulling up the
Auto-Down Window
switch. To open the window on the
(Driver's Side)
driver's side, press the switch(1) down.
The Auto-Down window is moved to its
The window moves as long as the
fully open position by pushing the
switch is operated.
switch. To stop at the desired position
push the switch again.
1- 16 FEATURES OF YOUR HYUNDAI
B080B02A-GAT
FRONT SEATS
!
!
WARNING:
Adjusting Seat Forward and
WARNING:
1) Be careful that someone's head,
Rearward
To ensure the seat is locked se-
hands and body are not trapped
curely, attempt to move the seat for-
by a closing window.
ward or rearward without using the
2) Never try to operate the main
lock release lever.
switch on the driver's door and
the individual door window
switch in opposing directions at
B080C01A-AAT
the same time. If this is done, the
Adjusting Seatback Angle
window will stop and cannot be
opened or closed.
3) Do not leave children alone in the
car. Always remove the ignition
key for their safety.
HTB024
To move the seat toward the front or
rear, pull the lock release lever up-
ward. This will release the seat on its
B080A01A-GAT
ADJUSTABLE FRONT SEATS
track so you can move it forward or
rearward to the desired position. When
you find the position you want, release
!
WARNING:
the lever and slide the seat forward or
HTB026
Never attempt to adjust the seat
rearward on its track until it locks into
To recline the seatback, lean forward to
while the vehicle is moving. This
the desired position and cannot be
take your weight off it, then pull up on
could result in loss of control, or an
moved further.
the recliner control lever at the outside
accident which may cause death,
edge of the seat. Now lean back until
serious injury, or property damage.
the desired seatback angle is achieved.
To lock the seatback into position,
release the recliner control lever.
FEATURES OF YOUR HYUNDAI 1- 17
B080D03JM-AAT
Adjustable Headrests
!
!
WARNING:
WARNING:
To minimize risk of severe injury in
the event of a collision or a sudden
stop, both the driver and passen-
ger seatbacks should always be in
an upright position while the ve-
hicle is in motion. The protection
Lock knob
provided by the seat belts and
airbags may be reduced significant-
ly when the seatbacks are reclined.
There is greater risk that the driver
and passenger will slide under the
HFC2028
seat belt which may result in seri-
B080D01JM
Headrests are designed to help reduce
ous injury if a crash occurs when
the risk of neck injuries.
o For maximum effectiveness in case
the seatbacks are reclined. The seat
To raise the headrest, pull it up. To
of an accident, the headrest should
belt cannot provide full protection
lower the headrest, push it down while
be adjusted so the middle of the
to an occupant if the seat back is
pressing the lock knob. To remove the
headrest is at the same height of
reclined.
headrest, raise it as far as it can go then
the center of gravity of an
press the lock knob while pulling up-
occupant's head. Generally, the
ward. This should only be done when
center of gravity of most people's
the seat is not occupied.
head is similar with the height of
the top of their eyes. Also, adjust
the headrest as close to your head
as possible. For this reason, the
use of a cushion that holds the
body away from the seatback is
not recommended.
1- 18 FEATURES OF YOUR HYUNDAI
B080E01O-AAT
B080F01S-AAT
o Do not operate the vehicle with the
Lumbar Support Control
Seat Cushion Height Adjustment
headrests removed as severe in-
(Driver's Seat Only) (If Installed)
(Driver's Seat Only) (If Installed)
jury to an occupant may occur in
the event of an accident. Head-
rests may provide protection
against severe neck injuries when
properly adjusted.
o Do not adjust the headrest posi-
tion of the driver’s seat while the
vehicle is in motion.
B083D01NF-AAT
Active Headrests (If Installed)
HTB027
HTB025
To raise or lower the front part of the
To adjust the lumbar support, turn the
seat cushion, turn the front knob for-
handle on the outboard or left side of
ward or rearward. To raise or lower the
the seat. To increase the amount of
rear part of the seat cushion, turn the
lumbar support, pull the lever forward.
rear knob forward or rearward.
To decrease it, push the lever toward
the rear.
HNF2041-1
The active headrest is designed to
move forward and upward during a rear
impact. This helps to prevent the driver's
and front passenger's head from mov-
ing backward and thus helps prevent
neck injuries.
FEATURES OF YOUR HYUNDAI 1- 19
B080G01A-GAT
B130A01A-AAT
Adjusting Armrest Angle
REAR SEAT ENTRY
!
(Driver's side only) (If installed)
(For 3-door model)
WARNING:
Passengers sitting in the rear seat
should be careful not to acciden-
tally press the foot lever (2) while
the vehicle is moving, as this may
cause the seatback to move for-
(1)
ward and injure a front seat occu-
pant.
(2)
B080I01FC-GAT
REAR SEAT
HTB2049
HTB258
Adjusting Seatback Angle
The armrest will be raised or lowered
The front passenger seatback should
manually.
be tilted to enter the rear seat.
To raise the armrest, pull it up.
Seatback
By pulling up on the recliner control
To lower it, press the armrest down.
folding lever
lever (1) at the outside of the front
passenger seat, the seatback will tilt
forward and the seat will automatically
slide forward.
Rear seat occupants can tilt the front
passenger seatback by depressing the
foot lever (2) as shown in the illustra-
tion.
B080I01TB
To recline the seatback, push the
seatback folding lever toward the head-
rest, and release it after the desired
seatback angle is achieved.
1- 20 FEATURES OF YOUR HYUNDAI
B090B01TB-GAT
When you recline the seatback to de-
Rear Seat Center's 3 Point Type Seat
Folding Rear Seatback and Seat
sired position, always be sure it has
Belt (If installed)
locked into position.
Cushion
For greater convenience, the entire
seatback and seat cushion may be
!
CAUTION:
folded down and up.
When reclining the seatback you
should adjust the seatback folding
lever while standing.
B099A03F-AAT
BEFORE FOLDING THE REAR
OTB038146
SEATS
In order to prevent the shoulder belt
Outboard Rear Seat Belt
from being damaged while folding the
rear seat, the shoulder belt must be
Seatback folding lever
passed through the hanger to keep it
HTB2006
out of the way.
1. Push the headrest down to the low-
est position.
2. To fold down the seatback , push
!
CAUTION:
and hold the seatback folding lever
o Seat belts must be removed from
toward the headrest, then push down
the hanger when in use.
the seatback.
o When using the seat belt, use it
after taking it out of the guides. If
you pull the seat belt when it is
HTB294
stored in the guides, it may dam-
age the guides and/or belt web-
bing.
FEATURES OF YOUR HYUNDAI 1- 21
A Type
Securing Strap
!
WARNING:
o When you return the folded down
seatback to its upright position,
make sure the seat belts are in
position to be accessible and to
function properly.
o When you return the folded down
seatback to its upright position,
be careful not to get your fingers
Seat cushion release handle
HTB030
Securing strap
HTB031
or legs in.
o The purpose of the fold down
B Type
Securing Strap
4. To secure the seat, hook the secur-
rear seatback and the fold for-
ing strap under the seat back to the
ward rear seat cushion is to in-
headrest stay of front driver and
crease cargo space. Do not allow
passenger seat.
passengers to sit in the cargo
5. To return the seatback and seat
area while the car is moving. This
cushion to its normal position, re-
is not a proper seating position
verse the above procedure.
and no seat belts are available
o
When you return the seatback to its
for use when the seatback is
upright position, always be sure it is
folded down. Passengers who
locked into position by pulling and
are not properly seated and wear-
Seat cushion release handle
pushing on the top of seatback.
HTB030A
ing seat belts could sustain seri-
ous injuries or death in case of
3. A Type: Pull the seat cushion re-
an accident or a sudden stop.
lease handle rearward, then lift up
the entire seat cushion.
B Type: Pull the seat cushion re-
lease handle rearward, then lift up a
desired seat cushion.
1- 22 FEATURES OF YOUR HYUNDAI
B100A01TB-GAT
o If the seat warmer doesn't work
o Objects should not extend higher
SEAT WARMER (If installed)
when ambient temperature is
than the top of the front
lower than 28°C (82.4°F), it should
seatbacks. This could allow cargo
be checked at an authorized dealer.
to slide forward and cause injury
or damage during sudden stops.
o When you return the folded down
!
seatback to its upright position,
WARNING:
always be sure to install the head-
It is recommended that the seat
rests in their proper positions.
heater not be used when elderly
Headrests are important to the
people or people who are ill occupy
safety of occupants in a rear col-
the seat. Also, do not use the seat
lision. If the headrests are not
warmer if the occupant is sleeping.
installed in their proper position,
HTB194
serious injury or death could re-
B140A01B-GAT
The seat warmer is provided to warm
sult if a rear end collision occurs.
REAR SEAT WARNING
the front seats during cold weather.
With the ignition key in the "ON" posi-
tion, push either of the switches to
warm the driver's seat or the passenger's
seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
"OFF" position.
NOTE:
o The seat warmer will not operate if
B140A01TB
the ambient temperature is higher
than 37°C (98.6°F).
For the safety of all passengers, lug-
gage or other cargo should not be piled
higher than the top of the seatback.
FEATURES OF YOUR HYUNDAI 1- 23
B150A02A-GAT
B150C02A-AAT
B150D01S-AAT
SEAT BELT PRECAUTIONS
Larger Children
Pregnant Women
All occupants of the vehicle should
Children who are too large for child
The use of a seat belt is recommended
wear their seat belts at all times. In-
restraint systems should occupy the
for pregnant women to lessen the
deed, your province's laws may re-
rear seat and use the available lap/
chance of injury in an accident. When
quire that some or all occupants of the
shoulder belts. The lap portion should
a seat belt is used, it should be placed
vehicle use seat belts.
be fastened snug on the hips and as
as low and snugly as possible on the
The possibility of injury or the severity
low as possible. Check belt fit periodi-
hips, not across the abdomen. For
of injury in an accident will be de-
cally. A child's squirming could put the
specific recommendations, consult a
creased if this elementary safety pre-
belt out of position. Children are af-
physician.
caution is observed. In addition, the
forded the most safety in the event of
following recommendations are made:
an accident when they are restrained
B150E01A-AAT
by a proper restraint system in the rear
Injured Person
seat. If a larger child (over age 13)
B150B01Y-GAT
must be seated in the front seat, the
A seat belt should be used when an
Infant or Small Child
child should be securely restrained by
injured person is being transported.
Some countries require the use of
the available lap/shoulder belt and the
When this is necessary, you should
seat should be placed in the rearmost
consult a physician for recommenda-
child restraint systems for infants and
position. Children under the age of 13
tions.
small children. Whether this is required
by law or not, it is strongly recom-
should be restrained securely in the
mended that a child restraint seat or
rear seat. NEVER place a rear facing
B150F01A-AAT
infant restraint system be used for
child seat in the front seat of a vehicle.
One Person Per Belt
infants or small children weighing less
than 18 kilograms (40 pounds).
Two people (including children) should
never attempt to use a single seat belt.
NOTE:
This could increase the severity of
injuries in case of an accident.
Small children are best protected in
an accident when properly re-
strained by a child restraint sys-
tem.
1- 24 FEATURES OF YOUR HYUNDAI
B150G01A-AAT
B160B01A-AAT
would be applied there, not at your
Do Not Lie Down
Periodic Inspection
pelvic bones.
To reduce the chance of injuries in the
It is recommended that all seat belts
This could cause serious internal
event of an accident, and to achieve
be inspected periodically for wear or
injuries.
maximum effectiveness of the restraint
For proper protection when the ve-
damage of any kind. Parts of the sys-
system, all passengers should be sit-
tem that are damaged should be re-
hicle is in motion, have the seatback
ting up and the front seats should be in
placed as soon as possible.
upright. Then sit back in the seat
an upright position when the car is
and wear your seat belt properly. See
moving. A seat belt cannot provide
page 1-27.
B160C01A-AAT
proper protection if the person is lying
Keep Belts Clean and Dry
down in the rear seat or if the front seat
is in a reclined position.
B160A01A-AAT
Seat belts should be kept clean and
CARE OF SEAT BELTS
dry. If belts become dirty, they can be
cleaned by using a mild soap solution
!
Seat belt systems should never be
WARNING:
and warm water. Bleach, dye, strong
disassembled or modified. In addition,
Sitting in a reclined position or ly-
detergents or abrasives should not be
care should be taken to assure that
ing down when your vehicle is in
used because they may damage and
seat belts and belt hardware are not
motion can be dangerous. Even if
weaken the fabric.
damaged by seat hinges, doors or
you buckle up, your seat belts can't
other abuse.
do their job when you're reclined.
B160D01A-AAT
The shoulder belt can't do its job
!
When to Replace Seat Belts
because it won't be against your
WARNING:
body. Instead, it will be in front of
Entire in-use seat belt assembly or
When you return the rear seatback
you. In a crash you could go into it
assemblies should be replaced if the
to its upright position after the rear
with great force, receiving serious
vehicle has been involved in an acci-
seatback was folded down, be care-
neck or other injuries.
dent. This should be done even if no
ful not to damage the seat belt web-
The lap belt can't do its job either. In
damage is visible. Additional ques-
bing or buckle. Be sure that the
a crash the belt could go up over
tions concerning seat belt operation
webbing or buckle does not get
your abdomen. The belt forces
should be directed to your Hyundai
caught or pinched in the rear seat.
Dealer.
FEATURES OF YOUR HYUNDAI 1- 25
B170A04A-AAT
B180A03A-GAT
lower it, push it down while pressing the
HEIGHT ADJUSTABLE FRONT
SEAT BELTS 3-Point System
height adjuster button.
SEAT SHOULDER BELT
Release the button to lock the anchor
with Emergency Locking Retrac-
(If Installed)
into position. Try sliding the release
tor (If Installed)
button to make sure that it has locked

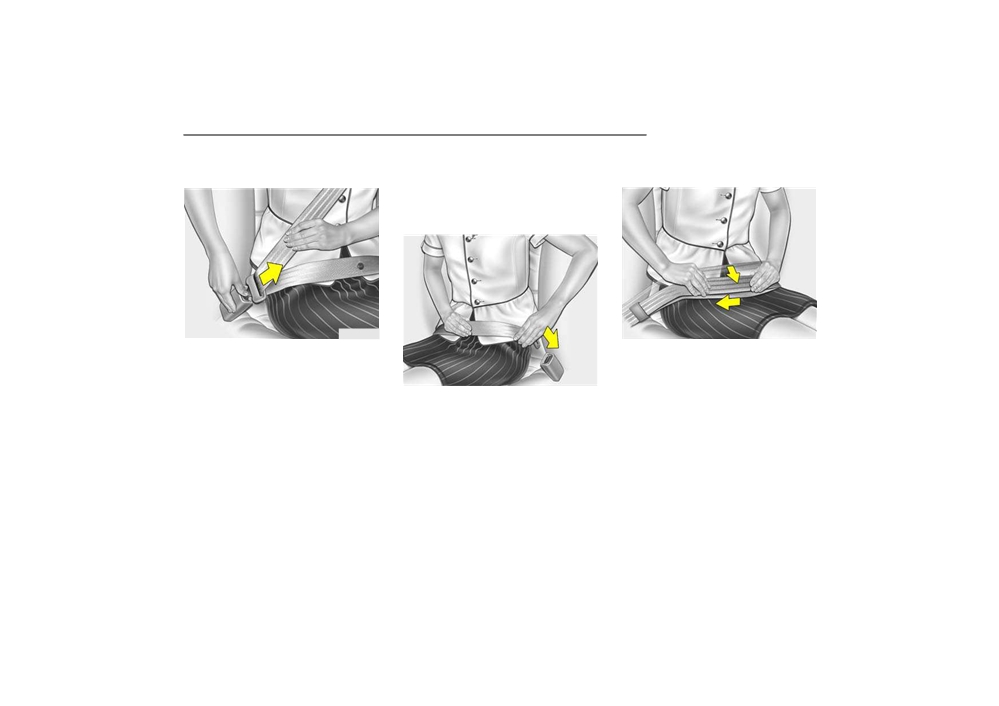

To Fasten Your Belt
into the position.
!
WARNING:
o The height adjuster must be in
the locked position when the
vehicle is moving.
o The misadjustment of height of
the shoulder belt could reduce
the effectiveness of the seat belt
B170A01L
in a crash.
You can adjust the height of the shoul-
B180A01NF
der belt anchor to one of the 4 posi-
To fasten your seat belt, pull it out of the
tions.
retractor and insert the metal tab into
If the height of the adjusting seat belt is
the buckle. There will be an audible
too near your neck, you will not be
"click" when the tab locks into the
getting the most effective protection.
buckle.
The shoulder portion should be ad-
The seat belt automatically adjusts to
justed so that it lies across your chest
the proper length only after the lap belt
and midway over your shoulder nearest
is adjusted manually so that it fits
the door and not your neck.
snugly around your hips. If you lean
To adjust the height of the seat belt
forward in a slow, easy motion, the belt
anchor, lower or raise the height ad-
will extend and let you move around. If
juster into an appropriate position. To
there is a sudden stop or impact, how-
raise the height adjuster, pull it up. To
ever, the belt will lock into position.
1- 26 FEATURES OF YOUR HYUNDAI
B265E01TB-GAT
B200A01S-GAT
It will also lock if you try to lean forward
Seat Belt Warning Light and
Adjusting Your Seat Belt
too quickly. Check to make sure that
the belt is properly locked and that the
Chime (E.C only)
belt is not twisted.
The seat belt warning light and chime
will activate to the following table.
NOTE:
User (Driver) Condition
If you are not able to pull out the seat
Seat Belt WarningLight
belt from the retractor, firmly pull the
Seat Belt
Ignition Switch
belt out and release it. Then you will
Unbuckled
ON
Stay on until buckled up
be able to pull the belt out smoothly.
Buckled
ON
Come on for 6 seconds
Unbuckled
ON *1
Blink until buckled up
B260E01TB-GAT
Buckled
Seat Belt Warning Light (Except
ON
Blink until buckled up*2
Unbuckled
B200A02NF
E.C)
*1) When the ignition key is turned from
You should place the belt as low as
The seat belt warning light blinks for
"OFF" position to "ON" within 1
possible on your hips, not on your
about 6 seconds when the ignition key
minute.
waist. If the belt is located too high on
is turned from the "OFF" position to the
*2) If the vehicle speed exceeds 9km/
your body, you could slide under it in
"ON".
h, the seat belt chime also sounds
case of accident or a sudden stop.
for about 1~2 minutes.
This could result of death, serious
If the vehicle speed is below 9km/h,
injury or property damage. Both arms
1 minute later the seat belt chime
should not be under or over the belt.
also sounds for about 1~2 minutes.
Rather, one should be over and the
other under, as shown in the illustration.
NOTE:
Never wear the seat belt under the arm
If the driver's seat belt is operated in
nearest the door.
this order "unbuckled buckled
unbuckled buckled unbuck-
led" within 9 seconds after the seat
belt is buckled, the seat belt warning
light and chime will not activate.
FEATURES OF YOUR HYUNDAI 1- 27
B210A01A-AAT
B220A01A-AAT
B220B01A-AAT
To Release the Seat Belt
SEAT BELTS (2-Point Static
Adjusting Your Seat Belt
Type) (Rear Seat Center)
(If Installed)
To Fasten Your Seat Belt
Too
high
Correct
B210A01NF
B220B01NF
The seat belt is released by pressing
With a 2-point static type seat belt, the
the release button in the locking buckle.
length must be adjusted manually so it
When it is released, the belt should
B220A04NF
fits snugly around your body. Fasten
automatically draw back into the re-
the belt and pull on the loose end to
To fasten a 2-point static type belt,
tractor.
tighten. The belt should be placed as
insert the metal tab into the locking
If this does not happen, check the belt
low as possible on your hips, not on
buckle. There will be an audible "click"
to be sure it is not twisted, then try
your waist. If the belt is too high, it
when the tab locks into the buckle.
again.
could increase the possibility of your
Check to make sure the belt is properly
being injured in an accident.
locked and that the belt is not twisted.
1- 28 FEATURES OF YOUR HYUNDAI
B220C01A-AAT
B220D02Y-GAT
To Release the Seat Belt
SEAT BELTS
- Rear Seat
Center's 3-Point System With
Emergency Locking Retractor
(If installed)
(c)
(a)
B220A02Y-D
(d)
your hips. If you lean forward in a slow,
B220C01TB
(b)
easy motion, the belt will extend and
When you want to release the seat belt,
let you move around. If there is a
press the button in the locking buckle.
sudden stop or impact, the belt will lock
B220D01TB
into position. It will also lock if you try to
lean forward too quickly.
1. Before fastening the rear seat center
belt, confirm the metal tab (a) and
!
WARNING:
buckle (b) are latched together.
The center lap belt latching mecha-
2. After confirming that (a) and (b) are
nism is different from those for the
latched, pull the seat belt out of the
rear seat shoulder belts. When fas-
retractor and insert the metal tab (c)
tening the rear seat shoulder belts
into the buckle (d).
or the center lap belt, make sure
they are inserted into the correct
There will be an audible "click" when
buckles to obtain maximum protec-
the tab locks in the buckle. The seat
tion from the seat belt system and
belt automatically adjusts to the proper
assure proper operation.
length only after the lap belt is adjusted
manually so that it fits snugly around
