Hyundai Creta (2016 year). Instruction - part 27

Inner Compartment Fuse Panel

ITEM

Name

Symbol

Fuse Rating

Circuit Protected

RR HTD

30A

Rear Defogger Relay, Rear Defogger

TURN

15A

Body Control Module

SPARE

20A

-

DOOR LOCK

20A

Door Lock/Unlock Relay, Door Actuator, Tail Gate Unlock Relay, Tail Gate Latch

PDM1

15A

Smart Key Control Module

WASHER

15A

Multi Function Switch

FUSE

A/CON

10A

Air Condition Module(Manual, Auto), Cluster Ionizer, Blower Relay

MODULE 5

02'8/(

10A

Electronic chromic mirror, Head lamp leveling Switch, Head Lamp LH/RH

7

MODULE 4

02'8/(

10A

Smart key Control Module, Body Control Module

SPARE

20A

-

SPARE

20A

-

2

PDM 2

10A

Smart Key Control Module

2

* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-69

Maintenance

ITEM

Name

Symbol

Fuse Rating

Circuit Protected

BRAKE

10A

Stop Lamp Switch, Smart Key Control Module

SWITCH

HTD IND

10A

A/C Control Module (Manual, Auto), G4FC : ECU(MT), PCU(AT)

1

BLOWER

10A

AC Control Module (Auto)

REAR WIPER

10A

Rear Wiper Motor, Rear Wiper Relay

SPARE

10A

-

SPARE

15A

-

Digital Clock, Body Control Module, AC Control Module (Auto, Manual), Cluster,

FUSE

MEMORY

10A

Outside Mirror Folding , OBD

MULTIMEDIA

20A

Audio

SPARE

10A

-

C_LIGHTER

20A

Cigar lighter (Export only)

INTERIOR LP

10A

Room Lamp, MAP Lamp, Luggage Lamp

BLOWER

2

10A

AC Control Module (Manual)

SIGNAL

SPARE

20A

-

* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-70

ITEM

Name

Symbol

Fuse Rating

Circuit Protected

Audio, Body Control Module, P/OUTLET Relay, Digital Clock, Smart Key Module,

ACC

ACC

10A

Outside Mirror Switch

P/Seat

30A

Power Seat(Export only)

P/WINDOW

RH

25A

Power Window Main Switch RH(Front, Rear)

RH

FR

POWER

POWER

20A

Front Power Outlet

OUTLET

OUTLET

M/T : Vehicle Speed Sensor, Back Up Lamp Fuse

TCU

15A

A/T : Inhibitor Switch, TCU

2

MODULE 2

MODULE

10A

Body Control Module, Sports Mode Switch(A/T), Stop Switch (NC)

FUSE

3

A/C Control Module(Manual/Auto), Body Control Module(Static Bending LP Power),

MODULE 3

MODULE

10A

ATM Lever Indicator (A/T)

1

MODULE 1

MODULE

10A

Rear Parking Sensor

MDPS

10A

MDPS Unit

7

IND

AIRBAG IND

10A

Instrumental Cluster

SAFETY

SAFETY

25A

Driver Safety Power Window Module

P/WINDOW

P/WINDOW

LH

25A

Power Window Main Switch LH(Front Rear)

LH

* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-71

Maintenance

ITEM

Name

Symbol

Fuse Rating

Circuit Protected

POWER

R

R

POWER

20A

Power Outlet Rear

OUTLET

OUTLET

START

START

10A

PCU/ECU, Inhibitor Switch, Clutch Pedal Assy,Start Relay, Start Inhibitor Relay

S

SENSOR

10A

D4FC, D4FB : Fuel HTR Relay, Fuel Water Sensor

E

FUSE

ENG

10A

Airflow Sensor(D4FB), Smart key Control Module, ECU/PCU(G4FC,D4FC,D4FB)

ABS/ ESC Control Module, Rheostat & ESC Switch, Engine Room Diagnosis

ABS

10A

Connector

AIRBAG

10A

Airbag Control Unit

CLUSTER

CLUSTER

10A

Instrument Cluster

* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-72

Engine compartment fuse panel

■ Gasoline Engine

OGS075017

Inside the fuse/relay panel covers, you

can find the fuse/relay label describing

fuse/relay name and capacity.

i

Information

Not all fuse panel descriptions in this

7

manual may be applicable to your

vehicle. It is accurate at the time of

printing. When you inspect the fuse

panel in your vehicle, refer to the fuse

panel label

OGS075024

7-73

Maintenance

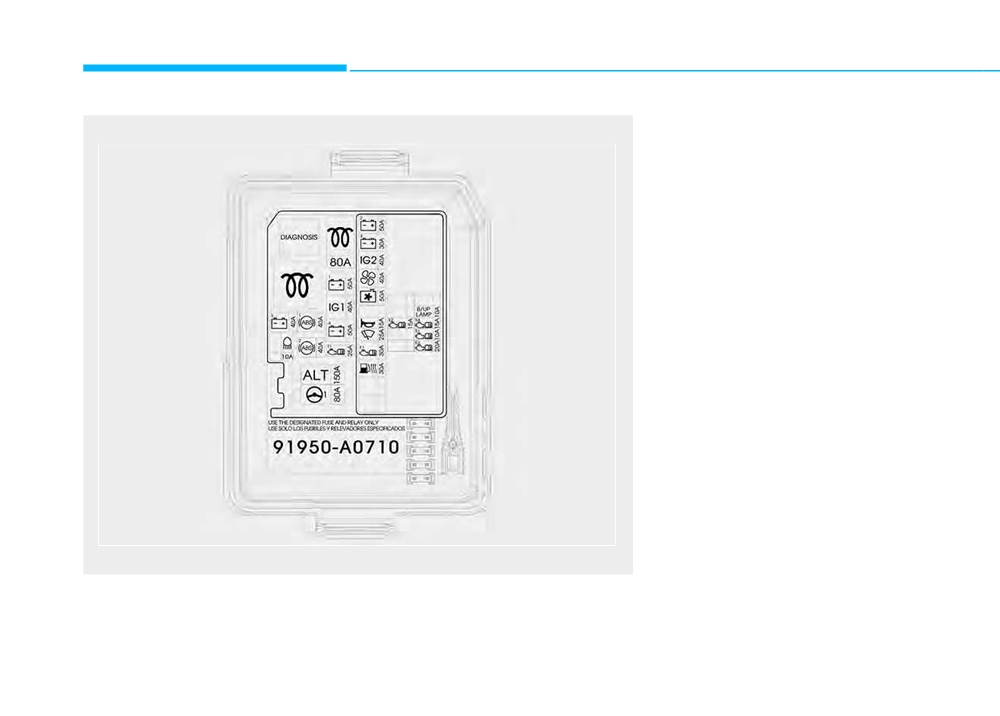

■ Diesel Engine

OGS075025

7-74

Engine Compartment Fuse Panel

Item

Name

Symbol

Fuse Rating

Circuit Protected

MDPS

80A

MDPS(Motor Power Steering)

MULTI

FUSE

G4FC (125A): Alternator, Battery, All Fuses connected to Alternator fuse

ALT

ALT

125A/150A

D4FC/D4FB (150A): Alternator, Battery, All Fuses connected to Alternator fuse

G4FC(10A): ECU (M/T), PCU(A/T)

E2

ECU 2

10A/15A

D4FC(15A): CAM SNSR, Glow RLY, WGT,EGR Control Valve, Air Flow SNSR, IMMO

D4FB (15A): CAM SNSR, VGT Vacuum, IMMO

HEAD LAMP

10A

Head Lamp High Solenoid Relay (Bi-Functional Type)

HIGH BEAM

ABS 2

40A

ABS / ESC Control Module

G4FC(25A): ECU (M/T), PCU(A/T)

E4

ECU 4

25A/15A

D4FC(15A): Inlet Meter Valve,

FUSE

D4FB(15A): Glow Plug Relay, Fuel Meter Unit

6

TCU 1

25A

D4FB: TCU(A/T)

7

B+5

40A

Instrument Panel Fuse Block Fuse: FS01

ABS 1

40A

ABS / ESC Control Module, Engine Room Diagnosis

B+4

50A

Instrument Panel Fuse Block Fuse: FS06, IPS-1, IPS-2, IPS-3

* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-75

Maintenance

Item

Name

Symbol

Fuse Rating

Circuit Protected

W/o Button start: Ignition SW

IG1

40A

With Button start: PDM Relay Block

Instrument Panel Fuse Block Fuse: FS14,FS05,FS13,FS17,FS10,FS02,FS09, IOD

B+1

50A

relay(Leakage Current Auto cut)

Glow

80A

D4FC/D4FB: Glow Relay, Glow Plug

FUEL

30A

D4FC/D4FB: Fuel heater

HEATER

'

ECU 1

30A

(Engine Control)Main Relay

FRONT

25A

Wiper Motor(Front)

WIPER

FUSE

HORN

15A

Horn(Dual), Burglar Alarm Horn

FUEL

FUEL PUMP

20A

G4FC: Fuel Pump Relay, Fuel Pump Motor

PUMP

G4FC(40A),Radiator Fan Motor

C/FAN

40A/50A

D4FC/D4FB(50A)-Radiator Fan Motor

BLOWER

40A

Blower Motor

W/o Button Start : Start Relay, Start Solenoid, Ignition SW

IG2

40A

With Button Start : Start Relay, Start Solenoid, PDM Relay Block

B+3

30A

Instrument Panel Fuse Block Fuse: FS04, IPS-4, IPS-5

* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-76

Item

Name

Symbol

Fuse Rating

Circuit Protected

B+2

50A

Instrument Panel Fuse Block Fuse: FS03, P/window Relay, P/Outlet Relay

INJECTOR

INJECTOR

15A

G4FC: Injector(#1,#2,#3,#4)

BACK UP

B/UP LAMP

10A

Back up switch(MT Only), Rear Combination Lamp LH/RH

LAMP

FUSE

IGN COIL

IGN COIL

15A

G4FC: Condenser, Ignition Coil Extn.

G4FC: Variable Intake System Solenoid, Output Variable Cam(IN, EX),Purge

6

SENSOR 1

10A

Control Solenoid Valve, Oxygen Sensor(UP, DN), IMMO

D4FB: Lambda Sensor, Stop SW, EGR Actuator, D4FC: Stop SW

(

D4FC/D4FB: ECU

ECU 3

20A

G4FC: ECU(M/T),PCU(A/T)

Relay

Glow

D4FC/D4FB: Glow Plug

* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7

7-77

Maintenance

lIGhT BulBS

Consult an authorized HYUNDAI

i

Information

WARNING

dealer to replace most vehicle light

bulbs. It is difficult to replace vehicle

After heavy driving, rain or washing

headlight and taillight lenses could

Prior to replacing a light, depress

light bulbs because other parts of the

appear frosty. This condition is caused

the foot brake, move the shift lever

vehicle must be removed before you

by the temperature difference between

into the P

(Park, for automatic

can get to the bulb. This is especially

the lamp inside and outside.

transaxle vehicle) or neutral

(for

true for removing the headlight

manual transaxle vehicle), apply

assembly to get to the bulb(s).

This is similar to the condensation on

the parking brake, place the igni-

Removing/installing the headlight

your windows inside your vehicle dur-

tion switch in the LOCK/OFF posi-

assembly can result in damage to

ing the rain and doesn’t indicate a

tion, and take the key with you

the vehicle.

problem with your vehicle. If the

when leaving the vehicle to avoid

water leaks into the lamp bulb circuit-

sudden movement of the vehicle

ry, we recommend that the system be

and to prevent possible electric

checked by an authorized HYUNDAI

shock.

dealer.

Be aware the bulbs may be hot

and may burn your fingers.

NOTICE

Be sure to replace the burned-out

bulb with one of the same wattage

rating. Otherwise, it may cause dam-

age to the fuse or electric wiring sys-

tem.

7-78

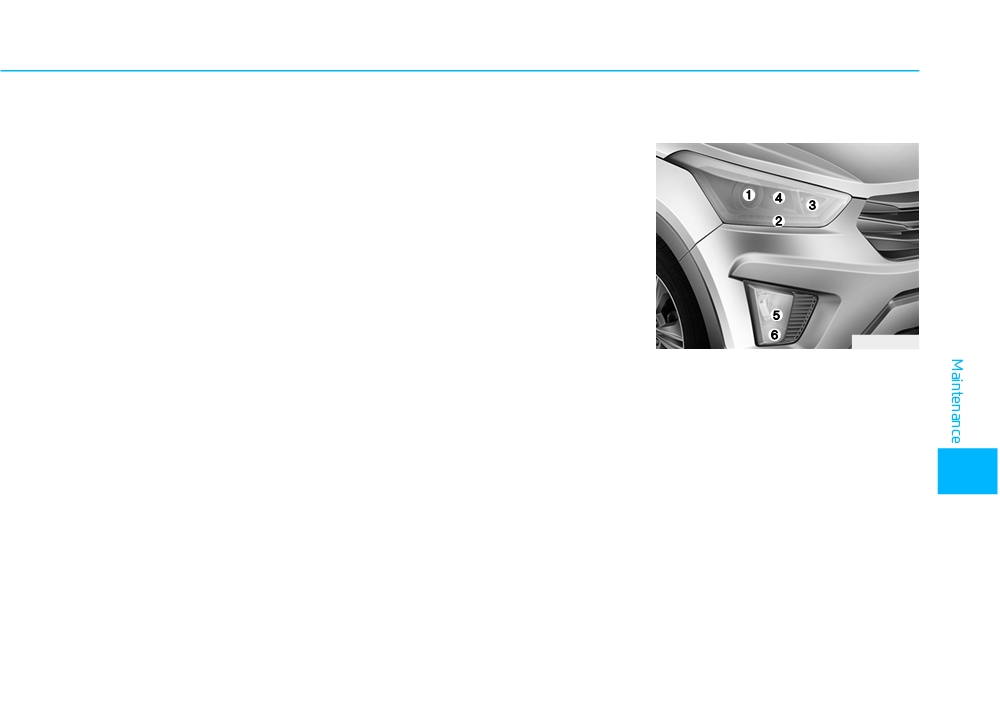

Headlight, position light, turn sig-

•

Always handle them carefully,

nal light, static bending light and

and avoid scratches and abra-

front fog light bulb replacement

sions. If the bulbs are lit, avoid

Type A

contact with liquids. Never touch

the glass with bare hands.

(1) Headlight (Low/High)

Residual oil may cause the bulb

to overheat and burst when lit. A

bulb should be operated only

when installed in a headlight.

•

If a bulb becomes damaged or

cracked, replace it immediately

OLMB073042L

and carefully dispose of it.

•

Wear eye protection when

WARNING

changing a bulb. Allow the bulb

to cool down before handling it.

Halogen bulbs

• Halogen bulbs contain pressur-

OGS075054

ized gas that will produce flying

(2) Parking (Position) light

pieces of glass if broken.

(3) Front turn signal light

(Continued)

7

i

Information

(4) Front fog light (if equipped)

(Continued)

If the headlight aiming adjustment is

(5) Daytime running light

necessary after the headlight assembly

(if equipped)

is reinstalled, consult an authorized

HYUNDAI dealer.

7-79

Maintenance

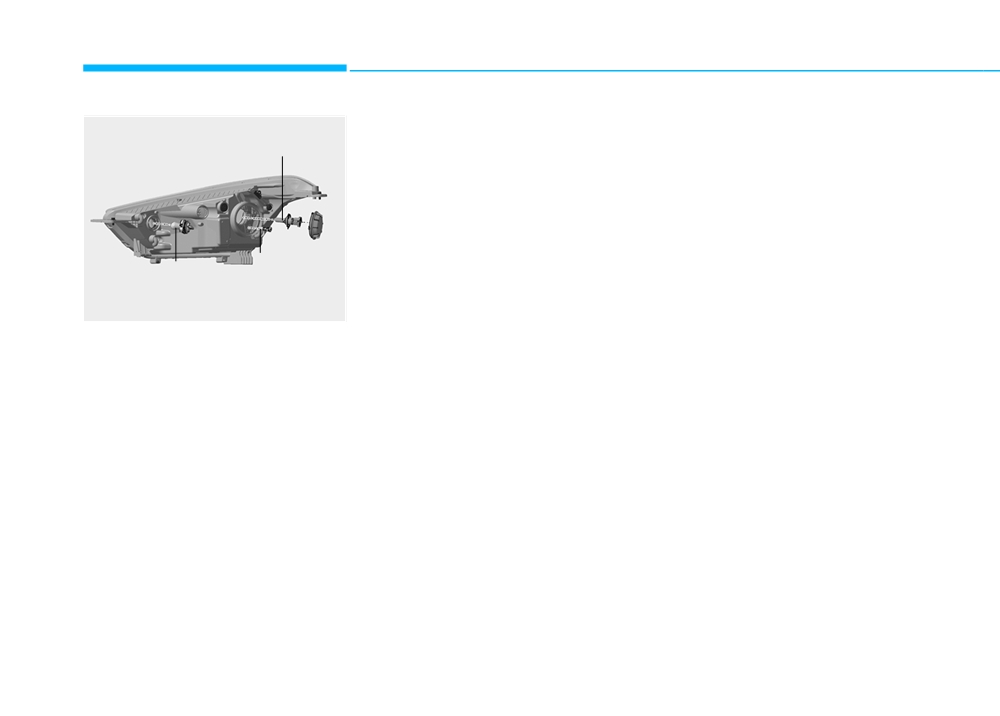

6. Install a new headlight bulb and

Turn signal light

snap the headlight bulb retaining

Headlight

1. Remove the turn signal light bulb

wire into position by aligning the

cover by turning it counterclock-

wire with the groove on the bulb.

wise.

7. Connect the headlight bulb socket

2. Remove the socket from the

connector.

assembly by turning the socket

8. Install the headlight bulb cover by

counterclockwise until the tabs on

turning it clockwise.

the socket align with the slots on

Parking

Turn signal light

the assembly.

(Position) light

3. Insert a new bulb by inserting it

into the socket and rotating it until

OGS075050

it locks into place.

Headlight (Low/High)

4. Install the socket in the assembly

1. Open the hood.

by aligning the tabs on the socket

with the slots in the assembly.

2. Remove the headlight bulb cover

Push the socket into the assembly

by turning it counterclockwise.

and turn the socket clockwise.

3. Disconnect the headlight bulb

5. Install the turn signal light bulb

socket-connector.

cover by turning it clockwise.

4. Unsnap the headlight bulb retain-

ing wire by depressing the end

and pushing it upward.

5. Remove the bulb from the head-

light assembly.

7-80

Parking (Position) light

Front fog light bulb replacement

Type B

1. Remove the socket from the

1. Remove the under cover by rotat-

assembly by pulling it straight out.

ing the screws and bolts.

2. Remove the bulb from the socket

2. Reach your hand into the back of

by pulling it out.

the front bumper.

3. Insert a new bulb by inserting it

3. Disconnect the power connector

into the socket.

from the socket.

4. Install the socket in the assembly

4. Remove the bulb-socket from the

by pushing it in.

housing by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the housing.

OGS075055

5. Install the new bulb-socket into the

housing by aligning the tabs on

(1) Headlight (Low/High)

the socket with the slots in the

(2) Parking (Position) light

housing. Push the socket into the

(3) Front turn signal light

housing and turn the socket clock-

wise.

(4) Static bending light

6. Connect the power connector to

(5) Front fog light (if equipped)

the socket.

(6) Daytime running light

7

7. Reinstall the front bumper under

(if equipped)

cover.

7-81

Maintenance

Headlight (Low/High) and static

•

Always handle them carefully,

bending light replacement

and avoid scratches and abra-

sions. If the bulbs are lit, avoid

contact with liquids. Never touch

Low/High

the glass with bare hands.

Turn signal

Residual oil may cause the bulb

to overheat and burst when lit. A

bulb should be operated only

when installed in a headlight.

•

If a bulb becomes damaged or

cracked, replace it immediately

OLMB073042L

and carefully dispose of it.

Static bending light

•

Wear eye protection when

WARNING

changing a bulb. Allow the bulb

OGS075051

to cool down before handling it.

Halogen bulbs

1. Open the hood.

2. Remove the headlight bulb cover

• Halogen bulbs contain pressur-

by turning it counterclockwise.

ized gas that will produce flying

pieces of glass if broken.

3. Disconnect the headlight bulb

socket-connector.

(Continued)

i

Information

4. Unsnap the headlight bulb retain-

(Continued)

ing wire by depressing the end

If the headlight aiming adjustment is

necessary after the headlight assembly

and pushing it upward.

is reinstalled, consult an authorized

5. Remove the bulb from the head-

HYUNDAI dealer.

light assembly.

7-82

Maintenance

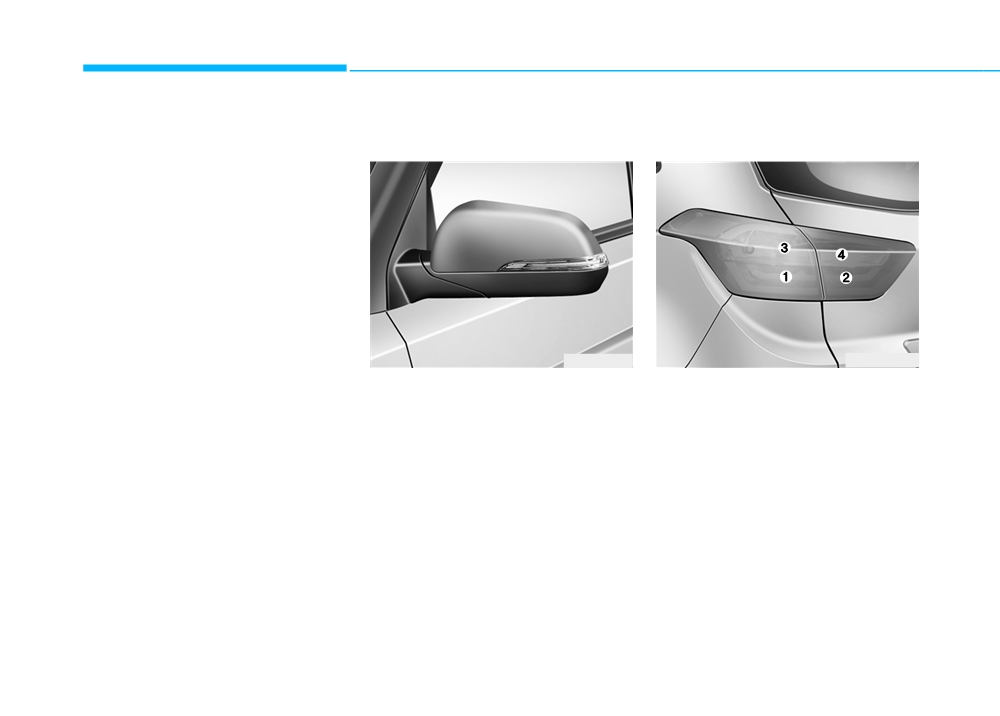

Parking (Position light)

Side repeater lamp bulb replace-

Rear combination light bulb

If the light does not operate, we rec-

ment (if equipped)

replacement

ommend that the vehicle be checked

by an authorized HYUNDAI dealer.

OGC074024

OGC074025

If the light bulb does not operate, we

(1) Stop/Tail light

recommend that you checked an

(2) Tail light

authorized HYUNDAI dealer.

(3) Rear turn signal light

(4) Back-up light

7-84

Outside light

Inside lamp

Turn signal

Back up

Stop/Tail

Tail

OGC074026

OGC074046

OGC074028

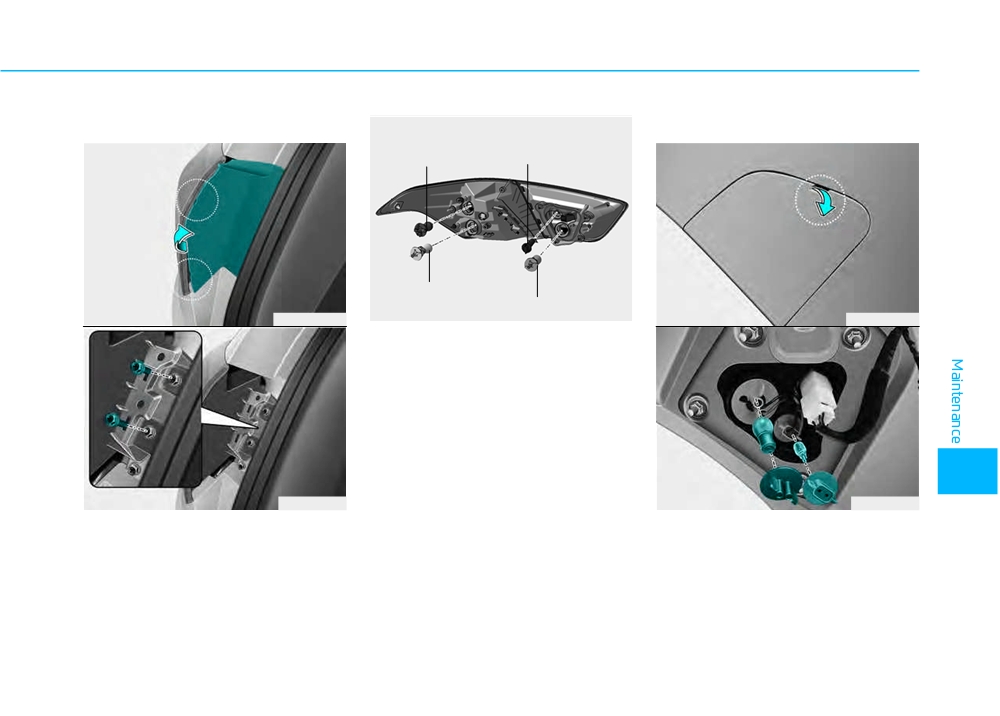

4. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on

the assembly.

5. Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on

7

the bulb align with the slots in the

socket. Pull the bulb out of the

OGC074027

OGC074029

socket.

Back-up light/Tail light

1. Open the tailgate

2. Loosen the light assembly retain-

1. Turn off the engine.

ing screws with a cross-tip screw-

2. Open the tailgate.

driver.

3. Remove the service cover using a

3. Remove the rear combination light

flat-blade screwdriver.

assembly from the body of the

vehicle.

7-85

Content   ..  25  26  27  28   ..
