Operation Tips
o If the interior of the car is hot when
you first get in, open the windows for
a few minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closed
to keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. This
increases engine speed, which in
turn increases the speed of the air
conditioning compressor.
o On steep grades, turn the air condi-
tioning off to avoid the possibility of
the engine over-heating.
o During winter months or in periods
when the air conditioning is not used
regularly, run the air conditioning once
every month for a few minutes. This
will help circulate the lubricants and
keep your system in peak operating
condition.
1 FEATURES OF YOUR HYUNDAI
AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
96
B970A01Y-AAT
B970B04GK-GAT
(If lnstalled)
Heating and Cooling Controls
Your Hyundai is equipped with an auto-
matic heating and cooling control sys-
tem controlled by simply setting the
desired temperature.
OGK046057C

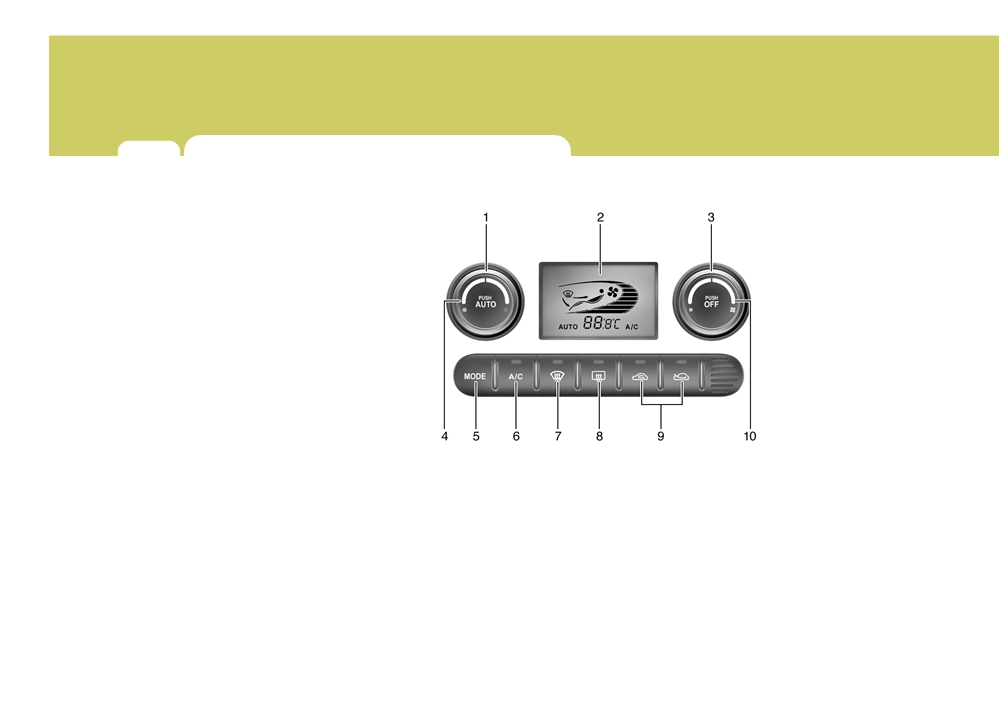

1. Temperature Control Button
6. Air Conditioning Switch
2. Display Window
7. Defroster Switch
3. Blower Fan Control
8. Rear Window Defroster Switch
4. AUTO (Automatic Control)Switch
9. Air lntake Control Switch
5. Air Flow Control Switch
10.OFF Switch
FEATURES OF YOUR HYUNDAI
1
97
B970C01NF-GAT
NOTE:
Automatic Operation
If the battery has been discharged or
disconnected, the temperature mode
will reset to Centigrade degrees.
This is a normal condition and you
can change the temperature mode
from Centigrade to Fahrenheit as
follows;

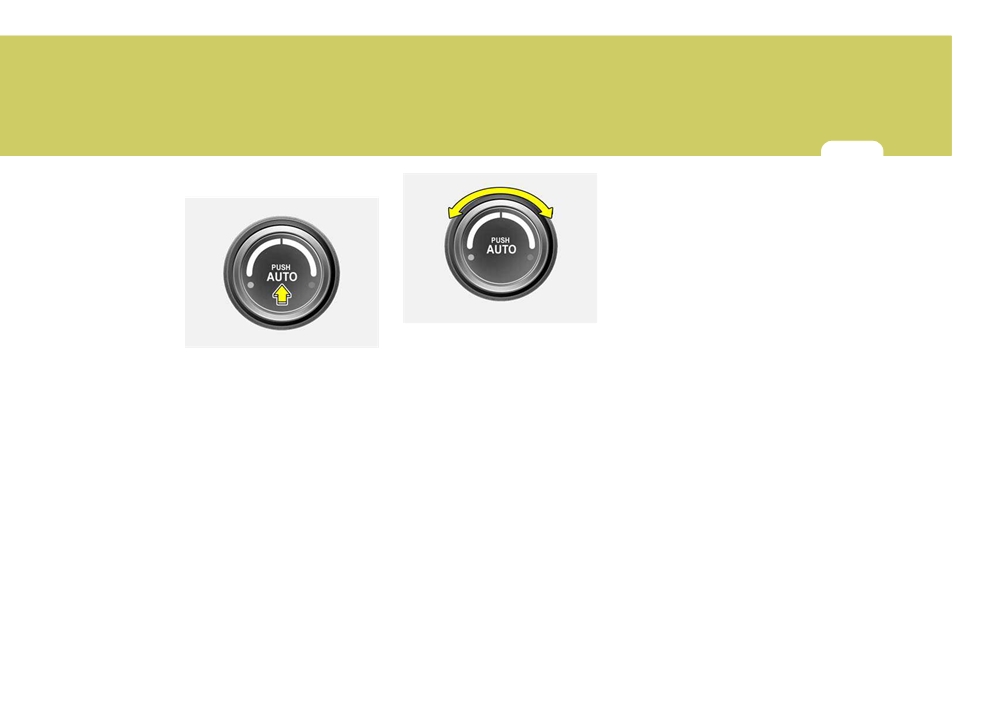

Press the "OFF" and "AUTO " switch
simultaneously for 3 seconds.
The display shows that the unit of
OGK046061
temperature is adjusted to Centigrade
2. Turn the "TEMP" knob to set the
or Fahrenheit (°C °F or °F °C).
OGK046058
desired temperature.
The FATC (Full Automatic Tempera-
The temperature will increase to the
ture Control) system automatically con-
maximum 32°C(90°F) by turning the
trols heating and cooling by doing as
knob clockwise.
follows:
The temperature will decrease to the
minimum 17°C(62°F) by turning the
1. Push the "AUTO" switch. The indi-
knob counterclockwise.
cator light will illuminate confirming
that the Face, Floor and/or Bi-Level
modes as well as the blower speed
and air conditioner will be controlled
automatically.
1 FEATURES OF YOUR HYUNDAI
98
B995A01GK-GAT
B980A01Y-AAT
Photo Sensor
Outside Temperature Switch
MANUAL OPERATION
The heating and cooling system can be
controlled manually as well by pushing
buttons other than the "AUTO" button.
In this state, the system sequentially
works according to the order of buttons
selected.
The function of the buttons which are
not selected will be controlled automati-
cally.
1JBA4067
Press the "AUTO" button in order to
NOTE:
convert to automatic control of the sys-
OGK046066

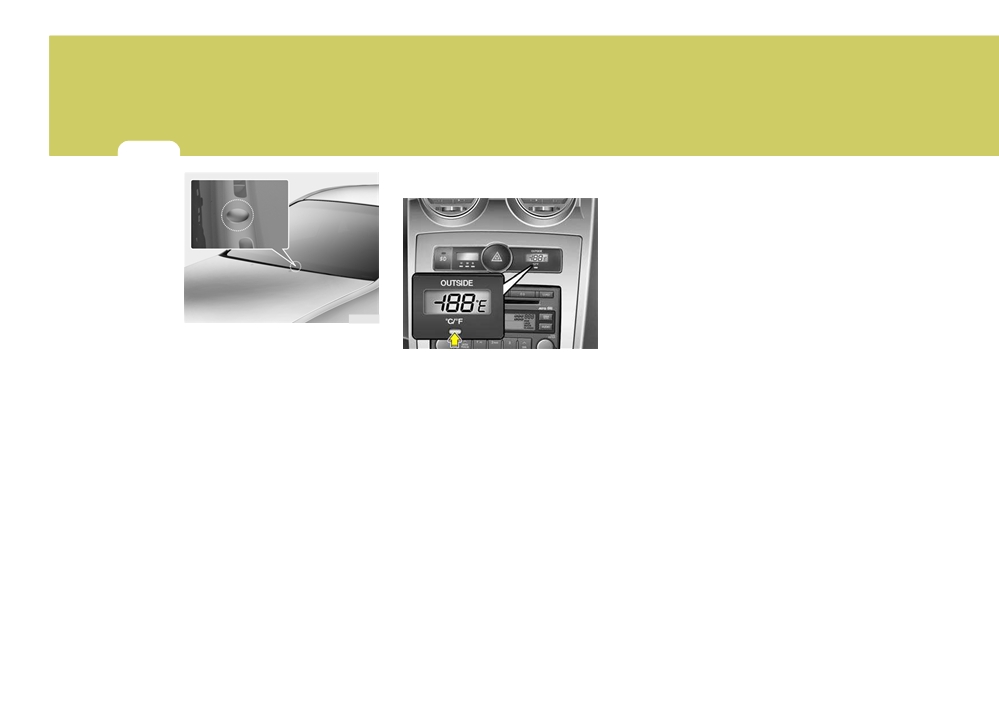

Never place anything over the sen-
tem.
sor which is located on the instru-
Press the button, the display show that
ment panel to ensure better control
the unit of outside temperature is ad-
of the heating and cooling system.
justed to centigrade or fahrenheit (°C
°F or °F °C).
FEATURES OF YOUR HYUNDAI
1
99
B980B01NF-AAT
B670C02GK-AAT

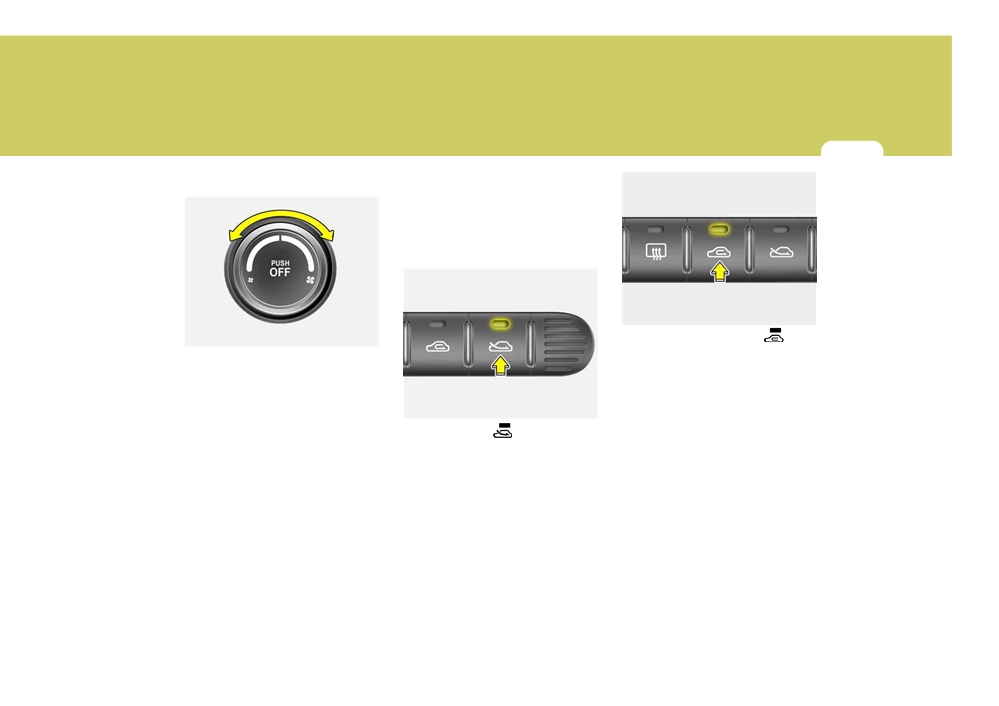

Fan Speed Control
Air Intake Control Switch
This is used to select fresh outside air
or recirculation inside air.
To change the air intake control mode,
(Fresh mode, Recirculation mode) push
the control button.
OGK046062L
RECIRCULATION MODE (
) : The
OGK046064
indica-tor light on the button is illumi-
The fan speed can be set to the desired
nated when the air intake control is in
speed by turning the fan speed control
recirculation mode.
knob. The higher the fan speed is, the
more air is delivered. Pressing the "OFF"
With the "Fresh" mode selected, air
switch turns off the fan.
OGK046063L
enters the vehicle from the outside and
is heated or cooled according to the
FRESH MODE (
) : The indicator
function selected.
light on the button goes on when the air
intake control is in fresh mode.
With the "Recirculation" mode selected,
air from within the passenger compart-
ment will be drawn through the heating
system and heated or cooled according
to the function selected.
1 FEATURES OF YOUR HYUNDAI
100
B740A01S-AAT
B980D01Y-AAT
NOTE:
Air Conditioning Switch
Heating and Cooling System Off
It should be noted that prolonged
operation of the heating system in
"recirculation" mode will give rise to
fogging of the windshield and side
windows and the air within the pas-
senger compartment will become
stale. In addition, prolonged use of
the air conditioning with the "Recir-
culation" mode selected may result
in the air within the passenger com-
partment becoming excessively dry.
OGK046065
OGK046067

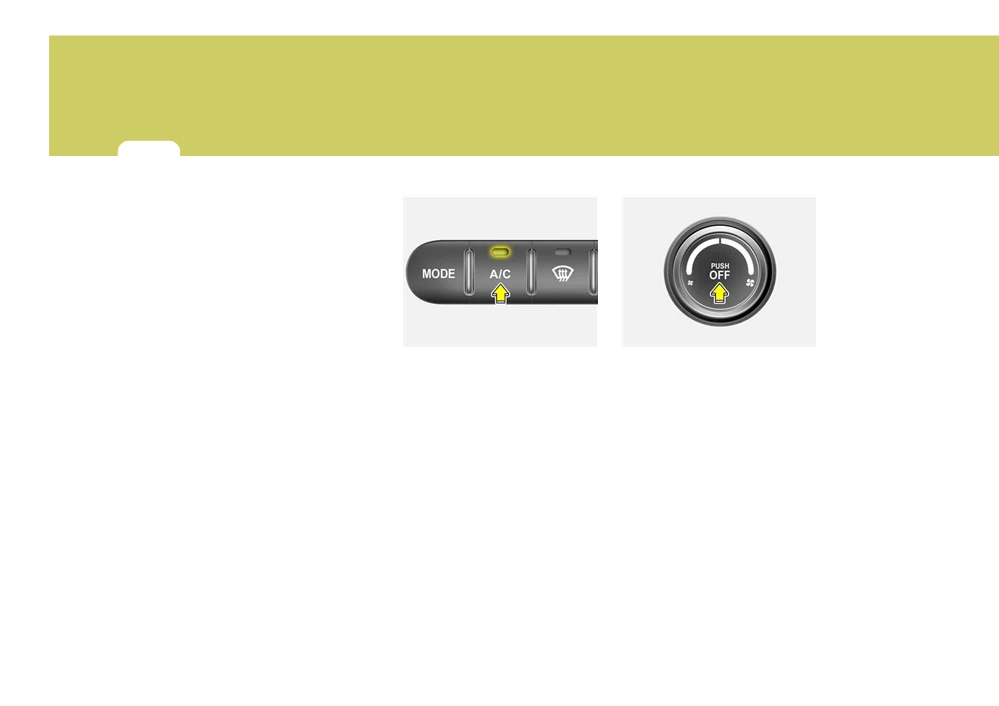

The air conditioning is turned on or off
Press the "OFF" button to stop the
by pushing the A/C button on the heat-
operation of the heating and cooling
ing/air conditioning control panel.
system.
FEATURES OF YOUR HYUNDAI
1
101
B980E01NF-GAT
Air Flow Control
OGK016095
OGK016096
OGK046059

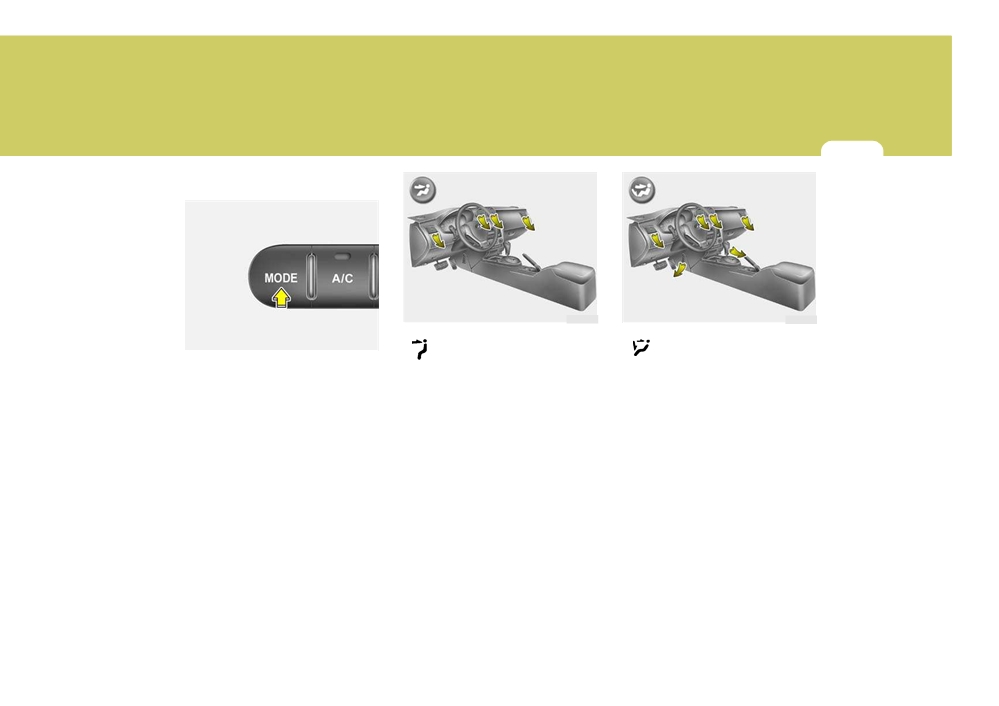

Bi-Level
Face-Level
This is used to direct the flow of air. Air
When selecting the "Bi-Level" mode,
When selecting the "Face" mode, the
can be directed to the floor, dashboard
the indicator light will come on and the
indicator light will come on, causing air
outlets, or windshield. Four symbols
air will be discharged through the face
to be discharged through the face level
are used to represent Face, Bi-Level,
vents and the floor vents. This makes
vents.
Floor, Floor-Defrost position.
it possible to have cooler air from the
dashboard vents and warmer air from
the floor outlets at the same time.
1 FEATURES OF YOUR HYUNDAI
102
B980F01GK-GAT
Defrost Switch
OGK016097
OGK016098
OGK046060
Floor-Level
Floor-Defrost Level

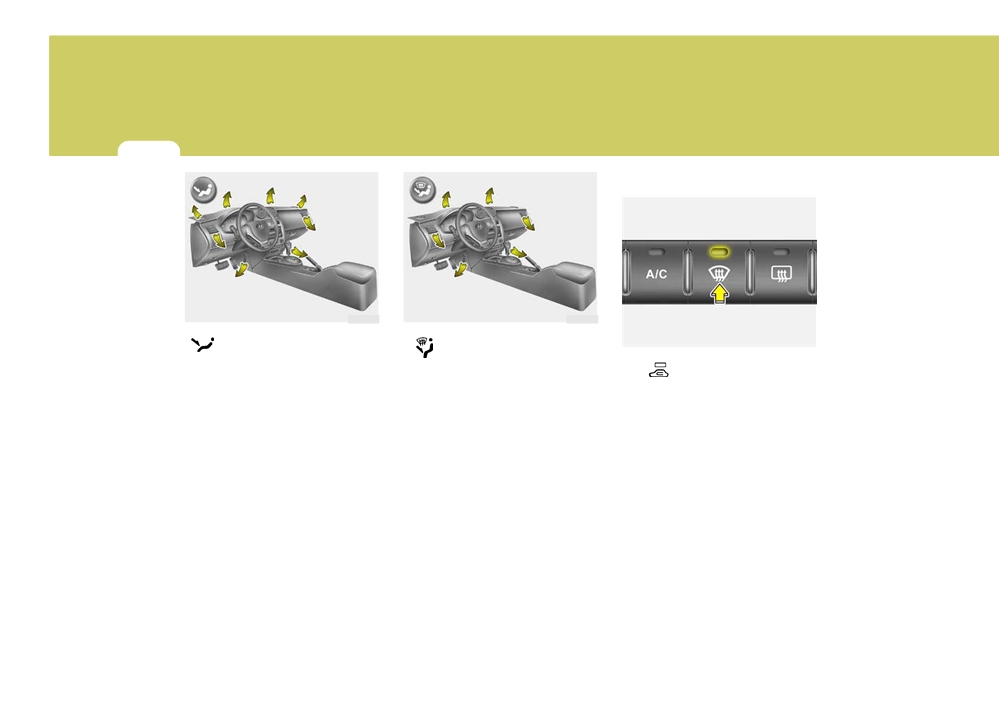

When the "Defrost" button is pressed,
When selecting the "Floor-Level" mode,
When selecting the "Floor-Defrost"
the (
) mode will be automatically
the indicator light will come on and the
mode, the indicator light will come on
selected and the air will be discharged
air will be discharged through the floor
and the air will be discharged through
through the windshield defrost nozzle,
vents, windshield defroster nozzle, side
the windshield defrost nozzle, the floor
side defroster nozzle and side ventila-
defroster nozzle, side ventilator.
vents, side defroster nozzle, side ven-
tor. To assist in defrosting, the air
tilator.
conditioning will operate if ambient tem-
perature is higher than 2°C, and auto-
matically turns off if the ambient tem-
perature drops below 0.5°C.
FEATURES OF YOUR HYUNDAI
1
CLIMATE CONTROL AIR FILTER
ANTENNA
103
(IN FRONT OF BLOWER UNIT)
B760A06GK-GAT
B870A01A-GAT
(If Installed)
Fixed Rod Antenna
!
CAUTION:
Inside air
Outside air
o Replace the filter every 15,000 km
Filter
(10,000 miles) or once a year.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate con-
trol air filter inspections and
changes are required.
Blower fan
o When the air flow rate is decreased,
Inside air
Evaporator core
it must be checked at authorized
dealer.
Heater core
B760A01E
B870A01A

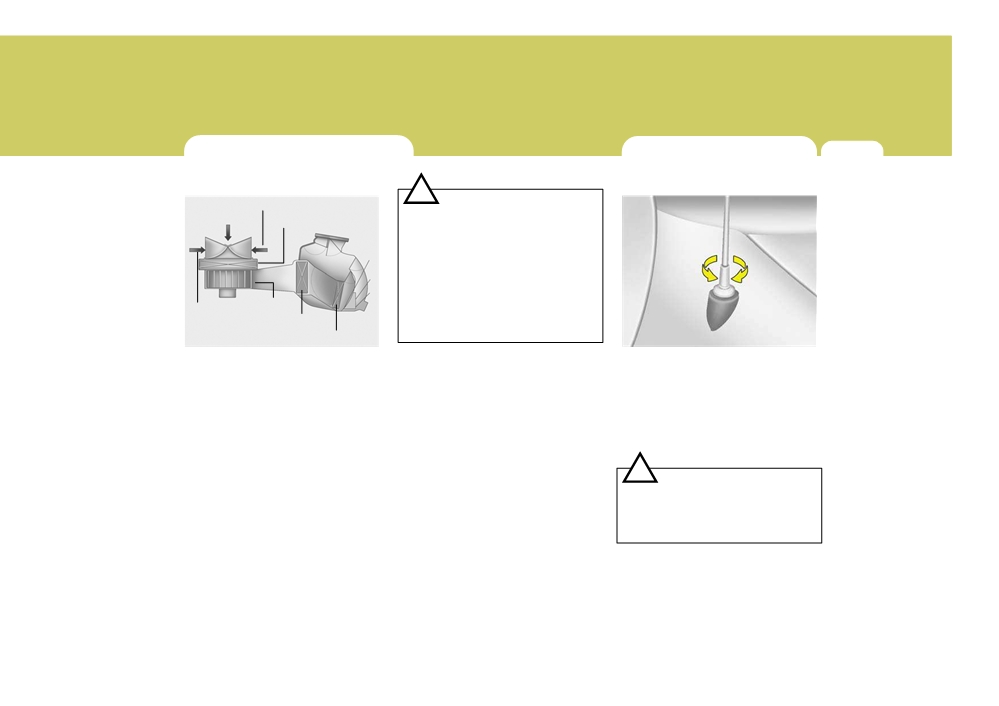

The climate control air filter is located in
Your car uses a fixed rod antenna to
front of the blower unit behind the glove
receive both AM and FM broadcast
box.
signals.
It operates to decrease the amount of
This antenna is a removable type. To
pollutants entering the car.
remove the antenna, turn the antenna
To replace the climate control air filter,
counterclockwise. To install the an-
refer to the page 6-19.
tenna, turn the antenna clockwise.
!
CAUTION:
Be sure to remove the antenna be-
fore washing the car in an automatic
car wash or the antenna may be
damaged.
1 FEATURES OF YOUR HYUNDAI
104
B870D01Y-GAT

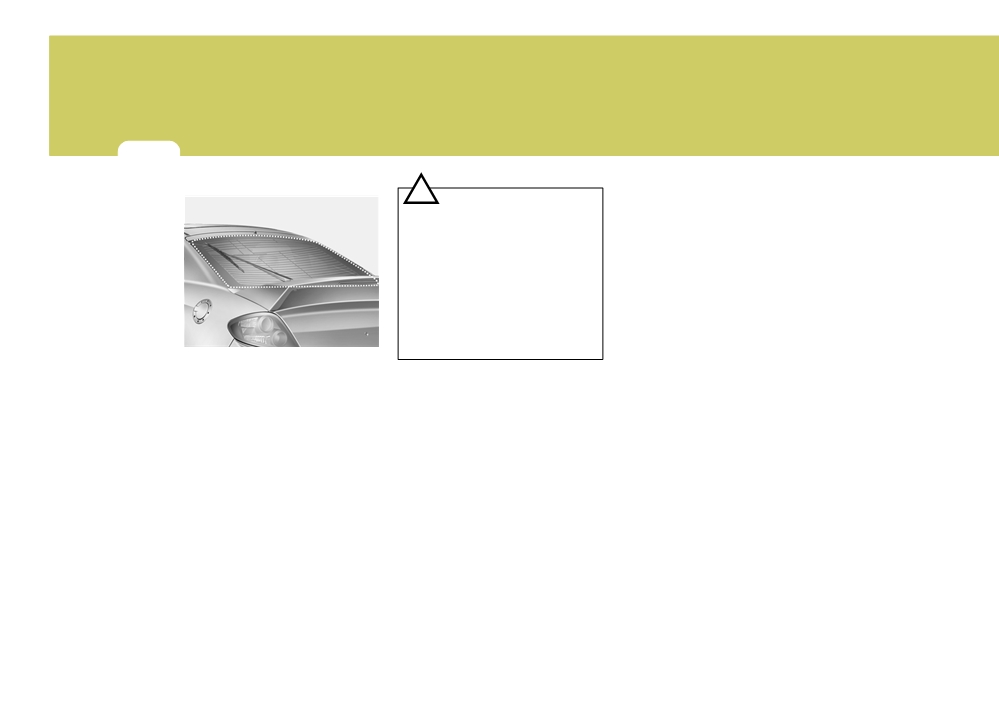

Glass Antenna (If Installed)
!
CAUTION:
o Do not clean the inner side of the
rear window glass with an abra-
sive type of glass cleaner or use a
scraper to remove foreign depos-
its from the inner surface of the
glass as this may cause damage
to the antenna elements.
o Avoid adding metallic coating
(Such as Ni, Cd, and so on). These
can disturb receiving AM and FM
OGK046085
broadcast signals.
When the radio power switch is turned
on while the ignition key is in either the
"ON" or "ACC" position, your car will
receive both AM and FM broadcast
signals through the antenna in the rear
window glass.
FEATURES OF YOUR HYUNDAI
1
STEREO SOUND SYSTEM
105
B750A02A-AAT
AM reception
FM radio station
How Car Audio Works
Ionosphere
FM reception
Mountains
Unobstructed
Ionosphere
area
Buildings
Obstructed area Iron bridges
B750A02L
B750A03L

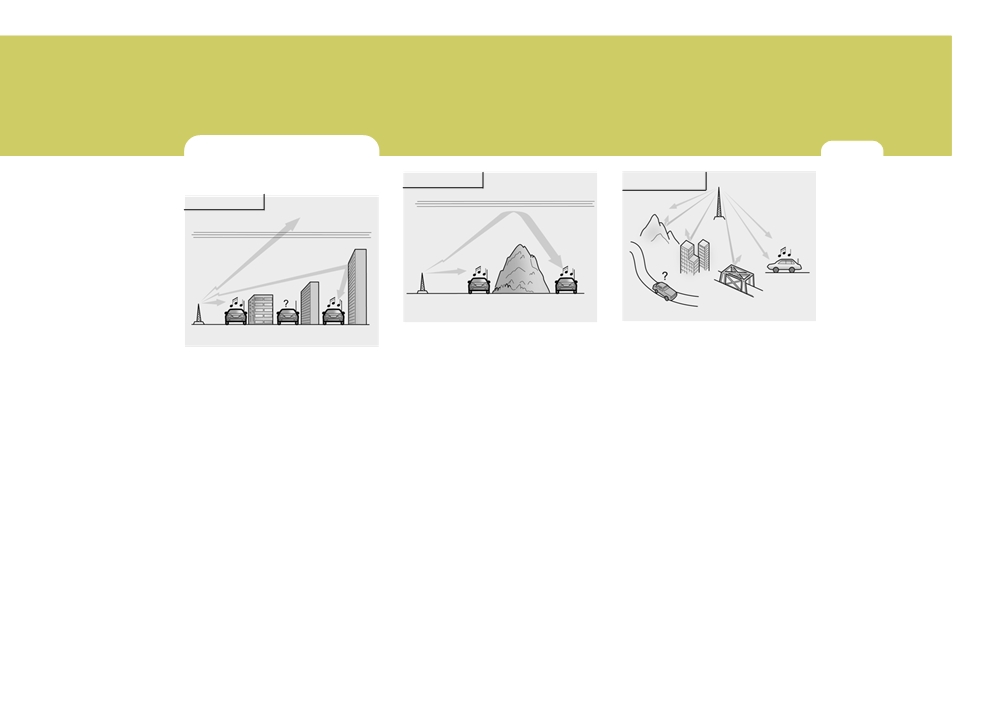

AM broadcasts can be received at
FM broadcasts are transmitted at high
B750A01L
greater distances than FM broadcasts.
frequencies and do not bend to follow
AM and FM radio signals are broadcast
This is because AM radio waves are
the earth's surface. Because of this,
from transmitter towers located around
transmitted at low frequencies. These
FM broadcasts generally begin to fade
your city. They are intercepted by the
long, low frequency radio waves can
at short distances from the station.
radio antenna on your car. This signal is
follow the curvature of the earth rather
Also, FM signals are easily affected by
then received by the radio and sent to
than travelling straight out into the at-
buildings, mountains, or other obstruc-
your car speakers.
mosphere. In addition, they curve
tions. These can result in certain listen-

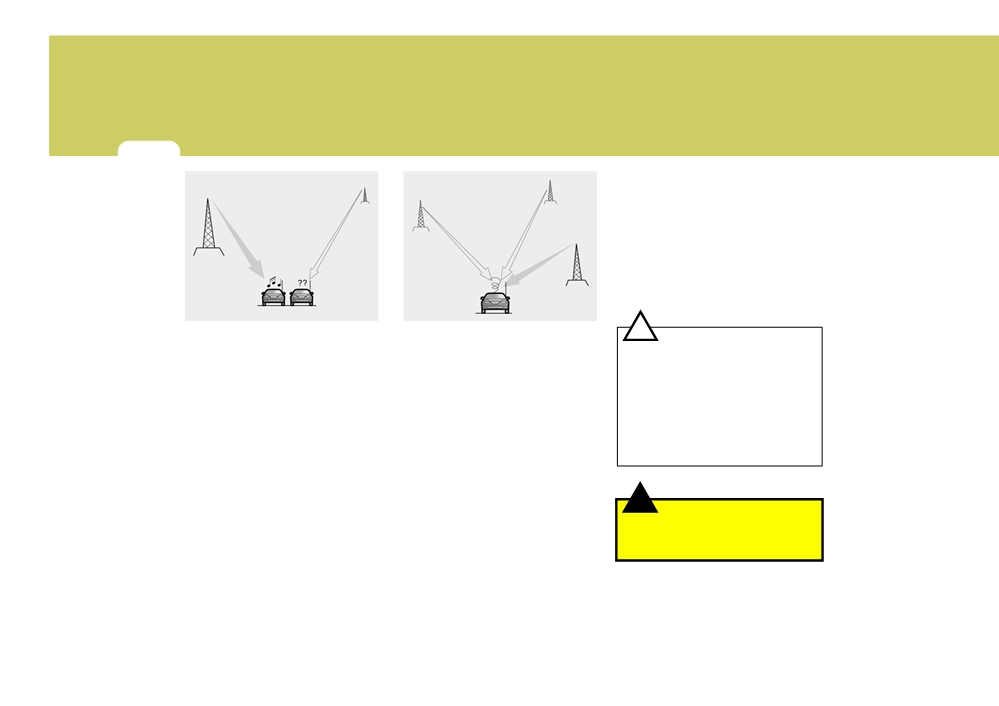

When a strong radio signal has reached
around obstructions so that they can
ing conditions which might lead you to
your vehicle, the precise engineering of
provide better signal coverage.
believe a problem exists with your ra-
your audio system ensures the best
dio. The following conditions are normal
possible quality reproduction. Howev-
and do not indicate radio trouble:
er, in some cases the signal coming to
your vehicle may not be strong and
clear. This can be due to factors such
as the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.
1 FEATURES OF YOUR HYUNDAI
106
B750B02Y-AAT
Using a cellular phone or a two-
way radio
When a cellular phone is used inside
the vehicle, noise may be produced
from the audio equipment. This does
not mean that something is wrong with
the audio equipment. In such a case,
use the cellular phone at a place as far
as possible from the audio equipment.
B750A04L
B750A05L
o
Fading - As your car moves away
weakens, another more powerful sig-
!
CAUTION:
nal near the same frequency may
from the radio station, the signal will
When using a communication sys-
begin to play. This is because your
weaken and sound will begin to fade.
tem such a cellular phone or a radio
radio is designed to lock onto the
When this occurs, we suggest that
set inside the vehicle, a separate
clearest signal. If this occurs, select
you select another stronger station.
external antenna must be fitted. When
o
Flutter/Static - Weak FM signals or
another station with a stronger sig-
a cellular phone or a radio set is used
large obstructions between the trans-
nal.
with an internal antenna alone, it
o
Multi-Path Cancellation - Radio sig-
mitter and your radio can disturb the
may interfere with the vehicle's elec-
signal causing static or fluttering
nals being received from several di-
trical system and adversely affect
noises to occur. Reducing the treble
rections can cause distortion or flut-
safe operation of the vehicle.
level may lessen this effect until the
tering. This can be caused by a
disturbance clears.
direct and reflected signal from the
o
Station Swapping - As a FM signal
same station, or by signals from two
stations with close frequencies. If
!
WARNING:
this occurs, select another station
Don't use a cellular phone when you
until the condition has passed.
are driving. Stop at a safe place to
use a cellular phone.
FEATURES OF YOUR HYUNDAI
1
AUDIO SYSTEM
107
H280A01GK-GAT

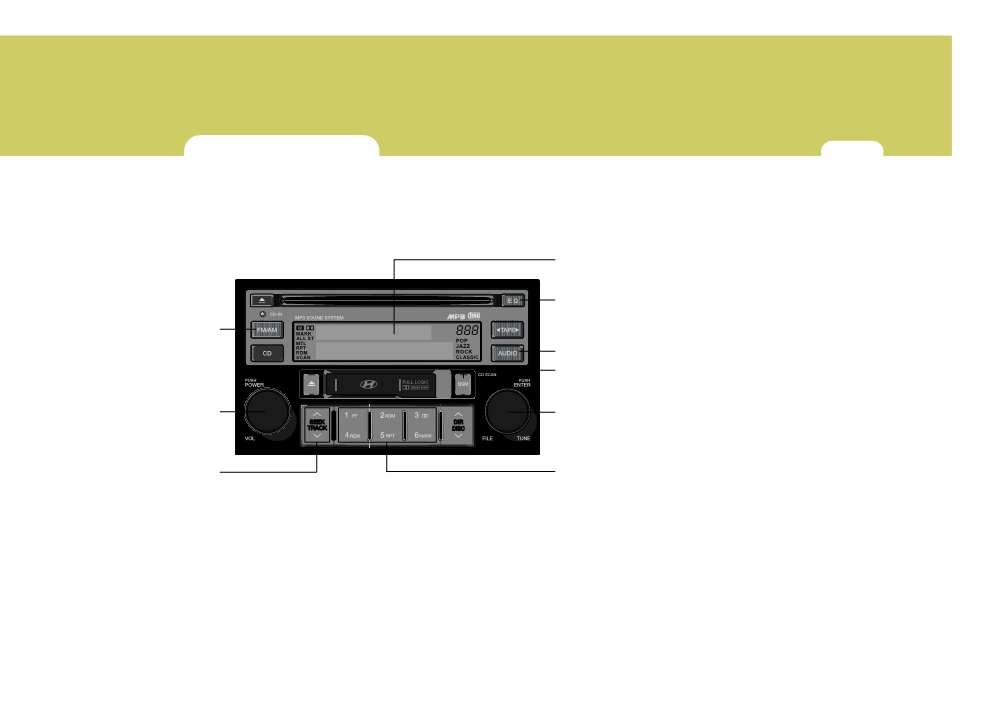

STEREO RADIO OPERATION (H280) (If Installed)
7
1, 2. Power Button and Volume
10
Control
3. Radio Band Selection Button
3
4. Automatic Channel Selection
Memorization Button
8
5. Automatic Channel Selection
Button
4
6. Preset Button
7. Information Display Screen (LCD)
8. AUDIO Select Button
1, 2
9
9. Manual Channel Selection Control
(TUNE Control)
10. EQ Button
5
6
GK_280_UR
1 FEATURES OF YOUR HYUNDAI
108
H280B01GK-GAT
NOTE:
6. Preset Button (1~6)
1. Power Button (POWER ON)
Push this button when the power is
Press this button to listen to the chan-
Press this button when the ignition
off to turn on the power automati-
nels memorized to each button. If you
switch of the automobile is set to ACC
cally.
want to memorize the current channel
(1st notch) or ON (2nd notch) to turn on
to the preset button, press the button
the power and the audio system. Press
4. Automatic Channel Selection
for more than 1.5 seconds then the
once again when the audio system is on
Memorization Button (BSM:
channel will be memorized to the button
to turn off the power.
Best Station Memory)
with a beep.
Press this button once to automatically
2. Volume Control (VOLUME)
7. Information Display Screen
select channels starting from the cur-
Turn the volume control clockwise to
rent channel and memorize into the
(LCD)
increase volume and counterclockwise
preset buttons (1~6) in the selected
A variety of information will be dis-
to reduce. The volume level will be
order and turn to the channel memo-
played on the screen including the radio
displayed on the screen when you ad-
rized in preset button 1.
bands (FM1/FM2/AM) while listening to
just the volume.
the radio, frequency of each channel,
5. Automatic Channel Selection
the number of preset channel and "ST"
3. Radio Band Selection Button
Button (SEEK)
for FM stereo broadcasting.
(FM/AM)
Press the upper side of the button to
o Press this button to listen to either
automatically increase frequency and
FM or AM.
select and play the receivable channel.
o The radio will be set to each of the
Press the lower side of the button to
following modes each time you press
automatically decrease frequency and
the button.
select and play the next available chan-
FM1 ➟ FM2 ➟ AM
nel.
FEATURES OF YOUR HYUNDAI
1
109
8. AUDIO Select Button
9. Manual Channel Selection
Press this button to control tone. Each
Control (TUNE)
time you press the button, the mode will
Turn this controller while listening to the
switch from BASS ➟ MIDDLE ➟
radio to manually adjust frequency. Turn
TREBLE ➟ FADER ➟ BALANCE and
clockwise to increase frequency and
the mode will be displayed on the screen.
counterclockwise to reduce frequency.
BASS
Turn the TUNE Controller
clockwise to increase bass
10. EQ Button
tone and counterclockwise
Each time you press this button the
to decrease.
sound equalizer setting will switch from
POP ➟ JAZZ ➟ ROCK ➟ CLASSIC ➟
MIDDLE
Turn the TUNE Controller
OFF (Not displayed).
clockwise to increase
middle tone and counter-
clockwise to decrease.
!
TREBLE
Turn the TUNE Controller
CAUTION:
clockwise to increase
o Do not place beverages close to
treble tone and counter-
the audio system. The audio sys-
clockwise to decrease.
tem mechanism may be damaged
if you spill them.
BALANCE
Turn the TUNE Controller
o Do not strike or allow anything to
clockwise to increase right
impact the audio system, damage
speaker volume and coun-
to the system mechanisms could
terclockwise to increase left
occur.
speaker volume.
FADER
Turn the TUNE Controller
clockwise to increase rear
speaker volume and coun-
terclockwise to increase
front speaker volume.
1 FEATURES OF YOUR HYUNDAI
110
H280C01GK-GAT

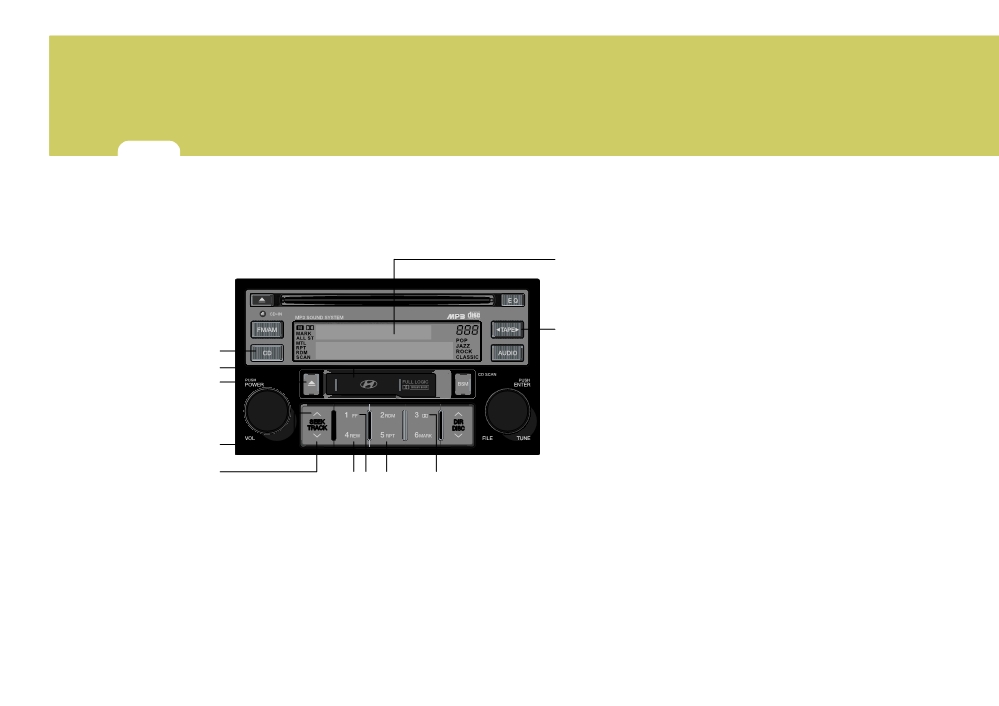

CASSETTE TAPE PLAYER OPERATION (H280) (If Installed)
10
1. TAPE MODE Selection Button /
TAPE Side Selection Button
2. Cassette Tape Deck
1
3. Tape Ejection Button
4. DOLBY Selection Button
5
5. Fast Rewind
2
6. Fast Forward
3
7. Automatic Previous Track Selec-
tion Button
8. Automatic Next Track Selection
Button
9. Section Repeat Button (REPEAT)
8
10.Information Display Screen (LCD)
7
5
6
9
4
GK_280_UR
FEATURES OF YOUR HYUNDAI
1
111
H280D01GK-GAT
NOTE:
7. Automatic Previous Track Se-
1. TATE MODE Selection Button
Push this button to turn the power on
lection Button
(TRACK
/ TAPE Side Selection Button
automatically when the TAPE is in-
DOWN)
Press this button to turn to the TAPE
side and the power is off.
Press [TRACK
] button to rewind the
mode. The system will play the tape if
tape to the beginning of the song you
the tape is inside the deck and turn off
4. DOLBY Selection Button
are listening to. While rewinding the
CD or radio if either mode was on.
tape, the screen will display "AMS."
Press this button when you play
If you press this button while the tape is
Press the button again while rewinding
Dolbyized type to reduce noise in the
being played, the other side of the tape
the tape to play from the current posi-
medium to high bands due to Dolby
will be played. The screen will display
tion.
effect. The screen will display "DOLBY."
"PLAY" along with the direction of play.
The "DOLBY" mark will disappear when
you press it again.
8. Automatic Next Track Selec-
2. Cassette Tape Deck (Tape In-
tion Button (TRACK UP)
sert)
5. Fast Rewind (REW)
Press [SEEK
] button to wind the
tape to the beginning of the song next to
When you insert the tape, push it into
Press [REW] button while playing the
the song you are listening to. While
the deck while the side of tape you want
tape to rewind the tape to the beginning
winding the tape, the screen will display
to listen to face upward. If the ignition
and the screen will display "REW."
"AMS." Press the button again while
switch of the automobile is set to ACC
Press it again while rewinding to play
winding the tape to play from the current
(1st notch) or ON (2nd notch), the tape
from the current position.
position.
will be automatically played when you
insert it even if the power of the audio
6. Fast Forward (FF)
9. Section Repeat Button (RPT)
system is off.
Press [FF] button while playing the tape
Press [RPT] button to repeat the song
to wind the tape to the end and the
you are listening to.
3. Tape EJECT Button
screen will display "FF." Press it again
while winding to play from the current
Press this button while the tape is being
position.
played to eject the tape.
This will eject the tape even when the
ignition switch of the automobile is set
to OFF.
