RT -10

RESTRAINTS

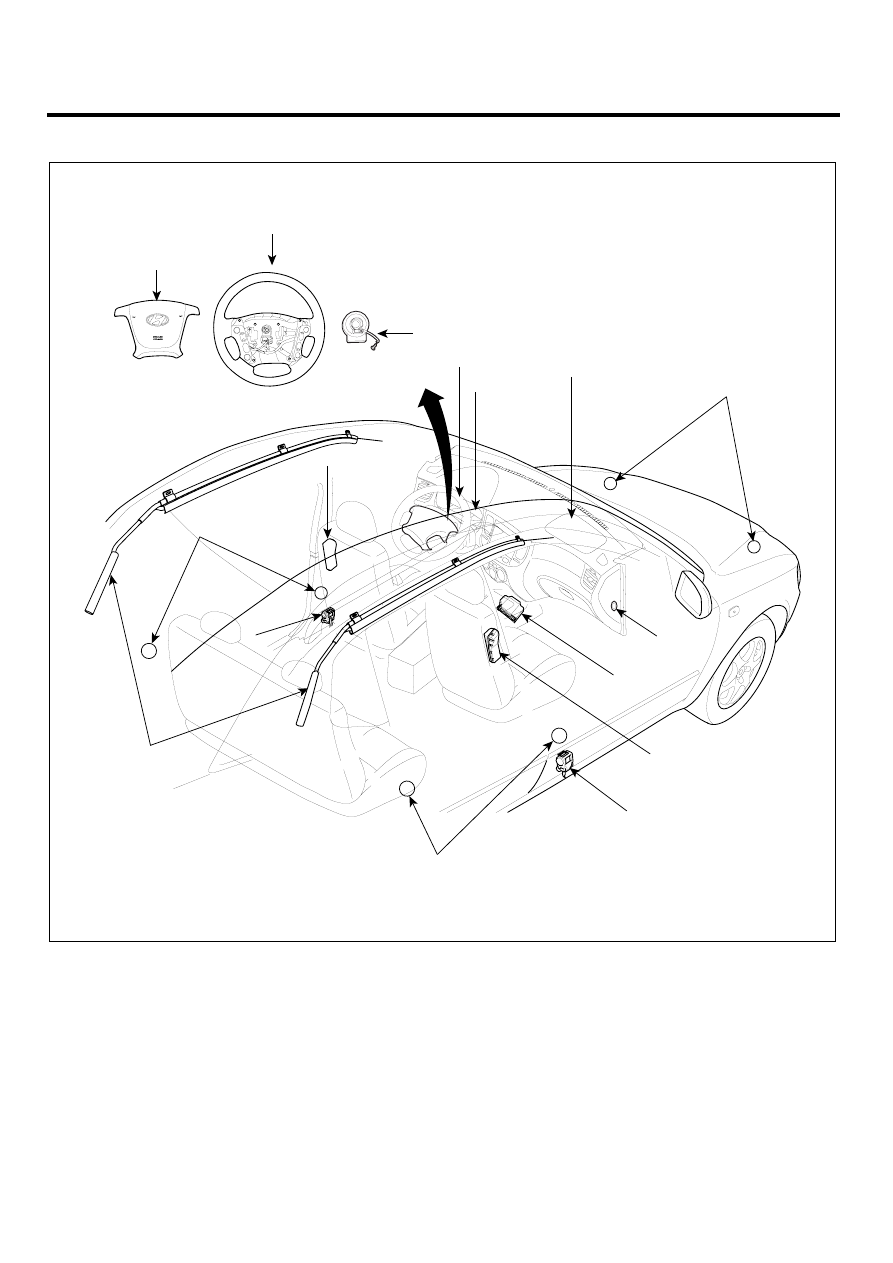

COMPONENTS

E703CF82

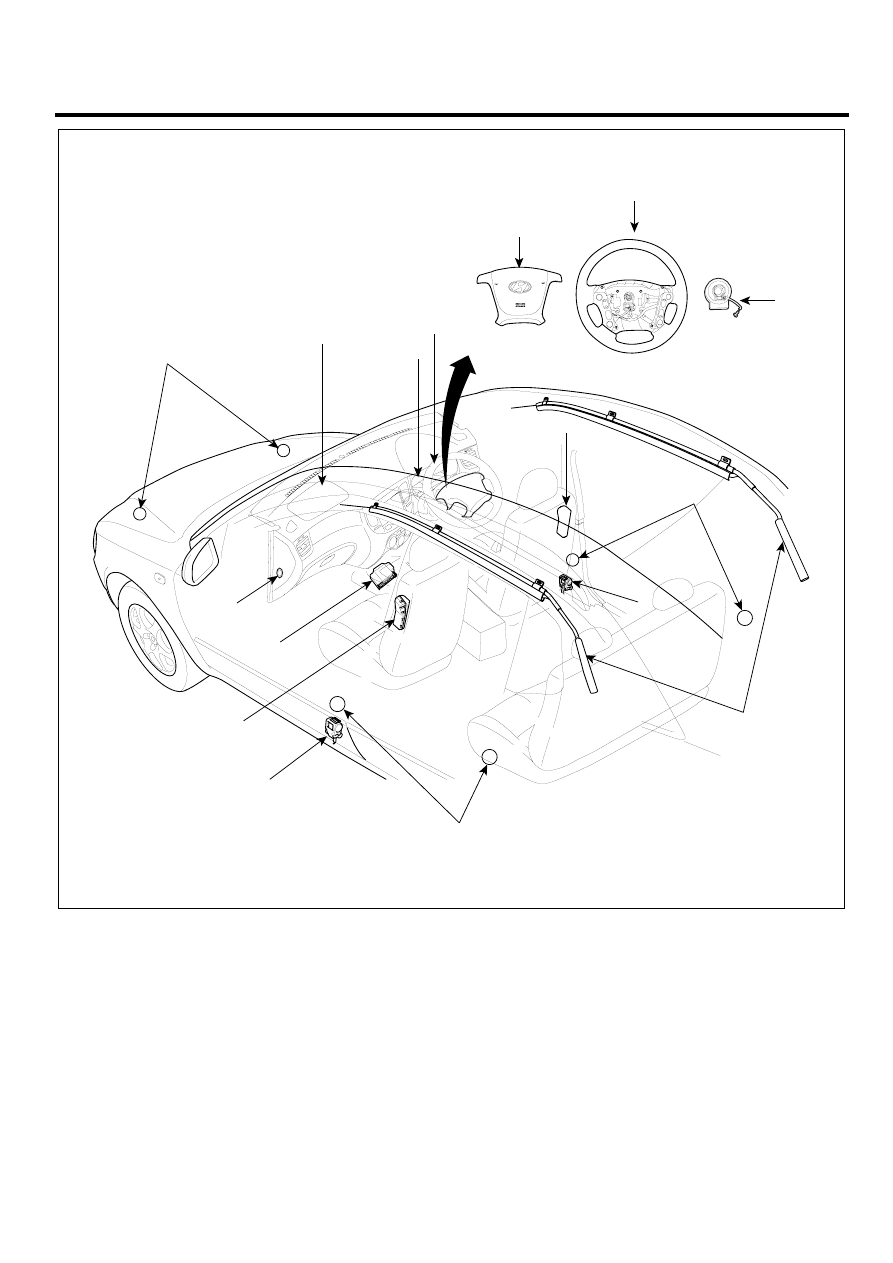

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Side Airbag (SAB)

7. Passenger Airbag (PAB)

  8. Front Impact Sensor (FIS)
  9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module(SRSCM)
11. Airbag Warning Lamp
12. Passenger Airbag Deactivation (PAD) Lamp
13. PAD Switch

11

12

10

[LHD]

13

1

2

3

6

6

7

8

4

5

5

9

4

S R S

AIRBAG

SCMRT6500L

GENERAL

RT -11

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Side Impact Sensor (SIS)
6. Side Airbag (SAB)

7. Passenger Airbag (PAB)

  8. Front Impact Sensor (FIS)
  9. Curtain Airbag (CAB)
10. Supplemental Restraint System Control Module(SRSCM)
11. Airbag Warning Lamp
12. Passenger Airbag Deactivation (PAD) Lamp
13. PAD Switch

11

12

10

[RHD]

13

1

2

3

6

6

7

8

4

5

5

9

4

S R S

AIRBAG

SCMRT6500R

RT -12

RESTRAINTS

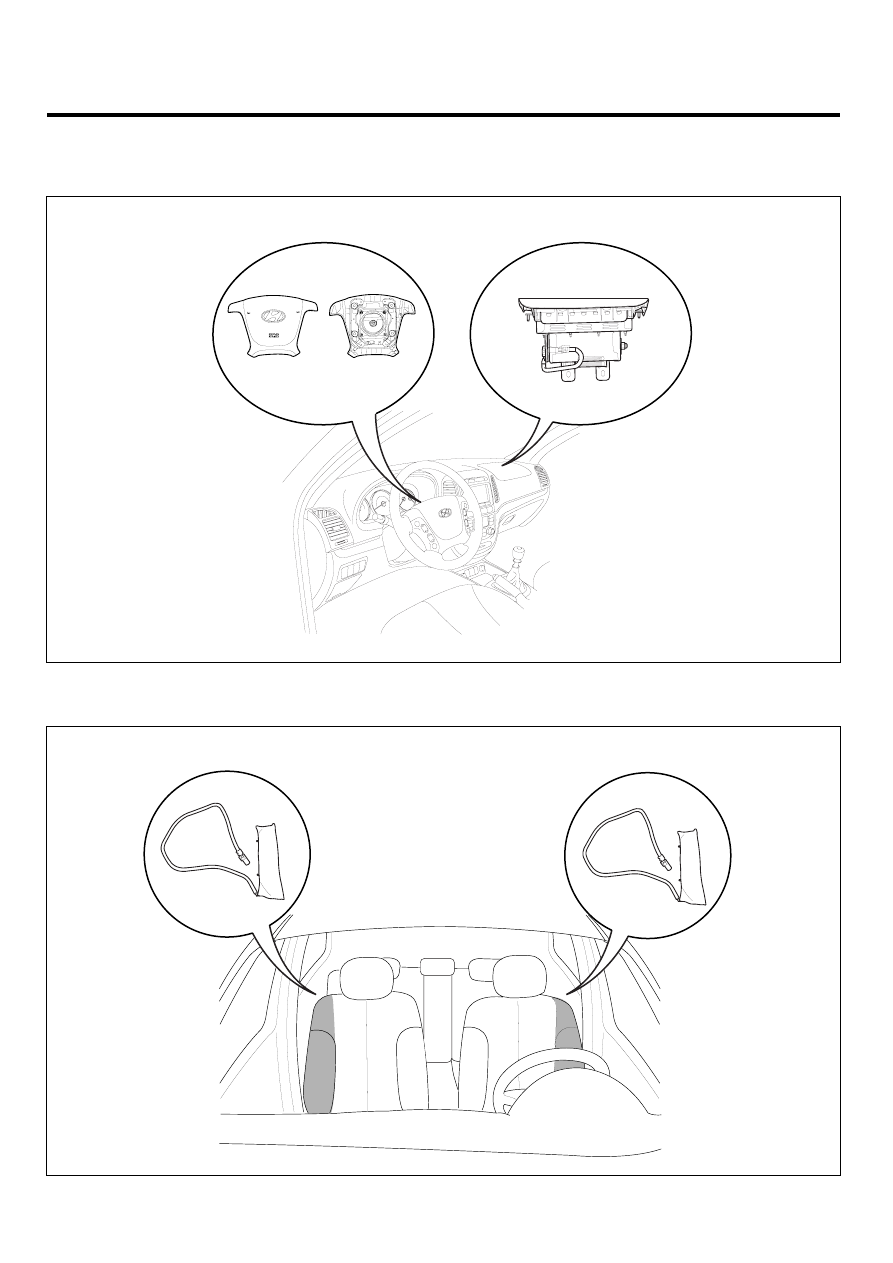

COMPONENTS LOCATION

DRIVER AIRBAG (DAB) / PASSENGER AIRBAG (PAB)

Driver Airbag (DAB)

Passenger Airbag (DAB)

(Front view)

(Rear view)

SCMRT6501L

SIDE AIRBAG (SAB)

Side Airbag (SAB)

Side Airbag (SAB)

LRLG101C

GENERAL

RT -13

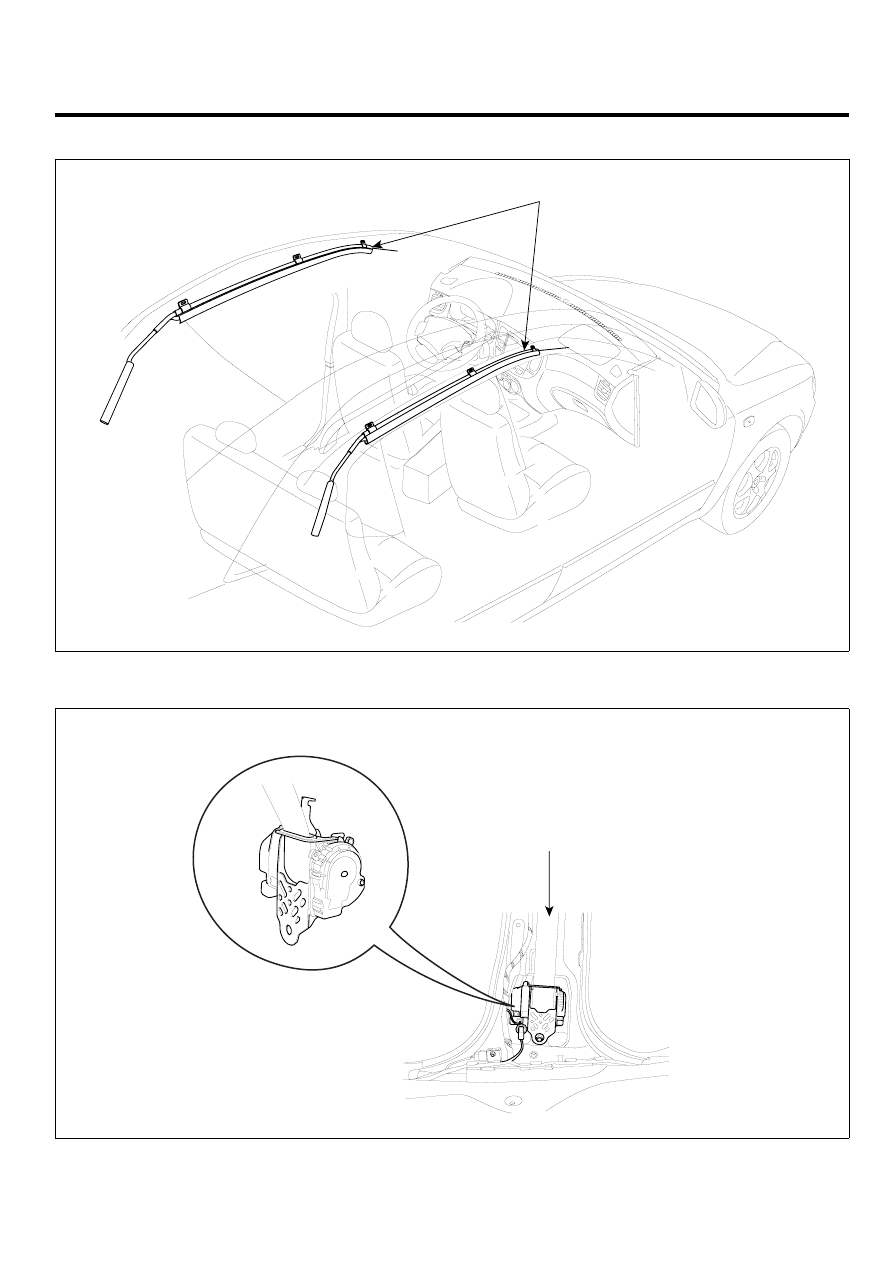

CURTAIN AIRBAG (CAB)

S R S

AIRBAG

Curtaing Airbag (CAB)

SCMRT6502L

SEAT BELT RETRACTOR PRETENSIONER (BPT)

Seat Belt Retractor Pretensioner (BPT)

Center Pillar

SCMRT6503L
