Hyundai Santa Fe (2006 year). Manual - part 647





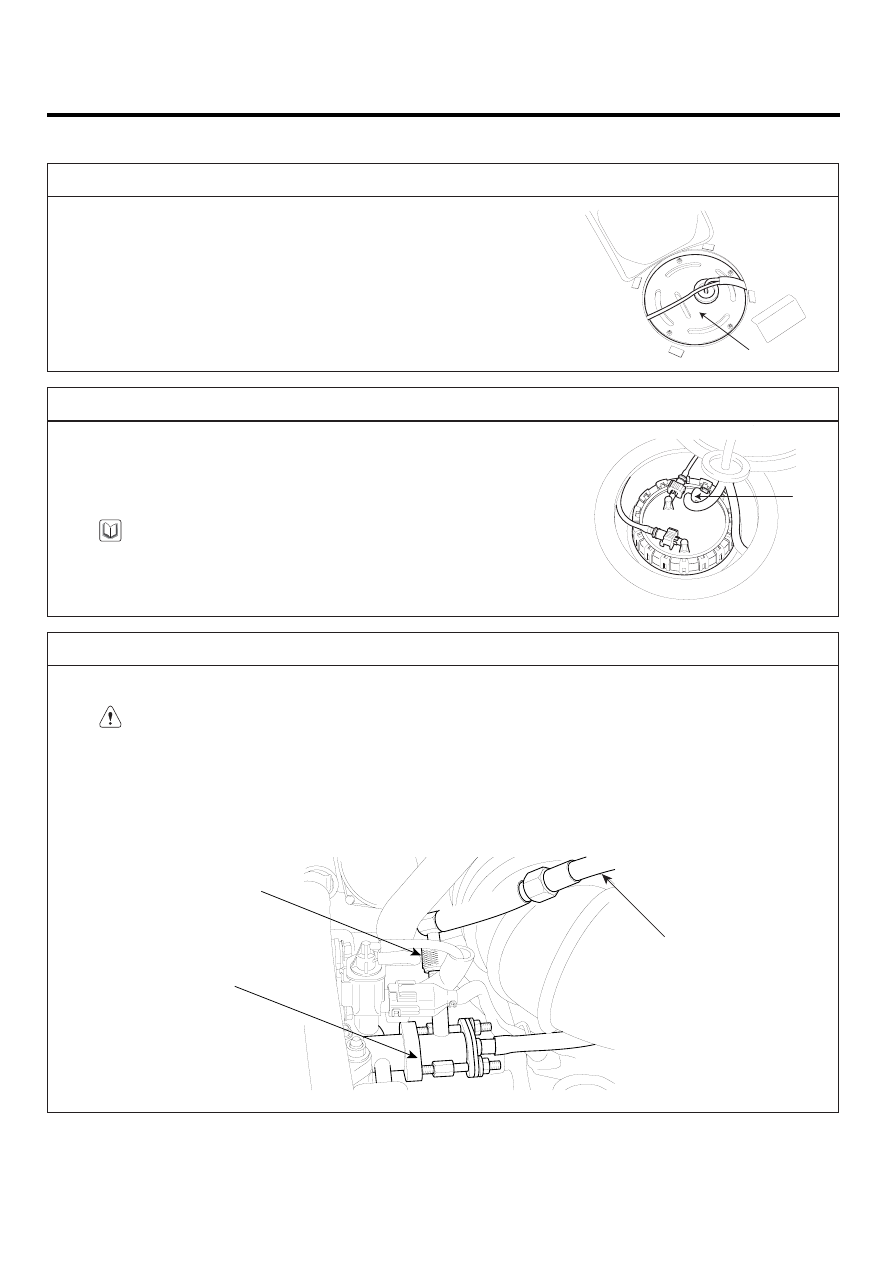

FLA -654

FUEL SYSTEM

FUEL PRESSURE TEST

EE0B21DE

1.  Remove the 2nd seat (Refer to "BD" group in this SERVICE MANUAL).
2.  Open the carpet for fuel pump and remove the service cover for
     fuel pump (A).

1. PREPARING

1.  Disconnect the fuel pump connector (A).
2.  Start the engine and wait until fuel in fuel line is exhausted.
3.  After the engine stalls, turn the ignition switch to OFF position

and disconnect the negative (-) terminal from the battery.

2. RELEASE THE INTERNAL PRESSURE

Be sure to reduce the fuel pressure before disconnecting the fuel feed
hose, otherwise fuel will spill out.

NOTE

1.  Disconnect the fuel feed hose from the delivery pipe.

2.  Install the Fuel Pressure Gage Adapter (09353-38000) between the delivery pipe and the fuel feed hose.
3.  Connect the Fuel Pressure Gage Connector (09353-24000) to the Fuel Pressure Gage Adapter (09353-38000).
4.  Connect the Fuel Pressure Gage and Hose (09353-24100) to Fuel Pressure Gage Connector (09353-24000).
5.  Connect the fuel feed hose to the Fuel Pressure Gage Adapter (09353-38000).

3. INSTALL THE SPECIAL SERVICE TOOL (SST) FOR MEASURING THE FUEL PRESSURE

Cover the hose connection with a shop towel to prevent splashing of fuel caused by residual pressure in the fuel line.

CAUTION

A

A

Fuel Pressure Gage and Hose

(09353-24100)

Fuel Pressure Gage Connector

(09353-24000)

Fuel Pressure Gage Adapter

(09353-38000)

SCMF16133L

FUEL DELIVERY SYSTEM

FLA -655

Fuel Pressure Regulator

Condition

Suspected Area

Fuel Pressure Regulator

Fuel filter

Fuel leak on the fuel-pressure
regulator that is assembled
on fuel pump because of poor
seating of the fuel-pressure
regulator.

Clogged fuel filter

Sticking fuel pressure
regulator

Probable Cause

Fuel Pressure too low

Fuel Pressure too High

1.  Diconnect the negative (-) terminal from the battery.
2.  Connect the fuel pump connector.
3.  Connect the battery negative (-) terminal.
4.  Start the engine and measure the fuel pressure at idle.



Standard Value: 375 ~ 385 kpa (3.82 ~ 3.92 kgf/

, 54.3 ~ 55.8 psi)



If the measured fuel pressure differs from the standard value, perform the necessary repairs
using the table below.

5.  Stop the engine and check for a change in the fuel pressure gauge reading.

After engine stops, the gage reading should hold for about 5 minutes



Observing the declination of the fuel pressure when the gage reading drops and perform the
necessary repairs using the table below.

5. FUEL PRESURE TEST

Fuel Pump

Condition

Supected Area

Injector

Injector leak

The check valve within the
fuel pump is open

Probable Cause

Fuel pressure drops
slowly after engine is
stopped

Fuel pressure drops
immediately after engine
is stopped

1.  Connect the battery negative (-) terminal.
2.  Apply battery voltage to the fuel pump terminal and activate the fuel pump. With fuel pressure applied,

check that there is no fuel leakage from the fuel pressure gauge or connection part.

4. INSPECT FUEL LEAKAGE ON CONNECTION

LGLG003A

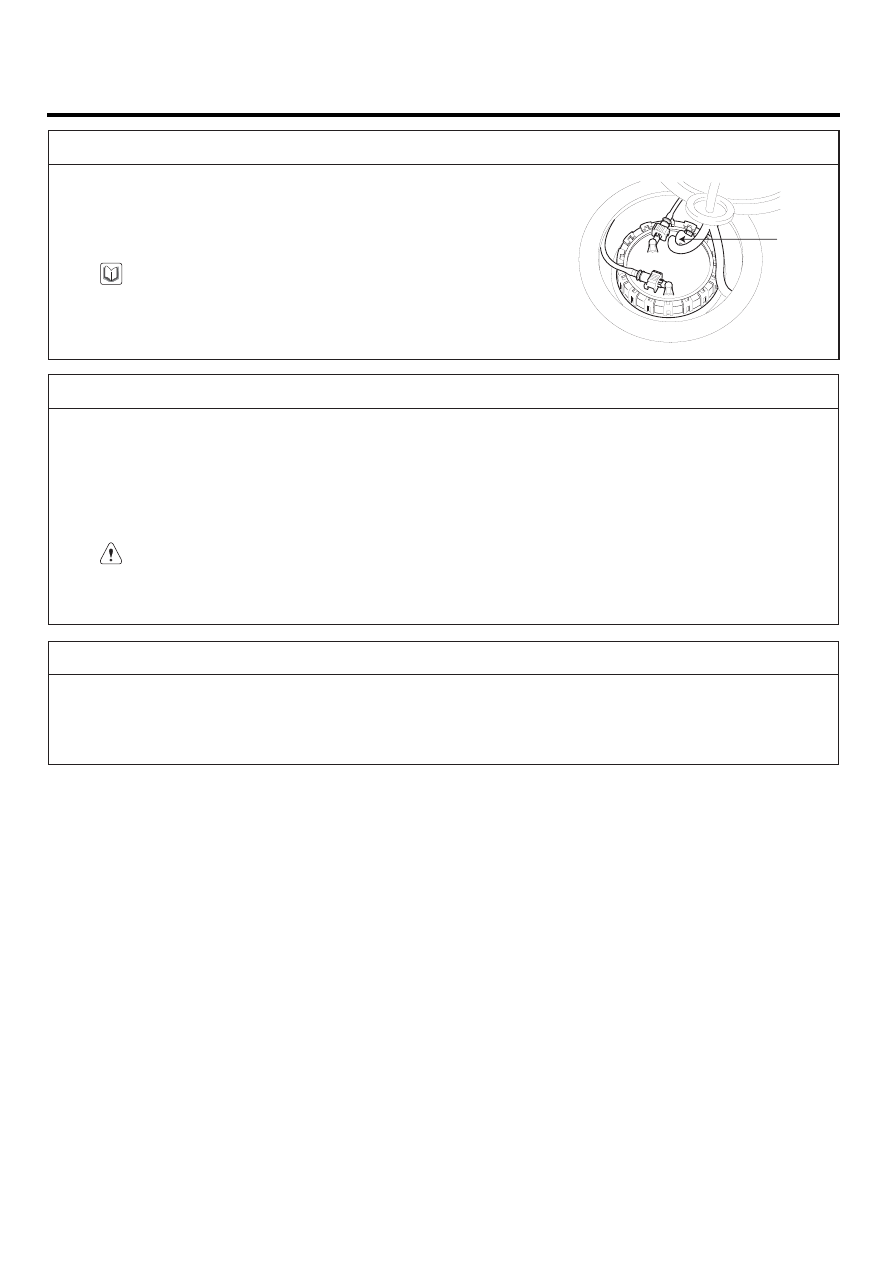

FLA -656

FUEL SYSTEM

1.  Disconnect the Fuel Pressure Gage and Hose (09353-24100) from the Fuel Pressure Gage Connector

(09353-24000).

2.  Disconnect the Fuel Pressure Gage Connector (09353-24000) from the Fuel Pressure Gage Adapter

(09353-38000).

3.  Disconnect the fuel feed hose from the Fuel Pressure Gage Adapter (09353-38000).
4.  Disconnect the Fuel Pressure Gage Adapter (09353-38000) from the delivery pipe.

5.  Conenct the fuel feed hose to the delivery pipe.

7. REMOVE THE SPECIAL SERVICE TOOL (SST) AND CONNECT THE FUEL LINE

1.  Connect the battery negative (-) terminal.
2.  Apply battery voltage to the fuel pump terminal and activate the fuel pump. With fuel pressure applied,

check that there is no fuel leakage from the fuel pressure gauge or connection part.

3.  If the vehicle is normal, connect the fuel pump connector.

8. INSPECT FUEL LEAKAGE ON CONNECTION

Cover the hose connection with a shop towel to prevent splashing of fuel caused by residual pressure in the fuel line.

CAUTION

1.  Disconnect the fuel pump connector (A).
2.  Start the engine and wait until fuel in fuel line is exhausted.
3.  After the engine stalls, turn the ignition switch to OFF position

and diconnect the negative (-) terminal from the battery.

6. RELEASE THE INTERNAL PRESSURE

Be sure to reduce the fuel pressure before disconnecting the fuel feed
hose, otherwise fuel will spill out.

NOTE

A

SCMF16134L

FUEL DELIVERY SYSTEM

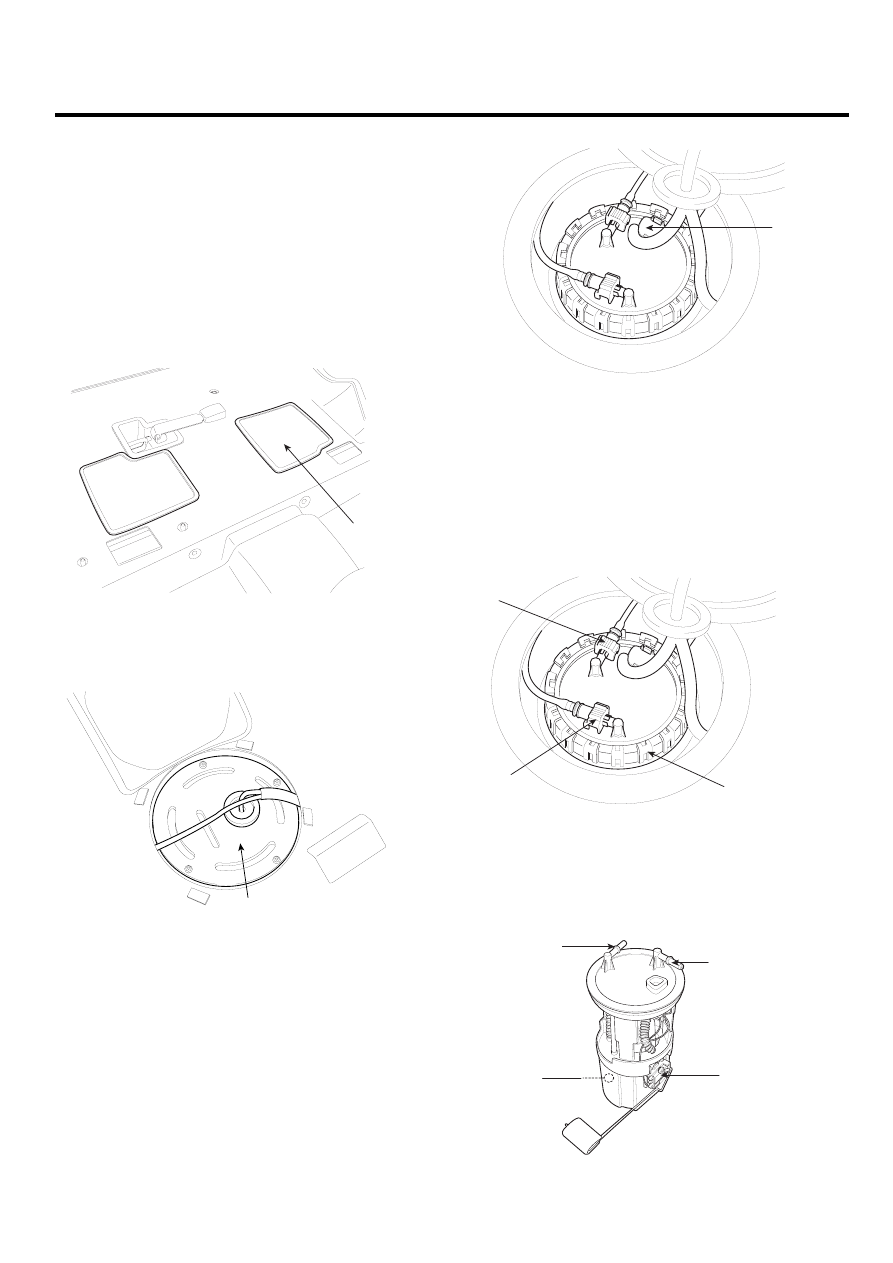

FLA -657

FUEL PUMP

REMOVAL (INCLUDING FUEL FILTER AND

FUEL PRESSURE REGULATOR)

E7DAE93F

1.

Preparation

1)

Remove the 2nd seat (Refer to "BD" group in this
SERVICE MANUAL).

2)

Open the carpet for fuel pump (A).

A

SCMF16135L

3)

Remove the service cover for fuel pump (A).

A

SCMFL6636D

4)

Disconnect the fuel pump connector (A).

A

SCMF16137L

5)

Start the engine and wait until fuel in fuel line is
exhausted.

6)

After engine stops, turn the ignition switch off.

2.

Disconnect the fuel feed quick-connector (A) and the
suction tube quick-connector (B).

C

B

A

SCMF16138L

3.

Remove the plate cover (C) with the special service
tool (SST No.: 09310-2B100) and the remove the fuel
pump from the fuel tank.

Nipple-Suction

Fuel Pump

Nipple-Fuel Feed

Fuel Sender

SCMF16139L
