FLA -402

FUEL SYSTEM

SPECIFICATION

E8F8828A

Item

Coil resistance(Ω )

PCSV

14.0 ~ 18.0Ω [20℃ ( 68℉)]

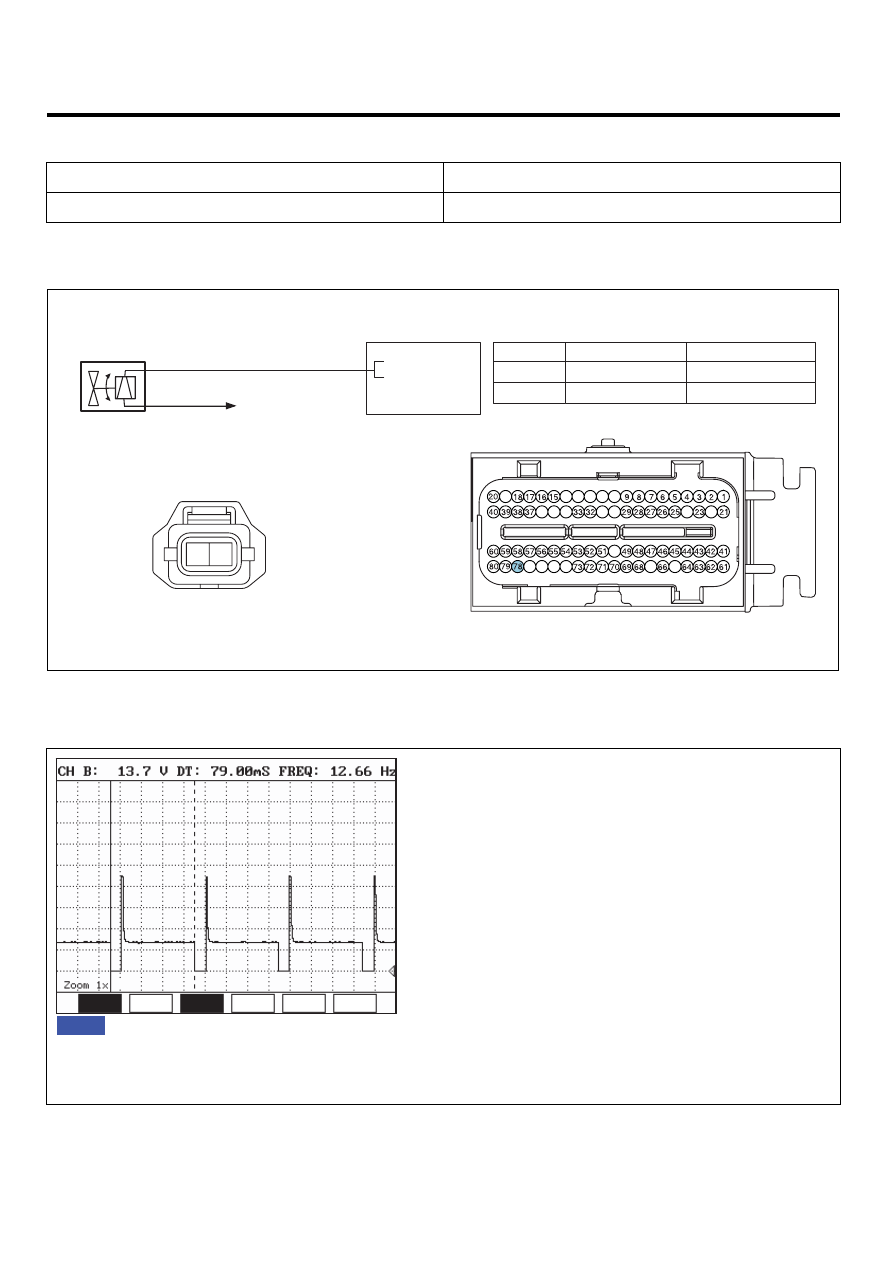

SCHEMATIC DIAGRAM

E4472935

PCSV

C94

1

2

PCM C30-A (78)

Battery Voltage (B+)

PCSV Control

Main Relay

[CIRCUIT DIAGRAM]

[HARNESS CONNECTORS]

[CONNECTION INFORMATION]

Terminal

Connected to

Function

PCM

C30-A

19

14 13 12 11

31

34

35

36

30

10

24

22

65

67

50

74

75

76

77

1

2

78 - PCSV Control

PCM (C30-A)

PCSV

(C94)

Main Relay

2

1

SCMF16119L

SIGNAL WAVEFORM

EF5B67EC

Fig. 1

The Purge Control Solenoid Valve(PCSV) is open or closed by PCM and vacuum of intake manifold.
At opening, fuel vapor from canister enters into intake manifold. To prevent vacuum from forming inside canister,
PCM controls to open it. This photo shows the signal waveform of PCSV operating normally.

HOLD

ZOOM

MEMO

RECD

MENU

CURS

EGRF848A

DTC TROUBLESHOOTING PROCEDURES

FLA -403

MONITOR DTC STATUS

EB7ED820

1.

Check DTC Status

1)

Connect scantool to Data Link Connector(DLC).

2)

IG "ON".

3)

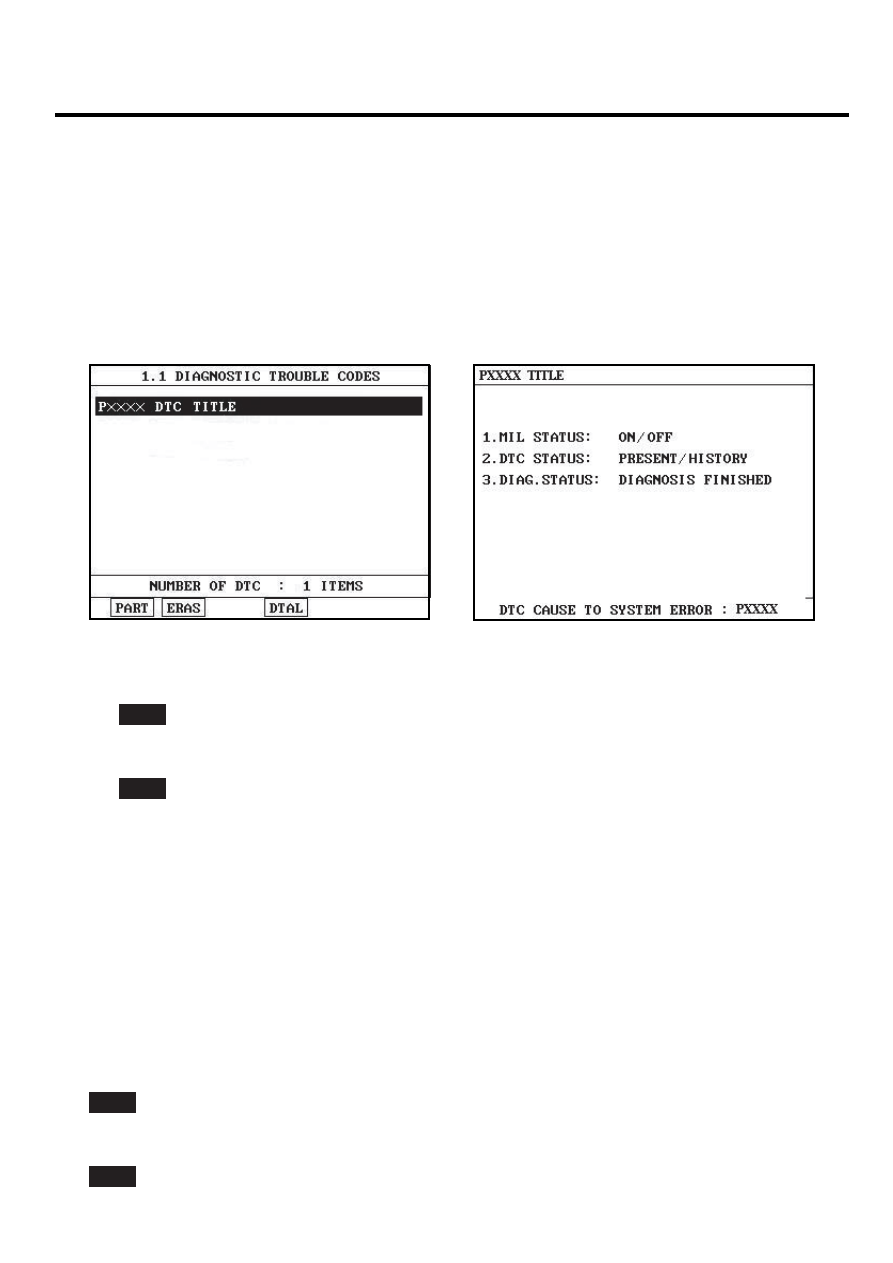

Select "Diagnostic Trouble Codes(DTCs)" mode, and then Press F4(DTAL) to check DTC’s information from the
DTCs menu

4)

Read "DTC Status" parameter.

SCMF16159L

5)

Is parameter displayed "Present fault"?

YES

▶ Go to "Terminal and connector inspection" procedure.

NO

▶ Fault is intermittent caused by poor contact in the sensor’s and/or PCM’s connector or was repaired and PCM
memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, con-
tamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair"
procedure.

TERMINAL AND CONNECTOR INSPECTION

E7A93020

1.

Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by
interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or
damage.

3.

Has a problem been found?

YES

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure

NO

FLA -404

FUEL SYSTEM

▶ Go to " Power Circuit Inspection " procedure.

POWER CIRCUIT INSEPCTION

E823F06B

1.

IG "OFF" and disconnect PCSV connector.

2.

IG "ON" and ENG "OFF"

3.

Measure voltage between terminal 1 of PCSV harness connector and chassis ground.

Specification : B+

4.

Is the measured voltage within specification?

YES

▶ Go to "Control Circuit Inspection" procedure.

NO

▶ Repair open or short to ground in harness, and go to " Verification of Vehicle Repair" procedure.

CONTROL CIRCUIT INSPECTION

EF47BBB0

1.

Check short to ground in harness.

1)

IG "OFF" and disconnect PCSV connector.

2)

IG "ON"

3)

Measure voltage between terminal 2 of PCSV harness connector and chassis ground.

Specification : Approx. 0.5V

4)

Is the measured voltage within specification?

YES

▶ Go to "Check open in harness" as follows.

NO

▶ Repair short to ground in harness, and go to " Verification of Vehicle Repair" procedure.

2.

Check open in harness.

1)

IG "OFF" and disconnect PCSV connector and PCM connector.

2)

Measure resistance between terminal 2 of PCSV harness connector and terminal C30-A (78) of PCM harness
connector.

Specification : Below 1Ω

3)

Is the measured resistance within specification?

YES

DTC TROUBLESHOOTING PROCEDURES

FLA -405

▶ Go to " Component Inspection" procedure.

NO

▶ Repair open in harness, and go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION

E3AE3F51

1.

Check PCSV

1)

IG "OFF" and disconnect PCSV connector.

2)

Measure resistance between terminals 1 and 2 of PCSV connector.(Component side)

SPECIFICATION :

Item

Coil resistance(Ω )

PCSV

14.0 ~ 18.0Ω [20℃ ( 68℉)]

C94

2

1

SCMF16356L

3)

Is the measured resistance within specification?

YES

▶ Substitute with a known - good PCM and check for proper operation.
▶ If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.

NO

▶ Substitute with a known - good PCSV and check for proper operation.
▶ If the problem is corrected, replace PCSV and go to "Verification of Vehicle Repair" procedure.

NOTE

There is a memory reset function on scantool that can erase optional parts automatically detected and memorized
by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others

VERIFICATION OF VEHICLE REPAIR

EEA6BD74

After a repair, it is essential to verify that the fault has been corrected.

1.

Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code(DTC) which has been diagnosed.

2.

Using a Scantool, Clear the DTCs

3.

Operate the vehicle within conditions noted in the freeze frame data or enable conditions
