FLA -6

FUEL SYSTEM

SERVICE STANDARD

E85141FD

Ignition Timing

BTDC 7˚ ± 10˚

Neutral,N,P-range

680 ± 100 rpm

A/CON OFF

D-range

630 ± 100 rpm

Neutral,N,P-range

680 ± 100 rpm

Idle Speed

A/CON ON

D-range

630 ± 100 rpm

TIGHTENING TORQUES

EAEFEBE8

ENGINE CONTROL SYSTEM

Item

kgf·m

N·m

lbf·ft

PCM installation bolts (on upper bracket)

1.0 ~ 1.2

9.8 ~ 11.8

7.2 ~ 8.7

PCM upper bracket installation bolts (on air cleaner assembly)

1.0 ~ 1.2

9.8 ~ 11.8

7.2 ~ 8.7

Camshaft position sensor [Bank 1] installation bolt

0.7 ~ 1.0

6.9 ~ 9.8

5.1 ~ 7.2

Camshaft position sensor [Bank 2] installation bolt

0.7 ~ 1.0

6.9 ~ 9.8

5.1 ~ 7.2

Crankshaft position sensor installation bolt

0.7 ~ 1.0

6.9 ~ 9.8

5.1 ~ 7.2

CVVT Oil control valve [Bank 1] installation bolt

0.8 ~ 1.0

7.8 ~ 9.8

5.8 ~ 7.2

CVVT Oil control valve [Bank 2] installation bolt

0.8 ~ 1.0

7.8 ~ 9.8

5.8 ~ 7.2

CVVT Oil temperature sensor installation

2.0 ~ 4.0

19.6 ~ 39.2

14.5 ~ 28.9

Engine coolant temperature sensor installation

2.0 ~ 4.0

19.6 ~ 39.2

14.5 ~ 28.9

ETC module installation bolt

0.9 ~ 1.1

8.8 ~ 10.8

6.5 ~ 8.0

Heated oxygen sensor (Bank 1 / Sensor 1) installation

3.5 ~ 4.5

34.3 ~ 44.1

25.3 ~ 32.6

Heated oxygen sensor (Bank 1 / Sensor 2) installation

3.5 ~ 4.5

34.3 ~ 44.1

25.3 ~ 32.6

Heated oxygen sensor (Bank 2 / Sensor 1) installation

3.5 ~ 4.5

34.3 ~ 44.1

25.3 ~ 32.6

Heated oxygen sensor (Bank 2 / Sensor 2) installation

3.5 ~ 4.5

34.3 ~ 44.1

25.3 ~ 32.6

Ignition coil installation bolt

1.0 ~ 1.2

9.8 ~ 11.8

7.2 ~ 8.7

Knock sensor [Bank 1] installation

1.9 ~ 2.4

18.6 ~ 23.5

13.7 ~ 17.4

Knock sensor [Bank 2] installation

1.9 ~ 2.4

18.6 ~ 23.5

13.7 ~ 17.4

Manifold absolute pressure sensor installation bolt

0.8 ~ 1.2

7.8 ~ 11.8

5.8 ~ 8.7

FUEL DELIVERY SYSTEM

Item

kgf·m

N·m

Ibf·ft

Fuel tank band mounting nuts

4.0 ~ 5.5

39.2 ~ 54.0

28.9 ~ 39.8

Fuel pump plate cover tightening

6.0 ~ 7.0

58.9 ~ 68.7

43.4 ~ 50.6

Sub fuel sender plate cover tightening

6.0 ~ 7.0

58.9 ~ 68.7

43.4 ~ 50.6

Delivery pipe installation bolts

0.9 ~ 1.4

8.8 ~ 13.7

6.5 ~ 10.1

Accelerator pedal module installation bolts

1.7 ~ 2.6

16.7 ~ 25.5

12.3 ~ 18.8

GENERAL

FLA -7

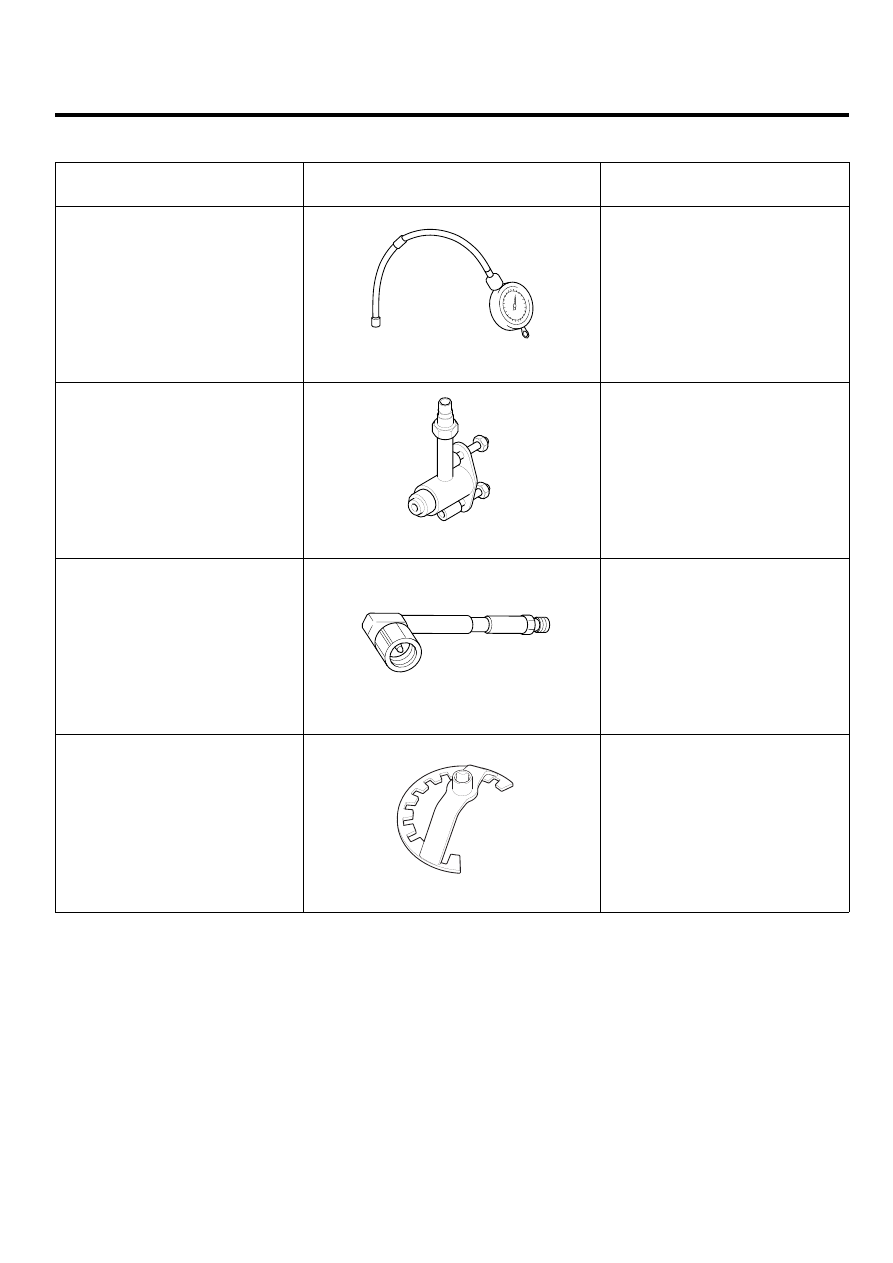

SPECIAL SERVICE TOOLS

E5DDDCC6

Tool

(Number and name)

Illustration

Application

09353-24100
Fuel Pressure Gauge

EFDA003A

Measuring the fuel line pressure

09353-38000
Fuel Pressure Gauge Adapter

BF1A025D

Connection between the delivery
pipe and fuel feed line

09353-24000
Fuel Pressure Gauge Connector

EFDA003C

Connection between Fuel Pressure
Gauge (09353-24100) and
Fuel Pressure Gauge Adapter
(09353-38000)

09310-2B100
Fuel Pump Plate Cover Wrench

SCMFL6666D

Removal of installation of fuel
pump plate cover

FLA -8

FUEL SYSTEM

REFERENCE SERVICE TOOLS (I) - WIRE
HARNESS REPAIR KIT II

Tool Number

Tool Name

TRK00A

Wiring Repair Kit

*For more information of the Wiring Repair Kit, please refer to BE group - "REFERENCE SERVICE TOOLS"

GENERAL

FLA -9

BASIC TROUBLESHOOTING

E726FCB8

BASIC TROUBLESHOOTING GUIDE

Bring Vehicle to Workshop

1

Perform troubleshooting procedure for DTC

11

Adjust or repair the vehicle

12

Confirmation test

13

END

14

Analyze Customer’s Problem

Ask the customer about the conditions and environment relative to the issue
(Use CUSTOMER PROBLEM ANALYSIS SHEET).

2

Confirm the Inspection Procedure for the System or Part

Using the SYMPTOM TROUBLESHOOTING GUIDE CHART, choose the correct inspection procedure for the system
or part to be checked.

4

Inspect Vehicle Visually

Go to Step 11, if you recognize the problem.

6

Recreate (Simulate) Symptoms of the DTC

Try to recreate or simulate the symptoms and conditions of the malfunction as described by customer.
If DTC(s) is/are displayed, simulate the condition according to troubleshooting procedure for the DTC.

7

Recreate (Simulate) Symptom

Try to recreate or simulate the condition of the malfunction as described by the customer.

9

Check the DTC

If DTC(s) does(do) not occur, refer to INTERMITTENT PROBLEM PROCEDURE in BASIC INSPECTION PROCEDURE.
If DTC(s) occur(s), go to Step 11.

10

Confirm Symptoms of Problem

If DTC(s) is/are not displayed, go to Step 9.
If DTC(s) is/are displayed, go to Step 11.

8

Verify Symptom, and then Check DTC and Freeze Frame Data

Connect Hi-Scan (Pro) to Diagnostic Link Connector (DLC).
Record the DTC and freeze frame data.

3

To erase DTC and freeze frame data, refer to Step 5.

Erase the DTC and Freeze Frame Data

5

NEVER erase DTC and freeze frame data before completing Step 2 MIL/DTC in "CUSTOMER PROBLEM
ANALYSIS SHEET".

NOTE

WARNING

LW8F1001
