EM -42

ENGINE (D4EB - DIESEL 2.2)

6

5

8.8 ~ 12.7 (0.9 ~ 1.3, 6.5 ~ 9.4)

4

7

8

3

2

2

1

12mm bolt

33.0 ~ 37.0 (3.37 ~ 3.77, 24.4 ~ 27.3)

 15mm bolt
27.5 ~ 31.4 (2.8 ~ 3.2, 20.3 ~ 23.1) + 120

TORQUE : N.m (kgf.m, lb-ft)

10.8 ~ 11.8 (1.1 ~ 1.2, 8.0 ~ 8.7)

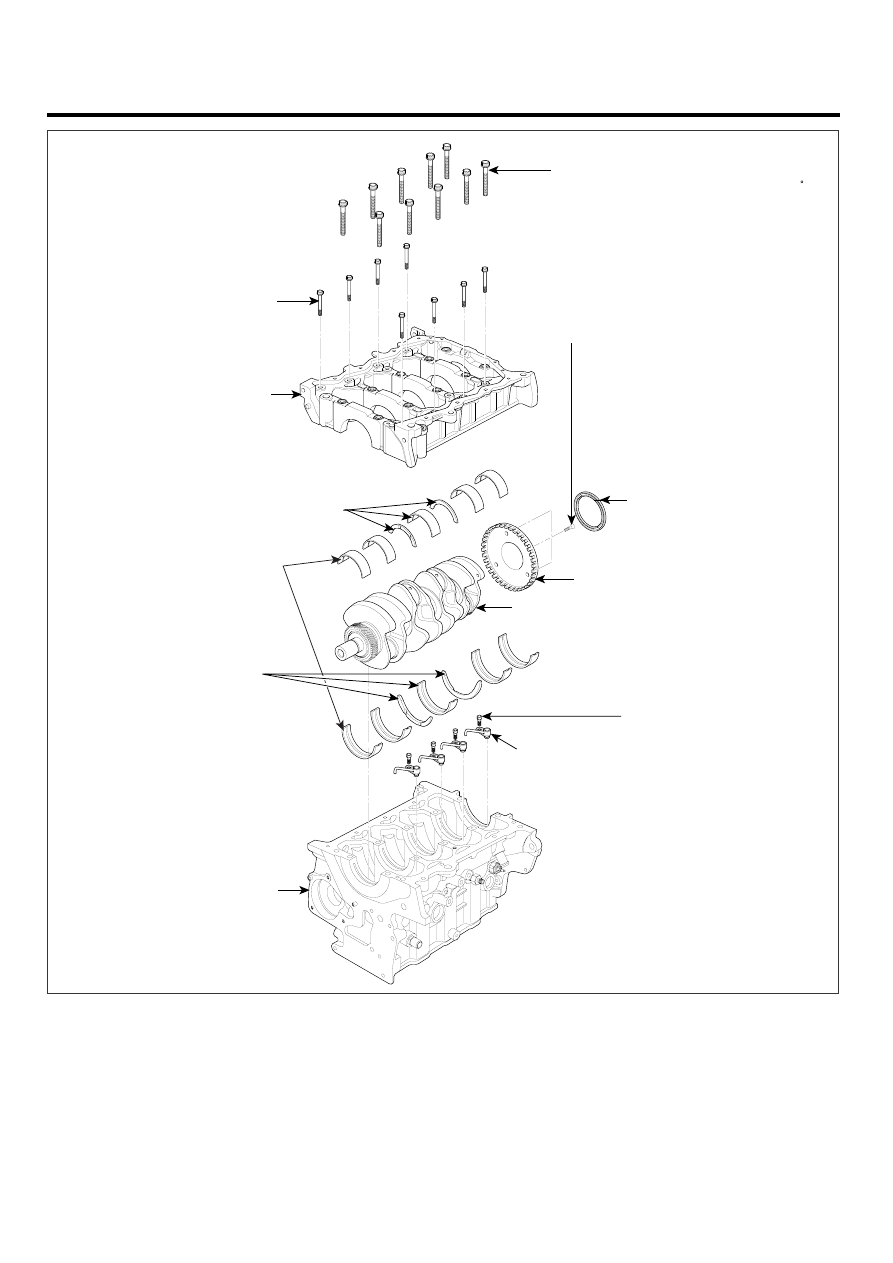

1.  Bad plate
2.  Center bearings
3.  Main bearings
4.  Crankshaft

5.  Crankshaft position sensor wheel
6.  Crankshaft rear oil seal
7.  Piston cooling jet (Oil jet)
8.  Engine block

SCMM16010L

ENGINE BLOCK

EM -43

1

2

3

4

8

9

10

11

5

6

7

TORQUE : N.m (kgf.m, lb-ft)

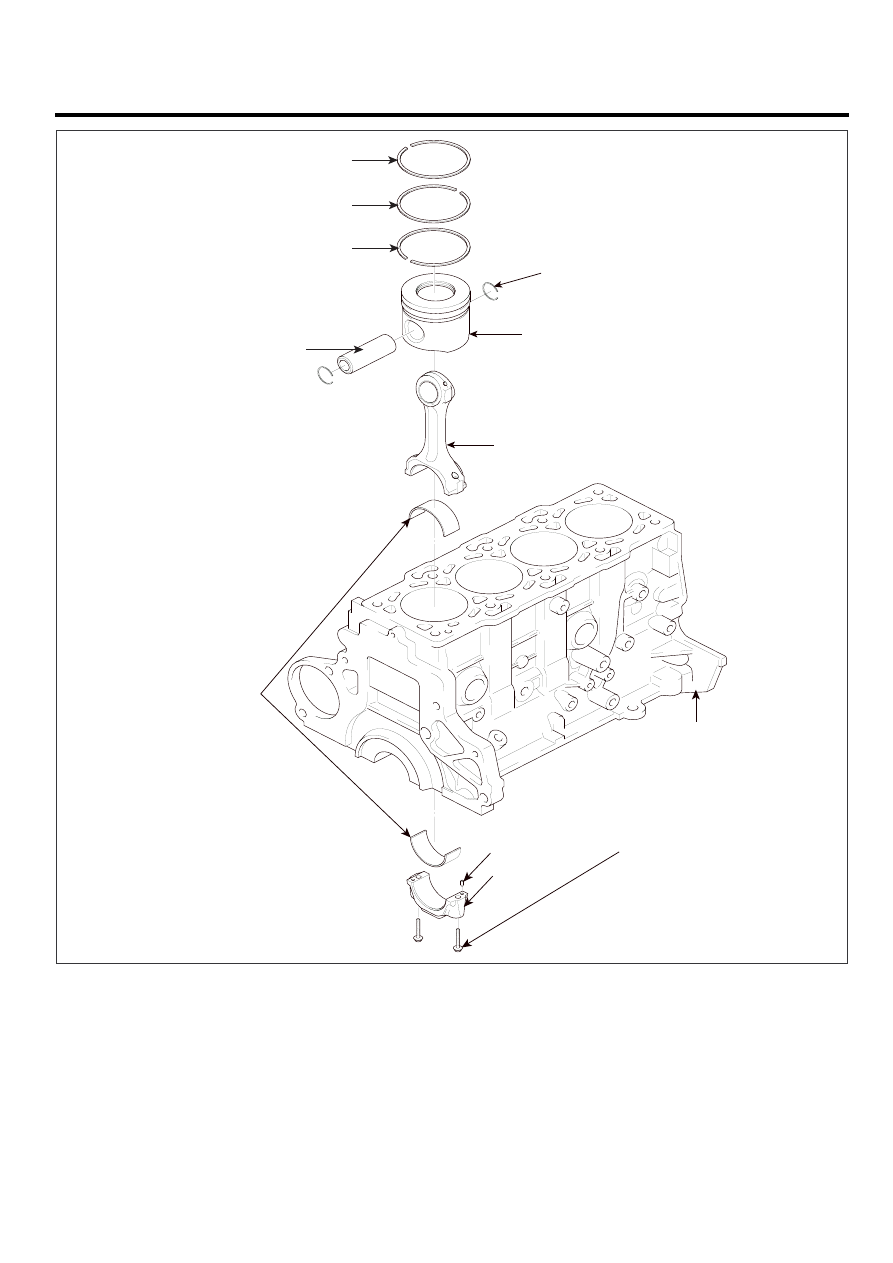

1.  Piston ring No. 1
2.  Piston ring No. 2
3.  Oil ring
4.  Piston pin
5.  Snap ring

  6.  Piston
  7.  Connecting rod
  8.  Connecting rod bearings
  9.  Dowel pin
10.  Connecting rod bearing cap
11.  Engine  block

Connecting rod bolt
24.5 (2.5, 18.1)

SCMM16011L

EM -44

ENGINE (D4EB - DIESEL 2.2)

REMOVAL

E55C8328

1.

Remove the engine and transaxle assembly from the
vehicle.

2.

Remove the transmission from the engine and
transaxle assembly by loosening bolts.

3.

Remove the eight flywheel bolts, then separate the
flywheel from the crankshaft flange.

4.

Remove the timing belt assembly.

5.

Remove the intake and the exhaust manifold.

6.

Remove the cylinder head assembly.

7.

Remove the alternator. (See EE group - alternator)

8.

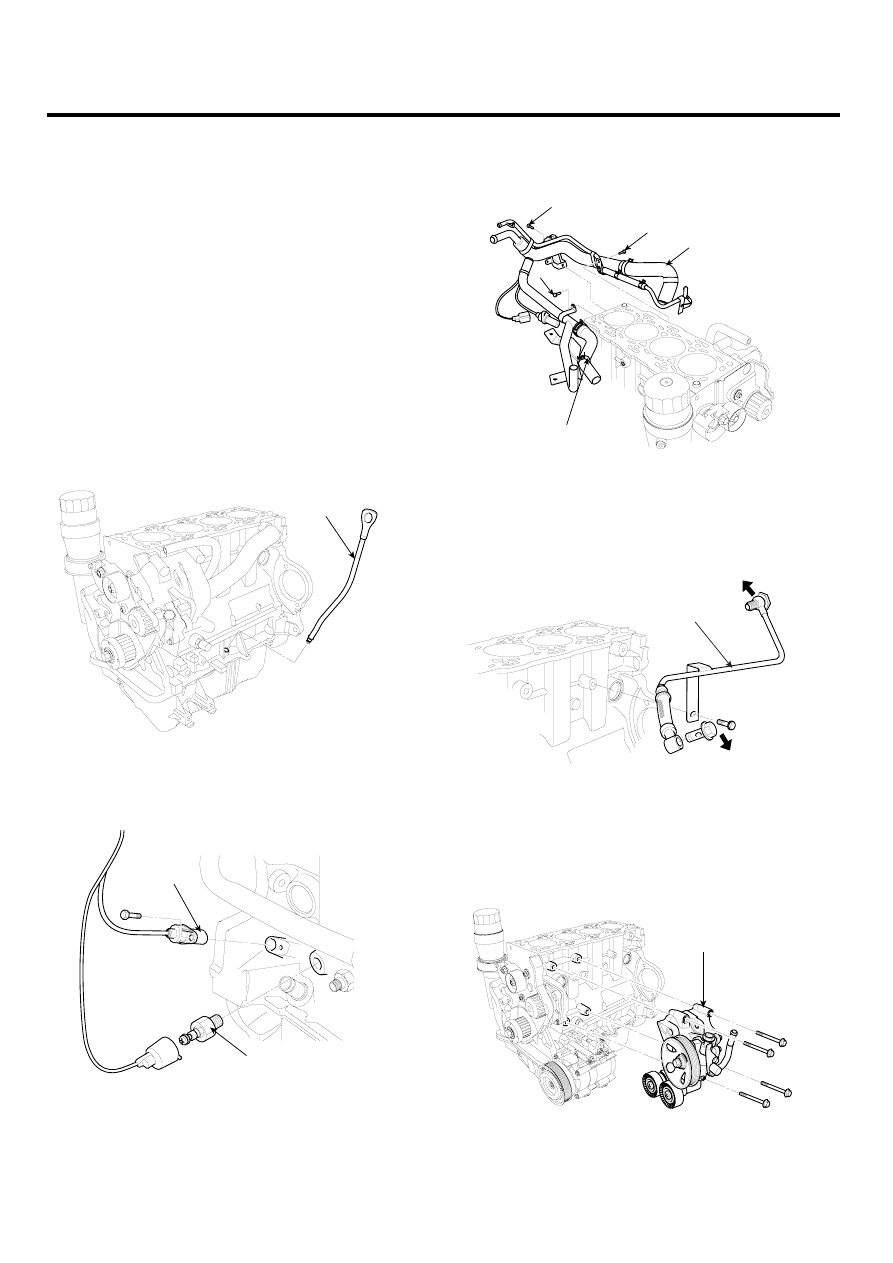

Remove the engine oil level gauge(A).

A

ACIE102A

9.

Remove the CKP(Crankshaft Position Sensor)(A) and
the oil pressure switch(B).

A

B

ACIE103A

10. Remove the heater and oil cooler return pipe assem-

bly(A) after loosening the hose clamps(B) and the
bolts(C, D, E).

C

E

A

B

D

ACIE104A

11. Remove the tube(A) between the vacuum pump and

the cylinder head.

A

Vacuum pump side

Cylinder head side

LCIF026A

12. Remove the power steering pump mounting bracket

assembly(A).

A

ACIE106A

ENGINE BLOCK

EM -45

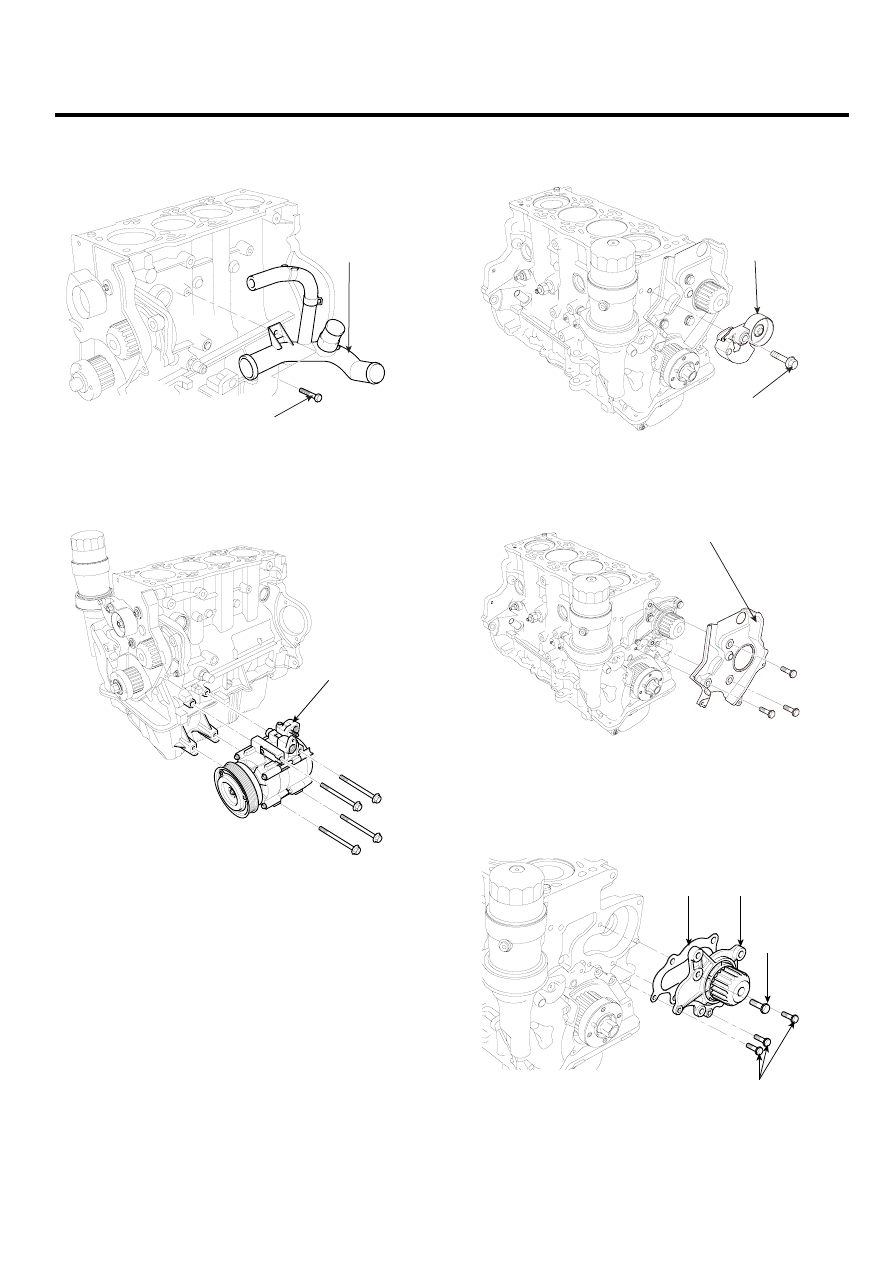

13. Remove the water inlet pipe assembly(A) by loosen-

ing a bolt(B) and clamps.

A

B

ACIE107A

14. Remove the air compressor(A). (See HA group - com-

pressor)

A

ACIE108A

15. Remove the auto-tensioner(A) by loosening the

bolt(B).

A

B

ACIE109A

16. Remove the timing belt rear cover(A).

A

ACIE110A

17. Remove the water pump assembly(A) with the gas-

ket(B).

B

A

Bolt A

Bolt B

LCIF027A
