Hyundai Santa Fe (2006 year). Manual - part 223
BR -64
BRAKE SYSTEM

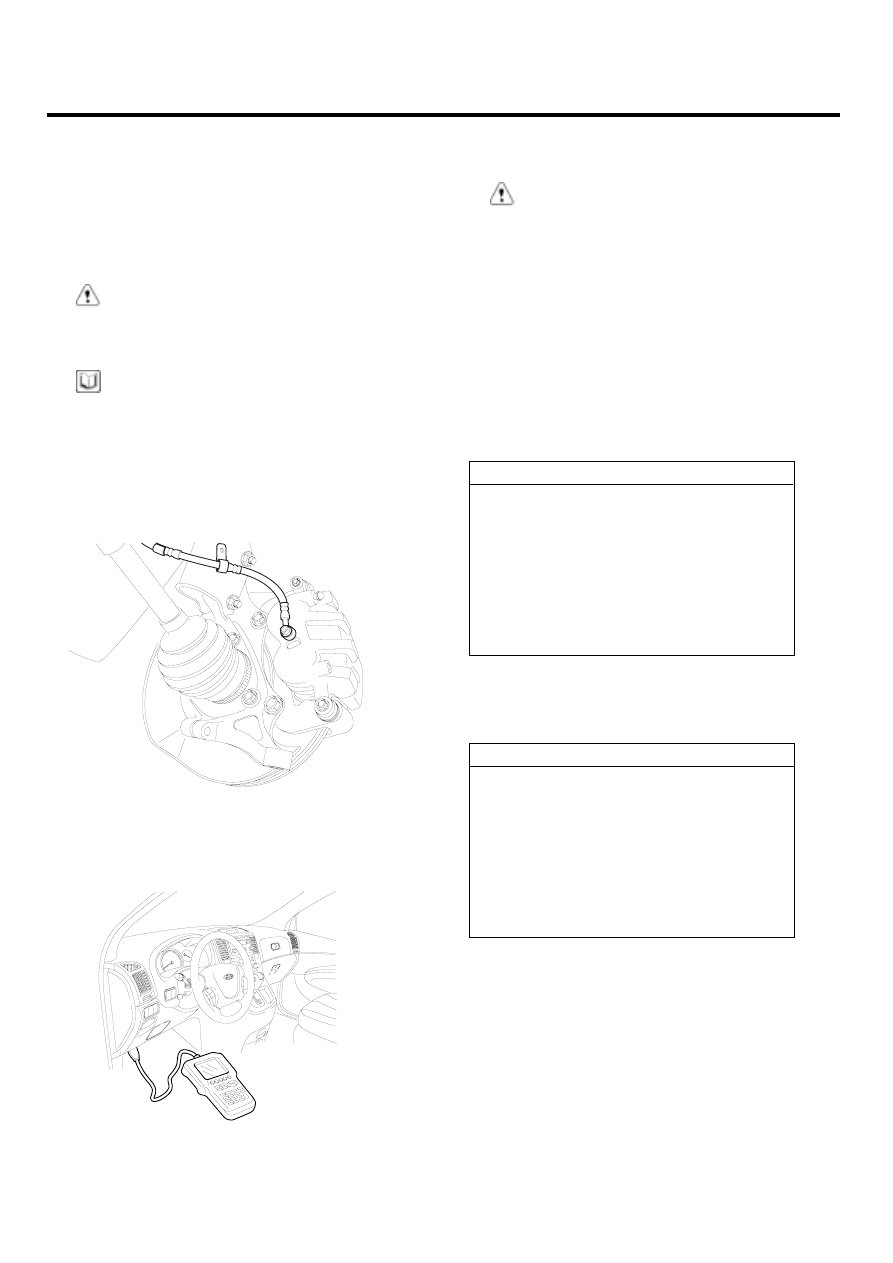

BLEEDING OF BRAKE SYSTEM
This procedure should be followed to ensure adequate
bleeding of air and filling of the ABS unit, brake lines and
master cylinder with brake fluid.
1.
Remove the reservoir cap and fill the brake reservoir
with brake fluid.
CAUTION
If there is any brake fluid on any painted surface,
wash it off immediately.
NOTE
When pressure bleeding, do not depress the brake
pedal.
Recommended fluid........ DOT3
2.
Connect a clear plastic tube to the brake caliper
bleeder plug and insert the other end of the tube into
a half filled clear plastic bottle.
AJKF603S
3.
Connect the scan tool to the data link connector lo-
cated underneath the dash panel.
ARKF500A
4.
Select and operate according to the instructions on
the scan tool screen.
CAUTION
You must obey the maximum operating time of the
ABS motor with the scan tool to prevent the motor
pump from burning.
1)
Select Hyundai vehicle diagnosis.
2)
Select vehicle name.
3)
Select Anti-Lock Brake system.
4)
Select air bleeding mode.
5)
Press "YES" to operate motor pump and solenoid
valve.
1.6 AIR BLEEDING MODE
01. SOLENOID VALVE STATUS CLOSE
02. MOTOR PUMP STATUS OFF
DO YOU WANT TO START ?
(PRESS [YES] KEY)
ABS AIR BLEEDING STATUS
EJDA014F
6)
Wait 60 sec. before operating the air bleeding
again. (If not, you may damage the motor.)
1.6 AIR BLEEDING MODE
01. SOLENOID VALVE STATUS OPEN
02. MOTOR PUMP STATUS ON
TIME : AUTOMATIC COUNT (1-60 SEC.)
ABS AIR BLEEDING STATUS
EJDA014G
