IMMOBILIZER CONTROL SYSTEM

BE -261

SIGNAL CIRCUIT INSPECTION

E7935D7A

1.

Check for open in harness

1)

Ignition "OFF"

2)

Disconnect SMARTRA.

3)

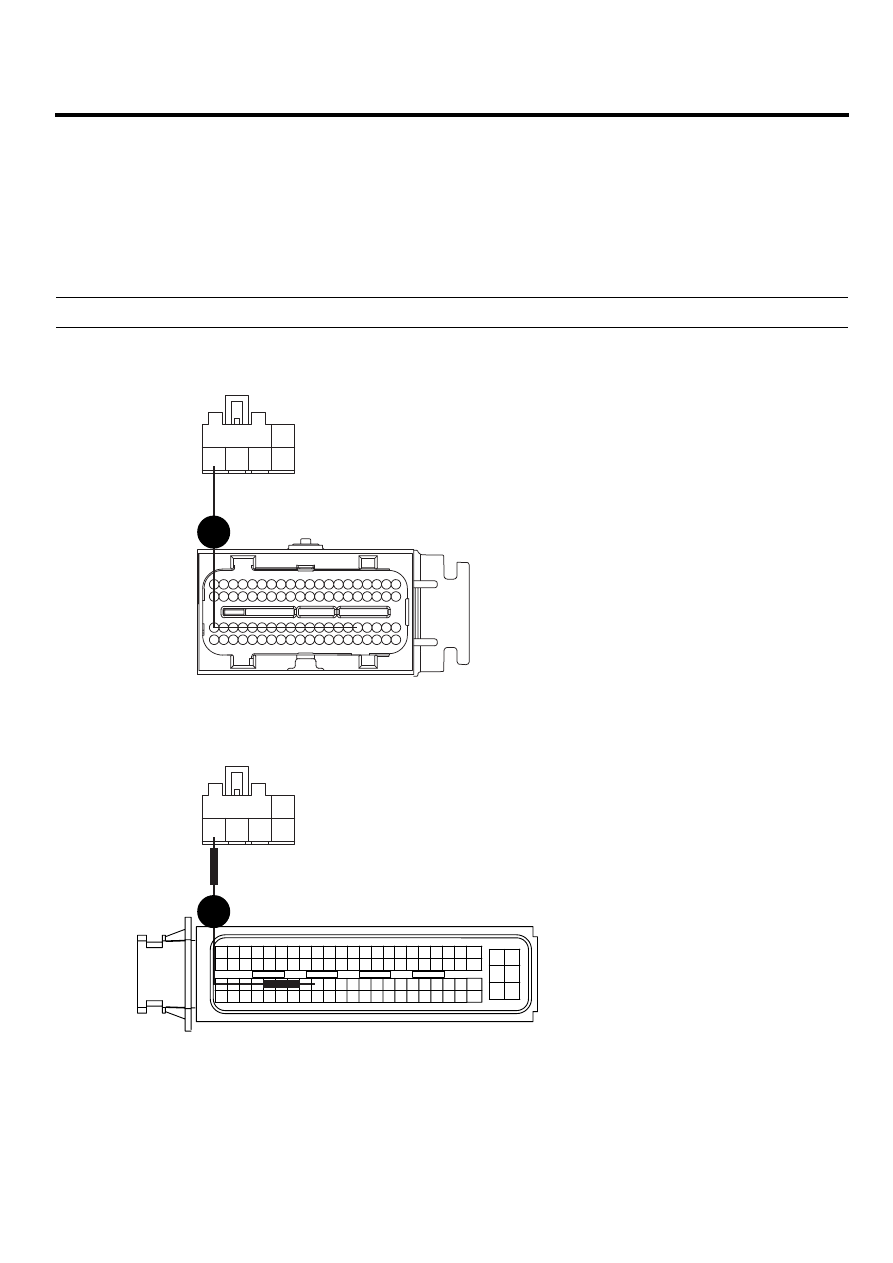

Measure resistance between terminal "5" of SMARTRA and terminal C30-A-45(Gasoline) or C230-K-47(Diesel)

Specification : 1 Ω or less

2

4

3

5

M21

1

1. Coil antenna
2. Coil antenna
3. Ground
4. Power
5. Signal

C30-A

*

*

*

* *

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

20

40

60 59 58

78

57

55 54 53

73 72 71 70 69

52 51

49 48 47

45 44 43 42 41

66 65

67

64 63 62 61

39 38

33 32

10 9

27 26 25

23

21

8

7

6

5

4

3

2

1

18

16 15

13

[Gasoline]

SCMBE6754L

2

4

3

5

M21

1

1. Coil antenna
2. Coil antenna
3. Ground
4. Power
5. Signal

[Diesel]

C230-K

1

7

29

30

31

38

40

45

42

46

47

48

49

8

9

11 10

12

15 14 13

16

19

22

24

25

27

28

2

3

4

6

5

*

*

*

*

*

* * * * * * *

*

*

*

*

*

77

75

79
57 56

81 80

83

84

89

90

91

92

94 93

54

68

69

70

71

72

* * *

*

* * *

*

*

* * *

*

*

* * *

*

*

*

*

*

*

SCMBE6755L

BE -262

BODY ELECTRICAL SYSTEM

4)

Is the measured resistance within specifications?

YES

Go to "Check for short in harness" procedure.

NO

Check for open in harness. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

2.

Check for short in harness

1)

Ignition "OFF"

2)

Disconnect SMARTRA.

3)

Ignition "ON" & Engine "OFF"

4)

Measure voltage value between terminal "5" of SMARTRA and chassis ground.

Specification :Approx. 5.48V

2

4

3

5

M21

1

1. Coil antenna
2. Coil antenna
3. Ground
4. Power
5. Signal

v

SCMBE6756L

5)

Is the measured voltage within specifications?

YES

Go to "Signal circuit Inspection" procedure

NO

Check for short in harness. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

IMMOBILIZER CONTROL SYSTEM

BE -263

GROUND CIRCUIT INSPECTION

ECBB382A

1.

Check for open in ground harness

1)

Ignition "OFF"

2)

Disconnect SMARTRA.

3)

Measure resistance between terminal "3" of SMARTRA and chassis ground.

Specification : 1 Ω or less

2

4

3

5

M21

1

1. Coil antenna
2. Coil antenna
3. Ground
4. Power
5. Signal

SCMBE6757L

4)

Is the measured resistance within specifications?

YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO

Check for open in harness. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

VERIFICATION OF VEHICLE REPAIR

ED2C8346

Refer to DTC P1610.

BE -264

BODY ELECTRICAL SYSTEM

DTC P1691 ANTENNA COIL ERROR

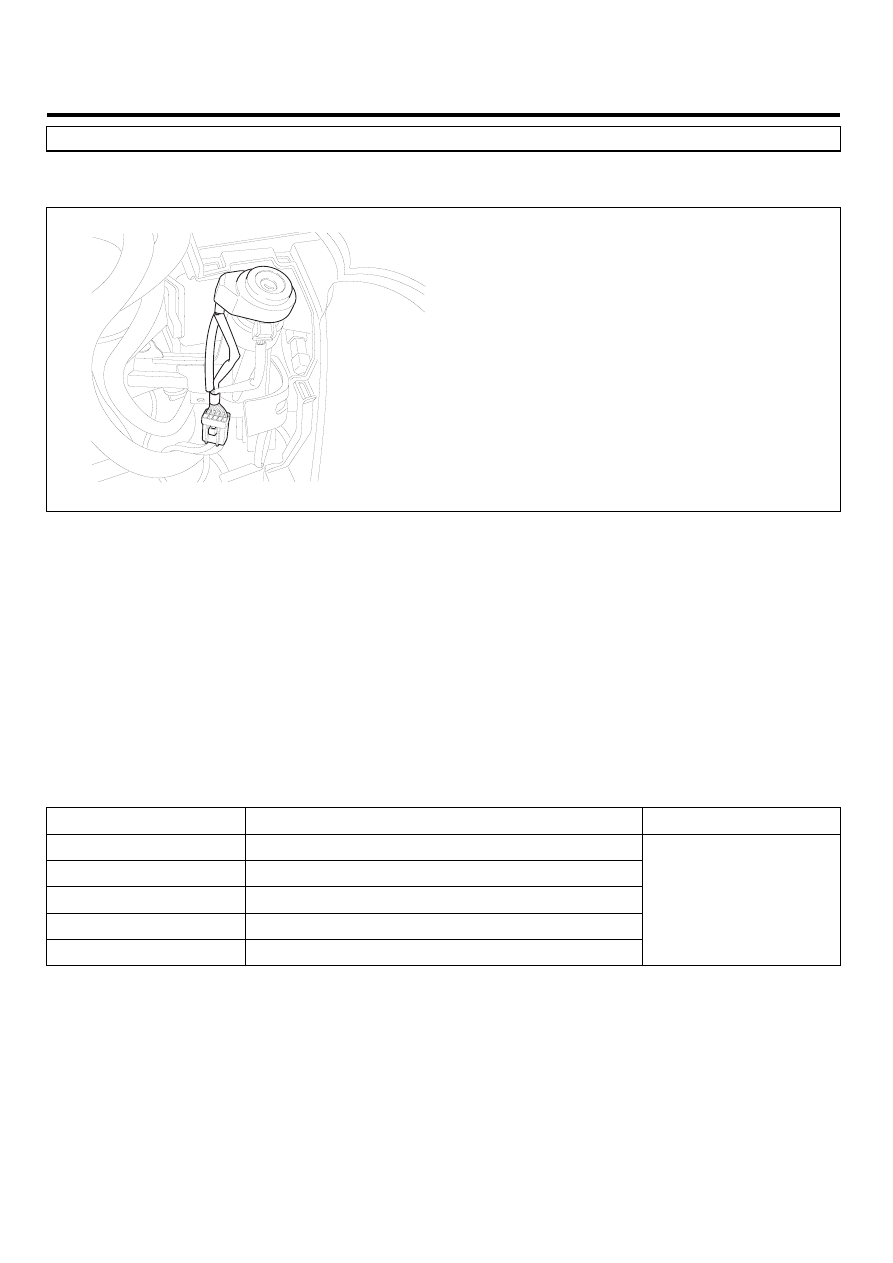

COMPONENT LOCATION

EBEC2385

SCMBE6752D

GENERAL DESCRIPTION

E0D9D74B

This wireless communication runs on RF (Radio frequency of 125 kHz). The SMARTRA is mounted at the ignition lock
close to the antenna coil for RF transmission and receiving. The RF signal from the transponder received by the antenna
coil is converted into messages for serial communication by the SMARTRA device. And the received messages from the
EMS are converted into an RF signal, which is transmitted, to the transponder by the antenna.

DTC DESCRIPTION

E58B7CDE

The ECM sets DTC P1691 if there’s any fault in immobilizer antenna coil.

DTC DETECTING CONDITION

EDA9BF49

Item

Detecting Condition

Possible Cause

DTC Strategy

Enable Conditions

• IG ON (On Registering TP Procedure)

Threshold value

Detecting time

FAIL SAFE

• Open Circuit in

antenna coil

• Short Circuit in

antenna coil

• Faulty antenna coil

SCHEMATIC DIAGRAM

ECB64C26

Refer to DTC P1610.
