IMMOBILIZER CONTROL SYSTEM

BE -241

When the key #1 is registered and key #2 is not
registered, put the unregistered master key #2 in
the IG/ON or the start position.
The engine cannot be started even with the reg-
istered key #1.

When you inspect the immobilizer system, refer
to the above paragraphs 1, 2 and 3.
Always remember the 10 seconds zone.

If the pin code ＆ password are entered incor-
rectly on three consecutive inputs, the system will
be locked for one hour.

Be cautious not to overlap the transponder areas.

Problems can occur at key registration or vehicle
starting if the transponders should overlap.

NEUTRALISING OF ECM

The PCM(ECM) can be set to the "neutral" status by a
tester.

A valid ignition key is inserted and after ignition on is
recorded, the PCM(ECM) requests the vehicle specific
data from the tester. The communication messages are
described at "Neutral Mode" After successfully receiving
the data, the PCM(ECM) is neutralized.

The ECM remains locked. Neither the limp home mode
nor the "twice ignition on" function, is accepted by the
PCM(ECM).

The teaching of keys follows the procedure described
for the virgin PCM(ECM). The vehicle specific data have
to be unchanged due to the unique programming of the
transponder. If data should be changed, new keys with a
virgin transponder are requested.

This function is for neutralizing the PCM(ECM) and Key.
Ex) when lost key, Neutralize the PCM(ECM) then teach
keys.
(Refer to the Things to do when Key ＆ PIN Code the
PCM(ECM) can be set to the "neutral" status by a scan-
ner. A valid ignition key is inserted and after ignition on
is recorded, the PCM(ECM) requests the vehicle specific
data from the scanner. The communication messages are
described at" Neutral Mode". After successfully receiving
the data, the PCM(ECM) is neutralized.
The PCM(ECM) remains locked. Neither the limp home
mode nor the "twice ignition on" function is accepted by
PCM(ECM).
The teaching of keys follows the procedure described for
virgin PCM(ECM). The vehicle specific data have to be un-
changed due to the unique programming of transponder.
If data should be changed, new keys with virgin transpon-
der are requested.

NOTE

• Neutralizing setting condition

In case of PCM(ECM) status "Learnt" re-
gardless of user password "Virgin or Learnt"

Input correct PIN code by scanner.

Neutralizing meaning .
: PIN code (6) ＆ user password (4) deletion.
: Locking of ECM (except key teaching per-
mission)

1. HYUNDAI VEHICLE DIAGNOSIS

MODEL : SANTAFE

SYSTEM : IMMOBILIZER

01. CURRENT DATA

02. PASSWORD TEACHING/CHANGING

03. TEACHING

04. NEUTRAL MODE

05. LIMP HOME MODE

SCMBE6573L

1.4 NEUTRAL MODE

INPUT PIN OF SIX

FIGURE AND PRESS [ENTER] KEY

CODE : 234567

MODEL : SANTAFE
SYSTEM : IMMOBILIZER
STATUS : LEARNT

SCMBE6574L

1.4 NEUTRAL MODE

COMPLETED

PRESS [ESC] TO EXIT

MODEL : SANTAFE
SYSTEM : IMMOBILIZER
STATUS : NEUTRAL

SCMBE6575L

BE -242

BODY ELECTRICAL SYSTEM

1. HYUNDAI VEHICLE DIAGNOSIS

MODEL : SANTAFE

SYSTEM : IMMOBILIZER

01. CURRENT DATA

02. PASSWORD TEACHING/CHANGING

03. TEACHING

04. NEUTRAL MODE

05. LIMP HOME MODE

SCMBE6576L

1.1 CURRENT DATA

FIX

SCRN FULL

PART GRPH HELP

01. NO. OF LEARNT KEY

02. ECU STATUS

03. KEY STATUS

NEUTRAL

NOT CHECK

SCMBE6577L

LIMP HOME FUNCTION

E6DD2F66

LIMP HOME BY TESTER
If the PCM(ECM) detects the fault of the SMARTRA
or transponder, the PCM(ECM) will allow limp home
function of the immobilizer. Limp home is only pos-
sible if the user password (4 digits) has been given
to the PCM(ECM) before. This password can be se-
lected by the vehicle owner and is programmed at the
service station.
The user password can be sent to the PCM(ECM) via
the special tester menu.
Only if the PCM(ECM) is in status "learnt" and the user
password status is "learnt" and the user password is
correct, the PCM(ECM) will be unlocked for a period of
time (30 sec.). The engine can only be started during
this time. After the time has elapsed, engine start is
not possible.
If the wrong user password is sent, the PCM(ECM)
will reject the request of limp home for one hour. Dis-
connecting the battery or any other action cannot re-
duce this time. After connecting the battery to the
PCM(ECM), the timer starts again for one hour.

1. HYUNDAI VEHICLE DIAGNOSIS

MODEL : SANTAFE

SYSTEM : IMMOBILIZER

01. CURRENT DATA

02. PASSWORD TEACHING/CHANGING

03. TEACHING

04. NEUTRAL MODE

05. LIMP HOME MODE

SCMBE6585L

1.5 LIMP HOME MODE

INPUT PASSWORD OF FOUR

FIGURES AND PRESS [ENTER] KEY

PASSWORD :

MODEL : SANTAFE
SYSTEM : IMMOBILIZER

SCMBE6586L

1.5 LIMP HOME MODE

INPUT PASSWORD OF FOUR

FIGURES AND PRESS [ENTER] KEY

NEW PASSWORD : 2345

MODEL : SANTAFE
SYSTEM : IMMOBILIZER

SCMBE6587L

IMMOBILIZER CONTROL SYSTEM

BE -243

1.5 LIMP HOME MODE

COMPLETED

PRESS [ESC] TO EXIT

MODEL : SANTAFE
SYSTEM : IMMOBILIZER

SCMBE6588L

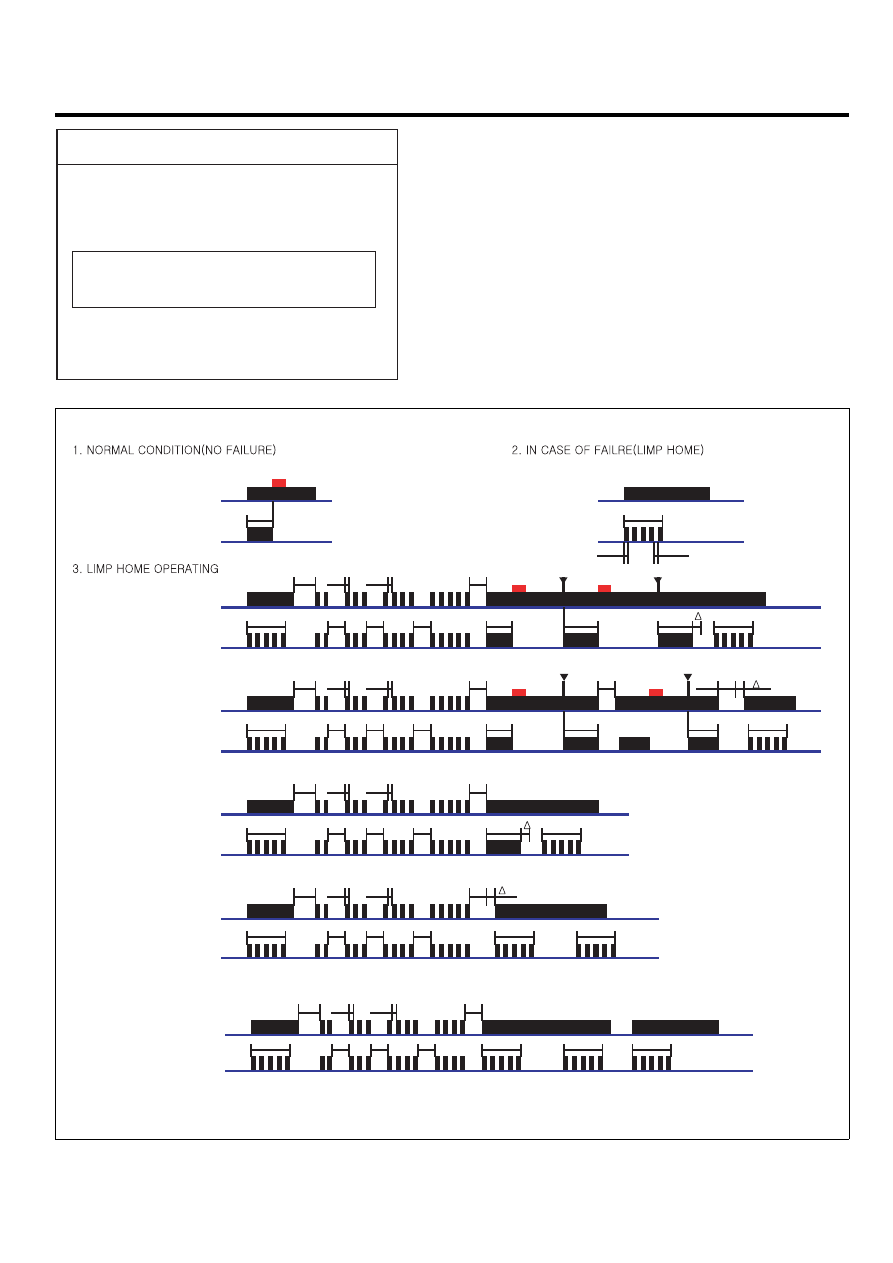

LIMP HOME BY IGNITION KEY
The limp home can be activated also by the igni-
tion key.

The user password can be input to the

PCM(ECM) by a special sequence of ignition on/off.
Only if the PCM(ECM) is in status "learnt" and the user
password status is "learnt" and the user password is
correct, the PCM(ECM) will be unlocked for a period
of time (30 sec.). The engine can be started during
this time. After the time has elapsed, engine start is
not possible. After a new password has been input,
the timer (30 sec.) will start again.
After ignition off, the PCM(ECM) is locked if the timer
has elapsed 8 seconds. For the next start, the input
of the user password is requested again.

ON
OFF

IGN.
(ENGINE)

IMMO.
LAMP

IGN.
(ENGINE)

IMMO.
LAMP

IGN.
(ENGINE)

IMMO.
LAMP

IGN.
(ENGINE)

IMMO.
LAMP

USER PASSWORD : 2345H

ON
OFF

IGN.
(ENGINE)

IMMO.
LAMP

USER PASSWORD : 2345H

START

ON
OFF

IGN.
(ENGINE)

IMMO.
LAMP

USER PASSWORD : 2345H

START

ENG STALL

ON
OFF

IGN.
(ENGINE)

IMMO.
LAMP

START

NOTE :

T1 > 5sec
3sec < T2 < 10sec
0.2sec < T3 < 5 sec
0.2sec < T4 < 3sec
T5 = 5sec
T6 < 30sec
T9 = 8sec
T8 = 30sec
CODE "0" = IG.ON 10 TIMES

LTIF740N

BE -244

BODY ELECTRICAL SYSTEM

DIAGNOSIS OF IMMOBILIZER

FAULTS

EBD7CB72

Communication between the ECM and the SMAR-
TRA.

Function of the SMARTRA and the transponder.

Data (stored in the ECM related to the immobilizer
function.

The following table shows the assignment of immobilizer
related faults to each type:

Immobilizer Related

Faults

Fault types

Diagnostic codes

PCM(ECM) fault

Non-Immobilizer-EMS connected to an Immobilizer

P1610

Transponder key fault

Transponder not in password mode

Transponder transport data has been changed.

P1674

(Transponder status error)

Transponder key fault

Transponder programming error

P1675

(Transponder programming

error)

SMARTRA fault

Invalid message from SMARTRA to PCM(ECM)

P1676

(SMARTRA message error)

SMARTRA fault

No response from SMARTRA

Antenna coil error

Communication line error (Open/Short etc.)

Invalid message from SMARTRA to PCM(ECM)

P1690

(SMARTRA no response)

Antenna coil fault

Antenna coil open/short circuit

P1691

(Antenna coil error)

Immobilizer indicator
lamp fault

Immobilizer indicator lamp error (Cluster)

P1692

(Immobilizer lamp error)

Transponder key fault

Corrupted data from transponder

More than one transponder in the magnetic
field (Antenna coil)

No transponder (Key without transponder) in the
magnetic field (Antenna coil)

P1693

(Transponder no response

error/invalid response)

PCM(ECM) fault

Request from PCM(ECM) is invalid
(Protocol layer violation- Invalid request, check
sum error etc.)

P1694

(PCM(ECM) message

error)

PCM(ECM) internal
permanent memory
(EEPROM) fault

PCM(ECM) internal permanent memory (EEPROM) fault

Invalid write operation to permanent memory (EEPROM)

P1695

(PCM(ECM) memory error)

Invalid key fault

Virgin transponder at PCM(ECM) status "Learnt"Learnt
(Invalid) Transponder at PCM(ECM) status
"Learnt"(Authentication fail)

P1696

(Authentication fail)

Hi-Scan fault

Hi-Scan message error

P1697

Locked by timer

Exceeding the maximum limit of Twice IGN ON (⊇ 32 times)

P1699

(Twice IG ON over trial)
