POWER DOOR MIRRORS

BE -141

POWER DOOR MIRROR
ACTUATOR

INSPECTION

EAE14156

1.

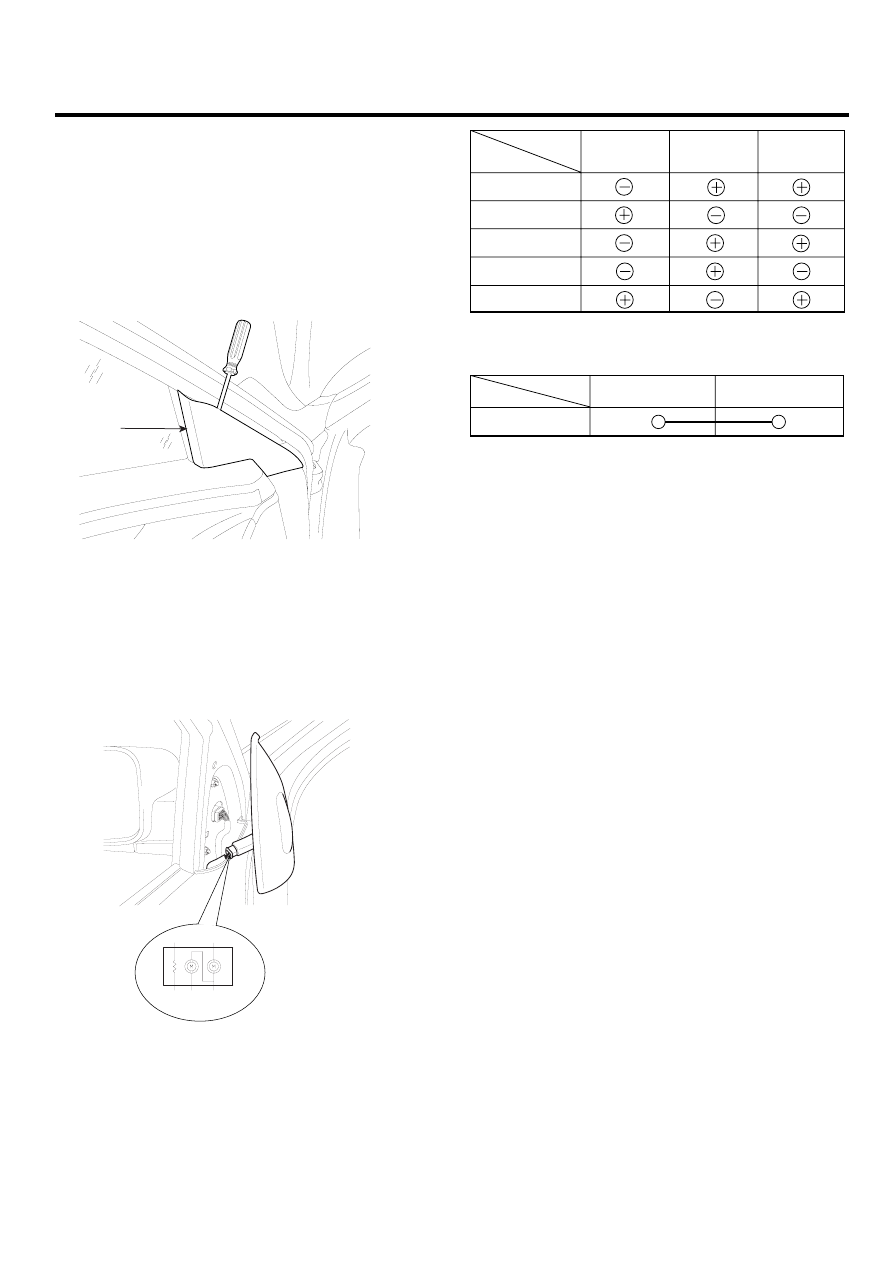

Remove the front door quadrant inner cover (A). Take
care not to damage fixing clips. (Refer to the Body
group - front door)

A

ETBF302F

2.

Disconnect the power door mirror connector from the
harness.

3.

Apply battery voltage to each terminal as shown in the
table and verify that the mirror operates properly.

1

6

8

7

2

Heater

Left/Right

Up/Down

SCMBE6263L

UP

DOWN

OFF

LEFT

RIGHT

6

7

8

Terminal

Position

SCMBE6264L

MIRROR HEATER

1

2

Terminal

Position

Heater

SCMBE6265L

BE -142

BODY ELECTRICAL SYSTEM

POWER WINDOWS

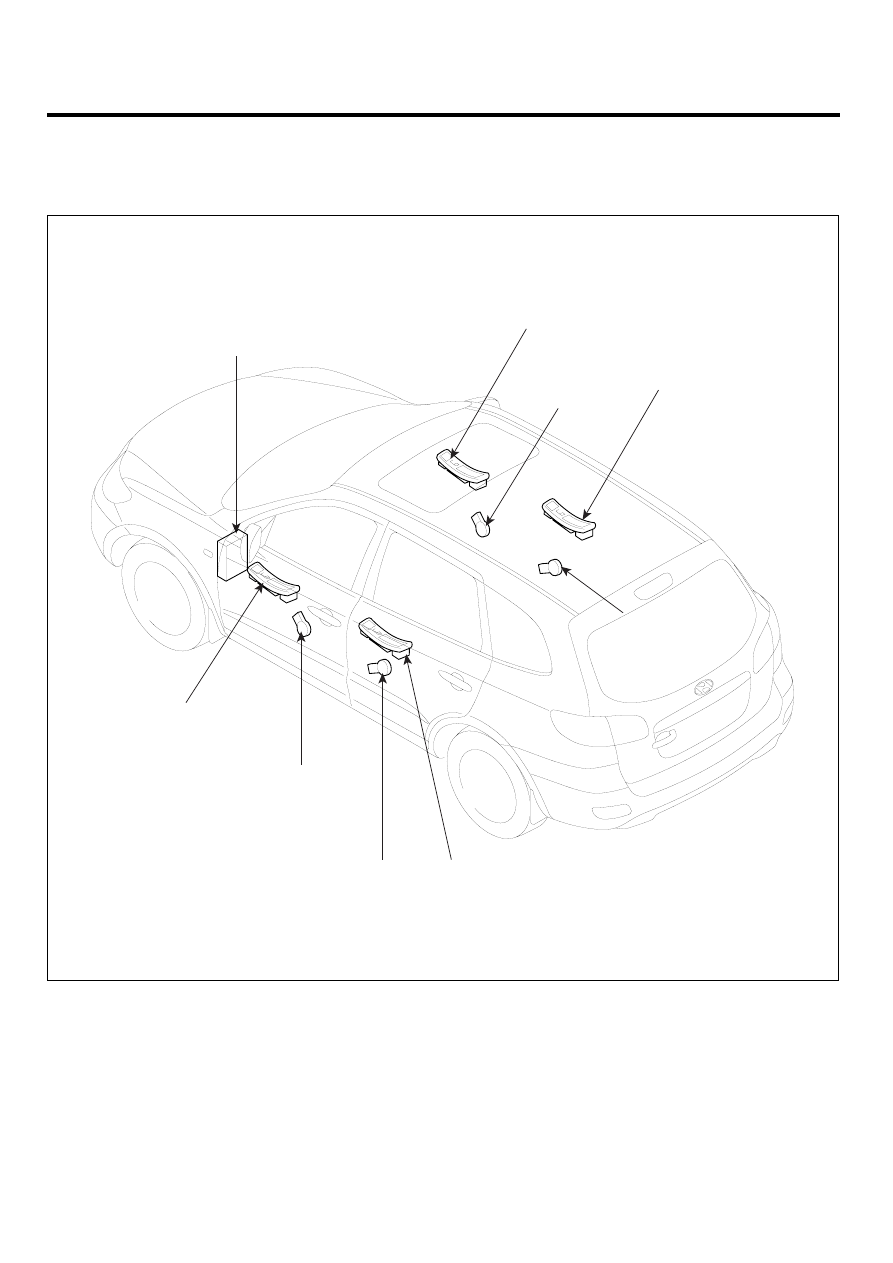

COMPONENT LOCATION

EAA7E4EF

1*

2*

3

4

5

9

8*

7

6

1.  Instrument panel junction box (Power window relay)
2.  Assist window switch
3.  Rear window switch
4.  Front window motor
5.  Rear window motor

6.  Front window motor
7.  Rear window motor
8.  Driver power window main switch
9.  Rear window switch

The parts with asterisk(*) :
This illustration shows the LHD type.
RHD type is symmetrical.

SCMBE6270L

POWER WINDOWS

BE -143

TROUBLESHOOTING

E016BF36

1.

No windows operate from the main switch on the
driver’s door.

Power window relay inspection

OK

NG

Replace fuse or fusible link

Replace the relay

Repair the wire harness and poor

ground.

Poor ground and the wire

harness inspection

OK

NG

NG

Power window No.1 fuse(30A), No.2

fuse(30A) and fusible link short check

OK

Turn off

NG

Is the window lock switch turned off?

SCMBE6276L

2.

Driver’s side window does not operate.

Inspect the battery supply voltage of
power window main switch between
connector terminals 9 and 16.
OK : Battery voltage (12V)

OK

NG

Replace the power window main switch

Repair the wire harness and

poor ground.

Power window main switch inspection

OK

NG

Replace the power window motor

NG

OK

Replace the fuse

Safety window fuse (20A) short check

NG

Driver's side power window

motor  inspection

SCMBE6277L

BE -144

BODY ELECTRICAL SYSTEM

3.

Passenger’s side window does not operate.

Inspect the battery supply voltage of
passenger's side power window switch
between connector terminal 12
and 14/13.
OK : Battery voltage (12V)

OK

NG

Replace the power window switch

Repair the wire harness and

poor ground

Passenger's side power window

switch inspection

OK

NG

Replace the power window motor

NG

OK

Replace fuse

Power window (right) fuse (25A)

short check

NG

Passenger's side power window

motor inspection

SCMBE6278L
