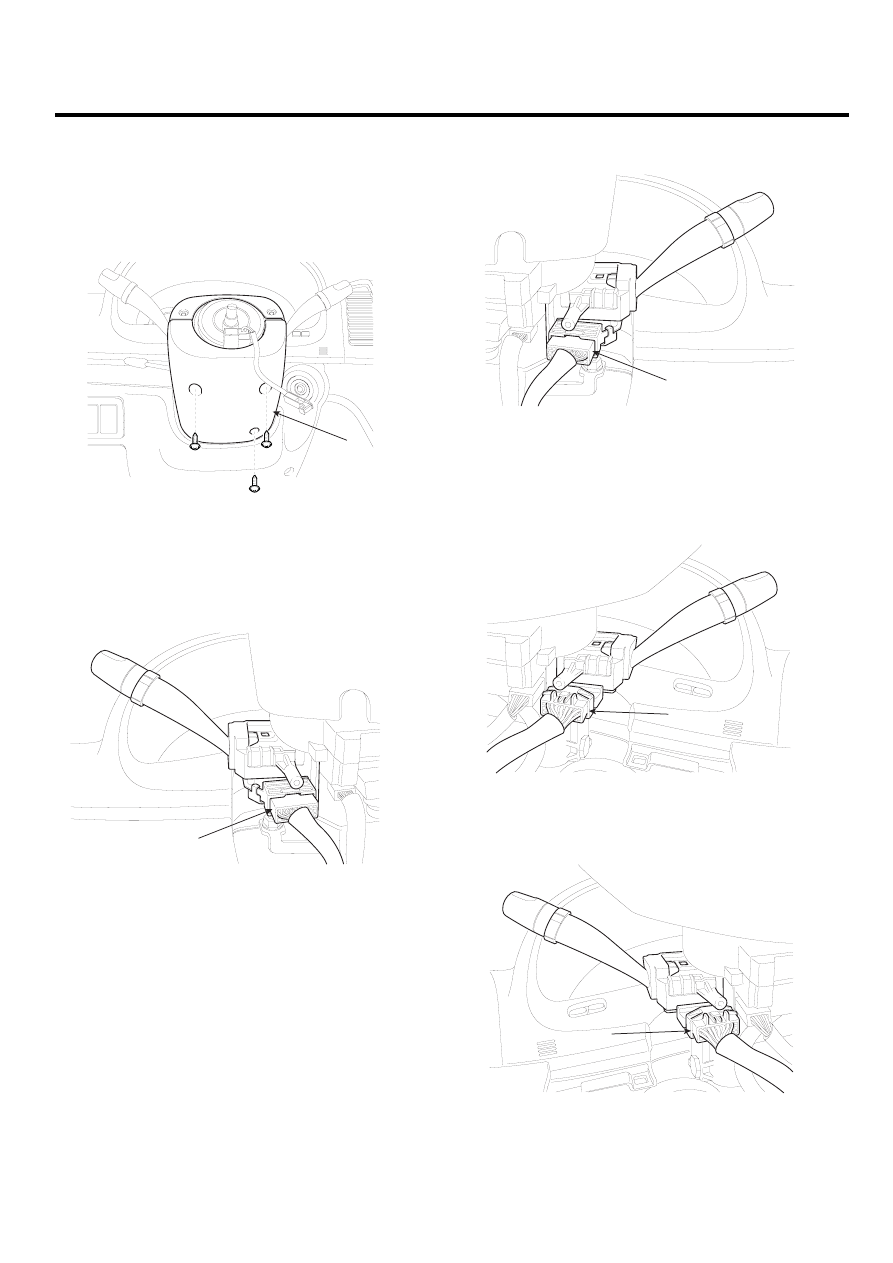

MULTI FUNCTION SWITCH

BE -37

REPLACEMENT

E5E9CB1C

1.

Disconnect the negative (-) battery terminal.

2.

Remove the steering column upper and lower shrouds
(A) after removing 3 screws.

A

SCMBE6041D

3.

Remove the light switch (A) by pushing the lock pin
after disconnecting the connector.

[LHD]

A

SCMBE6042D

[RHD]

A

SCMBE6042R

4.

Remove the wiper switch (A) by pushing the lock pin
after disconnecting the connector.

[LHD]

A

SCMBE6043D

[RHD]

A

SCMBE6043R

5.

Installation is the reverse of removal.

BE -38

BODY ELECTRICAL SYSTEM

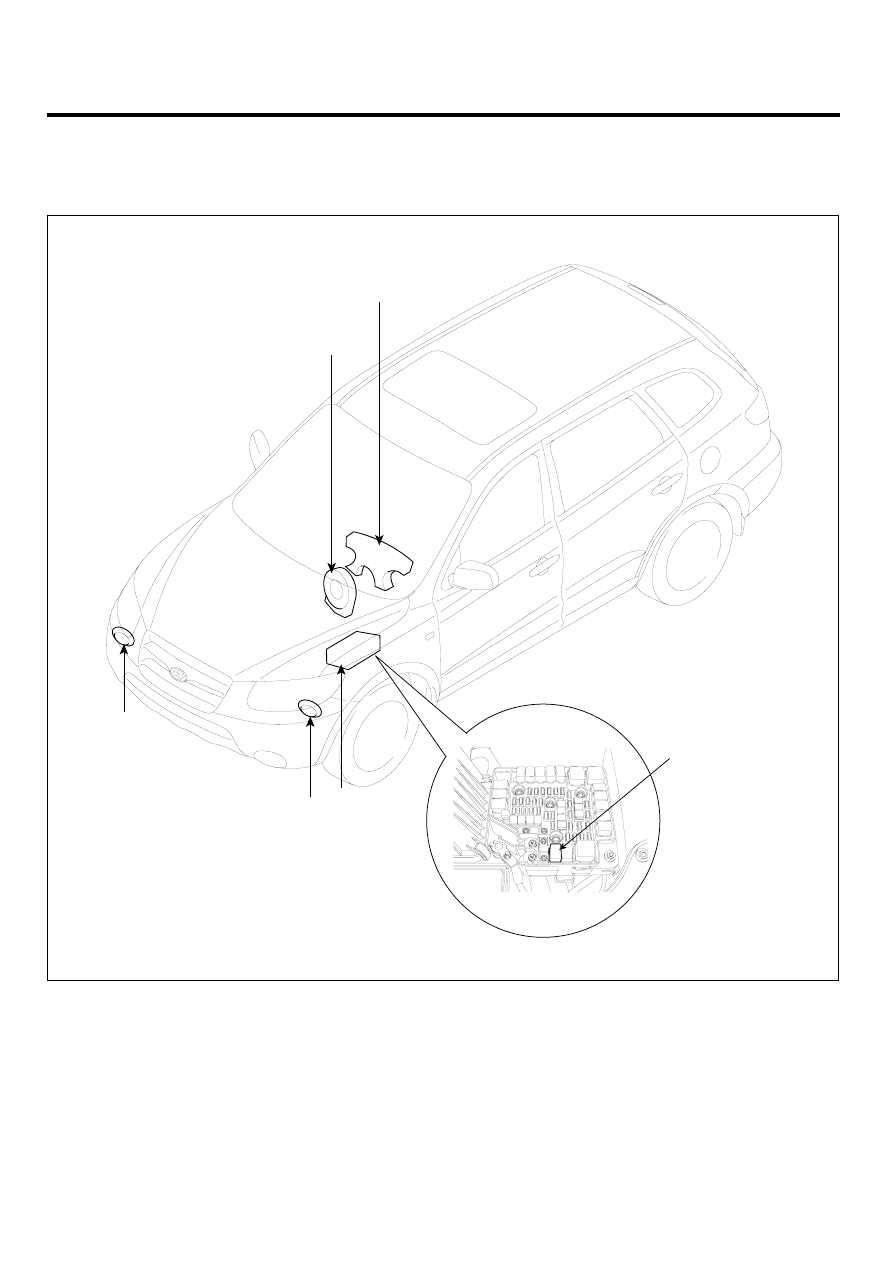

HORNS

COMPONENT LOCATION

E15C8F93

1*

6*

3

4

2

1. Horn switch
2. Relay box (Engine room compartment)
3. Horn (Low pitch)

4. Horn (High pitch)
5. Horn relay
6. Clock spring

5

The parts with asterisk(*) :
This illustration shows the LHD type.
RHD type is symmetrical.

SCMBE6060L

HORNS

BE -39

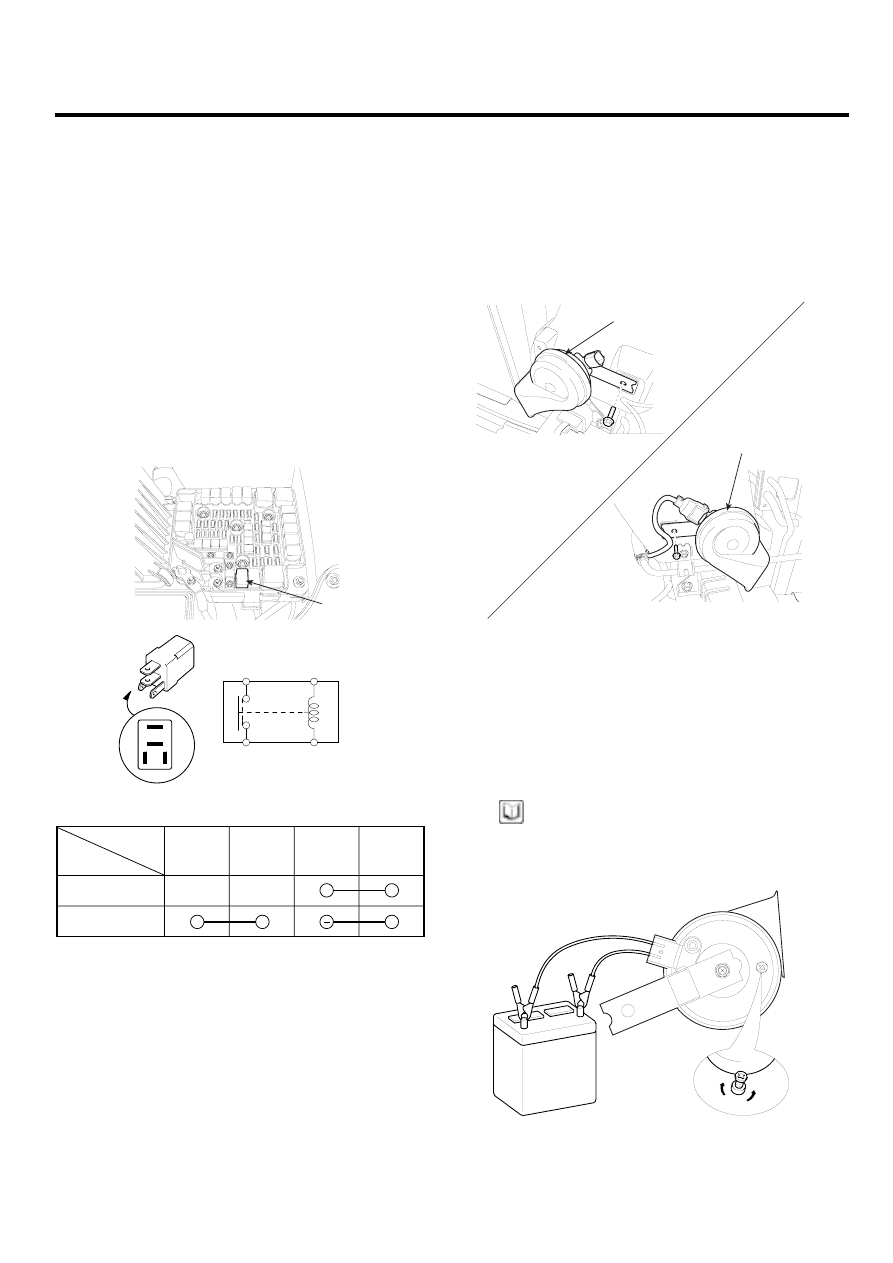

INSPECTION

EC1AB8DD

Test the horn by connecting battery voltage to the 1 termi-
nal and ground the 2 terminal.
The horn should make a sound. If the horn fails to make
a sound, replace it.

HORN RELAY INSPECTION

1.

Remove the horn relay (A) from the engine room relay
box.

2.

There should be continuity between the No.30 and
No.87 terminals when power and ground are con-
nected to the No.85 and No.86 terminals.

3.

There should be no continuity between the No.30 and
No.87 terminals when power is disconnected.

30

85

86

87

87

85

30

86

A

SCMBE6062D

30

87

85

86

+

Disconnected

Connected

Terminal

Power

SCMBE6063L

REPLACEMENT

ECB03EF0

1.

Remove the front bumper. (Refer to the Body group -
front bumper).

2.

Remove the bolt and disconnect the horn connector,
then remove the high pitch horn (A) and low pitch horn
(B).

A

B

SCMBE6061D

3.

Installation is the reverse of removal.

ADJUSTMENT

E3F677F8

1.

Operate the horn, and adjust the tone to a suitable
level by turning the adjusting screw.

NOTE

After adjustment, apply a small amount of paint
around the screw head to keep it from loosening.

DOWN

UP

SCMBE6064D

BE -40

BODY ELECTRICAL SYSTEM

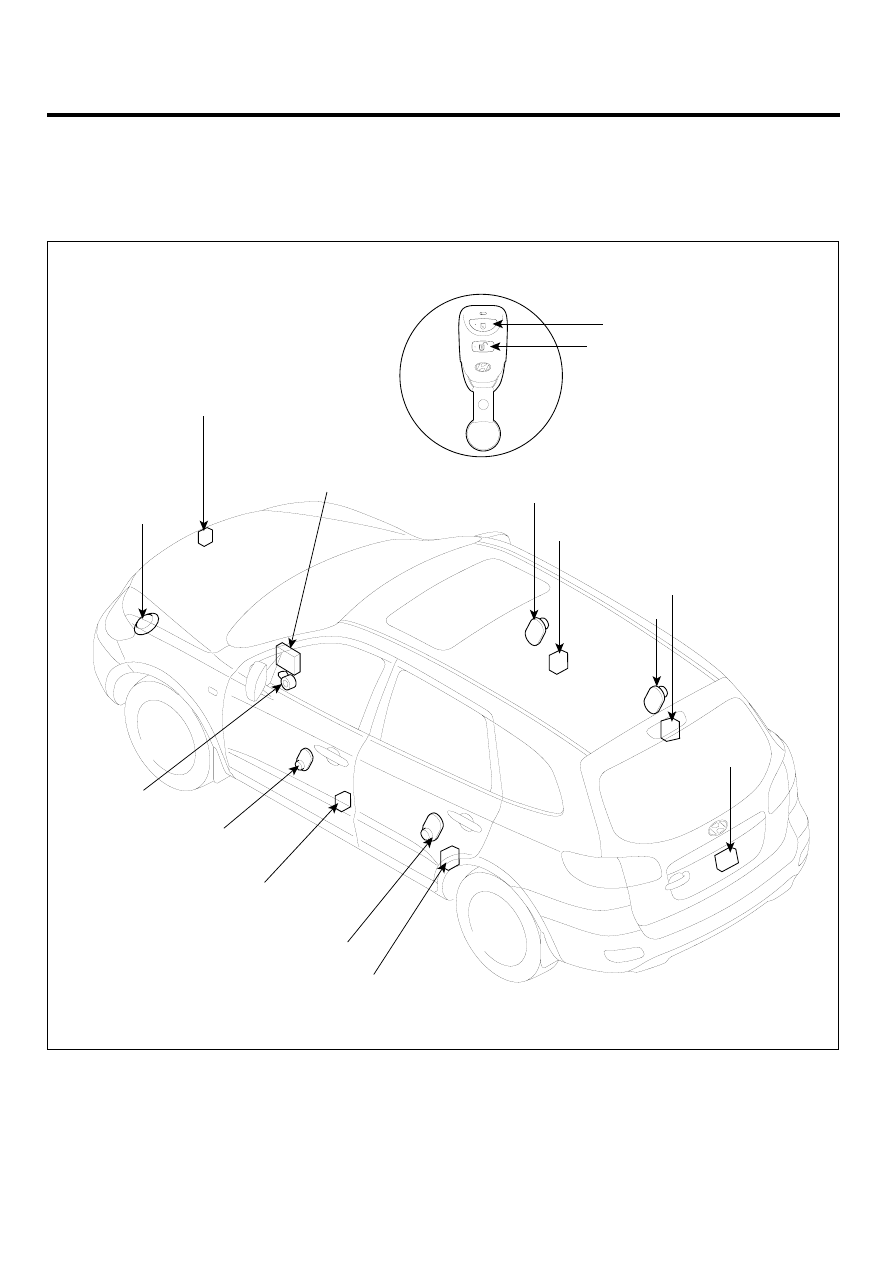

KEYLESS ENTRY AND
BURGLAR ALARM

COMPONENT LOCATION

E168CF7A

Transmitter

Lock button

Unlock button

1. Hood switch
2. Burglar horn
3. Body control module
4. Key warning switch
5. Front door switch

 6. Front door lock actuator & switch
 7. Rear door lock actuator & switch
 8. Rear door switch
 9. Tailgate lock actuator & switch

2

3*

5

6

8

7

8

5

7

6

4*

1

9

The parts with asterisk(*) :
This illustration shows the LHD type.
RHD type is symmetrical.

SCMBE6120L
