Hyundai: Engine D4FA. Manual - part 99





DIESEL CONTROL SYSTEM

FLA -267

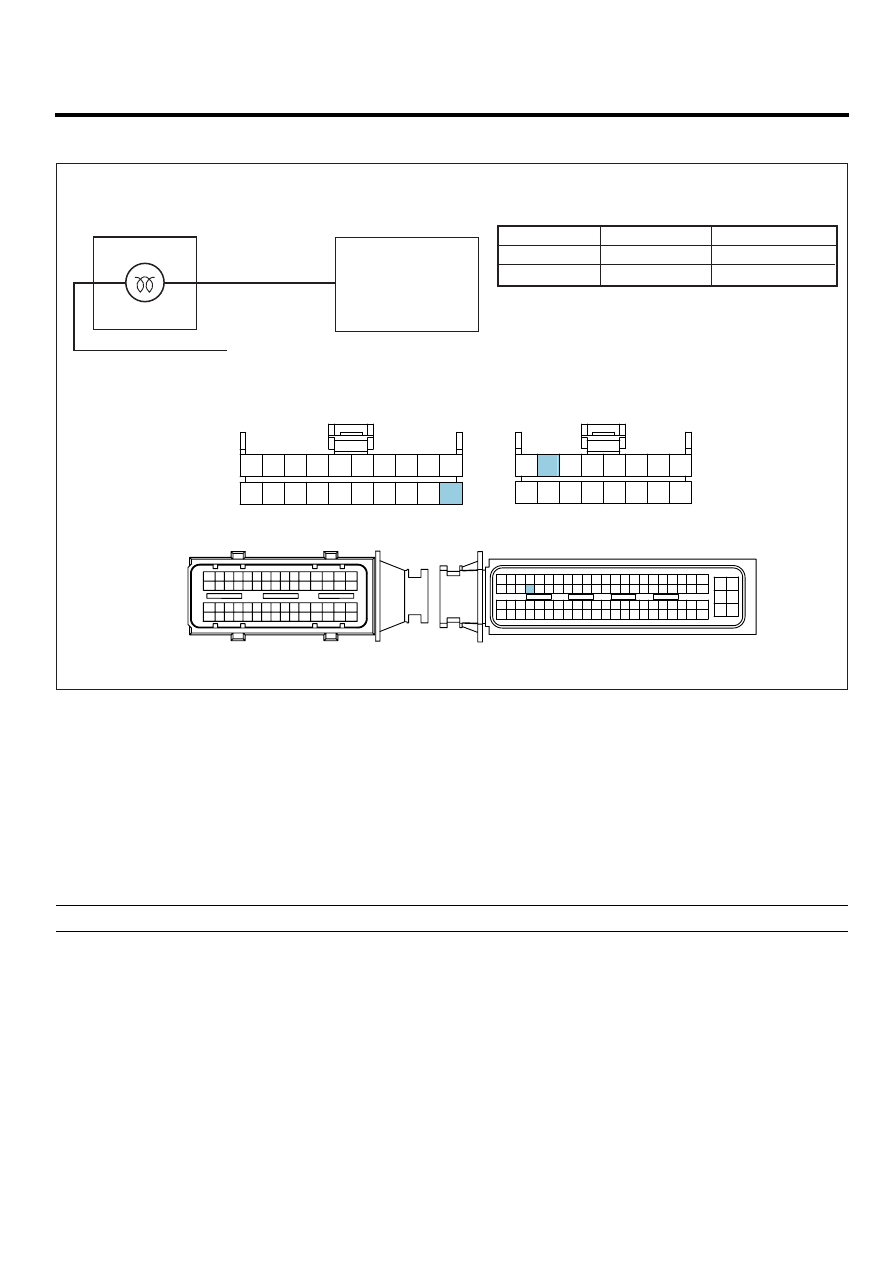

SCHEMATIC DIAGRAM

EFB675FD

[CIRCUIT DIAGRAM]

[HARNESS CONNECTOR]

[CONNECTOR INFORMATION]

Terminal

Terminal

Connected to

Connected to

Function

M09-1 terminal 11

M09-3 terminal 7

7

11

Glow lamp

M09-1

10A Cluster FUSE

Glow lamp control

IG power

C101-2 terminal 69

69. Glow lamp control

10A Cluster FUSE (IG power)

C101-2 ECM

M09-3

M09 Cluster

C101-2 ECM

C101-1 ECM

1

30 29

31

32

38

39

36

37

35

33

34

40

42 41

46 45 44 43

48 47

50 49

2

3

4

6

5

8

7

12 11 10 9

13

14

15

18 17

19

16

22

25

27 26

23

20

21

24

28

51

75 74
53 52

73

79 78 77 76

80

81

83 82

84

86 85

87

89 88

90

92 91

93

94

57

69 68

70

71

64

54

55

56

61

58

59

60

63 62

65

66

67

72

4

5

6

7

8

11

12

13

14

15

16

17

18

19

20

*

*

*

* *

1

2

3

4

6

7

9

10

11

12

14

15

16

*

*

*

M09-1

M09-3

1

2

4

3

6

5

8 7

12

13

16

17

18

23 22

20

21

19

27 26 25 24

28

29

30

14

9

10

11

15

33 32 31

34

37

41

42

40 39 38

35

36

43

44

47 46

49 48

50

53

56

58 57

54

51

52

55

59

60
45

EGNG007P

MONITOR SCANTOOL DATA

E18DB7A2

1.

Connect Scantool to Data Link Connector (DLC).

2.

Warm engine up to normal operating temperature.

3.

Turn "OFF" electrical devices and A/C.

4.

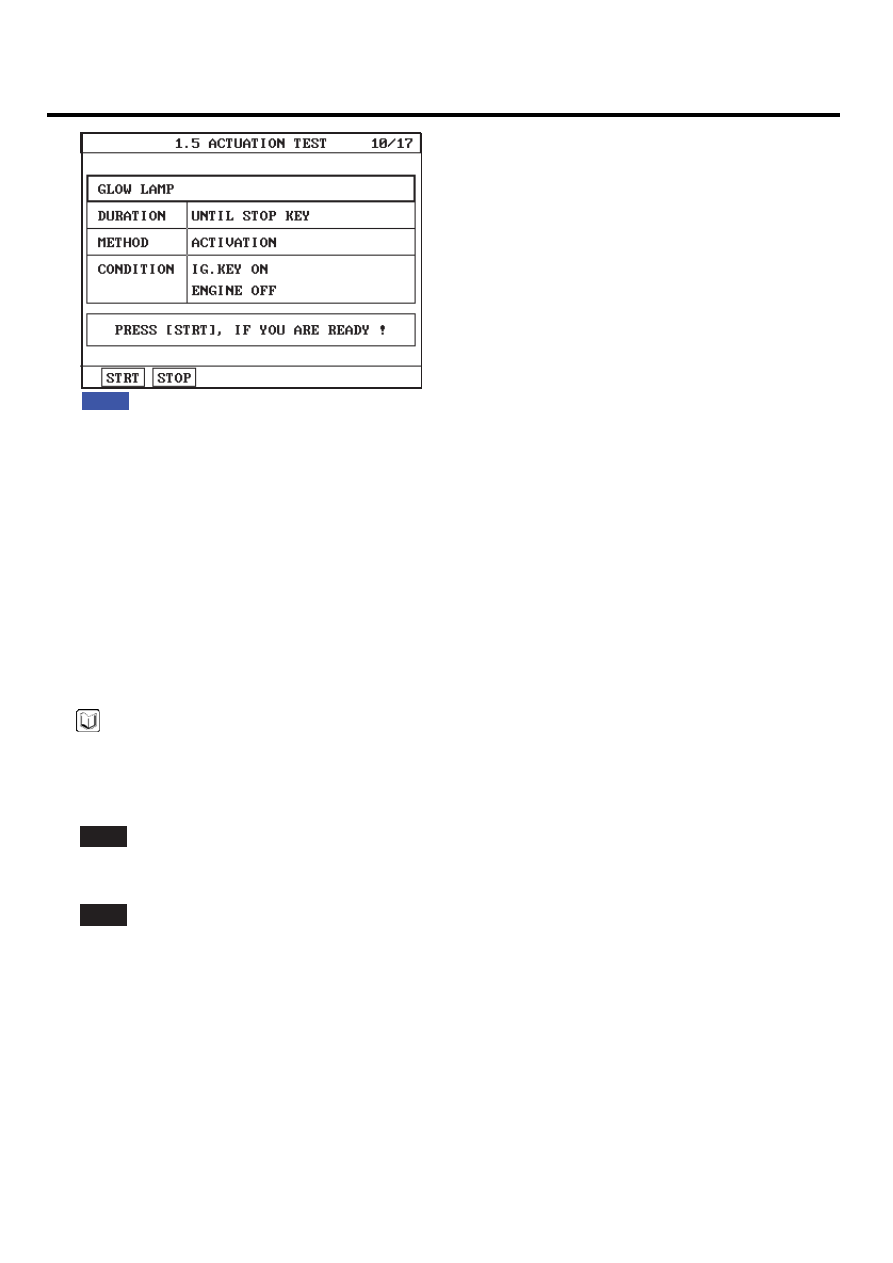

Select "ACTUATION TEST" parameter on the scantool.

specification : Lamp turns ON at ACTUATION TEST of Glow lamp.

FLA -268

FUEL SYSTEM

Fig.1

Fig.1) Diagnosing problem is convenient through ACTUATION TEST of glow lamp.

EGNG007Q

TERMINAL AND CONNECTOR INSPECTION

E93A6444

1.

Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause various prob-
lems and damge of component.

2.

Perform checking procedure as follows.

1)

Check damage of harness and terminals : Check terminals for contact resistance, corrosion and deformation.

2)

Check connecting condition of ECM and component connector : Check terminal seperation, damage of locking
device and connecting condition between terminal and wiring.

NOTE

Disconnect the pin which requires checking at male connector and insert it to the terminal at female connector for
checking connecting condition. ( after checking, reconnect the pin at correct position. )

3.

Is the problem found?

YES

▶ Repair the trouble causing part and go to "Verification of Vehicle Repair".

NO

▶ Go to "Control Circuit Inspection".

CONTROL CIRCUIT INSPECTION

E6211F58

1.

Check voltage in control circuit

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect ECM connector.

3)

IG KEY "ON".

4)

Measure the voltage of terminal 69 of ECM connector.

DIESEL CONTROL SYSTEM

FLA -269

Specification : 10.8V~13.0V

5)

Is the measured voltage within the specification?

YES

▶ Go to "2. Grounding test of glow lamp control circuit".

NO

▶ Check filament of glow lamp. ( Refer to Component Inspection)

2.

Grounding test of glow lamp control circuit

1)

IG KEY "OFF", ENGINE "OFF".

2)

Disconnect ECM connector.

3)

IG KEY "ON".

4)

Ground ECM connector terminal 69 to chassis ground.

specification : Glow lamp turns ON.

5)

Does glow lamp turn ON?

YES

▶ Go to "Verification of Vehicle Repair".

NO

▶ Repair short to battery in glow lamp control circuit and go to "Verification of Vehicle Repair".

COMPONENT INSPECTION

E090ECDF

1.

IG KEY "OFF", ENGINE "OFF".

2.

Dismount cluster and disconnect glow lamp.

3.

Check filament of glow lamp.

4.

supply 12V to glow lamp to turn lamp ON.

specification : Lamp turns ON when 12V is supplied.

5.

Does glow lamp turn ON?

1)

YES

▶ Go to "Verification of Vehicle Repair".

NO

▶ Replace glow lamp and go to "Verification of Vehicle Repair".

FLA -270

FUEL SYSTEM

VERIFICATION OF VEHICLE REPAIR

EBE01516

After a repair, it is essential to verify that the fault is corrected.

1.

After connecting Scantool select "DIAGNOSTIC TROUBLE CODES(DTCs)" mode.

2.

Clear recorded DTC using Scantool.

3.

Drive the vehicle within DTC "Enable conditions" in "General information".

4.

After selecting "DIAGNOSTIC TROUBLE CODES(DTCs)" mode and check if DTC is recorded again.

5.

Are any DTCs recorded ?

YES

▶ Go to the DTC guide of recorded NO. in Scantool.

NO

▶ System operates within specification.
