LUBRICATION SYSTEM

EMA -89

REMOVAL

E706E185

OIL PUMP

1.

Drain the engine oil.

2.

Remove the drive belts.

3.

Turn the crankshaft pulley, and align its groove with
timing mark "T" of the timing chain cover.

4.

Remove the Oil pan

5.

Remove

the

timing

chain

cover.

(Refer

to

EMA-18~22, step1~24)

6.

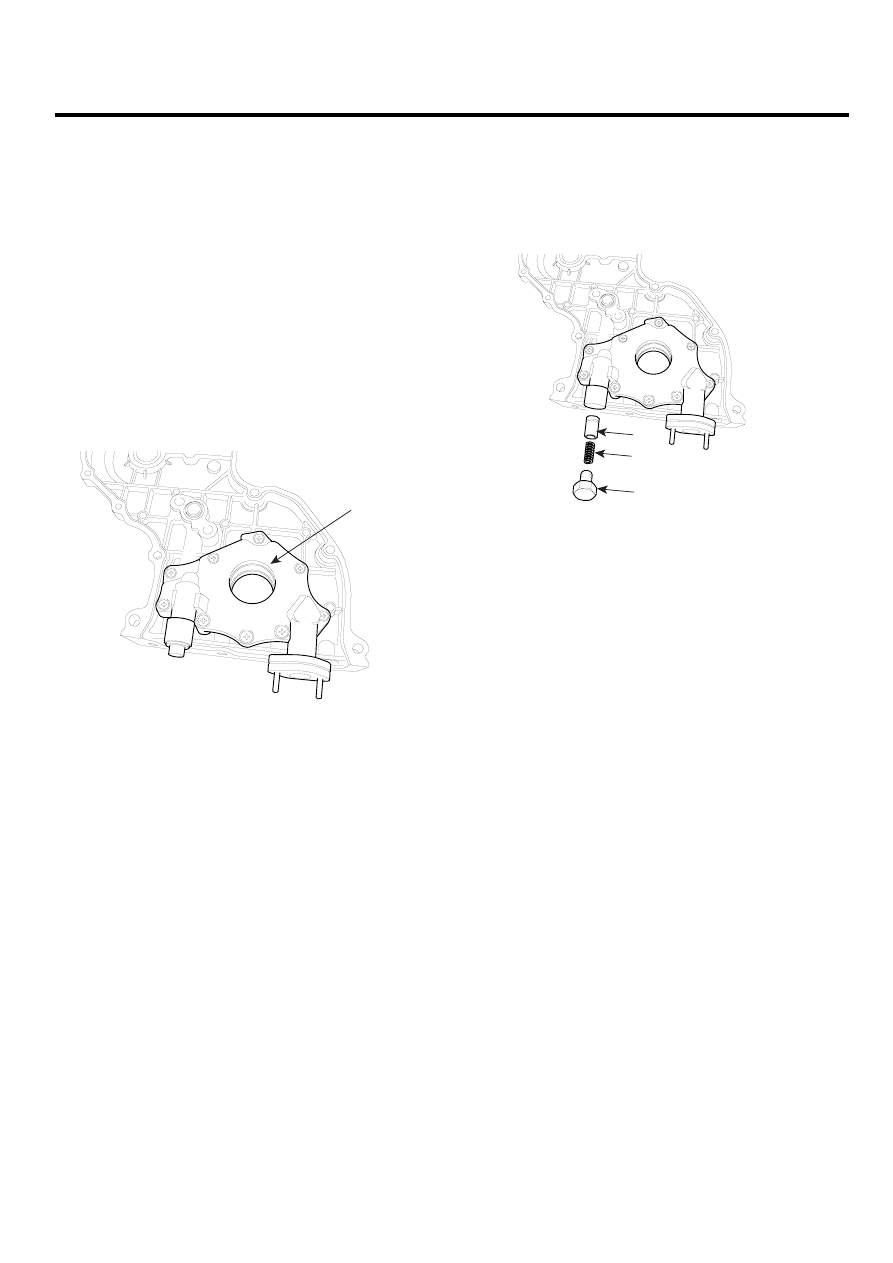

Remove the oil pump cover(A) from the timing chain
cover.

A

LCGF115A

7.

Remove the inner rotor and outer rotor.

DISASSEMBLY

E4CE52B1

RELIEF PLUNGER

1.

Remove the relief plunger.
Remove the plug(A), spring(B) and relief plunger(C).

C

B

A

ACGF116A

EMA -90

ENGINE (D4FA - DSL1.5)

INSPECTION

E1596F2A

1.

Inspect the relief plunger.
Coat the plunger with engine oil and check that it falls
smoothly into the plunger hole by its own weight.
If it does not, replace the relief plunger. If necessary,
replace the front case.

2.

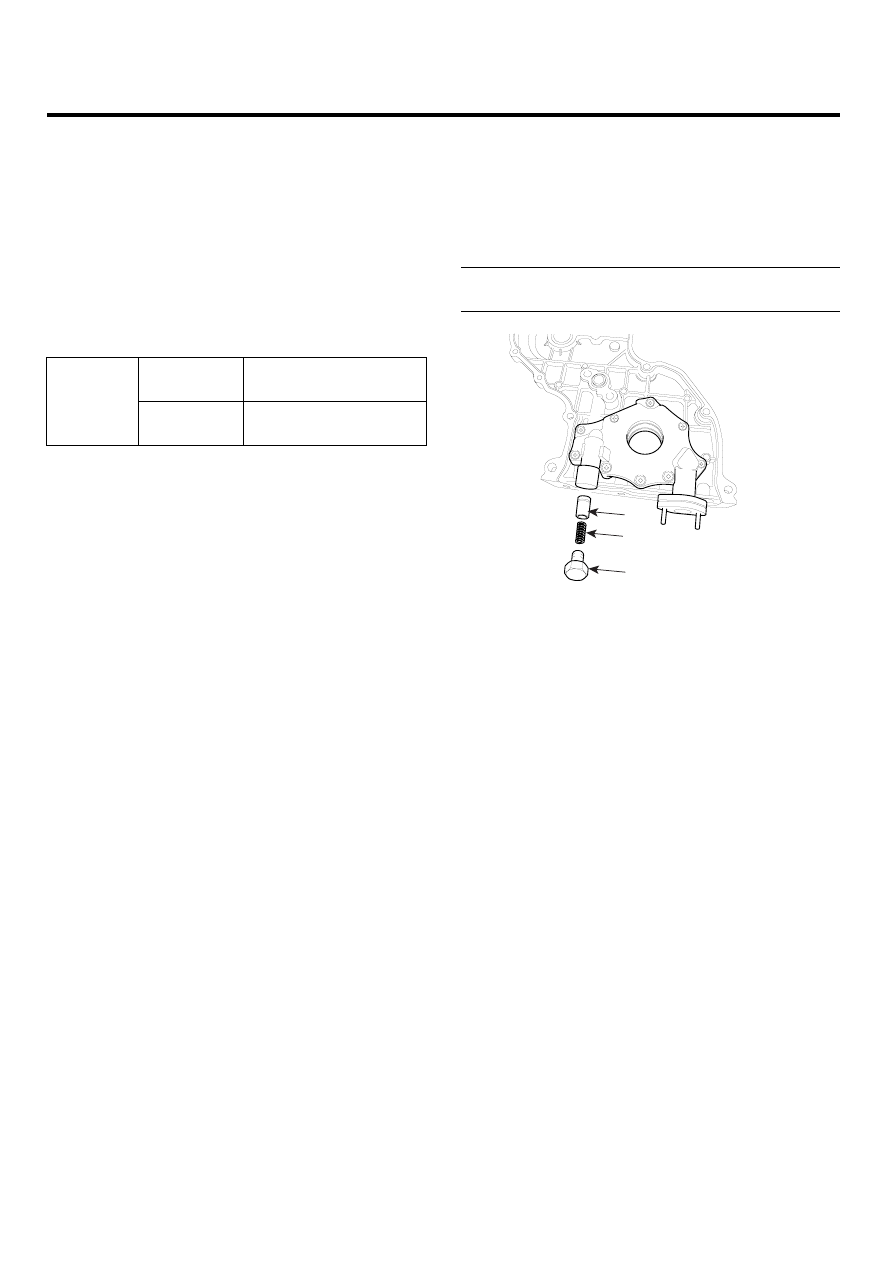

Inspect the rotor side clearance.
Using a feeler gauge and precision straight edge,
measure the clearance between the rotors and
precision straight edge.

Outer rotor

0.04 ~ 0.09mm

(0.0016 ~ 0.0035in)

Side

clearance

Inner rotor

0.04 ~ 0.085mm

(0.0016 ~ 0.0033in)

If the side clearance is greater than maximum, replace
the rotors as a set. If necessary, replace the front
case.

REASSEMBLY

E7FFCFF4

RELIEF PLUNGER

1.

Install the relief plunger.
Install relief plunger(C) and spring(B) into the front
case hole, and install the plug(A).

Tightening torque :
25.5 ~ 34.3N.m (2.6 ~ 3.5kgf.m, 18.8 ~ 25.3lb-ft)

C

B

A

ACGF116A

LUBRICATION SYSTEM

EMA -91

INSTALLATION

E465BA84

OIL PUMP

1.

Install the oil pump.

1)

Place the inner and outer rotors into front case
with the marks facing the oil pump cover side.

2)

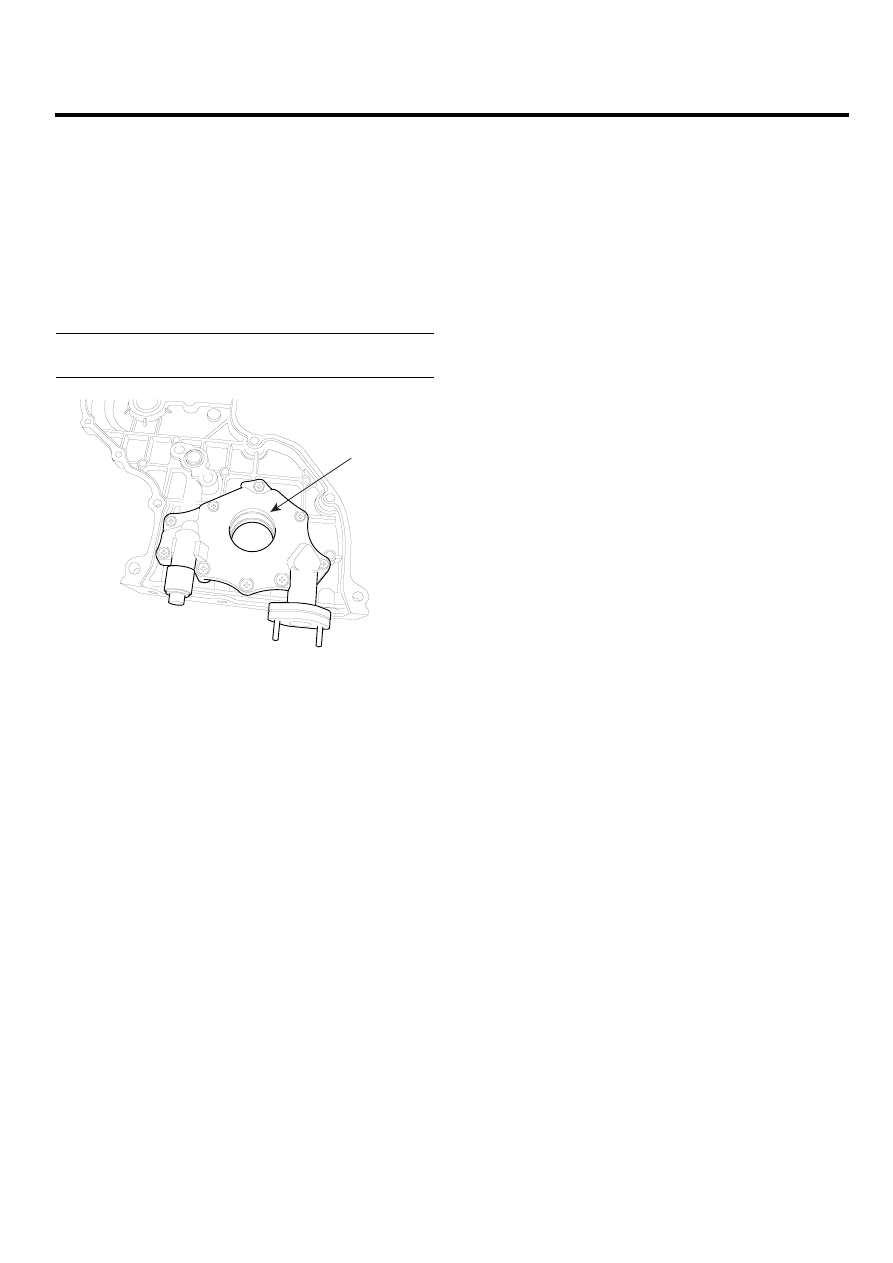

Install the oil pump cover(A) to timing chain cover
with the screws.

Tightening torque :
5.9 ~ 8.8N.m (0.6 ~ 0.9kgf.m, 4.3 ~ 6.5lbf.ft)

A

LCGF115A

2.

Check that the oil pump turns freely.

3.

Install the timing chain cover. (Refer to EMA-29~33)

4.

Install the oil pan.

5.

Install the drive belts.

6.

Fill with engine oil.

EMA -92

ENGINE (D4FA - DSL1.5)

INTAKE AND EXHAUST
SYSTEM

INTAKE MANIFOLD

E57F3CD0

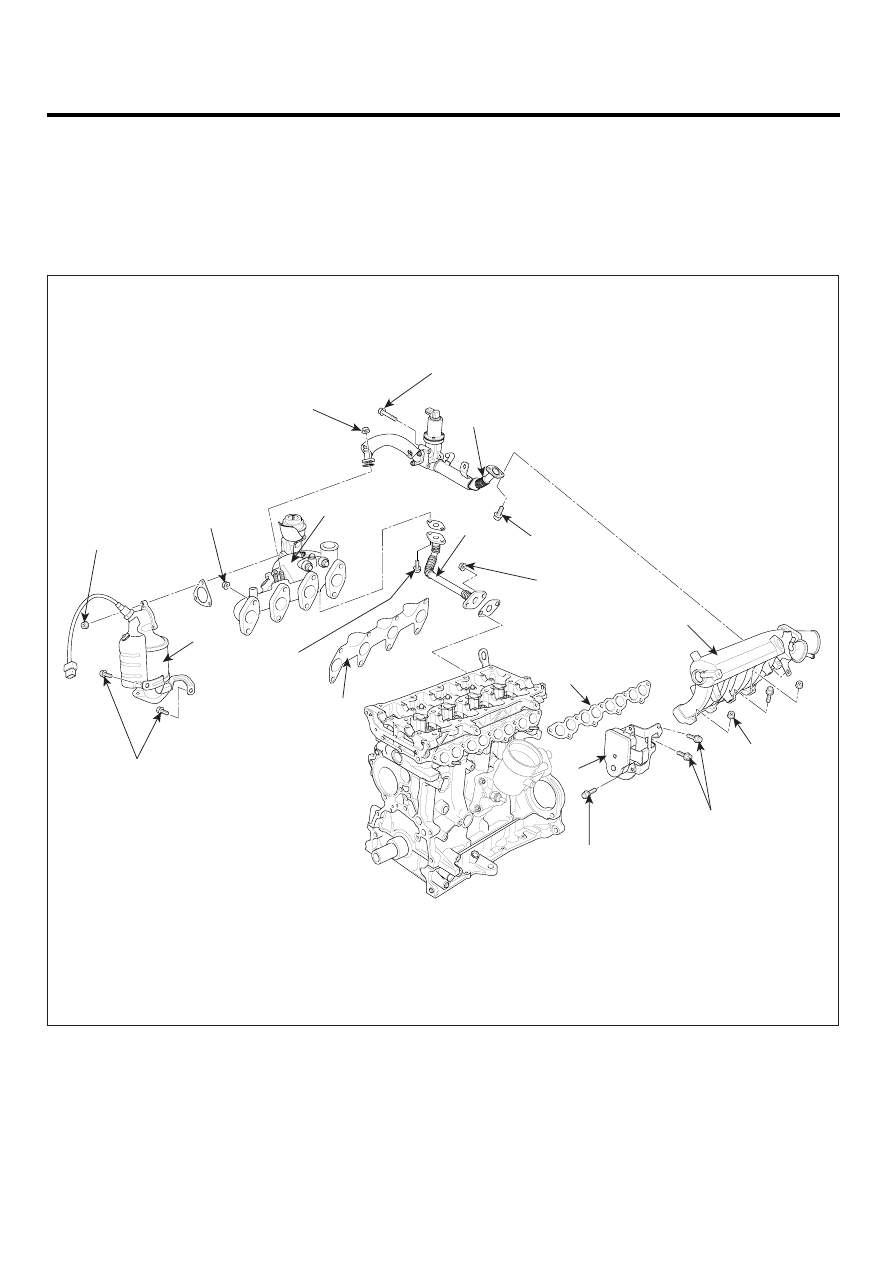

COMPONENT

9.8 ~ 14.7
(1.0 ~ 1.5,
7.2 ~ 10.8)

9.8 ~ 11.8
(1.0 ~ 1.2,
7.2 ~ 8.7)

9.8 ~ 11.8
(1.0 ~ 1.2,
7.2 ~ 8.7)

14.7 ~ 19.6
(1.5 ~ 2.0,
10.8 ~14.5)

14.7 ~ 19.6
(1.5 ~ 2.0, 10.8 ~14.5)

14.7 ~ 19.6
(1.5 ~ 2.0,
10.8 ~14.5)

TORQUE : Nm(kgf.m, Ib-ft)

1.  Intake manifold
2.  Intake manifold gasket
3.  Swirl valve actuator
4.  EGR valve & pipe assembly

5.  Catalytic converter assembly
6.  Turbo charger oil return pipe
7.  Turbo charger & exhaust manifold assembly
8.  Exhaust manifold gasket

5

8

6

21.6 ~ 27.5
(2.2 ~ 2.8, 15.9 ~ 20.3)

21.6 ~ 27.5
(2.2 ~ 2.8, 15.9 ~ 20.3)

29.4 ~ 34.3

(3.0 ~ 3.5, 21.7 ~ 25.3)

29.4 ~ 34.3

(3.0 ~ 3.5,

21.7 ~ 25.3)

29.4 ~ 34.3

(3.0 ~ 3.5,

21.7 ~ 25.3)

7

4

1

2

3

LDJF008A
