Hyundai Tiburon (2003 year). Manual - part 95

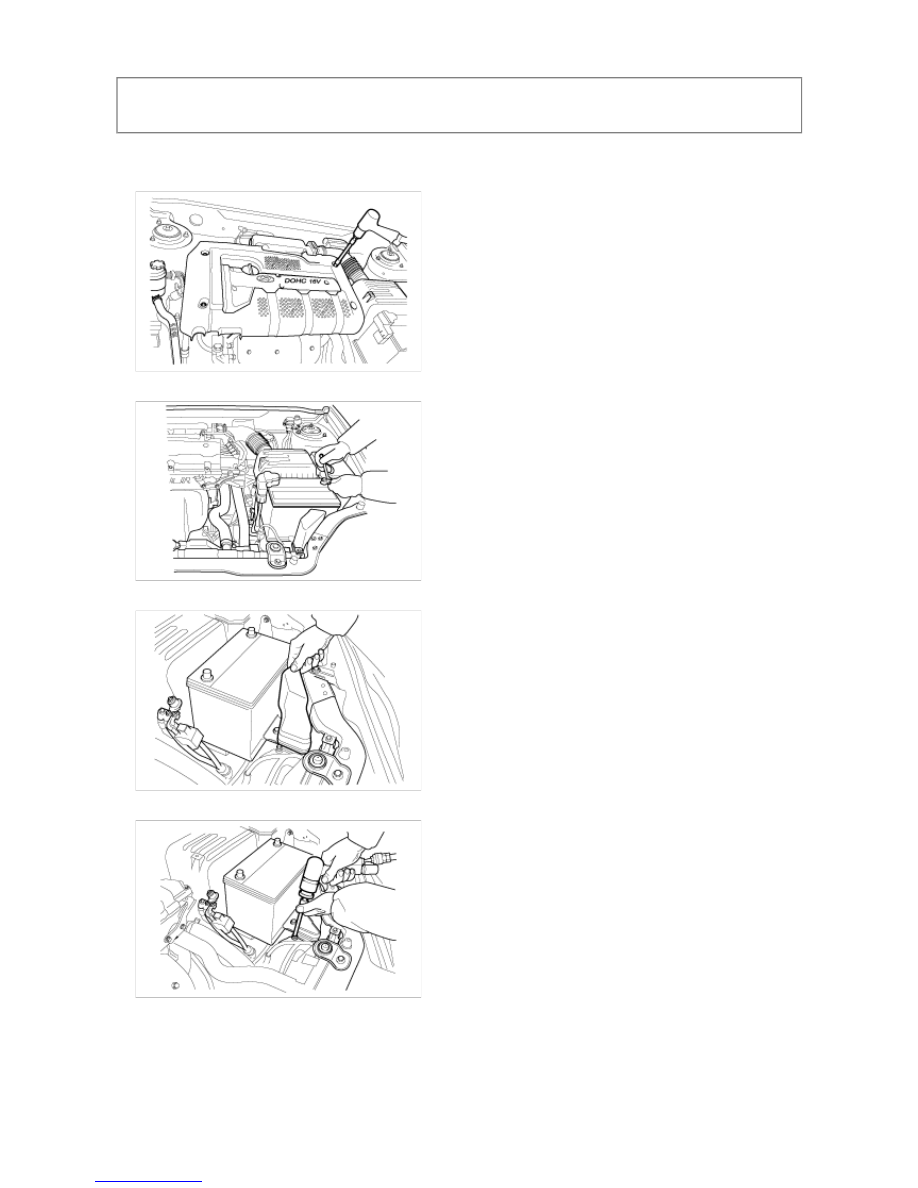

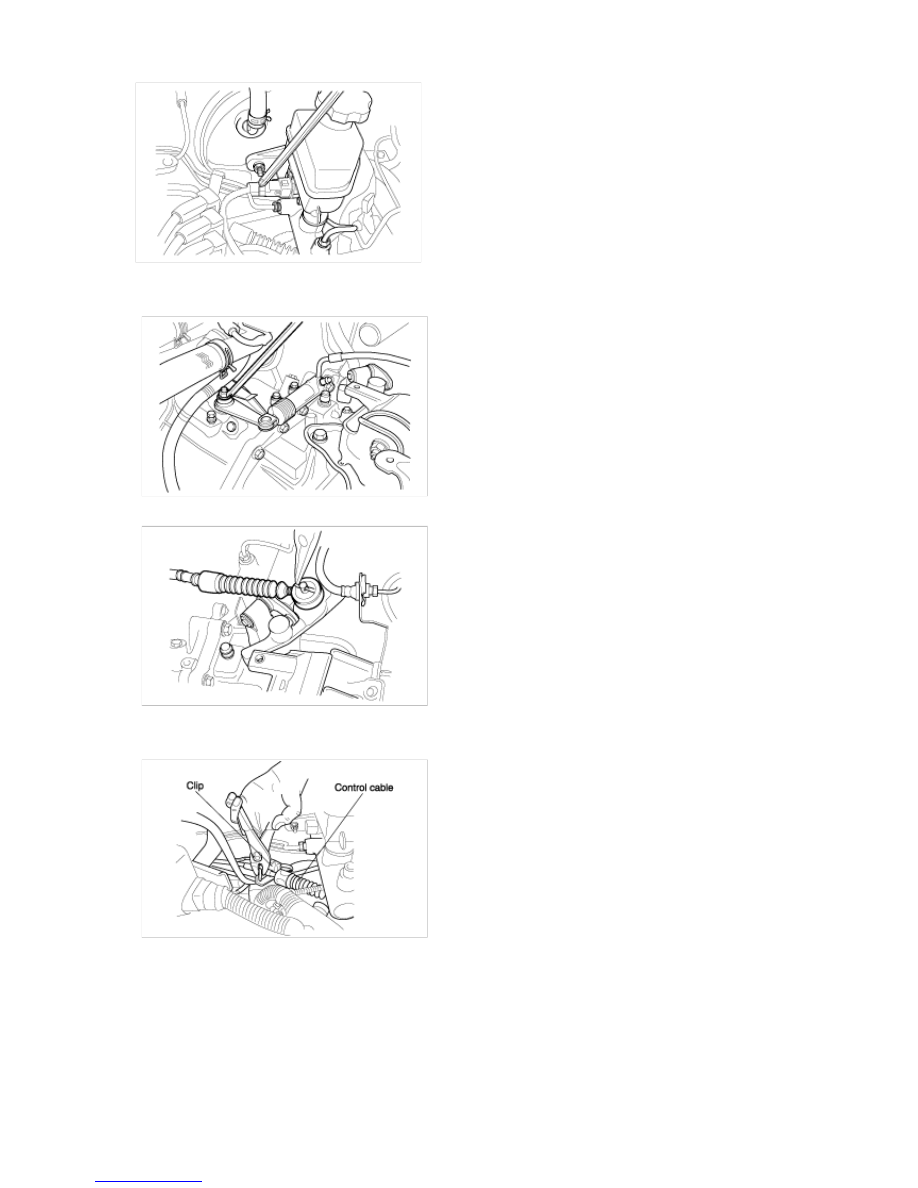

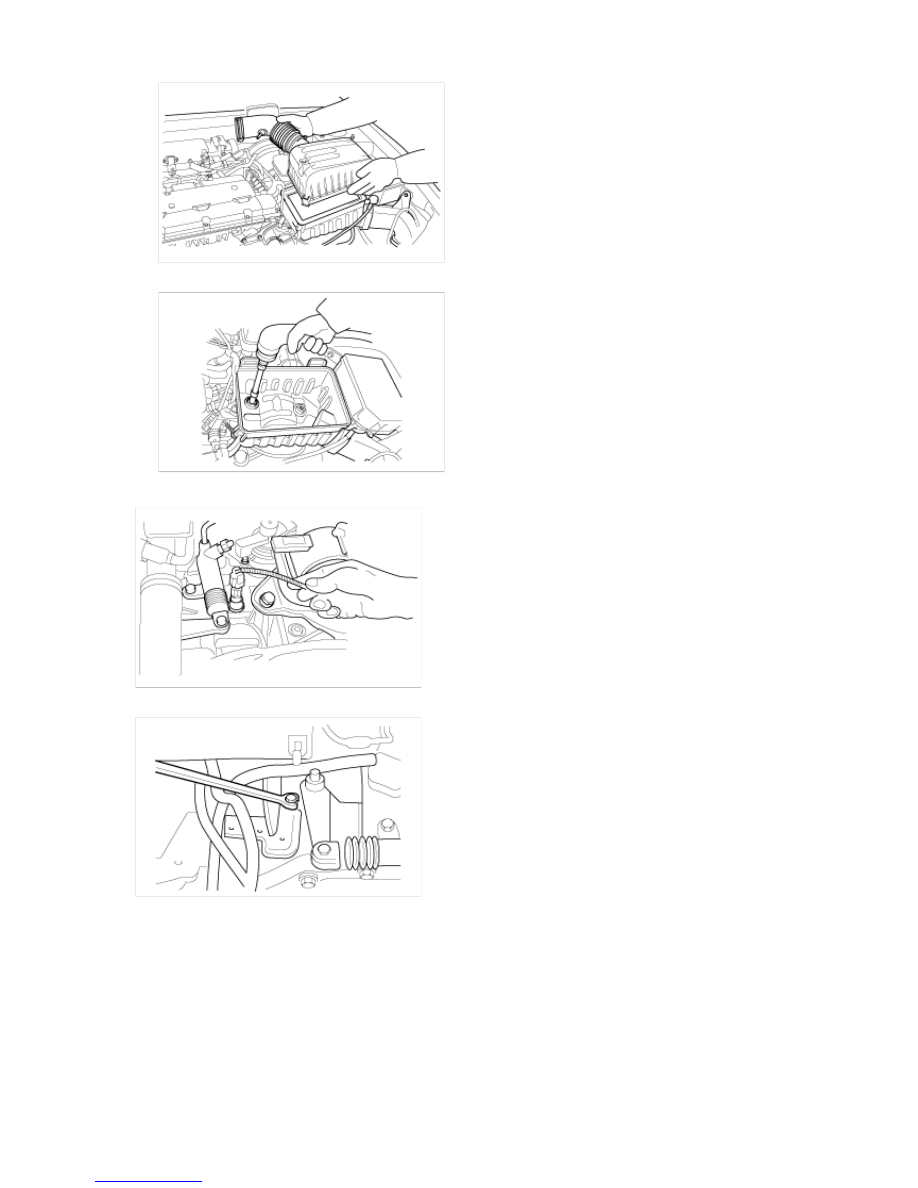

TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Manual Transaxle System > General Information > Specifications
(M5GF1), TIBURON(GK) > 2003 > G 2.7 V6 DOHC > Manual Transaxle System > General Information >
Specifications (M5GF1)
SPECIFICATIONS (M/T)
Model
M5BF2
(5-speed)
M5GF1
(5-speed)
MFA60
(6-speed)
Engine
2.0 DOHC
2.7 DOHC
2.0 DOHC
2.7 DOHC
Gear ratio
1st
3.462
3.231
3.153
←
2nd
2.053
1.952
1.944
←
3rd
1.393
1.296
1.333
←
4th
1.061
0.943
1.055
←
5th
0.837
0.775
0.857
←
6th
-
-
0.704
←
Reverse
3.250
3.455
3.002
←
Final gear ratio
4.056
4.063
4.678
4.428
Oil quantity (
ℓ
)
2.15
2.1
2.2 ± 0.1
SERVICE STANDARD (6-SPEED M/T)
Item
Standard
Limit
Input shaft 6th gear end play
0 ~ 0.1
-
Output shaft 6th gear end play
0 ~ 0.1
-
Output shaft 6th gear bearing play
0 ~ 0.06
-
Clearance between 3rd gear and synchronizer
ring
0.9 ~ 1.45
0.7
Clearance between 4th gear and synchronizer
ring
0.9 ~ 1.45
↑
Clearance between 5th gear and synchronizer
ring
0.95 ~ 1.4
↑
Clearance between 6th gear and synchronizer
ring
0.95 ~ 1.4
↑
Clearance between reverse gear and
synchronizer ring
0.95 ~ 1.4
↑
TIGHTENG TORQUE (6-SPEED M/T)
Item
N·m
kg·cm
lb·ft
Manual transaxle case to clutch housing bolt
63 ~ 67
630 ~ 670
46 ~ 49
Drain plug
30 ~ 39
300 ~ 390
22 ~ 28
Reverse lever
11.8 ~ 15.6
118 ~ 156
8.7 ~ 11.5
Shift check plug
12.7 ~ 17.0
127 ~ 170
9.3 ~ 12.5
Shift check
22.5 ~ 25.5
225 ~ 255
16.6 ~ 18.8
Stopper bolt
26.5 ~ 30.4
26.5 ~ 304
19.6 ~ 22.4
Control shaft bolt
6.3 ~ 8.3
63 ~ 83
4.6 ~ 6.0
Shift lever mounting plate
2 ~ 3
20 ~ 30
1 ~ 2
Differential final gear bolt
112.7 ~ 127.4
1127 ~ 1274
83 ~ 94
