BODY PANEL REPAIR PROCEDURE - Quarter panel

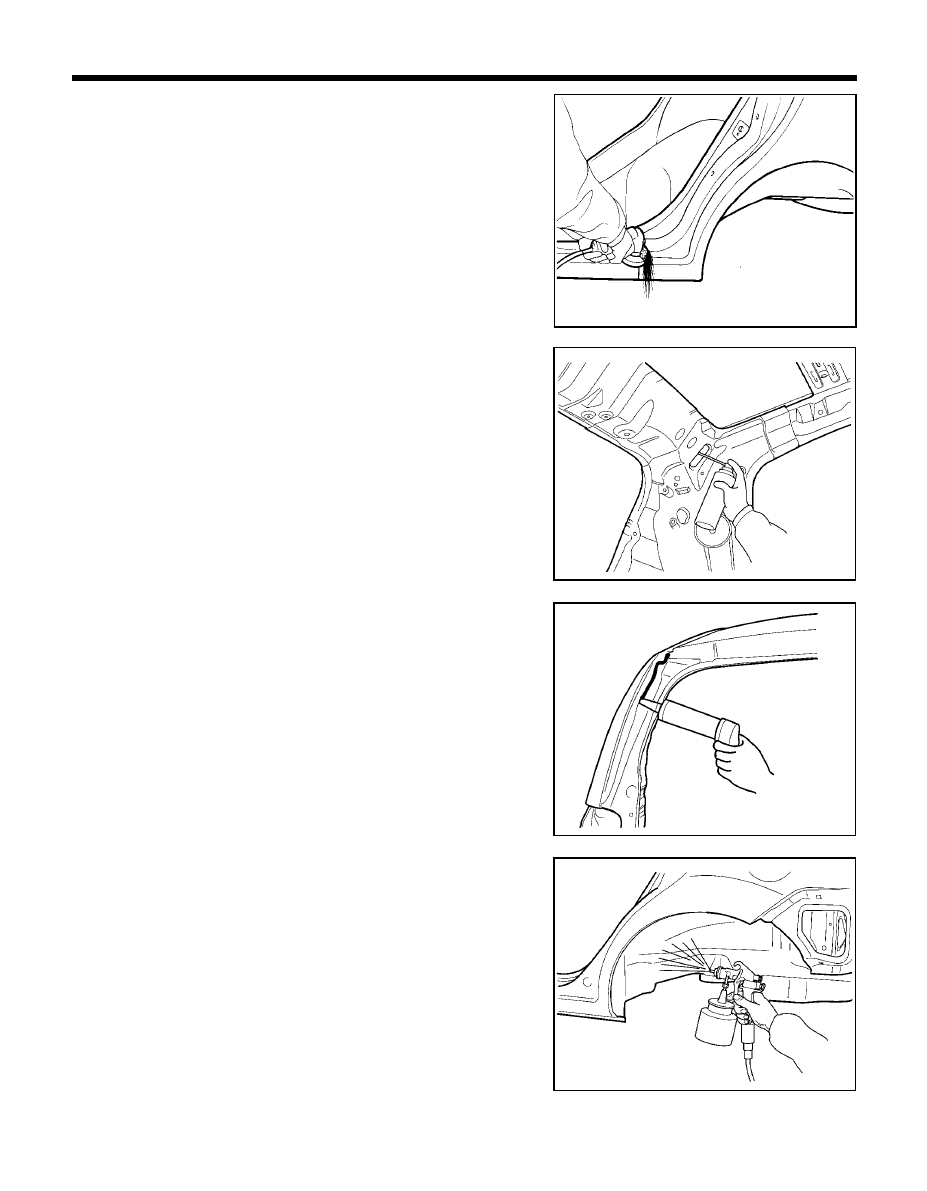

7.

Apply an anti-corrosion agent to the welded parts and interior of
the quarter outer panel (Refer to the CORROSION PROTECTION).

8.

Prepare exterior surfaces for priming, using wax and grease
remover.

9.

Apply metal conditioner and water rinse.

10. Apply conversion coating and water rinse.
11. Apply the two-part epoxy primer.

12. Apply the correct seam sealers to all joints.
13. Reprime over the seam sealer to complete the repair.

14. In order to improve corrosion resistance, if necessary, apply an

under body anti-corrosion agent to the wheel well (Refer to the
CORROSION PROTECTION).

6.

Apply body filler to the welded seam. Sand and finish.
Apply the two-part epoxy primer to the interior of the quarter outer
panel.

PRO-1310

PRO-1330

PRO-1340

PRO-1320

110

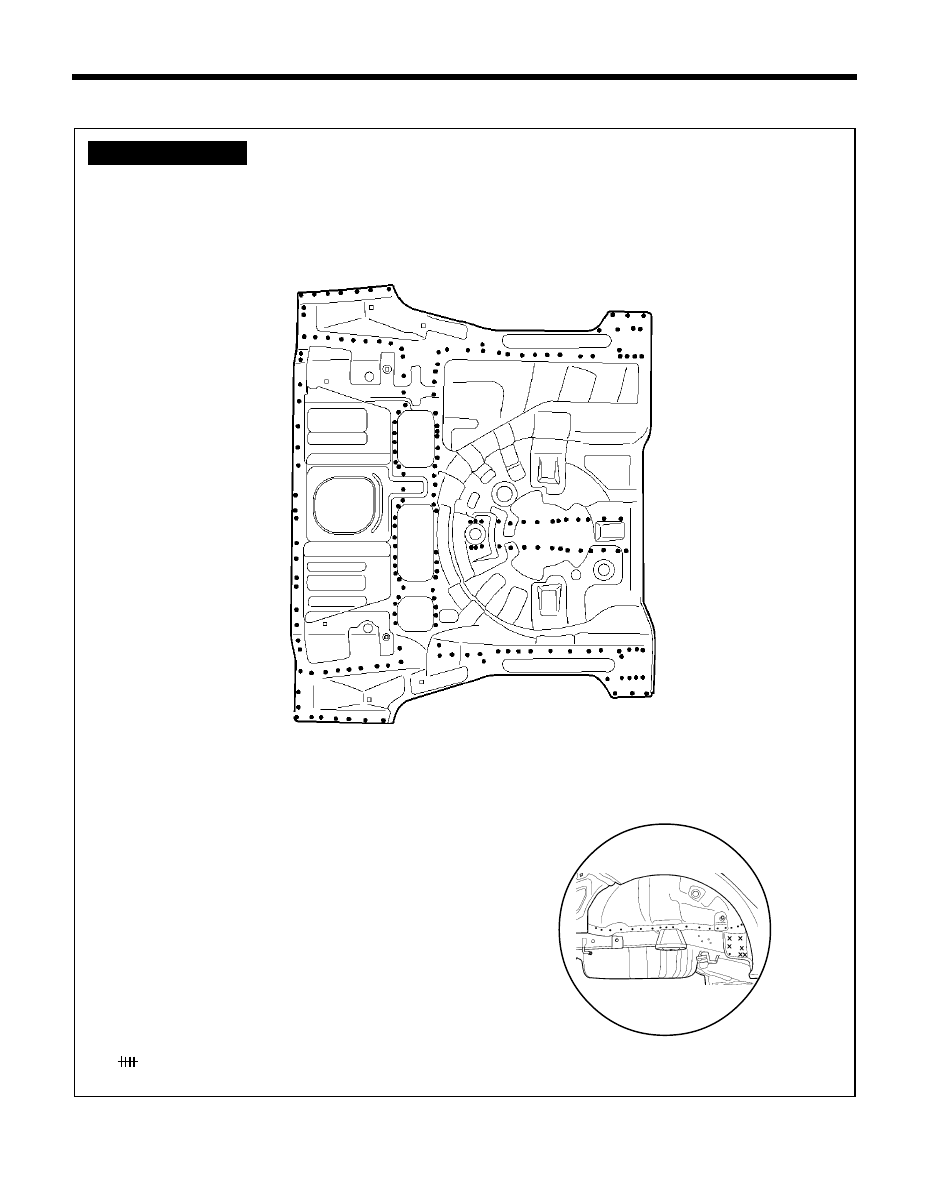

BODY PANEL REPAIR PROCEDURE - Rear floor

z

z

z

z

z MIG plug welding

MIG butt welding

REAR FLOOR

WELDLING POINTS

PRO-1520

PRO-1503

Ô

A

A

Ô

111

REAR SIDE MEMBER (ASSEMBLY)

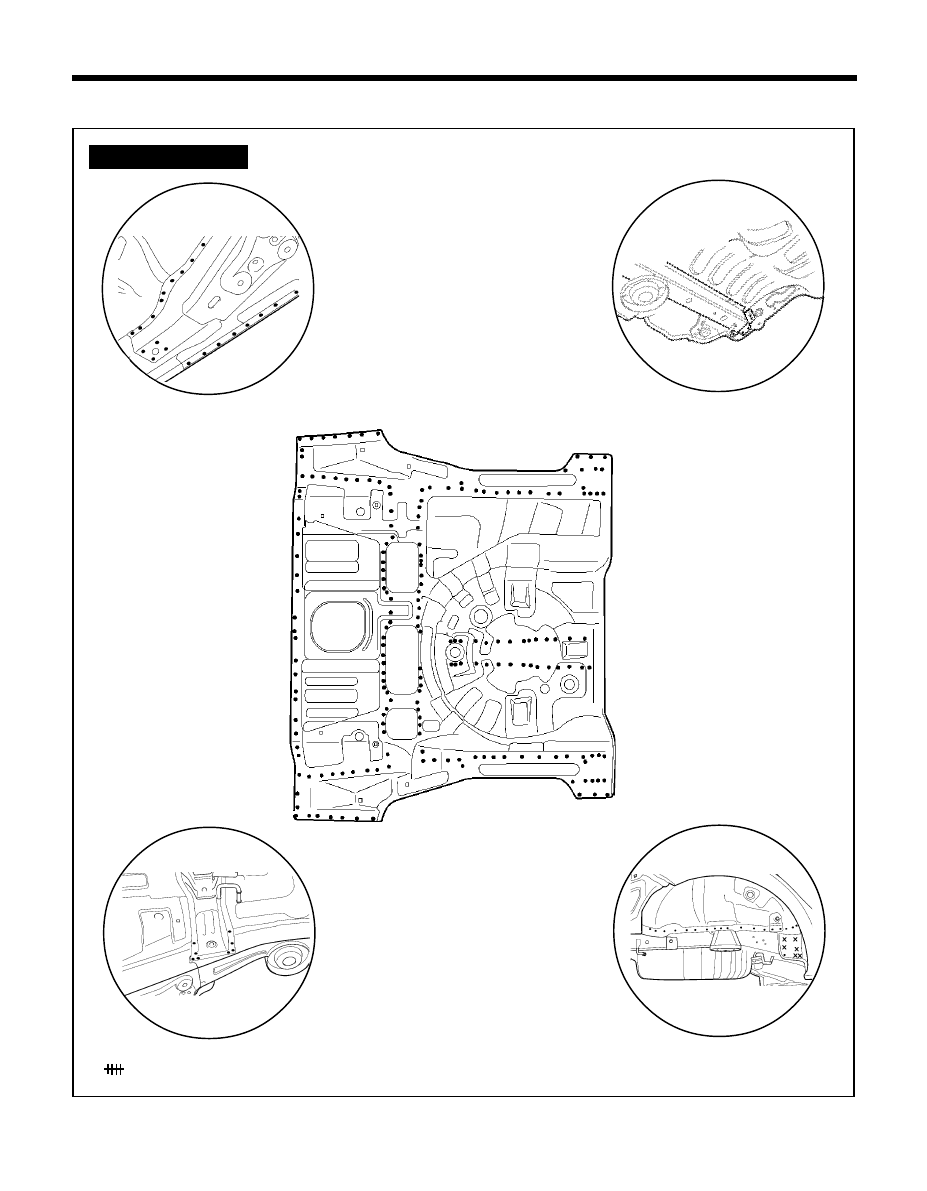

BODY PANEL REPAIR PROCEDURE - Rear side member (assembly)

WELDLING POINTS

z

z

z

z

z MIG plug welding

MIG butt welding

PRO-1502

Ô

A

PRO-1500

Ô

B

Ô

C

Ô

D

PRO-1503

PRO-1520

PRO-1501

Ô

A

B

Ô

D

C

Ô

Ô

112

NOTE
Because the rear side members are desigened to absorb energy
during a rear collision, care must be taken when deciding to use this
repair method. This repair is recommended only for moderate damage
to vehicle, where distortions do not extend forward of the trunk region.
If the damage is more severe, then the entire side member assembly
should be replaced at factory seams without employing this sectioning
procedure.

Refer to the body dimension chart and measure the vehicle to
determine straigthening and alignment requirements. The body must
be returned to its original dimension before beginning the repair
procedure.

BODY PANEL REPAIR PROCEDURE - Rear floor and rear side member (assembly)

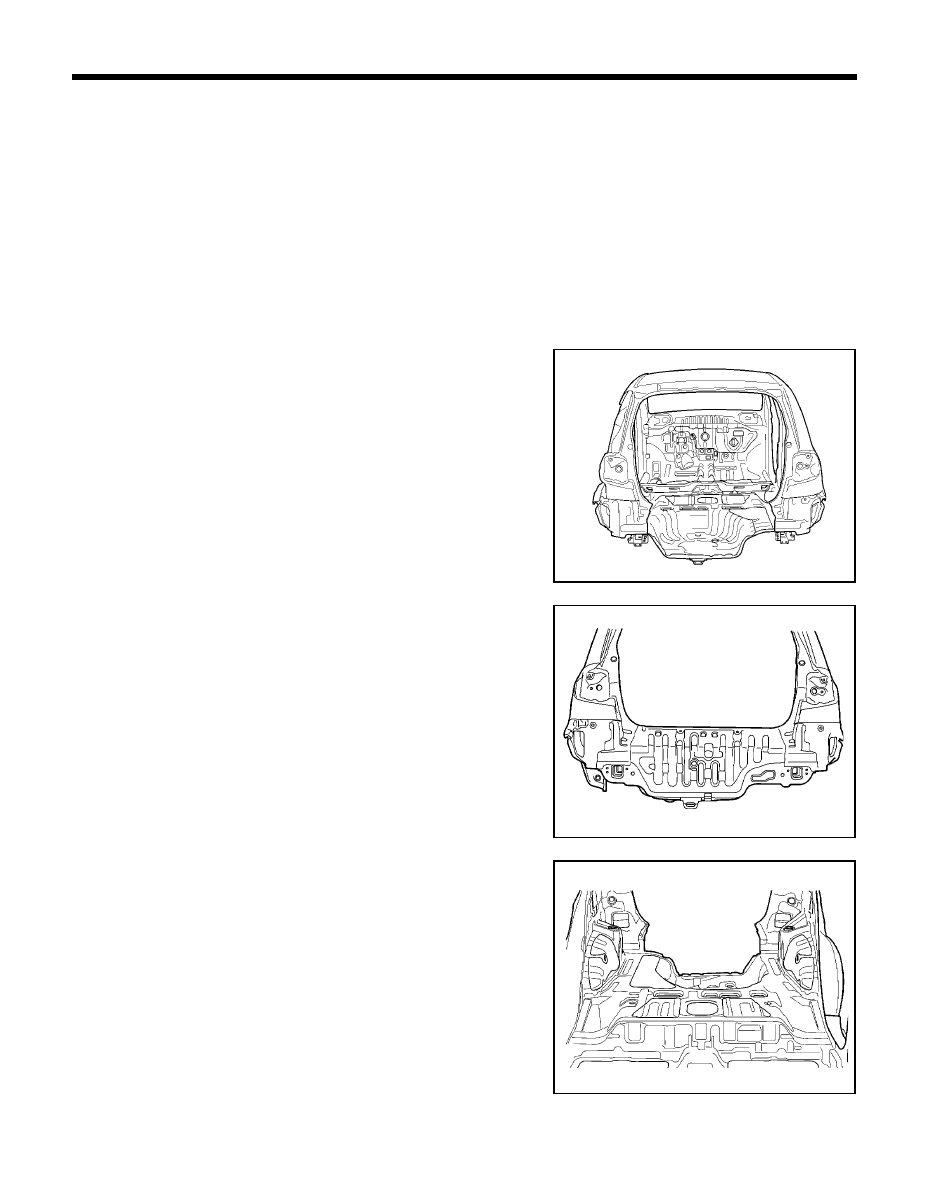

REMOVAL

1.

Drill out all the spotwelds attaching the rear floor panel to the
wheel housings and rear side members.

2.

Remove the rear floor panel

3.

Remove the back panel by drilling out all attaching spotwelds.

PRO-1550

PRO-1560

PRO-1570
