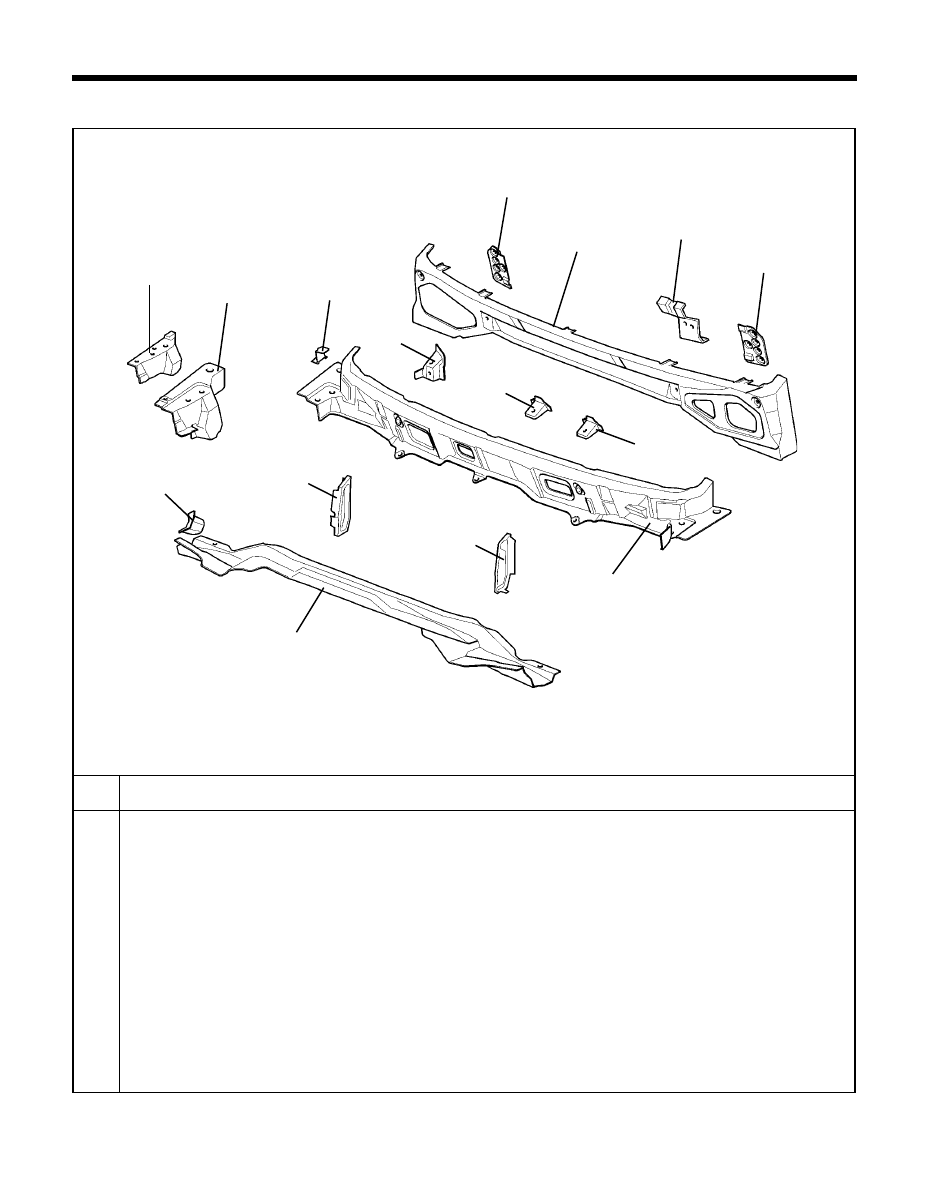

BODY CONSTRUCTION - Front body <Cowl panel>

5. COWL PANEL

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15

TB-280

No.

PART NAME

Cowl top outer panel
Cowl inner rear panel
Cowl inner lower panel
Cowl inner rear plate
Brake bar mounting bracket
Cowl inner rear plate
Wiper pivot mounting side bracket

LH/RH

Wiper center mounting bracket
Cowl under cover mounting bracket
Cowl inner lower support

RH

Cowl inner lower support

LH

Cowl side outer reinforcement

LH/RH

Fender mounting bracket

LH/RH

Cowl side outer panel

LH/RH

Cowl inner lower side bracket

LH/RH

12

14

15

3

1

13

7

4

2

5

6

8

9

11

10

28

BODY CONSTRUCTION - Front body <Cowl panel>

 SECTION A-A'

SECTION D-D'

SECTION B-B'

290-2

290-4

TB-290

290-1

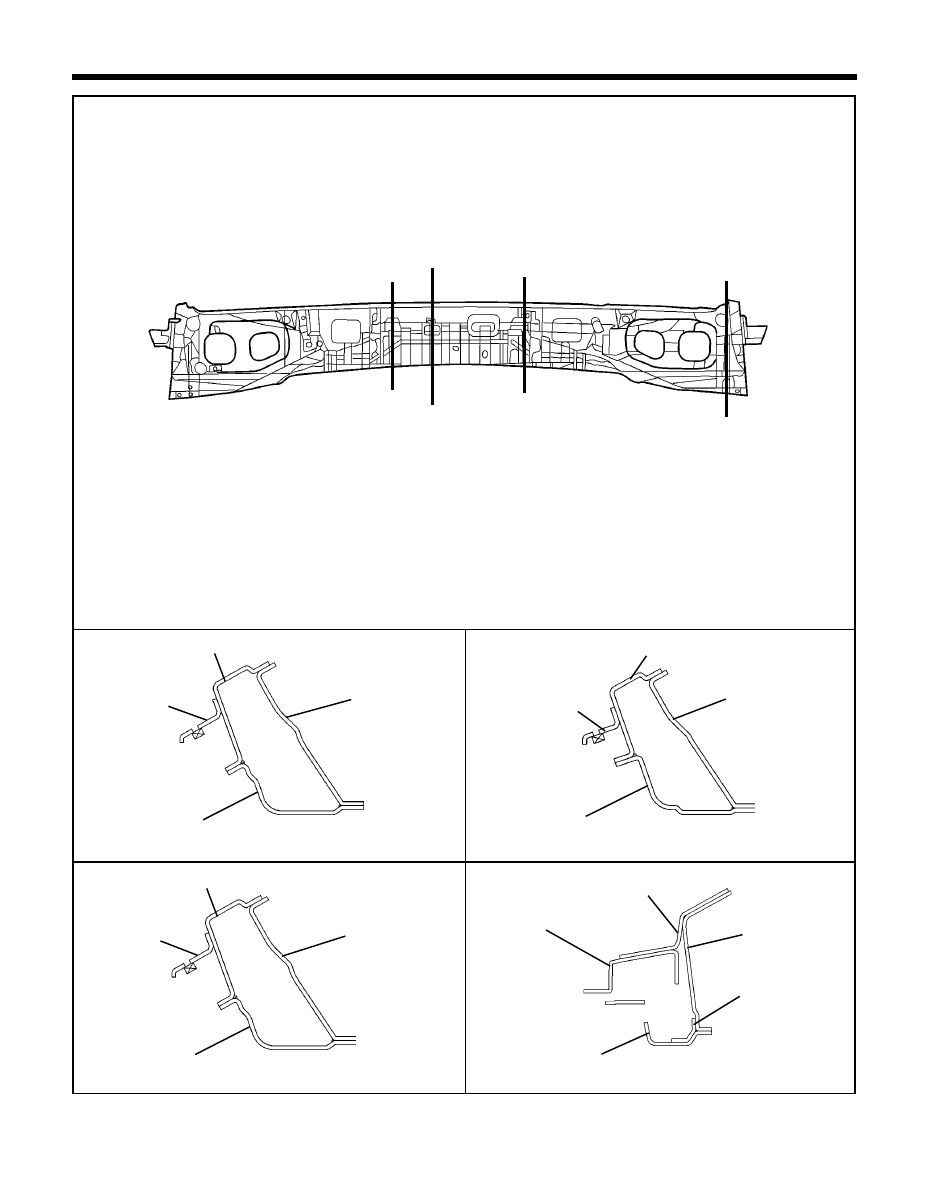

<Cross-Sectional Views>

Cowl top outer panel

Cowl inner rear
complete panel

Wiper center
mounting bracket

Cowl top outer panel

Cowl top outer panel

Cowl inner rear
complete panel

Cowl inner lower
side bracket

Cowl under
cover mounting
bracket

Cowl inner lower panel

Cowl side outer panel

Cowl inner lower
panel

Cowl inner rear
complete panel

Cowl inner rear panel

 SECTION C-C'

290-1

Cowl top outer panel

Cowl inner rear
complete panel

Wiper center
mounting bracket

Cowl inner lower
panel

B'

B

Í

Í

A'

A

Í

Í

C'

C

Í

Í

D'

D

Í

Í

29

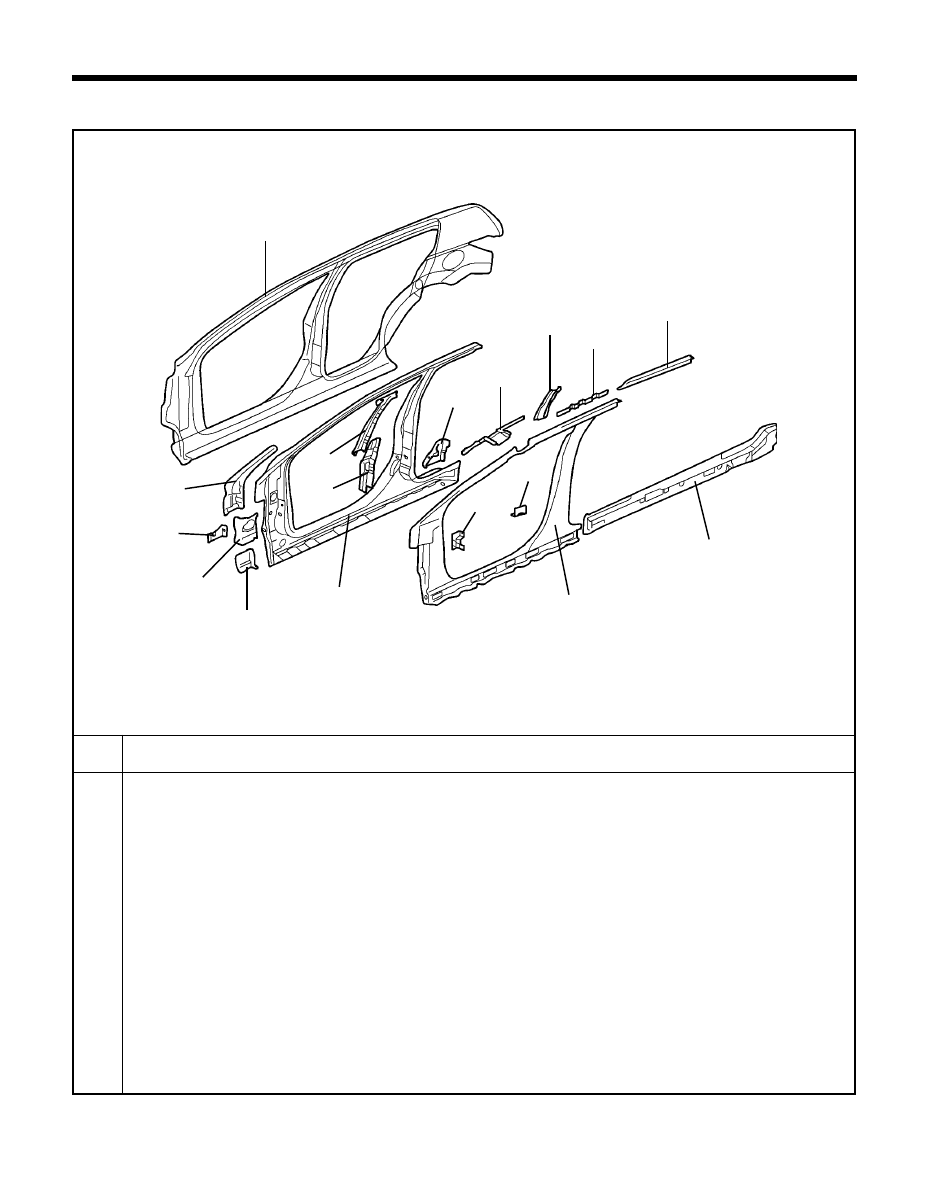

BODY CONSTRUCTION - Side body

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17

No.

TB-340

PART NAME

Side outer panel
Front door upper mounting reinforcement
Front door checker mounting bracket
Front pillar outer bracket
Front door lower mounting bracket
Side outer reinforcement
Center pillar outer upper reinforcement
Center pillar outer lower reinforcement
Rear door lower mounting bracket
Front pillar inner upper reinforcement
Front seat belt upper mounting bracket
Assist handle mounting bracket
Roof side inner rail
Side inner panel
Cowl center bar mounting bracket
Front seat belt lower mounting bracket
Side sill inner panel

SIDE BODY

1

3

2

11

12

10

13

6

7

4

5

8

9

15

16

14

17

30

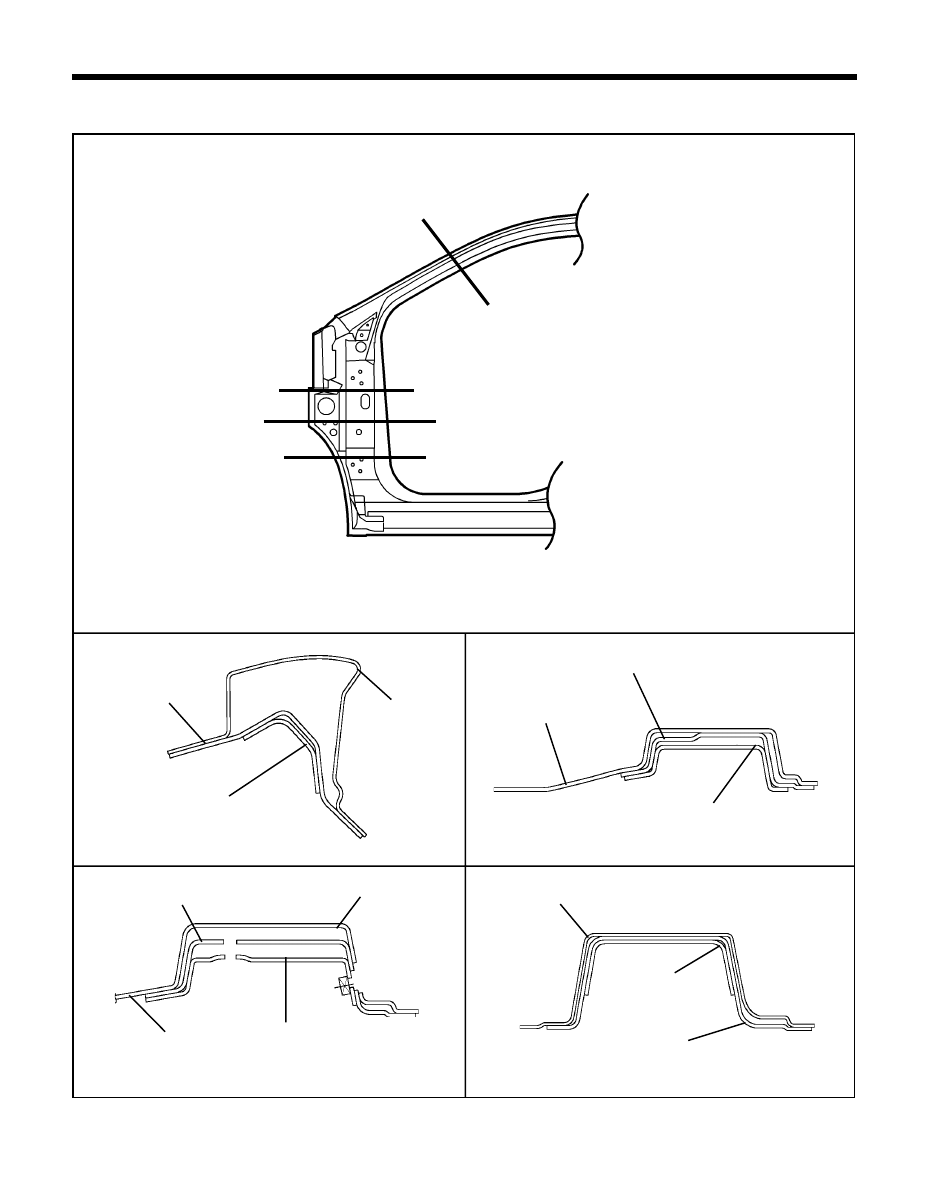

BODY CONSTRUCTION - Side body <Front pillar>

SECTION B-B'

SECTION A-A'

SECTION C-C'

SECTION D-D'

1. FRONT PILLAR

<Cross-Sectional Views>

TB-350

350-1

350-2

350-3

350-4

Side outer panel

Side outer reinforcement

Front door checker mounting
bracket

Side outer reinforcement

Side outer panel

Front door lower
mounting bracket

Front door upper mounting reinforce-
ment

Side outer panel

Side outer panel

Side outer reinforcement

Front door upper
mounting reinforcement

Front door upper
mounting reinforcement

Side outer panel

A

A'

Ó

Ó

C

C'

Ó

Ó

B'

B

Ð

Ð

D

D'

Ð

Ð
